Model Visualisation

Catalyst-created ReactionSystem models can be visualised either as LaTeX code (of either the model reactions or its equations) or as a network graph. This section describes both functionalities.

Displaying models using LaTeX

Once a model has been created, the Latexify.jl package can be used to generate LaTeX code of the model. This can either be used for easy model inspection (e.g. to check which equations are being simulated), or to generate code which can be directly pasted into a LaTeX document.

Let us consider a simple Brusselator model:

using Catalyst
brusselator = @reaction_network begin
    A, ∅ --> X
    1, 2X + Y --> 3X
    B, X --> Y
    1, X --> ∅
end

\[ \begin{align*} \varnothing &\xrightarrow{A} \mathrm{X} \\ 2 \mathrm{X} + \mathrm{Y} &\xrightarrow{1} 3 \mathrm{X} \\ \mathrm{X} &\xrightarrow{B} \mathrm{Y} \\ \mathrm{X} &\xrightarrow{1} \varnothing \end{align*} \]

To display its reaction (using LaTeX formatting) we run latexify with our model as input:

using Latexify
latexify(brusselator)

\[ \begin{align*} \varnothing &\xrightarrow{A} \mathrm{X} \\ 2 \mathrm{X} + \mathrm{Y} &\xrightarrow{1} 3 \mathrm{X} \\ \mathrm{X} &\xrightarrow{B} \mathrm{Y} \\ \mathrm{X} &\xrightarrow{1} \varnothing \end{align*} \]

Here, we note that the output of latexify(brusselator) is identical to how a model is displayed by default. Indeed, the reason is that Catalyst internally uses Latexify's latexify function to display its models. It is also possible to display the ODE equations a model would generate by adding the form = :ode argument:

latexify(brusselator; form = :ode)

\[\begin{align} \frac{\mathrm{d} X\left( t \right)}{\mathrm{d}t} &= A - X\left( t \right) - B X\left( t \right) + \frac{1}{2} \left( X\left( t \right) \right)^{2} Y\left( t \right) \\ \frac{\mathrm{d} Y\left( t \right)}{\mathrm{d}t} &= B X\left( t \right) - \frac{1}{2} \left( X\left( t \right) \right)^{2} Y\left( t \right) \end{align} \]

If you wish to copy the output to your clipboard (e.g. so that you can paste it into a LaTeX document), run copy_to_clipboard(true) before you run latexify. A more throughout description of Latexify's features can be found in its documentation.

Displaying model networks

Catalyst uses GraphMakie.jl to display representations of chemical reaction networks, including the complex graph and the species-reaction graph (which is similar to the Petri net representation). To get started, import Catalyst, GraphMakie, and NetworkLayout to load the CatalystGraphMakieExtension extension, and then load a Makie backend (CairoMakie is a good lightweight choice). Here, while Catalyst primarily uses Plots.jl for plotting, Makie is used for displaying network graphs. Makie can also be used for plotting more generally (and is also a preferred option for some).

using Catalyst, GraphMakie, NetworkLayout
using CairoMakie

Let's declare a Brusselator model to see this plotting functionality. The functions plot_network and plot_complexes are used to create the species-reaction and complex graphs, respectively. For a more thorough description of these two representations, please see the network visualization section of the API, but the gist is that the species-reaction graph has species and reactions as nodes, and the complex graph has reaction complexes as nodes. Below we will plot the species-reaction graph using plot_network.

brusselator = @reaction_network begin
    A, ∅ --> X
    1, 2X + Y --> 3X
    B, X --> Y
    1, X --> ∅
end

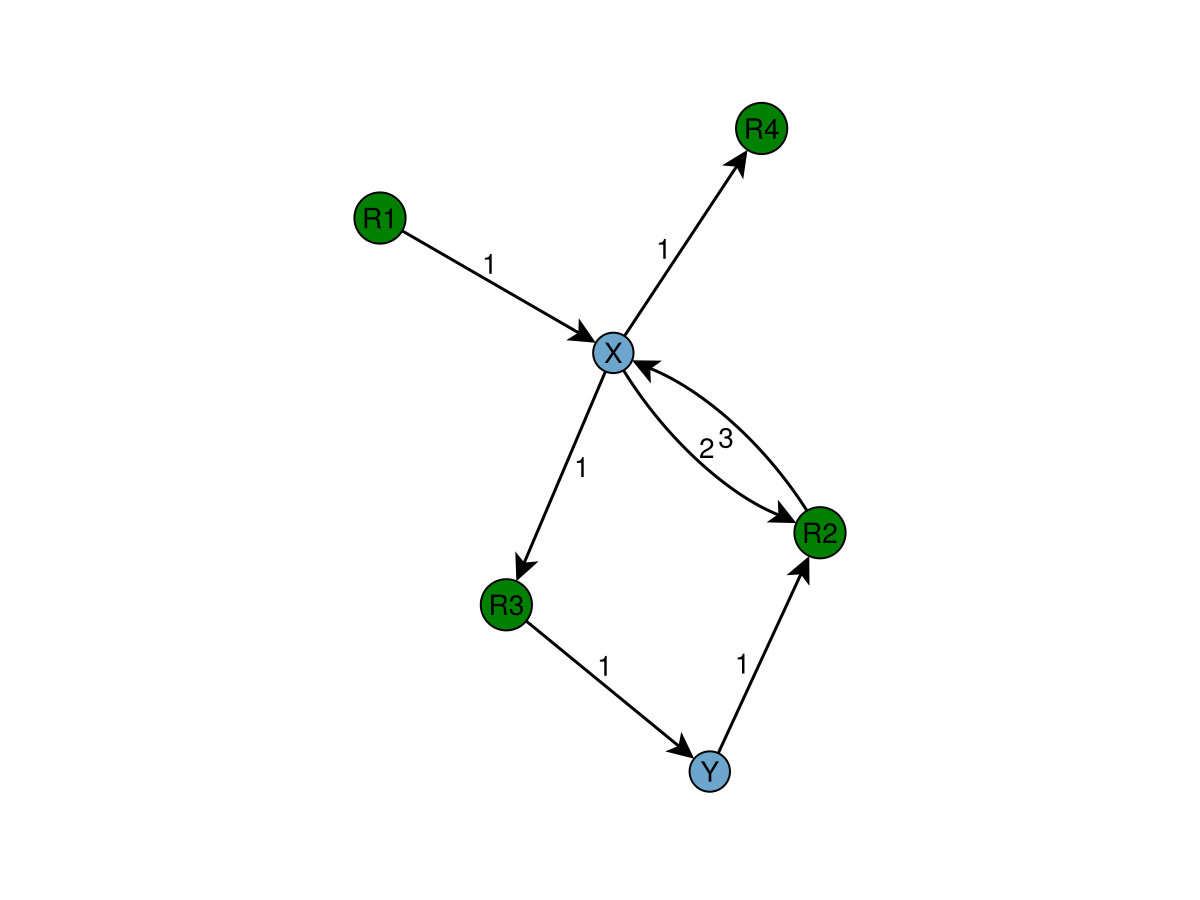

plot_network(brusselator)

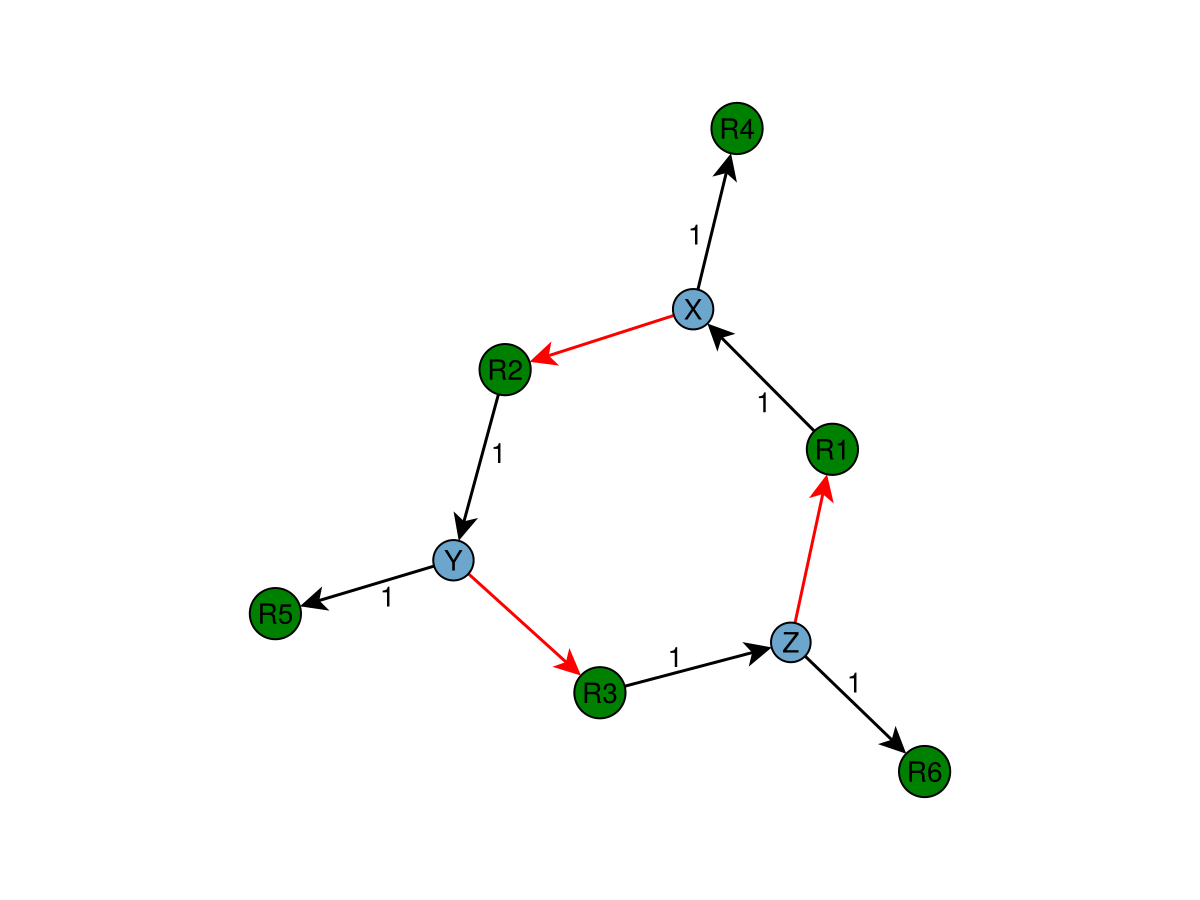

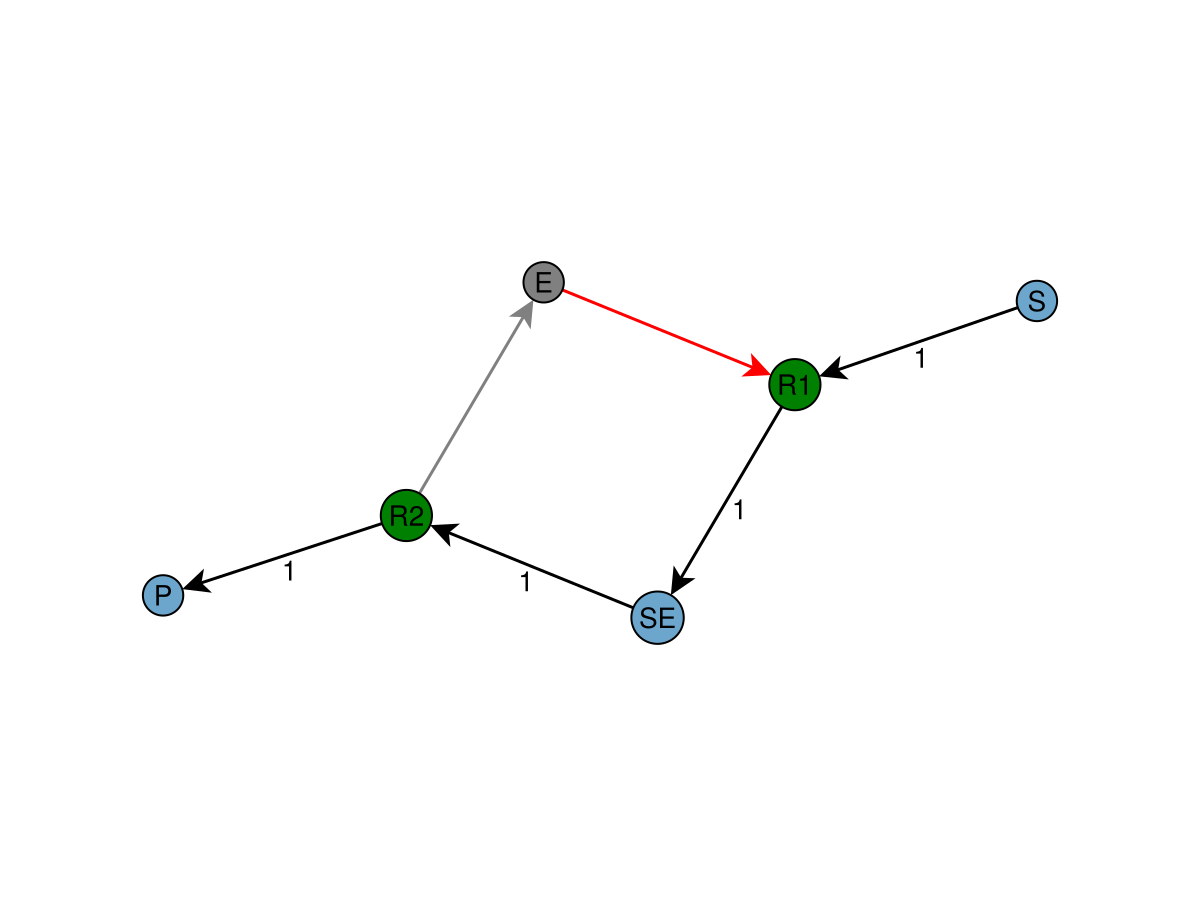

The species-reaction graph (or network graph) represents species as blue nodes and reactions as green dots. Black arrows from species to reactions indicate substrates, and are labelled with their respective stoichiometries. Similarly, black arrows from reactions to species indicate products (also labelled with their respective stoichiometries). If there are any reactions where a species affect the rate, but does not participate as a reactant, this is displayed with a dashed red arrow. This can be seen in the following Repressilator model:

repressilator = @reaction_network begin
    hillr(Z,v,K,n), ∅ --> X
    hillr(X,v,K,n), ∅ --> Y
    hillr(Y,v,K,n), ∅ --> Z
    d, (X, Y, Z) --> ∅
end
plot_network(repressilator)

A generated graph can be saved using Makie's save function.

repressilator_graph = plot_network(repressilator)
save("repressilator_graph.png", repressilator_graph)

Finally, a network's reaction complexes (and the reactions in between these) can be displayed using the plot_complexes(brusselator) function:

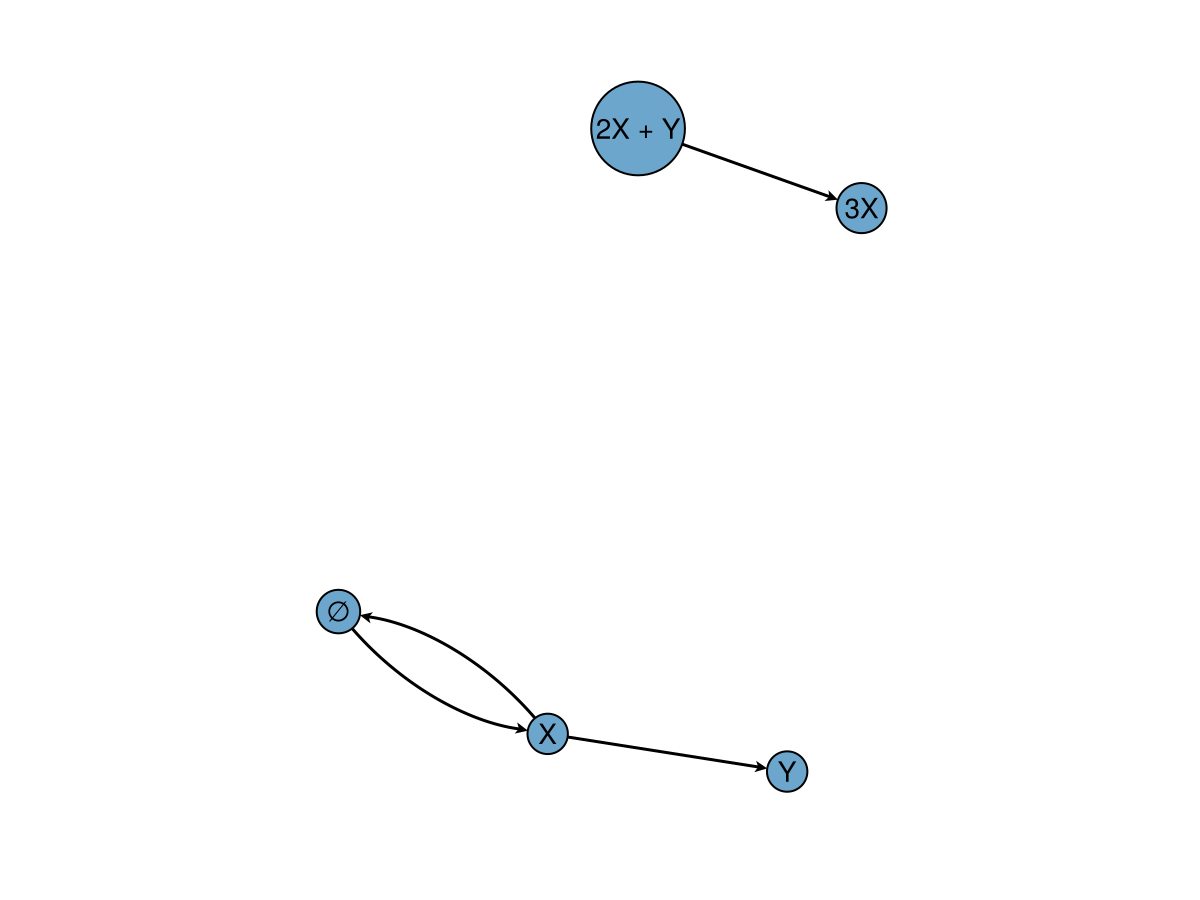

plot_complexes(brusselator)

Here, reaction complexes are displayed as blue nodes, and reactions between complexes are displayed as black arrows. Red arrows indicate that the rate constantof a reaction has a species-dependence. Edges can be optionally labeled with their rate expressions by calling with the option show_rate_labels.

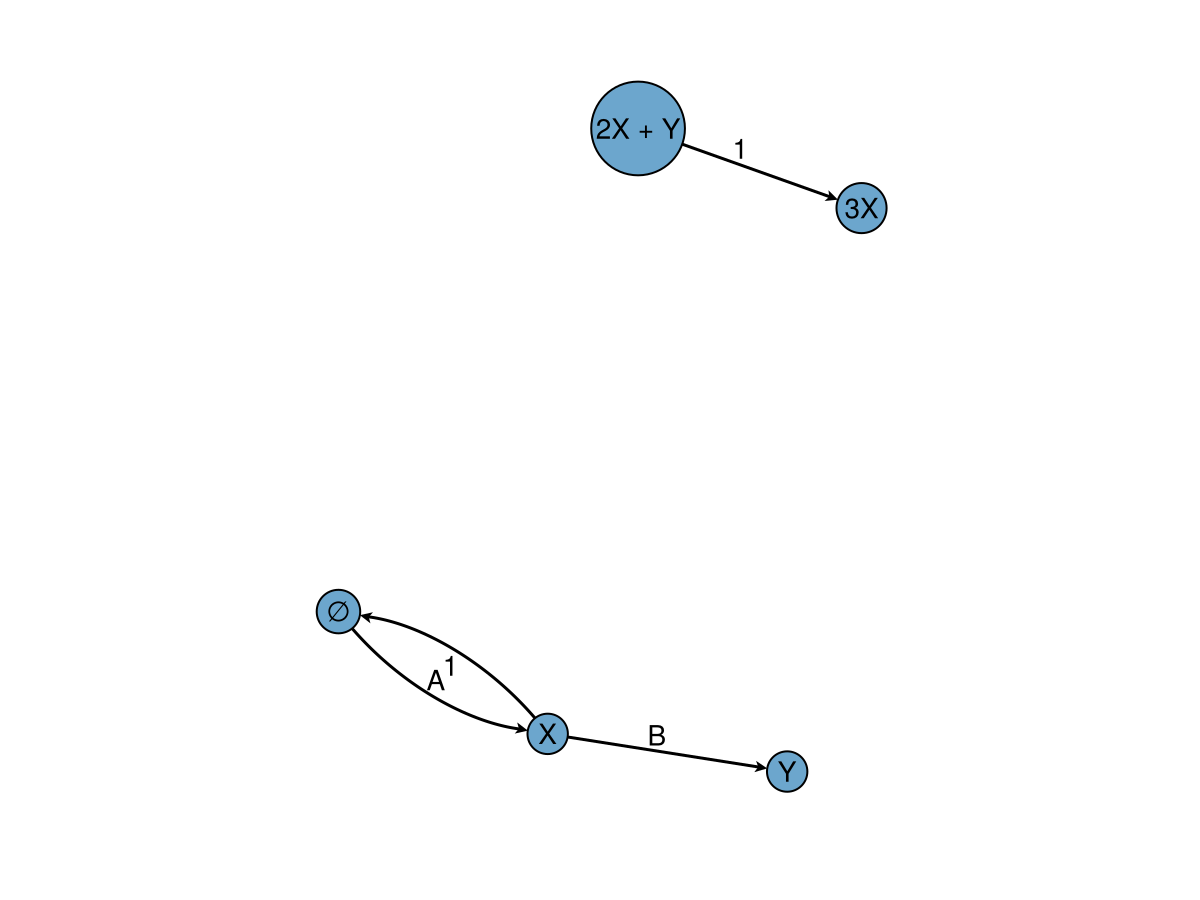

plot_complexes(brusselator, show_rate_labels = true)

Customizing Plots

In this section we demonstrate some of the ways that plot objects can be manipulated to give nicer images. Let's start with our brusselator plot once again. Note that the plot function returns three objects: the Figure, the Axis, and the Plot, which can each be customized independently. See the general Makie documentation for more information.

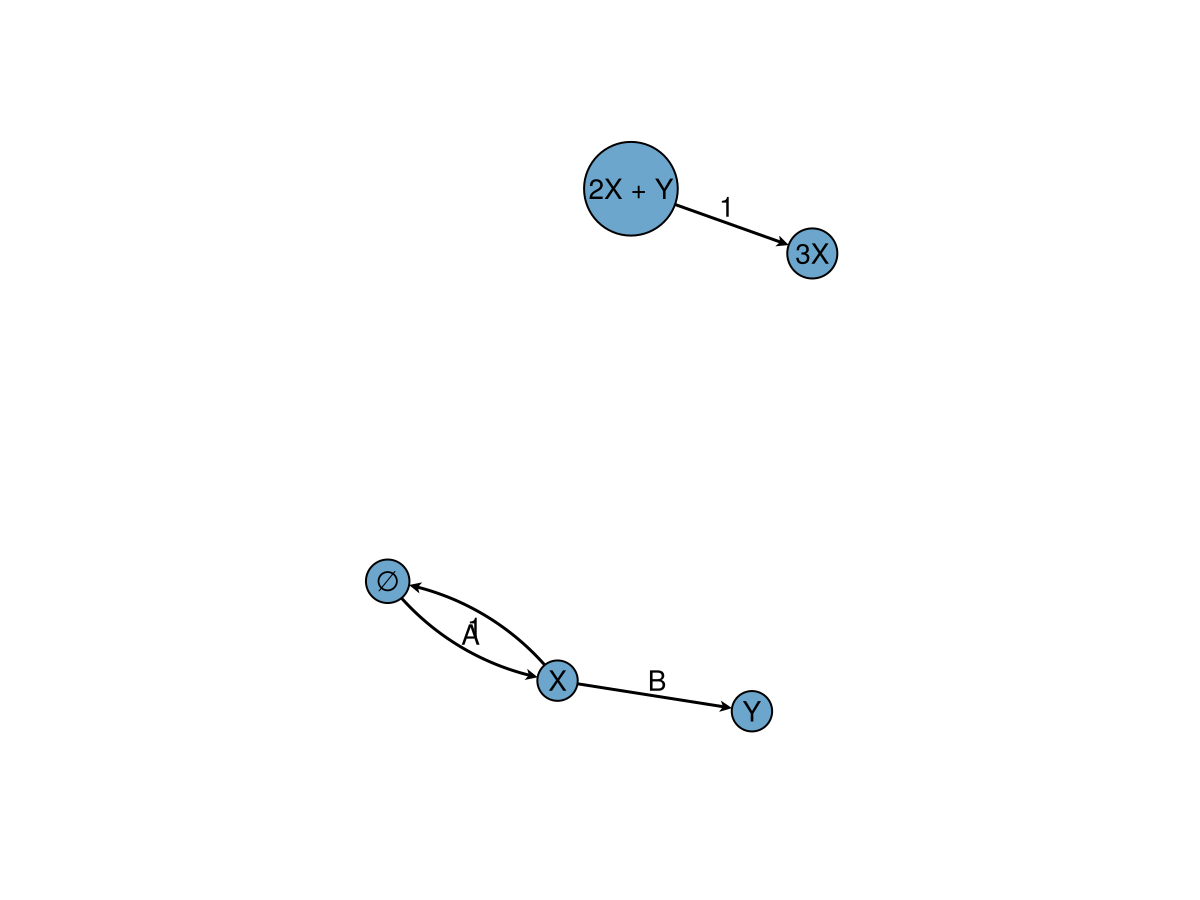

f, ax, p = plot_complexes(brusselator, show_rate_labels = true)

It seems like a bit of the top node is cut off. Let's increase the top and bottom margins by increasing yautolimitmargin.

ax.yautolimitmargin = (0.3, 0.3) # defaults to (0.15, 0.15)
ax.aspect = DataAspect()
f

There are many keyword arguments that can be passed to plot_network or plot_complexes to change the look of the graph (which get passed to the graphplot Makie recipe). Let's change the color of the nodes and make the inner labels a bit smaller. Let's also give the plot a title.

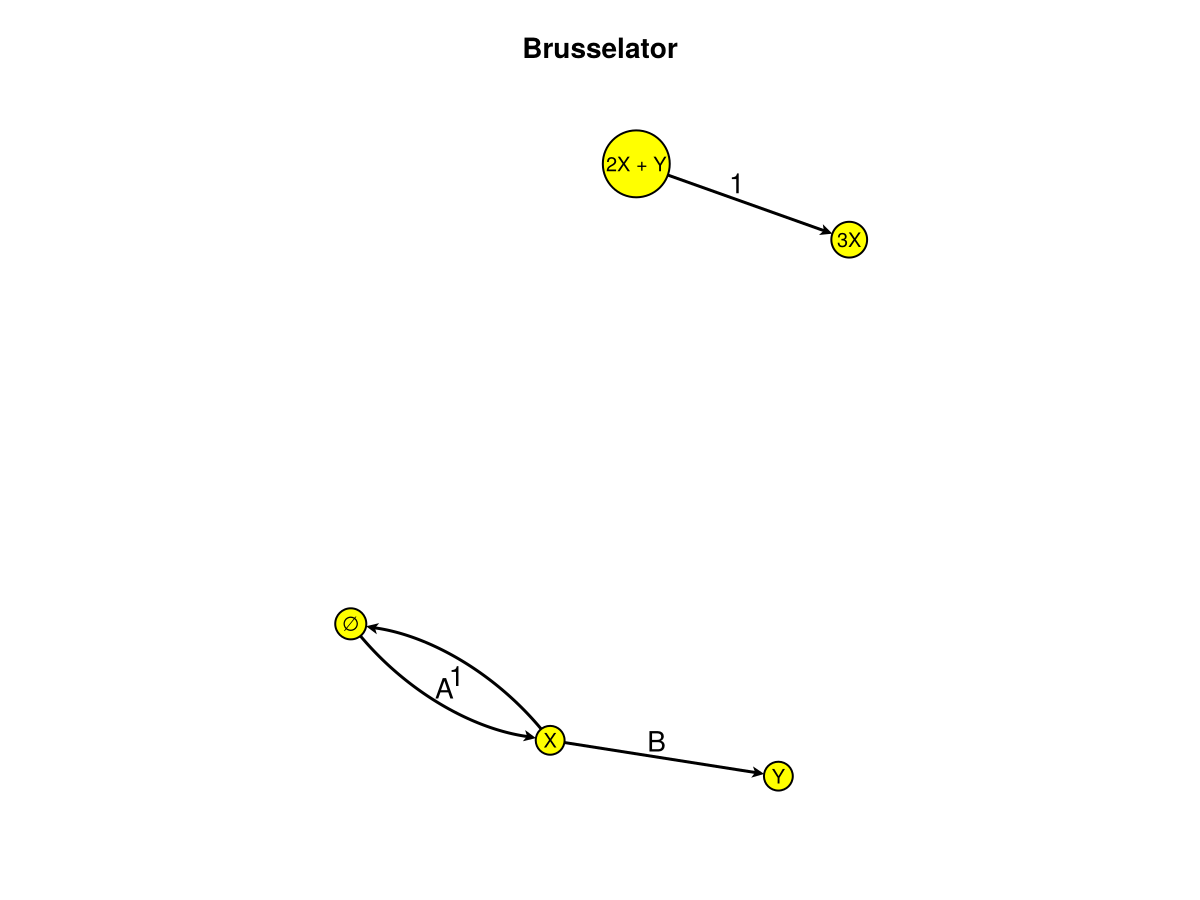

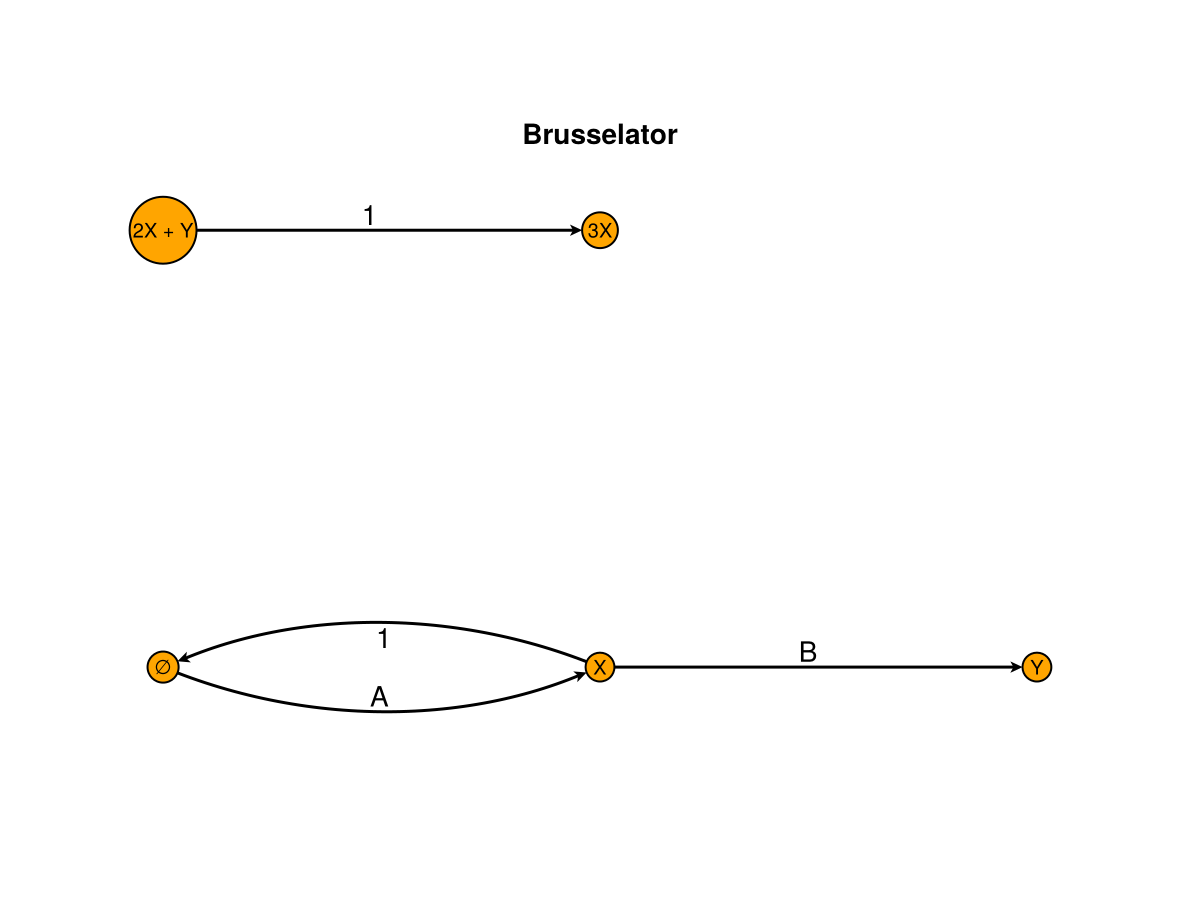

f, ax, p = plot_complexes(brusselator, show_rate_labels = true, node_color = :yellow, ilabels_fontsize = 10)
ax.title = "Brusselator"
f

Most of the kwargs that modify the nodes or edges will also accept a vector with the same length as the number of nodes or edges, respectively. See here for a full list of keyword arguments to graph_plot. Note that plot_complexes and plot_network default to layout = Stress() rather than layout = Spring(), since Stress() is better at generating plots with fewer edge crossings. More layout options and customizations (such as pinning nodes to certain positions) can be found in the NetworkLayout documentation.

Once a graph is already created we can also change the keyword arguments by modifying the fields of the Plot object p.

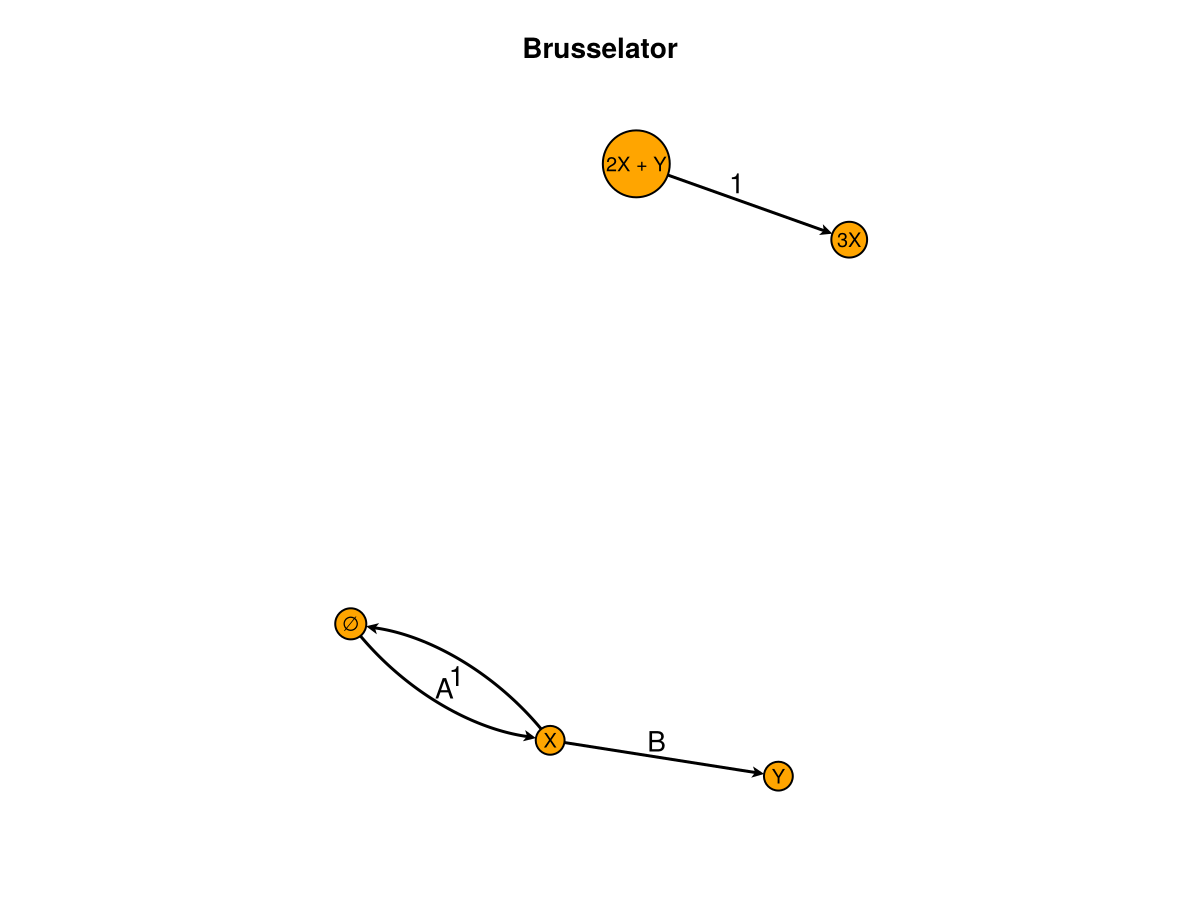

p.node_color = :orange
f

Custom node positions can also be given, if the automatic layout is unsatisfactory.

fixedlayout = [(0,0), (1,0), (0,1), (1,1), (2,0)]
p.layout = fixedlayout
autolimits!(ax)
f

Makie graph plots can be made to be interactive, allowing one to drag nodes and edges. To do this, we retrieve the axis from the GraphMakie plot, and then register the interactions. Note that this can only be done if GLMakie is the installed Makie backend. See the GraphMakie docs for more information about the types of interactions one can register. Below is a non-interactive code example that shows how to do this:

using GLMakie
f, ax, p = plot_network(brusselator)
deregister_interaction!(ax, :rectanglezoom)
register_interaction!(ax, :ndrag, NodeDrag(p))
register_interaction!(ax, :edrag, EdgeDrag(p))

The equivalent of show for Makie plots is the display function.

f = plot_network(brusselator)
display(f)

Once you are happy with the graph plot, you can save it using the save function.

save("fig.png", f)
