default_t()

Return Catalyst's default independent time variable.

Use this when programmatically declaring species or constructing ReactionSystems so that the independent variable matches Catalyst's DSL defaults.

Examples

t = default_t()
@species X(t)

default_time_deriv()

Return Catalyst's default time derivative operator.

This is the derivative with respect to default_t, and is useful when programmatically constructing equations involving time derivatives.

Examples

t = default_t()
D = default_time_deriv()
@species X(t)
eq = D(X) ~ -X

@reaction_network

Macro for generating chemical reaction network models (Catalyst ReactionSystems). See the (DSL introduction and advantage usage) sections of the Catalyst documentation for more details on the domain-specific language (DSL) that the macro implements. The macro's output (a ReactionSystem structure) is central to Catalyst and its functionality. How to e.g. simulate these is described in the Catalyst documentation.

Returns:

• A Catalyst ReactionSystem, i.e. a symbolic model for the reaction network. The returned

system is marked complete. To obtain a ReactionSystem that is not marked complete, for example to then use in compositional modelling, see the otherwise equivalent @network_component macro.

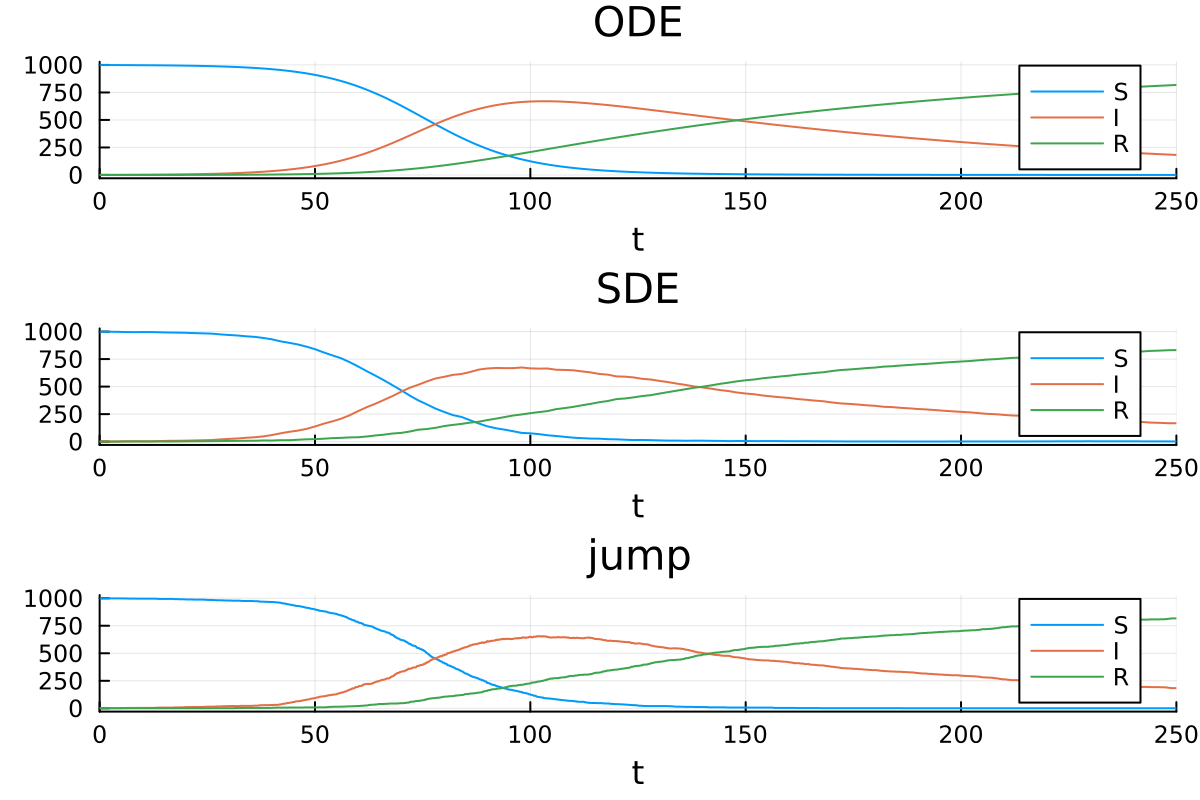

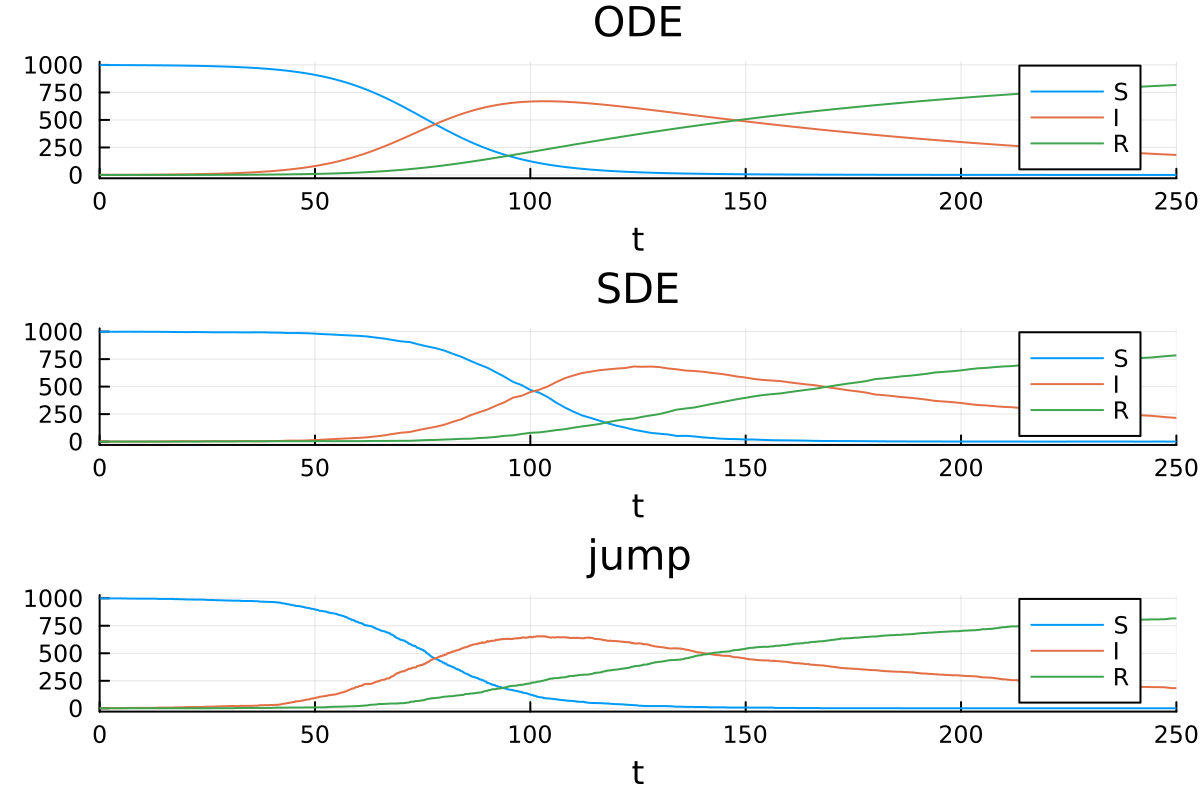

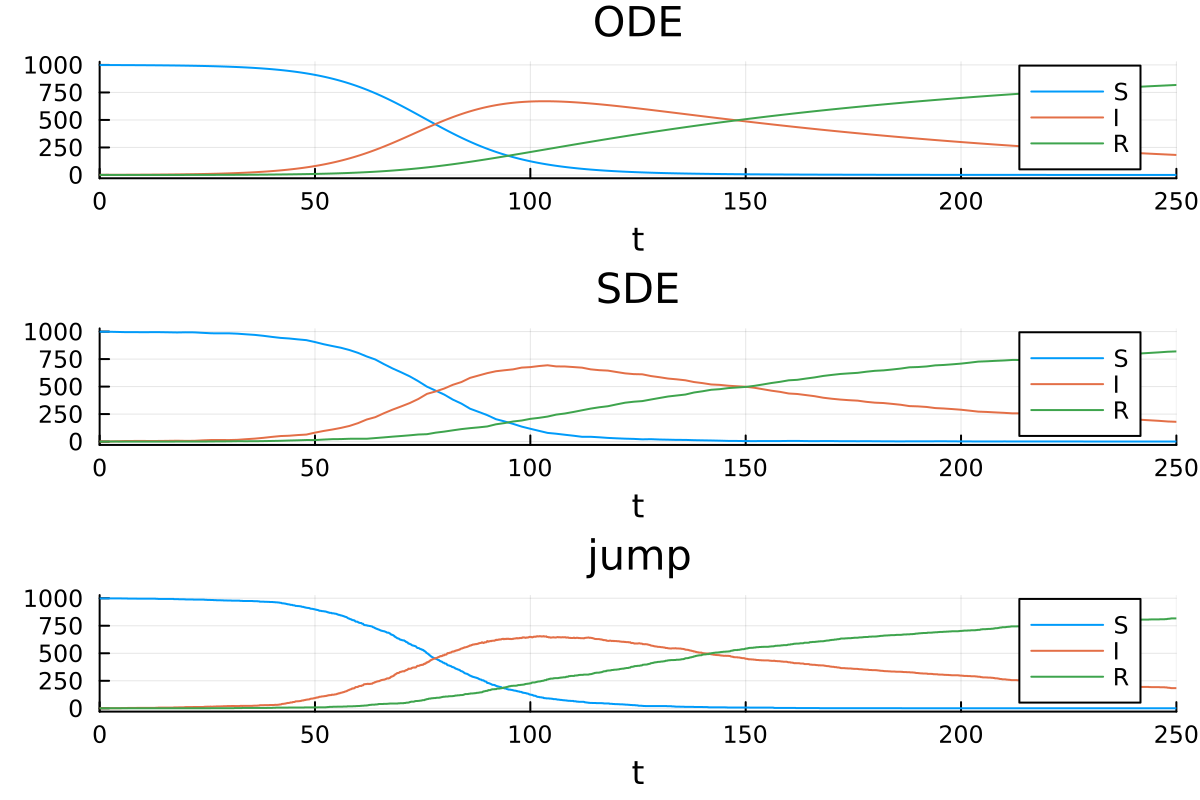

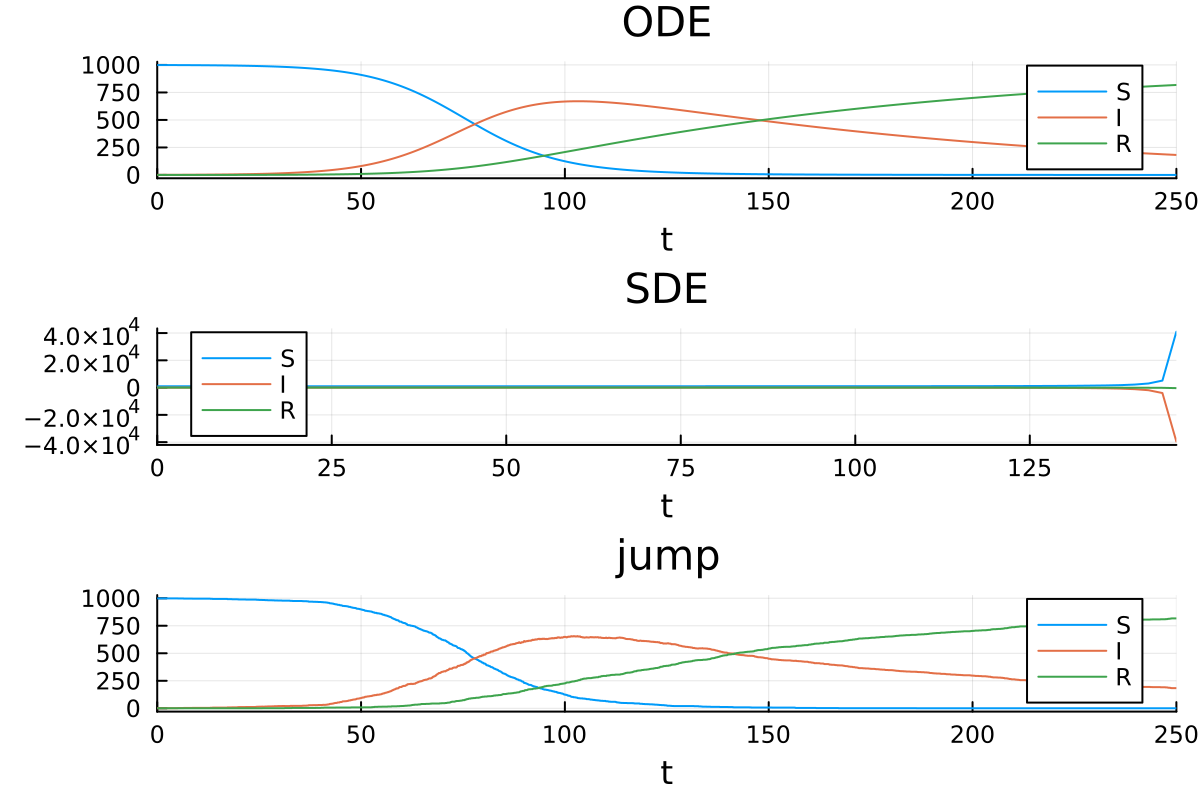

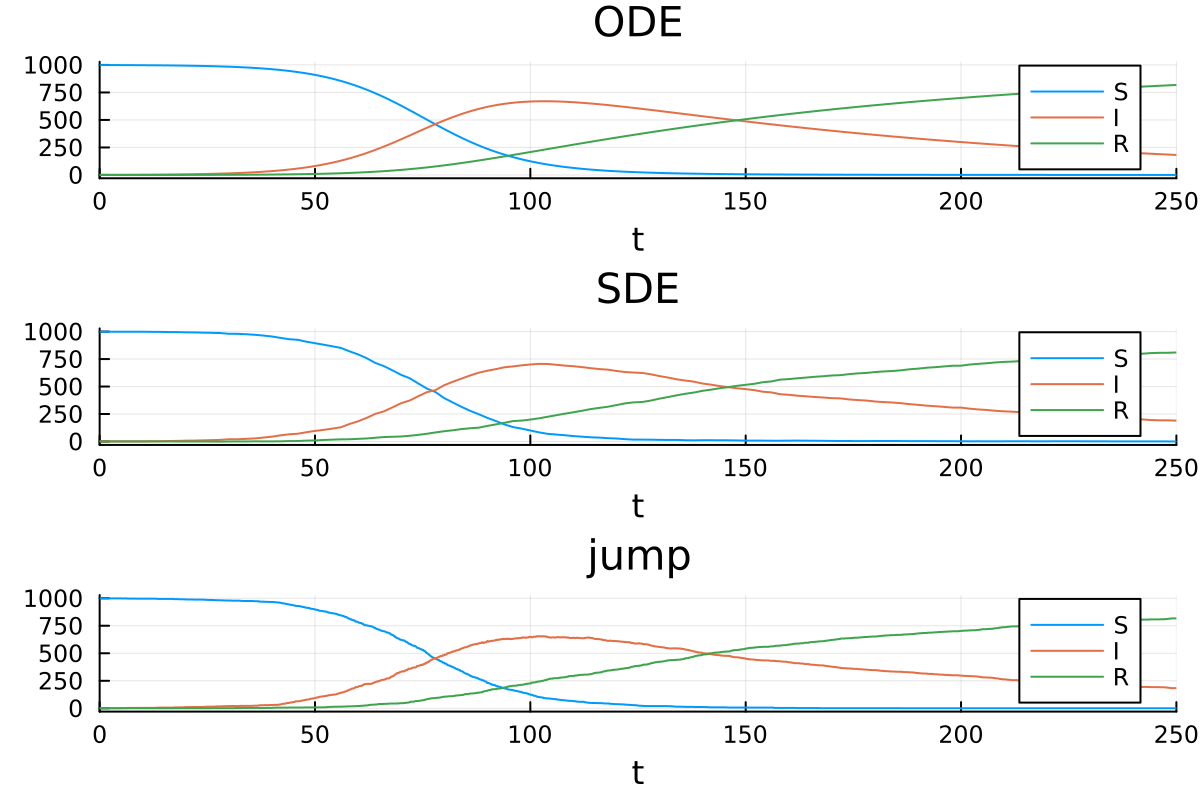

Examples: Here we create a basic SIR model. It contains two reactions (infection and recovery):

sir_model = @reaction_network begin
    c1, S + I --> 2I
    c2, I --> R
end

Next, we create a self-activation loop. Here, a single component (X) activates its own production with a Michaelis-Menten function:

sa_loop = @reaction_network begin
    mm(X,v,K), 0 --> X
    d, X --> 0
end

This model also contains production and degradation reactions, where 0 denotes that there are either no substrates or no products in a reaction.

Options: In addition to reactions, the macro also supports "option" inputs (permitting e.g. the addition of observables). Each option is designated by a tag starting with a @ followed by its input. A list of options can be found here.

@network_component

Equivalent to @reaction_network except the generated ReactionSystem is not marked as complete.

make_empty_network(; iv=DEFAULT_IV, name=gensym(:ReactionSystem))

Construct an empty ReactionSystem. iv is the independent variable, usually time, and name is the name to give the ReactionSystem.

@reaction

Macro for generating a single Reaction object using a similar syntax as the @reaction_network macro (but permitting only a single reaction). A more detailed introduction to the syntax can be found in the description of @reaction_network.

The @reaction macro is followed by a single line consisting of three parts:

• A rate (at which the reaction occurs).
• Any number of substrates (which are consumed by the reaction).
• Any number of products (which are produced by the reaction).

The output is a reaction (just like created using the Reaction constructor).

Examples: Here we create a simple binding reaction and store it in the variable rx:

rx = @reaction k, X + Y --> XY

The macro will automatically deduce X, Y, and XY to be species (as these occur as reactants) and k as a parameter (as it does not occur as a reactant).

The @reaction macro provides a more concise notation to the Reaction constructor. I.e. here we create the same reaction using both approaches, and also confirm that they are identical.

# Creates a reaction using the `@reaction` macro.
rx = @reaction k*v, A + B --> C + D

# Creates a reaction using the `Reaction` constructor.
t = default_t()
@parameters k v
@species A(t) B(t) C(t) D(t)
rx2 = Reaction(k*v, [A, B], [C, D])

# Confirms that the two approaches yield identical results:
rx1 == rx2

Interpolation of already declared symbolic variables into @reaction is possible:

t = default_t()
@parameters k b
@species A(t)
ex = k*A^2 + t
rx = @reaction b*$ex*$A, $A --> C

Notes:

• @reaction does not support bi-directional type reactions (using <-->) or reaction bundling

(e.g. d, (X,Y) --> 0).

• Interpolation of Julia variables into the macro works similarly to the @reaction_network

macro. See The Reaction DSL tutorial for more details.

@species xs...

Declare symbolic variables as Catalyst species.

@species accepts the same declaration syntax as ModelingToolkit's @variables, including defaults, metadata, and array declarations. Declared species carry Catalyst species metadata and can be used when programmatically constructing Reactions or ReactionSystems.

Examples

t = default_t()
@species S(t) I(t) R(t)
@species (X(t))[1:3] [description = "state vector"]

struct Reaction{S, T}

One chemical reaction.

Fields

• rate: The rate function (excluding mass action terms).

• substrates: Reaction substrates.

• products: Reaction products.

• substoich: The stoichiometric coefficients of the reactants.

• prodstoich: The stoichiometric coefficients of the products.

• netstoich: The net stoichiometric coefficients of all species changed by the reaction.

• only_use_rate: false (default) if rate should be multiplied by mass action terms to give the rate law. true if rate represents the full reaction rate law.

• metadata: Contain additional data, such whenever the reaction have a specific noise-scaling expression for the chemical Langevin equation.

Examples

using Catalyst
t = default_t()
@parameters k[1:20]
@species A(t) B(t) C(t) D(t)
rxs = [Reaction(k[1], nothing, [A]),            # 0 -> A
       Reaction(k[2], [B], nothing),            # B -> 0
       Reaction(k[3],[A],[C]),                  # A -> C
       Reaction(k[4], [C], [A,B]),              # C -> A + B
       Reaction(k[5], [C], [A], [1], [2]),      # C -> A + A
       Reaction(k[6], [A,B], [C]),              # A + B -> C
       Reaction(k[7], [B], [A], [2], [1]),      # 2B -> A
       Reaction(k[8], [A,B], [A,C]),            # A + B -> A + C
       Reaction(k[9], [A,B], [C,D]),            # A + B -> C + D
       Reaction(k[10], [A], [C,D], [2], [1,1]), # 2A -> C + D
       Reaction(k[11], [A], [A,B], [2], [1,1]), # 2A -> A + B
       Reaction(k[12], [A,B,C], [C,D], [1,3,4], [2, 3]),          # A+3B+4C -> 2C + 3D
       Reaction(k[13], [A,B], nothing, [3,1], nothing),           # 3A+B -> 0
       Reaction(k[14], nothing, [A], nothing, [2]),               # 0 -> 2A
       Reaction(k[15]*A/(2+A), [A], nothing; only_use_rate=true), # A -> 0 with custom rate
       Reaction(k[16], [A], [B]; only_use_rate=true),             # A -> B with custom rate.
       Reaction(k[17]*A*exp(B), [C], [D], [2], [1]),              # 2C -> D with non constant rate.
       Reaction(k[18]*B, nothing, [B], nothing, [2]),             # 0 -> 2B with non constant rate.
       Reaction(k[19]*t, [A], [B]),                                # A -> B with non constant rate.
       Reaction(k[20]*t*A, [B,C], [D],[2,1],[2])                  # 2A +B -> 2C with non constant rate.
  ]

Notes:

• nothing can be used to indicate a reaction that has no reactants or no products. In this case the corresponding stoichiometry vector should also be set to nothing.
• The three-argument form assumes all reactant and product stoichiometric coefficients are one.
• Pass unit_checks = true to validate unit consistency at construction time. When enabled, checks that all substrates and products share the same units, and that the rate expression has internally consistent additive terms. Default is false.

struct ReactionSystem{V<:Catalyst.NetworkProperties} <: ModelingToolkitBase.AbstractSystem

A system of chemical reactions.

Fields

• eqs: The equations (reactions and algebraic/differential) defining the system.

• rxs: The Reactions defining the system.

• iv: Independent variable (usually time).

• sivs: Spatial independent variables

• unknowns: All dependent (unknown) variables, species and non-species. Must not contain the independent variable.

• species: Dependent unknown variables representing species

• ps: Parameter variables. Must not contain the independent variable.

• var_to_name: Maps Symbol to corresponding variable.

• observed: Equations for observed variables.

• name: The name of the system

• systems: Internal sub-systems

• bindings: Binding relations for variables/parameters. The bound variable (key) is completely determined by the binding (value). Providing an initial condition for a bound variable is an error. Bindings for variables (ones created via @species, @variables, and @discretes) are treated as initial conditions.

• initial_conditions: The initial values to use when initial conditions and/or parameters are not supplied to problem constructors.

• networkproperties: NetworkProperties object that can be filled in by API functions. INTERNAL – not considered part of the public API.

• combinatoric_ratelaws: Sets whether to use combinatoric scalings in rate laws. true by default.

• continuous_events: continuous_events: A Vector{SymbolicContinuousCallback} that model events. The integrator will use root finding to guarantee that it steps at each zero crossing.

• discrete_events: discrete_events: A Vector{SymbolicDiscreteCallback} that models events. Symbolic analog to SciMLBase.DiscreteCallback that executes an affect when a given condition is true at the end of an integration step.

• tstops: tstops: A Vector{Any} of extra time points for the integrator to stop at. These can be numeric values or symbolic expressions of parameters and time.

• brownians: Brownian variables for non-reaction noise, created via @brownians.

• poissonians: Poissonian variables for Poisson jump noise, created via @poissonians.

• jumps: Non-reaction jumps (VariableRateJump, ConstantRateJump, MassActionJump).

• metadata: Metadata for the system, to be used by downstream packages.

• complete: complete: if a model sys is complete, then sys.x no longer performs namespacing.

• parent: The hierarchical parent system before simplification that MTK now seems to require for hierarchical namespacing to work in indexing.

Example

Continuing from the example in the Reaction definition:

# simple constructor that infers species and parameters
@named rs = ReactionSystem(rxs, t)

# allows specification of species and parameters
@named rs = ReactionSystem(rxs, t, [A,B,C,D], k)

Keyword Arguments:

• observed::Vector{Equation}, equations specifying observed variables.
• systems::Vector{ReactionSystem}, vector of sub-ReactionSystems.
• name::Symbol, the name of the system (must be provided, or @named must be used).
• initial_conditions::SymmapT, a dictionary mapping parameters and species to their initial values.
• checks = true, boolean for whether to run structural checks at construction time.
• unit_checks = false, boolean for whether to perform unit validation at construction time. Uses Catalyst.validate_units / Catalyst.assert_valid_units. Units should be specified with symbolic units (us"...") from DynamicQuantities.
• networkproperties = NetworkProperties(), cache for network properties calculated via API functions.
• combinatoric_ratelaws = true, sets the default value of combinatoric_ratelaws used in conversion functions (ode_model, sde_model, jump_model, ss_ode_model, hybrid_model) or when calling problem constructors with the ReactionSystem.
• balanced_bc_check = true, sets whether to check that BC species appearing in reactions are balanced (i.e appear as both a substrate and a product with the same stoichiometry).
• tstops = [], a vector of extra time points for the integrator to stop at. These can be numeric values or symbolic expressions of parameters and time.
• brownians, vector of Brownian variables for non-reaction SDE noise (created via @brownians). Auto-discovered from equations in the two-argument constructor.
• poissonians, vector of Poissonian variables for Poisson jump noise (created via @poissonians). Auto-discovered from equations in the two-argument constructor.
• jumps, vector of non-reaction jump processes.

isspatial(rn::ReactionSystem)

Return whether rn is a spatial reaction system.

Returns true when rn has spatial independent variables, and false otherwise.

species(network)

Given a ReactionSystem, return a vector of all species defined in the system and any subsystems that are of type ReactionSystem. To get the species and non-species variables in the system and all subsystems, including non-ReactionSystem subsystems, uses unknowns(network).

Notes:

• If ModelingToolkitBase.get_systems(network) is non-empty will allocate.

get_species(sys::ReactionSystem)

Return the current dependent variables that represent species in sys (toplevel system only).

nonspecies(network)

Return the non-species variables within the network, i.e. those unknowns for which isspecies == false.

Notes:

• Allocates a new array to store the non-species variables.

reactions(network)

Given a ReactionSystem, return a vector of all Reactions in the system.

Notes:

• If ModelingToolkitBase.get_systems(network) is not empty, will allocate.

get_rxs(sys::ReactionSystem)

Return the system's Reaction vector (toplevel system only).

get_networkproperties(sys::ReactionSystem)

Return the current network properties of sys.

nonreactions(network)

Return the non-reaction equations within the network (i.e. algebraic and differential equations).

Notes:

• Allocates a new array to store the non-species variables.

numspecies(network)

Return the total number of species within the given ReactionSystem and subsystems that are ReactionSystems.

numparams(network)

Return the total number of parameters within the given system and all subsystems.

numreactions(network)

Return the total number of reactions within the given ReactionSystem and subsystems that are ReactionSystems.

speciesmap(network)

Given a ReactionSystem, return a Dictionary mapping species that participate in Reactions to their index within species(network).

paramsmap(network)

Given a ReactionSystem, return a Dictionary mapping from all parameters that appear within the system to their index within parameters(network).

isautonomous(rs::ReactionSystem)

Checks if a system is autonomous (i.e. no rate or equation depend on the independent variable(s)). Example:

rs1 = @reaction_system
    (p,d), 0 <--> X
end
isautonomous(rs1) # Returns `true`.

rs2 = @reaction_system
    (p/t,d), 0 <--> X
end
isautonomous(rs2) # Returns `false`.

has_alg_equations(sys::AbstractSystem)

For a system, returns true if it contain at least one algebraic equation (i.e. that does not contain any differentials).

Example:

using ModelingToolkitBase
using ModelingToolkitBase: t_nounits as t, D_nounits as D
@parameters p d
@variables X(t)
eq1 = D(X) ~ p - d*X
eq2 = 0 ~ p - d*X
@named osys1 = System([eq1], t)
@named osys2 = System([eq2], t)

has_alg_equations(osys1) # returns `false`.
has_alg_equations(osys2) # returns `true`.

alg_equations(sys::AbstractSystem)

For a system, returns a vector of all its algebraic equations (i.e. that does not contain any differentials).

Example:

using ModelingToolkitBase
using ModelingToolkitBase: t_nounits as t, D_nounits as D
@parameters p d
@variables X(t)
eq1 = D(X) ~ p - d*X
eq2 = 0 ~ p - d*X
@named osys = System([eq1, eq2], t)

alg_equations(osys) # returns `[0 ~ p - d*X(t)]`.

has_diff_equations(sys::AbstractSystem)

For a system, returns true if it contain at least one differential equation (i.e. that contain a differential).

Example:

using ModelingToolkitBase
using ModelingToolkitBase: t_nounits as t, D_nounits as D
@parameters p d
@variables X(t)
eq1 = D(X) ~ p - d*X
eq2 = 0 ~ p - d*X
@named osys1 = System([eq1], t)
@named osys2 = System([eq2], t)

has_diff_equations(osys1) # returns `true`.
has_diff_equations(osys2) # returns `false`.

diff_equations(sys::AbstractSystem)

For a system, returns a vector of all its differential equations (i.e. that does contain a differential).

Example:

using ModelingToolkitBase
using ModelingToolkitBase: t_nounits as t, D_nounits as D
@parameters p d
@variables X(t)
eq1 = D(X) ~ p - d*X
eq2 = 0 ~ p - d*X
@named osys = System([eq1, eq2], t)

diff_equations(osys) # returns `[Differential(t)(X(t)) ~ p - d*X(t)]`.

isspecies(s)

Tests if the given symbolic variable corresponds to a chemical species.

Catalyst.isconstant(s)

Tests if the given symbolic variable corresponds to a constant species.

Catalyst.isbc(s)

Tests if the given symbolic variable corresponds to a boundary condition species.

isvalidreactant(s)

Test if a species is valid as a reactant (i.e. a species variable or a constant parameter).

getname(x)::Symbol

Get the name of a symbolic variable as a Symbol. Acts as the identity function for x::Symbol.

ismassaction(rx, rs; rxvars = get_variables(rx.rate),
                              haveivdep = nothing,
                              unknownset = Set(unknowns(rs)),
                              ivset = nothing)

True if a given reaction is of mass action form, i.e. rx.rate does not depend on any chemical species that correspond to unknowns of the system, and does not depend explicitly on the independent variable (usually time).

Arguments

• rx, the Reaction.
• rs, a ReactionSystem containing the reaction.
• Optional: rxvars, Variables which are not in rxvars are ignored as possible dependencies.
• Optional: haveivdep, true if the Reactionrate field explicitly depends on any independent variable (i.e. t or for spatial systems x,y,etc). If not set, will be automatically calculated.
• Optional: unknownset, set of unknowns which if the rxvars are within mean rx is non-mass action.
• Optional: ivset, a Set of the independent variables of the system. If not provided and the system is spatial, i.e. isspatial(rs) == true, it will be created with all the spatial variables and the time variable. If the rate expression contains any element of ivset, then ismassaction(rx,rs) == false. Pass a custom set to control this behavior.

Notes:

• Non-integer stoichiometry is treated as non-mass action. This includes symbolic variables/terms or floating point numbers for stoichiometric coefficients.

dependents(rx, network)

Given a Reaction and a ReactionSystem, return a vector of the non-constant species and variables the reaction rate law depends on. e.g., for

k*W, 2X + 3Y --> 5Z + W

the returned vector would be [W(t),X(t),Y(t)].

Notes:

• Allocates
• Does not check for dependents within any subsystems.
• Constant species are not considered dependents since they are internally treated as parameters.
• If the rate expression depends on a non-species unknown variable that will be included in the dependents, i.e. in

  t = default_t()
  @parameters k
  @variables V(t)
  @species A(t) B(t) C(t)
  rx = Reaction(k*V, [A, B], [C])
  @named rs = ReactionSystem([rx], t)
  issetequal(dependents(rx, rs), [A,B,V]) == true

dependents(rx, network)

See documentation for dependents.

substoichmat(rn; sparse=false)

Returns the substrate stoichiometry matrix, $S$, with $S_{i j}$ the stoichiometric coefficient of the ith substrate within the jth reaction.

Note:

• Set sparse=true for a sparse matrix representation
• Note that constant species are not considered substrates, but just components that modify the associated rate law.

prodstoichmat(rn; sparse=false)

Returns the product stoichiometry matrix, $P$, with $P_{i j}$ the stoichiometric coefficient of the ith product within the jth reaction.

Note:

• Set sparse=true for a sparse matrix representation
• Note that constant species are not treated as products, but just components that modify the associated rate law.

netstoichmat(rn, sparse=false)

Returns the net stoichiometry matrix, $N$, with $N_{i j}$ the net stoichiometric coefficient of the ith species within the jth reaction.

Notes:

• Set sparse=true for a sparse matrix representation
• Caches the matrix internally within rn so subsequent calls are fast.
• Note that constant species are not treated as reactants, but just components that modify the associated rate law. As such they do not contribute to the net stoichiometry matrix.

reactionrates(network)

Given a ReactionSystem, returns a vector of the symbolic reaction rates for each reaction.

@enumx PhysicalScale

EnumX instance representing the physical scale of a reaction.

Notes: The following values are possible:

• Auto: (DEFAULT) Lets Catalyst decide at the time of system conversion and/or problem generation at what physical scale to represent the reaction.
• ODE: The reaction is to be treated via an ordinary differential equation term.
• SDE: The reaction is to be treated via a stochastic differential equation (CLE) term.
• Jump: The reaction is to be treated via a jump process (stochastic chemical kinetics) term, letting Catalyst decide the specific jump type.
• VariableRateJump: The reaction is to be treated as a jump process (stochastic chemical kinetics) term, specifically assigning it to a VariableRateJump.

hasnoisescaling(reaction::Reaction)

Returns true if the input reaction has the noise_scaing metadata field assigned, else false.

Arguments:

• reaction: The reaction we wish to check for the noise_scaing metadata field.

Example:

reaction = @reaction k, 0 --> X, [noise_scaling=0.0]
hasnoisescaling(reaction)

getnoisescaling(reaction::Reaction)

Returns noise_scaing metadata field for the input reaction.

Arguments:

• reaction: The reaction we wish to retrieve the noise_scaing metadata field.

Example:

reaction = @reaction k, 0 --> X, [noise_scaling=0.0]
getnoisescaling(reaction)

hasdescription(reaction::Reaction)

Returns true if the input reaction has the description metadata field assigned, else false.

Arguments:

• reaction: The reaction we wish to check for the description metadata field.

Example:

reaction = @reaction k, 0 --> X, [description="A reaction"]
hasdescription(reaction)

getdescription(reaction::Reaction)

Returns description metadata field for the input reaction.

Arguments:

• reaction: The reaction we wish to retrieve the description metadata field.

Example:

reaction = @reaction k, 0 --> X, [description="A reaction"]
getdescription(reaction)

hasmisc(reaction::Reaction)

Returns true if the input reaction has the misc metadata field assigned, else false.

Arguments:

• reaction: The reaction we wish to check for the misc metadata field.

Example:

reaction = @reaction k, 0 --> X, [misc="A reaction"]
hasmisc(reaction)

getmisc(reaction::Reaction)

Returns misc metadata field for the input reaction.

Arguments:

• reaction: The reaction we wish to retrieve the misc metadata field.

Example:

reaction = @reaction k, 0 --> X, [misc="A reaction"]
getmisc(reaction)

Notes:

• The misc field can contain any valid Julia structure. This mean that Catalyst cannot check it

for symbolic variables that are added here. This means that symbolic variables (e.g. parameters of species) that are stored here are not accessible to Catalyst. This can cause troubles when e.g. creating a ReactionSystem programmatically (in which case any symbolic variables stored in the misc metadata field should also be explicitly provided to the ReactionSystem constructor).

U0Map

Metadata key for storing initial condition / species value mappings on a ReactionSystem. Intended for use by file parsers that need to preserve mappings in a format different from initial_conditions.

See also: has_u0_map, get_u0_map, set_u0_map

ParameterMap

Metadata key for storing parameter value mappings on a ReactionSystem. Intended for use by file parsers that need to preserve parameter mappings in a format different from initial_conditions.

See also: has_parameter_map, get_parameter_map, set_parameter_map

has_u0_map(rs::ReactionSystem)

Returns true if the ReactionSystem has a U0Map metadata entry.

get_u0_map(rs::ReactionSystem)

Returns the U0Map metadata from the ReactionSystem, or nothing if no U0Map has been set.

set_u0_map(rs::ReactionSystem, u0map)

Returns a newReactionSystem with the U0Map metadata set to u0map. The original system is not modified.

has_parameter_map(rs::ReactionSystem)

Returns true if the ReactionSystem has a ParameterMap metadata entry.

get_parameter_map(rs::ReactionSystem)

Returns the ParameterMap metadata from the ReactionSystem, or nothing if no ParameterMap has been set.

set_parameter_map(rs::ReactionSystem, pmap)

Returns a newReactionSystem with the ParameterMap metadata set to pmap. The original system is not modified.

extend(
    sys::ModelingToolkitBase.AbstractSystem,
    basesys::ModelingToolkitBase.AbstractSystem;
    name,
    description,
    gui_metadata
) -> ReactionSystem{Catalyst.NetworkProperties{Int64, SymbolicUtils.BasicSymbolicImpl.var"typeof(BasicSymbolicImpl)"{SymReal}}}

Extend basesys with sys. This can be thought of as the merge operation on systems. Values in sys take priority over duplicates in basesys (for example, initial conditions).

By default, the resulting system inherits sys's name and description.

The & operator can also be used for this purpose. sys & basesys is equivalent to extend(sys, basesys).

See also compose.

extend(
    sys,
    basesys::Array{T<:ModelingToolkitBase.AbstractSystem, 1}
) -> Any

Extend sys with all systems in basesys in order.

ModelingToolkitBase.extend(sys::ReactionSystem, rs::ReactionSystem; name::Symbol=nameof(sys))

Extends the indicated ReactionSystem with another ReactionSystem.

Notes:

• Only ReactionSystems can be used to extend a ReactionSystem.
• Returns a new ReactionSystem and does not modify rs.
• By default, the new ReactionSystem will have the same name as sys.

compose(sys, systems; name)

Compose multiple systems together. This adds all of systems as subsystems of sys. The resulting system inherits the name of sys by default.

The ∘ operator can also be used for this purpose. sys ∘ basesys is equivalent to compose(sys, basesys).

See also extend.

compose(syss...; name) -> Any

Syntactic sugar for adding all systems in syss as the subsystems of first(syss).

ModelingToolkitBase.compose(sys::ReactionSystem, systems::AbstractArray; name = nameof(sys))

Compose the indicated ReactionSystem with one or more ReactionSystems.

Notes:

• Only ReactionSystems can be composed with a ReactionSystem.
• Returns a new ReactionSystem and does not modify sys.
• By default, the new ReactionSystem will have the same name as sys.
• Brownians and jumps from subsystems are collected at flatten time via recursive accessors.

flatten(sys::System) -> System
flatten(sys::System, noeqs) -> System

Flatten the hierarchical structure of a system, collecting all equations, unknowns, etc. into one top-level system after namespacing appropriately.

ModelingToolkitBase.flatten(rs::ReactionSystem)

Merges all subsystems of the given ReactionSystem up into rs.

Notes:

• Returns a new ReactionSystem that represents the flattened system.
• All Reactions within subsystems are namespaced and merged into the list of Reactions of rs. The merged list is then available as reactions(rs).
• All algebraic and differential equations are merged in the equations of rs.
• Only ReactionSystems are supported as subsystems when flattening.
• rs.networkproperties is reset upon flattening.
• The default value of combinatoric_ratelaws will be the logical or of all ReactionSystems.

plot_network(rn::ReactionSystem; kwargs...)

Converts a ReactionSystem into a GraphMakie plot of the species reaction graph (or Petri net representation). Reactions correspond to small green circles, and species to blue circles.

Notes:

• Black arrows from species to reactions indicate reactants, and are labelled with their input stoichiometry.
• Black arrows from reactions to species indicate products, and are labelled with their output stoichiometry.
• Red arrows from species to reactions indicate that species is used within the rate expression. For example, in the reaction k*A, B --> C, there would be a red arrow from A to the reaction node. In k*A, A+B --> C, there would be red and black arrows from A to the reaction node.

For a list of accepted keyword arguments to the graph plot, please see the GraphMakie documentation.

plot_complexes(rn::ReactionSystem; show_rate_labels = false, kwargs...)

Creates a GraphMakie plot of the Catalyst.ReactionComplexs in rn. Reactions correspond to arrows and reaction complexes to blue circles.

Notes:

• Black arrows from complexes to complexes indicate reactions whose rate is a parameter or a Number. i.e. k, A --> B.
• Red arrows from complexes to complexes indicate reactions whose rate constants

depends on species. i.e. k*C, A --> B for C a species.

• The show_rate_labels keyword, if set to true, will annotate each edge

with the rate constant for the reaction.

For a list of accepted keyword arguments to the graph plot, please see the GraphMakie documentation.

plot_network(rn::ReactionSystem; kwargs...)

Plot the species-reaction graph of rn.

This extension function is available after loading GraphMakie.jl and NetworkLayout.jl. Keyword arguments are forwarded to the GraphMakie plotting recipe.

Examples

using Catalyst, GraphMakie, CairoMakie

rn = @reaction_network begin
    k, A --> B
end
plot_network(rn)

plot_complexes(rn::ReactionSystem; show_rate_labels = false, kwargs...)

Plot the reaction-complex graph of rn.

This extension function is available after loading GraphMakie.jl and NetworkLayout.jl. Set show_rate_labels = true to label graph edges by their reaction rates.

Examples

using Catalyst, GraphMakie, CairoMakie

rn = @reaction_network begin
    k, A --> B
end
plot_complexes(rn)

oderatelaw(rx; combinatoric_ratelaw=true)

Given a Reaction, return the symbolic reaction rate law used in generated ODEs for the reaction. Note, for a reaction defined by

k*X*Y, X+Z --> 2X + Y

the expression that is returned will be k*X(t)^2*Y(t)*Z(t). For a reaction of the form

k, 2X+3Y --> Z

the expression that is returned will be k * (X(t)^2/2) * (Y(t)^3/6).

Notes:

• Allocates
• combinatoric_ratelaw=true uses factorial scaling factors in calculating the rate law, i.e. for 2S -> 0 at rate k the ratelaw would be k*S^2/2!. If combinatoric_ratelaw=false then the ratelaw is k*S^2, i.e. the scaling factor is ignored.

jumpratelaw(rx; combinatoric_ratelaw=true)

Given a Reaction, return the symbolic reaction rate law used in generated stochastic chemical kinetics model SSAs for the reaction. Note, for a reaction defined by

k*X*Y, X+Z --> 2X + Y

the expression that is returned will be k*X^2*Y*Z. For a reaction of the form

k, 2X+3Y --> Z

the expression that is returned will be k * binomial(X,2) * binomial(Y,3).

Notes:

• Allocates
• combinatoric_ratelaw=true uses binomials in calculating the rate law, i.e. for 2S -> 0 at rate k the ratelaw would be k*S*(S-1)/2. If combinatoric_ratelaw=false then the ratelaw is k*S*(S-1), i.e. the rate law is not normalized by the scaling factor.

mm(X,v,K) = v*X / (X + K)

A Michaelis-Menten rate function.

mmr(X,v,K) = v*K / (X + K)

A repressive Michaelis-Menten rate function.

hill(X,v,K,n) = v*(X^n) / (X^n + K^n)

A Hill rate function.

hillr(X,v,K,n) = v*(K^n) / (X^n + K^n)

A repressive Hill rate function.

hillar(X,Y,v,K,n) = v*(X^n) / (X^n + Y^n + K^n)

An activation/repressing Hill rate function.

Defines an ordinary differential equation (ODE) problem. Documentation Page: https://docs.sciml.ai/DiffEqDocs/stable/types/ode_types/

Mathematical Specification of an ODE Problem

To define an ODE Problem, you simply need to give the function $f$ and the initial condition $u_0$ which define an ODE:

\[M \frac{du}{dt} = f(u,p,t)\]

There are two different ways of specifying f:

• f(du,u,p,t): in-place. Memory-efficient when avoiding allocations. Best option for most cases unless mutation is not allowed.
• f(u,p,t): returning du. Less memory-efficient way, particularly suitable when mutation is not allowed (e.g. with certain automatic differentiation packages such as Zygote).

u₀ should be an AbstractArray (or number) whose geometry matches the desired geometry of u. Note that we are not limited to numbers or vectors for u₀; one is allowed to provide u₀ as arbitrary matrices / higher dimension tensors as well.

For the mass matrix $M$, see the documentation of ODEFunction.

Problem Type

Constructors

ODEProblem can be constructed by first building an ODEFunction or by simply passing the ODE right-hand side to the constructor. The constructors are:

• ODEProblem(f::ODEFunction,u0,tspan,p=NullParameters();kwargs...)
• ODEProblem{isinplace,specialize}(f,u0,tspan,p=NullParameters();kwargs...) : Defines the ODE with the specified functions. isinplace optionally sets whether the function is inplace or not. This is determined automatically, but not inferred. specialize optionally controls the specialization level. See the Specialization Levels for more details. The default is AutoSpecialize.

For more details on the in-place and specialization controls, see the ODEFunction documentation.

Parameters are optional, and if not given, then a NullParameters() singleton will be used which will throw nice errors if you try to index non-existent parameters. Any extra keyword arguments are passed on to the solvers. For example, if you set a callback in the problem, then that callback will be added in every solve call.

For specifying Jacobians and mass matrices, see the ODEFunction documentation.

Fields

• f: The function in the ODE.
• u0: The initial condition.
• tspan: The timespan for the problem.
• p: The parameters.
• kwargs: The keyword arguments passed onto the solves.

Example Problem

using SciMLBase
function lorenz!(du, u, p, t)
    du[1] = 10.0(u[2] - u[1])
    du[2] = u[1] * (28.0 - u[3]) - u[2]
    du[3] = u[1] * u[2] - (8 / 3) * u[3]
    return
end
u0 = [1.0;0.0;0.0]
tspan = (0.0, 100.0)
prob = ODEProblem(lorenz!, u0, tspan)

# Test that it worked
using OrdinaryDiffEq
sol = solve(prob, Tsit5())
using Plots; plot(sol, vars = (1, 2, 3))

More Example Problems

Example problems can be found in DiffEqProblemLibrary.jl.

To use a sample problem, such as prob_ode_linear, you can do something like:

#] add ODEProblemLibrary
using ODEProblemLibrary
prob = ODEProblemLibrary.prob_ode_linear
sol = solve(prob)

Defines an stochastic differential equation (SDE) problem. Documentation Page: https://docs.sciml.ai/DiffEqDocs/stable/types/sde_types/

Mathematical Specification of a SDE Problem

To define an SDE Problem, you simply need to give the forcing function f, the noise function g, and the initial condition u₀ which define an SDE:

\[du = f(u,p,t) \, dt + ∑ᵢ gᵢ(u,p,t) \, dWⁱ\]

f and g should be specified as f(u,p,t) and g(u,p,t) respectively, and u₀ should be an AbstractArray whose geometry matches the desired geometry of u. Note that we are not limited to numbers or vectors for u₀; one is allowed to provide u₀ as arbitrary matrices / higher dimension tensors as well. A vector of gs can also be defined to determine an SDE of higher Ito dimension.

Problem Type

Wraps the data which defines an SDE problem

\[u = f(u,p,t) \, dt + ∑ᵢ gᵢ(u,p,t) \, dWⁱ\]

with initial condition u0.

Constructors

• SDEProblem(f::SDEFunction,u0,tspan,p=NullParameters();noise=WHITE_NOISE,noise_rate_prototype=nothing)
• SDEProblem{isinplace,specialize}(f,g,u0,tspan,p=NullParameters();noise=WHITE_NOISE,noise_rate_prototype=nothing) : Defines the SDE with the specified functions. The default noise is WHITE_NOISE. isinplace optionally sets whether the function is inplace or not. This is determined automatically, but not inferred. specialize optionally controls the specialization level. See Specialization Levels for more details. The default is AutoSpecialize.

Parameters are optional, and if not given then a NullParameters() singleton will be used which will throw nice errors if you try to index non-existent parameters. Any extra keyword arguments are passed on to the solvers. For example, if you set a callback in the problem, then that callback will be added in every solve call.

For specifying Jacobians and mass matrices, see the SciMLFunctions interface page.

Fields

• f: The drift function in the SDE.
• g: The noise function in the SDE.
• u0: The initial condition.
• tspan: The timespan for the problem.
• p: The optional parameters for the problem. Defaults to NullParameters.
• noise: The noise process applied to the noise upon generation. Defaults to Gaussian white noise. For information on defining different noise processes, see the noise process documentation.
• noise_rate_prototype: A prototype type instance for the noise rates, that is the output g. It can be any type which overloads A_mul_B! with itself being the middle argument. Commonly, this is a matrix or sparse matrix. If this is not given, it defaults to nothing, which means the problem should be interpreted as having diagonal noise.
• kwargs: The keyword arguments passed onto the solves.

Example Problems

Examples problems can be found in DiffEqProblemLibrary.jl.

To use a sample problem, such as prob_sde_linear, you can do something like:

#] add SDEProblemLibrary
using SDEProblemLibrary
prob = SDEProblemLibrary.prob_sde_linear
sol = solve(prob)

mutable struct JumpProblem{iip, P, A, C, J<:Union{Nothing, JumpProcesses.AbstractJumpAggregator}, J1, J2, J3, J4, R, K} <: SciMLBase.AbstractJumpProblem{P, J<:Union{Nothing, JumpProcesses.AbstractJumpAggregator}}

Defines a collection of jump processes to associate with another problem type.

• Documentation Page
• Tutorial Page
• FAQ Page

Constructors

JumpProblems can be constructed by first building another problem type to which the jumps will be associated. For example, to simulate a collection of jump processes for which the transition rates are constant between jumps (called ConstantRateJumps or MassActionJumps), we must first construct a DiscreteProblem

prob = DiscreteProblem(u0, p, tspan)

where u0 is the initial condition, p the parameters and tspan the time span. If we wanted to have the jumps coupled with a system of ODEs, or have transition rates with explicit time dependence, we would use an ODEProblem instead that defines the ODE portion of the dynamics.

Given prob we define the jumps via

• JumpProblem(prob, aggregator::AbstractAggregatorAlgorithm, jumps::JumpSet ; kwargs...)
• JumpProblem(prob, aggregator::AbstractAggregatorAlgorithm, jumps...; kwargs...)

Here aggregator specifies the underlying algorithm for calculating next jump times and types, for example Direct. The collection of different AbstractJump types can then be passed within a single JumpSet or as subsequent sequential arguments.

Fields

• prob: The type of problem to couple the jumps to. For a pure jump process use DiscreteProblem, to couple to ODEs, ODEProblem, etc.

• aggregator: The aggregator algorithm that determines the next jump times and types for ConstantRateJumps and MassActionJumps. Examples include Direct.

• discrete_jump_aggregation: The underlying state data associated with the chosen aggregator.

• jump_callback: CallBackSet with the underlying ConstantRate and VariableRate jumps.

• constant_jumps: The ConstantRateJumps.

• variable_jumps: The VariableRateJumps.

• regular_jump: The RegularJumps.

• massaction_jump: The MassActionJumps.

• rng: The random number generator to use.

• kwargs: kwargs to pass on to solve call.

Keyword Arguments

• rng, the random number generator to use. Defaults to Julia's built-in generator.
• save_positions=(true,true) when including variable rates and (false,true) for constant rates, specifies whether to save the system's state (before, after) the jump occurs. NOTE, this only controls saving for non-VariableRateJumps. VariableRateJump saving is controlled at the individual jump level via the value of this kwarg passed to the individual VariableRateJumps constructor when it is created.
• spatial_system, for spatial problems the underlying spatial structure.
• hopping_constants, for spatial problems the spatial transition rate coefficients.
• use_vrj_bounds = true, set to false to disable handling bounded VariableRateJumps with a supporting aggregator (such as Coevolve). They will then be handled via the continuous integration interface, and treated like general VariableRateJumps.
• vr_aggregator, indicates the aggregator to use for sampling variable rate jumps. Current default is VR_FRM.

Please see the tutorial page in the DifferentialEquations.jl docs for usage examples and commonly asked questions.

Defines a nonlinear system problem. Documentation Page: https://docs.sciml.ai/NonlinearSolve/stable/basics/nonlinear_problem/

Mathematical Specification of a Nonlinear Problem

To define a Nonlinear Problem, you simply need to give the function $f$ which defines the nonlinear system:

\[f(u,p) = 0\]

and an initial guess $u₀$ of where f(u, p) = 0. f should be specified as f(u, p) (or in-place as f(du, u, p)), and u₀ should be an AbstractArray (or number) whose geometry matches the desired geometry of u. Note that we are not limited to numbers or vectors for u₀; one is allowed to provide u₀ as arbitrary matrices / higher-dimension tensors as well.

Problem Type

Constructors

NonlinearProblem(f::NonlinearFunction, u0, p = NullParameters(); kwargs...)
NonlinearProblem{isinplace}(f, u0, p = NullParameters(); kwargs...)

isinplace optionally sets whether the function is in-place or not. This is determined automatically, but not inferred.

Parameters are optional, and if not given, then a NullParameters() singleton will be used, which will throw nice errors if you try to index non-existent parameters. Any extra keyword arguments are passed on to the solvers. For example, if you set a callback in the problem, then that callback will be added in every solve call.

For specifying Jacobians and mass matrices, see the nonlinear function types page of the SciMLBase interface documentation.

Fields

• f: The function in the problem.
• u0: The initial guess for the root.
• p: The parameters for the problem. Defaults to NullParameters.
• lb: Lower bounds for the solution. Defaults to nothing.
• ub: Upper bounds for the solution. Defaults to nothing.
• kwargs: The keyword arguments passed on to the solvers.

Defines a steady state ODE problem. Documentation Page: https://docs.sciml.ai/DiffEqDocs/stable/types/steady_state_types/

Mathematical Specification of a Steady State Problem

To define a Steady State Problem, you simply need to give the function $f$ which defines the ODE:

\[\frac{du}{dt} = f(u, p, t)\]

and an initial guess $u_0$ of where f(u, p, t) = 0. f should be specified as f(u, p, t) (or in-place as f(du, u, p, t)), and u₀ should be an AbstractArray (or number) whose geometry matches the desired geometry of u. Note that we are not limited to numbers or vectors for u₀; one is allowed to provide u₀ as arbitrary matrices / higher dimension tensors as well.

Note that for the steady-state to be defined, we must have that f is autonomous, that is f is independent of t. But the form which matches the standard ODE solver should still be used. The steady state solvers interpret the f by fixing $t = ∞$.

Problem Type

Constructors

SteadyStateProblem(f::ODEFunction, u0, p = NullParameters(); kwargs...)
SteadyStateProblem{isinplace, specialize}(f, u0, p = NullParameters(); kwargs...)

isinplace optionally sets whether the function is inplace or not. This is determined automatically, but not inferred. specialize optionally controls the specialization level. See Specialization Levels for more details. The default is AutoSpecialize.

Parameters are optional, and if not given, a NullParameters() singleton will be used, which will throw nice errors if you try to index non-existent parameters. Any extra keyword arguments are passed on to the solvers. For example, if you set a callback in the problem, then that callback will be added in every solve call.

Additionally, the constructor from ODEProblems is provided:

SteadyStateProblem(prob::ODEProblem)

Parameters are optional, and if not given, a NullParameters() singleton will be used, which will throw nice errors if you try to index non-existent parameters. Any extra keyword arguments are passed on to the solvers. For example, if you set a callback in the problem, then that callback will be added in every solve call.

For specifying Jacobians and mass matrices, see the DiffEqFunctions page.

Fields

• f: The function in the ODE.
• u0: The initial guess for the steady state.
• p: The parameters for the problem. Defaults to NullParameters
• kwargs: The keyword arguments passed onto the solves.

Special Solution Fields

The SteadyStateSolution type is different from the other DiffEq solutions because it does not have temporal information.

ode_model(rs::ReactionSystem; kwargs...)

Convert a ReactionSystem to a ModelingToolkitBase.System representing an ODE model. Errors if the system contains coupled brownians, jumps, or poissonians; use hybrid_model or HybridProblem for mixed-scale systems.

Keyword args and default values:

• combinatoric_ratelaws=true uses factorial scaling factors in calculating the rate law, i.e. for 2S -> 0 at rate k the ratelaw would be k*S^2/2!. Set combinatoric_ratelaws=false for a ratelaw of k*S^2, i.e. the scaling factor is ignored. Defaults to the value given when the ReactionSystem was constructed (which itself defaults to true).
• remove_conserved=false, if set to true will calculate conservation laws of the underlying set of reactions (ignoring constraint equations), and then apply them to reduce the number of equations.
• expand_catalyst_funs = true, replaces Catalyst defined functions like hill(A,B,C,D) with their rational function representation when converting to another system type. Set to false to disable.
• use_jump_ratelaws = false, if set to true the drift uses the jump/stochastic rate law (binomials) instead of the ODE rate law (powers). This gives the mathematically correct propensities from the CME when species populations are integers.

ss_ode_model(rs::ReactionSystem)

Convert a ReactionSystem to a ModelingToolkitBase.System (nonlinear/steady-state).

Keyword args and default values:

• combinatoric_ratelaws = true uses factorial scaling factors in calculating the rate law, i.e. for 2S -> 0 at rate k the ratelaw would be k*S^2/2!. Set combinatoric_ratelaws=false for a ratelaw of k*S^2, i.e. the scaling factor is ignored. Defaults to the value given when the ReactionSystem was constructed (which itself defaults to true).
• remove_conserved = false, if set to true will calculate conservation laws of the underlying set of reactions (ignoring coupled ODE or algebraic equations). For each conservation law one steady-state equation is eliminated, and replaced with the conservation law. This ensures a non-singular Jacobian.
• expand_catalyst_funs = true, replaces Catalyst defined functions like hill(A,B,C,D) with their rational function representation when converting to another system type. Set to false to disable.
• include_cl_as_eqs = false, if remove_conserved=true, setting this to true will explicitly include the conservation laws as system equations, rather than eliminating them as observables. Primarily used by internal Catalyst functions.

sde_model(rs::ReactionSystem; kwargs...)

Convert a ReactionSystem to a ModelingToolkitBase.System representing an SDE model (chemical Langevin equation). Errors if the system contains coupled jumps or poissonians; use hybrid_model or HybridProblem for mixed-scale systems.

Keyword args and default values:

• combinatoric_ratelaws=true uses factorial scaling factors in calculating the rate law, i.e. for 2S -> 0 at rate k the ratelaw would be k*S^2/2!. Set combinatoric_ratelaws=false for a ratelaw of k*S^2, i.e. the scaling factor is ignored. Defaults to the value given when the ReactionSystem was constructed (which itself defaults to true).
• remove_conserved=false, if set to true will calculate conservation laws of the underlying set of reactions (ignoring constraint equations), and then apply them to reduce the number of equations.
• expand_catalyst_funs = true, replaces Catalyst defined functions like hill(A,B,C,D) with their rational function representation when converting to another system type. Set to false to disable.
• use_legacy_noise = true, for simple SDE systems without constraints (no algebraic equations, no BC species), use the traditional noise_eqs matrix approach which avoids the need for mtkcompile. Set to false to use the Brownian-based approach.
• use_jump_ratelaws = false, if set to true both drift and diffusion use the jump/stochastic rate law (binomials) instead of the ODE rate law (powers). This gives the mathematically correct CLE derived from the CME when species populations are integers.

jump_model(rs::ReactionSystem; kwargs...)

Convert a ReactionSystem to a ModelingToolkitBase.System representing a pure jump model. Forces all reactions to Jump scale (only preserving VariableRateJump metadata if explicitly set). Errors if the system contains coupled brownians, poissonians, or non-reaction equations; use hybrid_model or HybridProblem for mixed-scale systems.

Keyword args and default values:

• combinatoric_ratelaws=true uses binomials in calculating the rate law, i.e. for 2S -> 0 at rate k the ratelaw would be k*S*(S-1)/2. If combinatoric_ratelaws=false then the ratelaw is k*S*(S-1), i.e. the rate law is not normalized by the scaling factor. Defaults to the value given when the ReactionSystem was constructed (which itself defaults to true).
• Does not currently support ReactionSystems that include coupled algebraic or differential equations.
• expand_catalyst_funs = true, replaces Catalyst defined functions like hill(A,B,C,D) with their rational function representation when converting to another system type. Set to false to disable.
• save_positions = (true, true), indicates whether for any reaction classified as a VariableRateJump to save the solution before and/or after the jump occurs. Defaults to true for both.

hybrid_model(rs::ReactionSystem; kwargs...)

Convert a ReactionSystem to a unified ModelingToolkitBase.System that can contain ODE equations, Brownian noise terms, and/or jump processes depending on each reaction's assigned PhysicalScale.

Keyword Arguments

• name = nameof(rs): name for the returned System.
• physical_scales = nothing: overrides for per-reaction physical scales. Can be an iterable of index => PhysicalScale pairs, or a Vector{PhysicalScale.T} with one entry per reaction in the flattened system.
• default_scale = PhysicalScale.Auto: fallback scale for reactions with PhysicalScale.Auto. If any reaction remains Auto after resolution, an error is thrown.
• combinatoric_ratelaws = get_combinatoric_ratelaws(rs): whether to use factorial/binomial scaling in rate laws.
• include_zero_odes = true: whether to include ODE equations with zero RHS.
• remove_conserved = false: whether to apply conservation law elimination. Not compatible with jump-scale reactions.
• expand_catalyst_funs = true: replace Catalyst functions (e.g. hill) with their rational form.
• save_positions = (true, true): for VariableRateJumps, whether to save the solution before and/or after the jump.
• checks = false: whether to run System constructor checks.
• initial_conditions = Dict(): additional initial conditions to merge into the system defaults.
• use_jump_ratelaws = false: if true, both drift and diffusion use the jump/stochastic rate law (binomials) instead of the ODE rate law (powers). This gives the mathematically correct CLE derived from the CME when species populations are integers. Applies to all ODE-scale and SDE-scale reactions; jump-scale reactions are unaffected.

Scale Resolution Order

1. physical_scales kwarg (user override per reaction index)
2. Per-reaction metadata (get_physical_scale(rx))
3. default_scale kwarg (fallback for Auto)
4. If still Auto after all three → error

HybridProblem(rs::ReactionSystem, u0, tspan, p = nothing;
              physical_scales = nothing, default_scale = PhysicalScale.Jump, ...)

Create a problem from a ReactionSystem with per-reaction scale control.

This function uses hybrid_model internally and respects per-reaction PhysicalScale metadata as well as physical_scales kwarg overrides.

The return type depends on which reaction scales are present:

• Pure ODE (only ODE-scale reactions) → ODEProblem
• Pure SDE or ODE+SDE (no jumps) → SDEProblem
• Any jumps present (ODE+Jump, SDE+Jump, ODE+SDE+Jump) → JumpProblem

For SDE+Jump combinations, the returned JumpProblem wraps an SDEProblem internally.

Arguments

• rs: The ReactionSystem to convert.
• u0: Initial conditions as a mapping (e.g., [:S => 100.0, :P => 0.0]).
• tspan: Time span as a tuple (e.g., (0.0, 10.0)).
• p: Parameters as a mapping (e.g., [:k1 => 1.0, :k2 => 0.5]).

Keyword Arguments

• physical_scales = nothing: Per-reaction scale overrides. Can be an iterable of index => PhysicalScale pairs.
• default_scale = PhysicalScale.Jump: Fallback for reactions with PhysicalScale.Auto. Defaults to Jump so that only reactions explicitly tagged as ODE/SDE are treated as continuous.
• combinatoric_ratelaws = get_combinatoric_ratelaws(rs): Use factorial/binomial scaling.
• save_positions = (true, true): For VariableRateJumps, save before/after jump.
• mtkcompile = false: Apply structural simplification (required for algebraic equations).
• use_jump_ratelaws = false: if true, both drift and diffusion use the jump/stochastic rate law (binomials) instead of the ODE rate law (powers). This gives the mathematically correct CLE derived from the CME when species populations are integers. Applies to all ODE-scale and SDE-scale reactions; jump-scale reactions are unaffected.
• Other kwargs passed to the underlying problem constructor.

Returns

• ODEProblem if all reactions are ODE-scale
• SDEProblem if reactions are ODE/SDE-scale with no jumps
• JumpProblem if any jumps are present (wrapping ODEProblem for ODE+Jump, or SDEProblem for SDE+Jump)

Example

# Hybrid ODE+Jump system
rn = @reaction_network begin
    k1, S --> P, [physical_scale = PhysicalScale.ODE]
    k2, P --> S, [physical_scale = PhysicalScale.Jump]
end
prob = HybridProblem(rn, [:S => 100.0, :P => 0.0], (0.0, 10.0), [:k1 => 1.0, :k2 => 0.5])
sol = solve(prob, Tsit5())

# Pure ODE via HybridProblem
prob_ode = HybridProblem(rn, [:S => 100.0, :P => 0.0], (0.0, 10.0), [:k1 => 1.0, :k2 => 0.5];
    default_scale = PhysicalScale.ODE)
sol_ode = solve(prob_ode, Tsit5())

# SDE+Jump hybrid system (requires SDE solver like SRIW1 from StochasticDiffEq)
rn_sde_jump = @reaction_network begin
    k1, S --> P, [physical_scale = PhysicalScale.SDE]
    k2, P --> S, [physical_scale = PhysicalScale.Jump]
end
prob_sde_jump = HybridProblem(rn_sde_jump, [:S => 100.0, :P => 0.0], (0.0, 10.0), [:k1 => 1.0, :k2 => 0.5])
# prob_sde_jump.prob isa SDEProblem  # true - JumpProblem wraps SDEProblem
sol = solve(prob_sde_jump, SRIW1())

hc_steady_states(rs::ReactionSystem, ps; filter_negative = true, neg_thres = -1e-15, u0 = [], kwargs...)

Find steady states of a ReactionSystem using HomotopyContinuation.jl.

This extension function is available after loading HomotopyContinuation.jl. ps supplies parameter values, u0 supplies initial conditions needed for systems with conservation laws, and extra keyword arguments are passed to HomotopyContinuation's solver.

Examples

using Catalyst, HomotopyContinuation

rs = @reaction_network begin
    k1, Y --> 2X
    k2, 2X --> X + Y
    k3, X + Y --> Y
    k4, X --> 0
end
hc_steady_states(rs, [:k1 => 8.0, :k2 => 2.0, :k3 => 1.0, :k4 => 1.5])

make_si_ode(rs::ReactionSystem; measured_quantities = [], known_p = [],
    ignore_no_measured_warn = false, remove_conserved = true)

Convert a ReactionSystem to the ODE representation used by StructuralIdentifiability.jl.

This extension function is available after loading StructuralIdentifiability.jl. measured_quantities lists measured species or equations, known_p lists parameters treated as known, and remove_conserved controls conservation-law elimination before conversion.

Examples

using Catalyst, StructuralIdentifiability

rs = @reaction_network begin
    (p, d), 0 <--> X
end
make_si_ode(rs; measured_quantities = [:X], known_p = [:p])

mtkcompile(
    sys;
    additional_passes,
    inputs,
    outputs,
    disturbance_inputs,
    split,
    homotopy,
    kwargs...
)

Compile the given system into a form that ModelingToolkitBase can generate code for. Also performs order reduction for ODEs and handles simple discrete/implicit-discrete systems.

The returned system is a new system; sys is not modified. A system can only be compiled once — calling mtkcompile on an already-compiled system throws RepeatedStructuralSimplificationError.

Arguments

• sys: The System to compile. It must not already be compiled.

Keyword Arguments

• inputs: Variables to treat as inputs. They are converted to parameters and are allowed to be unconnected, permitting models where n_unknowns = n_equations - n_inputs. Array variables must have known shape and be passed either whole or fully scalarized in sorted order.
• outputs: Variables to treat as outputs of the compiled system.
• disturbance_inputs: Inputs that represent disturbances. Like inputs, they are converted to parameters and excluded from the equation/unknown balance check.
• fully_determined = true: Whether to throw an error when the system is unbalanced, i.e. when the number of equations differs from the number of unknowns after inputs and disturbance_inputs have been removed. Passing false (or nothing) skips the check.
• additional_passes = (): A collection of functions applied to the system, in order, after the built-in compilation passes have run. Each takes and returns a system.
• split = true: Whether the compiled system uses the split parameter representation, which stores parameters in type-homogeneous buffers indexed by an IndexCache. Pass false to use a flat parameter vector instead.
• homotopy = true: Whether Modelica homotopy(actual, simplified) operators are kept for lowering to a continuation solve. Pass false to replace every such node by its actual branch before compilation: the generated code then contains only actual (the simplified expression is never emitted), problem construction never selects a SciMLBase.HomotopyProblem, and the initialization and event affect systems derived from the compiled system are compiled the same way. Use this for targets that cannot lower to a continuation solver. See strip_homotopy.

Remaining keyword arguments are forwarded to the internal compilation passes.

Returns

A new, completed System suitable for code generation and problem construction.

Examples

using ModelingToolkit
using ModelingToolkit: t_nounits as t, D_nounits as D

@variables x(t) y(t)
@parameters τ

# `y` is eliminated as an observed variable of the compiled system
sys = System([D(x) ~ (y - x) / τ, y ~ 2x], t; name = :sys)
csys = mtkcompile(sys)

unknowns(csys)  # [x(t)]
observed(csys)  # [y(t) ~ 2x(t)]

setdefaultnoisescaling(rs::ReactionSystem, noisescaling)

Creates an updated ReactionSystem. This is the old ReactionSystem, but each Reaction that does not have a noise_scaling metadata have its noisescaling metadata updated. The input ReactionSystem is not mutated. Any subsystems of rs have their `noisescaling` metadata updated as well.

Arguments:

• rs::ReactionSystem: The ReactionSystem which you wish to remake.
• noise_scaling: The updated noise scaling terms

symmap_to_varmap(sys, symmap)

Given a system and map of Symbols to values, generate a map from corresponding symbolic variables or parameters to values that can be used to pass initial conditions and parameter mappings.

For example,

sir = @reaction_network sir begin
    β, S + I --> 2I
    ν, I --> R
end
subsys = @reaction_network subsys begin
    k, A --> B
end
@named sys = compose(sir, [subsys])

gives

Model sys with 3 equations
Unknowns (5):
  S(t)
  I(t)
  R(t)
  subsys₊A(t)
  subsys₊B(t)
Parameters (3):
  β
  ν
  subsys₊k

to specify initial condition and parameter mappings from symbols we can use

symmap = [:S => 1.0, :I => 1.0, :R => 1.0, :subsys₊A => 1.0, :subsys₊B => 1.0]
u0map  = symmap_to_varmap(sys, symmap)
pmap   = symmap_to_varmap(sys, [:β => 1.0, :ν => 1.0, :subsys₊k => 1.0])

u0map and pmap can then be used as input to various problem types.

Notes:

• Any Symbol, sym, within symmap must be a valid field of sys. i.e. sys.sym must be defined.

@compound

Macro that creates a compound species, which is composed of smaller component species.

Example:

t = default_t()
@species C(t) O(t)
@compound CO2(t) ~ C + 2O

Notes:

• The component species must be defined before using the @compound macro.

@compounds

Macro that creates several compound species, which each is composed of smaller component species. Uses the same syntax as @compound, but with one compound species per line.

Example:

t = default_t()
@species C(t) H(t) O(t)
@compounds
    CH4(t) = C + 4H
    O2(t) = 2O
    CO2(t) = C + 2O
    H2O(t) = 2H + O
end

Notes:

• The component species must be defined before using the @compound macro.

iscompound(s)

Returns true if the input is a compound species (else false).

components(s)

Returns a vector with a list of all the components of a compound species (created using e.g. the @compound macro).

coefficients(s)

Returns a vector with a list of all the stoichiometric coefficients of the components of a compound species (created using e.g. the @compound macro).

component_coefficients(s)

Returns a Vector{Pair{Symbol,Int64}} listing, for a compound species (created using e.g. the @compound macro), all the components and their stoichiometric coefficients.

balance_reaction(reaction::Reaction)

Returns a vector of all possible stoichiometrically balanced Reaction objects for the given Reaction.

Example:

t = default_t()
@species Si(t) Cl(t) H(t) O(t)
@compound SiCl4 ~ Si + 4Cl
@compound H2O ~ 2H + O
@compound H4SiO4 ~ 4H + Si + 4O
@compound HCl ~ H + Cl
rx = @reaction 1.0, SiCl4 + H2O --> H4SiO4 HCl
balance_reaction(rx) # Exactly one solution.

t = default_t()
@species C(t) H(t) O(t)
@compound CO ~ C + O
@compound CO2 ~ C + 2O
@compound H2 ~ 2H
@compound CH4 ~ C + 4H
@compound H2O ~ 2H + O
rx = @reaction 1.0, CO + CO2 + H2--> CH4 H2O
balance_reaction(rx) # Multiple solutions.

t = default_t()
@species Fe(t) S(t) O(t) H(t) N(t)
@compound FeS2 ~ Fe + 2S
@compound HNO3 ~ H + N + 3O
@compound Fe2S3O12 ~ 2Fe + 3S + 12O
@compound NO ~ N + O
@compound H2SO4 ~ 2H + S + 4O
rx = @reaction 1.0, FeS2 + HNO3 --> Fe2S3O12 NO + H2SO4
brxs = balance_reaction(rx) # No solution.

Notes:

• Balancing reactions that contain compounds of compounds is currently not supported.
• A reaction may not always yield a single solution; it could have an infinite number of solutions or none at all. When there are multiple solutions, a vector of all possible Reaction objects is returned. However, substrates and products may be interchanged as we currently do not solve for a linear combination that maintains the set of substrates and products.
• If the reaction cannot be balanced, an empty Reaction vector is returned.

balance_system(rs::ReactionSystem)

From a system, creates a new system where each reaction is a balanced version of the corresponding reaction of the original system. For more information, consider the balance_reaction function (which is internally applied to each system reaction).

Arguments

• rs: The reaction system that should be balanced.

Notes:

• If any reaction in the system cannot be balanced, throws an error.
• If any reaction in the system have an infinite number of potential reactions, throws an error.

Here, it would be possible to generate a valid reaction, however, no such routine is currently implemented in balance_system.

• balance_system will not modify reactions of subsystems to the input system. It is recommended

not to apply balance_system to non-flattened systems.

validate_units(rx::Reaction; info::String = "", warn::Bool = true)

Check that all substrates and products within the given Reaction have the same units, and that the units of the reaction's rate expression are internally consistent (i.e. if the rate involves sums, each term in the sum has the same units).

validate_units(rs::ReactionSystem; info::String="", warn::Bool = true)

Check that all species in the ReactionSystem have the same units, and that the rate laws of all reactions reduce to units of (species units) / (time units). Also validates unit consistency of non-reaction equations.

Uses catalyst_get_unit for SymbolicDimensions-preserving unit inference, avoiding the floating-point precision loss that occurs with MTKBase's get_unit when using non-SI units like M or μM.

Notes:

• Correctly handles only_use_rate=true reactions (does not multiply substrate units into the rate).
• Assumes reaction-local rate-expression checks (e.g. additive-term consistency) were already performed on each Reaction (for example via unit_checks = true at Reaction construction time, or by calling validate_units(rx) separately).
• If all species/time/parameters are unitless, reaction-rate dimensional checks are skipped. This mode assumes rate/equation expressions do not include literal dimensional quantities (for example us"..." constants), which are currently unsupported model inputs.
• Does not check subsystems, use flatten(rs) and then call validate_units on the flattened system if you want to check the full composed system.
• Does not require that non-species variables have consistent units (outside of the equations in which they appear).
• Does not handle events or user-provided jumps.

assert_valid_units(rx::Reaction; info::String = "")

Run strict unit validation on a Reaction. Throws UnitValidationError if any unit inconsistency is detected.

assert_valid_units(rs::ReactionSystem; info::String = "")

Run strict unit validation on a ReactionSystem. Throws UnitValidationError if any unit inconsistency is detected.

unit_validation_report(rx::Reaction; info::String = "")

Run unit validation on a Reaction and return a UnitValidationReport containing both overall validity and structured issue diagnostics.

unit_validation_report(rs::ReactionSystem; info::String = "")

Run unit validation on a ReactionSystem and return a UnitValidationReport containing both overall validity and structured issue diagnostics.

UnitValidationIssue

A single unit-validation diagnostic entry.

UnitValidationReport

Structured output from unit validation.

UnitValidationError

Exception thrown by strict unit-validation entrypoints (e.g. assert_valid_units). Wraps the full validation report.

struct DiscreteSpaceReactionSystem{Q, R, S, T} <: ModelingToolkitBase.AbstractSystem

A representation of a spatial system of chemical reactions on a discrete space.

Fields

• reactionsystem: The (non-spatial) reaction system within each vertex.

• spatial_reactions: The spatial reactions defined between individual vertices.

• dspace: The discrete space on which the (discrete) spatial system is defined.

• num_verts: The number of vertices (compartments).

• num_edges: The number of edges.

• num_species: The number of species.

• spatial_species: List of species that may move spatially.

• parameters: All parameters related to the discrete space reaction system (both those whose values are tied to vertices and edges).

• vertex_parameters: Parameters which values are tied to vertices, e.g. that possibly could have unique values at each vertex of the system.

• edge_parameters: Parameters whose values are tied to edges (adjacencies), e.g. that possibly could have unique values at each edge of the system.

• edge_iterator: An iterator over all the discrete space's edges. Currently, the format is always a Vector{Pair{Int64,Int64}}. However, in the future, different types could potentially be used for different types of discrete space (E.g. for a Cartesian grid, we do not technically need to enumerate each edge)

• name: The name of the discrete space reaction system. Typically taken directly from the base ReactionSystem.

Arguments:

• rs: The non-spatial ReactionSystem model that is expanded to a spatial model.
• srs: A vector of spatial reactions. These provide the rules for how species may move spatially.
• dspace: Either a Cartesian grid, a masked grid, or a graph. This describes the discrete space

to which the non-spatial model is expanded.

Keyword Arguments:

• diagonal_connections = false: Only relevant for Cartesian and masked spaces. If true,

diagonally adjacent compartments are considered adjacent, and spatial reactions in between these are possible.

Example:

# Fetch packages.
using Catalyst, OrdinaryDiffEqDefault
import CairoMakie

# Creates the `DiscreteSpaceReactionSystem` model.
rs = @reaction_network begin
    (p,d), 0 <--> X
end
diffusion_rx = @transport_reaction D X
space = CartesianGrid((5,5))
dsrs = DiscreteSpaceReactionSystem(rs, [diffusion_rx], space)

# Simulates the model (using ODE and jumps).
u0 = [:X => rand(5,5)]
tspan = (0.0, 1.0)
ps = [:p => 1.0, :d => 0.5, :D => 0.1]
oprob = ODEProblem(dsrs, u0, tspan, ps)
osol = solve(oprob)

# Saves an animation of the solution to the file "dspace_animation.mp4".
dspace_animation(osol, :X, dsrs, "dspace_animation.mp4")

Notes:

• Spatial modelling in Catalyst is still a work in progress, any feedback (or contributions) to this

is highly welcome.

• DiscreteSpaceReactionSystems are primarily intended to model systems in discrete space. Modelling

continuous space systems with them is possible, but requires the user to determine the discretisation (the space). Better support for continuous space models is a work in progress.

• Catalyst contains extensive documentation on spatial modelling, which can be found here.

TransportReaction(rate, species)

Create a spatial transport reaction for species with transport rate rate.

rate may contain parameters but not species or other non-parameter symbolic variables. Transport reactions are used by DiscreteSpaceReactionSystem to move a species between neighboring compartments or graph vertices.

Examples

t = default_t()
@species X(t)
@parameters D
tr = TransportReaction(D, X)

@transport_reaction rate species

Create a TransportReaction and mark symbols in rate as edge parameters.

The macro declares any parameter symbols appearing in rate, declares species as a Catalyst species using default_t, and returns the resulting transport reaction.

Examples

tr = @transport_reaction D X
tr2 = @transport_reaction D1 + D2 X

CartesianGrid(dims)
CartesianGrid(n)

Create a regular Cartesian discrete space for spatial Catalyst models.

dims gives the number of vertices along each grid dimension. Pass an integer for a one-dimensional grid or a tuple for higher-dimensional grids. The result can be supplied as the discrete space argument to DiscreteSpaceReactionSystem.

Arguments

• dims: Grid dimensions as an integer or tuple of integers.

Returns

A CartesianGridRej value representing a regular Cartesian lattice.

Examples

line = CartesianGrid(5)
plane = CartesianGrid((3, 4))

CartesianGridRej(dims)
CartesianGridRej(dimension, linear_size::Int)

Cartesian grid topology with rejection-based random neighbor sampling.

Sites are represented by linear indices over dims. Neighbor relations use the nearest Cartesian offsets in one, two, or three dimensions and reject offsets that would leave the domain.

Arguments

• dims: Tuple or vector of side lengths.
• dimension: Number of Cartesian dimensions for a hypercube grid.
• linear_size: Side length used in every dimension when constructing from (dimension, linear_size).

Fields

• dims: Side lengths of the grid.
• nums_neighbors: Number of valid neighbors for each site.
• CI: Cartesian indices for the grid domain.
• LI: Linear indices for the grid domain.
• offsets: Candidate Cartesian offsets used to enumerate or sample neighbors.

Examples

using JumpProcesses

grid = CartesianGridRej((2, 2))
outdegree(grid, 1) == 2
collect(neighbors(grid, 1)) == [2, 3]

CartesianGridRej

Concrete Cartesian-grid discrete-space type used by Catalyst spatial models.

Values are usually constructed with CartesianGrid, then passed to DiscreteSpaceReactionSystem. Catalyst uses CartesianGridRej to query grid dimensions, edges, and vertex indexing for spatial ODE and jump problem generation.

Examples

grid = CartesianGrid((2, 3))
grid isa CartesianGridRej

reactionsystem(dsrs::DiscreteSpaceReactionSystem)

Returns the non-spatial ReactionSystem stored in a DiscreteSpaceReactionSystem.

spatial_reactions(dsrs::DiscreteSpaceReactionSystem)

Returns a vector with all the spatial reactions stored in a DiscreteSpaceReactionSystem.

dspace(dsrs::DiscreteSpaceReactionSystem)

Returns the dspace (i.e. discrete space) stored in a DiscreteSpaceReactionSystem.

num_verts(dsrs::DiscreteSpaceReactionSystem)

Returns the number of vertices (i.e. compartments) in the discrete space stored in a DiscreteSpaceReactionSystem.

num_edges(dsrs::DiscreteSpaceReactionSystem)

Returns the number of edges (i.e. connections between vertices) in the discrete space stored in a DiscreteSpaceReactionSystem.

num_species(dsrs::DiscreteSpaceReactionSystem)

Returns the number of species that a DiscreteSpaceReactionSystem contains.

spatial_species(dsrs::DiscreteSpaceReactionSystem)

Returns the species that can move spatially in a DiscreteSpaceReactionSystem.

vertex_parameters(dsrs::DiscreteSpaceReactionSystem)

Returns all the parameters of a DiscreteSpaceReactionSystem whose values are tied to vertices.

edge_parameters(dsrs::DiscreteSpaceReactionSystem)

Returns all the parameters of a DiscreteSpaceReactionSystem whose values are tied to edges.

edge_iterator(dsrs::DiscreteSpaceReactionSystem)

Returns an iterator over all of the edges in the discrete space stored in a DiscreteSpaceReactionSystem. Each edge is a Pair{Int64, Int64}, taking the source vertex to the destination vertex.

is_transport_system(dsrs::DiscreteSpaceReactionSystem)

Returns true if all spatial reactions in dsrs are TransportReactions.

isedgeparameter(p)

Return whether p is marked as an edge parameter.

Edge parameters vary by edge in a DiscreteSpaceReactionSystem. Returns true when the symbolic parameter carries edge-parameter metadata, and false otherwise.

has_cartesian_dspace(dsrs::DiscreteSpaceReactionSystem)

Returns true if dsrs was created using a cartesian grid discrete space (e.g. created via CartesianGrid(5,5)). Otherwise, returns false.

has_masked_dspace(dsrs::DiscreteSpaceReactionSystem)

Returns true if dsrs was created using a masked grid discrete space (e.g. created via [true true; true false]). Otherwise, returns false.

has_grid_dspace(dsrs::DiscreteSpaceReactionSystem)

Returns true if dsrs was created using a cartesian or masked grid discrete space. Otherwise, returns false.

has_graph_dspace(dsrs::DiscreteSpaceReactionSystem)

Returns true if dsrs was created using a graph grid discrete space (e.g. created via path_graph(5)). Otherwise, returns false.

grid_size(dsrs::DiscreteSpaceReactionSystem)

Returns the size of dsrs's discrete space (only if it is a cartesian or masked grid discrete space). E.g. for a discrete space CartesianGrid(4,6), (4,6) is returned.

grid_dims(dsrs::DiscreteSpaceReactionSystem)

Returns the number of dimensions of dsrs's discrete space (only if it is a cartesian or masked grid discrete space). The output is either 1, 2, or 3.

make_edge_p_values(dsrs::DiscreteSpaceReactionSystem, make_edge_p_value::Function)

Generates edge parameter values for a discrete space reaction system. Only works for (Cartesian or masked) grid discrete spaces (without diagonal adjacencies).

Input:

• dsrs: The discrete space reaction system for which values should be generated.
• make_edge_p_value: a function describing a rule for generating the edge parameter values.

Output: - ep_vals: A sparse matrix of size (numverts,numverts) (where numverts is the number of vertices in dsrs). Here, eps[i,j] is filled only if there is an edge going from vertex i to vertex j. The value of eps[i,j] is determined by `makeedgepvalue`.

Here, make_edge_p_value should take two arguments, src_vert and dst_vert, which correspond to the grid indices of an edge's source and destination vertices, respectively. It outputs a single value, which is the value assigned to that edge.

Example: In the following example, we assign the value 0.1 to all edges, except for the one leading from vertex (1,1) to vertex (1,2), to which we assign the value 1.0.

using Catalyst
rn = @reaction_network begin
    (p,d), 0 <--> X
end
tr = @transport_reaction D X
space = CartesianGrid((5,5))
dsrs = DiscreteSpaceReactionSystem(rn, [tr], space)

function make_edge_p_value(src_vert, dst_vert)
    if src_vert == (1,1) && dst_vert == (1,2)
        return 1.0
    else
        return 0.1
    end
end

D_vals = make_edge_p_values(dsrs, make_edge_p_value)

make_directed_edge_values(dsrs::DiscreteSpaceReactionSystem, x_vals::Tuple{T,T}, y_vals::Tuple{T,T} = (undef,undef),
                 z_vals::Tuple{T,T} = (undef,undef)) where {T}

Generates edge parameter values for a discrete space reaction system. Only works for (Cartesian or masked) grid discrete spaces (without diagonal adjacencies). Each dimension (x, and possibly y and z), and direction has assigned its own constant edge parameter value.

Input: - dsrs: The discrete space reaction system for which values should be generated. - x_vals::Tuple{T,T}: The values in the increasing (from a lower x index to a higher x index) and decreasing (from a higher x index to a lower x index) direction along the x dimension. - y_vals::Tuple{T,T}: The values in the increasing and decreasing direction along the y dimension. Should only be used for 2 and 3-dimensional grids. - z_vals::Tuple{T,T}: The values in the increasing and decreasing direction along the z dimension. Should only be used for 3-dimensional grids.

Output: - ep_vals: A sparse matrix of size (numverts,numverts) (where numverts is the number of vertices in dsrs). Here, eps[i,j] is filled only if there is an edge going from vertex i to vertex j. The value of eps[i,j] is determined by the `xvals,yvals, andzvals` Tuples, and vertices i and j's relative position in the grid.

It should be noted that two adjacent vertices will always be different in exactly a single dimension (x, y, or z). The corresponding tuple determines which value is assigned.

Example: In the following example, we wish to have diffusion in the x dimension, but a constant flow from low y values to high y values (so not transportation from high to low y). We achieve it in the following manner:

using Catalyst
rn = @reaction_network begin
    (p,d), 0 <--> X
end
tr = @transport_reaction D X
space = CartesianGrid((5,5))
dsrs = DiscreteSpaceReactionSystem(rn, [tr], space)

D_vals = make_directed_edge_values(dsrs, (0.1, 0.1), (0.1, 0.0))

Here, since we have a 2d grid, we only provide the first two Tuples to make_directed_edge_values.

spat_getu(sim_struct, sp, dsrs::DiscreteSpaceReactionSystem)

For a problem or integrators, retrieves its u values. For non-discrete space models, this is can be done through direct interfacing (e.g. prob[X]). However, for DiscreteSpaceReactionSystem-based problems and integrators, this function must be used instead. The output format depends on the discrete space (a dense array for cartesian grid discrete spaces, a sparse array for masked grid discrete spaces, and a vector for graph discrete spaces). This format is similar to which is used to designate species initial conditions.

Arguments:

• sim_struct: The simulation structure which u value we wish to retrieve. Can be either a ODEProblem, JumpProblem, or an integrator derived from either of these.
• sp: The species which value we wish to update. Can be provided either in its symbolic form (e.g. X) or as a symbol (e.g. :X).
• dsrs: The DiscreteSpaceReactionSystem which was used to generate the structure we wish to modify.

Notes:

• Even if the species is spatially uniform, a full array with its values across all vertices will be retrieved.

Example:

# Prepare `DiscreteSpaceReactionSystem`s.
using Catalyst
rs = @reaction_network begin
    (k1,k2), X1 <--> X2
end
tr = @transport_reaction D X1
dsrs = DiscreteSpaceReactionSystem(rs, [tr], CartesianGrid((2,3)))

# Prepares a corresponding ODEProblem.
u0 = [:X1 => [1.0 2.0 3.0; 4.0 5.0 6.0], :X2 => 2.0]
tspan = (0.0, 50.0)
ps = [:k1 => 2.0, :k2 => 1.0, :D => 0.01]
oprob = ODEProblem(dsrs, u0, tspan, ps)

# Updates the `ODEProblem`.
spat_getu(oprob, :X1, dsrs) # Retrieves the value of `X1`.

spat_getu(sol, sp, dsrs::DiscreteSpaceReactionSystem; t = nothing)

A function for retrieving the solution of a DiscreteSpaceReactionSystem-based simulation on various desired forms. Generally, for DiscreteSpaceReactionSystems, the values in sol is ordered in a way which is not directly interpretable by the user. Furthermore, the normal Catalyst interface for solutions (e.g. sol[:X]) does not work for these solutions. Hence this function is used instead.

The output is a vector, which in each position contains sp's value (either at a time step of time, depending on the input t). Its shape depends on the discrete space (using a similar form as heterogeneous initial conditions). I.e. for a NxM cartesian grid, the values are NxM matrices. For a masked grid, the values are sparse matrices. For a graph discrete space, the values are vectors (where the value in the n'th position corresponds to sp's value in the n'th vertex).

Arguments:

• sol: The solution from which we wish to retrieve some values.
• sp: The species which value we wish to update. Can be provided either in its symbolic form (e.g. X) or as a symbol (e.g. :X).
• dsrs: The DiscreteSpaceReactionSystem which was simulated to generate the solution.
• t = nothing: If nothing, we simply return the solution across all saved time steps (default). If t instead is a vector (or range of values), returns the solution interpolated at these time points.

Notes:

• The spat_getu is not optimised for performance. However, it should still be quite performant, but there might be some limitations if called a very large number of times.
• Long-term it is likely that this function gets replaced with a sleeker interface.

Example:

using Catalyst, OrdinaryDiffEqDefault

# Prepare `DiscreteSpaceReactionSystem`s.
rs = @reaction_network begin
    (k1,k2), X1 <--> X2
end
tr = @transport_reaction D X1
dsrs = DiscreteSpaceReactionSystem(rs, [tr], CartesianGrid((2,2)))

# Create problems.
u0 = [:X1 => 1, :X2 => 2]
tspan = (0.0, 10.0)
ps = [:k1 => 1, :k2 => 2.0, :D => 0.1]

oprob = ODEProblem(dsrs1, u0, tspan, ps)
osol = solve(oprob)
spat_getu(osol, :X1, dsrs) # Returns the value of X1 at each time step.
spat_getu(osol, :X1, dsrs; t = 0.0:10.0) # Returns the value of X1 at times 0.0, 1.0, ..., 10.0

spat_setu!(sim_struct, sp, dsrs::DiscreteSpaceReactionSystem, u)

For a problem or integrators, update its u vector with the input u. For non-discrete space models, this is can be done through direct interfacing (e.g. prob[X] = 1.0). However, for DiscreteSpaceReactionSystem-based problems and integrators, this function must be used instead.

Arguments:

• sim_struct: The simulation structure which u value we wish to update. Can be either a ODEProblem, JumpProblem, or an integrator derived from either of these.
• sp: The species which value we wish to update. Can be provided either in its symbolic form (e.g. X) or as a symbol (e.g. :X).
• dsrs: The DiscreteSpaceReactionSystem which was used to generate the structure we wish to modify.
• u: The species's new values. Must be given in a form which is also a valid initial input to the ODEProblem/JumpProblem.

Example:

# Prepare `DiscreteSpaceReactionSystem`s.
using Catalyst
rs = @reaction_network begin
    (k1,k2), X1 <--> X2
end
tr = @transport_reaction D X1
dsrs = DiscreteSpaceReactionSystem(rs, [tr], CartesianGrid((2,3)))

# Prepares a corresponding ODEProblem.
u0 = [:X1 => [1.0 2.0 3.0; 4.0 5.0 6.0], :X2 => 2.0]
tspan = (0.0, 50.0)
ps = [:k1 => 2.0, :k2 => 1.0, :D => 0.01]
oprob = ODEProblem(dsrs, u0, tspan, ps)

# Updates the `ODEProblem`.
spat_setu!(oprob, :X1, dsrs, 0.0) # Sets `X1` to uniformly 0 across the discrete space.
spat_setu!(oprob, :X2, dsrs, [1.0 0.0 0.0; 0.0 0.0 0.0]) # Sets `X2` to `1.0` in one vertex, and 0 elsewhere.

spat_getp(sim_struct, p, dsrs::DiscreteSpaceReactionSystem)

For a problem or integrators, retrieves its p values. For non-discrete space models, this is can be done through direct interfacing (e.g. prob[p]). However, for DiscreteSpaceReactionSystem-based problems and integrators, this function must be used instead. The output format depends on the discrete space (a dense array for cartesian grid discrete spaces, a sparse array for masked grid discrete spaces, and a vector for graph discrete spaces). This format is similar to what is used to designate parameter initial values.

Arguments:

• sim_struct: The simulation structure which p value we wish to retrieve. Can be either a ODEProblem,

JumpProblem, or an integrator derived from either of these.

• p: The species which value we wish to update. Can be provided either in its symbolic form (e.g. k) or as a symbol (e.g. :k).
• dsrs: The DiscreteSpaceReactionSystem which was used to generate the structure we wish to modify.

Notes:

• Even if the parameter is spatially uniform, a full array with its values across all vertices will be retrieved.

Example:

# Prepare `DiscreteSpaceReactionSystem`s.
using Catalyst
rs = @reaction_network begin
    (k1,k2), X1 <--> X2
end
tr = @transport_reaction D X1
dsrs = DiscreteSpaceReactionSystem(rs, [tr], CartesianGrid((2,3)))

# Prepares a corresponding ODEProblem.
u0 = [:X1 => 1.0, :X2 => 2.0]
tspan = (0.0, 50.0)
ps = [:k1 => [1.0 2.0 3.0; 4.0 5.0 6.0], :k2 => 1.0, :D => 0.01]
oprob = ODEProblem(dsrs, u0, tspan, ps)

# Updates the `ODEProblem`.
spat_getp(oprob, :k1, dsrs) # Retrieves the value of `k1`.

spat_setp!(sim_struct, p, dsrs::DiscreteSpaceReactionSystem, p_val)

For a problem or integrators, update its p vector with the input p_val. For non-discrete space models, this is can be done through direct interfacing (e.g. prob[p] = 1.0). However, for DiscreteSpaceReactionSystem-based problems and integrators, this function must be used instead.

Arguments:

• sim_struct: The simulation structure which u value we wish to update. Can be either a ODEProblem, JumpProblem, or an integrator derived from either of these.
• p: The species which value we wish to update. Can be provided either in its symbolic form (e.g. k) or as a symbol (e.g. :k).
• dsrs: The DiscreteSpaceReactionSystem which was used to generate the structure we wish to modify.
• p_val: The parameter's new values. Must be given in a form which is also a valid initial input to the ODEProblem/JumpProblem.

Example:

# Prepare `DiscreteSpaceReactionSystem`s.
using Catalyst
rs = @reaction_network begin
    (k1,k2), X1 <--> X2
end
tr = @transport_reaction D X1
dsrs = DiscreteSpaceReactionSystem(rs, [tr], CartesianGrid((2,3)))

# Prepares a corresponding ODEProblem.
u0 = [:X1 => 1.0, :X2 => 2.0]
tspan = (0.0, 50.0)
ps = [:k1 => [1.0 2.0 3.0; 4.0 5.0 6.0], :k2 => 1.0, :D => 0.01]
oprob = ODEProblem(dsrs, u0, tspan, ps)

# Updates the `ODEProblem`.
spat_setp!(oprob, :k1, dsrs, 0.0) # Sets `k1` to uniformly 0 across the discrete space.
spat_setp!(oprob, :k2, dsrs, [1.0 0.0 0.0; 0.0 0.0 0.0]) # Sets `k2` to `1.0` in one vertex, and 0 elsewhere.

rebuild_spat_internals!(sciml_struct)

Rebuilds the internal functions for simulating a DiscreteSpaceReactionSystem. Whenever a problem or integrator has had its parameter values updated, this function should be called for the update to be taken into account. For ODE simulations, rebuild_spat_internals! needs only to be called when

• An edge parameter has been updated.
• When a parameter with spatially homogeneous values has been given spatially heterogeneous values (or vice versa).

Arguments:

• sciml_struct: The problem (e.g. an ODEProblem) or an integrator which we wish to rebuild.

Notes:

• Currently does not work for DiscreteProblems, JumpProblems, or their integrators.
• The function is not built with performance in mind, so avoid calling it multiple times in performance-critical applications.

Example:

# Creates an initial `ODEProblem`
rs = @reaction_network begin
    (k1,k2), X1 <--> X2
end
tr = @transport_reaction D X1
grid = CartesianGrid((2,2))
dsrs = DiscreteSpaceReactionSystem(rs, [tr], grid)

u0 = [:X1 => 2, :X2 => [5 6; 7 8]]
tspan = (0.0, 10.0)
ps = [:k1 => 1.5, :k2 => [1.0 1.5; 2.0 3.5], :D => 0.1]

oprob = ODEProblem(dsrs, u0, tspan, ps)

# Updates parameter values.
oprob.ps[:ks] = [2.0 2.5; 3.0 4.5]
oprob.ps[:D] = 0.05

# Rebuilds `ODEProblem` to make changes have an effect.
rebuild_spat_internals!(oprob)

dspace_plot(sol, sp, dsrs::DiscreteSpaceReactionSystem, filename::String; t = sol.tspan[2], kwargs...)

Creates a plot of a DiscreteSpaceReactionSystem simulation. The plot is created at the time point specified by t (defaults to the simulation's final time point).

Arguments (all spaces):

• sol: The simulation we wish to plot.
• sp: The species whose values we wish to plot. Can be provided either in its symbolic form or as a symbol.
• dsrs: The DiscreteSpaceReactionSystem which was simulated.
• t = sol.t[end]: The time point at which we wish to plot the solution

In addition, depending on the type of space used, the following optional arguments might be relevant.

Arguments (1d spaces):

• markersize = 20: The size of the markers marking each compartment's value.

Arguments (Graph & 2d spaces):

• colormap = :BuGn_7: The colour map with which we display the species amounts in the animation.
• plot_min = nothing: The minimum value for the colour scale (values less than this will be set at this value when the colour scale is computed). If nothing, use the simulation's minimum value (across the entire simulation, not just at the plotted time value).
• plot_max = nothing: The maximum value for the colour scale (values more than this will be set at this value when the colour scale is computed). If nothing, use the simulation's minimum value (across the entire simulation, not just at the plotted time value).

Arguments (Graph spaces):

• node_size = 50: The size of the compartments in the plot.
• layout = Spring(): The layout for the graph nodes in the plot. Can be provided as a vector, where the i'th element is a 2-valued tuple (determining the i'th compartment's y and x positions, respectively).

Notes:

• For masked spaces, there are no value displayed for grid points which do not correspond to a compartments.
• The current plotting interface is a work in progress, and modifications are expected. if you have any feedback, please contact the package authors.
• Additional arguments can be passed to dspace_plot, which then will be passed to Makie's lines plotting command.

dspace_animation(sol, sp, dsrs::DiscreteSpaceReactionSystem, filename::String; kwargs...)

Creates an animation of a DiscreteSpaceReactionSystem simulation. The animation is saved to a file, whose name is provided in the filename argument.

Arguments (all spaces):

• sol: The simulation we wish to animate.
• sp: The species which values we wish to animate. Can be provided either in its symbolic form or as a symbol.
• dsrs: The DiscreteSpaceReactionSystem which was simulated.
• filename: The name of the file to which we wish to save the animation.
• nframes = 200: The number of frames in the animation (these are evenly samples across the simulation).
• framerate = 20: The frame rate of the animation.
• ttitle = true: Whether to add a title showing the simulation's time throughout the animation.

In addition, depending on the type of space used, the following optional arguments might be relevant.

Arguments (1d spaces):

• markersize = 20: The size of the markers marking each compartment's value.
• plot_min = nothing: The y-scale's minimum. If nothing, use the simulation's minimum value.
• plot_max = nothing: The y-scale's maximum. If nothing, use the simulation's maximum value.

Arguments (Graph & 2d spaces):

• colormap = :BuGn_7: The colour map with which we display the species amounts in the animation.
• plot_min = nothing: The minimum value for the colour scale (values less than this will be set at this value when the colour scale is computed). If nothing, use the simulation's minimum value.
• plot_max = nothing: The maximum value for the colour scale (values more than this will be set at this value when the colour scale is computed). If nothing, use the simulation's minimum value.

Arguments (Graph spaces):

• node_size = 50: The size of the compartments in the plot.
• layout = Spring(): The layout for the graph nodes in the plot. Can be provided as a vector, where the i'th element is a 2-valued tuple (determining the i'th compartment's y and x positions, respectively).

Notes:

• For masked spaces, there are no value displayed for grid points which do not correspond to a compartments.
• The current animation interface if a work in progress, and modifications are expected. if you have any feedback, please contact the package authors.
• Additional arguments can be passed to dspace_animation, which then will be passed to Makie's heatmap plotting command.

dspace_kymograph(sol, sp, dsrs::DiscreteSpaceReactionSystem, kwargs...)

Creates a kymograph of a DiscreteSpaceReactionSystem simulation based on a Cartesian or masked space. The plot shows the compartments on the y-axis, and the time development of the system's state along the x-axis. Species amounts are shown as a heatmap.

Arguments (all spaces):

• sol: The simulation we wish to plot.
• sp: The species whose values we wish to plot. Can be provided either in its symbolic form or as a symbol.
• dsrs: The DiscreteSpaceReactionSystem which was simulated.
• colormap = :BuGn_7: The colour map with which we display the species amounts in the kymograph.
• nframes = 200: The number of time samples which the time series is sampled with.
• plot_min = nothing: The minimum value for the colour scale (values less than this will be set at this value when the colour scale is computed). If nothing, use the simulation's minimum value.
• plot_max = nothing: The maximum value for the colour scale (values more than this will be set at this value when the colour scale is computed). If nothing, use the simulation's minimum value.

Notes:

• For masked spaces, there are no value displayed for grid points which do not correspond to a compartments.
• The current plotting interface is a work in progress, and modifications are expected. if you have any feedback, please contact the package authors.
• Additional arguments can be passed to dspace_plot, which then will be passed to Makie's heatmap plotting command.

save_reactionsystem(filename::String, rn::ReactionSystem; annotate = true, safety_check = true)

Save a ReactionSystem model to a file. The ReactionSystem is saved as runnable Julia code. This can both be used to save a ReactionSystem model, but also to write it to a file for easy inspection.

Arguments:

• filename: The name of the file to which the ReactionSystem is saved.
• rn: The ReactionSystem which should be saved to a file.
• annotate = true: Whether annotation should be added to the file.
• safety_check = true: After serialisation, Catalyst will automatically load the serialised ReactionSystem and check that it is equal to rn. If it is not, an error will be thrown. If performance is required (i.e. when saving a large number of models), this can be disabled by setting safety_check = false.

Example:

rn = @reaction_network begin
    (p,d), 0 <--> X
end
save_reactionsystem("rn.jls", rn)

The model can now be loaded using

rn = include("rn.jls")

Notes:

• ReactionSystems with non-ReactionSystem sub-systems (e.g. non-reaction Systems) cannot be saved.
• Reaction systems with components that have units cannot currently be saved.
• The ReactionSystem is saved using programmatic (not DSL) format for model creation.
