Coupled ODEs, Algebraic Equations, and Events

In many applications one has additional algebraic or differential equations for non-chemical species that can be coupled to a chemical reaction network model. Catalyst supports coupled differential and algebraic equations, and currently allows conversion of such coupled systems to ModelingToolkit ODESystems and NonlinearSystems. Likewise, one often needs events that can occur when a set condition is reached, such as providing a drug treatment at a specified time, or turning off production of cells once the population reaches a given level. Catalyst supports the event representation provided by ModelingToolkit, see here, allowing for both continuous and discrete events.

In this tutorial we'll illustrate how to make use of coupled constraint (i.e. ODE/algebraic) equations and events. Let's consider a model of a cell with volume $V(t)$ that grows at a rate $\lambda$. For now we'll assume the cell can grow indefinitely. We'll also keep track of one protein $P(t)$, which is produced at a rate proportional $V$ and can be degraded.

Coupling ODE constraints via the DSL

The easiest way to include ODEs and algebraic equations is to just include them when using the DSL to specify a model. Here we include an ODE for $V(t)$ along with degradation and production reactions for $P(t)$:

using Catalyst, OrdinaryDiffEqTsit5, Plots

rn = @reaction_network growing_cell begin
    # the growth rate
    @parameters λ = 1.0

    # assume there is no protein initially
    @species P(t) = 0.0

    # set the initial volume to 1.0
    @variables V(t) = 1.0

    # the reactions
    V, 0 --> P
    1.0, P --> 0

    # the coupled ODE for V(t)
    @equations begin
        D(V) ~ λ * V
    end
end

\[ \begin{align*} \varnothing &\xrightleftharpoons[1.0]{V\left( t \right)} \mathrm{P} \\ \frac{\mathrm{d} V\left( t \right)}{\mathrm{d}t} &= V\left( t \right) \lambda \end{align*} \]

We can now create an ODEProblem from our model and solve it to see how $V(t)$ and $P(t)$ evolve in time:

oprob = ODEProblem(rn, [], (0.0, 1.0))
sol = solve(oprob, Tsit5())
plot(sol)

Coupling ODE constraints via directly building a ReactionSystem

As an alternative to the previous approach, we could have also constructed our ReactionSystem all at once using the symbolic interface:

using Catalyst, OrdinaryDiffEqTsit5, Plots

t = default_t()
D = default_time_deriv()

@parameters λ = 1.0
@variables V(t) = 1.0
eq = D(V) ~ λ * V
rx1 = @reaction $V, 0 --> P
rx2 = @reaction 1.0, P --> 0
@named growing_cell = ReactionSystem([rx1, rx2, eq], t)
setdefaults!(growing_cell, [:P => 0.0])
growing_cell = complete(growing_cell)

oprob = ODEProblem(growing_cell, [], (0.0, 1.0))
sol = solve(oprob, Tsit5())
plot(sol)

Coupling ODE constraints via extending a system

Finally, we could also construct our model by using compositional modeling. Here we create separate ReactionSystems and ODESystems with their respective components, and then extend the ReactionSystem with the ODESystem. Let's begin by creating these two systems.

Here, to create differentials with respect to time (for our differential equations), we must import the time differential operator from Catalyst. We do this through D = default_time_deriv(). Here, D(V) denotes the differential of the variable V with respect to time.

using Catalyst, OrdinaryDiffEqTsit5, Plots

t = default_t()
D = default_time_deriv()

# set the growth rate to 1.0
@parameters λ = 1.0

# set the initial volume to 1.0
@variables V(t) = 1.0

# build the ODESystem for dV/dt
eq = [D(V) ~ λ * V]
@named osys = ODESystem(eq, t)

# build the ReactionSystem with no protein initially
rn = @network_component begin
    @species P(t) = 0.0
    $V,   0 --> P
    1.0, P --> 0
end

\[ \begin{align*} \varnothing &\xrightleftharpoons[1.0]{V\left( t \right)} \mathrm{P} \end{align*} \]

Notice, here we interpolated the variable V with $V to ensure we use the same symbolic unknown variable in the rn as we used in building osys. See the doc section on interpolation of variables for more information. We also use @network_component instead of @reaction_network as when merging systems together Catalyst requires that the systems have not been marked as complete (which indicates to Catalyst that a system is finalized).

We can now merge the two systems into one complete ReactionSystem model using ModelingToolkit.extend:

@named growing_cell = extend(osys, rn)
growing_cell = complete(growing_cell)

\[ \begin{align*} \varnothing &\xrightleftharpoons[1.0]{V\left( t \right)} \mathrm{P} \\ \frac{\mathrm{d} V\left( t \right)}{\mathrm{d}t} &= V\left( t \right) \lambda \end{align*} \]

We see that the combined model now has both the reactions and ODEs as its equations. To solve and plot the model we proceed like normal

oprob = ODEProblem(growing_cell, [], (0.0, 1.0))
sol = solve(oprob, Tsit5())
plot(sol)

Adding events

Our current model is unrealistic in assuming the cell will grow exponentially forever. Let's modify it such that the cell divides in half every time its volume reaches a size of 2. We also assume we lose half of the protein upon division. Note, we will only keep track of one cell, and hence follow a specific lineage of the system. To do this we can create a continuous event using the ModelingToolkit symbolic event interface and attach it to our system. Please see the associated ModelingToolkit tutorial for more details on the types of events that can be represented symbolically. A lower-level approach for creating events via the DifferentialEquations.jl callback interface is illustrated here tutorial.

using Catalyst, OrdinaryDiffEqTsit5, Plots

rn = @reaction_network growing_cell begin
    # the growth rate
    @parameters λ = 1.0

    # assume there is no protein initially
    @species P(t) = 0.0

    # set the initial volume to 1.0
    @variables V(t) = 1.0

    # the reactions
    V, 0 --> P
    1.0, P --> 0

    # the coupled ODE for V(t)
    @equations begin
        D(V) ~ λ * V
    end

    # every 1.0 time unit we half the volume of the cell and the number of proteins
    @continuous_events begin
        [V ~ 2.0] => [V ~ V/2, P ~ P/2]
    end
end

\[ \begin{align*} \varnothing &\xrightleftharpoons[1.0]{V\left( t \right)} \mathrm{P} \\ \frac{\mathrm{d} V\left( t \right)}{\mathrm{d}t} &= V\left( t \right) \lambda \end{align*} \]

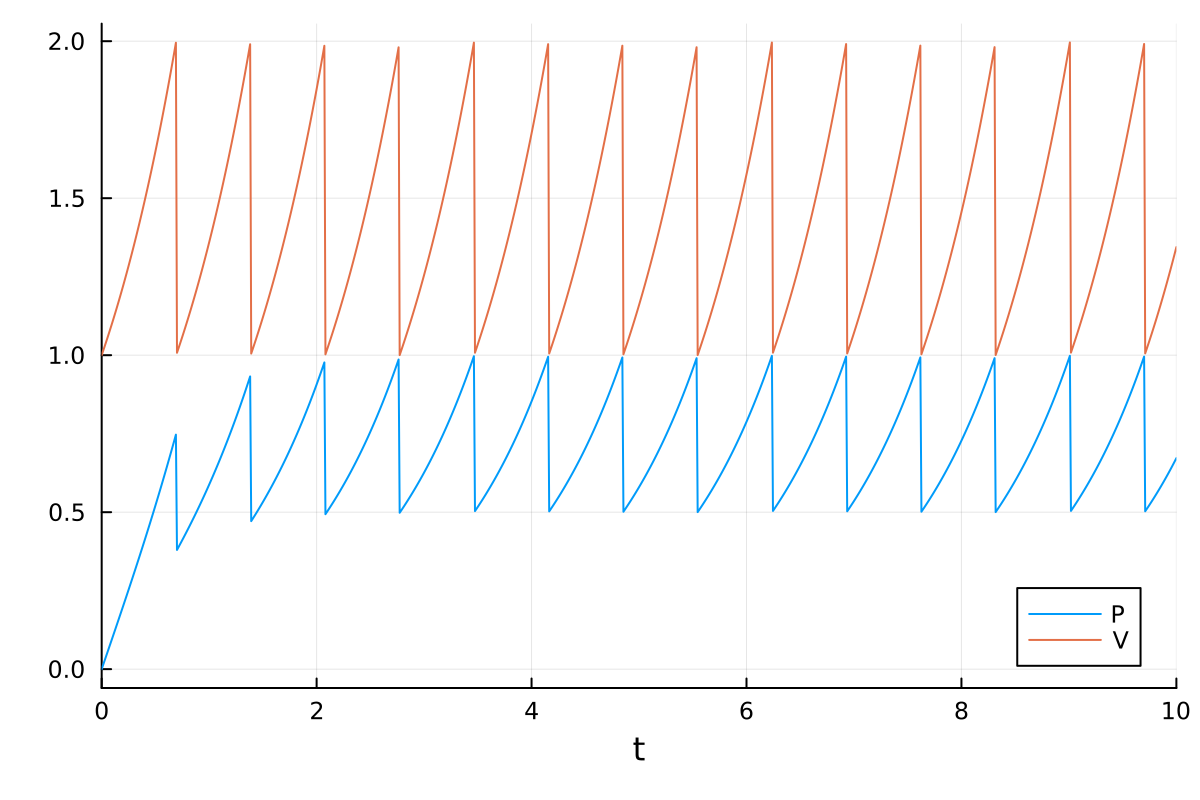

We can now create and simulate our model

oprob = ODEProblem(rn, [], (0.0, 10.0))
sol = solve(oprob, Tsit5())
plot(sol)

We can also model discrete events. Here at a time switch_time we will set the parameter k_on to be zero:

rn = @reaction_network param_off_ex begin
    @parameters switch_time
    k_on, A --> B
    k_off, B --> A

    @discrete_events begin
        (t == switch_time) => [k_on ~ 0.0]
    end
end

u0 = [:A => 10.0, :B => 0.0]
tspan = (0.0, 4.0)
p = [:k_on => 100.0, :switch_time => 2.0, :k_off => 10.0]
oprob = ODEProblem(rn, u0, tspan, p)
sol = solve(oprob, Tsit5(); tstops = 2.0)
plot(sol)

Note that for discrete events we need to set a stop time via tstops so that the ODE solver can step exactly to the specific time of our event. In the previous example we just manually set the numeric value of the parameter in the tstops kwarg to solve, however, it can often be convenient to instead get the value of the parameter from oprob and pass this numeric value. This helps ensure consistency between the value passed via p and/or symbolic defaults and what we pass as a tstop to solve. We can do this as

oprob = ODEProblem(rn, u0, tspan, p)
switch_time_val = oprob.ps[:switch_time]
sol = solve(oprob, Tsit5(); tstops = switch_time_val)
plot(sol)

For a detailed discussion on how to directly use the lower-level but more flexible DifferentialEquations.jl event/callback interface, see the tutorial on event handling using callbacks.

Adding events via the symbolic interface

Let's repeat the previous two models using the symbolic interface. We first create our equations and unknowns/species again

using Catalyst, OrdinaryDiffEqTsit5, Plots
t = default_t()
D = default_time_deriv()

@parameters λ = 1.0
@variables V(t) = 1.0
@species P(t) = 0.0
eq = D(V) ~ λ * V
rx1 = @reaction $V, 0 --> $P
rx2 = @reaction 1.0, $P --> 0

1.0, P --> ∅

Before creating our ReactionSystem we make the event.

# every 1.0 time unit we half the volume of the cell and the number of proteins
continuous_events = [V ~ 2.0] => [V ~ V/2, P ~ P/2]

Equation[V(t) ~ 2.0] => Equation[V(t) ~ (1//2)*V(t), P(t) ~ (1//2)*P(t)]

We can now create and simulate our model

@named rs = ReactionSystem([rx1, rx2, eq], t; continuous_events)
rs = complete(rs)

oprob = ODEProblem(rs, [], (0.0, 10.0))
sol = solve(oprob, Tsit5())
plot(sol)

We can again also model discrete events. Similar to our example with continuous events, we start by creating reaction equations, parameters, variables, and unknowns.

t = default_t()
@parameters k_on switch_time k_off
@species A(t) B(t)

rxs = [(@reaction k_on, A --> B), (@reaction k_off, B --> A)]

2-element Vector{Reaction{Any, Int64}}:
 k_on, A --> B
 k_off, B --> A

Now we add an event such that at time t (switch_time), k_on is set to zero.

discrete_events = (t == switch_time) => [k_on ~ 0.0]

u0 = [:A => 10.0, :B => 0.0]
tspan = (0.0, 4.0)
p = [k_on => 100.0, switch_time => 2.0, k_off => 10.0]

3-element Vector{Pair{Num, Float64}}:
        k_on => 100.0
 switch_time => 2.0
       k_off => 10.0

Simulating our model,

@named rs2 = ReactionSystem(rxs, t, [A, B], [k_on, k_off, switch_time]; discrete_events)
rs2 = complete(rs2)

oprob = ODEProblem(rs2, u0, tspan, p)
switch_time_val = oprob.ps[:switch_time]
sol = solve(oprob, Tsit5(); tstops = switch_time_val)
plot(sol)
