Tutorial

The models directory contains a few CellML model examples. Let's start with a simple one, the famous Lorenz equations!

  using CellMLToolkit

  ml = CellModel("models/lorenz.cellml.xml")

  tspan = (0, 100.0)
  prob = ODEProblem(ml, tspan)

Now, ml points to a CellModel struct that contains the details of the model, and prob is an ODEProblem ready for integration. We can solve and visualize prob as

  using DifferentialEquations, Plots

  sol = solve(prob, TRBDF2(), dtmax=0.01)
  X = map(x -> x[1], sol.u)
  Z = map(x -> x[3], sol.u)
  plot(X, Z)

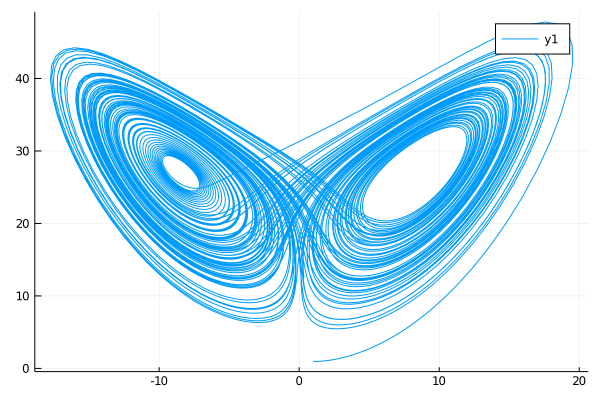

As expected,

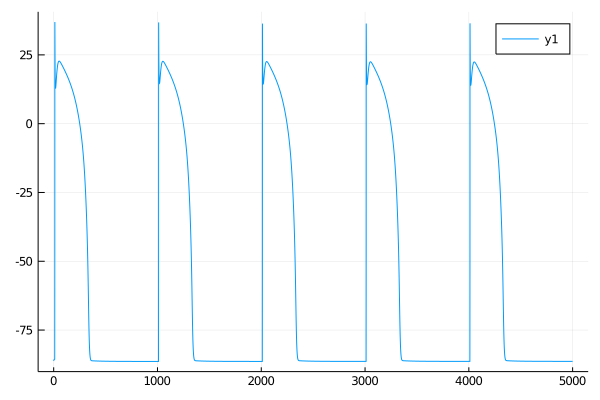

Let's look at more complicated examples. The next one is the ten Tusscher-Noble-Noble-Panfilov human left ventricular action potential model. This is a mid-range electrophysiology model with 17 state variables and relatively good numerical stability.

  ml = CellModel("models/tentusscher_noble_noble_panfilov_2004_a.cellml.xml")
  tspan = (0, 5000.0)
  prob = ODEProblem(ml, tspan)
  sol = solve(prob, TRBDF2(), dtmax=1.0)
  V = map(x -> x[1], sol.u)
  plot(sol.t, V)

We can also enhance the model by asking ModelingToolkit.jl to generate a Jacobian by passing jac=true to the ODEProblem constructor.

  prob = ODEProblem(ml, tspan; jac=true)

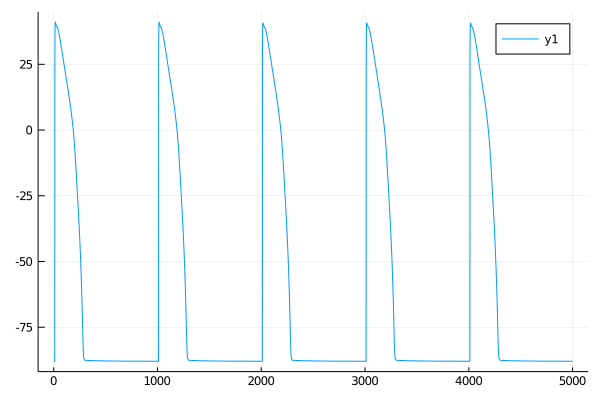

The rest remains the same. For the last example, we chose a complex model to stress the ODE solvers: the O'Hara-Rudy left ventricular model. This model has 49 state variables, is very stiff, and is prone to oscillation. The best solver for this model is CVODE_BDF from the Sundial suite.

  ml = CellModel("models/ohara_rudy_cipa_v1_2017.cellml.xml")
  tspan = (0, 5000.0)
  prob = ODEProblem(ml, tspan);
  sol = solve(prob, CVODE_BDF(), dtmax=0.5)
  V = map(x -> x[1], sol.u)
  plot(sol.t, V)

Changing Parameters

Up to this point, we have run the model exactly as provided by CellML. In practice, we need to be able to modify the model parameters (either the initial conditions or the proper parameters). CellMLToolkit has multiple utility functions that help us interrogate and modify the model parameters.

There are three list functions: list_states, list_params, and list_initial_conditions. list_states returns a list of the state variables, i.e., the variables present on the left side of an ODE. list_params and list_initial_conditions return arrays of (variable, value) pairs, providing the model parameters and the state variables initial conditions, respectively (corresponding to p and u0 in DifferentialEquations.jl nomenclature).

Here, we are interested in list_params. Let's go back to the ten Tusscher-Noble-Noble-Panfilov model and list its params:

ml = CellModel("models/tentusscher_noble_noble_panfilov_2004_a.cellml.xml")
p = list_params(ml)
display(p)

We get a list of the 45 parameters:

45-element Array{Pair{Operation,Float64},1}:
 stim_start => 10.0
       g_pK => 0.0146
      g_bna => 0.00029
      K_mNa => 40.0
      b_rel => 0.25
       g_Ks => 0.062
      K_pCa => 0.0005
       g_Kr => 0.096
       Na_o => 140.0
       K_up => 0.00025
            ⋮

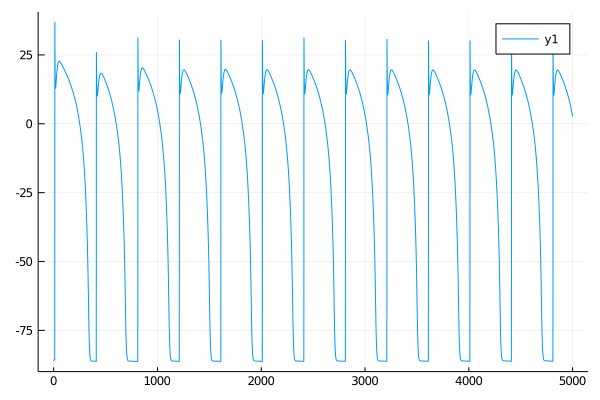

To modify a parameter, we use update_list! function. For example, the following code changes the stimulation period (stim_period) from its default of 1000 ms to 400 ms

update_list!(p, "stim_period", 400.0)

We need to pass the new p to ODEProblem constructor as a keyword parameter. The rest of the code remains the same.

tspan = (0, 5000.0)
prob = ODEProblem(ml, tspan; p = p)
sol = solve(prob, TRBDF2(), dtmax = 1.0)
V = map(x -> x[1], sol.u)
plot(sol.t, V)

ODEProblem also accepts a u0 parameter to change the initial conditions (remember u0 = list_initial_conditions(ml)).
