Abstract Noise Processes

NoiseProcess{T, N, Tt, T2, T3, ZType, F, F2, inplace, S1, S2, RSWM, C, RNGType} <:
{T, N, Vector{T2}, inplace}

A NoiseProcess is a type defined as:

NoiseProcess(t0, W0, Z0, dist, bridge;
    iip = SciMLBase.isinplace(dist, 3),
    rswm = RSWM(), save_everystep = true,
    rng = Xorshifts.Xoroshiro128Plus(rand(UInt64)),
    reset = true, reseed = true)

• t0 is the first timepoint
• W0 is the first value of the process.
• Z0 is the first value of the pseudo-process. This is necessary for higher order algorithms. If it's not needed, set to nothing.
• dist the distribution of the steps over time.
• bridge the bridging distribution. Optional, but required for adaptivity and interpolating at new values.
• covariance is the covariance matrix of the noise process. If not provided, the noise is assumed to be uncorrelated in each variable.
• save_everystep whether to save every step of the Brownian timeseries.
• rng the local RNG used for generating the random numbers.
• reset whether to reset the process with each solve.
• reseed whether to reseed the process with each solve.

The signature for the dist is:

dist!(rand_vec, dW, W, dt, u, p, t, rng)

for inplace functions, and:

rand_vec = dist(dW, W, dt, u, p, t, rng)

otherwise. The signature for bridge is:

bridge!(rand_vec, dW, W, W0, Wh, q, h, u, p, t, rng)

and the out of place syntax is:

rand_vec = bridge(dW, W, W0, Wh, q, h, u, p, t, rng)

Here, W is the noise process, W0 is the left side of the current interval, Wh is the right side of the current interval, h is the interval length, and q is the proportion from the left where the interpolation is occurring.

Direct Construction Example

The easiest way to show how to directly construct a NoiseProcess is by example. Here we will show how to directly construct a NoiseProcess which generates Gaussian white noise.

This is the noise process, that uses randn!. A special dispatch is added for complex numbers for (randn()+im*randn())/sqrt(2). This function is DiffEqNoiseProcess.wiener_randn (or with ! respectively).

The first function that must be defined is the noise distribution. This is how to generate $W(t+dt)$ given that we know $W(x)$ for $x∈[t₀,t]$. For Gaussian white noise, we know that

\[W(dt) ∼ N(0,dt)\]

for $W(0)=0$ which defines the stepping distribution. Thus, its noise distribution function is:

@inline function WHITE_NOISE_DIST(dW, W, dt, u, p, t, rng)
    if W.dW isa AbstractArray && !(W.dW isa SArray)
        return @fastmath sqrt(abs(dt)) * wiener_randn(rng, W.dW)
    else
        return @fastmath sqrt(abs(dt)) * wiener_randn(rng, typeof(W.dW))
    end
end

for the out of place versions, and for the inplace versions

function INPLACE_WHITE_NOISE_DIST(rand_vec, dW, W, dt, u, p, t, rng)
    wiener_randn!(rng, rand_vec)
    sqrtabsdt = @fastmath sqrt(abs(dt))
    @. rand_vec *= sqrtabsdt
end

Optionally, we can provide a bridging distribution. This is the distribution of $W(qh)$ for $q∈[0,1]$ given that we know $W(0)=0$ and $W(h)=Wₕ$. For Brownian motion, this is known as the Brownian Bridge, and is well known to have the distribution:

\[W(qh) ∼ N(qWₕ,(1-q)qh)\]

Thus, we have the out-of-place and in-place versions as:

function WHITE_NOISE_BRIDGE(dW, W, W0, Wh, q, h, u, p, t, rng)
    if W.dW isa AbstractArray
        return @fastmath sqrt((1 - q) * q * abs(h)) * wiener_randn(rng, W.dW) + q * Wh
    else
        return @fastmath sqrt((1 - q) * q * abs(h)) * wiener_randn(rng, typeof(W.dW)) +
                         q * Wh
    end
end
function INPLACE_WHITE_NOISE_BRIDGE(rand_vec, dW, W, W0, Wh, q, h, u, p, t, rng)
    wiener_randn!(rng, rand_vec)
    #rand_vec .= sqrt((1.-q).*q.*abs(h)).*rand_vec.+q.*Wh
    sqrtcoeff = @fastmath sqrt((1 - q) * q * abs(h))
    @. rand_vec = sqrtcoeff * rand_vec + q * Wh
end

These functions are then placed in a noise process:

NoiseProcess(t0, W0, Z0, WHITE_NOISE_DIST, WHITE_NOISE_BRIDGE; kwargs)
NoiseProcess(t0, W0, Z0, INPLACE_WHITE_NOISE_DIST, INPLACE_WHITE_NOISE_BRIDGE; kwargs)

Notice that we can optionally provide an alternative adaptive algorithm for the timestepping rejections. RSWM() defaults to the Rejection Sampling with Memory 3 algorithm (RSwM3).

Note that the standard constructors are simply:

function WienerProcess(t0, W0, Z0 = nothing)
    NoiseProcess(t0, W0, Z0, WHITE_NOISE_DIST, WHITE_NOISE_BRIDGE; kwargs)
end
function WienerProcess!(t0, W0, Z0 = nothing)
    NoiseProcess(t0, W0, Z0, INPLACE_WHITE_NOISE_DIST, INPLACE_WHITE_NOISE_BRIDGE; kwargs)
end

These will generate a Wiener process, which can be stepped with step!(W,dt), and interpolated as W(t).

NoiseWrapper{T, N, Tt, T2, T3, T4, ZType, inplace} <:
AbstractNoiseProcess{T, N, Vector{T2}, inplace}

This produces a new noise process from an old one, which will use its interpolation to generate the noise. This allows you to reuse a previous noise process not just with the same timesteps, but also with new (adaptive) timesteps as well. Thus this is very good for doing Multi-level Monte Carlo schemes and strong convergence testing.

Constructor

NoiseWrapper(source::AbstractNoiseProcess{T, N, Vector{T2}, inplace};
    reset = true, reverse = false, indx = nothing) where {T, N, T2, inplace}

NoiseWrapper Example

In this example, we will solve an SDE three times:

• First, to generate a noise process
• Second, with the same timesteps to show the values are the same
• Third, with half-sized timesteps

First, we will generate a noise process by solving an SDE:

using StochasticDiffEq, DiffEqNoiseProcess
f1(u, p, t) = 1.01u
g1(u, p, t) = 1.01u
dt = 1 // 2^(4)
prob1 = SDEProblem(f1, g1, 1.0, (0.0, 1.0))
sol1 = solve(prob1, EM(), dt = dt, save_noise = true)

Now we wrap the noise into a NoiseWrapper and solve the same problem:

W2 = NoiseWrapper(sol1.W)
prob1 = SDEProblem(f1, g1, 1.0, (0.0, 1.0), noise = W2)
sol2 = solve(prob1, EM(), dt = dt)

We can test

@test sol1.u ≈ sol2.u

to see that the values are essentially equal. Now we can use the same process to solve the same trajectory with a smaller dt:

W3 = NoiseWrapper(sol1.W)
prob2 = SDEProblem(f1, g1, 1.0, (0.0, 1.0), noise = W3)

dt = 1 // 2^(5)
sol3 = solve(prob2, EM(), dt = dt)

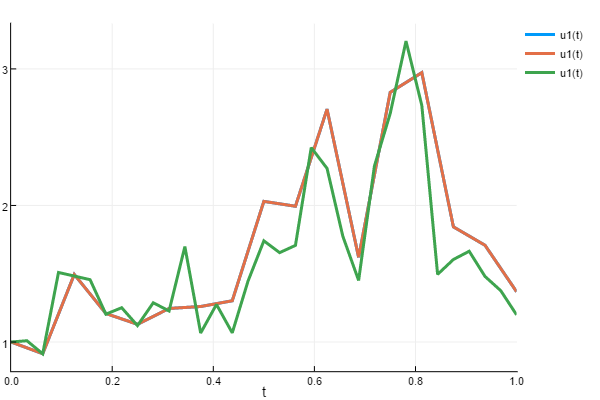

We can plot the results to see what this looks like:

using Plots
plot(sol1)
plot!(sol2)
plot!(sol3)

In this plot, sol2 covers up sol1 because they hit essentially the same values. You can see that sol3 is similar to the others, because it's using the same underlying noise process, just sampled much finer.

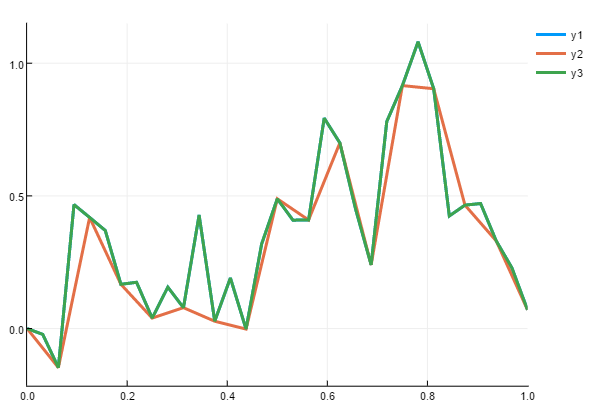

To double-check, we see that:

plot(sol1.W)
plot!(sol2.W)
plot!(sol3.W)

the coupled Wiener processes coincide at every other time point, and the intermediate timepoints were calculated according to a Brownian bridge.

Adaptive NoiseWrapper Example

Here we will show that the same noise can be used with the adaptive methods using the NoiseWrapper. SRI and SRIW1 use slightly different error estimators, and thus have slightly different stepping behavior. We can see how they solve the same 2D SDE differently by using the noise wrapper:

prob = SDEProblem(f1, g1, ones(2), (0.0, 1.0))
sol4 = solve(prob, SRI(), abstol = 1e-8, save_noise = true)

W2 = NoiseWrapper(sol4.W)
prob2 = SDEProblem(f1, g1, ones(2), (0.0, 1.0), noise = W2)
sol5 = solve(prob2, SRIW1(), abstol = 1e-8)

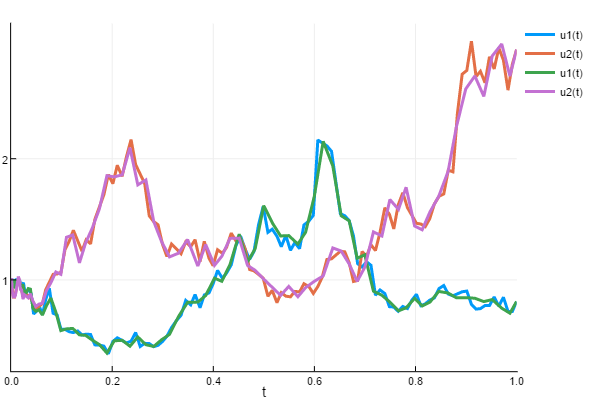

using Plots
plot(sol4)
plot!(sol5)

NoiseFunction{T, N, wType, zType, Tt, T2, T3, inplace} <:
AbstractNoiseProcess{T, N, nothing, inplace}

This allows you to use any arbitrary function W(t) as a NoiseProcess. This will use the function lazily, only caching values required to minimize function calls, but not storing the entire noise array. This requires an initial time point t0 in the domain of W. A second function is needed if the desired SDE algorithm requires multiple processes.

NoiseFunction{iip}(t0, W, Z = nothing;
    noise_prototype = W(nothing, nothing, t0),
    reset = true) where {iip}

Additionally, one can use an in-place function W(out1,out2,t) for more efficient generation of the arrays for mulitidimensional processes. When the in-place version is used without a dispatch for the out-of-place version, the noise_prototype needs to be set.

NoiseFunction Example

The NoiseFunction is pretty simple: pass a function. As a silly example, we can use exp as a noise process by doing:

f(u, p, t) = exp(t)
W = NoiseFunction(0.0, f)

If it's mulitidimensional and an in-place function is used, the noise_prototype must be given. For example:

f(out, u, p, t) = (out .= exp(t))
W = NoiseFunction(0.0, f, noise_prototype = rand(4))

This allows you to put arbitrarily weird noise into SDEs and RODEs. Have fun.

NoiseTransport{T, N, wType, zType, Tt, T2, T3, TRV, Trv, RNGType, inplace} <:
AbstractNoiseProcess{T, N, nothing, inplace}

This allows you to define stochastic processes of the form W(t) = f(u, p, t, RV), where f is a function and RV represents a random variable. This will use the function lazily, only caching values required to minimize function calls, but not storing the entire noise array. This requires an initial time point t0 in the domain of W. A second function is needed if the desired SDE algorithm requires multiple processes.

NoiseTransport{iip}(t0,
    W,
    RV,
    rv,
    Z = nothing;
    rng = Xorshifts.Xoroshiro128Plus(rand(UInt64)),
    reset = true,
    reseed = true,
    noise_prototype = W(nothing, nothing, t0, rv)) where {iip}

NoiseTransport(t0,
    W,
    RV;
    rng = Xorshifts.Xoroshiro128Plus(rand(UInt64)),
    reset = true,
    reseed = true,
    kwargs...)

Additionally, one can use an in-place function W(out, u, p, t, rv) for more efficient generation of the arrays for mulitidimensional processes. When the in-place version is used without a dispatch for the out-of-place version, the noise_prototype needs to be set.

NoiseTransport Example

The NoiseTransport requires you to pass an initial time, a transport function, and a random variable. The random variable can be either out-of-place or in-place. It is assumed it is out-of-place when the realization is a subtype of Number, and in-place, when it is a subtype of AbstractArray. Here, a random variable is any function that accepts a random number generator, in the out-of-place case (e.g. rand(rng)), or a random number generator and a realization to be mutated (e.g. rand!(rng, rv)).

An optional realization rv may be given. The realization rv is used in the first time an AbstractRODEProblem is solved. Subsequent runs of the same problem will draw a different realization from the random variable RV, unless reseed is set to false. In the case of a NoiseProblem, however, a new realization will happen at the first run already, and, in this case, rv can be regarded as a realization prototype, which is necessary in the case of a random vector.

As a first example, let us implement the Gaussian noise W(t) = sin(Yt), where Y is a normal random variable.

f(u, p, t, rv) = sin(rv * t)
t0 = 0.0
W = NoiseTransport(t0, f, randn)

If we want to build a scalar random process out of a random vector, then an in-place version of the random vector is required, as follows. We can also use parameters in the transport function, in which case the noise_prototype must be given.

using Random: randn!
f(u, p, t, rv) = sin(p[1] * t + rv[1]) + cos(p[2] * t + rv[2])
t0 = 0.0
rv = randn(2)
p = (π, 2π)
W = NoiseTransport(t0, f, randn!, rv, noise_prototype = f(nothing, p, t0, rv))

If the random process is expected to be mulitidimensional, it is preferable to use an in-place transport function, and, in this case, the noise_prototype must be given. Here is an example with a scalar random vector with a beta distribution, from Distributions.jl.

f!(out, u, p, t, rv) = (out .= sin.(rv * t))
t0 = 0.0
RV(rng) = rand(rng, Beta(2, 3))
rv = 0.0
W = NoiseTransport(t0, f!, RV, rv, noise_prototype = zeros(4))

We can also have a random vector with a mulitidimensional process, in which case an in-place version of RV is required. For example.

using Random: randn!

function f!(out, u, p, t, v)
    out[1] = sin(v[1] * t)
    out[2] = sin(t + v[2])
    out[3] = cos(t) * v[1] + sin(t) * v[2]
    nothing
end

t0 = 0.0
RV!(rng, v) = (v[1] = randn(rng); v[2] = rand(rng))
rv = zeros(2)

W = NoiseTransport(t0, f!, RV!, rv, noise_prototype = zeros(3))

A NoiseTransport can be used as driving noise for SDEs and RODEs. Have fun!

A noise grid builds a noise process from arrays of points. For example, you can generate your desired noise process as an array W with timepoints t, and use the constructor:

NoiseGrid(t, W, Z = nothing; reset = true)

to build the associated noise process. This process comes with a linear interpolation of the given points, and thus the grid does not have to match the grid of integration. Thus, this can be used for adaptive solutions as well. However, one must take note that the fidelity of the noise process is linked to how fine the noise grid is determined: if the noise grid is sparse on points compared to the integration, then its distributional properties may be slightly perturbed by the linear interpolation. Thus, it's suggested that the grid size at least approximates the number of time steps in the integration to ensure accuracy.

For a one-dimensional process, W should be an AbstractVector of Numbers. For mulitidimensional processes, W should be an AbstractVector of the noise_prototype.

NoiseGrid

In this example, we will show you how to define your own version of Brownian motion using an array of pre-calculated points. In normal usage, you should use WienerProcess instead, since this will have distributionally-exact interpolations while the noise grid uses linear interpolations, but this is a nice example of the workflow.

To define a NoiseGrid you need to have a set of time points and a set of values for the process. Let's define a Brownian motion on (0.0,1.0) with a dt=0.001. To do this,

dt = 0.001
t = 0:dt:1
brownian_values = cumsum([0; [sqrt(dt) * randn() for i in 1:(length(t) - 1)]])

Now we build the NoiseGrid using these values:

W = NoiseGrid(t, brownian_values)

We can then pass W as the noise argument of an SDEProblem to use it in an SDE.

In many cases, one would like to define a noise process directly by a stochastic differential equation which does not have an analytical solution. Of course, this will not be distributionally-exact and how well the properties match depends on how well the differential equation is integrated, but in many cases , this can be used as a good approximation when other methods are much more difficult.

A NoiseApproximation is defined by a DEIntegrator. The constructor for a NoiseApproximation is:

NoiseApproximation(source1::DEIntegrator,
    source2::Union{DEIntegrator, Nothing} = nothing;
    reset = true)

The DEIntegrator should have a final time point of integration far enough away, such that it will not halt during the integration. For ease of use, you can use a final time point as Inf. Note that the time points do not have to match the time points of the future integration, since the interpolant of the SDE solution will be used. Thus, the limiting factor is error tolerance, and not hitting specific points.

NoiseApproximation Example

In this example, we will show how to use the NoiseApproximation to build our own Geometric Brownian Motion from its stochastic differential equation definition. In normal usage, you should use the GeometricBrownianMotionProcess instead since that is more efficient and distributionally-exact.

First, let's define the SDEProblem. Here, we use a timespan (0.0,Inf) so that the noise can be used over an indefinite integral.

const μ = 1.5
const σ = 1.2
f(u, p, t) = μ * u
g(u, p, t) = σ * u
prob = SDEProblem(f, g, 1.0, (0.0, Inf))

Now we build the noise process by building the integrator and sending that integrator to the NoiseApproximation constructor:

integrator = init(prob, SRIW1())
W = NoiseApproximation(integrator)

We can use this noise process like any other noise process. For example, we can now build a geometric Brownian motion whose noise process is colored noise that itself is a geometric Brownian motion:

prob = SDEProblem(f, g, 1.0, (0.0, Inf), noise = W)

The possibilities are endless.

A VirtualBrownianTree builds the noise process starting from an initial time t0, the first value of the process W0, and (optionally) the first value Z0 for an auxiliary pseudo-process. The constructor is given as

VirtualBrownianTree(t0,
    W0,
    Z0 = nothing,
    dist = WHITE_NOISE_DIST,
    bridge = VBT_BRIDGE;
    kwargs...)

where dist specifies the distribution that is used to generate the end point(s) Wend (Zend) of the noise process for the final time tend. bridge denotes the distribution of the employed Brownian bridge. Per default tend is fixed to t0+1 but can be changed by passing a custom tend as a keyword argument. The following keyword arguments are available:

• tend is the end time of the noise process.
• Wend is the end value of the noise process.
• Zend is the end value of the pseudo-noise process.
• atol represents the absolute tolerance determining when the recursion is terminated.
• tree_depth allows one to store a cache of seeds, noise values, and times to speed up the simulation by reducing the recursion steps.
• search_depth maximal search depth for the tree if atol is not reached.
• rng the splittable PRNG used for generating the random numbers. Default: Threefry4x() from the Random123 package.

VirtualBrownianTree Example

In this example, we define a mulitidimensional Brownian process based on a VirtualBrownianTree with a minimal tree_depth=0 such that memory consumption is minimized.

W0 = zeros(10)
W = VirtualBrownianTree(0.0, W0; tree_depth = 0)

prob = NoiseProblem(W, (0.0, 1.0))
sol = solve(prob; dt = 1 / 10)

Using a look-up cache by increasing tree_depth can significantly reduce the runtime. Thus, the VirtualBrownianTree allows for trading off speed for memory in a simple manner.

SimpleNoiseProcess{T, N, Tt, T2, T3, ZType, F, F2, inplace, RNGType} <:
AbstractNoiseProcess{T, N, Vector{T2}, inplace}

Like NoiseProcess but without support for adaptivity. This makes it lightweight and slightly faster.

SimpleNoiseProcess{iip}(t0, W0, Z0, dist, bridge;
    save_everystep = true,
    rng = Xorshifts.Xoroshiro128Plus(rand(UInt64)),
    reset = true, reseed = true) where {iip}

• t0 is the first timepoint
• W0 is the first value of the process.
• Z0 is the first value of the pseudo-process. This is necessary for higher order algorithms. If it's not needed, set to nothing.
• dist the distribution for the steps over time.
• bridge the bridging distribution. Optional, but required for adaptivity and interpolating at new values.
• save_everystep whether to save every step of the Brownian timeseries.
• rng the local RNG used for generating the random numbers.
• reset whether to reset the process with each solve.
• reseed whether to reseed the process with each solve.

BoxWedgeTail{T, N, Tt, TA, T2, T3, ZType, F, F2, inplace, RNGType, tolType, spacingType,
    jpdfType, boxType, wedgeType, tailType, distBWTType, distΠType} <:
AbstractNoiseProcess{T, N, Vector{T2}, inplace}

The method for random generation of stochastic area integrals due to Gaines and Lyons. The method is based on Marsaglia's "rectangle-wedge-tail" approach for two dimensions.

3 different groupings for the boxes are implemented.

• box_grouping = :Columns (full, i.e., as large as possible, columns on a square spanned by dr and da)
• box_grouping = :none (no grouping)
• box_grouping = :MinEntropy (default, grouping that achieves a smaller entropy than the column wise grouping and thus allows for slightly faster sampling – but has a slightly larger number of groups)

The sampling is based on the Distributions.jl package, i.e., to sample from one of the many distributions, a uni-/bi-variate distribution from Distributions.jl is constructed, and then rand(..) is used.

Constructor

BoxWedgeTail{iip}(t0, W0, Z0, dist, bridge;
    rtol = 1e-8, nr = 4, na = 4, nz = 10,
    box_grouping = :MinEntropy,
    sqeezing = true,
    save_everystep = true,
    rng = Xorshifts.Xoroshiro128Plus(rand(UInt64)),
    reset = true, reseed = true) where {iip}

pCN(noise::AbstractNoiseProcess, ρ; reset=true,reverse=false,indx=nothing)

Create a new, but correlated noise process from noise and additional entropy with correlation ρ.

pCN(noise::NoiseGrid, ρ; reset=true, rng = Xorshifts.Xoroshiro128Plus(rand(UInt64)))

Create a new, but correlated noise process from noise and additional entropy with correlation ρ. This update defines an autoregressive process in the space of Wiener (or noise process) trajectories, which can be used as proposal distribution in Metropolis-Hastings algorithms (often called the "preconditioned Crank–Nicolson scheme".)

External links

• Preconditioned Crank–Nicolson algorithm on Wikipedia
