Schrödinger Equation

MethodOfLines can solve linear complex PDEs like the Scrödinger equation:

using MethodOfLines, OrdinaryDiffEq, Plots, DomainSets, ModelingToolkit

@parameters t, x
@variables ψ(..)

Dt = Differential(t)
Dxx = Differential(x)^2

xmin = 0
xmax = 1

V(x) = 0.0

eq = [im * Dt(ψ(t, x)) ~ Dxx(ψ(t, x)) + V(x) * ψ(t, x)] # You must enclose complex equations in a vector, even if there is only one equation

ψ0 = x -> ((1 + im)/sqrt(2))*sinpi(2*x)

bcs = [ψ(0, x) => ψ0(x), # Initial condition must be marked with a => operator
    ψ(t, xmin) ~ 0,
    ψ(t, xmax) ~ 0]

domains = [t ∈ Interval(0, 1), x ∈ Interval(xmin, xmax)]

@named sys = PDESystem(eq, bcs, domains, [t, x], [ψ(t, x)])

disc = MOLFiniteDifference([x => 100], t)

prob = discretize(sys, disc)

sol = solve(prob, TRBDF2(), saveat = 0.01)

discx = sol[x]
disct = sol[t]

discψ = sol[ψ(t, x)]

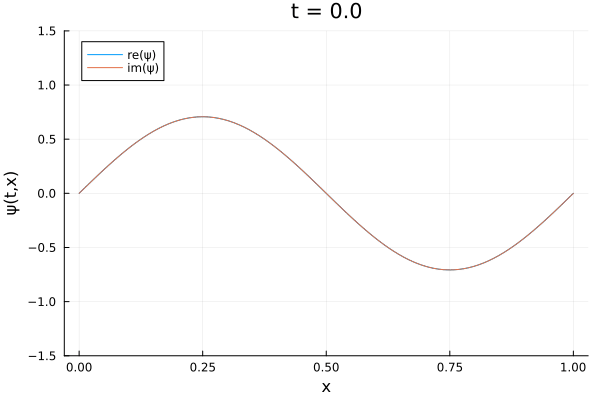

anim = @animate for i in 1:length(disct)
    u = discψ[i, :]
    plot(discx, [real.(u), imag.(u)], ylim = (-1.5, 1.5), title = "t = $(disct[i])",
        xlabel = "x", ylabel = "ψ(t,x)", label = ["re(ψ)" "im(ψ)"], legend = :topleft)
end
gif(anim, "schroedinger.gif", fps = 10)

Note that complex initial conditions are supported, but must be marked with a => operator.

This represents the second from ground state of a particle in an infinite quantum well, try changing the potential V(x), initial conditions and BCs, it is extremely interesting to see how the wave function evolves even for nonphysical combinations. Be sure to post interesting results on the discourse!
