Learning the motion of a double pendulum

Data Loading

using CSV, MLUtils, DataFrames, Git, Scratch
using Printf

function get_dataset_path()
    scratch_path = @get_scratch!("double_pendulum")
    if !isdir(joinpath(scratch_path, "data", "ibm-double-pendulum"))
        run(Git.git(
            [
                "clone",
                "https://github.com/erwincoumans/tiny-differentiable-simulator",
                "$(scratch_path)",
            ]
        ))
    end
    return joinpath(scratch_path, "data", "ibm-double-pendulum")
end

function get_data(; i=0, n=-1)
    data_path = get_dataset_path()
    df = CSV.read(
        joinpath(data_path, "original", "dpc_dataset_csv", "$i.csv"),
        DataFrame;
        header=[:x_red, :y_red, :x_green, :y_green, :x_blue, :y_blue],
    )

    n < 0 && return collect(Float32, Matrix(df)')
    return collect(Float32, Matrix(df)')[:, 1:n]
end

function preprocess(x; Δt=1, nx=30, ny=30)
    # move red point to (0, 0)
    xs_red, ys_red = x[1, :], x[2, :]
    x[3, :] -= xs_red
    x[5, :] -= xs_red
    x[4, :] -= ys_red
    x[6, :] -= ys_red

    # needs only green and blue points
    x = reshape(x[3:6, 1:Δt:end], 1, 4, :)
    # velocity of green and blue points
    ∇x = x[:, :, 2:end] - x[:, :, 1:(end - 1)]
    # merge info of pos and velocity
    x = cat(x[:, :, 1:(end - 1)], ∇x; dims=1)

    # with info of first nx steps to inference next ny steps
    n = size(x, ndims(x)) - (nx + ny) + 1
    xs = Array{Float32}(undef, size(x)[1:2]..., nx, n)
    ys = Array{Float32}(undef, size(x)[1:2]..., ny, n)
    for i in 1:n
        xs[:, :, :, i] .= x[:, :, i:(i + nx - 1)]
        ys[:, :, :, i] .= x[:, :, (i + nx):(i + nx + ny - 1)]
    end

    return permutedims(xs, (3, 2, 1, 4)), permutedims(ys, (3, 2, 1, 4))
end

function get_dataloader(; n_file=20, Δt=1, nx=30, ny=30, ratio=0.9, batchsize=128)
    xs, ys = Array{Float32}(undef, nx, 4, 2, 0), Array{Float32}(undef, ny, 4, 2, 0)
    for i in 1:n_file
        xs_i, ys_i = preprocess(get_data(; i=i - 1); Δt, nx, ny)
        xs, ys = cat(xs, xs_i; dims=4), cat(ys, ys_i; dims=4)
    end

    data_train, data_test = splitobs(shuffleobs((xs, ys)); at=ratio)

    trainloader = DataLoader(data_train; batchsize, shuffle=true, partial=false)
    testloader = DataLoader(data_test; batchsize, shuffle=false, partial=false)

    return trainloader, testloader
end

Model

using Lux, NeuralOperators, Optimisers, Random, Reactant

const cdev = cpu_device()
const xdev = reactant_device(; force=true)

fno = FourierNeuralOperator(
    (16, 4), 2, 2, 64; num_layers=6, activation=gelu, positional_embedding=:none
)
ps, st = Lux.setup(Random.default_rng(), fno) |> xdev;

Training

trainloader, testloader = get_dataloader(; Δt=1, nx=30, ny=30) |> xdev;

function prediction_loss(model, x, ps, st, y)
    return MSELoss()(first(model(x, ps, st)), y)
end

function train_model!(model, ps, st, trainloader, testloader; epochs=20)
    train_state = Training.TrainState(model, ps, st, AdamW(; eta=3.0f-4, lambda=1.0f-5))

    (xtest, ytest) = first(testloader)
    prediction_loss_compiled = @compile prediction_loss(
        model, xtest, train_state.parameters, train_state.states, ytest
    )

    for epoch in 1:epochs
        for data in trainloader
            (_, _, _, train_state) = Training.single_train_step!(
                AutoEnzyme(), MSELoss(), data, train_state; return_gradients=Val(false)
            )
        end

        test_loss, nbatches = 0.0f0, 0
        for (xtest, ytest) in testloader
            nbatch = size(xtest, ndims(xtest))
            nbatches += nbatch
            test_loss +=
                Float32(
                    prediction_loss_compiled(
                        model, xtest, train_state.parameters, train_state.states, ytest
                    ),
                ) * nbatch
        end
        test_loss /= nbatches

        @printf("Epoch [%3d/%3d]\tTest Loss: %12.6f\n", epoch, epochs, test_loss)
    end

    return train_state.parameters, train_state.states
end

ps_trained, st_trained = train_model!(fno, ps, st, trainloader, testloader; epochs=50);
nothing #hide

Plotting

using CairoMakie, AlgebraOfGraphics
const AoG = AlgebraOfGraphics
AoG.set_aog_theme!()

x_data, y_data = preprocess(get_data(; i=20));
gt_data = cat([x_data[:, :, :, i] for i in 1:size(x_data, 1):size(x_data, 4)]...; dims=1)[
    :, :, 1
]';

n = 5
inferenced_data = x_data[:, :, :, 1:1]
for i in 1:n
    input_data = inferenced_data[:, :, :, i:i] |> xdev
    prediction = @jit fno(input_data, ps_trained, st_trained)
    inferenced_data = cat(inferenced_data, cdev(prediction[1]); dims=4)
end
inferenced_data = cat([inferenced_data[:, :, :, i] for i in 1:n]...; dims=1)[:, :, 1]'

begin
    c = [
        RGBf([239, 71, 111] / 255...),
        RGBf([6, 214, 160] / 255...),
        RGBf([17, 138, 178] / 255...),
    ]
    xi, yi = [2, 4, 6], [1, 3, 5]

    time = Observable(1)

    gx_data = @lift [0, 0, gt_data[:, $(time)]...][xi]
    gy_data = @lift [0, 0, gt_data[:, $(time)]...][yi]
    ix_data = @lift [0, 0, inferenced_data[:, $(time)]...][xi]
    iy_data = @lift [0, 0, inferenced_data[:, $(time)]...][yi]

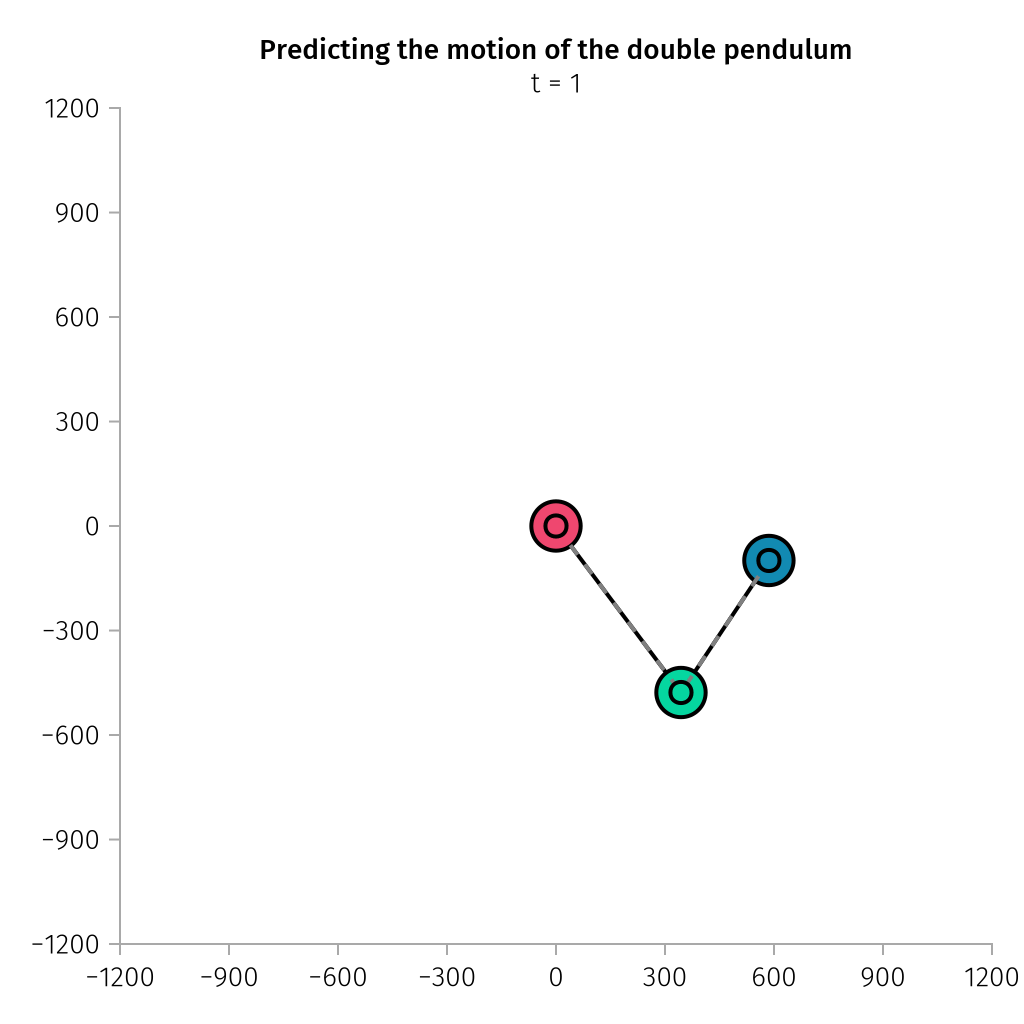

    fig = Figure(; size=(512, 512))
    ax = Axis(
        fig[1, 1];
        title="Predicting the motion of the double pendulum",
        subtitle=@lift("t = $($(time))"),
    )
    xlims!(ax, -1200, 1200)
    ylims!(ax, -1200, 1200)

    lines!(ax, gx_data, gy_data; color=:black, linewidth=2, linestyle=:solid)
    scatter!(ax, gx_data, gy_data; color=c, markersize=35, strokewidth=2)
    lines!(ax, ix_data, iy_data; color=:gray, linewidth=2, linestyle=:dash)
    scatter!(ax, ix_data, iy_data; color=c, markersize=15, strokewidth=2)

    record(
        fig,
        joinpath(@__DIR__, "double_pendulum.gif"),
        1:size(inferenced_data, 2);
        framerate=30
    ) do t
        time[] = t
    end
end
