Type Hierarchy

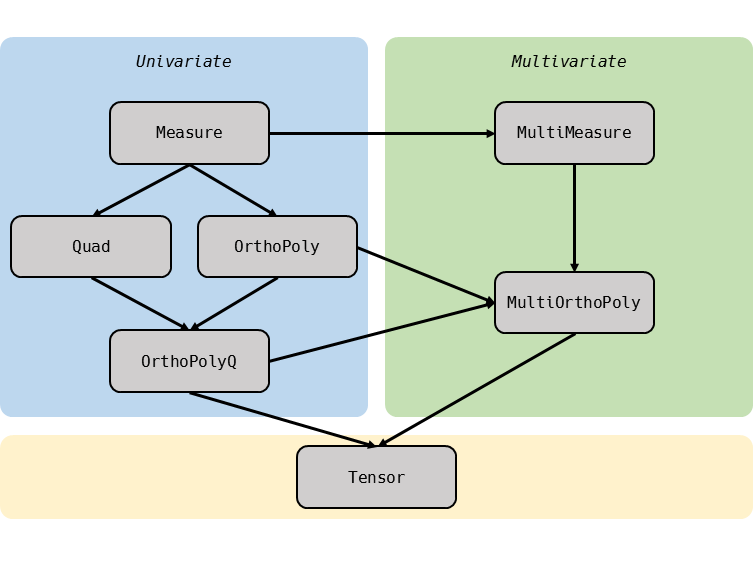

Let's look at the types PolyChaos provides. The high-level perspective looks as such: type hierarchy

The left hand side covers types related to univariate measures; the right hand side covers multivariate measures. An arrow beginning at one type and ending at another type means that the beginning type is a field of the ending type. For example, the type OrthoPoly has a field of type Measure; the type OrthoPolyQ has a field of type OrthoPoly and a field of type Quad, and so on. Let's begin with the univariate case.

Note

If you are unfamiliar with the mathematical background of orthogonal polynomials, please consult this tutorial.

Measure

It all begins with a measure, more specifically absolutely continuous measures. What are the fields of such a type measure?

Field	Meaning
`name::String`	Name of measure
`w::Function`	Weight function $w: \Omega \rightarrow \mathbb{R}$
`dom::Tuple{Float64,Float64}`	Domain $ \Omega$
`symmetric::Bool`	Is $w$ symmetric relative to some $m \in \Omega$, hence $w(m-x) = w(m+x)$ for all $x \in \Omega$?
`pars::Dict`	Additional parameters (e.g. shape parameters for Beta distribution

They are a name, a weight function $w: \Omega \rightarrow \mathbb{R}$ with domain $\Omega$ (dom). If the weight function is symmetric relative to some $m \in \Omega$, the field symmetric should be set to true. Symmetry relative to $m$ means that

\[\forall x \in \Omega: \quad w(m-x) = w(m+x).\]

For example, the Gaussian probability density

\[w(x) = \frac{1}{\sqrt{2\pi}} \mathrm{e}^{-x^2/2}\]

is symmetric relative to the origin $m=0$. If the weight function has any parameters, then they are stored in the dictionary pars. For example, the probability density of the Beta distribution on $\Omega = [0,1]$ has two positive shape parameters $\alpha, \beta > 0$

\[w(x) = \frac{1}{B(\alpha,\beta)} x^{\alpha-1} (1-x)^{\beta-1}.\]

This tutorial shows the above in action.

OrthoPoly

Given an absolutely continuous measure we are wondering what are the monic polynomials $\phi_i: \Omega \rightarrow \mathbb{R}$ that are orthogonal relative to this very measure? Mathematically this reads

\[\langle \phi_i, \phi_j \rangle = \int_{\Omega} \phi_i(t) \phi_j(t) w(t) \mathrm{d}t = \begin{cases} > 0, & i=j \\ = 0, & i\neq j. \end{cases}\]

They can be constructed using the type OrthoPoly, which has the fields

Name	Meaning
`name::String`	Name
`deg::Int64`	Maximum degree
`α::Vector{Float64}`	Vector of recurrence coefficients α
`β::Vector{Float64}`	Vector of recurrence coefficients β
`meas::Measure`	Underlying measure

The purpose of name is obvious. The integer deg stands for the maxium degree of the polynomials. Rather than storing the polynomials $\phi_i$ themselves we store the recurrence coefficients α, β that characterize the system of orthogonal polynomials. These recurrence coefficients are the single most important piece of information for the orthogonal polynomials. For several common measures, there exist analytic formulae. These are built-in to PolyChaos and should be used whenever possible.

This tutorial shows the above in action.

Quad

Quadrature rules are intricately related to orthogonal polynomials. An $n$-point quadrature rule is a pair of so-called nodes $t_k$ and weights $w_k$ for $k=1,\dots,n$ that allow to solve integrals relative to the measure

\[\int_\Omega f(t) w(t) \mathrm{d} t \approx \sum_{k=1}^n w_k f(t_k).\]

If the integrand $f$ is polynomial, then the specific Gauss quadrature rules possess the remarkable property that an $n$-point quadrature rule can integrate polynomial integrands $f$ of degree at most $2n-1$exactly; no approximation error is made.

The fields of Quad are

Name	Meaning
`name::String`	Name
`Nquad::Int64`	Number $n$ of quadrature points
`nodes::Vector{Float64}`	Nodes
`weights::Vector{Float64}`	Weights
`meas::Measure`	Underlying measure

with obvious meanings.

This tutorial shows the above in action.

OrthoPolyQ

As you would expect from the figure at the top, the type OrthoPolyQ is an amalgamation of OrthoPoly and Quad. It has just those two fields

Name	Meaning
`op::OrthoPoly`	Orthogonal polynomials
`quad::Quad`	Quadrature rule

Clearly, the underlying measures have to be the same.

This tutorial shows the above in action.

Make sure to check out this tutorial too.

MultiMeasure

So far, everything was univariate, the weight of the measure was mapping real numbers to real numbers. PolyChaos can handle product measures too. Let's assume the weight function is a product of two independent Gaussian densities

\[w: \mathbb{R} \times \mathbb{R} \rightarrow \mathbb{R}, \quad w(x) = \frac{1}{\sqrt{2\pi}} \mathrm{e}^{x_1^2/2} \frac{1}{\sqrt{2\pi}} \mathrm{e}^{x_2^2/2}.\]

The type MultiMeasure serves this purpose, with its fields

Name	Meaning
`name::Vector{String}`	Name
`w::Function`	Weight function of product measure
`w_uni::Vector{Function}`	Weight functions of underlying univariate measures
`dom::Vector{Tuple{Float64,Float64}}`	Domain
`symmetric::Vector{Bool}`	Symmetry properties
`pars::Vector{Dict}`	Additioanl parameters

All fields from Measure appear in vectorized versions (except for the weight $w$, which is the weight of the product measure) The only new field is w_uni, which stacks the univariate weight functions.

This tutorial shows the above in action.

MultiOrthoPoly

Just as we did in the univariate case, we use MultiMeasure as a building block for multivariate orthogonal polynomials. The type MultiOrthoPoly combines product measures with the respective orthogonal polynomials and their quadrature rules. Its fields are

Name	Meaning
`name::Vector{String}`	Names
`deg::Int64`	Maximum degree
`dim::Int64`	Dimension of basis
`ind::Matrix{Int64}`	Multi-index
`meas::MultiMeasure`	Underlying product measure
`uni::Union{Vector{OrthoPoly},Vector{OrthoPolyQ}}`	Underlying univariate orthogonal polynomials

The names of the univariate bases are stored in names; the maximum degree of the basis is deg; the overall dimension of the multivariate basis is dim; the multi-index ind maps the $j$-th multivariate basis to the elements of the univariate bases; the product measure is stored in meas; finally, all univariate bases are collected in uni.

This tutorial shows the above in action.

Tensor

The last type we need to address is Tensor. It is used to store the results of scalar products. Its fields are

Name	Meaning
`dim::Int64`	Dimension$m$ of tensor $\langle \phi_{i_1} \phi_{i_2} \cdots \phi_{i_{m-1}}, \phi_{i_m} \rangle$
`T::SparseVector{Float64,Int64}`	Entries of tensor
`get::Function`	Function to get entries from `T`
`op::Union{OrthoPolyQ,MultiOrthoPoly}`	Underlying univariate orthogonal polynomials

The dimension$m$ of the tensor is the number of terms that appear in the scalar product. Let's assume we set $m = 3$, hence have $\langle \phi_{i} \phi_{j}, \phi_{k} \rangle$, then the concrete entry is obtained as Tensor.get([i,j,k]).

This tutorial shows the above in action.
