Lorenz Bayesian Parameter Estimation Benchmarks

Parameter estimation of Lorenz Equation using DiffEqBayes.jl

using DiffEqBayes
using DiffEqCallbacks, StaticArrays
using Distributions, StanSample, DynamicHMC, Turing
using OrdinaryDiffEq, RecursiveArrayTools, ParameterizedFunctions, DiffEqCallbacks
using Plots, LinearAlgebra

gr(fmt = :png)

Plots.GRBackend()

Initializing the problem

g1 = @ode_def LorenzExample begin
    dx = σ*(y-x)
    dy = x*(ρ-z) - y
    dz = x*y - β*z
end σ ρ β

Main.var"##WeaveSandBox#225".LorenzExample{Main.var"##WeaveSandBox#225".var
"###ParameterizedDiffEqFunction#227", Main.var"##WeaveSandBox#225".var"###P
arameterizedTGradFunction#228", Main.var"##WeaveSandBox#225".var"###Paramet
erizedJacobianFunction#229", Nothing, Nothing, ModelingToolkit.System}(Main
.var"##WeaveSandBox#225".var"##ParameterizedDiffEqFunction#227", LinearAlge
bra.UniformScaling{Bool}(true), nothing, Main.var"##WeaveSandBox#225".var"#
#ParameterizedTGradFunction#228", Main.var"##WeaveSandBox#225".var"##Parame
terizedJacobianFunction#229", nothing, nothing, nothing, nothing, nothing,
nothing, nothing, [:x, :y, :z], :t, nothing, Model ##Parameterized#226:
Equations (3):
  3 standard: see equations(##Parameterized#226)
Unknowns (3): see unknowns(##Parameterized#226)
  x(t)
  y(t)
  z(t)
Parameters (3): see parameters(##Parameterized#226)
  σ
  ρ
  β, nothing, nothing)

r0 = [1.0; 0.0; 0.0]
tspan = (0.0, 30.0)
p = [10.0, 28.0, 2.66]

3-element Vector{Float64}:
 10.0
 28.0
  2.66

prob = ODEProblem(g1, r0, tspan, p)
sol = solve(prob, Tsit5())

retcode: Success
Interpolation: specialized 4th order "free" interpolation
t: 362-element Vector{Float64}:
  0.0
  3.5678604836301404e-5
  0.0003924646531993154
  0.0032623432492218762
  0.009057689436955101
  0.016955558915156328
  0.02768838704624741
  0.041853949478017696
  0.06023708074309082
  0.08368091762034398
  ⋮
 29.457488314242962
 29.53970487795357
 29.60813559643932
 29.6799710290514
 29.75613146300546
 29.825569653667173
 29.88686353386663
 29.942576497493015
 30.0
u: 362-element Vector{Vector{Float64}}:
 [1.0, 0.0, 0.0]
 [0.9996434557625105, 0.0009988049817849054, 1.7814349300524274e-8]
 [0.9961045497425811, 0.010965399721242273, 2.1469572398550344e-6]
 [0.9693597308012994, 0.08976886167146739, 0.00014379729511899872]
 [0.9242069950726427, 0.2422792247788865, 0.0010460983294834716]
 [0.8800496030937968, 0.4387144269574134, 0.00342404857466947]
 [0.8483334484926083, 0.6915266982936876, 0.008487275934120025]
 [0.8494997037566883, 1.0144879834027536, 0.018211867521223127]
 [0.9138893419489335, 1.4424795940711108, 0.03669462180658799]
 [1.0888204830087638, 2.0521988687179387, 0.07402932237242585]
 ⋮
 [13.32238887310434, 18.101945961886766, 27.660768754320422]
 [14.021077095360623, 10.175467083806073, 37.98703009395567]
 [9.58370521371149, 1.793229083577783, 35.90388452654971]
 [4.63425990594524, -0.806923586723377, 29.7403383405032]
 [1.7566567267091238, -0.5799042223012193, 24.12416718752542]
 [0.7258408400096722, -0.10101690190353449, 20.029682888955108]
 [0.4286568979804371, 0.20942636755125477, 17.017933027580412]
 [0.39300509505101944, 0.4602673436547749, 14.680801993969931]
 [0.49560717391903136, 0.7842730243755545, 12.615660658671283]

sr0 = SA[1.0; 0.0; 0.0]
tspan = (0.0, 30.0)
sp = SA[10.0, 28.0, 2.66]
sprob = ODEProblem{false, SciMLBase.FullSpecialize}(g1, sr0, tspan, sp)
sol = solve(sprob, Tsit5())

retcode: Success
Interpolation: specialized 4th order "free" interpolation
t: 362-element Vector{Float64}:
  0.0
  3.5678604836301404e-5
  0.0003924646531993154
  0.0032623432492218762
  0.009057689436955101
  0.016955558915156328
  0.02768838704624741
  0.041853949478017696
  0.06023708074309082
  0.08368091762034398
  ⋮
 29.457488315815564
 29.539704873805782
 29.608135591720277
 29.67997101938466
 29.75613144220241
 29.825569627514067
 29.886863506921383
 29.942576473358972
 30.0
u: 362-element Vector{StaticArraysCore.SVector{3, Float64}}:
 [1.0, 0.0, 0.0]
 [0.9996434557625105, 0.0009988049817849054, 1.7814349300524274e-8]
 [0.9961045497425811, 0.010965399721242273, 2.1469572398550344e-6]
 [0.9693597308012994, 0.08976886167146739, 0.00014379729511899872]
 [0.9242069950726427, 0.24227922477888653, 0.0010460983294834716]
 [0.8800496030937968, 0.4387144269574134, 0.00342404857466947]
 [0.8483334484926083, 0.6915266982936876, 0.008487275934120025]
 [0.8494997037566883, 1.0144879834027536, 0.018211867521223127]
 [0.9138893419489335, 1.4424795940711108, 0.03669462180658799]
 [1.0888204830087638, 2.0521988687179387, 0.07402932237242585]
 ⋮
 [13.322389118665507, 18.101945726587324, 27.660769845223655]
 [14.021076982689753, 10.175466941149782, 37.98702995896426]
 [9.583705192805605, 1.7932291983155246, 35.90388439984461]
 [4.63426023460834, -0.8069234124416628, 29.740338705086153]
 [1.7566572048708329, -0.5799041979297636, 24.12416822308383]
 [0.7258411488531001, -0.10101684594938895, 20.029684030726465]
 [0.42865711854860805, 0.20942652456951336, 17.01793403736309]
 [0.3930053157847396, 0.4602676268925582, 14.680802763491037]
 [0.4956075290257965, 0.7842736395679019, 12.615660535439243]

Generating data for bayesian estimation of parameters from the obtained solutions using the Tsit5 algorithm by adding random noise to it.

t = collect(range(1, stop = 30, length = 30))
sig = 0.49
data = convert(Array, VectorOfArray([(sol(t[i]) + sig*randn(3)) for i in 1:length(t)]))

3×30 Matrix{Float64}:
 -9.68234  -7.95789  -8.71281   -9.92148  …  11.3468   3.90121    0.416424
 -8.65435  -8.67145  -6.78846  -10.4081      14.8211   0.442432   0.714294
 28.7055   25.0599   28.183     27.0174      25.8459  26.281     12.1428

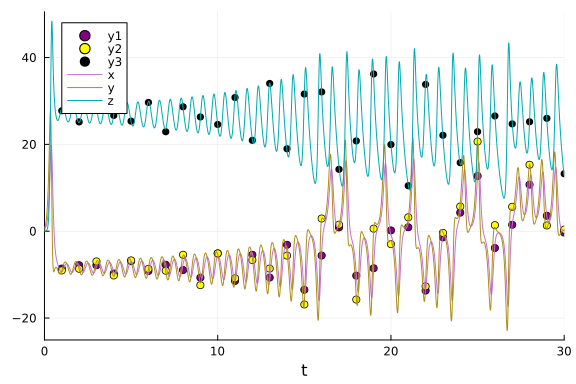

Plots of the generated data and the actual data.

Plots.scatter(t, data[1, :], markersize = 4, color = :purple)
Plots.scatter!(t, data[2, :], markersize = 4, color = :yellow)
Plots.scatter!(t, data[3, :], markersize = 4, color = :black)
plot!(sol)

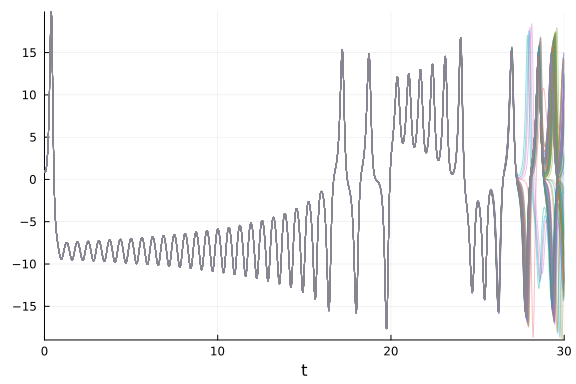

Uncertainty Quantification plot is used to decide the tolerance for the differential equation.

cb = AdaptiveProbIntsUncertainty(5)
monte_prob = EnsembleProblem(prob)
sim = solve(
    monte_prob, Tsit5(), trajectories = 100, callback = cb, reltol = 1e-5, abstol = 1e-5)
plot(sim, vars = (0, 1), linealpha = 0.4)

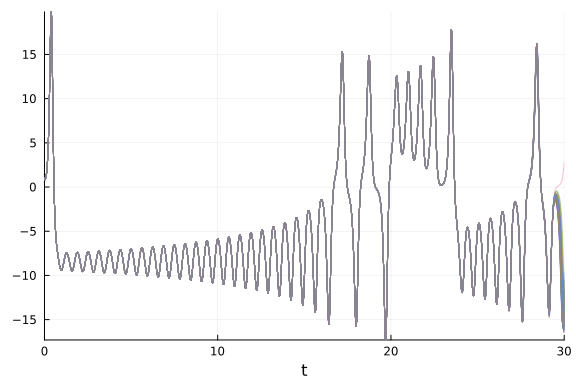

cb = AdaptiveProbIntsUncertainty(5)
monte_prob = EnsembleProblem(prob)
sim = solve(
    monte_prob, Tsit5(), trajectories = 100, callback = cb, reltol = 1e-6, abstol = 1e-6)
plot(sim, vars = (0, 1), linealpha = 0.4)

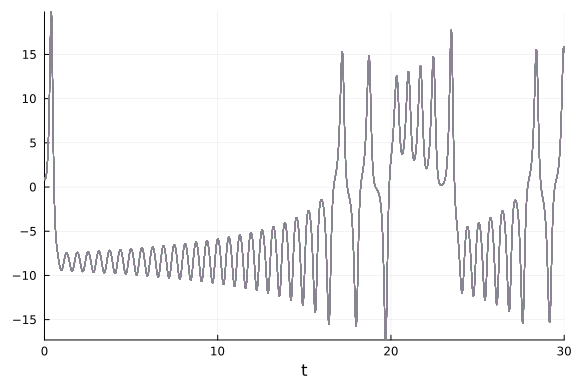

cb = AdaptiveProbIntsUncertainty(5)
monte_prob = EnsembleProblem(prob)
sim = solve(
    monte_prob, Tsit5(), trajectories = 100, callback = cb, reltol = 1e-8, abstol = 1e-8)
plot(sim, vars = (0, 1), linealpha = 0.4)

priors = [truncated(Normal(10, 2), 1, 15), truncated(Normal(30, 5), 1, 45),
    truncated(Normal(2.5, 0.5), 1, 4)]

3-element Vector{Distributions.Truncated{Distributions.Normal{Float64}, Dis
tributions.Continuous, Float64, Float64, Float64}}:
 Truncated(Distributions.Normal{Float64}(μ=10.0, σ=2.0); lower=1.0, upper=1
5.0)
 Truncated(Distributions.Normal{Float64}(μ=30.0, σ=5.0); lower=1.0, upper=4
5.0)
 Truncated(Distributions.Normal{Float64}(μ=2.5, σ=0.5); lower=1.0, upper=4.
0)

Using Stan.jl backend

Lorenz equation is a chaotic system hence requires very low tolerance to be estimated in a reasonable way, we use 1e-8 obtained from the uncertainty plots. Use of truncated priors is necessary to prevent Stan from stepping into negative and other improbable areas.

@time bayesian_result_stan = stan_inference(
    prob, t, data, priors; delta = 0.65, reltol = 1e-8, abstol = 1e-8,
    vars = (DiffEqBayes.StanODEData(), InverseGamma(2, 3)))

Error: MethodError: no method matching stan_inference(::SciMLBase.ODEProble
m{Vector{Float64}, Tuple{Float64, Float64}, true, Vector{Float64}, Main.var
"##WeaveSandBox#225".LorenzExample{Main.var"##WeaveSandBox#225".var"###Para
meterizedDiffEqFunction#227", Main.var"##WeaveSandBox#225".var"###Parameter
izedTGradFunction#228", Main.var"##WeaveSandBox#225".var"###ParameterizedJa
cobianFunction#229", Nothing, Nothing, ModelingToolkit.System}, Base.Pairs{
Symbol, Union{}, Tuple{}, @NamedTuple{}}, SciMLBase.StandardODEProblem}, ::
Vector{Float64}, ::Matrix{Float64}, ::Vector{Distributions.Truncated{Distri
butions.Normal{Float64}, Distributions.Continuous, Float64, Float64, Float6
4}}, ::Nothing; delta::Float64, reltol::Float64, abstol::Float64, vars::Tup
le{DiffEqBayes.StanODEData, Distributions.InverseGamma{Float64}})

Closest candidates are:
  stan_inference(::SciMLBase.AbstractSciMLProblem, ::Any, ::Any, ::Any, ::A
ny; stanmodel, likelihood, vars, sample_u0, solve_kwargs, diffeq_string, sa
mple_kwargs, output_format, print_summary, tmpdir) got unsupported keyword
arguments "delta", "reltol", "abstol"
   @ DiffEqBayes /cache/julia-buildkite-plugin/depots/5b300254-1738-4989-ae
0a-f4d2d937f953/packages/DiffEqBayes/gFKkQ/src/stan_inference.jl:57
  stan_inference(::SciMLBase.AbstractSciMLProblem, ::Any, ::Any, ::Any; ...
)
   @ DiffEqBayes /cache/julia-buildkite-plugin/depots/5b300254-1738-4989-ae
0a-f4d2d937f953/packages/DiffEqBayes/gFKkQ/src/stan_inference.jl:57

Direct Turing.jl

@model function fitlv(data, prob)
    # Prior distributions.
    α ~ InverseGamma(2, 3)
    σ ~ truncated(Normal(10, 2), 1, 15)
    ρ ~ truncated(Normal(30, 5), 1, 45)
    β ~ truncated(Normal(2.5, 0.5), 1, 4)

    # Simulate Lotka-Volterra model.
    p = SA[σ, ρ, β]
    _prob = remake(prob, p = p)
    predicted = solve(_prob, Vern9(); saveat = t)

    # Observations.
    for i in 1:length(predicted)
        data[:, i] ~ MvNormal(predicted[i], α^2 * I)
    end

    return nothing
end

model = fitlv(data, sprob)

@time chain = sample(model, Turing.NUTS(0.65), 10000; progress = false)

4654.930920 seconds (9.27 G allocations: 765.118 GiB, 2.37% gc time, 0.55%
compilation time: <1% of which was recompilation)
Chains MCMC chain (10000×18×1 Array{Float64, 3}):

Iterations        = 1001:1:11000
Number of chains  = 1
Samples per chain = 10000
Wall duration     = 4642.49 seconds
Compute duration  = 4642.49 seconds
parameters        = α, σ, ρ, β
internals         = n_steps, is_accept, acceptance_rate, log_density, hamil
tonian_energy, hamiltonian_energy_error, max_hamiltonian_energy_error, tree
_depth, numerical_error, step_size, nom_step_size, logprior, loglikelihood,
 logjoint

Summary Statistics
  parameters      mean       std      mcse   ess_bulk   ess_tail      rhat
  e ⋯
      Symbol   Float64   Float64   Float64    Float64    Float64   Float64
    ⋯

           α    2.0786    0.0000    0.0000    21.7150    47.6944    1.7867
    ⋯
           σ   11.9087    0.0000    0.0000        NaN        NaN       NaN
    ⋯
           ρ   36.5425    0.0000    0.0000        NaN        NaN       NaN
    ⋯
           β    1.4046    0.0000    0.0000   660.4927   451.4442    1.0052
    ⋯
                                                                1 column om
itted

Quantiles
  parameters      2.5%     25.0%     50.0%     75.0%     97.5%
      Symbol   Float64   Float64   Float64   Float64   Float64

           α    2.0786    2.0786    2.0786    2.0786    2.0786
           σ   11.9087   11.9087   11.9087   11.9087   11.9087
           ρ   36.5425   36.5425   36.5425   36.5425   36.5425
           β    1.4046    1.4046    1.4046    1.4046    1.4046

Using Turing.jl backend

@time bayesian_result_turing = turing_inference(
    prob, Vern9(), t, data, priors; reltol = 1e-8, abstol = 1e-8,
    likelihood = (u, p, t, σ) -> MvNormal(u, Diagonal((σ) .^ 2 .* ones(length(u)))),
    likelihood_dist_priors = [InverseGamma(2, 3), InverseGamma(2, 3), InverseGamma(2, 3)])

Error: MethodError: no method matching turing_inference(::SciMLBase.ODEProb
lem{Vector{Float64}, Tuple{Float64, Float64}, true, Vector{Float64}, Main.v
ar"##WeaveSandBox#225".LorenzExample{Main.var"##WeaveSandBox#225".var"###Pa
rameterizedDiffEqFunction#227", Main.var"##WeaveSandBox#225".var"###Paramet
erizedTGradFunction#228", Main.var"##WeaveSandBox#225".var"###Parameterized
JacobianFunction#229", Nothing, Nothing, ModelingToolkit.System}, Base.Pair
s{Symbol, Union{}, Tuple{}, @NamedTuple{}}, SciMLBase.StandardODEProblem},
::OrdinaryDiffEqVerner.Vern9{typeof(OrdinaryDiffEqCore.trivial_limiter!), t
ypeof(OrdinaryDiffEqCore.trivial_limiter!), Static.False}, ::Vector{Float64
}, ::Matrix{Float64}, ::Vector{Distributions.Truncated{Distributions.Normal
{Float64}, Distributions.Continuous, Float64, Float64, Float64}}; reltol::F
loat64, abstol::Float64, likelihood::Main.var"##WeaveSandBox#225".var"#4#5"
, likelihood_dist_priors::Vector{Distributions.InverseGamma{Float64}})

Closest candidates are:
  turing_inference(::SciMLBase.AbstractSciMLProblem, ::Any, ::Any, ::Any, :
:Any; likelihood_dist_priors, likelihood, syms, sample_u0, progress, solve_
kwargs, sample_args, sample_kwargs) got unsupported keyword arguments "relt
ol", "abstol"
   @ DiffEqBayes /cache/julia-buildkite-plugin/depots/5b300254-1738-4989-ae
0a-f4d2d937f953/packages/DiffEqBayes/gFKkQ/src/turing_inference.jl:1

Using DynamicHMC.jl backend

@time bayesian_result_dynamichmc = dynamichmc_inference(
    prob, Tsit5(), t, data, priors; solve_kwargs = (reltol = 1e-8, abstol = 1e-8))

837.665058 seconds (150.05 M allocations: 26.278 GiB, 0.61% gc time, 0.89%
compilation time)
(posterior = @NamedTuple{parameters::Vector{Float64}, σ::Vector{Float64}}[(
parameters = [11.93318774657433, 18.526382590151794, 1.516646359815506], σ
= [8.528127147447154, 8.500725240241099, 8.942103960016837]), (parameters =
 [11.298029079905936, 17.939462820652867, 1.5167088885838909], σ = [8.67846
7165745442, 8.503710953184436, 8.318172112742046]), (parameters = [11.28976
0691534978, 18.292554844750534, 1.5304402394629808], σ = [5.836698971590648
, 8.039013556355668, 7.6930688596275]), (parameters = [14.060970705968582,
18.537623429199108, 1.4775890989462381], σ = [5.722871102871797, 8.44743553
153042, 7.322000474290479]), (parameters = [13.559736173077694, 18.73999062
7167774, 1.4907415845156533], σ = [5.7528539153834135, 8.3463013929304, 7.3
34934900442837]), (parameters = [13.589326642449825, 18.880416527133356, 1.
49511785362385], σ = [5.758753363503688, 8.329766902007833, 7.3160026809054
15]), (parameters = [13.815097893800857, 18.97436422724487, 1.4950922640725
244], σ = [5.7611399080313035, 8.344925882603441, 7.2456027796248]), (param
eters = [13.627617650068581, 18.82662931001996, 1.492500315224656], σ = [5.
762079726844361, 8.364600400263374, 7.1443191589656925]), (parameters = [13
.577901532883999, 18.57020112585152, 1.4842924018038626], σ = [5.7746271345
28725, 8.366266198919522, 7.127212413744965]), (parameters = [13.5478610654
12171, 18.702550470208067, 1.4839249486578883], σ = [5.779916063829454, 8.3
62153266653133, 7.1595838544735])  …  (parameters = [11.284470896069678, 18
.572605579138667, 1.543549611589748], σ = [6.440108692900828, 9.85851165008
6726, 6.483099171565424]), (parameters = [11.445783311117182, 18.3897306462
4198, 1.5207389816964518], σ = [6.590491084837057, 10.337793594990536, 6.68
70365166617916]), (parameters = [11.421233706848618, 18.148664571558772, 1.
5209550005552752], σ = [6.5933804197486925, 10.3406716947717, 6.67955540521
9149]), (parameters = [13.189349000396877, 18.6640712012023, 1.493925232744
7112], σ = [6.595309478233922, 10.301078528287789, 7.034928697213989]), (pa
rameters = [13.004493804704875, 18.630228926676192, 1.4967799836344624], σ
= [6.574667901865449, 10.314012204395736, 6.987030582152954]), (parameters
= [13.019664279324699, 18.990793056115685, 1.517606307639064], σ = [6.58808
12037501455, 10.248890951858481, 6.944190081547463]), (parameters = [12.942
998652336206, 18.85791836059732, 1.5142711260579014], σ = [6.58434966777710
8, 10.231541694152618, 7.014509802218115]), (parameters = [12.5173684713677
07, 18.658990864568455, 1.509581014659423], σ = [6.596523555533407, 10.1902
79364474979, 7.217620525070529]), (parameters = [13.549548334702404, 19.257
043061094233, 1.525722561736379], σ = [6.578315277531544, 9.93201887744481,
 8.450020445614037]), (parameters = [13.545078409220269, 19.25741499467326,
 1.5267614685951345], σ = [6.580790046801167, 9.928742050905726, 8.44594236
1090456])], posterior_matrix = [2.4793234046563866 2.4246282927983183 … 2.6
063532135378504 2.6060232643147123; 2.9191958021435767 2.8870029130749253 …
 2.957876867122074 2.9578961810939073; … ; 2.140151482237829 2.140502650949
3417 … 2.295763768313144 2.2954337883510836; 2.190770903780534 2.1184425327
08244 … 2.1341688609654494 2.1336861320852516], tree_statistics = DynamicHM
C.TreeStatisticsNUTS[DynamicHMC.TreeStatisticsNUTS(-325.238159254184, 10, r
eached maximum depth without divergence or turning, 0.996392258185004, 1023
, DynamicHMC.Directions(0x8266e3bc)), DynamicHMC.TreeStatisticsNUTS(-324.70
02430916413, 9, turning at positions -114:397, 0.992473239978731, 511, Dyna
micHMC.Directions(0x9c27958d)), DynamicHMC.TreeStatisticsNUTS(-326.02274178
079807, 10, reached maximum depth without divergence or turning, 0.99646821
12477935, 1023, DynamicHMC.Directions(0x5e34e08b)), DynamicHMC.TreeStatisti
csNUTS(-326.2593012651297, 8, turning at positions 414:445, 0.5777535138919
557, 479, DynamicHMC.Directions(0x65c0ffdd)), DynamicHMC.TreeStatisticsNUTS
(-325.75916363398574, 7, turning at positions -70:-73, 0.9216410295709615,
163, DynamicHMC.Directions(0x4551715a)), DynamicHMC.TreeStatisticsNUTS(-325
.1556309561799, 6, divergence at position -52, 0.8094230189123023, 80, Dyna
micHMC.Directions(0x51c4359c)), DynamicHMC.TreeStatisticsNUTS(-322.90378742
368716, 6, turning at positions -56:-119, 0.714853402199095, 127, DynamicHM
C.Directions(0xa9e30088)), DynamicHMC.TreeStatisticsNUTS(-324.1088644619041
5, 6, divergence at position -51, 0.8656106295218999, 98, DynamicHMC.Direct
ions(0x3ae2622f)), DynamicHMC.TreeStatisticsNUTS(-324.86306783591516, 6, di
vergence at position 46, 0.8378278716360014, 88, DynamicHMC.Directions(0x35
c68155)), DynamicHMC.TreeStatisticsNUTS(-324.45656936726925, 6, turning at
positions 87:94, 0.9032037366671766, 127, DynamicHMC.Directions(0xebd2105e)
)  …  DynamicHMC.TreeStatisticsNUTS(-331.93103608019356, 6, turning at posi
tions -36:27, 0.9924495112166255, 63, DynamicHMC.Directions(0xaeeab99b)), D
ynamicHMC.TreeStatisticsNUTS(-331.14647251216866, 8, divergence at position
 220, 0.684278638045537, 357, DynamicHMC.Directions(0x94ffb376)), DynamicHM
C.TreeStatisticsNUTS(-325.6055649001309, 5, turning at positions 18:49, 0.9
459253891517425, 63, DynamicHMC.Directions(0xcd1598b1)), DynamicHMC.TreeSta
tisticsNUTS(-327.4407068134445, 8, turning at positions -113:-128, 0.950322
6730063562, 335, DynamicHMC.Directions(0x017046cf)), DynamicHMC.TreeStatist
icsNUTS(-329.09217469894446, 7, divergence at position -108, 0.713971857114
4624, 143, DynamicHMC.Directions(0xe9f06b23)), DynamicHMC.TreeStatisticsNUT
S(-324.2323299326903, 5, turning at positions 40:47, 0.8497164004834769, 47
, DynamicHMC.Directions(0xf78ae2bf)), DynamicHMC.TreeStatisticsNUTS(-327.26
590589769546, 7, turning at positions -172:-179, 0.21251423381859058, 247,
DynamicHMC.Directions(0x20267e44)), DynamicHMC.TreeStatisticsNUTS(-321.7998
3762777573, 7, turning at positions -42:-49, 0.9906718982340966, 135, Dynam
icHMC.Directions(0xd6e7be56)), DynamicHMC.TreeStatisticsNUTS(-322.221676618
40217, 8, turning at positions 316:319, 0.7535312172195258, 343, DynamicHMC
.Directions(0xc5df99e7)), DynamicHMC.TreeStatisticsNUTS(-323.2844232571443,
 4, divergence at position 8, 0.08280136014248485, 19, DynamicHMC.Direction
s(0xbcde7fb4))], logdensities = [-321.93232556940364, -323.47210781921217,
-322.32386503142874, -324.47077114280904, -321.82835205544234, -321.2144715
094589, -321.8167854474556, -321.83348552421756, -322.8731560369897, -323.0
9061934089374  …  -326.8640849761591, -323.2091052832689, -323.875850443751
6, -322.38108458882954, -322.0175147690097, -320.7366539525423, -321.024873
0565529, -320.39847462301583, -320.4965178073353, -320.5955326928465], κ =
Gaussian kinetic energy (Diagonal), √diag(M⁻¹): [0.48210764004498113, 0.954
7714457688214, 0.2276640210779706, 0.15929535072903372, 0.13996298929705298
, 0.3793891385945444], ϵ = 0.0011319048551928217)

Conclusion

Due to the chaotic nature of Lorenz Equation, it is a very hard problem to estimate as it has the property of exponentially increasing errors. Its uncertainty plot demonstrates chaotic behavior and exhibits instability for different tolerance values. We use 1e-8 as the tolerance as it makes its uncertainty small enough to be trusted in the (0,30) time span.

Appendix

These benchmarks are a part of the SciMLBenchmarks.jl repository, found at: https://github.com/SciML/SciMLBenchmarks.jl. For more information on high-performance scientific machine learning, check out the SciML Open Source Software Organization https://sciml.ai.

To locally run this benchmark, do the following commands:

using SciMLBenchmarks
SciMLBenchmarks.weave_file("benchmarks/BayesianInference","DiffEqBayesLorenz.jmd")

Computer Information:

Julia Version 1.10.10
Commit 95f30e51f41 (2025-06-27 09:51 UTC)
Build Info:
  Official https://julialang.org/ release
Platform Info:
  OS: Linux (x86_64-linux-gnu)
  CPU: 128 × AMD EPYC 7502 32-Core Processor
  WORD_SIZE: 64
  LIBM: libopenlibm
  LLVM: libLLVM-15.0.7 (ORCJIT, znver2)
Threads: 1 default, 0 interactive, 1 GC (on 128 virtual cores)
Environment:
  JULIA_CPU_THREADS = 128
  JULIA_DEPOT_PATH = /cache/julia-buildkite-plugin/depots/5b300254-1738-4989-ae0a-f4d2d937f953:

Package Information:

Status `/cache/build/exclusive-amdci3-0/julialang/scimlbenchmarks-dot-jl/benchmarks/BayesianInference/Project.toml`
  [6e4b80f9] BenchmarkTools v1.6.3
  [ebbdde9d] DiffEqBayes v3.11.0
  [459566f4] DiffEqCallbacks v4.12.0
  [31c24e10] Distributions v0.25.123
  [bbc10e6e] DynamicHMC v3.6.0
  [1dea7af3] OrdinaryDiffEq v6.108.0
⌃ [65888b18] ParameterizedFunctions v5.19.0
  [91a5bcdd] Plots v1.41.6
  [731186ca] RecursiveArrayTools v3.48.0
  [31c91b34] SciMLBenchmarks v0.1.3
  [c1514b29] StanSample v7.10.2
  [90137ffa] StaticArrays v1.9.17
  [fce5fe82] Turing v0.42.8
  [37e2e46d] LinearAlgebra
Info Packages marked with ⌃ have new versions available and may be upgradable.

And the full manifest:

Status `/cache/build/exclusive-amdci3-0/julialang/scimlbenchmarks-dot-jl/benchmarks/BayesianInference/Manifest.toml`
  [47edcb42] ADTypes v1.21.0
  [621f4979] AbstractFFTs v1.5.0
  [80f14c24] AbstractMCMC v5.14.0
⌅ [7a57a42e] AbstractPPL v0.13.6
  [1520ce14] AbstractTrees v0.4.5
  [7d9f7c33] Accessors v0.1.43
  [79e6a3ab] Adapt v4.4.0
  [0bf59076] AdvancedHMC v0.8.3
  [5b7e9947] AdvancedMH v0.8.10
  [576499cb] AdvancedPS v0.7.2
  [b5ca4192] AdvancedVI v0.6.2
  [66dad0bd] AliasTables v1.1.3
  [dce04be8] ArgCheck v2.5.0
  [ec485272] ArnoldiMethod v0.4.0
  [4fba245c] ArrayInterface v7.22.0
  [4c555306] ArrayLayouts v1.12.2
  [13072b0f] AxisAlgorithms v1.1.0
  [39de3d68] AxisArrays v0.4.8
  [198e06fe] BangBang v0.4.8
  [9718e550] Baselet v0.1.1
  [6e4b80f9] BenchmarkTools v1.6.3
  [e2ed5e7c] Bijections v0.2.2
  [76274a88] Bijectors v0.15.16
  [d1d4a3ce] BitFlags v0.1.9
  [62783981] BitTwiddlingConvenienceFunctions v0.1.6
  [8e7c35d0] BlockArrays v1.9.3
  [70df07ce] BracketingNonlinearSolve v1.10.0
  [2a0fbf3d] CPUSummary v0.2.7
  [336ed68f] CSV v0.10.16
  [082447d4] ChainRules v1.73.0
  [d360d2e6] ChainRulesCore v1.26.0
  [0ca39b1e] Chairmarks v1.3.1
  [9e997f8a] ChangesOfVariables v0.1.10
  [fb6a15b2] CloseOpenIntervals v0.1.13
  [944b1d66] CodecZlib v0.7.8
  [35d6a980] ColorSchemes v3.31.0
  [3da002f7] ColorTypes v0.12.1
  [c3611d14] ColorVectorSpace v0.11.0
  [5ae59095] Colors v0.13.1
⌅ [861a8166] Combinatorics v1.0.2
⌅ [a80b9123] CommonMark v0.10.3
  [38540f10] CommonSolve v0.2.6
  [bbf7d656] CommonSubexpressions v0.3.1
  [f70d9fcc] CommonWorldInvalidations v1.0.0
  [34da2185] Compat v4.18.1
  [5224ae11] CompatHelperLocal v0.1.29
  [b152e2b5] CompositeTypes v0.1.4
  [a33af91c] CompositionsBase v0.1.2
  [2569d6c7] ConcreteStructs v0.2.3
  [f0e56b4a] ConcurrentUtilities v2.5.1
  [8f4d0f93] Conda v1.10.3
  [88cd18e8] ConsoleProgressMonitor v0.1.2
  [187b0558] ConstructionBase v1.6.0
  [d38c429a] Contour v0.6.3
  [adafc99b] CpuId v0.3.1
  [a8cc5b0e] Crayons v4.1.1
  [9a962f9c] DataAPI v1.16.0
  [a93c6f00] DataFrames v1.8.1
  [864edb3b] DataStructures v0.19.3
  [e2d170a0] DataValueInterfaces v1.0.0
  [244e2a9f] DefineSingletons v0.1.2
  [8bb1440f] DelimitedFiles v1.9.1
  [b429d917] DensityInterface v0.4.0
  [2b5f629d] DiffEqBase v6.210.0
  [ebbdde9d] DiffEqBayes v3.11.0
  [459566f4] DiffEqCallbacks v4.12.0
  [77a26b50] DiffEqNoiseProcess v5.27.0
  [163ba53b] DiffResults v1.1.0
  [b552c78f] DiffRules v1.15.1
  [a0c0ee7d] DifferentiationInterface v0.7.16
  [8d63f2c5] DispatchDoctor v0.4.28
  [b4f34e82] Distances v0.10.12
  [31c24e10] Distributions v0.25.123
  [ced4e74d] DistributionsAD v0.6.58
  [ffbed154] DocStringExtensions v0.9.5
  [5b8099bc] DomainSets v0.7.16
  [bbc10e6e] DynamicHMC v3.6.0
  [366bfd00] DynamicPPL v0.39.14
  [7c1d4256] DynamicPolynomials v0.6.4
  [06fc5a27] DynamicQuantities v1.11.0
  [cad2338a] EllipticalSliceSampling v2.0.0
  [4e289a0a] EnumX v1.0.6
  [f151be2c] EnzymeCore v0.8.18
  [460bff9d] ExceptionUnwrapping v0.1.11
  [d4d017d3] ExponentialUtilities v1.30.0
  [e2ba6199] ExprTools v0.1.10
  [55351af7] ExproniconLite v0.10.14
  [c87230d0] FFMPEG v0.4.5
  [b86e33f2] FFTA v0.3.1
  [7034ab61] FastBroadcast v0.3.5
  [9aa1b823] FastClosures v0.3.2
  [442a2c76] FastGaussQuadrature v1.1.0
  [a4df4552] FastPower v1.3.1
  [48062228] FilePathsBase v0.9.24
  [1a297f60] FillArrays v1.16.0
  [64ca27bc] FindFirstFunctions v1.8.0
  [6a86dc24] FiniteDiff v2.29.0
  [53c48c17] FixedPointNumbers v0.8.5
  [1fa38f19] Format v1.3.7
  [f6369f11] ForwardDiff v1.3.2
  [069b7b12] FunctionWrappers v1.1.3
  [77dc65aa] FunctionWrappersWrappers v0.1.3
  [d9f16b24] Functors v0.5.2
  [46192b85] GPUArraysCore v0.2.0
  [28b8d3ca] GR v0.73.22
  [c145ed77] GenericSchur v0.5.6
  [d7ba0133] Git v1.5.0
  [c27321d9] Glob v1.4.0
  [86223c79] Graphs v1.13.4
  [42e2da0e] Grisu v1.0.2
  [cd3eb016] HTTP v1.10.19
⌅ [eafb193a] Highlights v0.5.3
  [34004b35] HypergeometricFunctions v0.3.28
  [7073ff75] IJulia v1.34.3
  [615f187c] IfElse v0.1.1
  [3263718b] ImplicitDiscreteSolve v1.7.0
  [d25df0c9] Inflate v0.1.5
  [22cec73e] InitialValues v0.3.1
  [842dd82b] InlineStrings v1.4.5
  [18e54dd8] IntegerMathUtils v0.1.3
  [a98d9a8b] Interpolations v0.16.2
  [8197267c] IntervalSets v0.7.13
  [3587e190] InverseFunctions v0.1.17
  [41ab1584] InvertedIndices v1.3.1
  [92d709cd] IrrationalConstants v0.2.6
  [c8e1da08] IterTools v1.10.0
  [82899510] IteratorInterfaceExtensions v1.0.0
  [1019f520] JLFzf v0.1.11
  [692b3bcd] JLLWrappers v1.7.1
⌅ [682c06a0] JSON v0.21.4
  [ae98c720] Jieko v0.2.1
  [98e50ef6] JuliaFormatter v2.3.0
⌅ [70703baa] JuliaSyntax v0.4.10
⌃ [ccbc3e58] JumpProcesses v9.22.1
  [5ab0869b] KernelDensity v0.6.11
  [ba0b0d4f] Krylov v0.10.5
  [b964fa9f] LaTeXStrings v1.4.0
  [2ee39098] LabelledArrays v1.18.0
  [23fbe1c1] Latexify v0.16.10
  [10f19ff3] LayoutPointers v0.1.17
  [1fad7336] LazyStack v0.1.3
  [1d6d02ad] LeftChildRightSiblingTrees v0.2.1
  [6f1fad26] Libtask v0.9.13
  [87fe0de2] LineSearch v0.1.6
⌃ [d3d80556] LineSearches v7.5.1
  [7ed4a6bd] LinearSolve v3.59.1
  [6fdf6af0] LogDensityProblems v2.2.0
  [996a588d] LogDensityProblemsAD v1.13.1
  [2ab3a3ac] LogExpFunctions v0.3.29
  [e6f89c97] LoggingExtras v1.2.0
⌃ [c7f686f2] MCMCChains v6.0.7
  [be115224] MCMCDiagnosticTools v0.3.16
  [e80e1ace] MLJModelInterface v1.12.1
  [d8e11817] MLStyle v0.4.17
  [1914dd2f] MacroTools v0.5.16
  [d125e4d3] ManualMemory v0.1.8
  [dbb5928d] MappedArrays v0.4.3
  [bb5d69b7] MaybeInplace v0.1.4
  [739be429] MbedTLS v1.1.10
  [442fdcdd] Measures v0.3.3
  [128add7d] MicroCollections v0.2.0
  [e1d29d7a] Missings v1.2.0
  [dbe65cb8] MistyClosures v2.1.0
⌅ [961ee093] ModelingToolkit v10.32.1
  [2e0e35c7] Moshi v0.3.7
  [46d2c3a1] MuladdMacro v0.2.4
  [102ac46a] MultivariatePolynomials v0.5.13
  [ffc61752] Mustache v1.0.21
  [d8a4904e] MutableArithmetics v1.6.7
⌅ [d41bc354] NLSolversBase v7.10.0
  [77ba4419] NaNMath v1.1.3
  [86f7a689] NamedArrays v0.10.5
  [d9ec5142] NamedTupleTools v0.14.3
  [c020b1a1] NaturalSort v1.0.0
⌃ [8913a72c] NonlinearSolve v4.15.0
⌃ [be0214bd] NonlinearSolveBase v2.11.2
⌅ [5959db7a] NonlinearSolveFirstOrder v1.11.1
  [9a2c21bd] NonlinearSolveQuasiNewton v1.12.0
  [26075421] NonlinearSolveSpectralMethods v1.6.0
  [6fe1bfb0] OffsetArrays v1.17.0
  [4d8831e6] OpenSSL v1.6.1
⌅ [429524aa] Optim v1.13.3
  [3bd65402] Optimisers v0.4.7
⌃ [7f7a1694] Optimization v5.4.0
⌅ [bca83a33] OptimizationBase v4.2.0
⌃ [36348300] OptimizationOptimJL v0.4.8
  [bac558e1] OrderedCollections v1.8.1
  [1dea7af3] OrdinaryDiffEq v6.108.0
  [89bda076] OrdinaryDiffEqAdamsBashforthMoulton v1.9.0
  [6ad6398a] OrdinaryDiffEqBDF v1.21.0
  [bbf590c4] OrdinaryDiffEqCore v3.9.0
  [50262376] OrdinaryDiffEqDefault v1.12.0
  [4302a76b] OrdinaryDiffEqDifferentiation v2.1.0
  [9286f039] OrdinaryDiffEqExplicitRK v1.9.0
  [e0540318] OrdinaryDiffEqExponentialRK v1.13.0
  [becaefa8] OrdinaryDiffEqExtrapolation v1.15.0
  [5960d6e9] OrdinaryDiffEqFIRK v1.23.0
  [101fe9f7] OrdinaryDiffEqFeagin v1.8.0
  [d3585ca7] OrdinaryDiffEqFunctionMap v1.9.0
  [d28bc4f8] OrdinaryDiffEqHighOrderRK v1.9.0
  [9f002381] OrdinaryDiffEqIMEXMultistep v1.12.0
  [521117fe] OrdinaryDiffEqLinear v1.10.0
  [1344f307] OrdinaryDiffEqLowOrderRK v1.10.0
  [b0944070] OrdinaryDiffEqLowStorageRK v1.12.0
  [127b3ac7] OrdinaryDiffEqNonlinearSolve v1.23.0
  [c9986a66] OrdinaryDiffEqNordsieck v1.9.0
  [5dd0a6cf] OrdinaryDiffEqPDIRK v1.11.0
  [5b33eab2] OrdinaryDiffEqPRK v1.8.0
  [04162be5] OrdinaryDiffEqQPRK v1.8.0
  [af6ede74] OrdinaryDiffEqRKN v1.10.0
  [43230ef6] OrdinaryDiffEqRosenbrock v1.25.0
  [2d112036] OrdinaryDiffEqSDIRK v1.12.0
  [669c94d9] OrdinaryDiffEqSSPRK v1.11.0
  [e3e12d00] OrdinaryDiffEqStabilizedIRK v1.11.0
  [358294b1] OrdinaryDiffEqStabilizedRK v1.8.0
  [fa646aed] OrdinaryDiffEqSymplecticRK v1.11.0
  [b1df2697] OrdinaryDiffEqTsit5 v1.9.0
  [79d7bb75] OrdinaryDiffEqVerner v1.11.0
  [90014a1f] PDMats v0.11.37
  [65ce6f38] PackageExtensionCompat v1.0.2
⌃ [65888b18] ParameterizedFunctions v5.19.0
  [d96e819e] Parameters v0.12.3
  [69de0a69] Parsers v2.8.3
  [ccf2f8ad] PlotThemes v3.3.0
  [995b91a9] PlotUtils v1.4.4
  [91a5bcdd] Plots v1.41.6
  [e409e4f3] PoissonRandom v0.4.7
  [f517fe37] Polyester v0.7.19
  [1d0040c9] PolyesterWeave v0.2.2
  [2dfb63ee] PooledArrays v1.4.3
  [85a6dd25] PositiveFactorizations v0.2.4
⌃ [d236fae5] PreallocationTools v0.4.34
⌅ [aea7be01] PrecompileTools v1.2.1
  [21216c6a] Preferences v1.5.1
⌅ [08abe8d2] PrettyTables v2.4.0
  [27ebfcd6] Primes v0.5.7
  [33c8b6b6] ProgressLogging v0.1.6
  [92933f4c] ProgressMeter v1.11.0
  [43287f4e] PtrArrays v1.4.0
  [1fd47b50] QuadGK v2.11.2
  [74087812] Random123 v1.7.1
  [e6cf234a] RandomNumbers v1.6.0
  [b3c3ace0] RangeArrays v0.3.2
  [c84ed2f1] Ratios v0.4.5
  [c1ae055f] RealDot v0.1.0
  [3cdcf5f2] RecipesBase v1.3.4
  [01d81517] RecipesPipeline v0.6.12
  [731186ca] RecursiveArrayTools v3.48.0
  [189a3867] Reexport v1.2.2
  [05181044] RelocatableFolders v1.0.1
  [ae029012] Requires v1.3.1
  [ae5879a3] ResettableStacks v1.2.0
  [79098fc4] Rmath v0.9.0
  [f2b01f46] Roots v2.2.12
  [7e49a35a] RuntimeGeneratedFunctions v0.5.17
  [9dfe8606] SCCNonlinearSolve v1.11.0
  [94e857df] SIMDTypes v0.1.0
  [26aad666] SSMProblems v0.6.1
  [0bca4576] SciMLBase v2.144.0
  [31c91b34] SciMLBenchmarks v0.1.3
  [19f34311] SciMLJacobianOperators v0.1.12
  [a6db7da4] SciMLLogging v1.9.1
  [c0aeaf25] SciMLOperators v1.15.1
  [431bcebd] SciMLPublic v1.0.1
  [53ae85a6] SciMLStructures v1.10.0
  [30f210dd] ScientificTypesBase v3.1.0
  [6c6a2e73] Scratch v1.3.0
  [91c51154] SentinelArrays v1.4.9
  [efcf1570] Setfield v1.1.2
  [992d4aef] Showoff v1.0.3
  [777ac1f9] SimpleBufferStream v1.2.0
  [727e6d20] SimpleNonlinearSolve v2.11.0
  [699a6c99] SimpleTraits v0.9.5
  [a2af1166] SortingAlgorithms v1.2.2
  [9f842d2f] SparseConnectivityTracer v1.2.1
  [dc90abb0] SparseInverseSubset v0.1.2
  [0a514795] SparseMatrixColorings v0.4.23
  [276daf66] SpecialFunctions v2.7.1
  [171d559e] SplittablesBase v0.1.15
  [860ef19b] StableRNGs v1.0.4
  [d0ee94f6] StanBase v4.12.4
  [c1514b29] StanSample v7.10.2
  [aedffcd0] Static v1.3.1
  [0d7ed370] StaticArrayInterface v1.9.0
  [90137ffa] StaticArrays v1.9.17
  [1e83bf80] StaticArraysCore v1.4.4
  [64bff920] StatisticalTraits v3.5.0
  [82ae8749] StatsAPI v1.8.0
  [2913bbd2] StatsBase v0.34.10
  [4c63d2b9] StatsFuns v1.5.2
  [7792a7ef] StrideArraysCore v0.5.8
  [5e0ebb24] Strided v2.3.2
  [4db3bf67] StridedViews v0.4.3
  [69024149] StringEncodings v0.3.7
  [892a3eda] StringManipulation v0.4.2
  [09ab397b] StructArrays v0.7.2
⌃ [2efcf032] SymbolicIndexingInterface v0.3.44
⌅ [19f23fe9] SymbolicLimits v0.2.3
⌅ [d1185830] SymbolicUtils v3.32.0
⌅ [0c5d862f] Symbolics v6.58.0
  [ab02a1b2] TableOperations v1.2.0
  [3783bdb8] TableTraits v1.0.1
  [bd369af6] Tables v1.12.1
  [ed4db957] TaskLocalValues v0.1.3
  [02d47bb6] TensorCast v0.4.9
  [62fd8b95] TensorCore v0.1.1
  [8ea1fca8] TermInterface v2.0.0
  [5d786b92] TerminalLoggers v0.1.7
  [1c621080] TestItems v1.0.0
  [8290d209] ThreadingUtilities v0.5.5
  [a759f4b9] TimerOutputs v0.5.29
  [3bb67fe8] TranscodingStreams v0.11.3
  [28d57a85] Transducers v0.4.85
  [84d833dd] TransformVariables v0.8.19
  [f9bc47f6] TransformedLogDensities v1.1.1
  [24ddb15e] TransmuteDims v0.1.17
  [410a4b4d] Tricks v0.1.13
  [781d530d] TruncatedStacktraces v1.4.0
  [9d95972d] TupleTools v1.6.0
  [fce5fe82] Turing v0.42.8
  [5c2747f8] URIs v1.6.1
  [3a884ed6] UnPack v1.0.2
  [1cfade01] UnicodeFun v0.4.1
  [1986cc42] Unitful v1.28.0
  [a7c27f48] Unityper v0.1.6
  [41fe7b60] Unzip v0.2.0
  [81def892] VersionParsing v1.3.0
  [ea10d353] WeakRefStrings v1.4.2
  [44d3d7a6] Weave v0.10.12
  [efce3f68] WoodburyMatrices v1.1.0
  [76eceee3] WorkerUtilities v1.6.1
  [ddb6d928] YAML v0.4.16
  [c2297ded] ZMQ v1.5.1
  [700de1a5] ZygoteRules v0.2.7
  [6e34b625] Bzip2_jll v1.0.9+0
  [83423d85] Cairo_jll v1.18.5+1
  [ee1fde0b] Dbus_jll v1.16.2+0
  [2702e6a9] EpollShim_jll v0.0.20230411+1
  [2e619515] Expat_jll v2.7.3+0
  [b22a6f82] FFMPEG_jll v8.0.1+0
  [a3f928ae] Fontconfig_jll v2.17.1+0
  [d7e528f0] FreeType2_jll v2.13.4+0
  [559328eb] FriBidi_jll v1.0.17+0
  [0656b61e] GLFW_jll v3.4.1+0
  [d2c73de3] GR_jll v0.73.22+0
  [b0724c58] GettextRuntime_jll v0.22.4+0
  [61579ee1] Ghostscript_jll v9.55.1+0
  [020c3dae] Git_LFS_jll v3.7.0+0
  [f8c6e375] Git_jll v2.53.0+0
  [7746bdde] Glib_jll v2.86.3+0
  [3b182d85] Graphite2_jll v1.3.15+0
  [2e76f6c2] HarfBuzz_jll v8.5.1+0
  [1d5cc7b8] IntelOpenMP_jll v2025.2.0+0
  [aacddb02] JpegTurbo_jll v3.1.4+0
  [c1c5ebd0] LAME_jll v3.100.3+0
  [88015f11] LERC_jll v4.0.1+0
  [1d63c593] LLVMOpenMP_jll v18.1.8+0
  [dd4b983a] LZO_jll v2.10.3+0
⌅ [e9f186c6] Libffi_jll v3.4.7+0
  [7e76a0d4] Libglvnd_jll v1.7.1+1
  [94ce4f54] Libiconv_jll v1.18.0+0
  [4b2f31a3] Libmount_jll v2.41.3+0
  [89763e89] Libtiff_jll v4.7.2+0
  [38a345b3] Libuuid_jll v2.41.3+0
  [856f044c] MKL_jll v2025.2.0+0
  [e7412a2a] Ogg_jll v1.3.6+0
  [9bd350c2] OpenSSH_jll v10.2.1+0
  [458c3c95] OpenSSL_jll v3.5.5+0
  [efe28fd5] OpenSpecFun_jll v0.5.6+0
  [91d4177d] Opus_jll v1.6.1+0
  [36c8627f] Pango_jll v1.57.0+0
⌅ [30392449] Pixman_jll v0.44.2+0
⌅ [c0090381] Qt6Base_jll v6.8.2+2
⌅ [629bc702] Qt6Declarative_jll v6.8.2+1
⌅ [ce943373] Qt6ShaderTools_jll v6.8.2+1
⌃ [e99dba38] Qt6Wayland_jll v6.8.2+2
  [f50d1b31] Rmath_jll v0.5.1+0
  [a44049a8] Vulkan_Loader_jll v1.3.243+0
  [a2964d1f] Wayland_jll v1.24.0+0
  [ffd25f8a] XZ_jll v5.8.2+0
  [f67eecfb] Xorg_libICE_jll v1.1.2+0
  [c834827a] Xorg_libSM_jll v1.2.6+0
  [4f6342f7] Xorg_libX11_jll v1.8.13+0
  [0c0b7dd1] Xorg_libXau_jll v1.0.13+0
  [935fb764] Xorg_libXcursor_jll v1.2.4+0
  [a3789734] Xorg_libXdmcp_jll v1.1.6+0
  [1082639a] Xorg_libXext_jll v1.3.8+0
  [d091e8ba] Xorg_libXfixes_jll v6.0.2+0
  [a51aa0fd] Xorg_libXi_jll v1.8.3+0
  [d1454406] Xorg_libXinerama_jll v1.1.7+0
  [ec84b674] Xorg_libXrandr_jll v1.5.6+0
  [ea2f1a96] Xorg_libXrender_jll v0.9.12+0
  [c7cfdc94] Xorg_libxcb_jll v1.17.1+0
  [cc61e674] Xorg_libxkbfile_jll v1.2.0+0
  [e920d4aa] Xorg_xcb_util_cursor_jll v0.1.6+0
  [12413925] Xorg_xcb_util_image_jll v0.4.1+0
  [2def613f] Xorg_xcb_util_jll v0.4.1+0
  [975044d2] Xorg_xcb_util_keysyms_jll v0.4.1+0
  [0d47668e] Xorg_xcb_util_renderutil_jll v0.3.10+0
  [c22f9ab0] Xorg_xcb_util_wm_jll v0.4.2+0
  [35661453] Xorg_xkbcomp_jll v1.4.7+0
  [33bec58e] Xorg_xkeyboard_config_jll v2.44.0+0
  [c5fb5394] Xorg_xtrans_jll v1.6.0+0
  [8f1865be] ZeroMQ_jll v4.3.6+0
  [3161d3a3] Zstd_jll v1.5.7+1
  [35ca27e7] eudev_jll v3.2.14+0
  [214eeab7] fzf_jll v0.61.1+0
  [a4ae2306] libaom_jll v3.13.1+0
  [0ac62f75] libass_jll v0.17.4+0
  [1183f4f0] libdecor_jll v0.2.2+0
  [2db6ffa8] libevdev_jll v1.13.4+0
  [f638f0a6] libfdk_aac_jll v2.0.4+0
  [36db933b] libinput_jll v1.28.1+0
  [b53b4c65] libpng_jll v1.6.55+0
  [a9144af2] libsodium_jll v1.0.21+0
  [f27f6e37] libvorbis_jll v1.3.8+0
  [009596ad] mtdev_jll v1.1.7+0
  [1317d2d5] oneTBB_jll v2022.0.0+1
⌅ [1270edf5] x264_jll v10164.0.1+0
  [dfaa095f] x265_jll v4.1.0+0
  [d8fb68d0] xkbcommon_jll v1.13.0+0
  [0dad84c5] ArgTools v1.1.1
  [56f22d72] Artifacts
  [2a0f44e3] Base64
  [ade2ca70] Dates
  [8ba89e20] Distributed
  [f43a241f] Downloads v1.6.0
  [7b1f6079] FileWatching
  [9fa8497b] Future
  [b77e0a4c] InteractiveUtils
  [4af54fe1] LazyArtifacts
  [b27032c2] LibCURL v0.6.4
  [76f85450] LibGit2
  [8f399da3] Libdl
  [37e2e46d] LinearAlgebra
  [56ddb016] Logging
  [d6f4376e] Markdown
  [a63ad114] Mmap
  [ca575930] NetworkOptions v1.2.0
  [44cfe95a] Pkg v1.10.0
  [de0858da] Printf
  [9abbd945] Profile
  [3fa0cd96] REPL
  [9a3f8284] Random
  [ea8e919c] SHA v0.7.0
  [9e88b42a] Serialization
  [1a1011a3] SharedArrays
  [6462fe0b] Sockets
  [2f01184e] SparseArrays v1.10.0
  [10745b16] Statistics v1.10.0
  [4607b0f0] SuiteSparse
  [fa267f1f] TOML v1.0.3
  [a4e569a6] Tar v1.10.0
  [8dfed614] Test
  [cf7118a7] UUIDs
  [4ec0a83e] Unicode
  [e66e0078] CompilerSupportLibraries_jll v1.1.1+0
  [deac9b47] LibCURL_jll v8.4.0+0
  [e37daf67] LibGit2_jll v1.6.4+0
  [29816b5a] LibSSH2_jll v1.11.0+1
  [c8ffd9c3] MbedTLS_jll v2.28.2+1
  [14a3606d] MozillaCACerts_jll v2023.1.10
  [4536629a] OpenBLAS_jll v0.3.23+4
  [05823500] OpenLibm_jll v0.8.5+0
  [efcefdf7] PCRE2_jll v10.42.0+1
  [bea87d4a] SuiteSparse_jll v7.2.1+1
  [83775a58] Zlib_jll v1.2.13+1
  [8e850b90] libblastrampoline_jll v5.11.0+0
  [8e850ede] nghttp2_jll v1.52.0+1
  [3f19e933] p7zip_jll v17.4.0+2
Info Packages marked with ⌃ and ⌅ have new versions available. Those with ⌃ may be upgradable, but those with ⌅ are restricted by compatibility constraints from upgrading. To see why use `status --outdated -m`
