Fceri_gamma2 Work-Precision Diagrams

The following benchmark is of 356 ODEs with 3749 terms that describe a stiff chemical reaction network. This fceri_gamma2 model was used as a benchmark model in Gupta et al.. It describes high-affinity human IgE receptor signalling Faeder et al.. We use ReactionNetworkImporters to load the BioNetGen model files as a Catalyst model, and then use ModelingToolkit to convert the Catalyst network model to ODEs.

using DiffEqBase, OrdinaryDiffEq, Catalyst, ReactionNetworkImporters,
      Sundials, Plots, DiffEqDevTools, ODEInterface, ODEInterfaceDiffEq,
      LSODA, TimerOutputs, LinearAlgebra, ModelingToolkit, BenchmarkTools,
      LinearSolve, RecursiveFactorization

gr()
const to = TimerOutput()
tf = 150.0

# generate ModelingToolkit ODEs
@timeit to "Parse Network" prnbng = loadrxnetwork(BNGNetwork(), joinpath(@__DIR__, "Models/fceri_gamma2.net"))
show(to)
rn = complete(prnbng.rn)
obs = [eq.lhs for eq in observed(rn)]

@timeit to "Create ODESys" osys = complete(convert(ODESystem, rn))
show(to)

tspan = (0.0, tf)
@timeit to "ODEProb SparseJac" sparsejacprob = ODEProblem{true, SciMLBase.FullSpecialize}(
    osys, Float64[], tspan, Float64[], jac = true, sparse = true)
show(to)
@timeit to "ODEProb No Jac" oprob = ODEProblem{true, SciMLBase.FullSpecialize}(
    osys, Float64[], tspan, Float64[])
show(to)
oprob_sparse = ODEProblem{true, SciMLBase.FullSpecialize}(
    osys, Float64[], tspan, Float64[]; sparse = true);
Parsing parameters...done
Creating parameters...done
Parsing species...done
Creating species...done
Creating species and parameters for evaluating expressions...done
Parsing and adding reactions...done
Parsing groups...done
──────────────────────────────────────────────────────────────────────────
                                 Time                    Allocations
                        ───────────────────────   ────────────────────────
   Tot / % measured:         10.1s /  97.7%           2.47GiB /  99.5%

Section         ncalls     time    %tot     avg     alloc    %tot      avg
──────────────────────────────────────────────────────────────────────────
Parse Network        1    9.86s  100.0%   9.86s   2.46GiB  100.0%  2.46GiB
───────────────────────────────────────────────────────────────────────────
─────────────────────────────────────────────────────────────────────────
                                 Time                    Allocations
                        ───────────────────────   ────────────────────────
   Tot / % measured:         28.4s /  95.0%           11.4GiB /  98.3%

Section         ncalls     time    %tot     avg     alloc    %tot      avg
──────────────────────────────────────────────────────────────────────────
Create ODESys        1    17.1s   63.4%   17.1s   8.79GiB   78.1%  8.79GiB
Parse Network        1    9.86s   36.6%   9.86s   2.46GiB   21.9%  2.46GiB
───────────────────────────────────────────────────────────────────────────
───────────────────────────────────────────────────────────────────────────
──
                                     Time                    Allocations

                            ───────────────────────   ─────────────────────
───
     Tot / % measured:           1.34h / 100.0%           8.73TiB / 100.0%


Section             ncalls     time    %tot     avg     alloc    %tot
avg
───────────────────────────────────────────────────────────────────────────
───
ODEProb SparseJac        1    1.33h   99.4%   1.33h   8.72TiB   99.9%  8.72
TiB
Create ODESys            1    17.1s    0.4%   17.1s   8.79GiB    0.1%  8.79
GiB
Parse Network            1    9.86s    0.2%   9.86s   2.46GiB    0.0%  2.46
GiB
───────────────────────────────────────────────────────────────────────────
───────────────────────────────────────────────────────────────────────────
──────
                                     Time                    Allocations

                            ───────────────────────   ─────────────────────
───
     Tot / % measured:           1.35h / 100.0%           8.74TiB / 100.0%


Section             ncalls     time    %tot     avg     alloc    %tot
avg
───────────────────────────────────────────────────────────────────────────
───
ODEProb SparseJac        1    1.33h   98.8%   1.33h   8.72TiB   99.8%  8.72
TiB
ODEProb No Jac           1    30.0s    0.6%   30.0s   8.80GiB    0.1%  8.80
GiB
Create ODESys            1    17.1s    0.4%   17.1s   8.79GiB    0.1%  8.79
GiB
Parse Network            1    9.86s    0.2%   9.86s   2.46GiB    0.0%  2.46
GiB
───────────────────────────────────────────────────────────────────────────
───
@show numspecies(rn) # Number of ODEs
@show numreactions(rn) # Apprx. number of terms in the ODE
@show length(parameters(rn)); # Number of Parameters
numspecies(rn) = 3744
numreactions(rn) = 58276
length(parameters(rn)) = 26

Time ODE derivative function compilation

As compiling the ODE derivative functions has in the past taken longer than running a simulation, we first force compilation by evaluating these functions one time.

u = oprob.u0
du = copy(u)
p = oprob.p
@timeit to "ODE rhs Eval1" sparsejacprob.f(du, u, p, 0.0)
sparsejacprob.f(du, u, p, 0.0)

We also time the ODE rhs function with BenchmarkTools as it is more accurate given how fast evaluating f is:

@btime sparsejacprob.f($du, $u, $p, 0.0)
81.020 μs (2 allocations: 832 bytes)

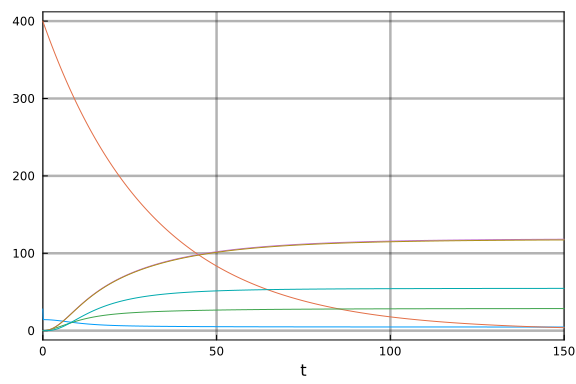

Picture of the solution

sol = solve(oprob, CVODE_BDF(), saveat = tf/1000.0, reltol = 1e-5, abstol = 1e-5)
plot(sol; idxs = obs, legend = false, fmt = :png)

For these benchmarks we will be using the time-series error with these saving points.

Generate Test Solution

@time sol = solve(sparsejacprob, CVODE_BDF(linear_solver = :GMRES), reltol = 1e-15, abstol = 1e-15)
test_sol = TestSolution(sol);
45.983801 seconds (10.56 M allocations: 1.337 GiB, 42.43% gc time, 61.53%
compilation time)

Setups

Sets plotting defaults

default(legendfontsize = 7, framestyle = :box, gridalpha = 0.3, gridlinewidth = 2.5)

Declare pre-conditioners

using IncompleteLU, LinearAlgebra

jaccache = sparsejacprob.f.jac(oprob.u0, oprob.p, 0.0)
W = I - 1.0*jaccache
prectmp = ilu(W, τ = 50.0)
preccache = Ref(prectmp)

const τ1 = 5
function psetupilu(p, t, u, du, jok, jcurPtr, gamma)
    if !jok
        sparsejacprob.f.jac(jaccache, u, p, t)
        jcurPtr[] = true

        # W = I - gamma*J
        @. W = -gamma*jaccache
        idxs = diagind(W)
        @. @view(W[idxs]) = @view(W[idxs]) + 1

        # Build preconditioner on W
        preccache[] = ilu(W, τ = τ1)
    end
end
function precilu(z, r, p, t, y, fy, gamma, delta, lr)
    ldiv!(z, preccache[], r)
end

const τ2 = 5
function incompletelu(W, du, u, p, t, newW, Plprev, Prprev, solverdata)
    if newW === nothing || newW
        Pl = ilu(convert(AbstractMatrix, W), τ = τ2)
    else
        Pl = Plprev
    end
    Pl, nothing
end;

Sets tolerances

abstols = 1.0 ./ 10.0 .^ (5:8)
reltols = 1.0 ./ 10.0 .^ (5:8);

Work-Precision Diagrams (CVODE and lsoda solvers)

Declare solvers.

setups = [
    Dict(:alg=>lsoda(), :prob_choice => 1),
    Dict(:alg=>CVODE_BDF(), :prob_choice => 1),
    Dict(:alg=>CVODE_BDF(linear_solver = :LapackDense), :prob_choice => 1),
    Dict(:alg=>CVODE_BDF(linear_solver = :GMRES), :prob_choice => 1),
    Dict(
        :alg=>CVODE_BDF(linear_solver = :GMRES, prec = precilu, psetup = psetupilu, prec_side = 1),
        :prob_choice => 2),
    Dict(:alg=>CVODE_BDF(linear_solver = :KLU), :prob_choice => 3)
];

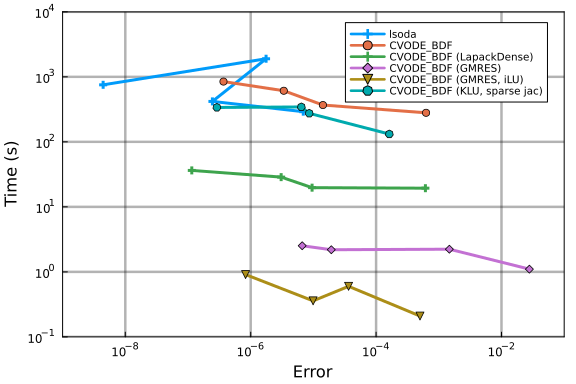

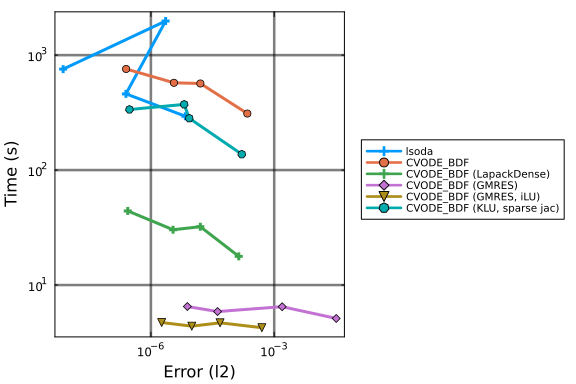

Plot Work-Precision Diagram.

wp = WorkPrecisionSet(
    [oprob, oprob_sparse, sparsejacprob], abstols, reltols, setups; error_estimate = :l2,
    saveat = tf/10000.0, appxsol = [test_sol, test_sol, test_sol], maxiters = Int(1e9), numruns = 10)

names = ["lsoda" "CVODE_BDF" "CVODE_BDF (LapackDense)" "CVODE_BDF (GMRES)" "CVODE_BDF (GMRES, iLU)" "CVODE_BDF (KLU, sparse jac)"]
plot(wp; label = names)

Work-Precision Diagrams (various Julia solvers)

Declare solvers (using default linear solver).

setups = [
    Dict(:alg=>TRBDF2(autodiff = false)),
    Dict(:alg=>QNDF(autodiff = false)),
    Dict(:alg=>FBDF(autodiff = false)),
    Dict(:alg=>KenCarp4(autodiff = false))
];

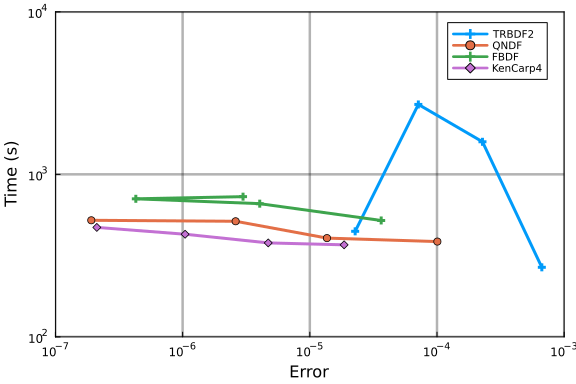

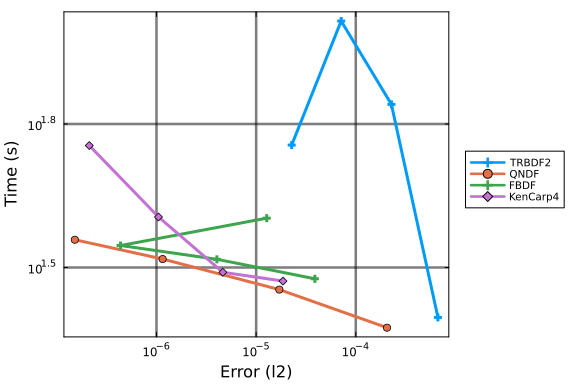

Plot Work-Precision Diagram (using default linear solver).

wp = WorkPrecisionSet(oprob, abstols, reltols, setups; error_estimate = :l2,
    saveat = tf/10000.0, appxsol = test_sol, maxiters = Int(1e12), dtmin = 1e-18, numruns = 10)

names = ["TRBDF2" "QNDF" "FBDF" "KenCarp4"]
plot(wp; label = names)

Declare solvers (using GMRES linear solver).

setups = [
    Dict(:alg=>TRBDF2(linsolve = KrylovJL_GMRES(), autodiff = false)),
    Dict(:alg=>QNDF(linsolve = KrylovJL_GMRES(), autodiff = false)),
    Dict(:alg=>FBDF(linsolve = KrylovJL_GMRES(), autodiff = false)),
    Dict(:alg=>KenCarp4(linsolve = KrylovJL_GMRES(), autodiff = false))
];

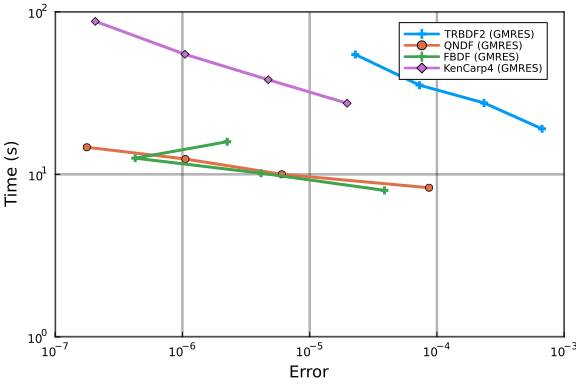

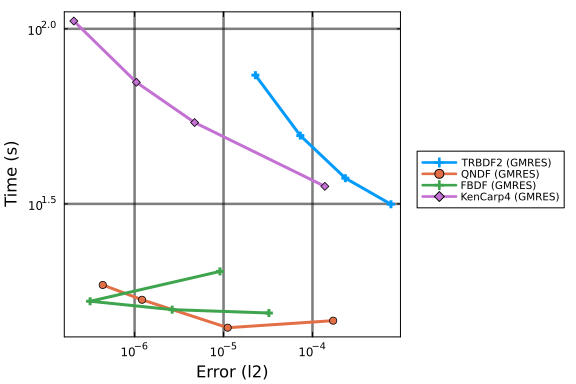

Plot Work-Precision Diagram (using GMRES linear solver).

wp = WorkPrecisionSet(oprob, abstols, reltols, setups; error_estimate = :l2,
    saveat = tf/10000.0, appxsol = test_sol, maxiters = Int(1e12), dtmin = 1e-18, numruns = 10)

names = ["TRBDF2 (GMRES)" "QNDF (GMRES)" "FBDF (GMRES)" "KenCarp4 (GMRES)"]
plot(wp; label = names)

Declare solvers (using GMRES linear solver, with pre-conditioner).

setups = [
    Dict(:alg=>TRBDF2(
        linsolve = KrylovJL_GMRES(), autodiff = false, precs = incompletelu, concrete_jac = true)),
    Dict(:alg=>QNDF(linsolve = KrylovJL_GMRES(), autodiff = false, precs = incompletelu, concrete_jac = true)),
    Dict(:alg=>FBDF(linsolve = KrylovJL_GMRES(), autodiff = false, precs = incompletelu, concrete_jac = true)),
    Dict(:alg=>KenCarp4(
        linsolve = KrylovJL_GMRES(), autodiff = false, precs = incompletelu, concrete_jac = true))
];

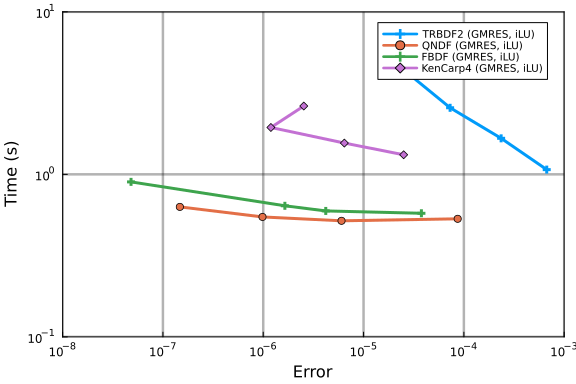

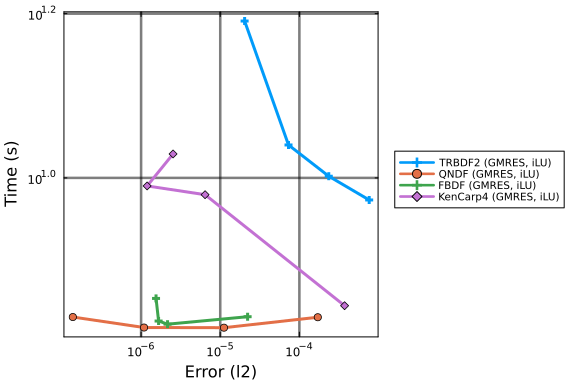

Plot Work-Precision Diagram (using GMRES linear solver, with pre-conditioner).

wp = WorkPrecisionSet(sparsejacprob, abstols, reltols, setups; error_estimate = :l2,
    saveat = tf/10000.0, appxsol = test_sol, maxiters = Int(1e12), dtmin = 1e-18, numruns = 10)

names = ["TRBDF2 (GMRES, iLU)" "QNDF (GMRES, iLU)" "FBDF (GMRES, iLU)" "KenCarp4 (GMRES, iLU)"]
plot(wp; label = names)

Declare solvers (using sparse jacobian)

We designate the solvers we wish to use.

setups = [
    Dict(:alg=>TRBDF2(linsolve = KLUFactorization(), autodiff = false)),
    Dict(:alg=>QNDF(linsolve = KLUFactorization(), autodiff = false)),
    Dict(:alg=>FBDF(linsolve = KLUFactorization(), autodiff = false)),
    Dict(:alg=>KenCarp4(linsolve = KLUFactorization(), autodiff = false))
];

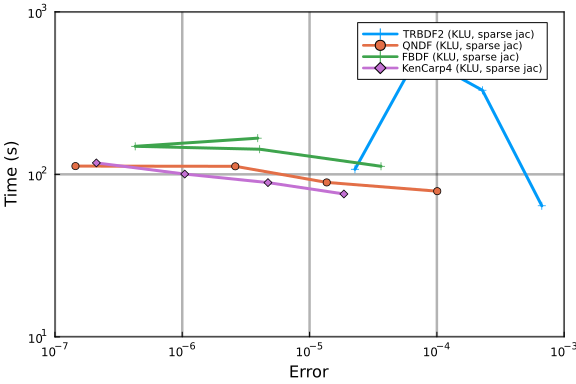

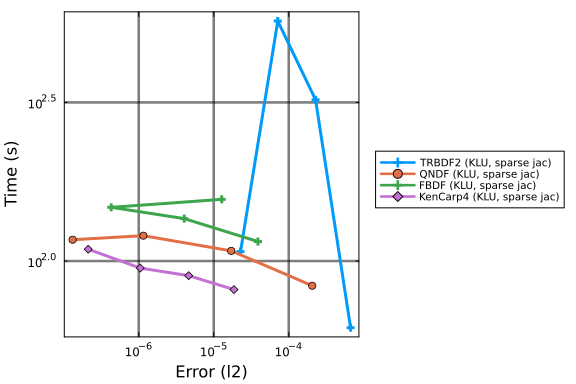

Plot Work-Precision Diagram (using sparse jacobian)

Finally, we generate a work-precision diagram for the selection of solvers.

wp = WorkPrecisionSet(sparsejacprob, abstols, reltols, setups; error_estimate = :l2,
    saveat = tf/10000.0, appxsol = test_sol, maxiters = Int(1e12), dtmin = 1e-18, numruns = 10)

names = ["TRBDF2 (KLU, sparse jac)" "QNDF (KLU, sparse jac)" "FBDF (KLU, sparse jac)" "KenCarp4 (KLU, sparse jac)"]
plot(wp; label = names)

Explicit Work-Precision Diagram

Benchmarks for explicit solvers.

Declare solvers

We designate the solvers we wish to use, this also includes lsoda and CVODE.

setups = [
    Dict(:alg=>CVODE_Adams()),
    Dict(:alg=>Tsit5()),
    Dict(:alg=>BS5()),
    Dict(:alg=>VCABM()),
    Dict(:alg=>Vern6()),
    Dict(:alg=>Vern7()),
    Dict(:alg=>Vern8()),
    Dict(:alg=>Vern9())
];

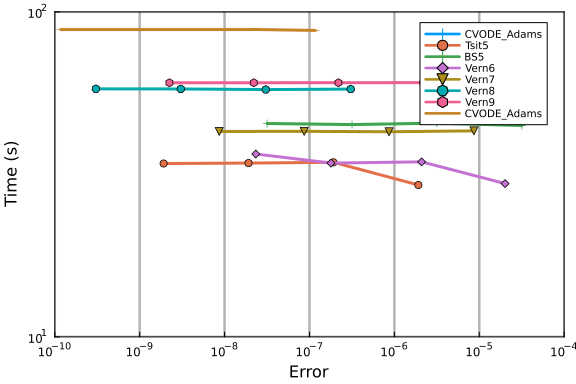

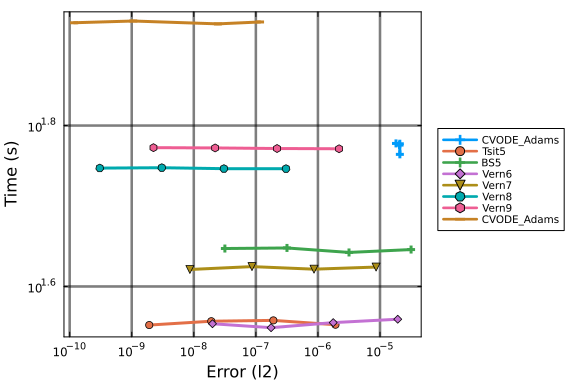

Plot Work-Precision Diagram

wp = WorkPrecisionSet(oprob, abstols, reltols, setups; error_estimate = :l2,
    saveat = tf/10000.0, appxsol = test_sol, maxiters = Int(1e9), numruns = 10)

names = ["CVODE_Adams" "Tsit5" "BS5" "Vern6" "Vern7" "Vern8" "Vern9"]
plot(wp; label = names)

Summary of results

Finally, we compute a single diagram comparing the various solvers used.

Declare solvers

We designate the solvers we wish to compare.

setups = [
    Dict(:alg=>CVODE_BDF(linear_solver = :GMRES), :prob_choice => 1),
    Dict(
        :alg=>CVODE_BDF(linear_solver = :GMRES, prec = precilu, psetup = psetupilu, prec_side = 1),
        :prob_choice => 2),
    Dict(
        :alg=>QNDF(linsolve = KrylovJL_GMRES(), autodiff = false, precs = incompletelu, concrete_jac = true),
        :prob_choice => 3),
    Dict(
        :alg=>FBDF(linsolve = KrylovJL_GMRES(), autodiff = false, precs = incompletelu, concrete_jac = true),
        :prob_choice => 3),
    Dict(:alg=>Tsit5())
];

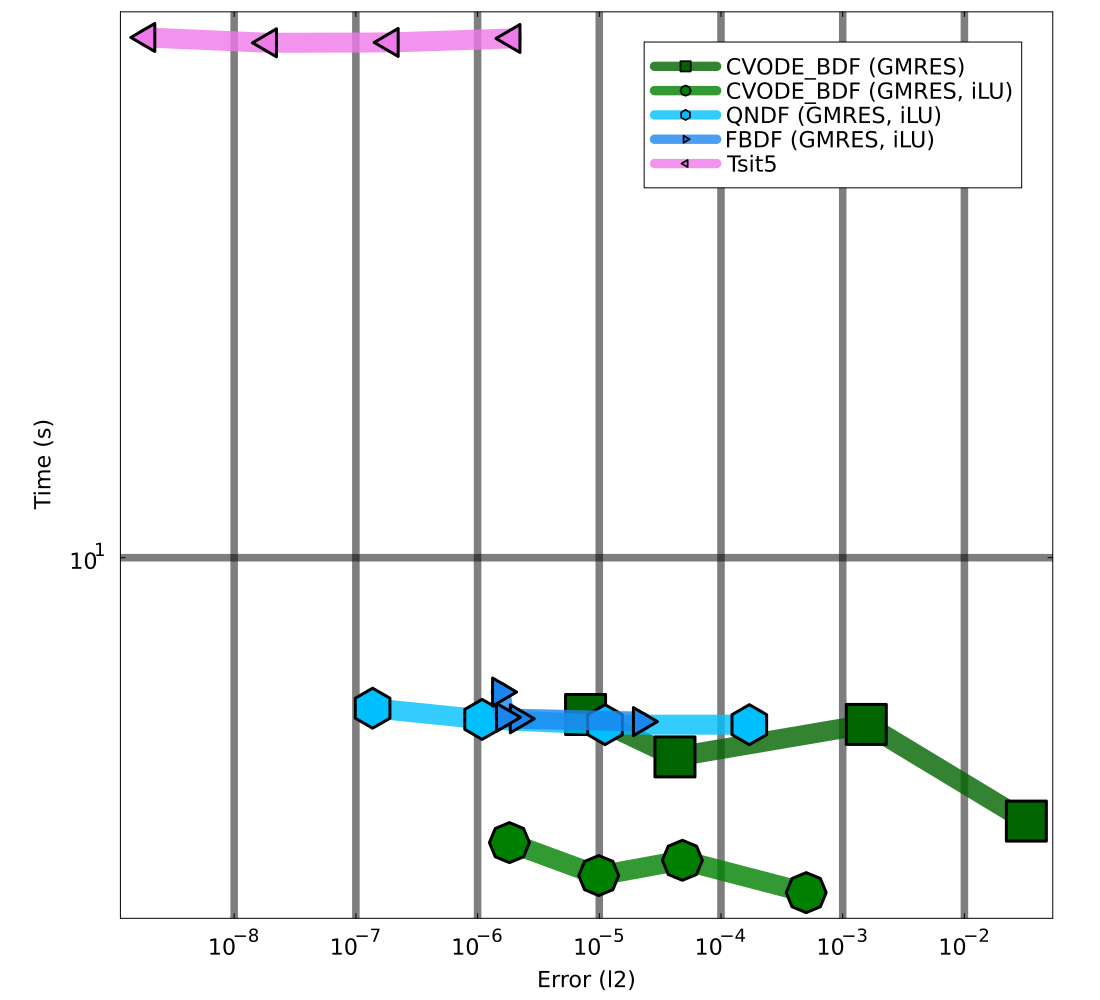

Plot Work-Precision Diagram

For these, we generate a work-precision diagram for the selection of solvers.

wp = WorkPrecisionSet(
    [oprob, oprob_sparse, sparsejacprob], abstols, reltols, setups; error_estimate = :l2,
    saveat = tf/10000.0, appxsol = [test_sol, test_sol, test_sol], maxiters = Int(1e9), numruns = 200)

names = ["CVODE_BDF (GMRES)" "CVODE_BDF (GMRES, iLU)" "QNDF (GMRES, iLU)" "FBDF (GMRES, iLU)" "Tsit5"]
colors = [:darkgreen :green :deepskyblue1 :dodgerblue2 :orchid2]
markershapes = [:rect :octagon :hexagon :rtriangle :ltriangle]
plot(wp; label = names, left_margin = 10Plots.mm, right_margin = 10Plots.mm,
    xticks = [1e-9, 1e-8, 1e-7, 1e-6, 1e-5, 1e-4, 1e-3, 1e-2, 1e-1],
    yticks = [1e-1, 1e0, 1e1, 1e2], color = colors, markershape = markershapes,
    legendfontsize = 15, tickfontsize = 15, guidefontsize = 15, legend = :topright,
    lw = 20, la = 0.8, markersize = 20, markerstrokealpha = 1.0,
    markerstrokewidth = 1.5, gridalpha = 0.3, gridlinewidth = 7.5, size = (1100, 1000))

echo = false
using SciMLBenchmarks
SciMLBenchmarks.bench_footer(WEAVE_ARGS[:folder], WEAVE_ARGS[:file])

Appendix

These benchmarks are a part of the SciMLBenchmarks.jl repository, found at: https://github.com/SciML/SciMLBenchmarks.jl. For more information on high-performance scientific machine learning, check out the SciML Open Source Software Organization https://sciml.ai.

To locally run this benchmark, do the following commands:

using SciMLBenchmarks
SciMLBenchmarks.weave_file("benchmarks/Bio","fceri_gamma2.jmd")

Computer Information:

Julia Version 1.10.10
Commit 95f30e51f41 (2025-06-27 09:51 UTC)
Build Info:
  Official https://julialang.org/ release
Platform Info:
  OS: Linux (x86_64-linux-gnu)
  CPU: 128 × AMD EPYC 7502 32-Core Processor
  WORD_SIZE: 64
  LIBM: libopenlibm
  LLVM: libLLVM-15.0.7 (ORCJIT, znver2)
Threads: 1 default, 0 interactive, 1 GC (on 128 virtual cores)
Environment:
  JULIA_CPU_THREADS = 128
  JULIA_DEPOT_PATH = /cache/julia-buildkite-plugin/depots/5b300254-1738-4989-ae0a-f4d2d937f953

Package Information:

Status `/cache/build/exclusive-amdci1-0/julialang/scimlbenchmarks-dot-jl/benchmarks/Bio/Project.toml`
⌃ [6e4b80f9] BenchmarkTools v1.5.0
⌅ [479239e8] Catalyst v14.4.1
⌃ [2b5f629d] DiffEqBase v6.160.0
⌃ [f3b72e0c] DiffEqDevTools v2.45.1
  [40713840] IncompleteLU v0.2.1
⌃ [033835bb] JLD2 v0.5.8
  [7f56f5a3] LSODA v0.7.5
⌅ [7ed4a6bd] LinearSolve v2.37.0
⌅ [961ee093] ModelingToolkit v9.50.0
  [54ca160b] ODEInterface v0.5.0
  [09606e27] ODEInterfaceDiffEq v3.13.4
⌃ [1dea7af3] OrdinaryDiffEq v6.90.1
⌃ [91a5bcdd] Plots v1.40.9
⌅ [b4db0fb7] ReactionNetworkImporters v0.15.1
  [f2c3362d] RecursiveFactorization v0.2.23
  [31c91b34] SciMLBenchmarks v0.1.3
⌃ [c3572dad] Sundials v4.26.1
⌃ [a759f4b9] TimerOutputs v0.5.25
Info Packages marked with ⌃ and ⌅ have new versions available. Those with ⌃ may be upgradable, but those with ⌅ are restricted by compatibility constraints from upgrading. To see why use `status --outdated`
Warning The project dependencies or compat requirements have changed since the manifest was last resolved. It is recommended to `Pkg.resolve()` or consider `Pkg.update()` if necessary.

And the full manifest:

Status `/cache/build/exclusive-amdci1-0/julialang/scimlbenchmarks-dot-jl/benchmarks/Bio/Manifest.toml`
⌃ [47edcb42] ADTypes v1.10.0
  [1520ce14] AbstractTrees v0.4.5
⌃ [7d9f7c33] Accessors v0.1.38
⌃ [79e6a3ab] Adapt v4.1.1
  [66dad0bd] AliasTables v1.1.3
  [ec485272] ArnoldiMethod v0.4.0
⌃ [4fba245c] ArrayInterface v7.17.0
⌃ [4c555306] ArrayLayouts v1.10.4
⌃ [6e4b80f9] BenchmarkTools v1.5.0
⌅ [e2ed5e7c] Bijections v0.1.9
  [d1d4a3ce] BitFlags v0.1.9
  [62783981] BitTwiddlingConvenienceFunctions v0.1.6
⌃ [8e7c35d0] BlockArrays v1.1.1
⌃ [70df07ce] BracketingNonlinearSolve v1.1.0
  [fa961155] CEnum v0.5.0
⌃ [2a0fbf3d] CPUSummary v0.2.6
  [00ebfdb7] CSTParser v3.4.3
  [7057c7e9] Cassette v0.3.14
⌅ [479239e8] Catalyst v14.4.1
⌃ [d360d2e6] ChainRulesCore v1.25.0
  [fb6a15b2] CloseOpenIntervals v0.1.13
⌃ [944b1d66] CodecZlib v0.7.6
⌃ [35d6a980] ColorSchemes v3.27.1
⌃ [3da002f7] ColorTypes v0.12.0
  [c3611d14] ColorVectorSpace v0.11.0
⌃ [5ae59095] Colors v0.13.0
⌃ [861a8166] Combinatorics v1.0.2
⌅ [a80b9123] CommonMark v0.8.15
  [38540f10] CommonSolve v0.2.4
  [bbf7d656] CommonSubexpressions v0.3.1
  [f70d9fcc] CommonWorldInvalidations v1.0.0
⌃ [34da2185] Compat v4.16.0
  [b152e2b5] CompositeTypes v0.1.4
  [a33af91c] CompositionsBase v0.1.2
  [2569d6c7] ConcreteStructs v0.2.3
⌃ [f0e56b4a] ConcurrentUtilities v2.4.2
  [8f4d0f93] Conda v1.10.2
⌃ [187b0558] ConstructionBase v1.5.8
  [d38c429a] Contour v0.6.3
  [adafc99b] CpuId v0.3.1
  [a8cc5b0e] Crayons v4.1.1
  [9a962f9c] DataAPI v1.16.0
⌅ [864edb3b] DataStructures v0.18.20
  [e2d170a0] DataValueInterfaces v1.0.0
  [8bb1440f] DelimitedFiles v1.9.1
⌃ [2b5f629d] DiffEqBase v6.160.0
⌃ [459566f4] DiffEqCallbacks v4.2.0
⌃ [f3b72e0c] DiffEqDevTools v2.45.1
⌃ [77a26b50] DiffEqNoiseProcess v5.23.0
  [163ba53b] DiffResults v1.1.0
  [b552c78f] DiffRules v1.15.1
⌅ [a0c0ee7d] DifferentiationInterface v0.6.22
⌃ [8d63f2c5] DispatchDoctor v0.4.17
  [b4f34e82] Distances v0.10.12
⌃ [31c24e10] Distributions v0.25.113
⌃ [ffbed154] DocStringExtensions v0.9.3
⌃ [5b8099bc] DomainSets v0.7.14
⌃ [7c1d4256] DynamicPolynomials v0.6.0
⌃ [06fc5a27] DynamicQuantities v1.3.0
⌃ [4e289a0a] EnumX v1.0.4
⌃ [f151be2c] EnzymeCore v0.8.6
⌃ [460bff9d] ExceptionUnwrapping v0.1.10
⌃ [d4d017d3] ExponentialUtilities v1.26.1
  [e2ba6199] ExprTools v0.1.10
⌅ [6b7a57c9] Expronicon v0.8.5
⌃ [c87230d0] FFMPEG v0.4.2
  [7034ab61] FastBroadcast v0.3.5
  [9aa1b823] FastClosures v0.3.2
  [29a986be] FastLapackInterface v2.0.4
⌃ [a4df4552] FastPower v1.1.1
⌃ [5789e2e9] FileIO v1.16.5
⌃ [1a297f60] FillArrays v1.13.0
⌃ [64ca27bc] FindFirstFunctions v1.4.1
⌃ [6a86dc24] FiniteDiff v2.26.0
  [53c48c17] FixedPointNumbers v0.8.5
  [1fa38f19] Format v1.3.7
⌅ [f6369f11] ForwardDiff v0.10.38
  [f62d2435] FunctionProperties v0.1.2
  [069b7b12] FunctionWrappers v1.1.3
  [77dc65aa] FunctionWrappersWrappers v0.1.3
⌃ [d9f16b24] Functors v0.5.1
⌅ [46192b85] GPUArraysCore v0.1.6
⌃ [28b8d3ca] GR v0.73.8
⌃ [14197337] GenericLinearAlgebra v0.3.14
⌃ [c145ed77] GenericSchur v0.5.4
⌃ [d7ba0133] Git v1.3.1
  [c27321d9] Glob v1.3.1
⌃ [86223c79] Graphs v1.12.0
  [42e2da0e] Grisu v1.0.2
⌃ [cd3eb016] HTTP v1.10.10
  [eafb193a] Highlights v0.5.3
  [3e5b6fbb] HostCPUFeatures v0.1.17
⌃ [34004b35] HypergeometricFunctions v0.3.25
⌃ [7073ff75] IJulia v1.26.0
  [615f187c] IfElse v0.1.1
  [40713840] IncompleteLU v0.2.1
  [d25df0c9] Inflate v0.1.5
⌃ [18e54dd8] IntegerMathUtils v0.1.2
⌃ [8197267c] IntervalSets v0.7.10
  [3587e190] InverseFunctions v0.1.17
⌃ [92d709cd] IrrationalConstants v0.2.2
  [82899510] IteratorInterfaceExtensions v1.0.0
⌃ [033835bb] JLD2 v0.5.8
⌃ [1019f520] JLFzf v0.1.8
⌃ [692b3bcd] JLLWrappers v1.6.1
  [682c06a0] JSON v0.21.4
⌅ [98e50ef6] JuliaFormatter v1.0.62
⌃ [ccbc3e58] JumpProcesses v9.14.0
  [ef3ab10e] KLU v0.6.0
⌅ [ba0b0d4f] Krylov v0.9.8
  [7f56f5a3] LSODA v0.7.5
  [b964fa9f] LaTeXStrings v1.4.0
⌃ [23fbe1c1] Latexify v0.16.5
  [10f19ff3] LayoutPointers v0.1.17
⌃ [5078a376] LazyArrays v2.2.2
  [87fe0de2] LineSearch v0.1.4
⌃ [d3d80556] LineSearches v7.3.0
⌅ [7ed4a6bd] LinearSolve v2.37.0
⌃ [2ab3a3ac] LogExpFunctions v0.3.28
  [e6f89c97] LoggingExtras v1.1.0
⌃ [bdcacae8] LoopVectorization v0.12.171
  [d8e11817] MLStyle v0.4.17
⌃ [1914dd2f] MacroTools v0.5.13
  [d125e4d3] ManualMemory v0.1.8
  [bb5d69b7] MaybeInplace v0.1.4
  [739be429] MbedTLS v1.1.9
  [442fdcdd] Measures v0.3.2
  [e1d29d7a] Missings v1.2.0
⌅ [961ee093] ModelingToolkit v9.50.0
  [46d2c3a1] MuladdMacro v0.2.4
⌃ [102ac46a] MultivariatePolynomials v0.5.7
⌃ [ffc61752] Mustache v1.0.20
⌃ [d8a4904e] MutableArithmetics v1.5.2
⌃ [d41bc354] NLSolversBase v7.8.3
  [2774e3e8] NLsolve v4.5.1
⌃ [77ba4419] NaNMath v1.0.2
⌃ [8913a72c] NonlinearSolve v4.1.0
⌃ [be0214bd] NonlinearSolveBase v1.3.3
⌃ [5959db7a] NonlinearSolveFirstOrder v1.0.0
⌃ [9a2c21bd] NonlinearSolveQuasiNewton v1.0.0
⌃ [26075421] NonlinearSolveSpectralMethods v1.0.0
  [54ca160b] ODEInterface v0.5.0
  [09606e27] ODEInterfaceDiffEq v3.13.4
⌃ [6fe1bfb0] OffsetArrays v1.14.1
⌃ [4d8831e6] OpenSSL v1.4.3
⌃ [429524aa] Optim v1.10.0
⌃ [bac558e1] OrderedCollections v1.6.3
⌃ [1dea7af3] OrdinaryDiffEq v6.90.1
⌃ [89bda076] OrdinaryDiffEqAdamsBashforthMoulton v1.1.0
⌃ [6ad6398a] OrdinaryDiffEqBDF v1.1.2
⌃ [bbf590c4] OrdinaryDiffEqCore v1.10.2
⌃ [50262376] OrdinaryDiffEqDefault v1.1.0
⌃ [4302a76b] OrdinaryDiffEqDifferentiation v1.2.0
⌃ [9286f039] OrdinaryDiffEqExplicitRK v1.1.0
⌃ [e0540318] OrdinaryDiffEqExponentialRK v1.1.0
⌃ [becaefa8] OrdinaryDiffEqExtrapolation v1.2.1
⌃ [5960d6e9] OrdinaryDiffEqFIRK v1.3.0
⌃ [101fe9f7] OrdinaryDiffEqFeagin v1.1.0
⌃ [d3585ca7] OrdinaryDiffEqFunctionMap v1.1.1
⌃ [d28bc4f8] OrdinaryDiffEqHighOrderRK v1.1.0
⌃ [9f002381] OrdinaryDiffEqIMEXMultistep v1.1.0
⌃ [521117fe] OrdinaryDiffEqLinear v1.1.0
⌃ [1344f307] OrdinaryDiffEqLowOrderRK v1.2.0
⌃ [b0944070] OrdinaryDiffEqLowStorageRK v1.2.1
⌃ [127b3ac7] OrdinaryDiffEqNonlinearSolve v1.2.4
⌃ [c9986a66] OrdinaryDiffEqNordsieck v1.1.0
⌃ [5dd0a6cf] OrdinaryDiffEqPDIRK v1.1.0
⌃ [5b33eab2] OrdinaryDiffEqPRK v1.1.0
⌃ [04162be5] OrdinaryDiffEqQPRK v1.1.0
⌃ [af6ede74] OrdinaryDiffEqRKN v1.1.0
⌃ [43230ef6] OrdinaryDiffEqRosenbrock v1.3.1
⌃ [2d112036] OrdinaryDiffEqSDIRK v1.1.0
⌃ [669c94d9] OrdinaryDiffEqSSPRK v1.2.0
⌃ [e3e12d00] OrdinaryDiffEqStabilizedIRK v1.1.0
⌃ [358294b1] OrdinaryDiffEqStabilizedRK v1.1.0
⌃ [fa646aed] OrdinaryDiffEqSymplecticRK v1.1.0
⌃ [b1df2697] OrdinaryDiffEqTsit5 v1.1.0
⌃ [79d7bb75] OrdinaryDiffEqVerner v1.1.1
⌃ [90014a1f] PDMats v0.11.31
  [65ce6f38] PackageExtensionCompat v1.0.2
  [d96e819e] Parameters v0.12.3
⌃ [69de0a69] Parsers v2.8.1
  [b98c9c47] Pipe v1.3.0
  [ccf2f8ad] PlotThemes v3.3.0
  [995b91a9] PlotUtils v1.4.3
⌃ [91a5bcdd] Plots v1.40.9
⌃ [e409e4f3] PoissonRandom v0.4.4
⌃ [f517fe37] Polyester v0.7.16
  [1d0040c9] PolyesterWeave v0.2.2
⌃ [f27b6e38] Polynomials v4.0.12
  [85a6dd25] PositiveFactorizations v0.2.4
⌃ [d236fae5] PreallocationTools v0.4.24
⌅ [aea7be01] PrecompileTools v1.2.1
⌃ [21216c6a] Preferences v1.4.3
⌃ [27ebfcd6] Primes v0.5.6
⌃ [43287f4e] PtrArrays v1.2.1
⌃ [1fd47b50] QuadGK v2.11.1
⌃ [74087812] Random123 v1.7.0
  [e6cf234a] RandomNumbers v1.6.0
⌅ [b4db0fb7] ReactionNetworkImporters v0.15.1
  [3cdcf5f2] RecipesBase v1.3.4
  [01d81517] RecipesPipeline v0.6.12
⌃ [731186ca] RecursiveArrayTools v3.27.3
  [f2c3362d] RecursiveFactorization v0.2.23
  [189a3867] Reexport v1.2.2
  [05181044] RelocatableFolders v1.0.1
⌃ [ae029012] Requires v1.3.0
  [ae5879a3] ResettableStacks v1.1.1
  [79098fc4] Rmath v0.8.0
  [47965b36] RootedTrees v2.23.1
⌃ [7e49a35a] RuntimeGeneratedFunctions v0.5.13
  [94e857df] SIMDTypes v0.1.0
  [476501e8] SLEEFPirates v0.6.43
⌅ [0bca4576] SciMLBase v2.61.0
  [31c91b34] SciMLBenchmarks v0.1.3
⌃ [19f34311] SciMLJacobianOperators v0.1.1
⌅ [c0aeaf25] SciMLOperators v0.3.12
⌃ [53ae85a6] SciMLStructures v1.5.0
⌃ [6c6a2e73] Scratch v1.2.1
⌃ [efcf1570] Setfield v1.1.1
  [992d4aef] Showoff v1.0.3
  [777ac1f9] SimpleBufferStream v1.2.0
⌃ [727e6d20] SimpleNonlinearSolve v2.0.0
⌃ [699a6c99] SimpleTraits v0.9.4
  [ce78b400] SimpleUnPack v1.1.0
  [b85f4697] SoftGlobalScope v1.1.0
⌃ [a2af1166] SortingAlgorithms v1.2.1
⌃ [47a9eef4] SparseDiffTools v2.23.0
⌃ [0a514795] SparseMatrixColorings v0.4.10
⌃ [e56a9233] Sparspak v0.3.9
⌃ [276daf66] SpecialFunctions v2.4.0
⌃ [860ef19b] StableRNGs v1.0.2
⌃ [aedffcd0] Static v1.1.1
  [0d7ed370] StaticArrayInterface v1.8.0
⌃ [90137ffa] StaticArrays v1.9.8
  [1e83bf80] StaticArraysCore v1.4.3
⌃ [82ae8749] StatsAPI v1.7.0
⌃ [2913bbd2] StatsBase v0.34.3
⌃ [4c63d2b9] StatsFuns v1.3.2
⌃ [7792a7ef] StrideArraysCore v0.5.7
  [69024149] StringEncodings v0.3.7
⌅ [09ab397b] StructArrays v0.6.18
⌃ [c3572dad] Sundials v4.26.1
⌃ [2efcf032] SymbolicIndexingInterface v0.3.35
⌃ [19f23fe9] SymbolicLimits v0.2.2
⌃ [d1185830] SymbolicUtils v3.7.2
⌃ [0c5d862f] Symbolics v6.21.0
  [3783bdb8] TableTraits v1.0.1
⌃ [bd369af6] Tables v1.12.0
  [62fd8b95] TensorCore v0.1.1
  [8ea1fca8] TermInterface v2.0.0
  [1c621080] TestItems v1.0.0
⌃ [8290d209] ThreadingUtilities v0.5.2
⌃ [a759f4b9] TimerOutputs v0.5.25
  [0796e94c] Tokenize v0.5.29
  [3bb67fe8] TranscodingStreams v0.11.3
  [d5829a12] TriangularSolve v0.2.1
⌃ [410a4b4d] Tricks v0.1.9
  [781d530d] TruncatedStacktraces v1.4.0
⌃ [5c2747f8] URIs v1.5.1
  [3a884ed6] UnPack v1.0.2
  [1cfade01] UnicodeFun v0.4.1
⌅ [1986cc42] Unitful v1.21.0
⌃ [45397f5d] UnitfulLatexify v1.6.4
  [a7c27f48] Unityper v0.1.6
  [41fe7b60] Unzip v0.2.0
⌃ [3d5dd08c] VectorizationBase v0.21.71
  [81def892] VersionParsing v1.3.0
  [19fa3120] VertexSafeGraphs v0.2.0
  [44d3d7a6] Weave v0.10.12
⌃ [ddb6d928] YAML v0.4.12
⌃ [c2297ded] ZMQ v1.3.0
⌃ [6e34b625] Bzip2_jll v1.0.8+2
⌃ [83423d85] Cairo_jll v1.18.2+1
⌃ [ee1fde0b] Dbus_jll v1.14.10+0
⌃ [2702e6a9] EpollShim_jll v0.0.20230411+0
⌃ [2e619515] Expat_jll v2.6.4+0
⌅ [b22a6f82] FFMPEG_jll v4.4.4+1
⌃ [a3f928ae] Fontconfig_jll v2.13.96+0
⌃ [d7e528f0] FreeType2_jll v2.13.2+0
⌃ [559328eb] FriBidi_jll v1.0.14+0
⌃ [0656b61e] GLFW_jll v3.4.0+1
⌅ [d2c73de3] GR_jll v0.73.8+0
  [78b55507] Gettext_jll v0.21.0+0
⌃ [f8c6e375] Git_jll v2.46.2+0
⌃ [7746bdde] Glib_jll v2.80.5+0
⌃ [3b182d85] Graphite2_jll v1.3.14+0
⌃ [2e76f6c2] HarfBuzz_jll v8.3.1+0
⌅ [1d5cc7b8] IntelOpenMP_jll v2024.2.1+0
⌃ [aacddb02] JpegTurbo_jll v3.0.4+0
⌃ [c1c5ebd0] LAME_jll v3.100.2+0
⌃ [88015f11] LERC_jll v4.0.0+0
⌃ [1d63c593] LLVMOpenMP_jll v18.1.7+0
  [aae0fff6] LSODA_jll v0.1.2+0
⌃ [dd4b983a] LZO_jll v2.10.2+1
⌅ [e9f186c6] Libffi_jll v3.2.2+1
⌃ [d4300ac3] Libgcrypt_jll v1.11.0+0
⌃ [7e76a0d4] Libglvnd_jll v1.6.0+0
⌃ [7add5ba3] Libgpg_error_jll v1.50.0+0
⌃ [94ce4f54] Libiconv_jll v1.17.0+1
⌃ [4b2f31a3] Libmount_jll v2.40.1+0
⌃ [89763e89] Libtiff_jll v4.7.0+0
⌃ [38a345b3] Libuuid_jll v2.40.1+0
⌃ [856f044c] MKL_jll v2024.2.0+0
⌃ [c771fb93] ODEInterface_jll v0.0.1+0
⌃ [e7412a2a] Ogg_jll v1.3.5+1
⌃ [458c3c95] OpenSSL_jll v3.0.15+1
⌃ [efe28fd5] OpenSpecFun_jll v0.5.5+0
⌃ [91d4177d] Opus_jll v1.3.3+0
⌃ [36c8627f] Pango_jll v1.54.1+0
⌅ [30392449] Pixman_jll v0.43.4+0
⌅ [c0090381] Qt6Base_jll v6.7.1+1
⌅ [629bc702] Qt6Declarative_jll v6.7.1+2
⌅ [ce943373] Qt6ShaderTools_jll v6.7.1+1
⌃ [e99dba38] Qt6Wayland_jll v6.7.1+1
  [f50d1b31] Rmath_jll v0.5.1+0
⌅ [fb77eaff] Sundials_jll v5.2.2+0
  [a44049a8] Vulkan_Loader_jll v1.3.243+0
⌃ [a2964d1f] Wayland_jll v1.21.0+1
⌃ [2381bf8a] Wayland_protocols_jll v1.31.0+0
⌅ [02c8fc9c] XML2_jll v2.13.5+0
⌃ [aed1982a] XSLT_jll v1.1.41+0
⌃ [ffd25f8a] XZ_jll v5.6.3+0
⌃ [f67eecfb] Xorg_libICE_jll v1.1.1+0
⌃ [c834827a] Xorg_libSM_jll v1.2.4+0
⌃ [4f6342f7] Xorg_libX11_jll v1.8.6+0
⌃ [0c0b7dd1] Xorg_libXau_jll v1.0.11+0
⌃ [935fb764] Xorg_libXcursor_jll v1.2.0+4
⌃ [a3789734] Xorg_libXdmcp_jll v1.1.4+0
⌃ [1082639a] Xorg_libXext_jll v1.3.6+0
⌃ [d091e8ba] Xorg_libXfixes_jll v5.0.3+4
⌃ [a51aa0fd] Xorg_libXi_jll v1.7.10+4
⌃ [d1454406] Xorg_libXinerama_jll v1.1.4+4
⌃ [ec84b674] Xorg_libXrandr_jll v1.5.2+4
⌃ [ea2f1a96] Xorg_libXrender_jll v0.9.11+0
⌃ [14d82f49] Xorg_libpthread_stubs_jll v0.1.1+0
⌃ [c7cfdc94] Xorg_libxcb_jll v1.17.0+0
⌃ [cc61e674] Xorg_libxkbfile_jll v1.1.2+0
⌃ [e920d4aa] Xorg_xcb_util_cursor_jll v0.1.4+0
⌃ [12413925] Xorg_xcb_util_image_jll v0.4.0+1
⌃ [2def613f] Xorg_xcb_util_jll v0.4.0+1
⌃ [975044d2] Xorg_xcb_util_keysyms_jll v0.4.0+1
⌃ [0d47668e] Xorg_xcb_util_renderutil_jll v0.3.9+1
⌃ [c22f9ab0] Xorg_xcb_util_wm_jll v0.4.1+1
⌃ [35661453] Xorg_xkbcomp_jll v1.4.6+0
⌃ [33bec58e] Xorg_xkeyboard_config_jll v2.39.0+0
⌃ [c5fb5394] Xorg_xtrans_jll v1.5.0+0
⌃ [8f1865be] ZeroMQ_jll v4.3.5+1
⌃ [3161d3a3] Zstd_jll v1.5.6+1
⌃ [35ca27e7] eudev_jll v3.2.9+0
⌅ [214eeab7] fzf_jll v0.53.0+0
⌃ [1a1c6b14] gperf_jll v3.1.1+0
⌃ [a4ae2306] libaom_jll v3.9.0+0
⌅ [0ac62f75] libass_jll v0.15.2+0
  [1183f4f0] libdecor_jll v0.2.2+0
⌃ [2db6ffa8] libevdev_jll v1.11.0+0
⌃ [f638f0a6] libfdk_aac_jll v2.0.3+0
⌃ [36db933b] libinput_jll v1.18.0+0
⌃ [b53b4c65] libpng_jll v1.6.44+0
⌃ [a9144af2] libsodium_jll v1.0.20+1
⌃ [f27f6e37] libvorbis_jll v1.3.7+2
⌃ [009596ad] mtdev_jll v1.1.6+0
⌃ [1317d2d5] oneTBB_jll v2021.12.0+0
⌅ [1270edf5] x264_jll v2021.5.5+0
⌅ [dfaa095f] x265_jll v3.5.0+0
⌃ [d8fb68d0] xkbcommon_jll v1.4.1+1
  [0dad84c5] ArgTools v1.1.1
  [56f22d72] Artifacts
  [2a0f44e3] Base64
  [ade2ca70] Dates
  [8ba89e20] Distributed
  [f43a241f] Downloads v1.6.0
  [7b1f6079] FileWatching
  [9fa8497b] Future
  [b77e0a4c] InteractiveUtils
  [4af54fe1] LazyArtifacts
  [b27032c2] LibCURL v0.6.4
  [76f85450] LibGit2
  [8f399da3] Libdl
  [37e2e46d] LinearAlgebra
  [56ddb016] Logging
  [d6f4376e] Markdown
  [a63ad114] Mmap
  [ca575930] NetworkOptions v1.2.0
  [44cfe95a] Pkg v1.10.0
  [de0858da] Printf
  [9abbd945] Profile
  [3fa0cd96] REPL
  [9a3f8284] Random
  [ea8e919c] SHA v0.7.0
  [9e88b42a] Serialization
  [1a1011a3] SharedArrays
  [6462fe0b] Sockets
  [2f01184e] SparseArrays v1.10.0
  [10745b16] Statistics v1.10.0
  [4607b0f0] SuiteSparse
  [fa267f1f] TOML v1.0.3
  [a4e569a6] Tar v1.10.0
  [8dfed614] Test
  [cf7118a7] UUIDs
  [4ec0a83e] Unicode
  [e66e0078] CompilerSupportLibraries_jll v1.1.1+0
  [deac9b47] LibCURL_jll v8.4.0+0
  [e37daf67] LibGit2_jll v1.6.4+0
  [29816b5a] LibSSH2_jll v1.11.0+1
  [c8ffd9c3] MbedTLS_jll v2.28.2+1
  [14a3606d] MozillaCACerts_jll v2023.1.10
  [4536629a] OpenBLAS_jll v0.3.23+4
  [05823500] OpenLibm_jll v0.8.1+2
  [efcefdf7] PCRE2_jll v10.42.0+1
  [bea87d4a] SuiteSparse_jll v7.2.1+1
  [83775a58] Zlib_jll v1.2.13+1
  [8e850b90] libblastrampoline_jll v5.11.0+0
  [8e850ede] nghttp2_jll v1.52.0+1
  [3f19e933] p7zip_jll v17.4.0+2
Info Packages marked with ⌃ and ⌅ have new versions available. Those with ⌃ may be upgradable, but those with ⌅ are restricted by compatibility constraints from upgrading. To see why use `status --outdated -m`
Warning The project dependencies or compat requirements have changed since the manifest was last resolved. It is recommended to `Pkg.resolve()` or consider `Pkg.update()` if necessary.
