Spring-Block PDE Work-Precision Diagrams
see https://discourse.julialang.org/t/boundserror-on-odeproblem-accelerated-with-modelingtoolkit-jl
using OrdinaryDiffEq, Symbolics, ModelingToolkit, Sundials, LinearSolve, SparseArrays
using NonlinearSolve
using GaussianRandomFields
using StableRNGs
using DiffEqDevTools, RecursiveFactorization
using Plots;
gr()
rng = StableRNG(3); #make the example reproducible
#Function which defines the spatial distribution of Parameters
function get_parameterDistribution(xmin, xmax; l = 6, p = 3)
#parameters vary from 'xmin' at the center to 'xmax' at the boundaries, over a number of blocks l, with p defining the order of the transition-curve
x = xmin .* ones(Ny, Nx);
[x[(l - i + 1):(Ny - (l - i)), (l - i + 1):(Nx - (l - i))] .= (xmax-xmin)*(i-1)^p/(l-1)^p+xmin
for i in l:-1:1]
return x
end
#Helper function to convert from vectorized form back to matrix implementation
function vec2matrix(uvec)
m = zeros(Ny, Nx)
i = 1
for x in 1:Nx
for y in 1:Ny
m[y, x] = uvec[i]
i += 1
end
end
return m
end
#Helper function to convert initial conditions from vectorized form back to matrix implementation
function convU0(uvec)
m = zeros(Ny, Nx, 3)
m[:, :, 1] = vec2matrix(uvec[1:(Nx * Ny)])
m[:, :, 2] = vec2matrix(uvec[(Nx * Ny + 1):(2 * Nx * Ny)])
m[:, :, 3] = vec2matrix(uvec[(2Nx * Ny + 1):(3 * Nx * Ny)])
return m
end
#Model Parameters---------------------------------------------------------------------------------------------------------------------
#Model size
const Nx = 66;
const Ny = 18;
#block density
const m = 2.5;
#driving speed
const v = 34*1e-3/(365*24*60*60);
#stiffness
const kp = 8.0;
const kc = 44.0;
#resistance (rate and state type)
const v0 = 1e-3;
const σn = [1.8y+46 for y in 1:Ny, x in 1:Nx];
const τ0 = 0.4;
const Dc = get_parameterDistribution(0.004, 1e2*0.004);
const a = 0.015;
const b = get_parameterDistribution(0.02, 0.01);
function f0(du, u, p, t)
#du+dθ-----------------------------------------------------------------------
@inbounds for i in 1:Nx, j in 1:Ny
du[j, i, 1] = @. u[j, i, 2] - v
du[j, i, 3] = @. 1.0 - u[j, i, 2]*u[j, i, 3]/Dc[j, i]
end
#dv--------------------------------------------------------------------------
#inner blocks
@inbounds for i in 2:(Nx - 1), j in 2:(Ny - 1)
du[j, i, 2] = @. 1/m*kc*(u[j, i + 1, 1]+u[j, i - 1, 1]+u[j + 1, i, 1]+u[j - 1, i, 1]-4*u[j, i, 1]) -
1/m*kp*u[j, i, 1] -
1/m*σn[j, i]*a*asinh(u[j, i, 2]/2/v0*exp((τ0+b[j, i]*log(v0*abs(u[j, i, 3])/Dc[j, i]))/a))
end
#left right blocks
@inbounds for j in 2:(Ny - 1)
#first col
du[j, 1, 2] = @. 1/m*kc*(u[j, 2, 1]+u[j + 1, 1, 1]+u[j - 1, 1, 1]-3*u[j, 1, 1]) -
1/m*kp*u[j, 1, 1] -
1/m*σn[j, 1]*a*asinh(u[j, 1, 2]/2/v0*exp((τ0+b[j, 1]*log(v0*abs(u[j, 1, 3])/Dc[j, 1]))/a))
#right (last col)
du[j, Nx, 2] = @. 1/m*kc*(u[j, Nx - 1, 1]+u[j + 1, Nx, 1]+u[j - 1, Nx, 1]-3*u[j, Nx, 1]) -
1/m*kp*u[j, Nx, 1] -
1/m*σn[j, Nx]*a*asinh(u[j, Nx, 2]/2/v0*exp((τ0+b[j, Nx]*log(v0*abs(u[j, Nx, 3])/Dc[j, Nx]))/a))
end
#top bottom blocks
@inbounds for i in 2:(Nx - 1)
#top (first row)
du[1, i, 2] = @. 1/m*kc*(u[1, i + 1, 1]+u[1, i - 1, 1]+u[2, i, 1]-3*u[1, i, 1]) -
1/m*kp*u[1, i, 1] -
1/m*σn[1, i]*a*asinh(u[1, i, 2]/2/v0*exp((τ0+b[1, i]*log(v0*abs(u[1, i, 3])/Dc[1, i]))/a))
#botoom (last row)
du[Ny, i, 2] = @. 1/m*kc*(u[Ny, i + 1, 1]+u[Ny, i - 1, 1]+u[Ny - 1, i, 1]-3*u[Ny, i, 1]) -
1/m*kp*u[Ny, i, 1] -
1/m*σn[Ny, i]*a*asinh(u[Ny, i, 2]/2/v0*exp((τ0+b[Ny, i]*log(v0*abs(u[Ny, i, 3])/Dc[Ny, i]))/a))
end
#Corner Blocks (closed loop)
@inbounds begin
du[1, 1, 2] = @. 1/m*kc*(u[1, 2, 1]+u[2, 1, 1]-2*u[1, 1, 1]) - 1/m*kp*u[1, 1, 1] -
1/m*σn[1, 1]*a*asinh(u[1, 1, 2]/2/v0*exp((τ0+b[1, 1]*log(v0*abs(u[1, 1, 3])/Dc[1, 1]))/a))
du[1, Nx, 2] = @. 1/m*kc*(u[1, Nx - 1, 1]+u[2, Nx, 1]-2*u[1, Nx, 1]) -
1/m*kp*u[1, Nx, 1] -
1/m*σn[1, Nx]*a*asinh(u[1, Nx, 2]/2/v0*exp((τ0+b[1, Nx]*log(v0*abs(u[1, Nx, 3])/Dc[1, Nx]))/a))
du[Ny, 1, 2] = @. 1/m*kc*(u[Ny, 2, 1]+u[Ny - 1, 1, 1]-2*u[Ny, 1, 1]) -
1/m*kp*u[Ny, 1, 1] -
1/m*σn[Ny, 1]*a*asinh(u[Ny, 1, 2]/2/v0*exp((τ0+b[Ny, 1]*log(v0*abs(u[Ny, 1, 3])/Dc[Ny, 1]))/a))
du[Ny, Nx, 2] = @. 1/m*kc*(u[Ny, Nx - 1, 1]+u[Ny - 1, Nx, 1]-2*u[Ny, Nx, 1]) -
1/m*kp*u[Ny, Nx, 1] -
1/m*σn[Ny, Nx]*a*asinh(u[
Ny, Nx, 2]/2/v0*exp((τ0+b[Ny, Nx]*log(v0*abs(u[Ny, Nx, 3])/Dc[Ny, Nx]))/a))
end
end
function get_IC()
#derives initial conditions from equilibrium + perturbation of the initial position using GaussianRandomFields
probN = NonlinearProblem(f, input, nothing);
u0 = solve(probN, NewtonRaphson(), reltol = 1e-8, abstol = 1e-12).u;
#smooth spatial perturbation (see GaussianRandomFields docs)
cov = CovarianceFunction(2, Matern(20, 2))
pts = range(1, stop = 66, step = 1/1)
grf = GaussianRandomField(cov, CirculantEmbedding(), pts, pts, minpadding = 256)
rn = randn(rng, Int(1e7))
s = GaussianRandomFields.sample(grf, xi = rn[1:randdim(grf)])
u0[:, :, 1] = (1.0 .+ 0.001 .- 1e-7 .* s[1:Ny, 1:Nx]) .* u0[:, :, 1] #makes sure only forward acceleration takes place when launching the simulation
return u0
end
input = rand(Ny, Nx, 3);
output = similar(input);
sparsity_pattern = Symbolics.jacobian_sparsity(f0, output, input, nothing, 0.0);
jac_sparsity = Float64.(sparse(sparsity_pattern));
f = ODEFunction{true, SciMLBase.FullSpecialize}(f0; jac_prototype = jac_sparsity);
#Callbacks--------------------------------------------------------------------------------------------------------------------
is_start(u, t, integrator) = sum(abs.(integrator.u[(Ny * Nx + 1):(2 * Ny * Nx)]))>0.01 #detects onset of high cumulative velocity phase
is_end(u, t, integrator) = sum(abs.(integrator.u[(Ny * Nx + 1):(2 * Ny * Nx)]))<0.01 #detects end of high cumulative velocity phase
affect!(integrator) = terminate!(integrator)
cb1 = DiscreteCallback(is_start, terminate!, save_positions = (false, false))
cb2 = DiscreteCallback(is_end, terminate!, save_positions = (false, false))
#Solver Setup-------------------------------------------------------------------------------------------------------------------
solver = KenCarp47(linsolve = KLUFactorization());
abstol = 1e-12;
reltol = 1e-8;
u0 = get_IC();
tspan = (0.0, 1e9);
prob1 = ODEProblem(f, u0, tspan, nothing);
@mtkcompile sys = modelingtoolkitize(prob1)
prob_mtk1 = ODEProblem(sys, [], tspan, jac = true, sparse = true);
global sol, tcpu,
bytes,
gctime,
memallocs = @timed solve(
prob_mtk1, solver, reltol = reltol, abstol = abstol, maxiters = Int(1e12),
save_everystep = false, dtmin = 1e-20, callback = cb1); #about 55 sec
u1 = sol.u[end];
t1 = sol.t[end];
test_sol1 = TestSolution(sol)
#code (2): high cumulative velocity (>0.01) following phase (1)
tspan = (0.0, 1e4);
prob2 = ODEProblem(f, convU0(u1), tspan, nothing);
@mtkcompile sys2 = modelingtoolkitize(prob2)
prob_mtk2 = ODEProblem(sys2, [], tspan, jac = true, sparse = true);
global sol, tcpu,
bytes,
gctime,
memallocs = @timed solve(
prob_mtk2, solver, reltol = reltol, abstol = abstol, maxiters = Int(1e12),
save_everystep = false, dtmin = 1e-20, callback = cb2); #about 175 sec
u2 = sol.u[end];
t2 = t1 + sol.t[end];
test_sol2 = TestSolution(sol)retcode: Success
Interpolation: 1st order linear
t: nothing
u: nothingThe WP diagram setup:
abstols = 1.0 ./ 10.0 .^ (6:12)
reltols = 1.0 ./ 10.0 .^ (2:8)
setups = [
Dict(:alg=>KenCarp47(linsolve = KLUFactorization()), :prob_choice=>1),
Dict(:alg=>Rodas5(), :prob_choice=>1),
Dict(:alg=>Rodas5P(), :prob_choice=>1)
];
names = ["KenCarp47 KLU MTK", "Rodas5 KLU MTK", "Rodas5P KLU MTK"]
probs = [prob_mtk1, prob_mtk2]
test_sols = [test_sol1, test_sol2]
wp = WorkPrecisionSet(probs, abstols, reltols, setups; names = names,
save_everystep = false, maxiters = Int(1e5),
numruns = 10, appxsol = test_sols, callback = cb2, dtmin = 1e-20)

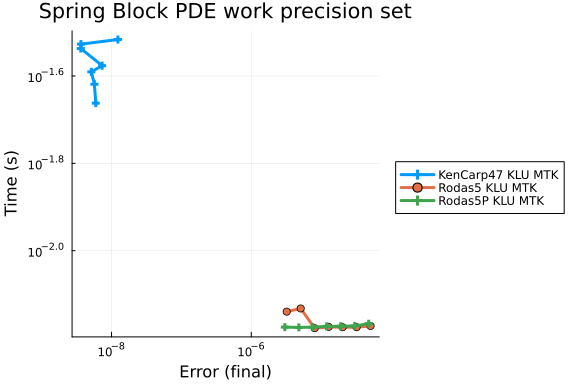

plot(wp, label = reduce(hcat, names), markershape = :auto, title = "Spring Block PDE work precision set")
