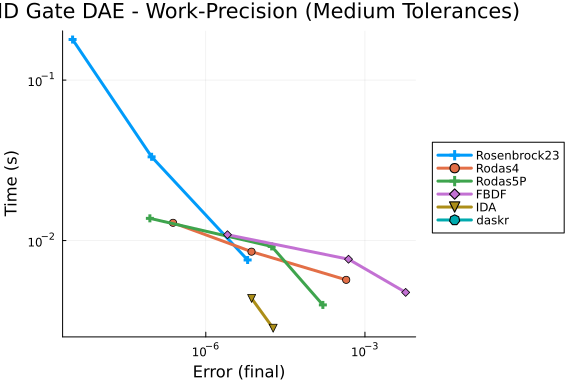

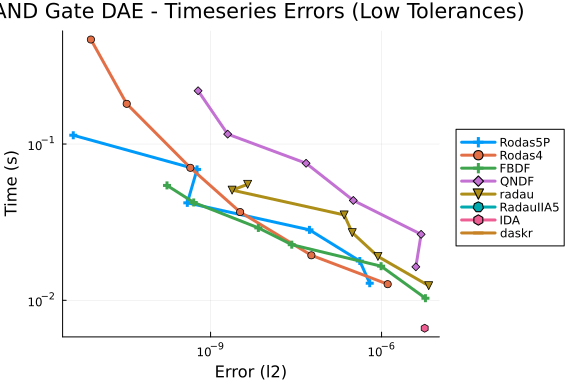

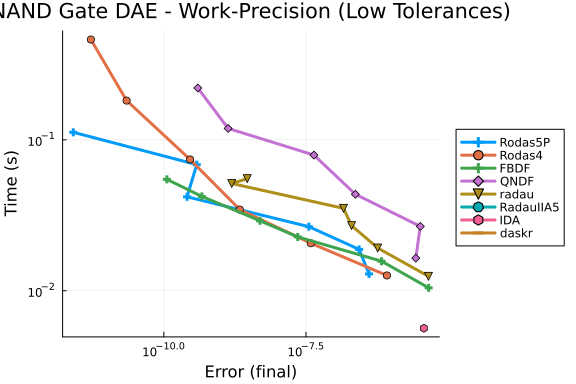

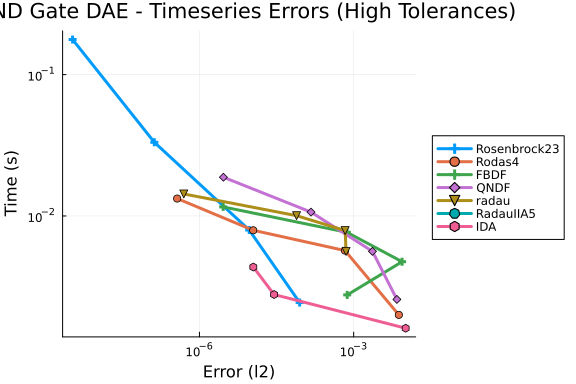

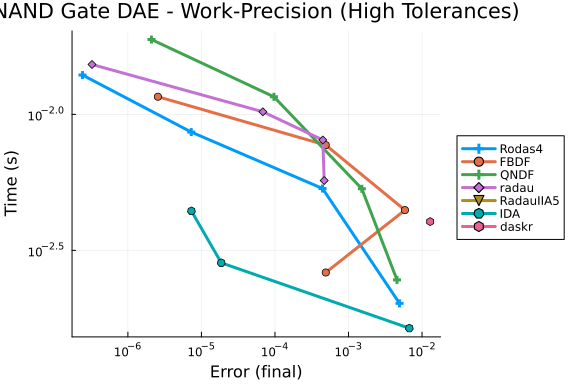

NAND Gate Differential-Algebraic Equation (DAE) Work-Precision Diagrams
using OrdinaryDiffEq, DiffEqDevTools, ModelingToolkit, ODEInterfaceDiffEq,
Plots, Sundials, DASSL, DASKR
using LinearAlgebra
using ModelingToolkit: t_nounits as t, D_nounits as DProblem Parameters
const RGS = 4.0
const RGD = 4.0
const RBS = 10.0
const RBD = 10.0
const CGS = 6e-5
const CGD = 6e-5
const CBD = 2.4e-5
const CBS = 2.4e-5
const C9 = 5e-5
const DELTA = 0.02
const CURIS = 1e-14
const VTH = 25.85
const VDD = 5.0
const VBB = -2.5
const VT0_DEPL = -2.43
const CGAMMA_DEPL = 0.2
const PHI_DEPL = 1.28
const BETA_DEPL = 5.35e-4
const VT0_ENH = 0.2
const CGAMMA_ENH = 0.035
const PHI_ENH = 1.01
const BETA_ENH = 1.748e-30.001748Input Signal Functions
function pulse(t, t_start, v_low, t_rise, v_high, t_high, t_fall, t_period)
t_mod = mod(t, t_period)
if t_mod < t_start
return v_low
elseif t_mod < t_start + t_rise
return v_low + (v_high - v_low) * (t_mod - t_start) / t_rise
elseif t_mod < t_start + t_rise + t_high
return v_high
elseif t_mod < t_start + t_rise + t_high + t_fall
return v_high - (v_high - v_low) * (t_mod - t_start - t_rise - t_high) / t_fall
else
return v_low
end
end
V1(t) = pulse(t, 0.0, 0.0, 5.0, 5.0, 5.0, 5.0, 20.0)
V2(t) = pulse(t, 0.0, 0.0, 15.0, 5.0, 15.0, 5.0, 40.0)
function V1_derivative(t)
t_mod = mod(t, 20.0)
if 0.0 < t_mod < 5.0
return 1.0
elseif 10.0 < t_mod < 15.0
return -1.0
else
return 0.0
end
end
function V2_derivative(t)
t_mod = mod(t, 40.0)
if 0.0 < t_mod < 15.0
return 1.0/15.0
elseif 20.0 < t_mod < 35.0
return -1.0/15.0
else
return 0.0
end
endV2_derivative (generic function with 1 method)MOSFET Model Functions
function gdsp(ned, vds, vgs, vbs)
if ned == 1
vt0, cgamma, phi, beta = VT0_DEPL, CGAMMA_DEPL, PHI_DEPL, BETA_DEPL
else
vt0, cgamma, phi, beta = VT0_ENH, CGAMMA_ENH, PHI_ENH, BETA_ENH
end
phi_vbs = max(phi - vbs, 1e-12)
phi_safe = max(phi, 1e-12)
vte = vt0 + cgamma * (sqrt(phi_vbs) - sqrt(phi_safe))
if vgs - vte <= 0.0
return 0.0
elseif 0.0 < vgs - vte <= vds
return -beta * (vgs - vte)^2 * (1.0 + DELTA * vds)
elseif 0.0 < vds < vgs - vte
return -beta * vds * (2.0 * (vgs - vte) - vds) * (1.0 + DELTA * vds)
else
return 0.0
end
end
function gdsm(ned, vds, vgd, vbd)
if ned == 1
vt0, cgamma, phi, beta = VT0_DEPL, CGAMMA_DEPL, PHI_DEPL, BETA_DEPL
else
vt0, cgamma, phi, beta = VT0_ENH, CGAMMA_ENH, PHI_ENH, BETA_ENH
end
phi_vbd = max(phi - vbd, 1e-12)
phi_safe = max(phi, 1e-12)
vte = vt0 + cgamma * (sqrt(phi_vbd) - sqrt(phi_safe))
if vgd - vte <= 0.0
return 0.0
elseif 0.0 < vgd - vte <= -vds
return beta * (vgd - vte)^2 * (1.0 - DELTA * vds)
elseif 0.0 < -vds < vgd - vte
return -beta * vds * (2.0 * (vgd - vte) + vds) * (1.0 - DELTA * vds)
else
return 0.0
end
end
function ids(ned, vds, vgs, vbs, vgd, vbd)
if vds > 0.0
return gdsp(ned, vds, vgs, vbs)
elseif vds == 0.0
return 0.0
else
return gdsm(ned, vds, vgd, vbd)
end
end
function ibs(vbs)
if vbs <= 0.0
return -CURIS * (exp(vbs / VTH) - 1.0)
else
return 0.0
end
end
function ibd(vbd)
if vbd <= 0.0
return -CURIS * (exp(vbd / VTH) - 1.0)
else
return 0.0
end
endibd (generic function with 1 method)DAE System Definition
function nand_rhs!(f, y, p, t)
v1 = V1(t)
v2 = V2(t)
v1d = V1_derivative(t)
v2d = V2_derivative(t)
y1, y2, y3, y4, y5, y6, y7, y8, y9, y10, y11, y12, y13, y14 = y
f[1] = -(y1 - y5) / RGS - ids(1, y2 - y1, y5 - y1, y3 - y5, y5 - y2, y4 - VDD)
f[2] = -(y2 - VDD) / RGD + ids(1, y2 - y1, y5 - y1, y3 - y5, y5 - y2, y4 - VDD)
f[3] = -(y3 - VBB) / RBS + ibs(y3 - y5)
f[4] = -(y4 - VBB) / RBD + ibd(y4 - VDD)
f[5] = -(y5 - y1) / RGS - ibs(y3 - y5) - (y5 - y7) / RGD - ibd(y9 - y5)
f[6] = CGS * v1d - (y6 - y10) / RGS - ids(2, y7 - y6, v1 - y6, y8 - y10, v1 - y7, y9 - y5)
f[7] = CGD * v1d - (y7 - y5) / RGD + ids(2, y7 - y6, v1 - y6, y8 - y10, v1 - y7, y9 - y5)
f[8] = -(y8 - VBB) / RBS + ibs(y8 - y10)
f[9] = -(y9 - VBB) / RBD + ibd(y9 - y5)
f[10] = -(y10 - y6) / RGS - ibs(y8 - y10) - (y10 - y12) / RGD - ibd(y14 - y10)
f[11] = CGS * v2d - y11 / RGS - ids(2, y12 - y11, v2 - y11, y13, v2 - y12, y14 - y10)
f[12] = CGD * v2d - (y12 - y10) / RGD + ids(2, y12 - y11, v2 - y11, y13, v2 - y12, y14 - y10)
f[13] = -(y13 - VBB) / RBS + ibs(y13)
f[14] = -(y14 - VBB) / RBD + ibd(y14 - y10)
return nothing
end
# Mass matrix (singular is fine!)
dirMassMatrix = [
CGS 0 0 0 0 0 0 0 0 0 0 0 0 0
0 CGD 0 0 0 0 0 0 0 0 0 0 0 0
0 0 CBS 0 0 0 0 0 0 0 0 0 0 0
0 0 0 CBD 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 CGS 0 0 0 0 0 0 0 0
0 0 0 0 0 0 CGD 0 0 0 0 0 0 0
0 0 0 0 0 0 0 CBS 0 0 0 0 0 0
0 0 0 0 0 0 0 0 CBD 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0 CGS 0 0 0
0 0 0 0 0 0 0 0 0 0 0 CGD 0 0
0 0 0 0 0 0 0 0 0 0 0 0 CBS 0
0 0 0 0 0 0 0 0 0 0 0 0 0 CBD
]
# Initial conditions
y0 = [5.0, 5.0, VBB, VBB, 5.0, 3.62385, 5.0, VBB, VBB, 3.62385, 0.0, 3.62385, VBB, VBB]
tspan = (0.0, 80.0)
# Mass matrix problem (original approach)
mmf = ODEFunction(nand_rhs!, mass_matrix=dirMassMatrix)
mmprob = ODEProblem(mmf, y0, tspan)
# DAEProblem version using direct DAE formulation
function nand_dae!(out, du, u, p, t)
v1 = V1(t)
v2 = V2(t)
v1d = V1_derivative(t)
v2d = V2_derivative(t)
y1, y2, y3, y4, y5, y6, y7, y8, y9, y10, y11, y12, y13, y14 = u
dy1, dy2, dy3, dy4, dy5, dy6, dy7, dy8, dy9, dy10, dy11, dy12, dy13, dy14 = du
# Differential equations: M*dy/dt - f = 0
# Convert from mass matrix form: M*dy/dt = f => M*dy/dt - f = 0
out[1] = CGS * dy1 - (-(y1 - y5) / RGS - ids(1, y2 - y1, y5 - y1, y3 - y5, y5 - y2, y4 - VDD))
out[2] = CGD * dy2 - (-(y2 - VDD) / RGD + ids(1, y2 - y1, y5 - y1, y3 - y5, y5 - y2, y4 - VDD))
out[3] = CBS * dy3 - (-(y3 - VBB) / RBS + ibs(y3 - y5))
out[4] = CBD * dy4 - (-(y4 - VBB) / RBD + ibd(y4 - VDD))
# Algebraic equations: g(y) = 0
out[5] = -(y5 - y1) / RGS - ibs(y3 - y5) - (y5 - y7) / RGD - ibd(y9 - y5)
out[6] = CGS * dy6 - (CGS * v1d - (y6 - y10) / RGS - ids(2, y7 - y6, v1 - y6, y8 - y10, v1 - y7, y9 - y5))
out[7] = CGD * dy7 - (CGD * v1d - (y7 - y5) / RGD + ids(2, y7 - y6, v1 - y6, y8 - y10, v1 - y7, y9 - y5))
out[8] = CBS * dy8 - (-(y8 - VBB) / RBS + ibs(y8 - y10))
out[9] = CBD * dy9 - (-(y9 - VBB) / RBD + ibd(y9 - y5))
# Algebraic equation: g(y) = 0
out[10] = -(y10 - y6) / RGS - ibs(y8 - y10) - (y10 - y12) / RGD - ibd(y14 - y10)
out[11] = CGS * dy11 - (CGS * v2d - y11 / RGS - ids(2, y12 - y11, v2 - y11, y13, v2 - y12, y14 - y10))
out[12] = CGD * dy12 - (CGD * v2d - (y12 - y10) / RGD + ids(2, y12 - y11, v2 - y11, y13, v2 - y12, y14 - y10))
out[13] = CBS * dy13 - (-(y13 - VBB) / RBS + ibs(y13))
out[14] = CBD * dy14 - (-(y14 - VBB) / RBD + ibd(y14 - y10))
return nothing
end
# Create DAE problem with automatic initialization
# Let IDA determine consistent initial derivatives automatically
du0_dae = zeros(14)
daeprob = DAEProblem(nand_dae!, du0_dae, y0, tspan)
# Generate reference solutions
ref_sol = solve(mmprob, Rodas5P(), abstol=1e-12, reltol=1e-12, tstops=0.0:5.0:80.0)
dae_ref_sol = solve(daeprob, DASKR.daskr(), abstol=1e-10, reltol=1e-10)
probs = [mmprob, daeprob]

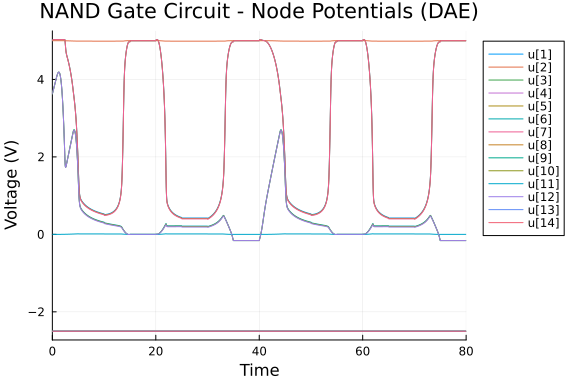

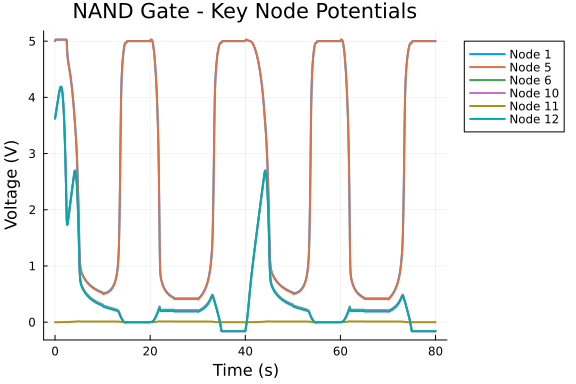

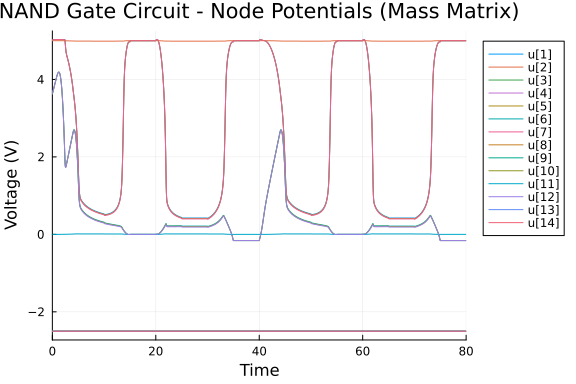

refs = [ref_sol, dae_ref_sol]2-element Vector{SciMLBase.AbstractODESolution{Float64, 2, Vector{Vector{Fl
