Wheelset DAE Work-Precision Diagrams

This is a benchmark of the Wheelset problem, an index-2 DAE of dimension 17 from the IVP Test Set (Simeon, Führer, Rentrop 1995).

The wheelset models a railway wheel pair on a track, exhibiting the hunting motion — a lateral oscillation that is a well-known phenomenon in railway vehicle dynamics. The system involves friction, contact mechanics, stiffness, and nonlinear constraints that make analytical elimination of constraints impractical.

Variables (17 state variables):

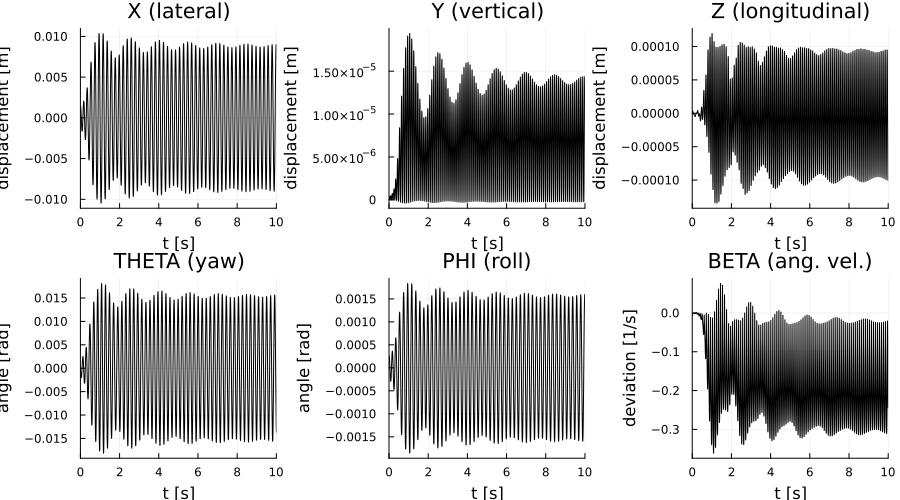

• 5 positions: x (lateral), y (vertical), z (longitudinal), θ (yaw), φ (roll)
• 5 velocities: ẋ, ẏ, ż, θ̇, φ̇
• 1 angular velocity deviation: β̇

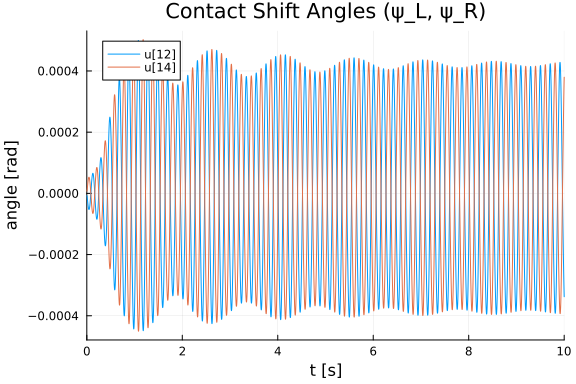

• 4 contact coordinates: ψL, ξL (left), ψR, ξR (right)

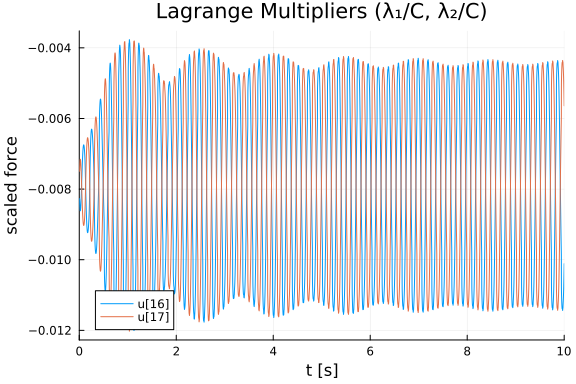

• 2 Lagrange multipliers: λ₁, λ₂ (scaled by C = 10⁴)

We benchmark three formulations of this problem:

1. DAE Residual Form:F(du, u, t) = 0, solved with IDA (Sundials).
2. Mass-Matrix ODE Form:M·du/dt = f(u, t), solved with Rosenbrock-W and BDF methods. The mass matrix is position-dependent (through φ) and frozen at t = 0.
3. ModelingToolkit Structural Simplified: The residual function is wrapped via @register_array_symbolic and converted to an ODESystem. MTK algebraically eliminates the mass-matrix coefficients so the solver sees an explicit ODE + algebraic constraints.

The mass matrix depends on the roll angle φ through cos(φ) and sin(φ) in the Euler equations. Since φ remains small throughout the integration (≈ 10⁻³ rad), freezing the mass matrix at t = 0 introduces negligible error.

Reference: Simeon, B., Führer, C., Rentrop, P.: Differential-algebraic equations in vehicle system dynamics. Surv. Math. Ind., 1:1–37 (1991).

using OrdinaryDiffEq, DiffEqDevTools, Sundials, ODEInterfaceDiffEq,
      Plots, DASSL, DASKR, ModelingToolkit
using ModelingToolkit: t_nounits as t, D_nounits as D
using LinearAlgebra

Physical Parameters

const MR    = 16.08       # mass of wheelset [kg]
const GG    = 9.81        # gravitational acceleration [m/s²]
const V0    = 30.0        # nominal velocity [m/s]
const RN0   = 0.1         # nominal rolling radius [m]
const LI1   = 0.0605      # lateral moment of inertia [kg·m²]
const LI2   = 0.366       # vertical moment of inertia [kg·m²]
const MA    = 0.0          # mass of wagon body [kg]
const HA    = 0.2          # height of wagon body [m]
const MU    = 0.12         # friction coefficient
const XL    = 0.19         # width of wheelset / 2 [m]
const CX    = 6400.0       # lateral spring constant [N/m]
const CZ    = 6400.0       # longitudinal spring constant [N/m]
const FA0   = 0.0          # propulsion force [N]
const LA0   = 0.0          # propulsion moment [kg·m²]
const ALPHA0 = 0.0         # track geometry parameter [rad]
const S0    = 0.0          # track curvature parameter
const OMEGA0 = V0 / RN0   # nominal angular velocity [1/s]

# Wheel profile constants
const DELTA0 = 0.0262      # cone angle / 2 [rad]
const AR     = 0.1506      # gauge / 2 [m]
const TAN_D0 = tan(DELTA0)
const SIN_D0 = sin(DELTA0)
const COS_D0 = cos(DELTA0)

# Rail profile constants
const RS     = 0.06        # rail radius [m]
const SIR    = SIN_D0 * RS

# Creep force constants
const E_CRP  = 1.3537956    # parameter for contact ellipse
const G_CRP  = 0.7115218    # parameter for contact ellipse
const SIGMA  = 0.28         # Poisson-like parameter
const GM     = 7.92e10      # glide module [N/m²]
const C11    = 4.72772197   # Kalker coefficient
const C22    = 4.27526987   # Kalker coefficient
const C23    = 1.97203505   # Kalker coefficient

# Scaling factor for Lagrange multipliers
const C_SCALE = 1.0e4

const TOL_CONTACT = 1.0e-8  # tolerance for contact determinant

1.0e-8

Profile Functions

The wheel profile is a cone and the rail profile is a circle.

function wheelp(x)
    xabs = abs(x)
    rx   = RN0 + TAN_D0 * (AR - xabs)
    drx  = sign(x) * (-TAN_D0)
    d2rx = 0.0
    d3rx = 0.0
    return rx, drx, d2rx, d3rx
end

function railp(xg)
    xabs = abs(xg)
    arg = RS^2 - (xabs - AR - SIR)^2
    arg = max(arg, zero(arg))   # Prevent negative sqrt during solver probing
    tt = sqrt(arg)
    tt = max(tt, eps(typeof(tt)))  # Prevent division by zero
    sx = tt - RN0 - COS_D0 * RS
    dsx = sign(xg) * (-(xabs - AR - SIR)) / tt
    d2sx = -RS^2 / tt^3
    d3sx = 3 * RS^2 / tt^4 * dsx
    return sx, dsx, d2sx, d3sx
end

railp (generic function with 1 method)

Constraint Jacobian

\[G_p\]

maps velocity to constraint velocity. Used in both the index-2 constraint and the normal force computation.

function constm(xr, rx, dgx, sit, cot, sip, cop, sips, cops)
    q1 = dgx
    q2 = -one(dgx)
    q3 = zero(dgx)
    q4 = dgx * (rx * (-cot * sips - cops * sip * sit) - cop * sit * xr)
    q5 = -(cops * rx * sip) - cop * xr + dgx * (cop * cops * cot * rx - cot * sip * xr)
    return (q1, q2, q3, q4, q5)
end

constm (generic function with 1 method)

Creep Forces

The creep forces model the wheel-rail contact friction using Kalker's theory.

function creep_forces(y, fnl, fnr, rxl, rxr, drxl, drxr, d2rxl, d2rxr,
                      dgxl, dgxr, d2gxl, d2gxr, deltal, deltar)
    xx    = y[1]; yy    = y[2]; zz    = y[3]
    sip   = sin(y[5]); cop   = cos(y[5])
    xxp   = y[6]; yyp   = y[7]; zzp   = y[8]
    tetap = y[9]; phip  = y[10]; betap = y[11]
    sisl  = sin(y[12]); cosl  = cos(y[12]); xrl = y[13]
    sisr  = sin(y[14]); cosr  = cos(y[14]); xrr = y[15]
    sia   = sin(ALPHA0); coa   = cos(ALPHA0)
    sidl  = sin(deltal); codl  = cos(deltal)
    sidr  = sin(deltar); codr  = cos(deltar)
    sitl  = sin(y[4] / codl); cotl  = cos(y[4] / codl)
    sitr  = sin(y[4] / codr); cotr  = cos(y[4] / codr)

    # Contact ellipses — left
    rr    = rxl * sqrt(1.0 + drxl^2)
    rhog  = -d2gxl / (1.0 + dgxl^2)^1.5
    rhor  =  d2rxl / (1.0 + drxl^2)^1.5
    aa    = 0.5 / rr
    bb    = 0.5 * (rhog + rhor)
    wabs  = abs(fnl) * 3.0
    cl_   = ((wabs * (1.0 - SIGMA) * E_CRP) /
            (2.0 * π * (aa + bb) * GM * sqrt(G_CRP)))^(1.0 / 3.0)

    # Contact ellipses — right
    rr    = rxr * sqrt(1.0 + drxr^2)
    rhog  = -d2gxr / (1.0 + dgxr^2)^1.5
    rhor  =  d2rxr / (1.0 + drxr^2)^1.5
    aa    = 0.5 / rr
    bb    = 0.5 * (rhog + rhor)
    wabs  = abs(fnr) * 3.0
    cr_   = ((wabs * (1.0 - SIGMA) * E_CRP) /
            (2.0 * π * (aa + bb) * GM * sqrt(G_CRP)))^(1.0 / 3.0)

    # Creepage left contact point — relative velocity
    wvk1 = -(OMEGA0 + betap) * rxl * (sitl * cosl + cotl * sip * sisl) +
            V0 * S0 * coa * (rxl * (sitl * sip * cosl + cotl * sisl) +
                             xrl * sitl * cop - zz) +
            xxp - tetap * (rxl * (sitl * sip * cosl + cotl * sisl) +
                           xrl * sitl * cop) -
            phip * cotl * (xrl * sip - rxl * cop * cosl)
    wvk2 = (OMEGA0 + betap) * rxl * cop * sisl +
            V0 * S0 * sia * (zz - xrl * sitl * cop -
                             rxl * (sitl * sip * cosl + cotl * sisl)) +
            yyp + phip * (xrl * cop + rxl * sip * cosl)
    wvk3 = -(OMEGA0 + betap) * rxl * (cotl * cosl - sitl * sip * sisl) + V0 + zzp +
            V0 * S0 * (xx * coa - yy * sia +
                       coa * (rxl * (cotl * sip * cosl - sitl * sisl) + xrl * cotl * cop) +
                       sia * (rxl * cop * cosl - xrl * sip)) -
            tetap * (xrl * cotl * cop + rxl * (cotl * sip * cosl - sitl * sisl)) +
            phip * sitl * (xrl * sip - rxl * cop * cosl)

    # Rolling velocity left
    wvk4 = wvk1 - 2.0 * xxp + 2.0 * V0 * S0 * zz * coa
    wvk5 = wvk2 - 2.0 * yyp - 2.0 * V0 * S0 * zz * sia
    wvk6 = wvk3 - 2.0 * zzp - 2.0 * V0 * S0 * (xx * coa - yy * sia) - 2.0 * V0
    wvr  = 0.5 * sqrt(wvk4^2 + wvk5^2 + wvk6^2)

    # Creepage left
    wnux  = (sitl * wvk1 + cotl * wvk3) / wvr
    wnuy  = (cotl * codl * wvk1 + sidl * wvk2 - sitl * codl * wvk3) / wvr
    wphis = (-sidl * (OMEGA0 + betap - V0 * S0 * sia) +
              codl * (tetap - V0 * S0 * coa)) / wvr

    # Creep forces left
    wt_l = MU * fnl
    tx = -wt_l * tanh(GM * cl_^2 * C11 * wnux / wt_l)
    ty = -wt_l * tanh(GM * cl_^2 * C22 * wnuy / wt_l + GM * cl_^3 * C23 * wphis / wt_l)
    sqt = sqrt(tx^2 + ty^2)
    if sqt^2 > wt_l^2
        tx = tx * abs(wt_l) / sqt
        ty = ty * abs(wt_l) / sqt
    end
    tl1 = sitl * tx + cotl * codl * ty
    tl2 = sidl * ty
    tl3 = cotl * tx - sitl * codl * ty

    # Creepage right contact point — relative velocity
    wvk1 = -(OMEGA0 + betap) * rxr * (sitr * cosr + cotr * sip * sisr) +
            V0 * S0 * coa * (rxr * (sitr * sip * cosr + cotr * sisr) +
                             xrr * sitr * cop - zz) +
            xxp - tetap * (rxr * (sitr * sip * cosr + cotr * sisr) +
                           xrr * sitr * cop) -
            phip * cotr * (xrr * sip - rxr * cop * cosr)
    wvk2 = (OMEGA0 + betap) * rxr * cop * sisr +
            V0 * S0 * sia * (zz - xrr * sitr * cop -
                             rxr * (sitr * sip * cosr + cotr * sisr)) +
            yyp + phip * (xrr * cop + rxr * sip * cosr)
    wvk3 = -(OMEGA0 + betap) * rxr * (cotr * cosr - sitr * sip * sisr) + V0 + zzp +
            V0 * S0 * (xx * coa - yy * sia +
                       coa * (rxr * (cotr * sip * cosr - sitr * sisr) + xrr * cotr * cop) +
                       sia * (rxr * cop * cosr - xrr * sip)) -
            tetap * (xrr * cotr * cop + rxr * (cotr * sip * cosr - sitr * sisr)) +
            phip * sitr * (xrr * sip - rxr * cop * cosr)

    # Rolling velocity right
    wvk4 = wvk1 - 2.0 * xxp + 2.0 * V0 * S0 * zz * coa
    wvk5 = wvk2 - 2.0 * yyp - 2.0 * V0 * S0 * zz * sia
    wvk6 = wvk3 - 2.0 * zzp - 2.0 * V0 * S0 * (xx * coa - yy * sia) - 2.0 * V0
    wvr  = 0.5 * sqrt(wvk4^2 + wvk5^2 + wvk6^2)

    # Creepage right
    wnux  = (sitr * wvk1 + cotr * wvk3) / wvr
    wnuy  = (cotr * codr * wvk1 - sidr * wvk2 - sitr * codr * wvk3) / wvr
    wphis = (sidr * (OMEGA0 + betap - V0 * S0 * sia) +
             codr * (tetap - V0 * S0 * coa)) / wvr

    # Creep forces right
    wt_r = MU * fnr
    tx = -wt_r * tanh(GM * cr_^2 * C11 * wnux / wt_r)
    ty = -wt_r * tanh(GM * cr_^2 * C22 * wnuy / wt_r + GM * cr_^3 * C23 * wphis / wt_r)
    sqt = sqrt(tx^2 + ty^2)
    if sqt^2 > wt_r^2
        tx = tx * abs(wt_r) / sqt
        ty = ty * abs(wt_r) / sqt
    end
    tr1 = sitr * tx + cotr * codr * ty
    tr2 = -sidr * ty
    tr3 = cotr * tx - sitr * codr * ty

    return (tl1, tl2, tl3), (tr1, tr2, tr3)
end

creep_forces (generic function with 1 method)

Initial Conditions

The consistent initial values from the IVP Test Set (revised by de Swart, 1997).

# Variable ordering:
# [1:5]   = p = (x, y, z, θ, φ)           — positions
# [6:10]  = v = (ẋ, ẏ, ż, θ̇, φ̇)          — velocities
# [11]    = β̇                              — angular velocity deviation
# [12:13] = (ψ_L, ξ_L)                     — left contact coordinates
# [14:15] = (ψ_R, ξ_R)                     — right contact coordinates
# [16:17] = (λ₁, λ₂) / C                   — scaled Lagrange multipliers

u0 = zeros(17)
u0[1]  =  0.14941e-2        # x
u0[2]  =  0.40089e-6        # y
u0[3]  =  0.11241e-5        # z
u0[4]  = -0.28573e-3        # θ
u0[5]  =  0.26459e-3        # φ
# u0[6:10] = 0               # velocities
# u0[11] = 0                  # β̇
u0[12] = -7.4122380357667139e-6   # ψ_L
u0[13] = -0.1521364296121248      # ξ_L
u0[14] =  7.5634406395172940e-6   # ψ_R
u0[15] =  0.1490635714733819      # ξ_R
u0[16] = -0.83593e-2              # λ₁/C
u0[17] = -0.74144e-2              # λ₂/C

# Consistent initial derivatives (IVP Test Set reference values)
du0_ref = zeros(17)
# du0_ref[1:5] = 0              # dp/dt = v = 0
du0_ref[6]  = -1.975258894011285      # ẍ
du0_ref[7]  = -1.0898297102811276e-3  # ÿ
du0_ref[8]  =  7.8855083626142589e-2  # z̈
du0_ref[9]  = -5.533362821731549      # θ̈
du0_ref[10] = -0.3487021489546511     # φ̈
du0_ref[11] = -2.132968724380927      # β̈
# du0_ref[12:17] = 0             # algebraic variables

tspan = (0.0, 10.0)

(0.0, 10.0)

Core Residual Computation

This is a faithful port of the Fortran RESWHS subroutine. It computes the residual δ = F(dy, y, t) for all 17 equations.

function wheelset_residual!(delta, dy, y)
    # Unpack state — use the internal ordering of reswhs (after swap)
    xx    = y[1]; yy    = y[2]; zz    = y[3]
    teta  = y[4]; phi   = y[5]
    xxp   = y[6]; yyp   = y[7]; zzp   = y[8]
    tetap = y[9]; phip  = y[10]; betap = y[11]
    # Lagrange multipliers: y[16]=λ₁/C pairs with RIGHT constraint,
    # y[17]=λ₂/C pairs with LEFT constraint (matching Fortran RESWHS convention)
    e1    = y[17] * C_SCALE
    e2    = y[16] * C_SCALE
    # Contact coordinates
    psil  = y[12]; xrl   = y[13]
    psir  = y[14]; xrr   = y[15]

    # Accelerations from dy
    xxpp   = dy[6]; yypp   = dy[7]; zzpp   = dy[8]
    tetapp = dy[9]; phipp  = dy[10]; betapp = dy[11]

    # Track parameters (straight track)
    s_trk = S0; alpha_trk = ALPHA0

    # Trigonometric quantities
    sit  = sin(teta); cot_ = cos(teta)
    sip  = sin(phi);  cop  = cos(phi)
    sia  = sin(alpha_trk); coa = cos(alpha_trk)
    sisl = sin(psil); cosl = cos(psil)
    sisr = sin(psir); cosr = cos(psir)

    # Evaluate wheel profile — left
    rxl, drxl, d2rxl, d3rxl = wheelp(xrl)
    xgl = xx + xrl * cot_ * cop + rxl * (cot_ * sip * cosl - sit * sisl)
    # Evaluate rail profile — left
    gxl, dgxl, d2gxl, d3gxl = railp(xgl)
    # Evaluate wheel profile — right
    rxr, drxr, d2rxr, d3rxr = wheelp(xrr)
    xgr = xx + xrr * cot_ * cop + rxr * (cot_ * sip * cosr - sit * sisr)
    # Evaluate rail profile — right
    gxr, dgxr, d2gxr, d3gxr = railp(xgr)

    # Constraint Jacobian
    ql = constm(xrl, rxl, dgxl, sit, cot_, sip, cop, sisl, cosl)
    qr = constm(xrr, rxr, dgxr, sit, cot_, sip, cop, sisr, cosr)

    # Contact angles (single-argument atan matching Fortran ATAN(W1/W2))
    w1 = (drxl * cop - sip * cosl) * cot_ + sisl * sit
    w2 = -drxl * sip - cosl * cop
    deltal = atan(w1 / w2)
    w1 = (drxr * cop - sip * cosr) * cot_ + sisr * sit
    w2 =  drxr * sip + cosr * cop
    deltar = atan(w1 / w2)
    sidl = sin(deltal); codl = cos(deltal)
    sidr = sin(deltar); codr = cos(deltar)

    # Normal forces N(p,q,λ)
    deter = -sidl * codr - sidr * codl
    w1 = ql[1] * e1 + qr[1] * e2
    w2 = ql[2] * e1 + qr[2] * e2
    fnl = ( codr * w1 - sidr * w2) / deter
    fnr = (-codl * w1 - sidl * w2) / deter

    # Build y_internal for creep force computation (uses [12:15] as contact coords)
    y_int = copy(y)
    TL, TR = creep_forces(y_int, fnl, fnr, rxl, rxr, drxl, drxr, d2rxl, d2rxr,
                          dgxl, dgxr, d2gxl, d2gxr, deltal, deltar)

    # Forces of chassis
    fq1 = MA * GG * (V0^2 * s_trk / GG - tan(alpha_trk)) / coa
    fq2 = -MA * GG * coa * (V0^2 * s_trk * tan(alpha_trk) / GG + 1.0)
    fq3 = -2.0 * CZ * zz
    lm1 = 0.0
    lm2 = -2.0 * XL^2 * CZ * teta
    lm3 = -HA * fq1

    # ── Residual equations ──

    # Kinematics: dp/dt = v
    delta[1] = xxp  - dy[1]
    delta[2] = yyp  - dy[2]
    delta[3] = zzp  - dy[3]
    delta[4] = tetap - dy[4]
    delta[5] = phip  - dy[5]

    # Newton's law (momentum equations)
    delta[6] = MR * (-xxpp + V0^2 * s_trk * coa * (1.0 + (xx * coa - yy * sia) * s_trk) +
                2.0 * V0 * s_trk * coa * zzp) +
                TL[1] + TR[1] + fq1 - MR * GG * sia +
                ql[1] * e1 + qr[1] * e2 - 2.0 * CX * xx
    delta[7] = MR * (-yypp - V0^2 * s_trk * sia * (1.0 + (xx * coa - yy * sia) * s_trk) -
                2.0 * V0 * s_trk * sia * zzp) +
                TL[2] + TR[2] + fq2 - MR * GG * coa +
                ql[2] * e1 + qr[2] * e2
    delta[8] = MR * (-zzpp - 2.0 * V0 * s_trk * (xxp * coa - yyp * sia) +
                V0^2 * s_trk^2 * zz) +
                TL[3] + TR[3] + FA0 + fq3 +
                ql[3] * e1 + qr[3] * e2

    # Euler's law (spin equations)
    w1 = -(xrl * sit + rxl * sisl * cot_ * cop) * TL[1] - rxl * sisl * sip * TL[2] +
         (-xrl * cot_ + rxl * sisl * sit * cop) * TL[3]
    w2 = -(xrr * sit + rxr * sisr * cot_ * cop) * TR[1] - rxr * sisr * sip * TR[2] +
         (-xrr * cot_ + rxr * sisr * sit * cop) * TR[3]
    delta[9] = -LI2 * (tetapp * cop - tetap * phip * sip +
                V0 * s_trk * (phip * (sia * cot_ * cop + coa * sip) -
                              tetap * sia * sit * sip)) -
                LI1 * (OMEGA0 + betap) * (phip - V0 * s_trk * sit * sia) -
                (LI1 - LI2) * (tetap * sip - V0 * s_trk * (cot_ * cop * sia + sip * coa)) *
                              (phip - V0 * s_trk * sit * sia) +
                w1 + w2 + cop * lm2 - cot_ * sip * lm1 + sit * sip * lm3 +
                ql[4] * e1 + qr[4] * e2

    w1 = -(xrl * cot_ * sip - rxl * cosl * cot_ * cop) * TL[1] +
         (xrl * cop + rxl * cosl * sip) * TL[2] +
         (xrl * sit * sip - rxl * cosl * sit * cop) * TL[3]
    w2 = -(xrr * cot_ * sip - rxr * cosr * cot_ * cop) * TR[1] +
         (xrr * cop + rxr * cosr * sip) * TR[2] +
         (xrr * sit * sip - rxr * cosr * sit * cop) * TR[3]
    delta[10] = -LI2 * (phipp - tetap * V0 * s_trk * sia * cot_) +
                LI1 * (OMEGA0 + betap) * (tetap * cop + V0 * s_trk * (cot_ * sip * sia - cop * coa)) +
                (LI1 - LI2) * (tetap * sip - V0 * s_trk * (cot_ * cop * sia + sip * coa)) *
                              (tetap * cop + V0 * s_trk * (cot_ * sip * sia - cop * coa)) +
                w1 + w2 + lm3 + ql[5] * e1 + qr[5] * e2

    w1 = -rxl * (cosl * sit + sisl * cot_ * sip) * TL[1] + rxl * sisl * cop * TL[2] -
          rxl * (cosl * cot_ - sisl * sit * sip) * TL[3]
    w2 = -rxr * (cosr * sit + sisr * cot_ * sip) * TR[1] + rxr * sisr * cop * TR[2] -
          rxr * (cosr * cot_ - sisr * sit * sip) * TR[3]
    delta[11] = -LI1 * (betapp + tetapp * sip + tetap * phip * cop -
                V0 * s_trk * (phip * (coa * cop - sia * cot_ * sip) -
                              tetap * sia * sit * cop)) +
                w1 + w2 + sip * lm2 + LA0

    # Position constraints g₂ = 0 (tangent-plane conditions)
    # LEFT contact
    delta[12] = dgxl * (drxl * sip + cop * cosl) + drxl * cot_ * cop -
                cot_ * sip * cosl + sit * sisl
    delta[13] = drxl * sit * cop - sit * sip * cosl - cot_ * sisl
    # RIGHT contact
    delta[14] = dgxr * (drxr * sip + cop * cosr) + drxr * cot_ * cop -
                cot_ * sip * cosr + sit * sisr
    delta[15] = drxr * sit * cop - sit * sip * cosr - cot_ * sisr

    # Velocity constraints dg₁/dp · v = 0
    # delta[16] uses qr (RIGHT constraint, determines λ₁ at y[16])
    # delta[17] uses ql (LEFT constraint, determines λ₂ at y[17])
    delta[16] = zero(eltype(delta))
    delta[17] = zero(eltype(delta))
    for i in 1:5
        delta[16] += qr[i] * y[5+i]
        delta[17] += ql[i] * y[5+i]
    end

    return nothing
end

wheelset_residual! (generic function with 1 method)

Form 1: DAE Residual Form

For use with DAE solvers (IDA from Sundials, DASSL, DASKR).

function wheelset_dae!(res, du, u, p, t)
    wheelset_residual!(res, du, u)
    nothing
end

# Differential variables: positions (1:5), velocities (6:10), β̇ (11),
# contact coordinates (12:15) → 15 differential
# Lagrange multipliers (16:17) → 2 algebraic
# But the constraint equations (rows 12-17) are all algebraic
# The mass matrix structure tells us which are differentiated:
# rows 1-5: dp/dt = v → differential
# rows 6-8: MR * dv/dt = ... → differential
# rows 9-10: LI2 * d(tetap,phip)/dt = ... → differential
# row 11: LI1 * d(betap)/dt = ... → differential
# rows 12-17: algebraic constraints → algebraic
differential_vars = [trues(11); falses(6)]

# Compute consistent du0 by evaluating the mass-matrix RHS:
du0 = zeros(17)
du0[1:5] = u0[6:10]  # dp/dt = v
let dy_z = zeros(17), delta_z = zeros(17)
    wheelset_residual!(delta_z, dy_z, u0)
    # M*acc = delta (with dy=0) → acc = M^{-1}*delta
    du0[6] = delta_z[6] / MR
    du0[7] = delta_z[7] / MR
    du0[8] = delta_z[8] / MR
    phi0 = u0[5]; cop0 = cos(phi0); sip0 = sin(phi0)
    du0[10] = delta_z[10] / LI2
    du0[9]  = delta_z[9] / (LI2 * cop0)
    du0[11] = (delta_z[11] - LI1 * sip0 * du0[9]) / LI1
end

prob_dae = DAEProblem(wheelset_dae!, du0, u0, tspan,
                      differential_vars = differential_vars)

DAEProblem with uType Vector{Float64} and tType Float64. In-place: true
timespan: (0.0, 10.0)
u0: 17-element Vector{Float64}:
  0.0014941
  4.0089e-7
  1.1241e-6
 -0.00028573
  0.00026459
  0.0
  0.0
  0.0
  0.0
  0.0
  0.0
 -7.412238035766714e-6
 -0.1521364296121248
  7.563440639517294e-6
  0.1490635714733819
 -0.0083593
 -0.0074144
du0: 17-element Vector{Float64}:
  0.0
  0.0
  0.0
  0.0
  0.0
 -1.975258892721335
 -0.0010898296993099195
  0.07885508390014091
 -5.533362828953616
 -0.3487021430632947
 -2.132968731663389
  0.0
  0.0
  0.0
  0.0
  0.0
  0.0

Verify the DAE residual at the initial conditions:

res0 = zeros(17)
wheelset_residual!(res0, du0, u0)
println("DAE residual norm at IC (computed du0): ", norm(res0))
println("Max absolute residual:                  ", maximum(abs, res0))

# Also verify against IVP Test Set reference du0
res0_ref = zeros(17)
wheelset_residual!(res0_ref, du0_ref, u0)
println("DAE residual norm at IC (IVP ref du0):  ", norm(res0_ref))

DAE residual norm at IC (computed du0): 3.6215177076743956e-15
Max absolute residual:                  3.552713678800501e-15
DAE residual norm at IC (IVP ref du0):  2.1483023182602044e-8

Form 2: Mass-Matrix ODE

The DAE is rewritten as M · du/dt = f(u) where M has the block structure:

M = diag(I₅, MR·I₃, M_euler, 0₆)

The 3×3 Euler mass sub-block depends on φ through cos(φ) and sin(φ). We freeze it at t = 0.

function build_wheelset_mass_matrix(phi0)
    M = zeros(17, 17)
    # Kinematic block: dp/dt = v
    for i in 1:5
        M[i, i] = 1.0
    end
    # Newton's law: MR * dv/dt = ...
    M[6, 6] = MR
    M[7, 7] = MR
    M[8, 8] = MR
    # Euler equations (extracted from the residual coefficients of accelerations)
    cop0 = cos(phi0)
    sip0 = sin(phi0)
    M[9, 9]   = LI2 * cop0     # θ̈ coefficient in delta[9]
    M[10, 10] = LI2            # φ̈ coefficient in delta[10]
    M[11, 9]  = LI1 * sip0     # θ̈ coefficient in delta[11]
    M[11, 11] = LI1            # β̈ coefficient in delta[11]
    # Rows 12-17: algebraic (zero mass)
    return M
end

function wheelset_mm!(du, u, p, t)
    # Compute the residual F(0, u, t) and rearrange:
    # Since F(dy, y, t) = M_terms(dy) + rhs(y,t) = 0
    # We want: du such that M*du = f(u)
    # Compute residual with zero accelerations
    T = eltype(u)
    dy_zero = zeros(T, 17)
    delta = zeros(T, 17)
    wheelset_residual!(delta, dy_zero, u)

    # For rows 1-5:  delta = v - dy → with dy=0, delta = v → du = v
    du[1] = u[6]
    du[2] = u[7]
    du[3] = u[8]
    du[4] = u[9]
    du[5] = u[10]

    # For rows 6-8:  delta = MR*(-acc) + rhs → with acc=0, delta = rhs
    #                Mass-matrix form: M*acc = rhs = delta
    du[6] = delta[6]
    du[7] = delta[7]
    du[8] = delta[8]

    # For rows 9-10: delta = -LI2*(...acc...) + rhs → with acc=0, delta = rhs
    du[9]  = delta[9]
    du[10] = delta[10]

    # For row 11: delta = -LI1*(...acc...) + rhs → with acc=0, delta = rhs
    du[11] = delta[11]

    # For rows 12-17: algebraic → du = delta (constraint violation)
    du[12] = delta[12]
    du[13] = delta[13]
    du[14] = delta[14]
    du[15] = delta[15]
    du[16] = delta[16]
    du[17] = delta[17]

    nothing
end

M_wh = build_wheelset_mass_matrix(u0[5])
mmf_wh = ODEFunction(wheelset_mm!, mass_matrix = M_wh)
prob_mm = ODEProblem(mmf_wh, u0, tspan)

ODEProblem with uType Vector{Float64} and tType Float64. In-place: true
Non-trivial mass matrix: true
timespan: (0.0, 10.0)
u0: 17-element Vector{Float64}:
  0.0014941
  4.0089e-7
  1.1241e-6
 -0.00028573
  0.00026459
  0.0
  0.0
  0.0
  0.0
  0.0
  0.0
 -7.412238035766714e-6
 -0.1521364296121248
  7.563440639517294e-6
  0.1490635714733819
 -0.0083593
 -0.0074144

Form 3: ModelingToolkit Structural Simplified

The creep force model involves ~200 lines of cascading trigonometric and arithmetic operations with conditional saturation (tanh, abs, sign). This expression tree is too large for MTK's symbolic pipeline: pure symbolic equations cause structural_simplify to hang, and @register_symbolic with 17+ scalar arguments triggers a combinatorial explosion in dispatch generation (3^N method combinations).

Instead we wrap the existing wheelset_residual! as a vector-valued registered function via @register_array_symbolic. This keeps the physics opaque to the symbolic engine while letting MTK build its mass-matrix / ODE structure around it.

function wheelset_rhs_vec(state::AbstractVector)
    T = eltype(state)
    dy_zero = zeros(T, 17)
    delta = zeros(T, 17)
    wheelset_residual!(delta, dy_zero, state)
    return delta
end

@register_array_symbolic wheelset_rhs_vec(state::AbstractVector) begin
    size = (17,)
    eltype = Real
end

@variables begin
    x_w(t) = u0[1];  y_w(t) = u0[2];  z_w(t) = u0[3]
    theta_w(t) = u0[4];  phi_w(t) = u0[5]
    xp_w(t) = 0.0;  yp_w(t) = 0.0;  zp_w(t) = 0.0
    tetap_w(t) = 0.0;  phip_w(t) = 0.0;  betap_w(t) = 0.0
    psiL_w(t) = u0[12];  xiL_w(t) = u0[13]
    psiR_w(t) = u0[14];  xiR_w(t) = u0[15]
    lam1_w(t) = u0[16];  lam2_w(t) = u0[17]
end

state_vec = [x_w, y_w, z_w, theta_w, phi_w, xp_w, yp_w, zp_w, tetap_w, phip_w,
             betap_w, psiL_w, xiL_w, psiR_w, xiR_w, lam1_w, lam2_w]
delta_sym = wheelset_rhs_vec(state_vec)
phi0_mtk = u0[5]

eqs_mtk = [
    # Kinematics (identity mass)
    D(x_w) ~ delta_sym[1],
    D(y_w) ~ delta_sym[2],
    D(z_w) ~ delta_sym[3],
    D(theta_w) ~ delta_sym[4],
    D(phi_w) ~ delta_sym[5],
    # Newton (MR mass)
    MR * D(xp_w) ~ delta_sym[6],
    MR * D(yp_w) ~ delta_sym[7],
    MR * D(zp_w) ~ delta_sym[8],
    # Euler (coupled mass)
    LI2 * cos(phi0_mtk) * D(tetap_w) ~ delta_sym[9],
    LI2 * D(phip_w) ~ delta_sym[10],
    LI1 * sin(phi0_mtk) * D(tetap_w) + LI1 * D(betap_w) ~ delta_sym[11],
    # Algebraic constraints
    0 ~ delta_sym[12],  0 ~ delta_sym[13],
    0 ~ delta_sym[14],  0 ~ delta_sym[15],
    0 ~ delta_sym[16],  0 ~ delta_sym[17],
]

@mtkbuild sys_wh = ODESystem(eqs_mtk, t)
prob_mtk = ODEProblem(sys_wh, [], tspan; warn_initialize_determined = false)

ODEProblem with uType Vector{Float64} and tType Float64. In-place: true
Initialization status: OVERDETERMINED
Non-trivial mass matrix: true
timespan: (0.0, 10.0)
u0: 17-element Vector{Float64}:
  0.0
  0.0
  0.0
  0.0
  0.0
  0.0
  0.00026459
 -0.00028573
  0.0014941
  4.0089e-7
  1.1241e-6
 -7.412238035766714e-6
 -0.1521364296121248
  7.563440639517294e-6
  0.1490635714733819
 -0.0083593
 -0.0074144

Reference Solution

We compute a high-accuracy reference solution using Rodas5P on the mass-matrix ODE form.

ref_sol = solve(prob_mm, Rodas5P(), reltol = 1e-10, abstol = 1e-10,
                maxiters = 10_000_000);
println("Reference (MM): retcode = $(ref_sol.retcode), npoints = $(length(ref_sol.t))")

Reference (MM): retcode = Success, npoints = 87365

ref_sol_mtk = solve(prob_mtk, Rodas5P(), reltol = 1e-10, abstol = 1e-10,
                    maxiters = 10_000_000);
println("Reference (MTK): retcode = $(ref_sol_mtk.retcode), npoints = $(length(ref_sol_mtk.t))")

Reference (MTK): retcode = Success, npoints = 87387

Verification against IVP Test Set Reference

The IVP Test Set provides reference values at t = 10, computed by DASSL with rtol = atol = 1e-9 for (p, v, q) and 1e-10 for λ.

u_ref = zeros(17)
u_ref[1]  =  0.86355386965811e-2
u_ref[2]  =  0.13038281022727e-4
u_ref[3]  = -0.93635784016818e-4
u_ref[4]  = -0.13642299804033e-1
u_ref[5]  =  0.15292895005422e-2
u_ref[6]  = -0.76985374142666e-1
u_ref[7]  = -0.25151106429207e-3
u_ref[8]  =  0.20541188079539e-2
u_ref[9]  = -0.23904837703692
u_ref[10] = -0.13633468454173e-1
u_ref[11] = -0.24421377661131
u_ref[12] = -0.33666751972196e-3
u_ref[13] = -0.15949425684022
u_ref[14] =  0.37839614386969e-3
u_ref[15] =  0.14173214964613
u_ref[16] = -0.10124044903201e-1
u_ref[17] = -0.56285630573753e-2

if ref_sol.retcode == ReturnCode.Success
    sol_final = ref_sol.u[end]
    println("\n=== Verification at t = $(tspan[2]) ===")
    println("Variable  | IVP Test Set Ref       | Our Solution          | Rel Error")
    println("-"^78)
    names_wh = ["x", "y", "z", "θ", "φ", "ẋ", "ẏ", "ż", "θ̇", "φ̇", "β̇",
                "ψ_L", "ξ_L", "ψ_R", "ξ_R", "λ₁/C", "λ₂/C"]
    for i in 1:17
        rv = u_ref[i]
        ov = sol_final[i]
        re = abs(rv) > 1e-15 ? abs((ov - rv) / rv) : abs(ov)
        flag = re < 1e-3 ? "✓" : (re < 1e-1 ? "~" : "✗")
        println("$(rpad(names_wh[i], 10))| $(lpad(string(rv), 23)) | $(lpad(string(round(ov, sigdigits=10)), 22)) | $(round(re, sigdigits=3)) $flag")
    end
end

=== Verification at t = 10.0 ===
Variable  | IVP Test Set Ref       | Our Solution          | Rel Error
---------------------------------------------------------------------------
---
x         |      0.0086355386965811 |         0.008625913329 | 0.00111 ~
y         |      1.3038281022727e-5 |         1.300604717e-5 | 0.00247 ~
z         |     -9.3635784016818e-5 |        -9.286563574e-5 | 0.00822 ~
θ         |      -0.013642299804033 |         -0.01368852992 | 0.00339 ~
φ         |      0.0015292895005422 |         0.001527584938 | 0.00111 ~
ẋ         |      -0.076985374142666 |         -0.07828871857 | 0.0169 ~
ẏ         |    -0.00025151106429207 |       -0.0002552330083 | 0.0148 ~
ż         |      0.0020541188079539 |         0.002114371962 | 0.0293 ~
θ̇         |       -0.23904837703692 |          -0.2372545428 | 0.0075 ~
φ̇         |      -0.013633468454173 |         -0.01386428313 | 0.0169 ~
β̇         |       -0.24421377661131 |           -0.244689276 | 0.00195 ~
ψ_L       |    -0.00033666751972196 |       -0.0003378318737 | 0.00346 ~
ξ_L       |       -0.15949425684022 |          -0.1594844548 | 6.15e-5 ✓
ψ_R       |     0.00037839614386969 |        0.0003796552539 | 0.00333 ~
ξ_R       |        0.14173214964613 |           0.1417421342 | 7.04e-5 ✓
λ₁/C      |      -0.010124044903201 |          -0.0101125458 | 0.00114 ~
λ₂/C      |     -0.0056285630573753 |        -0.005640206327 | 0.00207 ~

Solution Plots

The hunting motion — lateral oscillation of the wheelset on the track.

if ref_sol.retcode == ReturnCode.Success
    l = @layout [a b c; d e f]
    p1 = plot(ref_sol, idxs = [1], title = "X (lateral)", xlabel = "t [s]",
         ylabel = "displacement [m]", lw = 1, legend = false, color = :black)
    p2 = plot(ref_sol, idxs = [2], title = "Y (vertical)", xlabel = "t [s]",
         ylabel = "displacement [m]", lw = 1, legend = false, color = :black)
    p3 = plot(ref_sol, idxs = [3], title = "Z (longitudinal)", xlabel = "t [s]",
         ylabel = "displacement [m]", lw = 1, legend = false, color = :black)
    p4 = plot(ref_sol, idxs = [4], title = "THETA (yaw)", xlabel = "t [s]",
         ylabel = "angle [rad]", lw = 1, legend = false, color = :black)
    p5 = plot(ref_sol, idxs = [5], title = "PHI (roll)", xlabel = "t [s]",
         ylabel = "angle [rad]", lw = 1, legend = false, color = :black)
    p6 = plot(ref_sol, idxs = [11], title = "BETA (ang. vel.)", xlabel = "t [s]",
         ylabel = "deviation [1/s]", lw = 1, legend = false, color = :black)
    plot(p1, p2, p3, p4, p5, p6, layout = l, size = (900, 500))
end

if ref_sol.retcode == ReturnCode.Success
    plot(ref_sol, idxs = [16, 17],
         title = "Lagrange Multipliers (λ₁/C, λ₂/C)",
         xlabel = "t [s]", ylabel = "scaled force", lw = 1)
end

if ref_sol.retcode == ReturnCode.Success
    plot(ref_sol, idxs = [12, 14],
         title = "Contact Shift Angles (ψ_L, ψ_R)",
         xlabel = "t [s]", ylabel = "angle [rad]", lw = 1)
end

Problem Collection

probs = [prob_dae, prob_mm, prob_mtk]
refs  = [ref_sol, ref_sol, ref_sol_mtk];

Work-Precision Diagrams

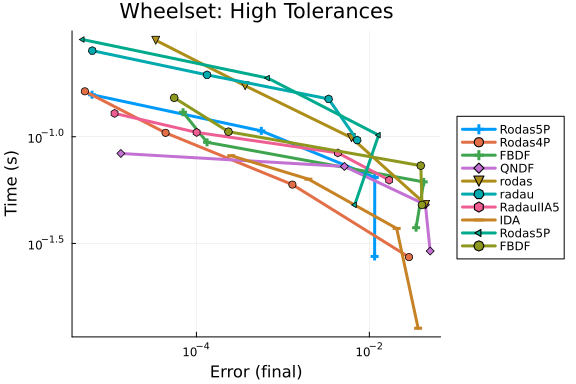

High Tolerances

abstols = 1.0 ./ 10.0 .^ (5:8)
reltols = 1.0 ./ 10.0 .^ (1:4);
setups = [
    Dict(:prob_choice => 2, :alg => Rodas5P()),
    Dict(:prob_choice => 2, :alg => Rodas4P()),
    Dict(:prob_choice => 2, :alg => FBDF()),
    Dict(:prob_choice => 2, :alg => QNDF()),
    Dict(:prob_choice => 2, :alg => rodas()),
    Dict(:prob_choice => 2, :alg => radau()),
    Dict(:prob_choice => 2, :alg => RadauIIA5()),
    Dict(:prob_choice => 1, :alg => IDA()),
    Dict(:prob_choice => 3, :alg => Rodas5P()),
    Dict(:prob_choice => 3, :alg => FBDF()),
]

wp = WorkPrecisionSet(probs, abstols, reltols, setups;
    save_everystep = false, appxsol = refs, maxiters = Int(1e6), numruns = 5)
plot(wp, title = "Wheelset: High Tolerances")

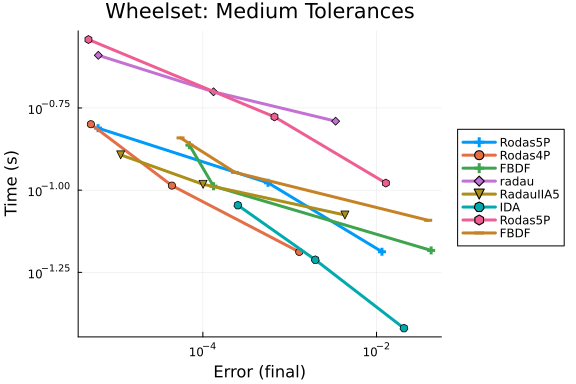

Medium Tolerances

abstols = 1.0 ./ 10.0 .^ (6:8)
reltols = 1.0 ./ 10.0 .^ (2:4);
setups = [
    Dict(:prob_choice => 2, :alg => Rodas5P()),
    Dict(:prob_choice => 2, :alg => Rodas4P()),
    Dict(:prob_choice => 2, :alg => FBDF()),
    Dict(:prob_choice => 2, :alg => radau()),
    Dict(:prob_choice => 2, :alg => RadauIIA5()),
    Dict(:prob_choice => 1, :alg => IDA()),
    Dict(:prob_choice => 3, :alg => Rodas5P()),
    Dict(:prob_choice => 3, :alg => FBDF()),
]

wp = WorkPrecisionSet(probs, abstols, reltols, setups;
    save_everystep = false, appxsol = refs, maxiters = Int(1e6), numruns = 5)
plot(wp, title = "Wheelset: Medium Tolerances")

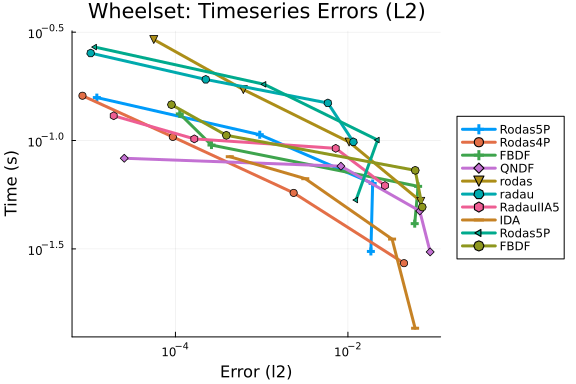

Timeseries Errors

abstols = 1.0 ./ 10.0 .^ (5:8)
reltols = 1.0 ./ 10.0 .^ (1:4);
setups = [
    Dict(:prob_choice => 2, :alg => Rodas5P()),
    Dict(:prob_choice => 2, :alg => Rodas4P()),
    Dict(:prob_choice => 2, :alg => FBDF()),
    Dict(:prob_choice => 2, :alg => QNDF()),
    Dict(:prob_choice => 2, :alg => rodas()),
    Dict(:prob_choice => 2, :alg => radau()),
    Dict(:prob_choice => 2, :alg => RadauIIA5()),
    Dict(:prob_choice => 1, :alg => IDA()),
    Dict(:prob_choice => 3, :alg => Rodas5P()),
    Dict(:prob_choice => 3, :alg => FBDF()),
]

wp = WorkPrecisionSet(probs, abstols, reltols, setups; error_estimate = :l2,
    save_everystep = false, appxsol = refs, maxiters = Int(1e6), numruns = 5)
plot(wp, title = "Wheelset: Timeseries Errors (L2)")

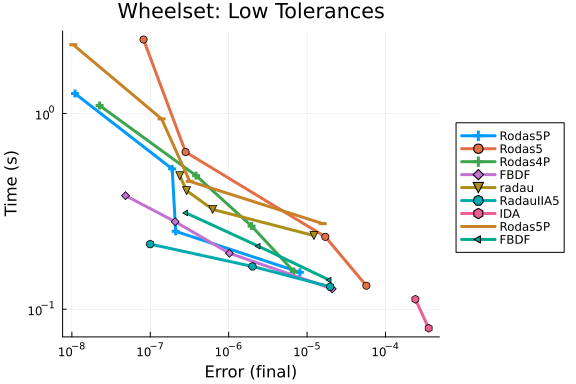

Low Tolerances

abstols = 1.0 ./ 10.0 .^ (7:10)
reltols = 1.0 ./ 10.0 .^ (4:7)

setups = [
    Dict(:prob_choice => 2, :alg => Rodas5P()),
    Dict(:prob_choice => 2, :alg => Rodas5()),
    Dict(:prob_choice => 2, :alg => Rodas4P()),
    Dict(:prob_choice => 2, :alg => FBDF()),
    Dict(:prob_choice => 2, :alg => radau()),
    Dict(:prob_choice => 2, :alg => RadauIIA5()),
    Dict(:prob_choice => 1, :alg => IDA()),
    Dict(:prob_choice => 3, :alg => Rodas5P()),
    Dict(:prob_choice => 3, :alg => FBDF()),
]

wp = WorkPrecisionSet(probs, abstols, reltols, setups;
    save_everystep = false, appxsol = refs, maxiters = Int(1e6), numruns = 5)
plot(wp, title = "Wheelset: Low Tolerances")

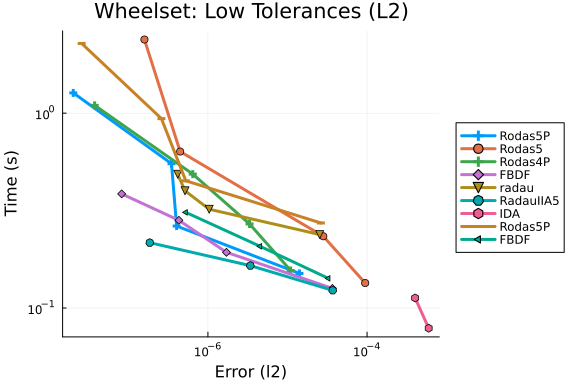

wp = WorkPrecisionSet(probs, abstols, reltols, setups; error_estimate = :l2,
    save_everystep = false, appxsol = refs, maxiters = Int(1e6), numruns = 5)
plot(wp, title = "Wheelset: Low Tolerances (L2)")

Conclusion

Appendix

These benchmarks are a part of the SciMLBenchmarks.jl repository, found at: https://github.com/SciML/SciMLBenchmarks.jl. For more information on high-performance scientific machine learning, check out the SciML Open Source Software Organization https://sciml.ai.

To locally run this benchmark, do the following commands:

using SciMLBenchmarks
SciMLBenchmarks.weave_file("benchmarks/DAE","wheelset.jmd")

Computer Information:

Julia Version 1.10.11
Commit a2b11907d7b (2026-03-09 14:59 UTC)
Build Info:
  Official https://julialang.org/ release
Platform Info:
  OS: Linux (x86_64-linux-gnu)
  CPU: 128 × AMD EPYC 7502 32-Core Processor
  WORD_SIZE: 64
  LIBM: libopenlibm
  LLVM: libLLVM-15.0.7 (ORCJIT, znver2)
Threads: 1 default, 0 interactive, 1 GC (on 128 virtual cores)
Environment:
  JULIA_CPU_THREADS = 128
  JULIA_DEPOT_PATH = /cache/julia-buildkite-plugin/depots/5b300254-1738-4989-ae0a-f4d2d937f953:

Package Information:

Status `/cache/build/exclusive-amdci3-0/julialang/scimlbenchmarks-dot-jl/benchmarks/DAE/Project.toml`
  [165a45c3] DASKR v2.9.1
  [e993076c] DASSL v2.8.0
  [f3b72e0c] DiffEqDevTools v2.49.0
⌅ [961ee093] ModelingToolkit v9.84.0
  [09606e27] ODEInterfaceDiffEq v3.16.0
⌃ [1dea7af3] OrdinaryDiffEq v6.107.0
  [91a5bcdd] Plots v1.41.6
  [31c91b34] SciMLBenchmarks v0.1.3
  [90137ffa] StaticArrays v1.9.18
⌅ [c3572dad] Sundials v4.28.0
  [10745b16] Statistics v1.10.0
Info Packages marked with ⌃ and ⌅ have new versions available. Those with ⌃ may be upgradable, but those with ⌅ are restricted by compatibility constraints from upgrading. To see why use `status --outdated`

And the full manifest:

Status `/cache/build/exclusive-amdci3-0/julialang/scimlbenchmarks-dot-jl/benchmarks/DAE/Manifest.toml`
  [47edcb42] ADTypes v1.21.0
  [1520ce14] AbstractTrees v0.4.5
  [7d9f7c33] Accessors v0.1.43
  [79e6a3ab] Adapt v4.5.0
  [66dad0bd] AliasTables v1.1.3
  [ec485272] ArnoldiMethod v0.4.0
  [4fba245c] ArrayInterface v7.23.0
  [4c555306] ArrayLayouts v1.12.2
  [e2ed5e7c] Bijections v0.2.2
  [d1d4a3ce] BitFlags v0.1.9
  [62783981] BitTwiddlingConvenienceFunctions v0.1.6
  [8e7c35d0] BlockArrays v1.9.3
  [70df07ce] BracketingNonlinearSolve v1.11.0
  [fa961155] CEnum v0.5.0
  [2a0fbf3d] CPUSummary v0.2.7
  [d360d2e6] ChainRulesCore v1.26.0
  [fb6a15b2] CloseOpenIntervals v0.1.13
  [944b1d66] CodecZlib v0.7.8
  [35d6a980] ColorSchemes v3.31.0
  [3da002f7] ColorTypes v0.12.1
  [c3611d14] ColorVectorSpace v0.11.0
  [5ae59095] Colors v0.13.1
⌅ [861a8166] Combinatorics v1.0.2
⌅ [a80b9123] CommonMark v0.10.3
  [38540f10] CommonSolve v0.2.6
  [bbf7d656] CommonSubexpressions v0.3.1
  [f70d9fcc] CommonWorldInvalidations v1.0.0
  [34da2185] Compat v4.18.1
  [b152e2b5] CompositeTypes v0.1.4
  [a33af91c] CompositionsBase v0.1.2
  [2569d6c7] ConcreteStructs v0.2.3
  [f0e56b4a] ConcurrentUtilities v2.5.1
  [8f4d0f93] Conda v1.10.3
  [187b0558] ConstructionBase v1.6.0
  [d38c429a] Contour v0.6.3
  [adafc99b] CpuId v0.3.1
  [165a45c3] DASKR v2.9.1
  [e993076c] DASSL v2.8.0
  [9a962f9c] DataAPI v1.16.0
⌅ [864edb3b] DataStructures v0.18.22
  [e2d170a0] DataValueInterfaces v1.0.0
  [8bb1440f] DelimitedFiles v1.9.1
  [2b5f629d] DiffEqBase v6.210.1
  [459566f4] DiffEqCallbacks v4.12.0
  [f3b72e0c] DiffEqDevTools v2.49.0
  [77a26b50] DiffEqNoiseProcess v5.27.0
  [163ba53b] DiffResults v1.1.0
  [b552c78f] DiffRules v1.15.1
  [a0c0ee7d] DifferentiationInterface v0.7.16
  [8d63f2c5] DispatchDoctor v0.4.28
  [b4f34e82] Distances v0.10.12
  [31c24e10] Distributions v0.25.123
  [ffbed154] DocStringExtensions v0.9.5
  [5b8099bc] DomainSets v0.7.16
⌃ [7c1d4256] DynamicPolynomials v0.6.3
  [06fc5a27] DynamicQuantities v1.12.0
  [4e289a0a] EnumX v1.0.7
  [f151be2c] EnzymeCore v0.8.18
  [460bff9d] ExceptionUnwrapping v0.1.11
  [d4d017d3] ExponentialUtilities v1.30.0
  [e2ba6199] ExprTools v0.1.10
  [55351af7] ExproniconLite v0.10.14
  [c87230d0] FFMPEG v0.4.5
  [7034ab61] FastBroadcast v0.3.5
  [9aa1b823] FastClosures v0.3.2
  [442a2c76] FastGaussQuadrature v1.1.0
  [a4df4552] FastPower v1.3.1
  [1a297f60] FillArrays v1.16.0
  [64ca27bc] FindFirstFunctions v1.8.0
  [6a86dc24] FiniteDiff v2.29.0
  [53c48c17] FixedPointNumbers v0.8.5
  [1fa38f19] Format v1.3.7
  [f6369f11] ForwardDiff v1.3.2
  [069b7b12] FunctionWrappers v1.1.3
  [77dc65aa] FunctionWrappersWrappers v0.1.3
  [46192b85] GPUArraysCore v0.2.0
  [28b8d3ca] GR v0.73.24
  [c145ed77] GenericSchur v0.5.6
  [d7ba0133] Git v1.5.0
  [c27321d9] Glob v1.4.0
⌃ [86223c79] Graphs v1.13.1
  [42e2da0e] Grisu v1.0.2
  [cd3eb016] HTTP v1.11.0
⌅ [eafb193a] Highlights v0.5.3
  [34004b35] HypergeometricFunctions v0.3.28
  [7073ff75] IJulia v1.34.4
  [615f187c] IfElse v0.1.1
  [d25df0c9] Inflate v0.1.5
  [18e54dd8] IntegerMathUtils v0.1.3
  [8197267c] IntervalSets v0.7.13
  [3587e190] InverseFunctions v0.1.17
  [92d709cd] IrrationalConstants v0.2.6
  [82899510] IteratorInterfaceExtensions v1.0.0
  [1019f520] JLFzf v0.1.11
  [692b3bcd] JLLWrappers v1.7.1
⌅ [682c06a0] JSON v0.21.4
  [ae98c720] Jieko v0.2.1
  [98e50ef6] JuliaFormatter v2.3.0
⌅ [70703baa] JuliaSyntax v0.4.10
  [ccbc3e58] JumpProcesses v9.23.1
  [ba0b0d4f] Krylov v0.10.6
  [b964fa9f] LaTeXStrings v1.4.0
  [23fbe1c1] Latexify v0.16.10
  [10f19ff3] LayoutPointers v0.1.17
  [87fe0de2] LineSearch v0.1.6
⌃ [d3d80556] LineSearches v7.5.1
  [7ed4a6bd] LinearSolve v3.65.0
  [2ab3a3ac] LogExpFunctions v0.3.29
  [e6f89c97] LoggingExtras v1.2.0
  [d8e11817] MLStyle v0.4.17
  [1914dd2f] MacroTools v0.5.16
  [d125e4d3] ManualMemory v0.1.8
  [bb5d69b7] MaybeInplace v0.1.4
  [739be429] MbedTLS v1.1.10
  [442fdcdd] Measures v0.3.3
  [e1d29d7a] Missings v1.2.0
⌅ [961ee093] ModelingToolkit v9.84.0
  [2e0e35c7] Moshi v0.3.7
  [46d2c3a1] MuladdMacro v0.2.4
⌃ [102ac46a] MultivariatePolynomials v0.5.9
  [ffc61752] Mustache v1.0.21
  [d8a4904e] MutableArithmetics v1.6.7
⌅ [d41bc354] NLSolversBase v7.10.0
  [2774e3e8] NLsolve v4.5.1
  [77ba4419] NaNMath v1.1.3
  [8913a72c] NonlinearSolve v4.16.0
⌃ [be0214bd] NonlinearSolveBase v2.11.2
  [5959db7a] NonlinearSolveFirstOrder v2.0.0
  [9a2c21bd] NonlinearSolveQuasiNewton v1.12.0
  [26075421] NonlinearSolveSpectralMethods v1.6.0
  [54ca160b] ODEInterface v0.5.0
  [09606e27] ODEInterfaceDiffEq v3.16.0
  [6fe1bfb0] OffsetArrays v1.17.0
  [4d8831e6] OpenSSL v1.6.1
  [bac558e1] OrderedCollections v1.8.1
⌃ [1dea7af3] OrdinaryDiffEq v6.107.0
  [89bda076] OrdinaryDiffEqAdamsBashforthMoulton v1.9.0
⌃ [6ad6398a] OrdinaryDiffEqBDF v1.14.0
⌃ [bbf590c4] OrdinaryDiffEqCore v3.1.0
  [50262376] OrdinaryDiffEqDefault v1.13.0
⌅ [4302a76b] OrdinaryDiffEqDifferentiation v1.22.0
  [9286f039] OrdinaryDiffEqExplicitRK v1.9.0
⌃ [e0540318] OrdinaryDiffEqExponentialRK v1.12.0
⌃ [becaefa8] OrdinaryDiffEqExtrapolation v1.13.0
⌃ [5960d6e9] OrdinaryDiffEqFIRK v1.20.0
  [101fe9f7] OrdinaryDiffEqFeagin v1.8.0
  [d3585ca7] OrdinaryDiffEqFunctionMap v1.9.0
  [d28bc4f8] OrdinaryDiffEqHighOrderRK v1.9.0
⌃ [9f002381] OrdinaryDiffEqIMEXMultistep v1.11.0
  [521117fe] OrdinaryDiffEqLinear v1.10.0
  [1344f307] OrdinaryDiffEqLowOrderRK v1.10.0
⌃ [b0944070] OrdinaryDiffEqLowStorageRK v1.11.0
⌃ [127b3ac7] OrdinaryDiffEqNonlinearSolve v1.19.0
⌃ [c9986a66] OrdinaryDiffEqNordsieck v1.8.0
⌃ [5dd0a6cf] OrdinaryDiffEqPDIRK v1.10.0
  [5b33eab2] OrdinaryDiffEqPRK v1.8.0
  [04162be5] OrdinaryDiffEqQPRK v1.8.0
  [af6ede74] OrdinaryDiffEqRKN v1.10.0
⌃ [43230ef6] OrdinaryDiffEqRosenbrock v1.22.0
⌃ [2d112036] OrdinaryDiffEqSDIRK v1.11.0
  [669c94d9] OrdinaryDiffEqSSPRK v1.11.0
⌃ [e3e12d00] OrdinaryDiffEqStabilizedIRK v1.10.0
  [358294b1] OrdinaryDiffEqStabilizedRK v1.8.0
  [fa646aed] OrdinaryDiffEqSymplecticRK v1.11.0
  [b1df2697] OrdinaryDiffEqTsit5 v1.9.0
  [79d7bb75] OrdinaryDiffEqVerner v1.11.0
  [90014a1f] PDMats v0.11.37
  [69de0a69] Parsers v2.8.3
  [ccf2f8ad] PlotThemes v3.3.0
  [995b91a9] PlotUtils v1.4.4
  [91a5bcdd] Plots v1.41.6
  [e409e4f3] PoissonRandom v0.4.7
  [f517fe37] Polyester v0.7.19
  [1d0040c9] PolyesterWeave v0.2.2
⌃ [d236fae5] PreallocationTools v0.4.34
⌅ [aea7be01] PrecompileTools v1.2.1
  [21216c6a] Preferences v1.5.2
  [27ebfcd6] Primes v0.5.7
  [43287f4e] PtrArrays v1.4.0
  [1fd47b50] QuadGK v2.11.2
  [3cdcf5f2] RecipesBase v1.3.4
  [01d81517] RecipesPipeline v0.6.12
  [731186ca] RecursiveArrayTools v3.48.0
  [189a3867] Reexport v1.2.2
  [05181044] RelocatableFolders v1.0.1
  [ae029012] Requires v1.3.1
  [ae5879a3] ResettableStacks v1.2.0
  [79098fc4] Rmath v0.9.0
  [47965b36] RootedTrees v2.25.0
  [7e49a35a] RuntimeGeneratedFunctions v0.5.17
  [9dfe8606] SCCNonlinearSolve v1.11.0
  [94e857df] SIMDTypes v0.1.0
  [0bca4576] SciMLBase v2.149.0
  [31c91b34] SciMLBenchmarks v0.1.3
  [19f34311] SciMLJacobianOperators v0.1.12
  [a6db7da4] SciMLLogging v1.9.1
  [c0aeaf25] SciMLOperators v1.15.1
  [431bcebd] SciMLPublic v1.0.1
  [53ae85a6] SciMLStructures v1.10.0
  [6c6a2e73] Scratch v1.3.0
  [efcf1570] Setfield v1.1.2
  [992d4aef] Showoff v1.0.3
  [777ac1f9] SimpleBufferStream v1.2.0
  [727e6d20] SimpleNonlinearSolve v2.11.0
  [699a6c99] SimpleTraits v0.9.5
  [a2af1166] SortingAlgorithms v1.2.2
  [0a514795] SparseMatrixColorings v0.4.24
  [276daf66] SpecialFunctions v2.7.1
  [860ef19b] StableRNGs v1.0.4
  [aedffcd0] Static v1.3.1
  [0d7ed370] StaticArrayInterface v1.9.0
  [90137ffa] StaticArrays v1.9.18
  [1e83bf80] StaticArraysCore v1.4.4
  [82ae8749] StatsAPI v1.8.0
  [2913bbd2] StatsBase v0.34.10
  [4c63d2b9] StatsFuns v1.5.2
  [7792a7ef] StrideArraysCore v0.5.8
  [69024149] StringEncodings v0.3.7
  [09ab397b] StructArrays v0.7.2
⌅ [c3572dad] Sundials v4.28.0
  [2efcf032] SymbolicIndexingInterface v0.3.46
⌅ [19f23fe9] SymbolicLimits v0.2.3
⌅ [d1185830] SymbolicUtils v3.32.0
⌅ [0c5d862f] Symbolics v6.58.0
  [3783bdb8] TableTraits v1.0.1
  [bd369af6] Tables v1.12.1
  [ed4db957] TaskLocalValues v0.1.3
  [62fd8b95] TensorCore v0.1.1
  [8ea1fca8] TermInterface v2.0.0
  [1c621080] TestItems v1.0.0
  [8290d209] ThreadingUtilities v0.5.5
  [a759f4b9] TimerOutputs v0.5.29
  [3bb67fe8] TranscodingStreams v0.11.3
  [410a4b4d] Tricks v0.1.13
  [781d530d] TruncatedStacktraces v1.4.0
  [5c2747f8] URIs v1.6.1
  [3a884ed6] UnPack v1.0.2
  [1cfade01] UnicodeFun v0.4.1
  [1986cc42] Unitful v1.28.0
  [a7c27f48] Unityper v0.1.6
  [41fe7b60] Unzip v0.2.0
  [81def892] VersionParsing v1.3.0
  [44d3d7a6] Weave v0.10.12
  [ddb6d928] YAML v0.4.16
  [c2297ded] ZMQ v1.5.1
  [6e34b625] Bzip2_jll v1.0.9+0
  [83423d85] Cairo_jll v1.18.5+1
  [655fdf9c] DASKR_jll v1.0.1+0
  [ee1fde0b] Dbus_jll v1.16.2+0
  [2702e6a9] EpollShim_jll v0.0.20230411+1
  [2e619515] Expat_jll v2.7.3+0
  [b22a6f82] FFMPEG_jll v8.0.1+0
  [a3f928ae] Fontconfig_jll v2.17.1+0
  [d7e528f0] FreeType2_jll v2.13.4+0
  [559328eb] FriBidi_jll v1.0.17+0
  [0656b61e] GLFW_jll v3.4.1+0
  [d2c73de3] GR_jll v0.73.24+0
  [b0724c58] GettextRuntime_jll v0.22.4+0
  [61579ee1] Ghostscript_jll v9.55.1+0
  [020c3dae] Git_LFS_jll v3.7.0+0
  [f8c6e375] Git_jll v2.53.0+0
  [7746bdde] Glib_jll v2.86.3+0
  [3b182d85] Graphite2_jll v1.3.15+0
  [2e76f6c2] HarfBuzz_jll v8.5.1+0
  [1d5cc7b8] IntelOpenMP_jll v2025.2.0+0
  [aacddb02] JpegTurbo_jll v3.1.4+0
  [c1c5ebd0] LAME_jll v3.100.3+0
  [88015f11] LERC_jll v4.0.1+0
  [1d63c593] LLVMOpenMP_jll v18.1.8+0
  [dd4b983a] LZO_jll v2.10.3+0
⌅ [e9f186c6] Libffi_jll v3.4.7+0
  [7e76a0d4] Libglvnd_jll v1.7.1+1
  [94ce4f54] Libiconv_jll v1.18.0+0
  [4b2f31a3] Libmount_jll v2.41.3+0
  [89763e89] Libtiff_jll v4.7.2+0
  [38a345b3] Libuuid_jll v2.41.3+0
  [856f044c] MKL_jll v2025.2.0+0
  [c771fb93] ODEInterface_jll v0.0.2+0
  [e7412a2a] Ogg_jll v1.3.6+0
  [9bd350c2] OpenSSH_jll v10.2.1+0
  [458c3c95] OpenSSL_jll v3.5.5+0
  [efe28fd5] OpenSpecFun_jll v0.5.6+0
  [91d4177d] Opus_jll v1.6.1+0
  [36c8627f] Pango_jll v1.57.0+0
⌅ [30392449] Pixman_jll v0.44.2+0
  [c0090381] Qt6Base_jll v6.10.2+1
  [629bc702] Qt6Declarative_jll v6.10.2+1
  [ce943373] Qt6ShaderTools_jll v6.10.2+1
  [6de9746b] Qt6Svg_jll v6.10.2+0
  [e99dba38] Qt6Wayland_jll v6.10.2+1
  [f50d1b31] Rmath_jll v0.5.1+0
⌅ [fb77eaff] Sundials_jll v5.2.2+0
  [a44049a8] Vulkan_Loader_jll v1.3.243+0
  [a2964d1f] Wayland_jll v1.24.0+0
  [ffd25f8a] XZ_jll v5.8.2+0
  [f67eecfb] Xorg_libICE_jll v1.1.2+0
  [c834827a] Xorg_libSM_jll v1.2.6+0
  [4f6342f7] Xorg_libX11_jll v1.8.13+0
  [0c0b7dd1] Xorg_libXau_jll v1.0.13+0
  [935fb764] Xorg_libXcursor_jll v1.2.4+0
  [a3789734] Xorg_libXdmcp_jll v1.1.6+0
  [1082639a] Xorg_libXext_jll v1.3.8+0
  [d091e8ba] Xorg_libXfixes_jll v6.0.2+0
  [a51aa0fd] Xorg_libXi_jll v1.8.3+0
  [d1454406] Xorg_libXinerama_jll v1.1.7+0
  [ec84b674] Xorg_libXrandr_jll v1.5.6+0
  [ea2f1a96] Xorg_libXrender_jll v0.9.12+0
  [c7cfdc94] Xorg_libxcb_jll v1.17.1+0
  [cc61e674] Xorg_libxkbfile_jll v1.2.0+0
  [e920d4aa] Xorg_xcb_util_cursor_jll v0.1.6+0
  [12413925] Xorg_xcb_util_image_jll v0.4.1+0
  [2def613f] Xorg_xcb_util_jll v0.4.1+0
  [975044d2] Xorg_xcb_util_keysyms_jll v0.4.1+0
  [0d47668e] Xorg_xcb_util_renderutil_jll v0.3.10+0
  [c22f9ab0] Xorg_xcb_util_wm_jll v0.4.2+0
  [35661453] Xorg_xkbcomp_jll v1.4.7+0
  [33bec58e] Xorg_xkeyboard_config_jll v2.44.0+0
  [c5fb5394] Xorg_xtrans_jll v1.6.0+0
  [8f1865be] ZeroMQ_jll v4.3.6+0
  [3161d3a3] Zstd_jll v1.5.7+1
  [35ca27e7] eudev_jll v3.2.14+0
  [214eeab7] fzf_jll v0.61.1+0
  [a4ae2306] libaom_jll v3.13.1+0
  [0ac62f75] libass_jll v0.17.4+0
  [1183f4f0] libdecor_jll v0.2.2+0
  [2db6ffa8] libevdev_jll v1.13.4+0
  [f638f0a6] libfdk_aac_jll v2.0.4+0
  [36db933b] libinput_jll v1.28.1+0
  [b53b4c65] libpng_jll v1.6.55+0
  [a9144af2] libsodium_jll v1.0.21+0
  [f27f6e37] libvorbis_jll v1.3.8+0
  [009596ad] mtdev_jll v1.1.7+0
  [1317d2d5] oneTBB_jll v2022.0.0+1
⌅ [1270edf5] x264_jll v10164.0.1+0
  [dfaa095f] x265_jll v4.1.0+0
  [d8fb68d0] xkbcommon_jll v1.13.0+0
  [0dad84c5] ArgTools v1.1.1
  [56f22d72] Artifacts
  [2a0f44e3] Base64
  [ade2ca70] Dates
  [8ba89e20] Distributed
  [f43a241f] Downloads v1.6.0
  [7b1f6079] FileWatching
  [9fa8497b] Future
  [b77e0a4c] InteractiveUtils
  [4af54fe1] LazyArtifacts
  [b27032c2] LibCURL v0.6.4
  [76f85450] LibGit2
  [8f399da3] Libdl
  [37e2e46d] LinearAlgebra
  [56ddb016] Logging
  [d6f4376e] Markdown
  [a63ad114] Mmap
  [ca575930] NetworkOptions v1.2.0
  [44cfe95a] Pkg v1.10.0
  [de0858da] Printf
  [3fa0cd96] REPL
  [9a3f8284] Random
  [ea8e919c] SHA v0.7.0
  [9e88b42a] Serialization
  [1a1011a3] SharedArrays
  [6462fe0b] Sockets
  [2f01184e] SparseArrays v1.10.0
  [10745b16] Statistics v1.10.0
  [4607b0f0] SuiteSparse
  [fa267f1f] TOML v1.0.3
  [a4e569a6] Tar v1.10.0
  [8dfed614] Test
  [cf7118a7] UUIDs
  [4ec0a83e] Unicode
  [e66e0078] CompilerSupportLibraries_jll v1.1.1+0
  [deac9b47] LibCURL_jll v8.4.0+0
  [e37daf67] LibGit2_jll v1.6.4+0
  [29816b5a] LibSSH2_jll v1.11.0+1
  [c8ffd9c3] MbedTLS_jll v2.28.2+1
  [14a3606d] MozillaCACerts_jll v2023.1.10
  [4536629a] OpenBLAS_jll v0.3.23+4
  [05823500] OpenLibm_jll v0.8.5+0
  [efcefdf7] PCRE2_jll v10.42.0+1
  [bea87d4a] SuiteSparse_jll v7.2.1+1
  [83775a58] Zlib_jll v1.2.13+1
  [8e850b90] libblastrampoline_jll v5.11.0+0
  [8e850ede] nghttp2_jll v1.52.0+1
  [3f19e933] p7zip_jll v17.4.0+2
Info Packages marked with ⌃ and ⌅ have new versions available. Those with ⌃ may be upgradable, but those with ⌅ are restricted by compatibility constraints from upgrading. To see why use `status --outdated -m`
