Multivariate Hawkes Model

using JumpProcesses, Graphs, Statistics, BenchmarkTools, Plots
using OrdinaryDiffEq: Tsit5
fmt = :png
width_px, height_px = default(:size);

Model and example solutions

Let a graph with $V$ nodes, then the multivariate Hawkes process is characterized by $V$ point processes such that the conditional intensity rate of node $i$ connected to a set of nodes $E_i$ in the graph is given by:

\[ \lambda_i^\ast (t) = \lambda + \sum_{j \in E_i} \sum_{t_{n_j} < t} \alpha \exp \left[-\beta (t - t_{n_j}) \right]\]

This process is known as self-exciting, because the occurrence of an event $j$ at $t_{n_j}$ will increase the conditional intensity of all the processes connected to it by $\alpha$. The excited intensity then decreases at a rate proportional to $\beta$.

The conditional intensity of this process has a recursive formulation which can significantly speed the simulation. The recursive formulation for the univariate case is derived in Laub et al. [2]. We derive the compound case here. Let $t_{N_i} = \max \{ t_{n_j} < t \mid j \in E_i \}$ and

\[\begin{split} \phi_i^\ast (t) &= \sum_{j \in E_i} \sum_{t_{n_j} < t} \alpha \exp \left[-\beta (t - t_{N_i} + t_{N_i} - t_{n_j}) \right] \\ &= \exp \left[ -\beta (t - t_{N_i}) \right] \sum_{j \in E_i} \sum_{t_{n_j} \leq t_{N_i}} \alpha \exp \left[-\beta (t_{N_i} - t_{n_j}) \right] \\ &= \exp \left[ -\beta (t - t_{N_i}) \right] \left( \alpha + \phi^\ast (t_{N_i}) \right) \end{split}\]

Then the conditional intensity can be re-written in terms of $\phi_i^\ast (t_{N_i})$

\[ \lambda_i^\ast (t) = \lambda + \phi_i^\ast (t) = \lambda + \exp \left[ -\beta (t - t_{N_i}) \right] \left( \alpha + \phi_i^\ast (t_{N_i}) \right)\]

In Julia, we define a factory for the conditional intensity $\lambda_i$ which returns the brute-force or recursive versions of the intensity given node $i$ and network $g$.

function hawkes_rate(i::Int, g; use_recursion = false)
    @inline @inbounds function rate_recursion(u, p, t)
        λ, α, β, h, urate, ϕ = p
        urate[i] = λ + exp(-β*(t - h[i]))*ϕ[i]
        return urate[i]
    end

    @inline @inbounds function rate_brute(u, p, t)
        λ, α, β, h, urate = p
        x = zero(typeof(t))
        for j in g[i]
            for _t in reverse(h[j])
                ϕij = α * exp(-β * (t - _t))
                if ϕij ≈ 0
                    break
                end
                x += ϕij
            end
        end
        urate[i] = λ + x
        return urate[i]
    end

    if use_recursion
        return rate_recursion
    else
        return rate_brute
    end
end

hawkes_rate (generic function with 1 method)

Given the rate factory, we can create a jump factory which will create all the jumps in our model.

function hawkes_jump(i::Int, g; use_recursion = false)
    rate = hawkes_rate(i, g; use_recursion)
    urate = rate
    @inbounds rateinterval(u, p, t) = p[5][i] == p[1] ? typemax(t) : 2 / p[5][i]
    @inbounds lrate(u, p, t) = p[1]
    @inbounds function affect_recursion!(integrator)
        λ, α, β, h, _, ϕ = integrator.p
        for j in g[i]
            ϕ[j] *= exp(-β*(integrator.t - h[j]))
            ϕ[j] += α
            h[j] = integrator.t
        end
        integrator.u[i] += 1
    end
    @inbounds function affect_brute!(integrator)
        push!(integrator.p[4][i], integrator.t)
        integrator.u[i] += 1
    end
    return VariableRateJump(
        rate,
        use_recursion ? affect_recursion! : affect_brute!;
        lrate,
        urate,
        rateinterval
    )
end

function hawkes_jump(u, g; use_recursion = false)
    return [hawkes_jump(i, g; use_recursion) for i in 1:length(u)]
end

hawkes_jump (generic function with 2 methods)

We can then create a factory for Multivariate Hawkes JumpProblems. We can define two types of JumpProblems depending on the aggregator. The Direct() aggregator expects an ODEProblem since it cannot handle the SSAStepper with VariableRateJumps.

function f!(du, u, p, t)
    du .= 0
    nothing
end

function hawkes_problem(
    p,
    agg;
    vr_agg = VR_FRM(),
    u = [0.0],
    tspan = (0.0, 50.0),
    save_positions = (false, true),
    g = [[1]],
    use_recursion = false,
)
    oprob = ODEProblem(f!, u, tspan, p)
    jumps = hawkes_jump(u, g; use_recursion)
    jprob = JumpProblem(oprob, agg, jumps...; vr_aggregator = vr_agg, save_positions = save_positions)
    return jprob
end

hawkes_problem (generic function with 1 method)

The Coevolve() aggregator knows how to handle the SSAStepper, so it accepts a DiscreteProblem.

function hawkes_problem(
        p,
        agg::Coevolve;
        u = [0.0],
        tspan = (0.0, 50.0),
        save_positions = (false, true),
        g = [[1]],
        use_recursion = false
)
    dprob = DiscreteProblem(u, tspan, p)
    jumps = hawkes_jump(u, g; use_recursion)
    jprob = JumpProblem(
        dprob, agg, jumps...; dep_graph = g, save_positions = save_positions)
    return jprob
end

hawkes_problem (generic function with 2 methods)

Lets solve the problems defined so far. We sample a random graph sampled from the Erdős-Rényi model. This model assumes that the probability of an edge between two nodes is independent of other edges, which we fix at $0.2$. For illustration purposes, we fix $V = 10$.

V = 10
G = erdos_renyi(V, 0.2, seed = 9103)
g = [neighbors(G, i) for i in 1:nv(G)]

10-element Vector{Vector{Int64}}:
 [4, 7]
 [8, 9]
 [4, 5]
 [1, 3]
 [3]
 []
 [1, 8, 9]
 [2, 7]
 [2, 7, 10]
 [9]

We fix the Hawkes parameters at $\lambda = 0.5 , \alpha = 0.1 , \beta = 2.0$ which ensures the process does not explode.

tspan = (0.0, 50.0)
u = [0.0 for i in 1:nv(G)]
p = (0.5, 0.1, 2.0)

(0.5, 0.1, 2.0)

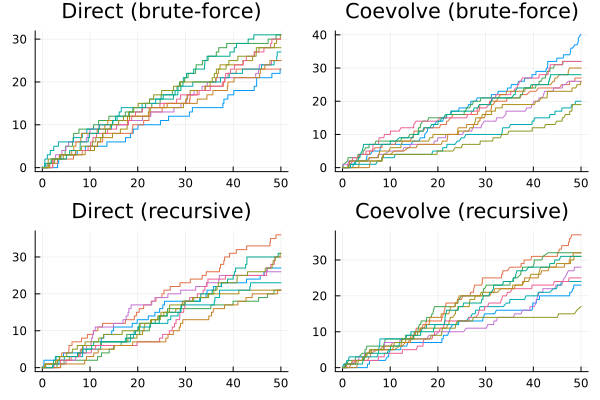

Now, we instantiate the problems, find their solutions and plot the results.

algorithms = Tuple{Any, Any, Bool, String}[
(
    Direct(), Tsit5(), false, "Direct (brute-force)"),
(
    Coevolve(), SSAStepper(), false, "Coevolve (brute-force)"),
(
    Direct(), Tsit5(), true, "Direct (recursive)"),
(
    Coevolve(), SSAStepper(), true, "Coevolve (recursive)")
]

let fig = []
    for (i, (algo, stepper, use_recursion, label)) in enumerate(algorithms)
        @info label
        if use_recursion
            h = zeros(eltype(tspan), nv(G))
            urate = zeros(eltype(tspan), nv(G))
            ϕ = zeros(eltype(tspan), nv(G))
            _p = (p[1], p[2], p[3], h, ϕ, urate)
        else
            h = [eltype(tspan)[] for _ in 1:nv(G)]
            urate = zeros(eltype(tspan), nv(G))
            _p = (p[1], p[2], p[3], h, urate)
        end
        jump_prob = hawkes_problem(_p, algo; u, tspan, g, use_recursion)
        sol = solve(jump_prob, stepper)
        push!(fig, plot(sol.t, sol[1:V, :]', title = label, legend = false, format = fmt))
    end
    fig = plot(fig..., layout = (2, 2), format = fmt, size = (width_px, 2*height_px/2))
end

Alternative libraries

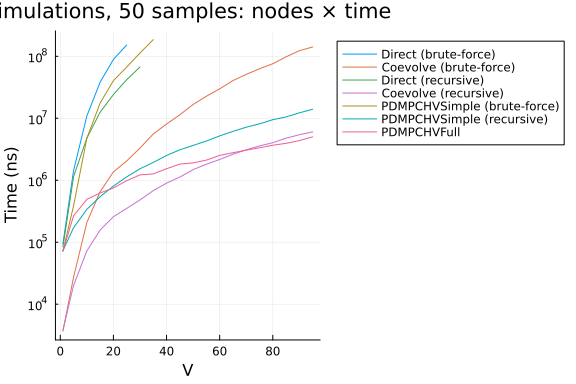

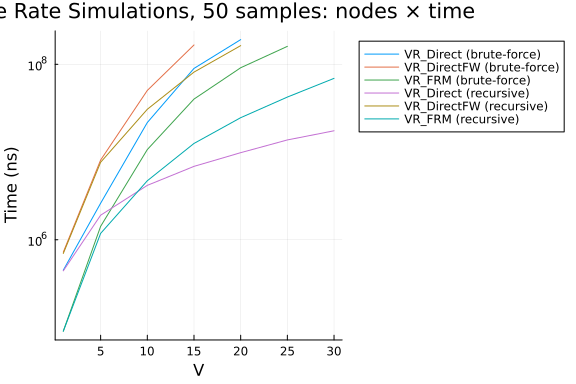

We benchmark JumpProcesses.jl against PiecewiseDeterministicMarkovProcesses.jl and Python Tick library.

In order to compare with the PiecewiseDeterministicMarkovProcesses.jl, we need to reformulate our jump problem as a Piecewise Deterministic Markov Process (PDMP). In this setting, we have two options.

The simple version only requires the conditional intensity. Like above, we define a brute-force and recursive approach. Following the library's specification we define the following functions.

function hawkes_rate_simple_recursion(rate, xc, xd, p, t, issum::Bool)
    λ, _, β, h, ϕ, g = p
    for i in 1:length(g)
        rate[i] = λ + exp(-β * (t - h[i])) * ϕ[i]
    end
    if issum
        return sum(rate)
    end
    return 0.0
end

function hawkes_rate_simple_brute(rate, xc, xd, p, t, issum::Bool)
    λ, α, β, h, g = p
    for i in 1:length(g)
        x = zero(typeof(t))
        for j in g[i]
            for _t in reverse(h[j])
                ϕij = α * exp(-β * (t - _t))
                if ϕij ≈ 0
                    break
                end
                x += ϕij
            end
        end
        rate[i] = λ + x
    end
    if issum
        return sum(rate)
    end
    return 0.0
end

function hawkes_affect_simple_recursion!(xc, xd, p, t, i::Int64)
    _, α, β, h, ϕ, g = p
    for j in g[i]
        ϕ[j] *= exp(-β * (t - h[j]))
        ϕ[j] += α
        h[j] = t
    end
end

function hawkes_affect_simple_brute!(xc, xd, p, t, i::Int64)
    push!(p[4][i], t)
end

hawkes_affect_simple_brute! (generic function with 1 method)

Since this is a library for PDMP, we also need to define the ODE problem. In the simple version, we simply set it to zero.

function hawkes_drate_simple(dxc, xc, xd, p, t)
    dxc .= 0
end

hawkes_drate_simple (generic function with 1 method)

Next, we create a factory for the Multivariate Hawkes PDMPCHVSimple problem.

import LinearAlgebra: I
using PiecewiseDeterministicMarkovProcesses
const PDMP = PiecewiseDeterministicMarkovProcesses

struct PDMPCHVSimple end

function hawkes_problem(p,
        agg::PDMPCHVSimple;
        u = [0.0],
        tspan = (0.0, 50.0),
        save_positions = (false, true),
        g = [[1]],
        use_recursion = true)
    xd0 = Array{Int}(u)
    xc0 = copy(u)
    nu = one(eltype(xd0)) * I(length(xd0))
    if use_recursion
        jprob = PDMPProblem(hawkes_drate_simple, hawkes_rate_simple_recursion,
            hawkes_affect_simple_recursion!, nu, xc0, xd0, p, tspan)
    else
        jprob = PDMPProblem(hawkes_drate_simple, hawkes_rate_simple_brute,
            hawkes_affect_simple_brute!, nu, xc0, xd0, p, tspan)
    end
    return jprob
end

push!(algorithms, (PDMPCHVSimple(), CHV(Tsit5()), false, "PDMPCHVSimple (brute-force)"));
push!(algorithms, (PDMPCHVSimple(), CHV(Tsit5()), true, "PDMPCHVSimple (recursive)"));

The full version requires that we describe how the conditional intensity changes with time which we derive below:

\[\begin{split} \frac{d \lambda_i^\ast (t)}{d t} &= -\beta \sum_{j \in E_i} \sum_{t_{n_j} < t} \alpha \exp \left[-\beta (t - t_{n_j}) \right] \\ &= -\beta \left( \lambda_i^\ast (t) - \lambda \right) \end{split}\]

function hawkes_drate_full(dxc, xc, xd, p, t)
    λ, α, β, _, _, g = p
    for i in 1:length(g)
        dxc[i] = -β * (xc[i] - λ)
    end
end

hawkes_drate_full (generic function with 1 method)

Next, we need to define the intensity rate and the jumps according to library's specification.

function hawkes_rate_full(rate, xc, xd, p, t, issum::Bool)
    λ, α, β, _, _, g = p
    if issum
        return sum(@view(xc[1:length(g)]))
    end
    rate[1:length(g)] .= @view xc[1:length(g)]
    return 0.0
end

function hawkes_affect_full!(xc, xd, p, t, i::Int64)
    λ, α, β, _, _, g = p
    for j in g[i]
        xc[i] += α
    end
end

hawkes_affect_full! (generic function with 1 method)

Finally, we create a factory for the Multivariate Hawkes PDMPCHVFull problem.

struct PDMPCHVFull end

function hawkes_problem(
        p,
        agg::PDMPCHVFull;
        u = [0.0],
        tspan = (0.0, 50.0),
        save_positions = (false, true),
        g = [[1]],
        use_recursion = true
)
    xd0 = Array{Int}(u)
    xc0 = [p[1] for i in 1:length(u)]
    nu = one(eltype(xd0)) * I(length(xd0))
    jprob = PDMPProblem(
        hawkes_drate_full, hawkes_rate_full, hawkes_affect_full!, nu, xc0, xd0, p, tspan)
    return jprob
end

push!(algorithms, (PDMPCHVFull(), CHV(Tsit5()), true, "PDMPCHVFull"));

The Python Tick library can be accessed with the PyCall.jl. We install the required Python dependencies with Conda.jl and define a factory for the Multivariate Hawkes PyTick problem.

const BENCHMARK_PYTHON::Bool = tryparse(Bool, get(ENV, "SCIMLBENCHMARK_PYTHON", "true"))
const REBUILD_PYCALL::Bool = tryparse(Bool, get(ENV, "SCIMLBENCHMARK_REBUILD_PYCALL", "true"))

struct PyTick end

if BENCHMARK_PYTHON
    if REBUILD_PYCALL
        using Pkg, Conda

        # PyCall only works with Conda.ROOTENV
        # tick requires python=3.8
        Conda.add("python=3.8", Conda.ROOTENV)
        Conda.add("numpy", Conda.ROOTENV)
        Conda.pip_interop(true, Conda.ROOTENV)
        Conda.pip("install", "tick", Conda.ROOTENV)

        # rebuild PyCall to ensure it links to the python provided by Conda.jl
        ENV["PYTHON"] = ""
        Pkg.build("PyCall")
    end

    ENV["PYTHON"] = ""
    using PyCall
    @info "PyCall" PyCall.libpython PyCall.pyversion PyCall.conda

    function hawkes_problem(
            p,
            agg::PyTick;
            u = [0.0],
            tspan = (0.0, 50.0),
            save_positions = (false, true),
            g = [[1]],
            use_recursion = true
    )
        λ, α, β = p
        SimuHawkesSumExpKernels = pyimport("tick.hawkes")[:SimuHawkesSumExpKernels]
        jprob = SimuHawkesSumExpKernels(
            baseline = fill(λ, length(u)),
            adjacency = [i in j ? α / β : 0.0 for j in g, i in 1:length(u), u in 1:1],
            decays = [β],
            end_time = tspan[2],
            verbose = false,
            force_simulation = true
        )
        return jprob
    end

    push!(algorithms, (PyTick(), nothing, true, "PyTick"));
end

Error: ArgumentError: Package Conda not found in current path.
- Run `import Pkg; Pkg.add("Conda")` to install the Conda package.

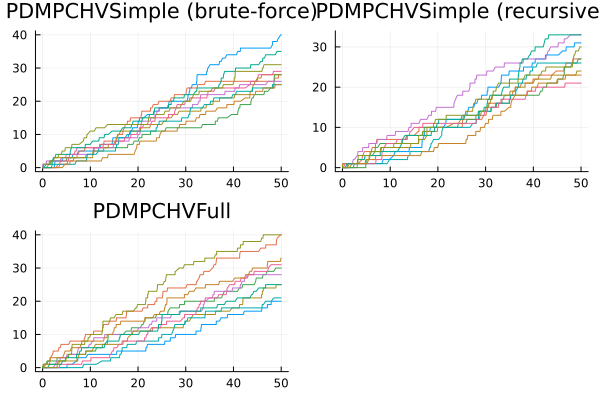

Now, we instantiate the problems, find their solutions and plot the results.

let fig = []
    for (i, (algo, stepper, use_recursion, label)) in enumerate(algorithms[5:end])
        @info label
        if algo isa PyTick
            _p = (p[1], p[2], p[3])
            jump_prob = hawkes_problem(_p, algo; u, tspan, g, use_recursion)
            jump_prob.reset()
            jump_prob.simulate()
            t = tspan[1]:0.1:tspan[2]
            N = [[sum(jumps .< _t) for _t in t] for jumps in jump_prob.timestamps]
            push!(fig, plot(t, N, title = label, legend = false, format = fmt))
        elseif algo isa PDMPCHVSimple
            if use_recursion
                h = zeros(eltype(tspan), nv(G))
                ϕ = zeros(eltype(tspan), nv(G))
                _p = (p[1], p[2], p[3], h, ϕ, g)
            else
                h = [eltype(tspan)[] for _ in 1:nv(G)]
                _p = (p[1], p[2], p[3], h, g)
            end
            jump_prob = hawkes_problem(_p, algo; u, tspan, g, use_recursion)
            sol = solve(jump_prob, stepper)
            push!(fig, plot(
                sol.time, sol.xd[1:V, :]', title = label, legend = false, format = fmt))
        elseif algo isa PDMPCHVFull
            _p = (p[1], p[2], p[3], nothing, nothing, g)
            jump_prob = hawkes_problem(_p, algo; u, tspan, g, use_recursion)
            sol = solve(jump_prob, stepper)
            push!(fig, plot(
                sol.time, sol.xd[1:V, :]', title = label, legend = false, format = fmt))
        end
    end
    fig = plot(fig..., layout = (2, 2), format = fmt, size = (width_px, 2*height_px/2))
end

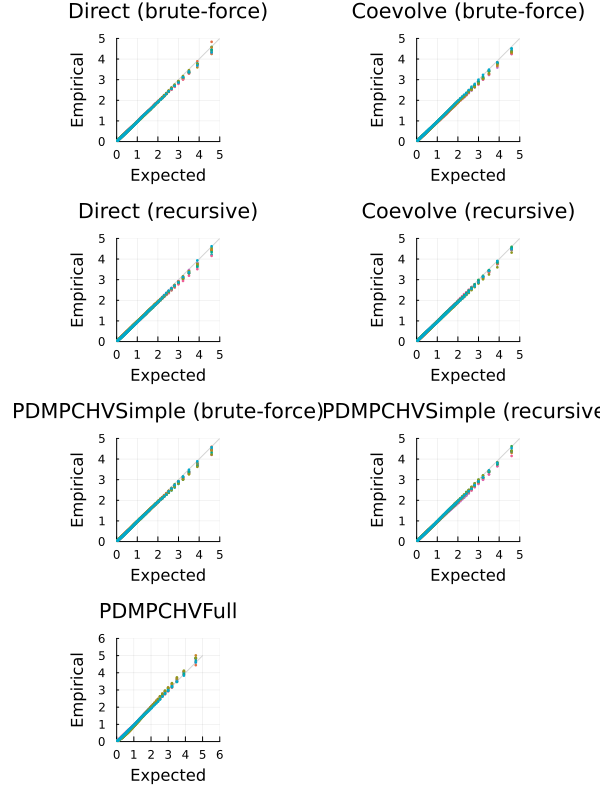

Correctness: QQ-Plots

We check that the algorithms produce correct simulation by inspecting their QQ-plots. Point process theory says that transforming the simulated points using the compensator should produce points whose inter-arrival duration is distributed according to the exponential distribution (see Section 7.4 [1]).

The compensator of any point process is the integral of the conditional intensity $\Lambda_i^\ast(t) = \int_0^t \lambda_i^\ast(u) du$. The compensator for the Multivariate Hawkes process is defined below.

\[ \Lambda_i^\ast(t) = \lambda t + \frac{\alpha}{\beta} \sum_{j \in E_i} \sum_{t_{n_j} < t} ( 1 - \exp \left[-\beta (t - t_{n_j}) \right])\]

function hawkes_Λ(i::Int, g, p)
    @inline @inbounds function Λ(t, h)
        λ, α, β = p
        x = λ * t
        for j in g[i]
            for _t in h[j]
                if _t >= t
                    break
                end
                x += (α / β) * (1 - exp(-β * (t - _t)))
            end
        end
        return x
    end
    return Λ
end

function hawkes_Λ(g, p)
    return [hawkes_Λ(i, g, p) for i in 1:length(g)]
end

Λ = hawkes_Λ(g, p)

10-element Vector{Main.var"##WeaveSandBox#225".var"#Λ#33"{Int64, Vector{Vec
tor{Int64}}, Tuple{Float64, Float64, Float64}}}:
 (::Main.var"##WeaveSandBox#225".var"#Λ#33"{Int64, Vector{Vector{Int64}}, T
uple{Float64, Float64, Float64}}) (generic function with 1 method)
 (::Main.var"##WeaveSandBox#225".var"#Λ#33"{Int64, Vector{Vector{Int64}}, T
uple{Float64, Float64, Float64}}) (generic function with 1 method)
 (::Main.var"##WeaveSandBox#225".var"#Λ#33"{Int64, Vector{Vector{Int64}}, T
uple{Float64, Float64, Float64}}) (generic function with 1 method)
 (::Main.var"##WeaveSandBox#225".var"#Λ#33"{Int64, Vector{Vector{Int64}}, T
uple{Float64, Float64, Float64}}) (generic function with 1 method)
 (::Main.var"##WeaveSandBox#225".var"#Λ#33"{Int64, Vector{Vector{Int64}}, T
uple{Float64, Float64, Float64}}) (generic function with 1 method)
 (::Main.var"##WeaveSandBox#225".var"#Λ#33"{Int64, Vector{Vector{Int64}}, T
uple{Float64, Float64, Float64}}) (generic function with 1 method)
 (::Main.var"##WeaveSandBox#225".var"#Λ#33"{Int64, Vector{Vector{Int64}}, T
uple{Float64, Float64, Float64}}) (generic function with 1 method)
 (::Main.var"##WeaveSandBox#225".var"#Λ#33"{Int64, Vector{Vector{Int64}}, T
uple{Float64, Float64, Float64}}) (generic function with 1 method)
 (::Main.var"##WeaveSandBox#225".var"#Λ#33"{Int64, Vector{Vector{Int64}}, T
uple{Float64, Float64, Float64}}) (generic function with 1 method)
 (::Main.var"##WeaveSandBox#225".var"#Λ#33"{Int64, Vector{Vector{Int64}}, T
uple{Float64, Float64, Float64}}) (generic function with 1 method)

We need a method for extracting the history from a simulation run. Below, we define such functions for each type of algorithm.

"""
Given an ODE solution `sol`, recover the timestamp in which events occurred. It
returns a vector with the history of each process in `sol`.

It assumes that `JumpProblem` was initialized with `save_positions` equal to
`(true, false)`, `(false, true)` or `(true, true)` such the system's state is
saved before and/or after the jump occurs; and, that `sol.u` is a
non-decreasing series that counts the total number of events observed as a
function of time.
"""
function histories(u, t)
    _u = permutedims(reduce(hcat, u))
    k = size(_u)[2]
    # computes a mask that show when total counts change
    mask = cat(fill(0.0, 1, k), _u[2:end, :] .- _u[1:(end - 1), :], dims = 1) .≈ 1
    h = Vector{typeof(t)}(undef, k)
    @inbounds for i in 1:k
        h[i] = t[mask[:, i]]
    end
    return h
end

function histories(sol::S) where {S <: ODESolution}
    # get u and permute the dimensions to get a matrix n x k with n obsevations and k processes.
    if sol.u[1] isa ExtendedJumpArray
        u = map((u) -> u.u, sol.u)
    else
        u = sol.u
    end
    return histories(u, sol.t)
end

function histories(sol::S) where {S <: PDMP.PDMPResult}
    return histories(sol.xd.u, sol.time)
end

function histories(sols)
    map(histories, sols)
end

histories (generic function with 4 methods)

We also need to compute the quantiles of the empirical distribution given a history of events hs, the compensator Λ and the target quantiles quant.

import Distributions: Exponential

"""
Computes the empirical and expected quantiles given a history of events `hs`,
the compensator `Λ` and the target quantiles `quant`.

The history `hs` is a vector with the history of each process. Alternatively,
the function also takes a vector of histories containing the histories from
multiple runs.

The compensator `Λ` can either be an homogeneous compensator function that
equally applies to all the processes in `hs`. Alternatively, it accepts a
vector of compensator that applies to each process.
"""
function qq(hs, Λ, quant = 0.01:0.01:0.99)
    _hs = apply_Λ(hs, Λ)
    T = typeof(hs[1][1][1])
    Δs = Vector{Vector{T}}(undef, length(hs[1]))
    for k in 1:length(Δs)
        _Δs = Vector{Vector{T}}(undef, length(hs))
        for i in 1:length(_Δs)
            _Δs[i] = _hs[i][k][2:end] .- _hs[i][k][1:(end - 1)]
        end
        Δs[k] = reduce(vcat, _Δs)
    end
    empirical_quant = map((_Δs) -> quantile(_Δs, quant), Δs)
    expected_quant = quantile(Exponential(1.0), quant)
    return empirical_quant, expected_quant
end

"""
Compute the compensator `Λ` value for each timestamp recorded in history `hs`.

The history `hs` is a vector with the history of each process. Alternatively,
the function also takes a vector of histories containing the histories from
multiple runs.

The compensator `Λ` can either be an homogeneous compensator function that
equally applies to all the processes in `hs`. Alternatively, it accepts a
vector of compensator that applies to each process.
"""
function apply_Λ(hs::V, Λ) where {V <: Vector{<:Number}}
    _hs = similar(hs)
    @inbounds for n in 1:length(hs)
        _hs[n] = Λ(hs[n], hs)
    end
    return _hs
end

function apply_Λ(k::Int, hs::V, Λ::A) where {V <: Vector{<:Vector{<:Number}}, A <: Array}
    @inbounds hsk = hs[k]
    @inbounds Λk = Λ[k]
    _hs = similar(hsk)
    @inbounds for n in 1:length(hsk)
        _hs[n] = Λk(hsk[n], hs)
    end
    return _hs
end

function apply_Λ(hs::V, Λ) where {V <: Vector{<:Vector{<:Number}}}
    _hs = similar(hs)
    @inbounds for k in 1:length(_hs)
        _hs[k] = apply_Λ(hs[k], Λ)
    end
    return _hs
end

function apply_Λ(hs::V, Λ::A) where {V <: Vector{<:Vector{<:Number}}, A <: Array}
    _hs = similar(hs)
    @inbounds for k in 1:length(_hs)
        _hs[k] = apply_Λ(k, hs, Λ)
    end
    return _hs
end

function apply_Λ(hs::V, Λ) where {V <: Vector{<:Vector{<:Vector{<:Number}}}}
    return map((_hs) -> apply_Λ(_hs, Λ), hs)
end

apply_Λ (generic function with 5 methods)

We can construct QQ-plots with a Plot recipe as following.

@userplot QQPlot
@recipe function f(x::QQPlot)
    empirical_quant, expected_quant = x.args
    max_empirical_quant = maximum(maximum, empirical_quant)
    max_expected_quant = maximum(expected_quant)
    upperlim = ceil(maximum([max_empirical_quant, max_expected_quant]))
    @series begin
        seriestype := :line
        linecolor := :lightgray
        label --> ""
        (x) -> x
    end
    @series begin
        seriestype := :scatter
        aspect_ratio := :equal
        xlims := (0.0, upperlim)
        ylims := (0.0, upperlim)
        xaxis --> "Expected"
        yaxis --> "Empirical"
        markerstrokewidth --> 0
        markerstrokealpha --> 0
        markersize --> 1.5
        size --> (400, 500)
        label --> permutedims(["quantiles $i" for i in 1:length(empirical_quant)])
        expected_quant, empirical_quant
    end
end

Now, we simulate all of the algorithms we defined in the previous Section $250$ times to produce their QQ-plots.

let fig = []
    for (i, (algo, stepper, use_recursion, label)) in enumerate(algorithms)
        @info label
        if algo isa PyTick
            _p = (p[1], p[2], p[3])
        elseif algo isa PDMPCHVSimple
            if use_recursion
                h = zeros(eltype(tspan), nv(G))
                ϕ = zeros(eltype(tspan), nv(G))
                _p = (p[1], p[2], p[3], h, ϕ, g)
            else
                h = [eltype(tspan)[] for _ in 1:nv(G)]
                _p = (p[1], p[2], p[3], h, g)
            end
        elseif algo isa PDMPCHVFull
            _p = (p[1], p[2], p[3], nothing, nothing, g)
        else
            if use_recursion
                h = zeros(eltype(tspan), nv(G))
                ϕ = zeros(eltype(tspan), nv(G))
                urate = zeros(eltype(tspan), nv(G))
                _p = (p[1], p[2], p[3], h, urate, ϕ)
            else
                h = [eltype(tspan)[] for _ in 1:nv(G)]
                urate = zeros(eltype(tspan), nv(G))
                _p = (p[1], p[2], p[3], h, urate)
            end
        end
        jump_prob = hawkes_problem(_p, algo; u, tspan, g, use_recursion)
        runs = Vector{Vector{Vector{Number}}}(undef, 250)
        for n in 1:length(runs)
            if algo isa PyTick
                jump_prob.reset()
                jump_prob.simulate()
                runs[n] = jump_prob.timestamps
            else
                if ~(algo isa PDMPCHVFull)
                    if use_recursion
                        h .= 0
                        ϕ .= 0
                    else
                        for _h in h
                            empty!(_h)
                        end
                    end
                    if ~(algo isa PDMPCHVSimple)
                        urate .= 0
                    end
                end
                runs[n] = histories(solve(jump_prob, stepper))
            end
        end
        qqs = qq(runs, Λ)
        push!(fig, qqplot(
            qqs..., legend = false, aspect_ratio = :equal, title = label, fmt = fmt))
    end
    fig = plot(fig..., layout = (4, 2), fmt = fmt, size = (width_px, 4*height_px/2))
end

Benchmarking performance

In this Section we benchmark all the algorithms introduced in the first Section.

We generate networks in the range from $1$ to $95$ nodes and simulate the Multivariate Hawkes process $25$ units of time.

and simulate models in the range from $1$ to $95$ nodes for $25$ units of time. We fix the Hawkes parameters at $\lambda = 0.5 , \alpha = 0.1 , \beta = 5.0$ which ensures the process does not explode. We simulate $50$ trajectories with a limit of ten seconds to complete execution for each configuration.

tspan = (0.0, 25.0)
p = (0.5, 0.1, 5.0)
Vs = append!([1], 5:5:95)
Gs = [erdos_renyi(V, 0.2, seed = 6221) for V in Vs]

bs = Vector{Vector{BenchmarkTools.Trial}}()

for (algo, stepper, use_recursion, label) in algorithms
    @info label
    global _stepper = stepper
    push!(bs, Vector{BenchmarkTools.Trial}())
    _bs = bs[end]
    for (i, G) in enumerate(Gs)
        local g = [neighbors(G, i) for i in 1:nv(G)]
        local u = [0.0 for i in 1:nv(G)]
        if algo isa PyTick
            _p = (p[1], p[2], p[3])
        elseif algo isa PDMPCHVSimple
            if use_recursion
                global h = zeros(eltype(tspan), nv(G))
                global ϕ = zeros(eltype(tspan), nv(G))
                _p = (p[1], p[2], p[3], h, ϕ, g)
            else
                global h = [eltype(tspan)[] for _ in 1:nv(G)]
                _p = (p[1], p[2], p[3], h, g)
            end
        elseif algo isa PDMPCHVFull
            _p = (p[1], p[2], p[3], nothing, nothing, g)
        else
            if use_recursion
                global h = zeros(eltype(tspan), nv(G))
                global urate = zeros(eltype(tspan), nv(G))
                global ϕ = zeros(eltype(tspan), nv(G))
                _p = (p[1], p[2], p[3], h, urate, ϕ)
            else
                global h = [eltype(tspan)[] for _ in 1:nv(G)]
                global urate = zeros(eltype(tspan), nv(G))
                _p = (p[1], p[2], p[3], h, urate)
            end
        end
        global jump_prob = hawkes_problem(_p, algo; u, tspan, g, use_recursion)
        trial = try
            if algo isa PyTick
                @benchmark(jump_prob.simulate(),
                    setup=(jump_prob.reset()),
                    samples=50,
                    evals=1,
                    seconds=10,)
            else
                if algo isa PDMPCHVFull
                    @benchmark(solve(jump_prob, _stepper),
                        setup=(),
                        samples=50,
                        evals=1,
                        seconds=10,)
                elseif algo isa PDMPCHVSimple
                    if use_recursion
                        @benchmark(solve(jump_prob, _stepper),
                            setup=(h .= 0; ϕ .= 0),
                            samples=50,
                            evals=1,
                            seconds=10,)
                    else
                        @benchmark(solve(jump_prob, _stepper),
                            setup=([empty!(_h) for _h in h]),
                            samples=50,
                            evals=1,
                            seconds=10,)
                    end
                else
                    if use_recursion
                        @benchmark(solve(jump_prob, _stepper),
                            setup=(h .= 0; urate .= 0; ϕ .= 0),
                            samples=50,
                            evals=1,
                            seconds=10,)
                    else
                        @benchmark(solve(jump_prob, _stepper),
                            setup=([empty!(_h) for _h in h]; urate .= 0),
                            samples=50,
                            evals=1,
                            seconds=10,)
                    end
                end
            end
        catch e
            BenchmarkTools.Trial(
                BenchmarkTools.Parameters(samples = 50, evals = 1, seconds = 10),
            )
        end
        push!(_bs, trial)
        if (nv(G) == 1 || nv(G) % 10 == 0)
            median_time = length(trial) > 0 ?
                          "$(BenchmarkTools.prettytime(median(trial.times)))" :
                          "nan"
            println("algo=$(label), V = $(nv(G)), length = $(length(trial.times)), median time = $median_time")
        end
    end
end

algo=Direct (brute-force), V = 1, length = 50, median time = 94.424 μs
algo=Direct (brute-force), V = 10, length = 50, median time = 10.867 ms
algo=Direct (brute-force), V = 20, length = 50, median time = 88.938 ms
algo=Direct (brute-force), V = 30, length = 37, median time = 269.886 ms
algo=Direct (brute-force), V = 40, length = 7, median time = 1.639 s
algo=Direct (brute-force), V = 50, length = 4, median time = 2.960 s
algo=Direct (brute-force), V = 60, length = 2, median time = 5.393 s
algo=Direct (brute-force), V = 70, length = 2, median time = 8.176 s
algo=Direct (brute-force), V = 80, length = 1, median time = 13.647 s
algo=Direct (brute-force), V = 90, length = 1, median time = 21.228 s
algo=Coevolve (brute-force), V = 1, length = 50, median time = 3.665 μs
algo=Coevolve (brute-force), V = 10, length = 50, median time = 207.569 μs
algo=Coevolve (brute-force), V = 20, length = 50, median time = 1.364 ms
algo=Coevolve (brute-force), V = 30, length = 50, median time = 3.308 ms
algo=Coevolve (brute-force), V = 40, length = 50, median time = 8.066 ms
algo=Coevolve (brute-force), V = 50, length = 50, median time = 16.693 ms
algo=Coevolve (brute-force), V = 60, length = 50, median time = 29.836 ms
algo=Coevolve (brute-force), V = 70, length = 50, median time = 51.041 ms
algo=Coevolve (brute-force), V = 80, length = 50, median time = 75.882 ms
algo=Coevolve (brute-force), V = 90, length = 50, median time = 123.100 ms
algo=Direct (recursive), V = 1, length = 50, median time = 84.284 μs
algo=Direct (recursive), V = 10, length = 50, median time = 4.771 ms
algo=Direct (recursive), V = 20, length = 50, median time = 24.122 ms
algo=Direct (recursive), V = 30, length = 50, median time = 67.159 ms
algo=Direct (recursive), V = 40, length = 11, median time = 978.714 ms
algo=Direct (recursive), V = 50, length = 6, median time = 1.834 s
algo=Direct (recursive), V = 60, length = 4, median time = 3.132 s
algo=Direct (recursive), V = 70, length = 2, median time = 5.075 s
algo=Direct (recursive), V = 80, length = 2, median time = 7.879 s
algo=Direct (recursive), V = 90, length = 1, median time = 12.161 s
algo=Coevolve (recursive), V = 1, length = 50, median time = 3.840 μs
algo=Coevolve (recursive), V = 10, length = 50, median time = 72.399 μs
algo=Coevolve (recursive), V = 20, length = 50, median time = 258.553 μs
algo=Coevolve (recursive), V = 30, length = 50, median time = 481.132 μs
algo=Coevolve (recursive), V = 40, length = 50, median time = 897.533 μs
algo=Coevolve (recursive), V = 50, length = 50, median time = 1.483 ms
algo=Coevolve (recursive), V = 60, length = 50, median time = 2.161 ms
algo=Coevolve (recursive), V = 70, length = 50, median time = 3.101 ms
algo=Coevolve (recursive), V = 80, length = 50, median time = 4.031 ms
algo=Coevolve (recursive), V = 90, length = 50, median time = 5.424 ms
algo=PDMPCHVSimple (brute-force), V = 1, length = 50, median time = 71.764
μs
algo=PDMPCHVSimple (brute-force), V = 10, length = 50, median time = 4.740
ms
algo=PDMPCHVSimple (brute-force), V = 20, length = 50, median time = 40.425
 ms
algo=PDMPCHVSimple (brute-force), V = 30, length = 50, median time = 112.87
1 ms
algo=PDMPCHVSimple (brute-force), V = 40, length = 35, median time = 286.67
5 ms
algo=PDMPCHVSimple (brute-force), V = 50, length = 18, median time = 583.59
4 ms
algo=PDMPCHVSimple (brute-force), V = 60, length = 10, median time = 1.061
s
algo=PDMPCHVSimple (brute-force), V = 70, length = 6, median time = 1.911 s
algo=PDMPCHVSimple (brute-force), V = 80, length = 4, median time = 2.903 s
algo=PDMPCHVSimple (brute-force), V = 90, length = 3, median time = 5.018 s
algo=PDMPCHVSimple (recursive), V = 1, length = 50, median time = 73.075 μs
algo=PDMPCHVSimple (recursive), V = 10, length = 50, median time = 338.957
μs
algo=PDMPCHVSimple (recursive), V = 20, length = 50, median time = 805.093
μs
algo=PDMPCHVSimple (recursive), V = 30, length = 50, median time = 1.531 ms
algo=PDMPCHVSimple (recursive), V = 40, length = 50, median time = 2.509 ms
algo=PDMPCHVSimple (recursive), V = 50, length = 50, median time = 3.647 ms
algo=PDMPCHVSimple (recursive), V = 60, length = 50, median time = 5.191 ms
algo=PDMPCHVSimple (recursive), V = 70, length = 50, median time = 7.178 ms
algo=PDMPCHVSimple (recursive), V = 80, length = 50, median time = 9.484 ms
algo=PDMPCHVSimple (recursive), V = 90, length = 50, median time = 12.234 m
s
algo=PDMPCHVFull, V = 1, length = 50, median time = 71.589 μs
algo=PDMPCHVFull, V = 10, length = 50, median time = 490.986 μs
algo=PDMPCHVFull, V = 20, length = 50, median time = 749.969 μs
algo=PDMPCHVFull, V = 30, length = 50, median time = 1.219 ms
algo=PDMPCHVFull, V = 40, length = 50, median time = 1.534 ms
algo=PDMPCHVFull, V = 50, length = 50, median time = 1.902 ms
algo=PDMPCHVFull, V = 60, length = 50, median time = 2.516 ms
algo=PDMPCHVFull, V = 70, length = 50, median time = 3.055 ms
algo=PDMPCHVFull, V = 80, length = 50, median time = 3.673 ms
algo=PDMPCHVFull, V = 90, length = 50, median time = 4.356 ms

let fig = plot(
        yscale = :log10,
        xlabel = "V",
        ylabel = "Time (ns)",
        legend_position = :outertopright
    )
    for (i, (algo, stepper, use_recursion, label)) in enumerate(algorithms)
        _bs, _Vs = [], []
        for (j, b) in enumerate(bs[i])
            if length(b) == 50
                push!(_bs, median(b.times))
                push!(_Vs, Vs[j])
            end
        end
        plot!(_Vs, _bs, label = label)
    end
    title!("Simulations, 50 samples: nodes × time")
end

Benchmarking Variable Rate Aggregators

We benchmark the variable rate aggregators (VR_Direct, VR_DirectFW, VR_FRM) for the Multivariate Hawkes process, using the same setup as above: networks from 1 to 50 nodes, tspan=(0.0, 25.0), \lambda=0.5, \alpha=0.1, \beta=5.0, and 50 trajectories with a 10-second limit per configuration. We test both recursive and brute-force formulations.

vr_aggs = [
    (VR_Direct(), Tsit5(), false, "VR_Direct (brute-force)"),
    (VR_DirectFW(), Tsit5(), false, "VR_DirectFW (brute-force)"),
    (VR_FRM(), Tsit5(), false, "VR_FRM (brute-force)"),
    (VR_Direct(), Tsit5(), true, "VR_Direct (recursive)"),
    (VR_DirectFW(), Tsit5(), true, "VR_DirectFW (recursive)"),
    (VR_FRM(), Tsit5(), true, "VR_FRM (recursive)"),
]

tspan = (0.0, 25.0)
p = (0.5, 0.1, 5.0)
Vs = append!([1], 5:5:95)
Gs = [erdos_renyi(V, 0.2, seed = 6221) for V in Vs]

vr_bs = Vector{Vector{BenchmarkTools.Trial}}()

for (vr_agg, stepper, use_recursion, label) in vr_aggs
    @info label
    global _stepper = stepper
    push!(vr_bs, Vector{BenchmarkTools.Trial}())
    _vr_bs = vr_bs[end]
    for (i, G) in enumerate(Gs)
        local g = [neighbors(G, i) for i in 1:nv(G)]
        local u = [0.0 for i in 1:nv(G)]
        if use_recursion
            global h = zeros(eltype(tspan), nv(G))
            global urate = zeros(eltype(u), nv(G))
            global ϕ = zeros(eltype(tspan), nv(G))
            _p = (p[1], p[2], p[3], h, urate, ϕ)
        else
            global h = [eltype(tspan)[] for _ in 1:nv(G)]
            global urate = zeros(eltype(u), nv(G))
            _p = (p[1], p[2], p[3], h, urate)
        end
        global jump_prob = hawkes_problem(_p, Direct(); vr_agg, u, tspan, g, use_recursion)
        trial = try
            if use_recursion
                @benchmark(
                    solve(jump_prob, _stepper),
                    setup = (h .= 0; urate .= 0; ϕ .= 0),
                    samples = 50,
                    evals = 1,
                    seconds = 10,
                )
            else
                @benchmark(
                    solve(jump_prob, _stepper),
                    setup = ([empty!(_h) for _h in h]; urate .= 0),
                    samples = 50,
                    evals = 1,
                    seconds = 10,
                )
            end
        catch e
            BenchmarkTools.Trial(
                BenchmarkTools.Parameters(samples=50, evals=1, seconds=10),
            )
        end
        push!(_vr_bs, trial)
        if (nv(G) == 1 || nv(G) % 10 == 0)
            median_time =
                length(trial) > 0 ? "$(BenchmarkTools.prettytime(median(trial.times)))" : "nan"
            println("algo=$label, V=$(nv(G)), length=$(length(trial.times)), median time=$median_time")
        end
    end
end

algo=VR_Direct (brute-force), V=1, length=50, median time=449.841 μs
algo=VR_Direct (brute-force), V=10, length=50, median time=21.695 ms
algo=VR_Direct (brute-force), V=20, length=50, median time=191.295 ms
algo=VR_Direct (brute-force), V=30, length=16, median time=632.394 ms
algo=VR_Direct (brute-force), V=40, length=2, median time=5.376 s
algo=VR_Direct (brute-force), V=50, length=1, median time=10.608 s
algo=VR_Direct (brute-force), V=60, length=1, median time=17.122 s
algo=VR_Direct (brute-force), V=70, length=1, median time=28.665 s
algo=VR_Direct (brute-force), V=80, length=1, median time=46.071 s
algo=VR_Direct (brute-force), V=90, length=1, median time=65.666 s
algo=VR_DirectFW (brute-force), V=1, length=50, median time=721.864 μs
algo=VR_DirectFW (brute-force), V=10, length=50, median time=50.393 ms
algo=VR_DirectFW (brute-force), V=20, length=28, median time=364.858 ms
algo=VR_DirectFW (brute-force), V=30, length=10, median time=1.115 s
algo=VR_DirectFW (brute-force), V=40, length=4, median time=2.619 s
algo=VR_DirectFW (brute-force), V=50, length=2, median time=5.234 s
algo=VR_DirectFW (brute-force), V=60, length=2, median time=8.774 s
algo=VR_DirectFW (brute-force), V=70, length=1, median time=17.229 s
algo=VR_DirectFW (brute-force), V=80, length=1, median time=24.781 s
algo=VR_DirectFW (brute-force), V=90, length=1, median time=41.577 s
algo=VR_FRM (brute-force), V=1, length=50, median time=90.730 μs
algo=VR_FRM (brute-force), V=10, length=50, median time=10.672 ms
algo=VR_FRM (brute-force), V=20, length=50, median time=91.432 ms
algo=VR_FRM (brute-force), V=30, length=37, median time=277.224 ms
algo=VR_FRM (brute-force), V=40, length=7, median time=1.553 s
algo=VR_FRM (brute-force), V=50, length=4, median time=3.091 s
algo=VR_FRM (brute-force), V=60, length=2, median time=5.529 s
algo=VR_FRM (brute-force), V=70, length=2, median time=9.129 s
algo=VR_FRM (brute-force), V=80, length=1, median time=13.720 s
algo=VR_FRM (brute-force), V=90, length=1, median time=21.684 s
algo=VR_Direct (recursive), V=1, length=50, median time=442.066 μs
algo=VR_Direct (recursive), V=10, length=50, median time=4.171 ms
algo=VR_Direct (recursive), V=20, length=50, median time=9.837 ms
algo=VR_Direct (recursive), V=30, length=50, median time=17.478 ms
algo=VR_Direct (recursive), V=40, length=4, median time=3.306 s
algo=VR_Direct (recursive), V=50, length=2, median time=6.133 s
algo=VR_Direct (recursive), V=60, length=1, median time=10.602 s
algo=VR_Direct (recursive), V=70, length=1, median time=17.601 s
algo=VR_Direct (recursive), V=80, length=1, median time=28.534 s
algo=VR_Direct (recursive), V=90, length=1, median time=39.955 s
algo=VR_DirectFW (recursive), V=1, length=50, median time=697.695 μs
algo=VR_DirectFW (recursive), V=10, length=50, median time=30.726 ms
algo=VR_DirectFW (recursive), V=20, length=50, median time=163.387 ms
algo=VR_DirectFW (recursive), V=30, length=22, median time=454.891 ms
algo=VR_DirectFW (recursive), V=40, length=10, median time=1.017 s
algo=VR_DirectFW (recursive), V=50, length=6, median time=1.855 s
algo=VR_DirectFW (recursive), V=60, length=4, median time=3.263 s
algo=VR_DirectFW (recursive), V=70, length=2, median time=5.126 s
algo=VR_DirectFW (recursive), V=80, length=2, median time=7.834 s
algo=VR_DirectFW (recursive), V=90, length=1, median time=11.180 s
algo=VR_FRM (recursive), V=1, length=50, median time=90.644 μs
algo=VR_FRM (recursive), V=10, length=50, median time=4.706 ms
algo=VR_FRM (recursive), V=20, length=50, median time=24.648 ms
algo=VR_FRM (recursive), V=30, length=50, median time=69.202 ms
algo=VR_FRM (recursive), V=40, length=10, median time=1.037 s
algo=VR_FRM (recursive), V=50, length=6, median time=1.890 s
algo=VR_FRM (recursive), V=60, length=3, median time=3.467 s
algo=VR_FRM (recursive), V=70, length=2, median time=5.471 s
algo=VR_FRM (recursive), V=80, length=2, median time=8.095 s
algo=VR_FRM (recursive), V=90, length=1, median time=12.071 s

let fig = plot(
    yscale = :log10,
    xlabel = "V",
    ylabel = "Time (ns)",
    legend_position = :outertopright,
)
    for (i, (vr_agg, _, use_recursion, label)) in enumerate(vr_aggs)
        _bs, _Vs = [], []
        for (j, b) in enumerate(vr_bs[i])
            if length(b) == 50
                push!(_bs, median(b.times))
                push!(_Vs, Vs[j])
            end
        end
        plot!(_Vs, _bs, label=label)
    end
    title!("Variable Rate Simulations, 50 samples: nodes × time")
end

References

[1] D. J. Daley and D. Vere-Jones. An Introduction to the Theory of Point Processes: Volume I: Elementary Theory and Methods. Probability and Its Applications, An Introduction to the Theory of Point Processes. Springer-Verlag, 2 edition. doi:10.1007/b97277.

[2] Patrick J. Laub, Young Lee, and Thomas Taimre. The Elements of Hawkes Processes. Springer International Publishing. doi:10.1007/978-3-030-84639-8.
