Korteweg-De Vries Equation Pseudospectral Methods Work-Precision Diagrams

using OrdinaryDiffEq
using DiffEqDevTools
using SciMLOperators
using LinearSolve
using LinearAlgebra
using SparseArrays
using Sundials
using SummationByPartsOperators
const SBP = SummationByPartsOperators
using Plots
gr()
Plots.GRBackend()

Problem Description

The Kortwrieg de Vries (KdV) partial differential equation is solved on the domain $[-L, L] \times [0, T] \in \mathbb R \times R,~L = 16,~T = 5$, with the following initial and periodic boundary conditions:

\[\begin{align} \partial_t u(t,x) & = -6u(t,x)\partial_x u(t,x) -\partial_x^3 u(t,x), \\ u(0,x) & = \cos\left(\frac{\pi x}{L}\right), \\ u(t,-L) & = u(t,L) = -1. \end{align}\]

The spatial derivative operators are represented via Fourier pseudospectral approximations. Here, the domain is discretized by projecting on an equispaced grid of points $x_s \in [-L, L]$; the solution is approximated on this grid via linear combinations of sinusoidal functions in space.

\[\begin{align} \frac{du}{dt} & = -6uD_x u -D_x^3 u, \\ u(0,x_s) & = \cos\left(\frac{\pi x_s}{L}\right), \\ u(t,-L) & = u(t,L) = -1. \end{align}\]

Implementation

nonlinear_convection!(du, u, p, t) = du .= (-6 * p.alpha / 3) * (u .* (p.D1 * u) + p.D1 * (u .^ 2))

function korteweg_de_vries(N, L, alpha)
    D1 = fourier_derivative_operator(xmin = -L, xmax = L, N = N)
    D3 = D1^3 # 3rd derivative operator
    x = SBP.grid(D1)
    u0 = @. cos(π * x / L) # Initial condition
    p = (; D1, alpha)

    tspan = (0.0, 1.0)
    prob = SplitODEProblem(MatrixOperator(-p.alpha * Matrix(D3)),
                           nonlinear_convection!,
                           u0, tspan, p);

    return x, prob
end;

Reference Solution

Using an adaptive timestepping method to solve the system of ordinary differential equations with high precision.

L = 16.0 # Domain length
n = 128 # Number of Chebyshev points
alpha = 5.0 # Time scaling factor
xs, prob = korteweg_de_vries(n, L, alpha)

@time sol = solve(prob, AutoVern7(RadauIIA5(autodiff=false));
                  dt = 1e-4, reltol = 1e-12, abstol = 1e-12);

test_sol = TestSolution(sol) # Reference solution for error estimation

tslices = LinRange(prob.tspan..., 50)
ys = mapreduce(sol, hcat, tslices)

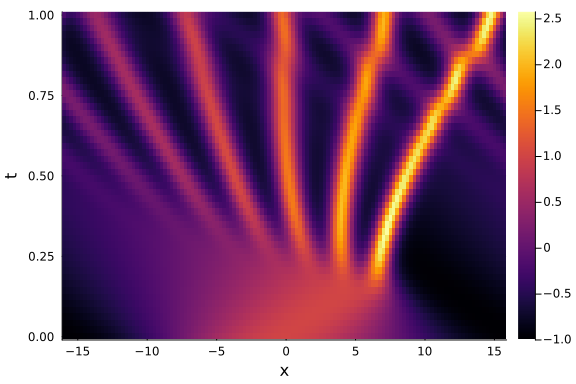

plt = heatmap(xs, tslices, ys', xlabel = "x", ylabel = "t")
15.906107 seconds (22.15 M allocations: 2.084 GiB, 8.45% gc time, 70.04% c
ompilation time)

Work-Precision Diagrams

High Tolerances

Implicit-Explicit Methods

abstols = 0.1 .^ (5:8) # all fixed dt methods so these don't matter much
reltols = 0.1 .^ (1:4)
multipliers = 0.5 .^ (0:3)
setups = [
    Dict(:alg => IMEXEuler(), :dts => 1e-4 * multipliers),
    Dict(:alg => CNAB2(), :dts => 1e-4 * multipliers),
    Dict(:alg => CNLF2(), :dts => 1e-4 * multipliers),
    Dict(:alg => SBDF2(), :dts => 1e-4 * multipliers),
]
labels = hcat(
    "IMEXEuler",
    "CNAB2",
    "CNLF2",
    "SBDF2",
)
@time wp = WorkPrecisionSet(prob, abstols, reltols, setups;
    print_names=true, names=labels, numruns=5, error_estimate=:l2,
    save_everystep=false, appxsol=test_sol, maxiters=Int(1e5));

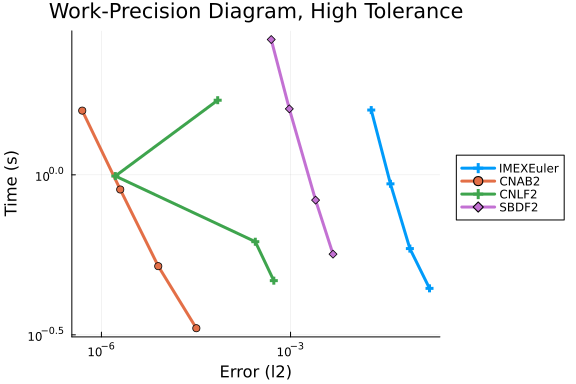

plot(wp, label=labels, markershape=:auto, title="Work-Precision Diagram, High Tolerance")
IMEXEuler
CNAB2
CNLF2
SBDF2
115.892217 seconds (57.12 M allocations: 25.408 GiB, 2.28% gc time, 8.65% c
ompilation time)

Exponential Integrators

abstols = 0.1 .^ (5:8) # all fixed dt methods so these don't matter much
reltols = 0.1 .^ (1:4)
multipliers = 0.5 .^ (0:3)
setups = [
    Dict(:alg => NorsettEuler(), :dts => 1e-4 * multipliers),
    Dict(:alg => NorsettEuler(krylov=true, m=5), :dts => 1e-4 * multipliers),
    Dict(:alg => NorsettEuler(krylov=true, m=20), :dts => 1e-4 * multipliers),
    Dict(:alg => ETDRK2(), :dts => 1e-4 * multipliers),
    Dict(:alg => ETDRK2(krylov=true, m=5), :dts => 1e-4 * multipliers),
    Dict(:alg => ETDRK2(krylov=true, m=20), :dts => 1e-4 * multipliers)
]
labels = hcat(
    "NorsettEuler (caching)",
    "NorsettEuler (m=5)",
    "NorsettEuler (m=20)",
    "ETDRK2 (caching)",
    "ETDRK2 (m=5)",
    "ETDRK2 (m=20)"
)
@time wp = WorkPrecisionSet(prob, abstols, reltols, setups;
    print_names=true, names=labels, numruns=5, error_estimate=:l2,
    save_everystep=false, appxsol=test_sol, maxiters=Int(1e5));

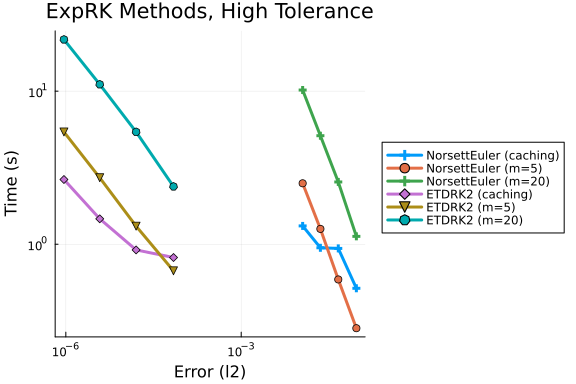

plot(wp, label=labels, markershape=:auto, title="ExpRK Methods, High Tolerance")
NorsettEuler (caching)
NorsettEuler (m=5)
NorsettEuler (m=20)
ETDRK2 (caching)
ETDRK2 (m=5)
ETDRK2 (m=20)
313.177190 seconds (96.87 M allocations: 102.938 GiB, 5.15% gc time, 2.66%
compilation time)

Comparisons Between Families

abstols = 0.1 .^ (5:8) # all fixed dt methods so these don't matter much
reltols = 0.1 .^ (1:4)
multipliers = 0.5 .^ (0:3)
setups = [
    Dict(:alg => CNAB2(), :dts => 1e-4 * multipliers),
    Dict(:alg => CNAB2(linsolve=KrylovJL_GMRES()), :dts => 1e-4 * multipliers),
    Dict(:alg => ETDRK2(), :dts => 1e-4 * multipliers),
]
labels = hcat(
    "CNAB2 (dense linsolve)",
    "CNAB2 (Krylov linsolve)",
    "ETDRK2 (caching)",
)
@time wp = WorkPrecisionSet(prob, abstols, reltols, setups;
    print_names=true, names=labels, numruns=5, error_estimate=:l2,
    save_everystep=false, appxsol=test_sol, maxiters=Int(1e5));

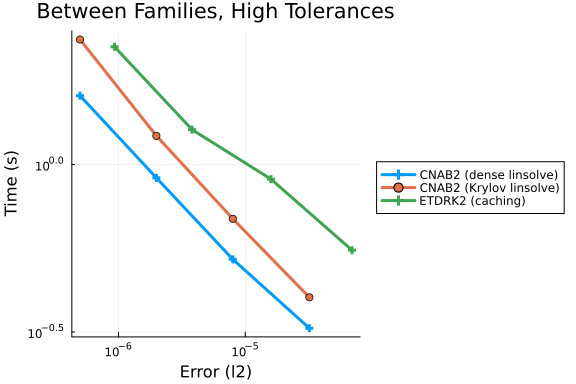

plot(wp, label=labels, markershape=:auto, title="Between Families, High Tolerances")
CNAB2 (dense linsolve)
CNAB2 (Krylov linsolve)
ETDRK2 (caching)
 77.621096 seconds (32.21 M allocations: 26.481 GiB, 7.37% gc time, 2.60% c
ompilation time)

Low Tolerances

Implicit-Explicit Methods

abstols = 0.1 .^ (8:10)
reltols = 0.1 .^ (5:7)
setups = [
    Dict(:alg => KenCarp3()),
    Dict(:alg => KenCarp4()),
    # Dict(:alg => KenCarp5()),
    Dict(:alg => KenCarp3(linsolve=KrylovJL_GMRES())),
    Dict(:alg => KenCarp4(linsolve=KrylovJL_GMRES())),
    # Dict(:alg => KenCarp5(linsolve=KrylovJL_GMRES())),
    Dict(:alg => ARKODE(Sundials.Implicit(), order=3, linear_solver=:GMRES)),
    Dict(:alg => ARKODE(Sundials.Implicit(), order=4, linear_solver=:GMRES)),
    Dict(:alg => ARKODE(Sundials.Implicit(), order=5, linear_solver=:GMRES)),
]
labels = hcat(
    "KenCarp3",
    "KenCarp4",
    # "KenCarp5",
    "KenCarp3 (Krylov)",
    "KenCarp4 (Krylov)",
    # "KenCarp5 (Krylov)",
    "ARKODE3 (Krylov)",
    "ARKODE4 (Krylov)",
    "ARKODE5 (Krylov)",
)
@time wp = WorkPrecisionSet(prob, abstols, reltols, setups;
    print_names=true, names=labels, numruns=5, error_estimate=:l2,
    save_everystep=false, appxsol=test_sol, maxiters=Int(1e5));

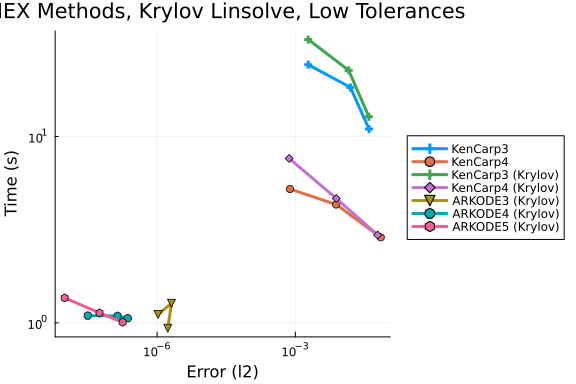

plot(wp, label=labels, markershape=:auto, title="IMEX Methods, Krylov Linsolve, Low Tolerances")
KenCarp3
KenCarp4
KenCarp3 (Krylov)
KenCarp4 (Krylov)
ARKODE3 (Krylov)
ARKODE4 (Krylov)
ARKODE5 (Krylov)
527.000657 seconds (116.48 M allocations: 18.520 GiB, 0.44% gc time, 2.18%
compilation time)

Exponential Integrators

abstols = 0.1 .^ (7:11) # all fixed dt methods so these don't matter much
reltols = 0.1 .^ (4:8)
multipliers = 0.5 .^ (0:4)
setups = [
    Dict(:alg => ETDRK3(), :dts => 1e-3 * multipliers),
    Dict(:alg => ETDRK4(), :dts => 1e-3 * multipliers),
    Dict(:alg => HochOst4(), :dts => 1e-3 * multipliers),
]
labels = hcat(
    "ETDRK3 (caching)",
    "ETDRK4 (caching)",
    "HochOst4 (caching)",
)
@time wp = WorkPrecisionSet(prob, abstols, reltols, setups;
    print_names=true, names=labels, numruns=5, error_estimate=:l2,
    save_everystep=false, appxsol=test_sol, maxiters=Int(1e5));

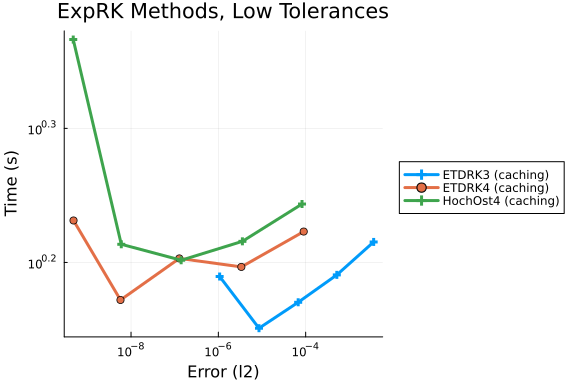

plot(wp, label=labels, markershape=:auto, title="ExpRK Methods, Low Tolerances")
ETDRK3 (caching)
ETDRK4 (caching)
HochOst4 (caching)
178.124678 seconds (23.51 M allocations: 31.310 GiB, 2.72% gc time, 3.46% c
ompilation time)

Comparisons Between Families

abstols = 0.1 .^ (7:11)
reltols = 0.1 .^ (4:8)
multipliers = 0.5 .^ (0:4)
setups = [
    Dict(:alg => ARKODE(Sundials.Implicit(), order=5, linear_solver=:GMRES)),
    Dict(:alg => ETDRK3(), :dts => 1e-3 * multipliers),
    Dict(:alg => ETDRK4(), :dts => 1e-3 * multipliers),
]
labels = hcat(
    "ARKODE (Krylov linsolve)",
    "ETDRK3 (caching)",
    "ETDRK4 (caching)",
)
@time wp = WorkPrecisionSet(prob, abstols, reltols, setups;
    print_names=true, names=labels, numruns=5, error_estimate=:l2,
    save_everystep=false, appxsol=test_sol, maxiters=Int(1e5));

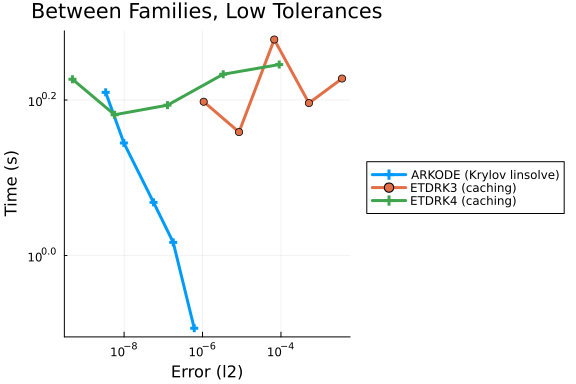

plot(wp, label=labels, markershape=:auto, title="Between Families, Low Tolerances")
ARKODE (Krylov linsolve)
ETDRK3 (caching)
ETDRK4 (caching)
162.017249 seconds (66.71 M allocations: 30.330 GiB, 2.62% gc time, 0.00% c
ompilation time)

Appendix

These benchmarks are a part of the SciMLBenchmarks.jl repository, found at: https://github.com/SciML/SciMLBenchmarks.jl. For more information on high-performance scientific machine learning, check out the SciML Open Source Software Organization https://sciml.ai.

To locally run this benchmark, do the following commands:

using SciMLBenchmarks
SciMLBenchmarks.weave_file("benchmarks/SimpleHandwrittenPDE","kdv_spectral_wpd.jmd")

Computer Information:

Julia Version 1.10.10
Commit 95f30e51f41 (2025-06-27 09:51 UTC)
Build Info:
  Official https://julialang.org/ release
Platform Info:
  OS: Linux (x86_64-linux-gnu)
  CPU: 128 × AMD EPYC 7502 32-Core Processor
  WORD_SIZE: 64
  LIBM: libopenlibm
  LLVM: libLLVM-15.0.7 (ORCJIT, znver2)
Threads: 1 default, 0 interactive, 1 GC (on 128 virtual cores)
Environment:
  JULIA_CPU_THREADS = 128
  JULIA_DEPOT_PATH = /cache/julia-buildkite-plugin/depots/5b300254-1738-4989-ae0a-f4d2d937f953

Package Information:

Status `/cache/build/exclusive-amdci3-0/julialang/scimlbenchmarks-dot-jl/benchmarks/SimpleHandwrittenPDE/Project.toml`
  [b30e2e7b] ClassicalOrthogonalPolynomials v0.15.3
  [f3b72e0c] DiffEqDevTools v2.48.0
  [7f56f5a3] LSODA v0.7.5
  [7ed4a6bd] LinearSolve v3.24.0
  [1dea7af3] OrdinaryDiffEq v6.101.0
  [91a5bcdd] Plots v1.40.17
  [31c91b34] SciMLBenchmarks v0.1.3
  [c0aeaf25] SciMLOperators v1.4.0
  [9f78cca6] SummationByPartsOperators v0.5.81
  [c3572dad] Sundials v4.28.0
  [37e2e46d] LinearAlgebra
  [2f01184e] SparseArrays v1.10.0
