Ionic Liquid Dehumidifier Benchmarks

This benchmark compares the runtime and error of BVP solvers, including FIRK solvers and FORTRAN BVP solvers on ionic liquid dehumidifier problem. For this problem, we test the following solvers:

  • BoundaryValueDiffEq.jl's FIRK nested solvers(including RadauIIa3, RadauIIa5, RadauIIa7, LobattoIIIa3, LobattoIIIa4, LobattoIIIa5, LobattoIIIb3, LobattoIIIb4, LobattoIIIb5, LobattoIIIc3, LobattoIIIc4, LobattoIIIc5).
  • FORTRAN BVP solvers from ODEInterface.jl(including BVPM2 and COLNEW).

Setup

Fetch required packages.

using BoundaryValueDiffEq, BracketingNonlinearSolve, ODEInterface, DiffEqDevTools, BenchmarkTools,
      Interpolations, StaticArrays, CairoMakie

Set up the benchmarked solvers.

solvers_all = [
    (; pkg = :boundaryvaluediffeq,          type = :firk,              name = "RadauIIa3",            solver = Dict(:alg => RadauIIa3(; nested_nlsolve = true), :dts=>1.0 ./ 10.0 .^ (2:4))),
    (; pkg = :boundaryvaluediffeq,          type = :firk,              name = "RadauIIa5",            solver = Dict(:alg => RadauIIa5(; nested_nlsolve = true), :dts=>1.0 ./ 10.0 .^ (2:4))),
    (; pkg = :boundaryvaluediffeq,          type = :firk,              name = "RadauIIa7",            solver = Dict(:alg => RadauIIa7(; nested_nlsolve = true), :dts=>1.0 ./ 10.0 .^ (2:4))),
    (; pkg = :boundaryvaluediffeq,          type = :firk,              name = "LobattoIIIa3",         solver = Dict(:alg => LobattoIIIa3(; nested_nlsolve = true), :dts=>1.0 ./ 10.0 .^ (2:4))),
    (; pkg = :boundaryvaluediffeq,          type = :firk,              name = "LobattoIIIa4",         solver = Dict(:alg => LobattoIIIa4(; nested_nlsolve = true), :dts=>1.0 ./ 10.0 .^ (2:4))),
    (; pkg = :boundaryvaluediffeq,          type = :firk,              name = "LobattoIIIa5",         solver = Dict(:alg => LobattoIIIa5(; nested_nlsolve = true), :dts=>1.0 ./ 10.0 .^ (2:4))),
    (; pkg = :boundaryvaluediffeq,          type = :firk,              name = "LobattoIIIb3",         solver = Dict(:alg => LobattoIIIb3(; nested_nlsolve = true), :dts=>1.0 ./ 10.0 .^ (2:4))),
    (; pkg = :boundaryvaluediffeq,          type = :firk,              name = "LobattoIIIb4",         solver = Dict(:alg => LobattoIIIb4(; nested_nlsolve = true), :dts=>1.0 ./ 10.0 .^ (2:4))),
    (; pkg = :boundaryvaluediffeq,          type = :firk,              name = "LobattoIIIb5",         solver = Dict(:alg => LobattoIIIb5(; nested_nlsolve = true), :dts=>1.0 ./ 10.0 .^ (2:4))),
    (; pkg = :boundaryvaluediffeq,          type = :firk,              name = "LobattoIIIb3",         solver = Dict(:alg => LobattoIIIc3(; nested_nlsolve = true), :dts=>1.0 ./ 10.0 .^ (2:4))),
    (; pkg = :boundaryvaluediffeq,          type = :firk,              name = "LobattoIIIb4",         solver = Dict(:alg => LobattoIIIc4(; nested_nlsolve = true), :dts=>1.0 ./ 10.0 .^ (2:4))),
    (; pkg = :boundaryvaluediffeq,          type = :firk,              name = "LobattoIIIb5",         solver = Dict(:alg => LobattoIIIc5(; nested_nlsolve = true), :dts=>1.0 ./ 10.0 .^ (2:4))),
    (; pkg = :wrapper,                      type = :general,           name = "COLNEW",               solver = Dict(:alg => COLNEW(), :dts=>1.0 ./ 10.0 .^ (2:4))),
];

Set tolerances.

abstols = 1.0 ./ 10.0 .^ (1:3)
reltols = 1.0 ./ 10.0 .^ (1:3);

Benchmarks

iᵥ_ₛₐₜ(T) = 10^(6.697227966814859 - 273.8702703951898 /
									(T + 642.1729733423742))

begin
	"Properties Interpolations and Extrapolations"

	const Tⁿᵒᵈᵉˢ = @SVector[x + 273.15 for x in [25.0, 35.0, 60.0, 80.0]]
	const ξⁿᵒᵈᵉˢ_2 = @SVector[x * 0.01 for x in [0.0, 50.0, 70.0, 80.0, 85.0, 90.0, 95.0]]
	const nodes = (Tⁿᵒᵈᵉˢ, ξⁿᵒᵈᵉˢ_2)

	const Δh_data = @SMatrix[
		0.0  -58000.0  -75000.0  -74000.0  -68000.0  -55000.0  -34000.0
		0.0  -57000.0  -72000.0  -72000.0  -67000.0  -54000.0  -33000.0
		0.0  -52000.0  -67000.0  -67000.0  -62000.0  -51000.0  -31000.0
		0.0  -48000.0  -62000.0  -64000.0  -59000.0  -49000.0  -30000.0
	]
	# # ================== Interpolation and Extrapolation P_ν ==================
	const a0_p = 12.10
	const a1_p = -28.01
	const a2_p = 50.34
	const a3_p = -24.63
	const b0_p = 1212.67
	const b1_p = 772.37
	const b2_p = 614.59
	const b3_p = 493.33

	@inline function _Pᵥₐₚₒᵣ_ₛₒₗ(T, ξ)
		A = a0_p + a1_p * ξ + a2_p * ξ^2 + a3_p * ξ^3
		B = b0_p + b1_p * ξ + b2_p * ξ^2 + b3_p * ξ^3
		return 10^(A - B / T) * 100.0
	end
	# ================== Interpolation and Extrapolation cp ====================
	function _cpₛₒₗ(T, ξ)
		return ((0.00476 * T - 4.01) * ξ + 4.21) * 1e3
	end

	@inline function _Δh(T, ξ)
		Δh_interpolated = interpolate(nodes, Δh_data, Gridded(Linear()))
		Δh_extrapolated = extrapolate(Δh_interpolated, Line())
		return Δh_extrapolated(T, ξ)
	end

	@inline function _iₛₒₗ(T, ξ)
		Δh = _Δh(T, ξ)
		i = _cpₛₒₗ(T, ξ) * (T - 273.15) + Δh
		return i
	end

	# ================== Find T given i_sol and ξ ====================
	# Function to find the root, given i_sol and ξ
	@inline function calculate_T_sol(iᵛₛₒₗ, ξ; T_lower = -150.0 + 273.15, T_upper = 95.0 + 273.15)
		f(T, p) = _iₛₒₗ(T, p[2]) - p[1]
		p = @SVector[iᵛₛₒₗ, ξ]
		T_span = (T_lower, T_upper)
		prob = IntervalNonlinearProblem{false}(f, T_span, p)
		result = solve(prob, BracketingNonlinearSolve.ITP())
		return result.u
	end
end

function ionic_liquid_coil_ode!(du, u, p, t)
	# ωₐᵢᵣ, iₐᵢᵣ, ṁₛₒₗ,ξₛₒₗ, iₛₒₗ = u
	# ========================================
	Le = p[1]
	∂Qᵣ = p[2]
	ṁₐᵢᵣ = p[3]
	NTUᴰₐᵢᵣ = p[4]
	σ = p[5]
	ṁₛₒₗ_ᵢₙ = p[6]
	ξₛₒₗ_ᵢₙ = p[7]
	iₛₒₗ_ᵢₙ = p[8]
	ωₐ_ᵢₙ = p[9]
	iₐ_ᵢₙ = p[10]
	MR = ṁₛₒₗ_ᵢₙ / ṁₐᵢᵣ
	ER = iₛₒₗ_ᵢₙ / iₐ_ᵢₙ
	# ========================================
	Tₛₒₗ = calculate_T_sol(u[5] * iₛₒₗ_ᵢₙ, u[4] * ξₛₒₗ_ᵢₙ)
	Pᵥₐₚₒᵣ_ₛₒₗ = _Pᵥₐₚₒᵣ_ₛₒₗ(Tₛₒₗ, u[4] * ξₛₒₗ_ᵢₙ)
	ωₑ = 0.622 * Pᵥₐₚₒᵣ_ₛₒₗ / (101325.0 - Pᵥₐₚₒᵣ_ₛₒₗ) / ωₐ_ᵢₙ
	iₑ = (1.005 * (Tₛₒₗ - 273.15) + ωₑ * ωₐ_ᵢₙ * (2500.9 + 1.82 * (Tₛₒₗ - 273.15))) / iₐ_ᵢₙ
	iₑ *= 1000
	iᵥₐₚₒᵣ_ₜₛ = iᵥ_ₛₐₜ(Tₛₒₗ) / iₐ_ᵢₙ

	du[1] = σ * NTUᴰₐᵢᵣ * (u[1] - ωₑ)
	du[2] = σ * NTUᴰₐᵢᵣ * Le * ((u[2] - iₑ) + (ωₐ_ᵢₙ * iᵥₐₚₒᵣ_ₜₛ * (1 / Le - 1) * (u[1] - ωₑ)))
	du[3] = σ * ωₐ_ᵢₙ * du[1] / MR
	du[4] = (-u[4] / u[3]) * du[3]
	du[5] = (1 / u[3]) * (σ * (1.0 / (MR * ER)) * du[2] - u[5] * du[3] - ∂Qᵣ / (ṁₛₒₗ_ᵢₙ * iₛₒₗ_ᵢₙ))
	nothing
end

function bca!(res_a, u_a, p)
	res_a[1] = u_a[3] - 1.0
	res_a[2] = u_a[4] - 1.0
	res_a[3] = u_a[5] - 1.0
	nothing
end

function bcb!(res_b, u_b, p)
	res_b[1] = u_b[1] - 1.0
	res_b[2] = u_b[2] - 1.0
	nothing
end


dt = 0.05
tspan = (0.0, 1.0)

Le = 0.85
σ = 1.0
ṁₛₒₗ_ᵢₙ = 7.466666666666666e-5
ξₛₒₗ_ᵢₙ = 0.8
iₛₒₗ_ᵢₙ = -30235.4128
ωₐ_ᵢₙ = 0.022800264832054707
iₐ_ᵢₙ = 88436.57753410653
∂Qᵣ = -12.416666666666666
ṁₐᵢᵣ_ᵢₙ = 0.0003733333333333333
NTUᴰₐᵢᵣ = 4.678477517542263

p = @SVector[Le, ∂Qᵣ, ṁₐᵢᵣ_ᵢₙ, NTUᴰₐᵢᵣ, σ, ṁₛₒₗ_ᵢₙ, ξₛₒₗ_ᵢₙ, iₛₒₗ_ᵢₙ, ωₐ_ᵢₙ, iₐ_ᵢₙ]

u0 = [0.1, 0.1, 1.0001, 0.9, 1.01]

bvp_fun = BVPFunction(
	ionic_liquid_coil_ode!, (bca!, bcb!);
	bcresid_prototype = (zeros(3), zeros(2)), twopoint = Val(true),
)

prob = TwoPointBVProblem(bvp_fun, u0, tspan, p)
sol = solve(prob, RadauIIa7(nested_nlsolve = true, nest_tol = 1e-3), dt = dt, abstol = 1e-5)
testsol = TestSolution(sol)
wp_set = WorkPrecisionSet(prob, abstols, reltols, getfield.(solvers_all, :solver); names = getfield.(solvers_all, :name), appxsol = testsol, maxiters=Int(1e4))
WorkPrecisionSet of 13 wps

Plot the result

fig = begin
        LINESTYLES = Dict(:boundaryvaluediffeq => :solid, :simpleboundaryvaluediffeq => :dash, :wrapper => :dot)
        ASPECT_RATIO = 0.7
        WIDTH = 1200
        HEIGHT = round(Int, WIDTH * ASPECT_RATIO)
        STROKEWIDTH = 2.5

    colors = cgrad(:seaborn_bright, length(solvers_all); categorical = true)
    cycle = Cycle([:marker], covary = true)
    plot_theme = Theme(Lines = (; cycle), Scatter = (; cycle))

    with_theme(plot_theme) do
        fig = Figure(; size = (WIDTH, HEIGHT))
        ax = Axis(fig[1, 1], ylabel = L"Time $\mathbf{(s)}$",
            xlabelsize = 22, ylabelsize = 22,
            xlabel = L"Error: $\mathbf{||f(u^\ast)||_\infty}$",
            xscale = log10, yscale = log10, xtickwidth = STROKEWIDTH,
            ytickwidth = STROKEWIDTH, spinewidth = STROKEWIDTH,
            xticklabelsize = 20, yticklabelsize = 20)

        idxs = sortperm(median.(getfield.(wp_set.wps, :times)))

        ls, scs = [], []

        for (i, (wp, solver)) in enumerate(zip(wp_set.wps[idxs], solvers_all[idxs]))
            (; name, times, errors) = wp
            errors = [err.l∞ for err in errors]
            l = lines!(ax, errors, times; linestyle = LINESTYLES[solver.pkg], label = name,
                linewidth = 5, color = colors[i])
            sc = scatter!(ax, errors, times; label = name, markersize = 16, strokewidth = 2,
                color = colors[i])
            push!(ls, l)
            push!(scs, sc)
        end

        xlims!(ax; high=1)
        ylims!(ax; low=1e-4)

        axislegend(ax, [[l, sc] for (l, sc) in zip(ls, scs)],
            [solver.name for solver in solvers_all[idxs]], "BVP Solvers";
            framevisible=true, framewidth = STROKEWIDTH, position = :rb,
            titlesize = 20, labelsize = 16, patchsize = (40.0f0, 20.0f0))

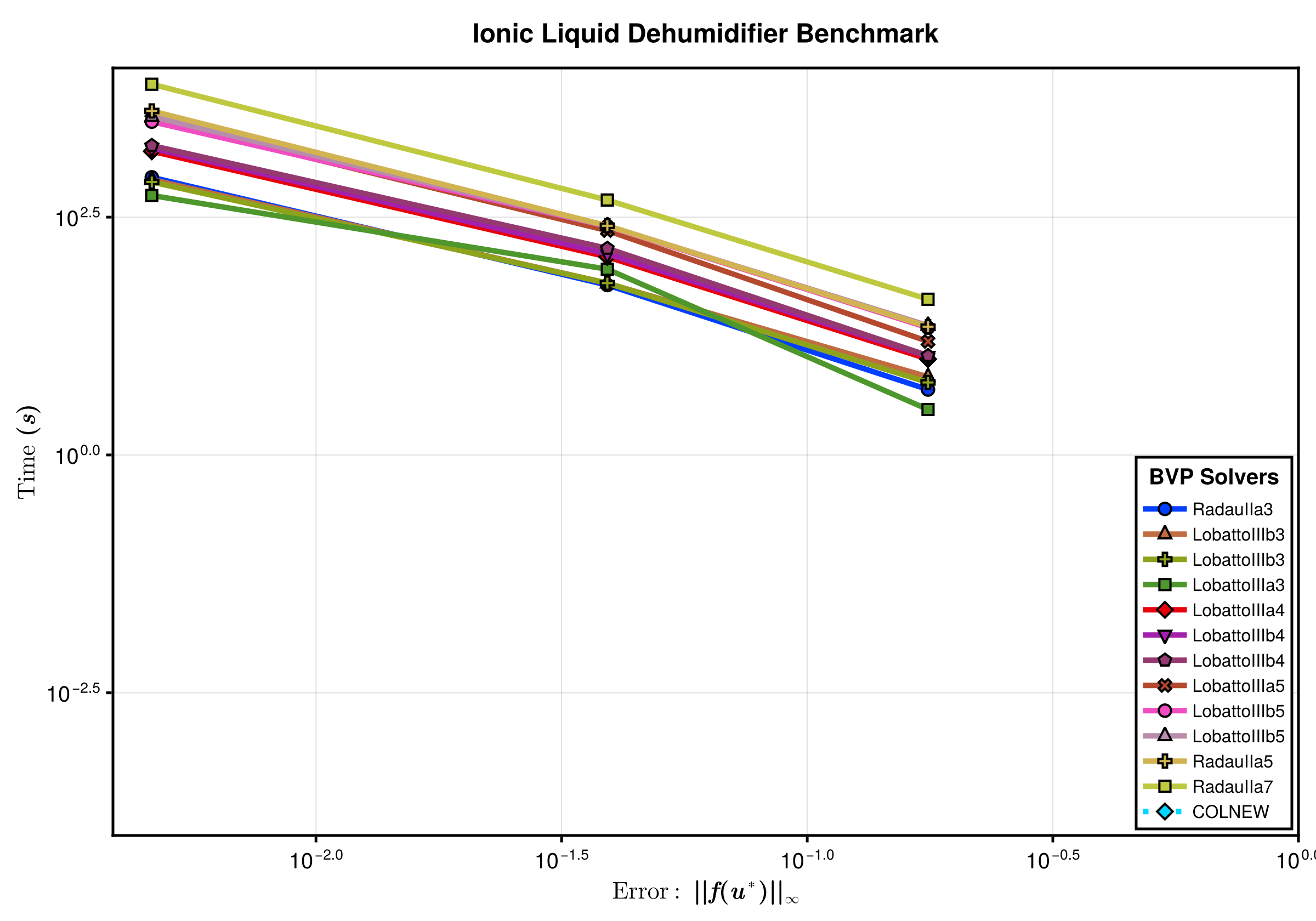

        fig[0, :] = Label(fig, "Ionic Liquid Dehumidifier Benchmark",
            fontsize = 24, tellwidth = false, font = :bold)
        fig
    end
end

Appendix

These benchmarks are a part of the SciMLBenchmarks.jl repository, found at: https://github.com/SciML/SciMLBenchmarks.jl. For more information on high-performance scientific machine learning, check out the SciML Open Source Software Organization https://sciml.ai.

To locally run this benchmark, do the following commands:

using SciMLBenchmarks
SciMLBenchmarks.weave_file("benchmarks/StiffBVP","ionic_liquid_dehumidifier.jmd")
