E5 Work-Precision Diagrams
using OrdinaryDiffEq, DiffEqDevTools, Sundials, Plots, ODEInterfaceDiffEq, LSODA
using LinearAlgebra, StaticArrays, RecursiveFactorization
using OrdinaryDiffEqFIRK
gr()
# E5 Problem from Stiff Test Set
# Exact implementation based on the Fortran feval subroutine
# 4-dimensional stiff ODE system with widely separated rate constants
function e5!(du, u, p, t)
# E5 problem - exact translation from Fortran feval subroutine:
# prod1=7.89D-10*y(1)
# prod2=1.1D7*y(1)*y(3)
# prod3=1.13D9*y(2)*y(3)
# prod4=1.13D3*y(4)
# f(1)=-prod1-prod2
# f(2)=prod1-prod3
# f(4)=prod2-prod4
# f(3)=f(2)-f(4)
prod1 = 7.89e-10 * u[1]
prod2 = 1.1e7 * u[1] * u[3]
prod3 = 1.13e9 * u[2] * u[3]
prod4 = 1.13e3 * u[4]
du[1] = -prod1 - prod2 # f(1)
du[2] = prod1 - prod3 # f(2)
du[4] = prod2 - prod4 # f(4)
du[3] = du[2] - du[4] # f(3) = f(2) - f(4)
end
function e5(u, p, t)
# E5 problem - exact translation from Fortran feval subroutine:
# prod1=7.89D-10*y(1)
# prod2=1.1D7*y(1)*y(3)
# prod3=1.13D9*y(2)*y(3)
# prod4=1.13D3*y(4)
# f(1)=-prod1-prod2
# f(2)=prod1-prod3
# f(4)=prod2-prod4
# f(3)=f(2)-f(4)
prod1 = 7.89e-10 * u[1]
prod2 = 1.1e7 * u[1] * u[3]
prod3 = 1.13e9 * u[2] * u[3]
prod4 = 1.13e3 * u[4]
du1 = -prod1 - prod2 # f(1)
du2 = prod1 - prod3 # f(2)
du4 = prod2 - prod4 # f(4)
du3 = du2 - du4 # f(3) = f(2) - f(4)
SA[du1,du2,du3,du4]
end
# Initial conditions - system starts with all mass in species A
u0 = [1.76e-3, 0.0, 0.0, 0.0]
# Time span - long enough to see both fast and slow time scales
tspan = (0.0, 1e10)
prob = ODEProblem{true, SciMLBase.FullSpecialize}(e5!, u0, tspan)
probstatic = ODEProblem{false}(e5, SVector{4}(u0), tspan)
probbig = ODEProblem{true, SciMLBase.FullSpecialize}(e5!, big.(u0), big.(tspan))
# Generate reference solution
sol = solve(probbig, Rodas5P(), abstol=1/10^60, reltol=1/10^30)
probs = [prob, probstatic]
test_sol = [sol, sol]
abstols = [1.7e-28 for i in 1:2]
reltols = 10.0 .^ -(6 .+ (1:2)./4)Error: ArgumentError: Package OrdinaryDiffEqFIRK not found in current path.
- Run `import Pkg; Pkg.add("OrdinaryDiffEqFIRK")` to install the OrdinaryDi
ffEqFIRK package.ylabels = 10.0 .^ (-30:2:0)

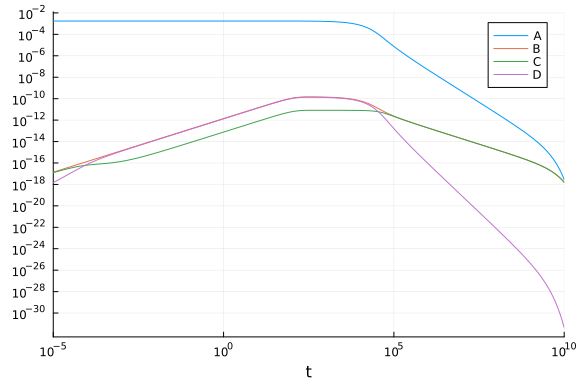

plot(sol, xscale=:log10, yscale=:log10, tspan = (1e-5, 1e10), labels=["A" "B" "C" "D"], yticks = ylabels)Error: UndefVarError: `sol` not definedBenchmarks
setups = [Dict(:alg=>Rosenbrock23()),
Dict(:alg=>Rosenbrock23(), :prob_choice => 2),
Dict(:alg=>lsoda()),
Dict(:alg=>Rodas5P()),
Dict(:alg=>Rodas5P(), :prob_choice => 2),
Dict(:alg=>FBDF()),
Dict(:alg=>QNDF()),
Dict(:alg=>TRBDF2()),
Dict(:alg=>CVODE_BDF()),
#Dict(:alg=>rodas()),
#Dict(:alg=>radau()),
Dict(:alg=>RadauIIA5()),
Dict(:alg=>ROS34PW1a()),
]
wp = WorkPrecisionSet(probs,abstols,reltols,setups; error_estimate = :l2, verbose=false, dense=false,
save_everystep=false,appxsol=test_sol,maxiters=Int(1e5),numruns=10)

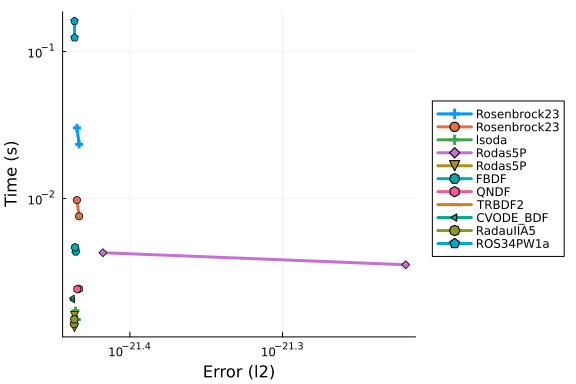

plot(wp)Error: UndefVarError: `test_sol` not definedsetups = [Dict(:alg=>FBDF()),
Dict(:alg=>QNDF()),
Dict(:alg=>CVODE_BDF()),
Dict(:alg=>lsoda()),
Dict(:alg=>ddebdf()),
Dict(:alg=>Rodas5P()),
Dict(:alg=>Rodas5P(), :prob_choice => 2),
Dict(:alg=>rodas()),
Dict(:alg=>radau()),
Dict(:alg=>RadauIIA5()),
]
wp = WorkPrecisionSet(probs,abstols,reltols,setups; verbose=false, dense=false,
save_everystep=false,appxsol=test_sol,maxiters=Int(1e5),numruns=10)
plot(wp)Error: UndefVarError: `test_sol` not definedsetups = [Dict(:alg=>Kvaerno4()),
Dict(:alg=>Kvaerno5()),
Dict(:alg=>CVODE_BDF()),
Dict(:alg=>KenCarp4()),
Dict(:alg=>KenCarp47()),
Dict(:alg=>KenCarp47(), :prob_choice => 2),
Dict(:alg=>KenCarp5()),
Dict(:alg=>lsoda()),
Dict(:alg=>Rodas5P()),
Dict(:alg=>Rodas5P(), :prob_choice => 2),
Dict(:alg=>ImplicitEulerExtrapolation(min_order = 4, init_order = 11,threading = OrdinaryDiffEq.PolyesterThreads())),
Dict(:alg=>ImplicitEulerExtrapolation(min_order = 4, init_order = 11,threading = false)),
Dict(:alg=>ImplicitEulerBarycentricExtrapolation(min_order = 4, init_order = 11, threading = OrdinaryDiffEq.PolyesterThreads())),
Dict(:alg=>ImplicitEulerBarycentricExtrapolation(min_order = 4, init_order = 11, threading = false)),
Dict(:alg=>ImplicitHairerWannerExtrapolation(min_order = 3, init_order = 111,threading = OrdinaryDiffEq.PolyesterThreads())),
Dict(:alg=>ImplicitHairerWannerExtrapolation(min_order = 3, init_order = 11,threading = false)),
]
wp = WorkPrecisionSet(probs,abstols,reltols,setups; verbose=false, dense=false,
save_everystep=false,appxsol=test_sol,maxiters=Int(1e5),numruns=10)

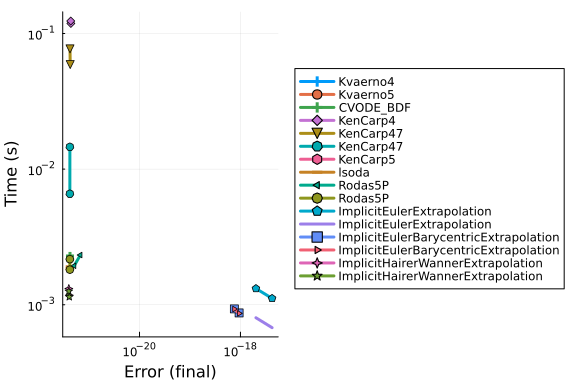

plot(wp)Error: UndefVarError: `test_sol` not definedAppendix
These benchmarks are a part of the SciMLBenchmarks.jl repository, found at: https://github.com/SciML/SciMLBenchmarks.jl. For more information on high-performance scientific machine learning, check out the SciML Open Source Software Organization https://sciml.ai.
To locally run this benchmark, do the following commands:
using SciMLBenchmarks
SciMLBenchmarks.weave_file("benchmarks/StiffODE","E5.jmd")Computer Information:
Julia Version 1.10.10
Commit 95f30e51f41 (2025-06-27 09:51 UTC)
Build Info:
Official https://julialang.org/ release
Platform Info:
OS: Linux (x86_64-linux-gnu)
CPU: 128 × AMD EPYC 7502 32-Core Processor
WORD_SIZE: 64
LIBM: libopenlibm
LLVM: libLLVM-15.0.7 (ORCJIT, znver2)
Threads: 1 default, 0 interactive, 1 GC (on 128 virtual cores)
Environment:
JULIA_CPU_THREADS = 128
JULIA_DEPOT_PATH = /cache/julia-buildkite-plugin/depots/5b300254-1738-4989-ae0a-f4d2d937f953
