Simple Interval Rootfinding (NonlinearSolve.jl vs Roots.jl vs MATLAB)

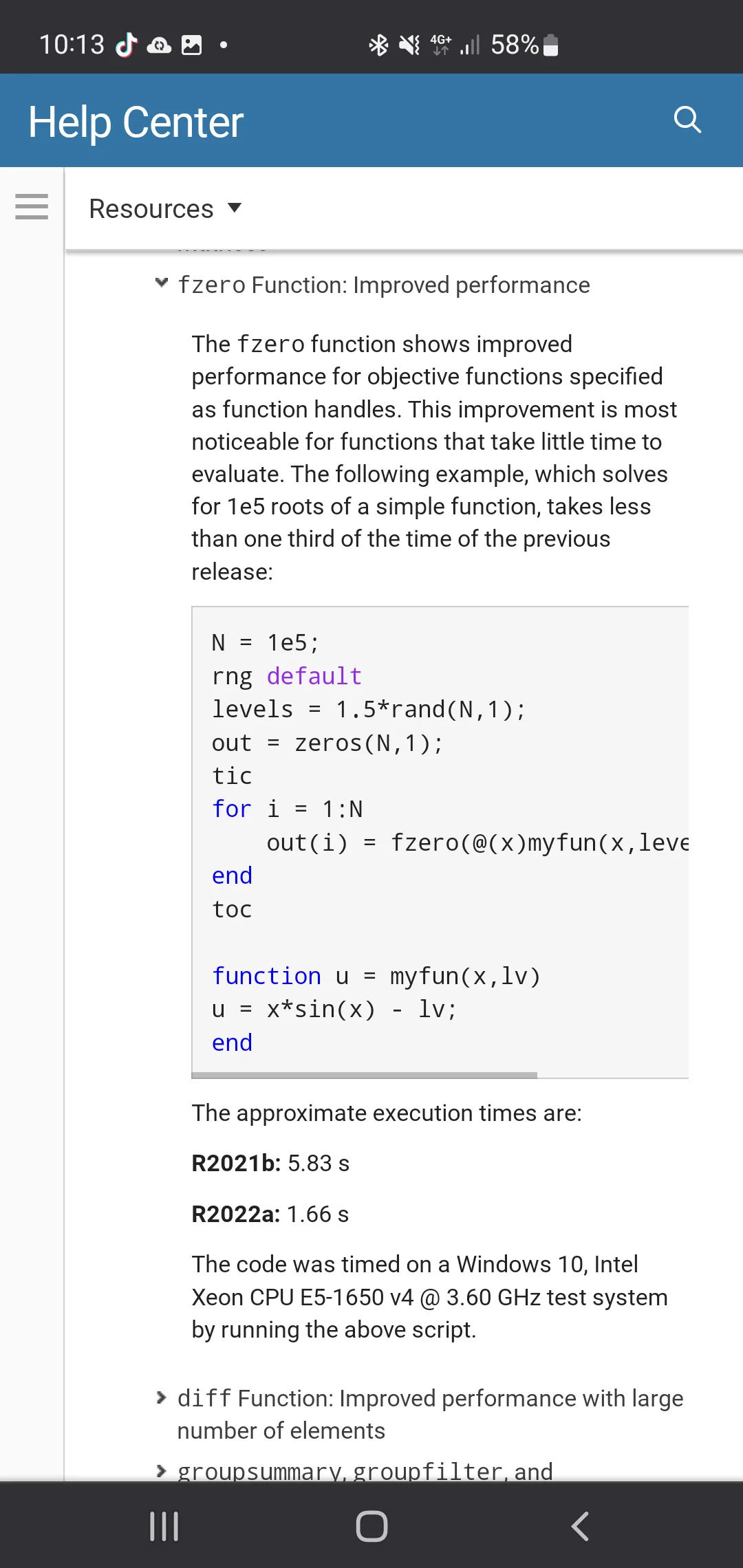

This example comes from MATLAB's documentation showing improved rootfinding performance, and thus can be assumed to be considered optimized from MATLAB's perspective. MATLAB's results are:
In comparison, Roots.jl:
using Roots, BenchmarkTools
const N = 100_000;
levels = 1.5 .* rand(N);
out = zeros(N);
myfun(x, lv) = x * sin(x) - lv
function froots(out, levels, u0)
for i in 1:N
out[i] = find_zero(x->myfun(x, levels[i]), u0)
end
end
@btime froots(out, levels, (0, 2))218.299 ms (100000 allocations: 7.63 MiB)using NonlinearSolve, BenchmarkTools
function f(out, levels, u0)
for i in 1:N
out[i] = solve(IntervalNonlinearProblem{false}(IntervalNonlinearFunction{false}(myfun),
u0, levels[i]), ITP()).u
end
end
function f2(out, levels, u0)
for i in 1:N
out[i] = solve(IntervalNonlinearProblem{false}(IntervalNonlinearFunction{false}(myfun),
u0, levels[i]), NonlinearSolve.Bisection()).u
end
end
function f3(out, levels, u0)
for i in 1:N
out[i] = solve(NonlinearProblem{false}(NonlinearFunction{false}(myfun),
u0, levels[i]), SimpleNewtonRaphson()).u
end
end
@btime f(out, levels, (0.0, 2.0))
@btime f2(out, levels, (0.0, 2.0))
@btime f3(out, levels, 1.0)59.719 ms (0 allocations: 0 bytes)
114.389 ms (0 allocations: 0 bytes)
14.043 ms (0 allocations: 0 bytes)MATLAB 2022a reportedly achieves 1.66s. Try this code yourself: we receive ~0.05 seconds, or a 33x speedup.
Appendix
Appendix
These benchmarks are a part of the SciMLBenchmarks.jl repository, found at: https://github.com/SciML/SciMLBenchmarks.jl. For more information on high-performance scientific machine learning, check out the SciML Open Source Software Organization https://sciml.ai.
To locally run this benchmark, do the following commands:
using SciMLBenchmarks
SciMLBenchmarks.weave_file("benchmarks/IntervalNonlinearProblem","simpleintervalrootfind.jmd")Computer Information:
