Mendes Multistate Model

Taken from Gupta and Mendes, An Overview of Network-Based and -Free Approaches for Stochastic Simulation of Biochemical Systems, Computation, 6 (9), 2018.

using Catalyst, JumpProcesses, JumpProblemLibrary, Plots, Statistics
fmt = :png

:png

Our model is

jprob = JumpProblemLibrary.prob_jump_multistate
rn  = jprob.network
reactions(rn)

18-element Vector{Catalyst.Reaction}:
 kon, S1 + S2 --> S4
 kAon, S1 + S3 --> S5
 kon, S2 + S5 --> S6
 koff, S4 --> S1 + S2
 kAon, S3 + S4 --> S6
 kAoff, S5 --> S1 + S3
 koff, S6 --> S2 + S5
 kAoff, S6 --> S3 + S4
 kAp, S6 --> S7
 koff, S7 --> S2 + S8
 kAoff, S7 --> S4 + S9
 kAdp, S7 --> S6
 kon, S2 + S8 --> S7
 kAon, S1 + S9 --> S8
 kAon, S4 + S9 --> S7
 kAoff, S8 --> S1 + S9
 kAdp, S8 --> S5
 kAdp, S9 --> S3

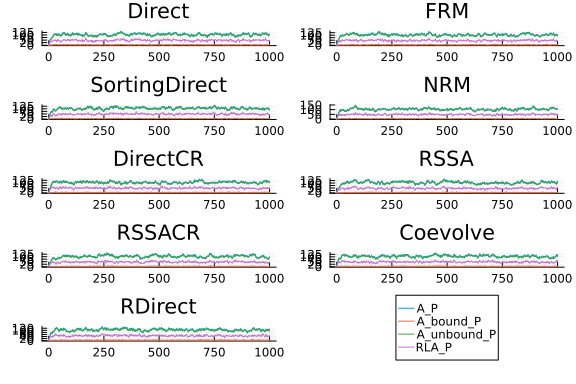

Plot solutions by each method

methods = (Direct(), FRM(), SortingDirect(), NRM(), DirectCR(), RSSA(), RSSACR(), Coevolve(), RDirect())
shortlabels = [string(leg)[15:end-2] for leg in methods]
tf      = 10.0 * jprob.tstop
prob    = DiscreteProblem(rn, jprob.u0, (0.0, tf), jprob.rates)
varlegs = ["A_P" "A_bound_P" "A_unbound_P" "RLA_P"]
@variables t S7(t) S8(t) S9(t)
varsyms = [
    [S7,S8,S9],
    [S9],
    [S7,S8],
    [S7]
]
varidxs = []
for vars in varsyms
    push!(varidxs, [findfirst(isequal(sym),unknowns(rn)) for sym in vars])
end

p = []
for (i,method) in enumerate(methods)
    jump_prob = JumpProblem(rn, prob, method, save_positions=(false, false))
    sol = solve(jump_prob, SSAStepper(), saveat=tf/1000.)
    solv = zeros(1001, 4)
    for (i,varidx) in enumerate(varidxs)
        solv[:,i] = sum(sol[varidx,:], dims=1)
    end
    if i < length(methods)
        push!(p, plot(sol.t, solv, title=shortlabels[i], legend=false, format=fmt))
    else
        push!(p, plot(sol.t, solv, title=shortlabels[i], legend=false, format=fmt))
    end
end
push!(p, plot((1:4)', framestyle = :none, legend=:inside, labels=varlegs))
plot(p..., layout=(6,2), format=fmt)

Benchmarking performance of the methods

function run_benchmark!(t, jump_prob, stepper)
    sol = solve(jump_prob, stepper)
    @inbounds for i in 1:length(t)
        t[i] = @elapsed (sol = solve(jump_prob, stepper))
    end
end

run_benchmark! (generic function with 1 method)

nsims = 100
benchmarks = Vector{Vector{Float64}}()
for method in methods
    jump_prob = JumpProblem(rn, prob, method, save_positions=(false, false))
    stepper = SSAStepper()
    time = Vector{Float64}(undef, nsims)
    run_benchmark!(time, jump_prob, stepper)
    push!(benchmarks, time)
end

medtimes = Vector{Float64}(undef,length(methods))
stdtimes = Vector{Float64}(undef,length(methods))
avgtimes = Vector{Float64}(undef,length(methods))
for i in 1:length(methods)
    medtimes[i] = median(benchmarks[i])
    avgtimes[i] = mean(benchmarks[i])
    stdtimes[i] = std(benchmarks[i])
end
using DataFrames

df = DataFrame(names=shortlabels, medtimes=medtimes, relmedtimes=(medtimes/medtimes[1]),
               avgtimes=avgtimes, std=stdtimes, cv=stdtimes./avgtimes)

sa = [text(string(round(mt,digits=3),"s"),:center,12) for mt in df.medtimes]

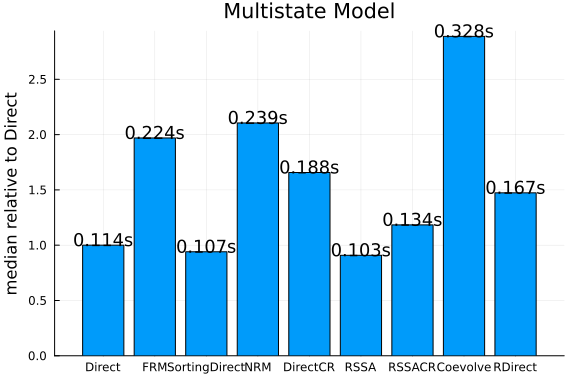

bar(df.names,df.relmedtimes,legend=:false, fmt=fmt)
scatter!(df.names, .05 .+ df.relmedtimes, markeralpha=0, series_annotations=sa, fmt=fmt)
ylabel!("median relative to Direct")
title!("Multistate Model")

Appendix

These benchmarks are a part of the SciMLBenchmarks.jl repository, found at: https://github.com/SciML/SciMLBenchmarks.jl. For more information on high-performance scientific machine learning, check out the SciML Open Source Software Organization https://sciml.ai.

To locally run this benchmark, do the following commands:

using SciMLBenchmarks
SciMLBenchmarks.weave_file("benchmarks/Jumps","Mendes_multistate_example.jmd")
