Multivariate Hawkes Model

using JumpProcesses, Graphs, Statistics, BenchmarkTools, Plots
using OrdinaryDiffEq: Tsit5
fmt = :png
width_px, height_px = default(:size);

Model and example solutions

Let a graph with $V$ nodes, then the multivariate Hawkes process is characterized by $V$ point processes such that the conditional intensity rate of node $i$ connected to a set of nodes $E_i$ in the graph is given by:

\[ \lambda_i^\ast (t) = \lambda + \sum_{j \in E_i} \sum_{t_{n_j} < t} \alpha \exp \left[-\beta (t - t_{n_j}) \right]\]

This process is known as self-exciting, because the occurrence of an event $j$ at $t_{n_j}$ will increase the conditional intensity of all the processes connected to it by $\alpha$. The excited intensity then decreases at a rate proportional to $\beta$.

The conditional intensity of this process has a recursive formulation which can significantly speed the simulation. The recursive formulation for the univariate case is derived in Laub et al. [2]. We derive the compound case here. Let $t_{N_i} = \max \{ t_{n_j} < t \mid j \in E_i \}$ and

\[\begin{split} \phi_i^\ast (t) &= \sum_{j \in E_i} \sum_{t_{n_j} < t} \alpha \exp \left[-\beta (t - t_{N_i} + t_{N_i} - t_{n_j}) \right] \\ &= \exp \left[ -\beta (t - t_{N_i}) \right] \sum_{j \in E_i} \sum_{t_{n_j} \leq t_{N_i}} \alpha \exp \left[-\beta (t_{N_i} - t_{n_j}) \right] \\ &= \exp \left[ -\beta (t - t_{N_i}) \right] \left( \alpha + \phi^\ast (t_{N_i}) \right) \end{split}\]

Then the conditional intensity can be re-written in terms of $\phi_i^\ast (t_{N_i})$

\[ \lambda_i^\ast (t) = \lambda + \phi_i^\ast (t) = \lambda + \exp \left[ -\beta (t - t_{N_i}) \right] \left( \alpha + \phi_i^\ast (t_{N_i}) \right)\]

In Julia, we define a factory for the conditional intensity $\lambda_i$ which returns the brute-force or recursive versions of the intensity given node $i$ and network $g$.

function hawkes_rate(i::Int, g; use_recursion = false)

    @inline @inbounds function rate_recursion(u, p, t)
        λ, α, β, h, urate, ϕ = p
        urate[i] = λ + exp(-β*(t - h[i]))*ϕ[i]
        return urate[i]
    end

    @inline @inbounds function rate_brute(u, p, t)
        λ, α, β, h, urate = p
        x = zero(typeof(t))
        for j in g[i]
            for _t in reverse(h[j])
                ϕij = α * exp(-β * (t - _t))
                if ϕij ≈ 0
                    break
                end
                x += ϕij
            end
        end
        urate[i] = λ + x
        return urate[i]
    end

    if use_recursion
        return rate_recursion
    else
        return rate_brute
    end

end

hawkes_rate (generic function with 1 method)

Given the rate factory, we can create a jump factory which will create all the jumps in our model.

function hawkes_jump(i::Int, g; use_recursion = false)
    rate = hawkes_rate(i, g; use_recursion)
    urate = rate
    @inbounds rateinterval(u, p, t) = p[5][i] == p[1] ? typemax(t) : 2 / p[5][i]
    @inbounds lrate(u, p, t) = p[1]
    @inbounds function affect_recursion!(integrator)
        λ, α, β, h, _, ϕ  = integrator.p
        for j in g[i]
          ϕ[j] *= exp(-β*(integrator.t - h[j]))
          ϕ[j] += α
          h[j] = integrator.t
        end
        integrator.u[i] += 1
    end
    @inbounds function affect_brute!(integrator)
        push!(integrator.p[4][i], integrator.t)
        integrator.u[i] += 1
    end
    return VariableRateJump(
        rate,
        use_recursion ? affect_recursion! : affect_brute!;
        lrate,
        urate,
        rateinterval,
    )
end

function hawkes_jump(u, g; use_recursion = false)
    return [hawkes_jump(i, g; use_recursion) for i = 1:length(u)]
end

hawkes_jump (generic function with 2 methods)

We can then create a factory for Multivariate Hawkes JumpProblems. We can define two types of JumpProblems depending on the aggregator. The Direct() aggregator expects an ODEProblem since it cannot handle the SSAStepper with VariableRateJumps.

function f!(du, u, p, t)
    du .= 0
    nothing
end

function hawkes_problem(
    p,
    agg;
    u = [0.0],
    tspan = (0.0, 50.0),
    save_positions = (false, true),
    g = [[1]],
    use_recursion = false,
)
    oprob = ODEProblem(f!, u, tspan, p)
    jumps = hawkes_jump(u, g; use_recursion)
    jprob = JumpProblem(oprob, agg, jumps...; save_positions = save_positions)
    return jprob
end

hawkes_problem (generic function with 1 method)

The Coevolve() aggregator knows how to handle the SSAStepper, so it accepts a DiscreteProblem.

function hawkes_problem(
    p,
    agg::Coevolve;
    u = [0.0],
    tspan = (0.0, 50.0),
    save_positions = (false, true),
    g = [[1]],
    use_recursion = false,
)
    dprob = DiscreteProblem(u, tspan, p)
    jumps = hawkes_jump(u, g; use_recursion)
    jprob =
        JumpProblem(dprob, agg, jumps...; dep_graph = g, save_positions = save_positions)
    return jprob
end

hawkes_problem (generic function with 2 methods)

Lets solve the problems defined so far. We sample a random graph sampled from the Erdős-Rényi model. This model assumes that the probability of an edge between two nodes is independent of other edges, which we fix at $0.2$. For illustration purposes, we fix $V = 10$.

V = 10
G = erdos_renyi(V, 0.2, seed = 9103)
g = [neighbors(G, i) for i = 1:nv(G)]

10-element Vector{Vector{Int64}}:
 [4, 7]
 [8, 9]
 [4, 5]
 [1, 3]
 [3]
 []
 [1, 8, 9]
 [2, 7]
 [2, 7, 10]
 [9]

We fix the Hawkes parameters at $\lambda = 0.5 , \alpha = 0.1 , \beta = 2.0$ which ensures the process does not explode.

tspan = (0.0, 50.0)
u = [0.0 for i = 1:nv(G)]
p = (0.5, 0.1, 2.0)

(0.5, 0.1, 2.0)

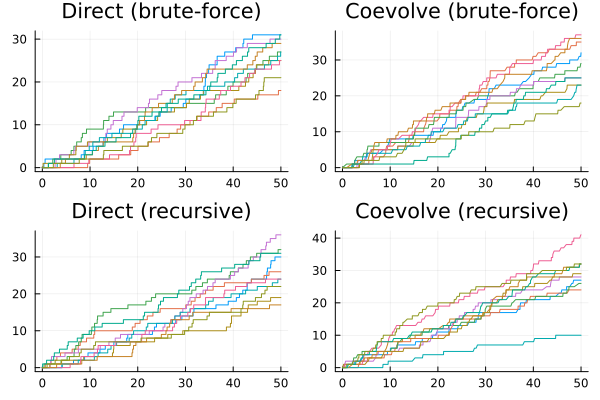

Now, we instantiate the problems, find their solutions and plot the results.

algorithms = Tuple{Any, Any, Bool, String}[
  (Direct(), Tsit5(), false, "Direct (brute-force)"),
  (Coevolve(), SSAStepper(), false, "Coevolve (brute-force)"),
  (Direct(), Tsit5(), true, "Direct (recursive)"),
  (Coevolve(), SSAStepper(), true, "Coevolve (recursive)"),
]

let fig = []
  for (i, (algo, stepper, use_recursion, label)) in enumerate(algorithms)
    @info label
    if use_recursion
        h = zeros(eltype(tspan), nv(G))
        urate = zeros(eltype(tspan), nv(G))
        ϕ = zeros(eltype(tspan), nv(G))
        _p = (p[1], p[2], p[3], h, ϕ, urate)
    else
        h = [eltype(tspan)[] for _ = 1:nv(G)]
        urate = zeros(eltype(tspan), nv(G))
        _p = (p[1], p[2], p[3], h, urate)
    end
    jump_prob = hawkes_problem(_p, algo; u, tspan, g, use_recursion)
    sol = solve(jump_prob, stepper)
    push!(fig, plot(sol.t, sol[1:V, :]', title=label, legend=false, format=fmt))
  end
  fig = plot(fig..., layout=(2,2), format=fmt, size=(width_px, 2*height_px/2))
end

Alternative libraries

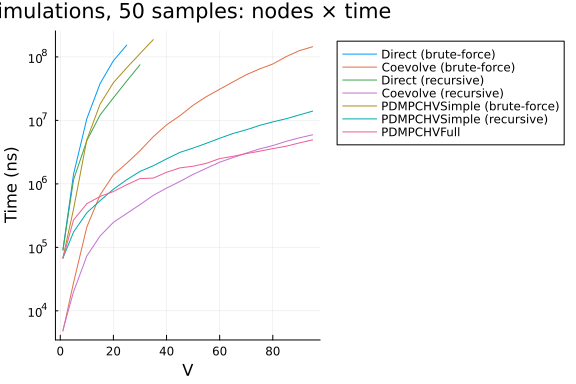

We benchmark JumpProcesses.jl against PiecewiseDeterministicMarkovProcesses.jl and Python Tick library.

In order to compare with the PiecewiseDeterministicMarkovProcesses.jl, we need to reformulate our jump problem as a Piecewise Deterministic Markov Process (PDMP). In this setting, we have two options.

The simple version only requires the conditional intensity. Like above, we define a brute-force and recursive approach. Following the library's specification we define the following functions.

function hawkes_rate_simple_recursion(rate, xc, xd, p, t, issum::Bool)
  λ, _, β, h, ϕ, g = p
  for i in 1:length(g)
    rate[i] = λ + exp(-β * (t - h[i])) * ϕ[i]
  end
  if issum
    return sum(rate)
  end
  return 0.0
end

function hawkes_rate_simple_brute(rate, xc, xd, p, t, issum::Bool)
  λ, α, β, h, g = p
  for i in 1:length(g)
    x = zero(typeof(t))
    for j in g[i]
        for _t in reverse(h[j])
            ϕij = α * exp(-β * (t - _t))
            if ϕij ≈ 0
                break
            end
            x += ϕij
        end
    end
    rate[i] = λ + x
  end
  if issum
    return sum(rate)
  end
  return 0.0
end

function hawkes_affect_simple_recursion!(xc, xd, p, t, i::Int64)
  _, α, β, h, ϕ, g = p
  for j in g[i]
      ϕ[j] *= exp(-β * (t - h[j]))
      ϕ[j] += α
      h[j] = t
  end
end

function hawkes_affect_simple_brute!(xc, xd, p, t, i::Int64)
  push!(p[4][i], t)
end

hawkes_affect_simple_brute! (generic function with 1 method)

Since this is a library for PDMP, we also need to define the ODE problem. In the simple version, we simply set it to zero.

function hawkes_drate_simple(dxc, xc, xd, p, t)
    dxc .= 0
end

hawkes_drate_simple (generic function with 1 method)

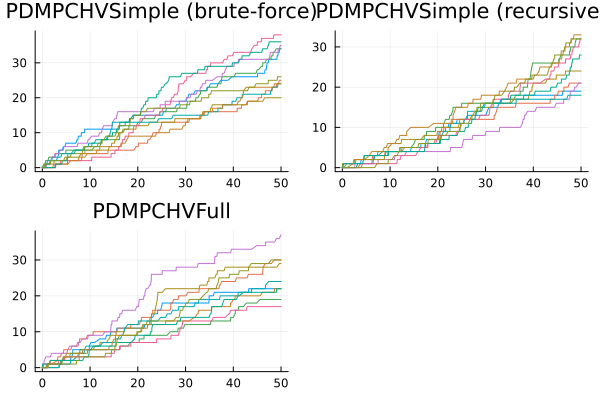

Next, we create a factory for the Multivariate Hawkes PDMPCHVSimple problem.

import LinearAlgebra: I
using PiecewiseDeterministicMarkovProcesses
const PDMP = PiecewiseDeterministicMarkovProcesses

struct PDMPCHVSimple end

function hawkes_problem(p,
                        agg::PDMPCHVSimple;
                        u = [0.0],
                        tspan = (0.0, 50.0),
                        save_positions = (false, true),
                        g = [[1]],
                        use_recursion = true)
    xd0 = Array{Int}(u)
    xc0 = copy(u)
    nu = one(eltype(xd0)) * I(length(xd0))
    if use_recursion
      jprob = PDMPProblem(hawkes_drate_simple, hawkes_rate_simple_recursion,
          hawkes_affect_simple_recursion!, nu, xc0, xd0, p, tspan)
    else
      jprob = PDMPProblem(hawkes_drate_simple, hawkes_rate_simple_brute,
          hawkes_affect_simple_brute!, nu, xc0, xd0, p, tspan)
    end
    return jprob
end

push!(algorithms, (PDMPCHVSimple(), CHV(Tsit5()), false, "PDMPCHVSimple (brute-force)"));
push!(algorithms, (PDMPCHVSimple(), CHV(Tsit5()), true, "PDMPCHVSimple (recursive)"));

The full version requires that we describe how the conditional intensity changes with time which we derive below:

\[\begin{split} \frac{d \lambda_i^\ast (t)}{d t} &= -\beta \sum_{j \in E_i} \sum_{t_{n_j} < t} \alpha \exp \left[-\beta (t - t_{n_j}) \right] \\ &= -\beta \left( \lambda_i^\ast (t) - \lambda \right) \end{split}\]

function hawkes_drate_full(dxc, xc, xd, p, t)
    λ, α, β, _, _, g = p
    for i = 1:length(g)
        dxc[i] = -β * (xc[i] - λ)
    end
end

hawkes_drate_full (generic function with 1 method)

Next, we need to define the intensity rate and the jumps according to library's specification.

function hawkes_rate_full(rate, xc, xd, p, t, issum::Bool)
    λ, α, β, _, _, g = p
    if issum
        return sum(@view(xc[1:length(g)]))
    end
    rate[1:length(g)] .= @view xc[1:length(g)]
    return 0.0
end

function hawkes_affect_full!(xc, xd, p, t, i::Int64)
    λ, α, β, _, _, g = p
    for j in g[i]
        xc[i] += α
    end
end

hawkes_affect_full! (generic function with 1 method)

Finally, we create a factory for the Multivariate Hawkes PDMPCHVFull problem.

struct PDMPCHVFull end

function hawkes_problem(
    p,
    agg::PDMPCHVFull;
    u = [0.0],
    tspan = (0.0, 50.0),
    save_positions = (false, true),
    g = [[1]],
    use_recursion = true,
)
    xd0 = Array{Int}(u)
    xc0 = [p[1] for i = 1:length(u)]
    nu = one(eltype(xd0)) * I(length(xd0))
    jprob = PDMPProblem(hawkes_drate_full, hawkes_rate_full, hawkes_affect_full!, nu, xc0, xd0, p, tspan)
    return jprob
end

push!(algorithms, (PDMPCHVFull(), CHV(Tsit5()), true, "PDMPCHVFull"));

The Python Tick library can be accessed with the PyCall.jl. We install the required Python dependencies with Conda.jl and define a factory for the Multivariate Hawkes PyTick problem.

const BENCHMARK_PYTHON::Bool = tryparse(Bool, get(ENV, "SCIMLBENCHMARK_PYTHON", "true"))
const REBUILD_PYCALL::Bool = tryparse(Bool, get(ENV, "SCIMLBENCHMARK_REBUILD_PYCALL", "true"))

struct PyTick end

if BENCHMARK_PYTHON
  if REBUILD_PYCALL
    using Pkg, Conda

    # PyCall only works with Conda.ROOTENV
    # tick requires python=3.8
    Conda.add("python=3.8", Conda.ROOTENV)
    Conda.add("numpy", Conda.ROOTENV)
    Conda.pip_interop(true, Conda.ROOTENV)
    Conda.pip("install", "tick", Conda.ROOTENV)

    # rebuild PyCall to ensure it links to the python provided by Conda.jl
    ENV["PYTHON"] = ""
    Pkg.build("PyCall")
  end

  ENV["PYTHON"] = ""
  using PyCall
  @info "PyCall" PyCall.libpython PyCall.pyversion PyCall.conda

  function hawkes_problem(
      p,
      agg::PyTick;
      u = [0.0],
      tspan = (0.0, 50.0),
      save_positions = (false, true),
      g = [[1]],
      use_recursion = true,
  )
      λ, α, β = p
      SimuHawkesSumExpKernels = pyimport("tick.hawkes")[:SimuHawkesSumExpKernels]
      jprob = SimuHawkesSumExpKernels(
          baseline = fill(λ, length(u)),
          adjacency = [i in j ? α / β : 0.0 for j in g, i = 1:length(u), u = 1:1],
          decays = [β],
          end_time = tspan[2],
          verbose = false,
          force_simulation = true,
      )
      return jprob
  end

  push!(algorithms, (PyTick(), nothing, true, "PyTick"));
end

Channels:
 - conda-forge
Platform: linux-64
Collecting package metadata (repodata.json): ...working... done
Solving environment: ...working... failed
Error: failed process: Process(setenv(`/cache/julia-buildkite-plugin/depots
/5b300254-1738-4989-ae0a-f4d2d937f953/conda/3/x86_64/bin/conda install -q -
y python=3.8`,["DBUS_SESSION_BUS_ADDRESS=unix:path=/run/user/21581/bus", "B
UILDKITE_PULL_REQUEST_REPO=", "BUILDKITE_SOURCE=webhook", "BUILDKITE_PLUGIN
_COPPERMIND_INPUTS_0=benchmarks/Jumps", "BUILDKITE_GIT_CLONE_FLAGS=-v", "BU
ILDKITE_PLUGIN_CRYPTIC_BASE64_AGENT_PUBLIC_KEY_SECRET=LS0tLS1CRUdJTiBQVUJMS
UMgS0VZLS0tLS0KTUlJQklqQU5CZ2txaGtpRzl3MEJBUUVGQUFPQ0FROEFNSUlCQ2dLQ0FRRUF0
WHNKMzFGbTFKN29IYzlveGZaWQpKY3FxRk5yaXRMUUhxaDVJUHNGS3YySis1K1FVQkZNYURjMHI
3czZ3NDNSMDFobkVNT1lYNDAreUVDT3h5bHErClo3dHdxWlNxS2U1MThwc0RyeWRna0xJNzRnQU
VZWWNTZGdvTGt4YWpWNy9rb0hFTDgrczRKdFRVNUJ6d1RFdXAKTllTZGNQOFhQSmJLekY1RE5qd
WJmeFA5ZjdSN2x6SUx2NWl2Z2lxZTVtbUxGd1lwb0hTRVFVNXRlT09IQStLYwpjUDZ3K2d1Q0Vx
MUZFb0N2MDRyaTFXaWpVZXorMytEWVM4UCtROGRxMGJYUWZUS1Vyc0thMkdnLzVmZ0h5Z0R1CmR
HT2ZsdzUvVEljR3VVbGNsd1hZb2tTRkpSWUJFa2pUOXBCZ2JNNEcyL2tXNGFmZ3d4bHNuN3VsUW
5QNDZVLzEKZFFJREFRQUIKLS0tLS1FTkQgUFVCTElDIEtFWS0tLS0tCg==", "BUILDKITE_ENV
_FILE=/tmp/job-env-01948d8b-9d50-4213-988c-df9b2a12d5fa59504781", "BUILDKIT
E_BUILD_NUMBER=3119", "BUILDKITE_GIT_CLONE_MIRROR_FLAGS=-v", "BUILDKITE_AGE
NT_DEBUG=false", "BUILDKITE_AGENT_META_DATA_QUEUE=juliaecosystem", "BUILDKI
TE_PLUGINS_PATH=/etc/buildkite-agent/plugins", "BUILDKITE_COMMAND_EVAL=true
", "BUILDKITE_AGENT_META_DATA_SANDBOX_CAPABLE=true", "BUILDKITE_ORGANIZATIO
N_SLUG=julialang", "BUILDKITE_PLUGIN_COPPERMIND_INPUTS_1=src/**/*.jl", "BUI
LDKITE_PIPELINE_PROVIDER=github", "BUILDKITE_AGENT_EXPERIMENT=resolve-commi
t-after-checkout", "BUILDKITE_CONFIG_PATH=/etc/buildkite-agent/buildkite-ag
ent.cfg", "BUILDKITE_PIPELINE_TEAMS=sciml-full-access", "BUILDKITE_AGENT_ME
TA_DATA_CRYPTIC_CAPABLE=true", "BUILDKITE_AGENT_ACCESS_TOKEN=bkaj_eyJhbGciO
iJIUzUxMiJ9.eyJzdWIiOiIwMTk0OGQ4Yi05ZDUwLTQyMTMtOTg4Yy1kZjliMmExMmQ1ZmEiLCJ
hdWQiOiIwMTk0OGRiNi1hN2UxLTQxNWYtODcxYi1hODRmMDM5NzlhOWUiLCJpc3MiOiJidWlsZG
tpdGUiLCJleHAiOjE3MzgxNTI3NTYsImlhdCI6MTczNzU0NDM1Niwib3JnYW5pemF0aW9uX2lkI
joiZDQwOTgyM2MtNWZhNy00MWM4LTkwMzMtNzI2OWM1ZmRlNGYzIn0.iak80kBLgJPm8STf-e8C
grQsbKhLqCSf34kZz2lG1145z7TQqsASzmmNir-4_Lrbtyt7lusr-OoILgPvYRXnRw", "BUILD
KITE_PLUGIN_CRYPTIC_BASE64_SIGNED_JOB_ID_SECRET=NaOhkp6CvOqsYTsaDXbXsWZCege
pRFjhgb2+ydKOkT6Xv63BHiGDDZ0/xLiU1fZJ4pZ6XURYI05eWzkhdTXQDkU51tSYu/um6nZG8y
mRoSPsZfmQ+j2Po5/Bn7JgEJ+odKUO50rJp/dEKL2PeuSlPlCGH+zrMspw0ec2F9dN1a7PFuN+F
oPmHCPVgchW6XF8Kg5+G3bho6plqiGo+U8YSBrpjvWb+ZElf6LEb+3+LxI7nbfKaQefmPjl90fb
sC+SDLAn9eYmUMGRFqBkI3Ud6/IgdTOd0QpJcxL2Z61ZoWCqBguow1kYWKVkkzC/hL0HonXoSUw
Mxa3nVonp4jBo1w==", "BUILDKITE_PLUGIN_COPPERMIND_S3_PREFIX=s3://julialang-b
uildkite-artifacts/scimlbenchmarks", "BUILDKITE_BUILD_CREATOR_EMAIL=account
s@chrisrackauckas.com", "XKB_CONFIG_ROOT=/cache/julia-buildkite-plugin/depo
ts/5b300254-1738-4989-ae0a-f4d2d937f953/artifacts/f8b49c7c45b400e3f5c4002d1
9645d4b88712c0c/share/X11/xkb", "BUILDKITE_SSH_KEYSCAN=true", "BUILDKITE_PR
OJECT_SLUG=julialang/scimlbenchmarks-dot-jl", "BUILDKITE_INITIAL_JOB_ID=019
48d8b-4f0c-41a2-b3e6-cc08e43c5c98", "BUILDKITE_BIN_PATH=/usr/bin", "PWD=/ca
che/build/exclusive-amdci3-0/julialang/scimlbenchmarks-dot-jl", "GRDIR=/cac
he/julia-buildkite-plugin/depots/5b300254-1738-4989-ae0a-f4d2d937f953/artif
acts/cac6855585def46d7fa06ba4243521b00fa28a8d", "BUILDKITE_GIT_CHECKOUT_FLA
GS=-f", "BUILDKITE_COMPUTE_TYPE=self-hosted", "BUILDKITE_GIT_SUBMODULES=tru
e", "BUILDKITE_AGENT_META_DATA_OS=linux", "CI=true", "BUILDKITE_STEP_KEY=be
nchmark-benchmarks-Jumps", "BUILDKITE_STEP_IDENTIFIER=benchmark-benchmarks-
Jumps", "BUILDKITE_PLUGIN_COPPERMIND_OUTPUTS_0=markdown/**/figures/*.png",
"CONDA_PREFIX=/cache/julia-buildkite-plugin/depots/5b300254-1738-4989-ae0a-
f4d2d937f953/conda/3/x86_64", "BUILDKITE_PLUGIN_COPPERMIND_INPUTS_2=./*.tom
l", "BUILDKITE_PLUGIN_COPPERMIND_OUTPUTS_3=markdown/**/*.svg", "BUILDKITE_A
GENT_PID=2", "BUILDKITE_LAST_HOOK_EXIT_STATUS=0", "BUILDKITE_AGENT_META_DAT
A_EXCLUSIVE=true", "BUILDKITE_PLUGIN_COPPERMIND_OUTPUTS_6=script/**/*.jl",
"BUILDKITE_BUILD_CREATOR=Christopher Rackauckas", "BUILDKITE_REBUILT_FROM_B
UILD_ID=", "OPENBLAS_DEFAULT_NUM_THREADS=1", "BUILDKITE_BRANCH=master", "JU
LIA_DEPOT_PATH=/cache/julia-buildkite-plugin/depots/5b300254-1738-4989-ae0a
-f4d2d937f953", "BUILDKITE_PLUGIN_COPPERMIND_OUTPUTS_5=pdf/**/*.pdf", "BUIL
DKITE_AGENT_DEBUG_HTTP=false", "SHELL=/shells/bash", "BUILDKITE=true", "BUI
LDKITE_PLUGIN_CRYPTIC_PRIVILEGED=true", "BUILDKITE_HOOKS_PATH=/hooks", "BUI
LDKITE_PIPELINE_DEFAULT_BRANCH=master", "BUILDKITE_PLUGIN_NAME=COPPERMIND",
 "BUILDKITE_REBUILT_FROM_BUILD_NUMBER=", "HOME=/root", "BUILDKITE_PLUGIN_CO
PPERMIND_OUTPUTS_4=notebook/**/*.ipynb", "BUILDKITE_S3_DEFAULT_REGION=us-ea
st-1", "BUILDKITE_TRIGGERED_FROM_BUILD_PIPELINE_SLUG=", "BUILDKITE_BUILD_CH
ECKOUT_PATH=/cache/build/exclusive-amdci3-0/julialang/scimlbenchmarks-dot-j
l", "BUILDKITE_SCRIPT_PATH=# Clear out these secrets as they're not needed
during the actual build\nBUILDKITE_S3_ACCESS_KEY_ID=\"\" BUILDKITE_S3_SECRE
T_ACCESS_KEY=\"\" ./.buildkite/build_benchmark.sh \"benchmarks/Jumps\"\n",
"INVOCATION_ID=ed9a44182cac424599c57d13973a3cde", "BUILDKITE_PLUGIN_COPPERM
IND_OUTPUTS_2=markdown/**/*.pdf", "LANG=en_US.UTF-8", "BUILDKITE_PIPELINE_N
AME=SciMLBenchmarks.jl", "SHLVL=3", "XDG_RUNTIME_DIR=/run/user/21581", "OLD
PWD=/cache/julia-buildkite-plugin/depots/5b300254-1738-4989-ae0a-f4d2d937f9
53", "FONTCONFIG_FILE=/cache/julia-buildkite-plugin/depots/5b300254-1738-49
89-ae0a-f4d2d937f953/artifacts/bd752d7807f5f10e2dce3d2b2b683589fa03d31a/etc
/fonts/fonts.conf", "BUILDKITE_PLUGIN_CONFIGURATION={\"inputs\":[\"benchmar
ks/Jumps\",\"src/**/*.jl\",\"./*.toml\"],\"outputs\":[\"markdown/**/figures
/*.png\",\"markdown/**/*.md\",\"markdown/**/*.pdf\",\"markdown/**/*.svg\",\
"notebook/**/*.ipynb\",\"pdf/**/*.pdf\",\"script/**/*.jl\"],\"s3_prefix\":\
"s3://julialang-buildkite-artifacts/scimlbenchmarks\"}", "BUILDKITE_BUILD_P
ATH=/cache/build", "BUILDKITE_BUILD_AUTHOR_EMAIL=accounts@chrisrackauckas.c
om", "BUILDKITE_TIMEOUT=10080", "BUILDKITE_GIT_MIRRORS_PATH=/cache/repos",
"BUILDKITE_STRICT_SINGLE_HOOKS=false", "BUILDKITE_LABEL=:hammer: benchmarks
/Jumps", "FONTCONFIG_PATH=/cache/julia-buildkite-plugin/depots/5b300254-173
8-4989-ae0a-f4d2d937f953/artifacts/bd752d7807f5f10e2dce3d2b2b683589fa03d31a
/etc/fonts", "JOURNAL_STREAM=8:667266937", "BUILDKITE_AGENT_META_DATA_SANDB
OX_JL=true", "BUILDKITE_BUILD_CREATOR_TEAMS=juliagpu-full-access:sciml-full
-access", "BUILDKITE_PROJECT_PROVIDER=github", "BUILDKITE_S3_SECRET_ACCESS_
KEY=", "GKS_USE_CAIRO_PNG=true", "BUILDKITE_REPO_MIRROR=/cache/repos/https-
--github-com-SciML-SciMLBenchmarks-jl-git", "GIT_TERMINAL_PROMPT=0", "BUILD
KITE_JOB_ID=01948d8b-9d50-4213-988c-df9b2a12d5fa", "SYSTEMD_EXEC_PID=923513
", "BUILDKITE_REDACTED_VARS=*_PASSWORD,*_SECRET,*_TOKEN,*_PRIVATE_KEY,*_ACC
ESS_KEY,*_SECRET_KEY,*_CONNECTION_STRING", "BUILDKITE_BUILD_AUTHOR=Christop
her Rackauckas", "USER=sabae", "GKSwstype=100", "BUILDKITE_REPO=https://git
hub.com/SciML/SciMLBenchmarks.jl.git", "BUILDKITE_GIT_FETCH_FLAGS=-v --prun
e --tags", "BUILDKITE_LOCAL_HOOKS_ENABLED=true", "MANAGERPID=7863", "BUILDK
ITE_S3_ACCESS_KEY_ID=", "BUILDKITE_GIT_MIRRORS_LOCK_TIMEOUT=300", "BUILDKIT
E_AGENT_ID=01948db6-a7e1-415f-871b-a84f03979a9e", "BUILDKITE_GIT_MIRRORS_SK
IP_UPDATE=false", "BUILDKITE_ARTIFACT_PATHS=", "BUILDKITE_BUILD_URL=https:/
/buildkite.com/julialang/scimlbenchmarks-dot-jl/builds/3119", "BUILDKITE_ME
SSAGE=Merge pull request #1115 from vyudu/egfr\n\nTesting JumpProcesses - E
GFR benchmark", "BUILDKITE_RETRY_COUNT=0", "LOGNAME=sabae", "JULIA_CPU_THRE
ADS=128", "BUILDKITE_PLUGIN_JULIA_CACHE_DIR=/cache/julia-buildkite-plugin",
 "BUILDKITE_PLUGIN_COPPERMIND_INPUT_HASH=3ba2386f3eae02e3ee81c8c48e1ebcdbf0
f3e613444fc4e53135d91b12a5cfbb", "BUILDKITE_PLUGIN_CRYPTIC_BASE64_AGENT_PRI
VATE_KEY_SECRET=LS0tLS1CRUdJTiBSU0EgUFJJVkFURSBLRVktLS0tLQpNSUlFcFFJQkFBS0N
BUUVBdFhzSjMxRm0xSjdvSGM5b3hmWllKY3FxRk5yaXRMUUhxaDVJUHNGS3YySis1K1FVCkJGTW
FEYzByN3M2dzQzUjAxaG5FTU9ZWDQwK3lFQ094eWxxK1o3dHdxWlNxS2U1MThwc0RyeWRna0xJN
zRnQUUKWVljU2Rnb0xreGFqVjcva29IRUw4K3M0SnRUVTVCendURXVwTllTZGNQOFhQSmJLekY1
RE5qdWJmeFA5ZjdSNwpseklMdjVpdmdpcWU1bW1MRndZcG9IU0VRVTV0ZU9PSEErS2NjUDZ3K2d
1Q0VxMUZFb0N2MDRyaTFXaWpVZXorCjMrRFlTOFArUThkcTBiWFFmVEtVcnNLYTJHZy81ZmdIeW
dEdWRHT2ZsdzUvVEljR3VVbGNsd1hZb2tTRkpSWUIKRWtqVDlwQmdiTTRHMi9rVzRhZmd3eGxzb
jd1bFFuUDQ2VS8xZFFJREFRQUJBb0lCQVFDTU5sVjRUbUlPWC8raQpHSDh3ZzVXekRSTy9MU1gr
eXlFbzFHQ282NW9lcDdDNDVNUjZXdUpFUzRKbjdSVkpoczVHSkg0cDhYdi9TYkdmCk9wVEFiTCt
6VVdSSUFPNC9tMWRSYTJhN1NzY1d4RDN6N0dOMkhtK3E5elBlSHAxd3pIZU5aZ29BR0htM3RyUU
0KMGpidUczN09OSG1YdGQ1MEYyVHo1TmcwN0hURkJwV3hMMjJwNm9aZzgyUEk0OXIrdUpWWmZ5M
U5HZVRnaFA4cgp2dVRVTVJIcldZa25YbUR1eDVSMHNIdDFoU2FvTXBFbSsrMWc1V09rSzZDTGFJ
bEV0ZitWVVBvR0piYlNYRzNJCmo5N1h5a3NGUDhGZ24wMWx4ZktGV1p4MXlnTVdsUm00SFNCTWV
kc1FpWStqeG5Sd3BtRnh5L2pIOVhFTUppT0wKQSsvVFdCbUJBb0dCQU52cXROQjRuVS9zODIxTU
9oalRPTmtFOGNJOENxV1BRRTZXcEFOYVY5UkVVcGVCZzhmMgpjTXg2VFMweE9EU0JRUk9PRnNEU
G9pc1E0VVRGQmFialBLTU41d2IzNFVKYmN4V0ZwcGlLUHJMa09Zdmtqb01VCkNSb1pKK05Lb253
RWh5bWJ0TG0yMHhmUUZCamY1R1QvMHJZUWcxUkN1OVllSmE0Z3NWYWtSNGh4QW9HQkFOTkIKMzh
xenJhTTBDeHhrSnZkVmlTY3g2MFowN2g4OHFISy9SV2dVK3ZZaitwZy9ibXBwMmdiUXZkYTJxaS
84UEl2OApSb0JwcmY2Y285TmdSa2JmY05xZmFnM1Z5SDhBNW1iUE1nK0s4YmFuKzlwU003WkREV
W1sdU03R3ZRSW5OVnBCCnBJcE1uWEk5eDZSSFlpOFF2MHhXOXcyUmpmS09TbElYZFlITjZwOUZB
b0dCQUp0NXdwMkVPRXR5VE9NZnVnOGsKL1pMSVlSY2VGYlRZb3ZFc3BRWE4wRHc4bFZ1UmNCWmx
6M2R3bTdGd2s3ampESndEbjJodklzcHBvNmxYMVZnWQpYUjAxemZocU5QSVI3em52QkVuaHF0UV
ViKzdNQmtqN1dEZ0FRdWY1TXdpVXR1NGVxOVdFUUpjY1A2a2FXTUZpCjc1aFI4bGNXMnU5VTN2V
E5Iak1QNzVheEFvR0JBSm5HdExsZlMwQ21USVF4SHZBaE1rSDJvMVZaSGxCY25oMVEKdjV3QTBh
RkVGVkNuczU4QVNEVjMwd2d0VlBxeTkvdkoraVBWU1ZNeUFFcUlKUC9IKytVWDcySDh3UUk1ekh
6Lwp5MmZtOHdYTGg1ZW5DSDllbFppTGFsZ1I4RmxWNHc4OUF5R3NuVnNnUDJlRWtxTEI1UTRUcT
ZnVDBLakVETE51CjRobEhvOGFsQW9HQUhBVGltTGRkS0JFTkN2MXZyNnZ0d3JCZGRCbWlGSWFwa
VcvMk5acWxCTFp1bEp6MEwzdCsKM3FvSUF0Uisxd2xpWkQwZGJnRGdVeVRMcnN5Y1RDSkZIczNI
ZTFXb3NCSzcxTmlncFZhWEVzWnFpOHNENjlvUQo2QkFnaEdvbnNGbTEydzhhRGNDdm92WUxLTlh
VV1BFT1c0akdvd2k0Tmx4NGZidHlkYXpIUEdnPQotLS0tLUVORCBSU0EgUFJJVkFURSBLRVktLS
0tLQo=", "BUILDKITE_PIPELINE_SLUG=scimlbenchmarks-dot-jl", "BUILDKITE_SHELL
=/bin/bash -e -c", "BUILDKITE_PLUGINS_ENABLED=true", "LANGUAGE=en_US", "GKS
_FONTPATH=/cache/julia-buildkite-plugin/depots/5b300254-1738-4989-ae0a-f4d2
d937f953/artifacts/cac6855585def46d7fa06ba4243521b00fa28a8d", "BUILDKITE_AG
ENT_NAME=exclusive-amdci3.0", "BUILDKITE_STEP_ID=01948d8b-9d26-4245-b7e4-1e
6633f5d19f", "BUILDKITE_PLUGIN_COPPERMIND_OUTPUTS_1=markdown/**/*.md", "BUI
LDKITE_TAG=", "OPENBLAS_MAIN_FREE=1", "PATH=/cache/julia-buildkite-plugin/j
ulia_installs/bin/linux/x64/1.10/julia-1.10-latest-linux-x86_64/bin:/usr/lo
cal/sbin:/usr/local/bin:/usr/sbin:/usr/bin:/sbin:/bin:/usr/games:/usr/local
/games:/snap/bin:/usr/bin:/usr/local/bin:/usr/bin:/bin", "GKS_ENCODING=utf8
", "BUILDKITE_AGENT_META_DATA_NUM_CPUS=128", "BUILDKITE_TRIGGERED_FROM_BUIL
D_NUMBER=", "BUILDKITE_AGENT_META_DATA_CONFIG_GITSHA=f1058577", "BUILDKITE_
COMMAND=# Clear out these secrets as they're not needed during the actual b
uild\nBUILDKITE_S3_ACCESS_KEY_ID=\"\" BUILDKITE_S3_SECRET_ACCESS_KEY=\"\" .
/.buildkite/build_benchmark.sh \"benchmarks/Jumps\"\n", "LIBDECOR_PLUGIN_DI
R=/cache/julia-buildkite-plugin/depots/5b300254-1738-4989-ae0a-f4d2d937f953
/artifacts/38e215c51e5c0f77bc7a8813ba4586632a8fc750/lib/libdecor/plugins-1"
, "BUILDKITE_PLUGIN_VALIDATION=false", "BUILDKITE_AGENT_META_DATA_ARCH=x86_
64", "CONDARC=/cache/julia-buildkite-plugin/depots/5b300254-1738-4989-ae0a-
f4d2d937f953/conda/3/x86_64/condarc-julia.yml", "FORCE_SANDBOX_MODE=unprivi
leged", "BUILDKITE_TRIGGERED_FROM_BUILD_ID=", "TERM=xterm-256color", "PYTHO
NIOENCODING=UTF-8", "BUILDKITE_PULL_REQUEST_BASE_BRANCH=", "BUILDKITE_PIPEL
INE_ID=5b300254-1738-4989-ae0a-f4d2d937f953", "_=/cache/julia-buildkite-plu
gin/julia_installs/bin/linux/x64/1.10/julia-1.10-latest-linux-x86_64/bin/ju
lia", "BUILDKITE_BUILD_ID=01948d8b-4f01-487a-a3b5-5fe7a3c6faa5", "BUILDKITE
_AGENT_ENDPOINT=https://agent.buildkite.com/v3", "BUILDKITE_PLUGINS=[{\"git
hub.com/staticfloat/cryptic-buildkite-plugin#v2\":{\"files\":[\".buildkite/
secrets/token.toml\"],\"variables\":[\"BUILDKITE_S3_ACCESS_KEY_ID=\\\"U2Fsd
GVkX1+x3xs1ZRRZRt3FmwFQmYYKnpV7o8xKkX5Ib6y0o5fv0+rskVAj+JKu\\\"\",\"BUILDKI
TE_S3_SECRET_ACCESS_KEY=\\\"U2FsdGVkX1+LWh1yX7LsMBlecEJLc08eJrgOhurhd47CY1/
jS3wCGVCQmS1t6f2j70spBoFdfc9kn2naj8HH5A==\\\"\",\"BUILDKITE_S3_DEFAULT_REGI
ON=\\\"U2FsdGVkX18ccoE9FmtkwsCm1x0MLMBlN/FLcAyKkY4=\\\"\"]}},{\"github.com/
JuliaCI/julia-buildkite-plugin#v1\":{\"version\":\"1.10\"}},{\"github.com/s
taticfloat/sandbox-buildkite-plugin\":{\"gid\":1000,\"uid\":1000,\"rootfs_u
rl\":\"https://github.com/thazhemadam/openmodelica-rootfs-image/releases/do
wnload/v1.23.0/rootfs-openmodelica-v1.23.0.amd64.tar.gz\",\"workspaces\":[\
"/cache/julia-buildkite-plugin:/cache/julia-buildkite-plugin\"],\"rootfs_tr
eehash\":\"82970243dc4f188e599a976abc20951f4aba2912\"}},{\"github.com/stati
cfloat/coppermind-buildkite-plugin#v1\":{\"inputs\":[\"benchmarks/Jumps\",\
"src/**/*.jl\",\"./*.toml\"],\"outputs\":[\"markdown/**/figures/*.png\",\"m
arkdown/**/*.md\",\"markdown/**/*.pdf\",\"markdown/**/*.svg\",\"notebook/**
/*.ipynb\",\"pdf/**/*.pdf\",\"script/**/*.jl\"],\"s3_prefix\":\"s3://julial
ang-buildkite-artifacts/scimlbenchmarks\"}}]", "BUILDKITE_SOCKETS_PATH=/roo
t/.buildkite-agent/sockets", "SANDBOX_PERSISTENCE_DIR=/cache/sandbox_persis
tence", "BUILDKITE_GIT_CLEAN_FLAGS=-ffxdq", "BUILDKITE_COMMIT=d44f9459eeac4
6f1151a3bfaba382886676e6690", "BUILDKITE_PULL_REQUEST=false", "BUILDKITE_OR
GANIZATION_ID=d409823c-5fa7-41c8-9033-7269c5fde4f3", "GKS_QT=env LD_LIBRARY
_PATH=/cache/julia-buildkite-plugin/depots/5b300254-1738-4989-ae0a-f4d2d937
f953/artifacts/f839432e3d2904a5c847b217ef0c0f489377ecc5/lib:/cache/julia-bu
ildkite-plugin/depots/5b300254-1738-4989-ae0a-f4d2d937f953/artifacts/5acd76
6faaca59c3c1f3cfa67e2bf6dcf1e3e883/lib:/cache/julia-buildkite-plugin/depots
/5b300254-1738-4989-ae0a-f4d2d937f953/artifacts/08ab7db13fbc32076a77781b2f8
bd372cf4c9a8d/lib:/cache/julia-buildkite-plugin/julia_installs/bin/linux/x6
4/1.10/julia-1.10-latest-linux-x86_64/bin/../lib/julia:/cache/julia-buildki
te-plugin/depots/5b300254-1738-4989-ae0a-f4d2d937f953/artifacts/0ccc8805e50
47cf9fbd848c4f7d4c15715aad7c9/lib:/cache/julia-buildkite-plugin/depots/5b30
0254-1738-4989-ae0a-f4d2d937f953/artifacts/dc526f26fb179a3f68eb13fcbe5d2d2a
5aa7eeac/lib:/cache/julia-buildkite-plugin/depots/5b300254-1738-4989-ae0a-f
4d2d937f953/artifacts/812bb7cf607c01b79ab9407ffed3a3e924c1af83/lib:/cache/j
ulia-buildkite-plugin/depots/5b300254-1738-4989-ae0a-f4d2d937f953/artifacts
/6d8a1f48d4b47dc03fa048d88680be84ae15e5fc/lib:/cache/julia-buildkite-plugin
/depots/5b300254-1738-4989-ae0a-f4d2d937f953/artifacts/b3ddd583e7aec92a77cf
5961fad01fd7063c1d40/lib:/cache/julia-buildkite-plugin/depots/5b300254-1738
-4989-ae0a-f4d2d937f953/artifacts/494c807a751dcd5c5f898d9954115592fcb3e955/
lib:/cache/julia-buildkite-plugin/depots/5b300254-1738-4989-ae0a-f4d2d937f9
53/artifacts/a0f4f1441f9fabbc6b0c3a1bf38bfa415fce0bab/lib:/cache/julia-buil
dkite-plugin/depots/5b300254-1738-4989-ae0a-f4d2d937f953/artifacts/2b18d04d
0b7fdaa8e5ddbf432b44048a3571f05b/lib:/cache/julia-buildkite-plugin/depots/5
b300254-1738-4989-ae0a-f4d2d937f953/artifacts/96bc7b9ddb319d1a051535c85184a
a2bf42dbd8b/lib:/cache/julia-buildkite-plugin/depots/5b300254-1738-4989-ae0
a-f4d2d937f953/artifacts/bd752d7807f5f10e2dce3d2b2b683589fa03d31a/lib:/cach
e/julia-buildkite-plugin/depots/5b300254-1738-4989-ae0a-f4d2d937f953/artifa
cts/0a1006d282bce91b5cd408c714cbb95d3bb4f515/lib:/cache/julia-buildkite-plu
gin/depots/5b300254-1738-4989-ae0a-f4d2d937f953/artifacts/59eff635528e6914e
1a96db241e950195574903b/lib:/cache/julia-buildkite-plugin/depots/5b300254-1
738-4989-ae0a-f4d2d937f953/artifacts/2bb2b0081086bcb24e6bd287b7416b6b61d856
a3/lib:/cache/julia-buildkite-plugin/depots/5b300254-1738-4989-ae0a-f4d2d93
7f953/artifacts/d632a0145c0b967e10f0612438e65bf33ce26882/lib:/cache/julia-b
uildkite-plugin/depots/5b300254-1738-4989-ae0a-f4d2d937f953/artifacts/2b9ac
56bc0585f3b03cd92f988f0d07c6ab12822/lib:/cache/julia-buildkite-plugin/depot
s/5b300254-1738-4989-ae0a-f4d2d937f953/artifacts/8223b86c51229362d4689de6a5
127d0b80ea77bd/lib:/cache/julia-buildkite-plugin/depots/5b300254-1738-4989-
ae0a-f4d2d937f953/artifacts/e2512e1cd411449b9bede7b4294c7409c9973345/lib:/c
ache/julia-buildkite-plugin/depots/5b300254-1738-4989-ae0a-f4d2d937f953/art
ifacts/d4f3ff9736df0dda120f8dc1d27174b0d5696fb1/lib:/cache/julia-buildkite-
plugin/depots/5b300254-1738-4989-ae0a-f4d2d937f953/artifacts/b8a470e4553346
122607f94ec60d83c77f061cd6/lib:/cache/julia-buildkite-plugin/depots/5b30025
4-1738-4989-ae0a-f4d2d937f953/artifacts/eb13375496c29fe52101a0e6710c54ff87a
a0e20/lib:/cache/julia-buildkite-plugin/depots/5b300254-1738-4989-ae0a-f4d2
d937f953/artifacts/3ded11a619b50414af902abd0a7a5bb6426b5b92/lib:/cache/juli
a-buildkite-plugin/depots/5b300254-1738-4989-ae0a-f4d2d937f953/artifacts/bd
1f25e7053ebc00ee7d82f3c5ec4cf1e9a51e17/lib:/cache/julia-buildkite-plugin/de
pots/5b300254-1738-4989-ae0a-f4d2d937f953/artifacts/cf5d5f8a6109be3f9c460a3
9768f57a3e53ff11d/lib:/cache/julia-buildkite-plugin/depots/5b300254-1738-49
89-ae0a-f4d2d937f953/artifacts/c8a20a2030f10b70947d8d2a6bff7f8b5f343fe9/lib
:/cache/julia-buildkite-plugin/depots/5b300254-1738-4989-ae0a-f4d2d937f953/
artifacts/0631e2a6a31b5692eec7a575836451b16b734ec0/lib:/cache/julia-buildki
te-plugin/depots/5b300254-1738-4989-ae0a-f4d2d937f953/artifacts/4abd0521d21
0cb9e48ea5e711873ba34dc05fc70/lib:/cache/julia-buildkite-plugin/depots/5b30
0254-1738-4989-ae0a-f4d2d937f953/artifacts/0b5269206a6849e48487ed04136c30b1
f12443e7/lib:/cache/julia-buildkite-plugin/depots/5b300254-1738-4989-ae0a-f
4d2d937f953/artifacts/587de110e5f58fd435dc35b294df31bb7a75f692/lib:/cache/j
ulia-buildkite-plugin/depots/5b300254-1738-4989-ae0a-f4d2d937f953/artifacts
/fc239b3ff5739aeab252bd154fa4dd045fefe629/lib:/cache/julia-buildkite-plugin
/depots/5b300254-1738-4989-ae0a-f4d2d937f953/artifacts/c951fb23b5652def1dea
483af7095a38f3b3cefd/lib:/cache/julia-buildkite-plugin/depots/5b300254-1738
-4989-ae0a-f4d2d937f953/artifacts/85dab0a3f6b9cc2e5d61165ee376bf46260812a4/
lib:/cache/julia-buildkite-plugin/depots/5b300254-1738-4989-ae0a-f4d2d937f9
53/artifacts/5b83972689fb7dea5e89326f1c0ba60d68e962fb/lib:/cache/julia-buil
dkite-plugin/depots/5b300254-1738-4989-ae0a-f4d2d937f953/artifacts/66340992
0d88c928b764932f501919306eb3a558/lib:/cache/julia-buildkite-plugin/depots/5
b300254-1738-4989-ae0a-f4d2d937f953/artifacts/a7c26f0f974654c19a165fb76317f
44001aa0a29/lib:/cache/julia-buildkite-plugin/depots/5b300254-1738-4989-ae0
a-f4d2d937f953/artifacts/ab035e8b0b866b38237e59b109fbea663bf2a846/lib:/cach
e/julia-buildkite-plugin/depots/5b300254-1738-4989-ae0a-f4d2d937f953/artifa
cts/951960aa7e4599865406f432151003dd82cde65d/lib:/cache/julia-buildkite-plu
gin/depots/5b300254-1738-4989-ae0a-f4d2d937f953/artifacts/ac4708c3ef4040501
4c1080c17818cfa7d017563/lib:/cache/julia-buildkite-plugin/depots/5b300254-1
738-4989-ae0a-f4d2d937f953/artifacts/a58c60683d9991d236f2a2d707edcc09974ca6
2b/lib:/cache/julia-buildkite-plugin/depots/5b300254-1738-4989-ae0a-f4d2d93
7f953/artifacts/38e215c51e5c0f77bc7a8813ba4586632a8fc750/lib:/cache/julia-b
uildkite-plugin/depots/5b300254-1738-4989-ae0a-f4d2d937f953/artifacts/b9b76
2dad2f49b75527e933ac66eea5af4cc8a30/lib:/cache/julia-buildkite-plugin/depot
s/5b300254-1738-4989-ae0a-f4d2d937f953/artifacts/4667462ed75b7b8e3a82c128fb
1bfc71edbc2f39/lib:/cache/julia-buildkite-plugin/depots/5b300254-1738-4989-
ae0a-f4d2d937f953/artifacts/50f053314e373517d1763bb91d3520bc7a5e665d/lib:/c
ache/julia-buildkite-plugin/depots/5b300254-1738-4989-ae0a-f4d2d937f953/art
ifacts/b91557c233ebb402f9a2c3f8dec9573990211818/lib:/cache/julia-buildkite-
plugin/depots/5b300254-1738-4989-ae0a-f4d2d937f953/artifacts/f2af068a5dffc0
225d3e1e01e896cd11792ecfe0/lib:/cache/julia-buildkite-plugin/depots/5b30025
4-1738-4989-ae0a-f4d2d937f953/artifacts/55f9376d5c77106b4813c4fb45a6b37a77d
4d823/lib:/cache/julia-buildkite-plugin/depots/5b300254-1738-4989-ae0a-f4d2
d937f953/artifacts/d03aca19e34a4289ab7f118cf0b212ca46eb49be/lib:/cache/juli
a-buildkite-plugin/depots/5b300254-1738-4989-ae0a-f4d2d937f953/artifacts/e3
e8d2abb72b0145ee6de4b7be33e5a5c67e5f59/lib:/cache/julia-buildkite-plugin/de
pots/5b300254-1738-4989-ae0a-f4d2d937f953/artifacts/f04f41a07edc6a87194afc6
b58e284f94924d43a/lib:/cache/julia-buildkite-plugin/depots/5b300254-1738-49
89-ae0a-f4d2d937f953/artifacts/f7ee295b548ab3df8b28b6d67cd65b5eeef8dad1/lib
:/cache/julia-buildkite-plugin/depots/5b300254-1738-4989-ae0a-f4d2d937f953/
artifacts/21ed7b5e888fb9b18f44ba3f4652f14d8beda78c/lib:/cache/julia-buildki
te-plugin/depots/5b300254-1738-4989-ae0a-f4d2d937f953/artifacts/872754c2f79
5d19a3e2e205b2bbaea659f28d11e/lib:/cache/julia-buildkite-plugin/depots/5b30
0254-1738-4989-ae0a-f4d2d937f953/artifacts/7da37be2742b3d1cfe1c14bf5bbd85ae
d4887f46/lib:/cache/julia-buildkite-plugin/depots/5b300254-1738-4989-ae0a-f
4d2d937f953/artifacts/c35cb3f6f3043a4e962fd56b61ad91b4adb557f7/lib:/cache/j
ulia-buildkite-plugin/depots/5b300254-1738-4989-ae0a-f4d2d937f953/artifacts
/13befbe35cffe7da192c7001ece18b4be3aa3720/lib:/cache/julia-buildkite-plugin
/depots/5b300254-1738-4989-ae0a-f4d2d937f953/artifacts/cacd8c147f866d6672e1
aca9bb01fb919a81e96a/lib:/cache/julia-buildkite-plugin/depots/5b300254-1738
-4989-ae0a-f4d2d937f953/artifacts/b7dc5dce963737414a564aca8d4b82ee388f4fa1/
lib:/cache/julia-buildkite-plugin/depots/5b300254-1738-4989-ae0a-f4d2d937f9
53/artifacts/0d364e900393f710a03a5bafe2852d76e4d2c2cd/lib:/cache/julia-buil
dkite-plugin/depots/5b300254-1738-4989-ae0a-f4d2d937f953/artifacts/1a2adcee
7d99fea18ead33c350332626b262e29a/lib:/cache/julia-buildkite-plugin/depots/5
b300254-1738-4989-ae0a-f4d2d937f953/artifacts/40eea58ff37ecc8fb6f21f41079a3
3b511b3ff92/lib:/cache/julia-buildkite-plugin/depots/5b300254-1738-4989-ae0
a-f4d2d937f953/artifacts/79cc5446ced978de84b6e673e01da0ebfdd6e4a5/lib:/cach
e/julia-buildkite-plugin/depots/5b300254-1738-4989-ae0a-f4d2d937f953/artifa
cts/fce445d991cf502908d681348eec2174c5e31ba8/lib:/cache/julia-buildkite-plu
gin/depots/5b300254-1738-4989-ae0a-f4d2d937f953/artifacts/b0d2538004dda9eb6
449b72b0b85703aeac30a66/lib:/cache/julia-buildkite-plugin/depots/5b300254-1
738-4989-ae0a-f4d2d937f953/artifacts/f03dd5ac03468009d5a99bbfcdf336c2dc372d
e4/lib:/cache/julia-buildkite-plugin/depots/5b300254-1738-4989-ae0a-f4d2d93
7f953/artifacts/eae77862e95d04dfafb9fbe9ae39e688b35d756a/lib:/cache/julia-b
uildkite-plugin/depots/5b300254-1738-4989-ae0a-f4d2d937f953/artifacts/cac68
55585def46d7fa06ba4243521b00fa28a8d/lib:/cache/julia-buildkite-plugin/julia
_installs/bin/linux/x64/1.10/julia-1.10-latest-linux-x86_64/bin/../lib/juli
a:/cache/julia-buildkite-plugin/julia_installs/bin/linux/x64/1.10/julia-1.1
0-latest-linux-x86_64/bin/../lib /cache/julia-buildkite-plugin/depots/5b300
254-1738-4989-ae0a-f4d2d937f953/artifacts/cac6855585def46d7fa06ba4243521b00
fa28a8d/bin/gksqt"]), ProcessExited(1)) [1]

Now, we instantiate the problems, find their solutions and plot the results.

let fig = []
  for (i, (algo, stepper, use_recursion, label)) in enumerate(algorithms[5:end])
    @info label
    if algo isa PyTick
        _p = (p[1], p[2], p[3])
        jump_prob = hawkes_problem(_p, algo; u, tspan, g, use_recursion)
        jump_prob.reset()
        jump_prob.simulate()
        t = tspan[1]:0.1:tspan[2]
        N = [[sum(jumps .< _t) for _t in t] for jumps in jump_prob.timestamps]
        push!(fig, plot(t, N, title=label, legend=false, format=fmt))
    elseif algo isa PDMPCHVSimple
        if use_recursion
          h = zeros(eltype(tspan), nv(G))
          ϕ = zeros(eltype(tspan), nv(G))
          _p = (p[1], p[2], p[3], h, ϕ, g)
        else
          h = [eltype(tspan)[] for _ in 1:nv(G)]
          _p = (p[1], p[2], p[3], h, g)
        end
        jump_prob = hawkes_problem(_p, algo; u, tspan, g, use_recursion)
        sol = solve(jump_prob, stepper)
        push!(fig, plot(sol.time, sol.xd[1:V, :]', title=label, legend=false, format=fmt))
    elseif algo isa PDMPCHVFull
        _p = (p[1], p[2], p[3], nothing, nothing, g)
        jump_prob = hawkes_problem(_p, algo; u, tspan, g, use_recursion)
        sol = solve(jump_prob, stepper)
        push!(fig, plot(sol.time, sol.xd[1:V, :]', title=label, legend=false, format=fmt))
    end
  end
  fig = plot(fig..., layout=(2,2), format=fmt, size=(width_px, 2*height_px/2))
end

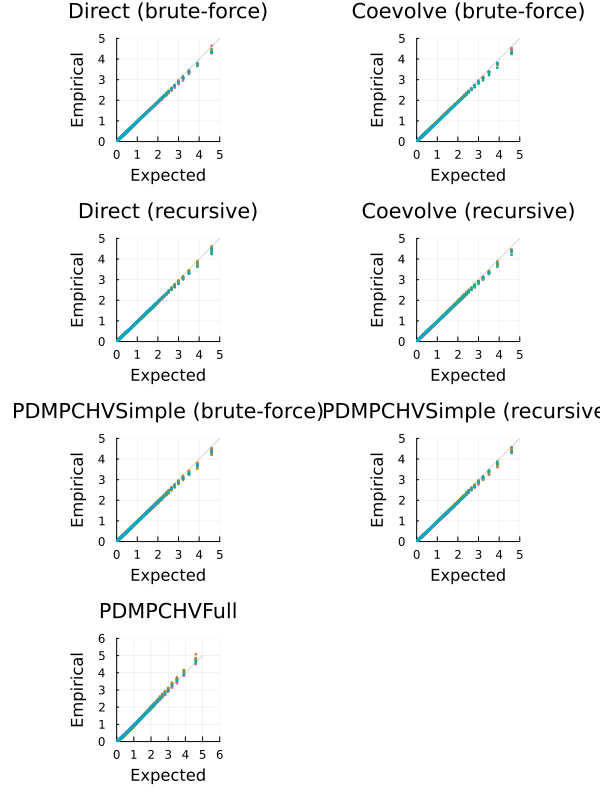

Correctness: QQ-Plots

We check that the algorithms produce correct simulation by inspecting their QQ-plots. Point process theory says that transforming the simulated points using the compensator should produce points whose inter-arrival duration is distributed according to the exponential distribution (see Section 7.4 [1]).

The compensator of any point process is the integral of the conditional intensity $\Lambda_i^\ast(t) = \int_0^t \lambda_i^\ast(u) du$. The compensator for the Multivariate Hawkes process is defined below.

\[ \Lambda_i^\ast(t) = \lambda t + \frac{\alpha}{\beta} \sum_{j \in E_i} \sum_{t_{n_j} < t} ( 1 - \exp \left[-\beta (t - t_{n_j}) \right])\]

function hawkes_Λ(i::Int, g, p)
    @inline @inbounds function Λ(t, h)
        λ, α, β = p
        x = λ * t
        for j in g[i]
            for _t in h[j]
                if _t >= t
                    break
                end
                x += (α / β) * (1 - exp(-β * (t - _t)))
            end
        end
        return x
    end
    return Λ
end

function hawkes_Λ(g, p)
    return [hawkes_Λ(i, g, p) for i = 1:length(g)]
end

Λ = hawkes_Λ(g, p)

10-element Vector{Main.var"##WeaveSandBox#225".var"#Λ#33"{Int64, Vector{Vec
tor{Int64}}, Tuple{Float64, Float64, Float64}}}:
 (::Main.var"##WeaveSandBox#225".var"#Λ#33"{Int64, Vector{Vector{Int64}}, T
uple{Float64, Float64, Float64}}) (generic function with 1 method)
 (::Main.var"##WeaveSandBox#225".var"#Λ#33"{Int64, Vector{Vector{Int64}}, T
uple{Float64, Float64, Float64}}) (generic function with 1 method)
 (::Main.var"##WeaveSandBox#225".var"#Λ#33"{Int64, Vector{Vector{Int64}}, T
uple{Float64, Float64, Float64}}) (generic function with 1 method)
 (::Main.var"##WeaveSandBox#225".var"#Λ#33"{Int64, Vector{Vector{Int64}}, T
uple{Float64, Float64, Float64}}) (generic function with 1 method)
 (::Main.var"##WeaveSandBox#225".var"#Λ#33"{Int64, Vector{Vector{Int64}}, T
uple{Float64, Float64, Float64}}) (generic function with 1 method)
 (::Main.var"##WeaveSandBox#225".var"#Λ#33"{Int64, Vector{Vector{Int64}}, T
uple{Float64, Float64, Float64}}) (generic function with 1 method)
 (::Main.var"##WeaveSandBox#225".var"#Λ#33"{Int64, Vector{Vector{Int64}}, T
uple{Float64, Float64, Float64}}) (generic function with 1 method)
 (::Main.var"##WeaveSandBox#225".var"#Λ#33"{Int64, Vector{Vector{Int64}}, T
uple{Float64, Float64, Float64}}) (generic function with 1 method)
 (::Main.var"##WeaveSandBox#225".var"#Λ#33"{Int64, Vector{Vector{Int64}}, T
uple{Float64, Float64, Float64}}) (generic function with 1 method)
 (::Main.var"##WeaveSandBox#225".var"#Λ#33"{Int64, Vector{Vector{Int64}}, T
uple{Float64, Float64, Float64}}) (generic function with 1 method)

We need a method for extracting the history from a simulation run. Below, we define such functions for each type of algorithm.

"""
Given an ODE solution `sol`, recover the timestamp in which events occurred. It
returns a vector with the history of each process in `sol`.

It assumes that `JumpProblem` was initialized with `save_positions` equal to
`(true, false)`, `(false, true)` or `(true, true)` such the system's state is
saved before and/or after the jump occurs; and, that `sol.u` is a
non-decreasing series that counts the total number of events observed as a
function of time.
"""
function histories(u, t)
    _u = permutedims(reduce(hcat, u))
    k = size(_u)[2]
    # computes a mask that show when total counts change
    mask = cat(fill(0.0, 1, k), _u[2:end, :] .- _u[1:end-1, :], dims = 1) .≈ 1
    h = Vector{typeof(t)}(undef, k)
    @inbounds for i = 1:k
        h[i] = t[mask[:, i]]
    end
    return h
end

function histories(sol::S) where {S<:ODESolution}
    # get u and permute the dimensions to get a matrix n x k with n obsevations and k processes.
    if sol.u[1] isa ExtendedJumpArray
        u = map((u) -> u.u, sol.u)
    else
        u = sol.u
    end
    return histories(u, sol.t)
end

function histories(sol::S) where {S<:PDMP.PDMPResult}
    return histories(sol.xd.u, sol.time)
end

function histories(sols)
    map(histories, sols)
end

histories (generic function with 4 methods)

We also need to compute the quantiles of the empirical distribution given a history of events hs, the compensator Λ and the target quantiles quant.

import Distributions: Exponential

"""
Computes the empirical and expected quantiles given a history of events `hs`,
the compensator `Λ` and the target quantiles `quant`.

The history `hs` is a vector with the history of each process. Alternatively,
the function also takes a vector of histories containing the histories from
multiple runs.

The compensator `Λ` can either be an homogeneous compensator function that
equally applies to all the processes in `hs`. Alternatively, it accepts a
vector of compensator that applies to each process.
"""
function qq(hs, Λ, quant = 0.01:0.01:0.99)
    _hs = apply_Λ(hs, Λ)
    T = typeof(hs[1][1][1])
    Δs = Vector{Vector{T}}(undef, length(hs[1]))
    for k = 1:length(Δs)
        _Δs = Vector{Vector{T}}(undef, length(hs))
        for i = 1:length(_Δs)
            _Δs[i] = _hs[i][k][2:end] .- _hs[i][k][1:end-1]
        end
        Δs[k] = reduce(vcat, _Δs)
    end
    empirical_quant = map((_Δs) -> quantile(_Δs, quant), Δs)
    expected_quant = quantile(Exponential(1.0), quant)
    return empirical_quant, expected_quant
end

"""
Compute the compensator `Λ` value for each timestamp recorded in history `hs`.

The history `hs` is a vector with the history of each process. Alternatively,
the function also takes a vector of histories containing the histories from
multiple runs.

The compensator `Λ` can either be an homogeneous compensator function that
equally applies to all the processes in `hs`. Alternatively, it accepts a
vector of compensator that applies to each process.
"""
function apply_Λ(hs::V, Λ) where {V<:Vector{<:Number}}
    _hs = similar(hs)
    @inbounds for n = 1:length(hs)
        _hs[n] = Λ(hs[n], hs)
    end
    return _hs
end

function apply_Λ(k::Int, hs::V, Λ::A) where {V<:Vector{<:Vector{<:Number}},A<:Array}
    @inbounds hsk = hs[k]
    @inbounds Λk = Λ[k]
    _hs = similar(hsk)
    @inbounds for n = 1:length(hsk)
        _hs[n] = Λk(hsk[n], hs)
    end
    return _hs
end

function apply_Λ(hs::V, Λ) where {V<:Vector{<:Vector{<:Number}}}
    _hs = similar(hs)
    @inbounds for k = 1:length(_hs)
        _hs[k] = apply_Λ(hs[k], Λ)
    end
    return _hs
end

function apply_Λ(hs::V, Λ::A) where {V<:Vector{<:Vector{<:Number}},A<:Array}
    _hs = similar(hs)
    @inbounds for k = 1:length(_hs)
        _hs[k] = apply_Λ(k, hs, Λ)
    end
    return _hs
end

function apply_Λ(hs::V, Λ) where {V<:Vector{<:Vector{<:Vector{<:Number}}}}
    return map((_hs) -> apply_Λ(_hs, Λ), hs)
end

apply_Λ (generic function with 5 methods)

We can construct QQ-plots with a Plot recipe as following.

@userplot QQPlot
@recipe function f(x::QQPlot)
    empirical_quant, expected_quant = x.args
    max_empirical_quant = maximum(maximum, empirical_quant)
    max_expected_quant = maximum(expected_quant)
    upperlim = ceil(maximum([max_empirical_quant, max_expected_quant]))
    @series begin
        seriestype := :line
        linecolor := :lightgray
        label --> ""
        (x) -> x
    end
    @series begin
        seriestype := :scatter
        aspect_ratio := :equal
        xlims := (0.0, upperlim)
        ylims := (0.0, upperlim)
        xaxis --> "Expected"
        yaxis --> "Empirical"
        markerstrokewidth --> 0
        markerstrokealpha --> 0
        markersize --> 1.5
        size --> (400, 500)
        label --> permutedims(["quantiles $i" for i = 1:length(empirical_quant)])
        expected_quant, empirical_quant
    end
end

Now, we simulate all of the algorithms we defined in the previous Section $250$ times to produce their QQ-plots.

let fig = []
    for (i, (algo, stepper, use_recursion, label)) in enumerate(algorithms)
        @info label
        if algo isa PyTick
            _p = (p[1], p[2], p[3])
        elseif algo isa PDMPCHVSimple
            if use_recursion
                h = zeros(eltype(tspan), nv(G))
                ϕ = zeros(eltype(tspan), nv(G))
                _p = (p[1], p[2], p[3], h, ϕ, g)
            else
                h = [eltype(tspan)[] for _ in 1:nv(G)]
                _p = (p[1], p[2], p[3], h, g)
            end
        elseif algo isa PDMPCHVFull
            _p = (p[1], p[2], p[3], nothing, nothing, g)
        else
            if use_recursion
                h = zeros(eltype(tspan), nv(G))
                ϕ = zeros(eltype(tspan), nv(G))
                urate = zeros(eltype(tspan), nv(G))
                _p = (p[1], p[2], p[3], h, urate, ϕ)
            else
                h = [eltype(tspan)[] for _ = 1:nv(G)]
                urate = zeros(eltype(tspan), nv(G))
                _p = (p[1], p[2], p[3], h, urate)
            end
        end
        jump_prob = hawkes_problem(_p, algo; u, tspan, g, use_recursion)
        runs = Vector{Vector{Vector{Number}}}(undef, 250)
        for n = 1:length(runs)
            if algo isa PyTick
                jump_prob.reset()
                jump_prob.simulate()
                runs[n] = jump_prob.timestamps
            else
                if ~(algo isa PDMPCHVFull)
                    if use_recursion
                        h .= 0
                        ϕ .= 0
                    else
                        for _h in h empty!(_h) end
                    end
                    if ~(algo isa PDMPCHVSimple)
                        urate .= 0
                    end
                end
                runs[n] = histories(solve(jump_prob, stepper))
            end
        end
        qqs = qq(runs, Λ)
        push!(fig, qqplot(qqs..., legend = false, aspect_ratio = :equal, title=label, fmt=fmt))
    end
    fig = plot(fig..., layout = (4, 2), fmt=fmt, size=(width_px, 4*height_px/2))
end

Benchmarking performance

In this Section we benchmark all the algorithms introduced in the first Section.

We generate networks in the range from $1$ to $95$ nodes and simulate the Multivariate Hawkes process $25$ units of time.

and simulate models in the range from $1$ to $95$ nodes for $25$ units of time. We fix the Hawkes parameters at $\lambda = 0.5 , \alpha = 0.1 , \beta = 5.0$ which ensures the process does not explode. We simulate $50$ trajectories with a limit of ten seconds to complete execution for each configuration.

tspan = (0.0, 25.0)
p = (0.5, 0.1, 5.0)
Vs = append!([1], 5:5:95)
Gs = [erdos_renyi(V, 0.2, seed = 6221) for V in Vs]

bs = Vector{Vector{BenchmarkTools.Trial}}()

for (algo, stepper, use_recursion, label) in algorithms
    @info label
    global _stepper = stepper
    push!(bs, Vector{BenchmarkTools.Trial}())
    _bs = bs[end]
    for (i, G) in enumerate(Gs)
        local g = [neighbors(G, i) for i = 1:nv(G)]
        local u = [0.0 for i = 1:nv(G)]
        if algo isa PyTick
            _p = (p[1], p[2], p[3])
        elseif algo isa PDMPCHVSimple
            if use_recursion
              global h = zeros(eltype(tspan), nv(G))
              global ϕ = zeros(eltype(tspan), nv(G))
              _p = (p[1], p[2], p[3], h, ϕ, g)
            else
              global h = [eltype(tspan)[] for _ in 1:nv(G)]
              _p = (p[1], p[2], p[3], h, g)
            end
        elseif algo isa PDMPCHVFull
            _p = (p[1], p[2], p[3], nothing, nothing, g)
        else
            if use_recursion
                global h = zeros(eltype(tspan), nv(G))
                global urate = zeros(eltype(tspan), nv(G))
                global ϕ = zeros(eltype(tspan), nv(G))
                _p = (p[1], p[2], p[3], h, urate, ϕ)
            else
                global h = [eltype(tspan)[] for _ = 1:nv(G)]
                global urate = zeros(eltype(tspan), nv(G))
                _p = (p[1], p[2], p[3], h, urate)
            end
        end
        global jump_prob = hawkes_problem(_p, algo; u, tspan, g, use_recursion)
        trial = try
            if algo isa PyTick
                @benchmark(
                    jump_prob.simulate(),
                    setup = (jump_prob.reset()),
                    samples = 50,
                    evals = 1,
                    seconds = 10,
                )
            else
                if algo isa PDMPCHVFull
                    @benchmark(
                        solve(jump_prob, _stepper),
                        setup = (),
                        samples = 50,
                        evals = 1,
                        seconds = 10,
                    )
                elseif algo isa PDMPCHVSimple
                    if use_recursion
                        @benchmark(solve(jump_prob, _stepper),
                                   setup=(h .= 0; ϕ .= 0),
                                   samples=50,
                                   evals=1,
                                   seconds=10,)
                    else
                        @benchmark(solve(jump_prob, _stepper),
                                   setup=([empty!(_h) for _h in h]),
                                   samples=50,
                                   evals=1,
                                   seconds=10,)
                    end
                else
                    if use_recursion
                        @benchmark(
                            solve(jump_prob, _stepper),
                            setup = (h .= 0; urate .= 0; ϕ .= 0),
                            samples = 50,
                            evals = 1,
                            seconds = 10,
                        )
                    else
                        @benchmark(
                            solve(jump_prob, _stepper),
                            setup = ([empty!(_h) for _h in h]; urate .= 0),
                            samples = 50,
                            evals = 1,
                            seconds = 10,
                        )
                    end
                end
            end
        catch e
            BenchmarkTools.Trial(
                BenchmarkTools.Parameters(samples = 50, evals = 1, seconds = 10),
            )
        end
        push!(_bs, trial)
        if (nv(G) == 1 || nv(G) % 10 == 0)
            median_time =
                length(trial) > 0 ? "$(BenchmarkTools.prettytime(median(trial.times)))" :
                "nan"
            println("algo=$(label), V = $(nv(G)), length = $(length(trial.times)), median time = $median_time")
        end
    end
end

algo=Direct (brute-force), V = 1, length = 50, median time = 91.014 μs
algo=Direct (brute-force), V = 10, length = 50, median time = 10.653 ms
algo=Direct (brute-force), V = 20, length = 50, median time = 87.156 ms
algo=Direct (brute-force), V = 30, length = 36, median time = 277.982 ms
algo=Direct (brute-force), V = 40, length = 7, median time = 1.638 s
algo=Direct (brute-force), V = 50, length = 4, median time = 3.061 s
algo=Direct (brute-force), V = 60, length = 2, median time = 5.864 s
algo=Direct (brute-force), V = 70, length = 2, median time = 9.722 s
algo=Direct (brute-force), V = 80, length = 1, median time = 13.729 s
algo=Direct (brute-force), V = 90, length = 1, median time = 24.593 s
algo=Coevolve (brute-force), V = 1, length = 50, median time = 4.770 μs
algo=Coevolve (brute-force), V = 10, length = 50, median time = 208.828 μs
algo=Coevolve (brute-force), V = 20, length = 50, median time = 1.387 ms
algo=Coevolve (brute-force), V = 30, length = 50, median time = 3.331 ms
algo=Coevolve (brute-force), V = 40, length = 50, median time = 8.497 ms
algo=Coevolve (brute-force), V = 50, length = 50, median time = 17.334 ms
algo=Coevolve (brute-force), V = 60, length = 50, median time = 30.987 ms
algo=Coevolve (brute-force), V = 70, length = 50, median time = 52.492 ms
algo=Coevolve (brute-force), V = 80, length = 50, median time = 77.400 ms
algo=Coevolve (brute-force), V = 90, length = 50, median time = 125.731 ms
algo=Direct (recursive), V = 1, length = 50, median time = 90.249 μs
algo=Direct (recursive), V = 10, length = 50, median time = 4.807 ms
algo=Direct (recursive), V = 20, length = 50, median time = 22.666 ms
algo=Direct (recursive), V = 30, length = 50, median time = 75.103 ms
algo=Direct (recursive), V = 40, length = 11, median time = 930.458 ms
algo=Direct (recursive), V = 50, length = 6, median time = 1.823 s
algo=Direct (recursive), V = 60, length = 4, median time = 2.990 s
algo=Direct (recursive), V = 70, length = 2, median time = 5.203 s
algo=Direct (recursive), V = 80, length = 2, median time = 7.991 s
algo=Direct (recursive), V = 90, length = 1, median time = 11.201 s
algo=Coevolve (recursive), V = 1, length = 50, median time = 4.975 μs
algo=Coevolve (recursive), V = 10, length = 50, median time = 73.200 μs
algo=Coevolve (recursive), V = 20, length = 50, median time = 247.934 μs
algo=Coevolve (recursive), V = 30, length = 50, median time = 470.967 μs
algo=Coevolve (recursive), V = 40, length = 50, median time = 858.394 μs
algo=Coevolve (recursive), V = 50, length = 50, median time = 1.412 ms
algo=Coevolve (recursive), V = 60, length = 50, median time = 2.196 ms
algo=Coevolve (recursive), V = 70, length = 50, median time = 3.052 ms
algo=Coevolve (recursive), V = 80, length = 50, median time = 4.014 ms
algo=Coevolve (recursive), V = 90, length = 50, median time = 5.317 ms
algo=PDMPCHVSimple (brute-force), V = 1, length = 50, median time = 68.734
μs
algo=PDMPCHVSimple (brute-force), V = 10, length = 50, median time = 4.959
ms
algo=PDMPCHVSimple (brute-force), V = 20, length = 50, median time = 39.322
 ms
algo=PDMPCHVSimple (brute-force), V = 30, length = 50, median time = 112.71
4 ms
algo=PDMPCHVSimple (brute-force), V = 40, length = 35, median time = 288.63
0 ms
algo=PDMPCHVSimple (brute-force), V = 50, length = 18, median time = 579.25
9 ms
algo=PDMPCHVSimple (brute-force), V = 60, length = 10, median time = 1.095
s
algo=PDMPCHVSimple (brute-force), V = 70, length = 6, median time = 1.730 s
algo=PDMPCHVSimple (brute-force), V = 80, length = 4, median time = 2.841 s
algo=PDMPCHVSimple (brute-force), V = 90, length = 3, median time = 4.446 s
algo=PDMPCHVSimple (recursive), V = 1, length = 50, median time = 67.910 μs
algo=PDMPCHVSimple (recursive), V = 10, length = 50, median time = 350.838
μs
algo=PDMPCHVSimple (recursive), V = 20, length = 50, median time = 824.585
μs
algo=PDMPCHVSimple (recursive), V = 30, length = 50, median time = 1.570 ms
algo=PDMPCHVSimple (recursive), V = 40, length = 50, median time = 2.472 ms
algo=PDMPCHVSimple (recursive), V = 50, length = 50, median time = 3.665 ms
algo=PDMPCHVSimple (recursive), V = 60, length = 50, median time = 5.236 ms
algo=PDMPCHVSimple (recursive), V = 70, length = 50, median time = 7.116 ms
algo=PDMPCHVSimple (recursive), V = 80, length = 50, median time = 9.477 ms
algo=PDMPCHVSimple (recursive), V = 90, length = 50, median time = 12.203 m
s
algo=PDMPCHVFull, V = 1, length = 50, median time = 66.635 μs
algo=PDMPCHVFull, V = 10, length = 50, median time = 486.906 μs
algo=PDMPCHVFull, V = 20, length = 50, median time = 758.091 μs
algo=PDMPCHVFull, V = 30, length = 50, median time = 1.210 ms
algo=PDMPCHVFull, V = 40, length = 50, median time = 1.523 ms
algo=PDMPCHVFull, V = 50, length = 50, median time = 1.897 ms
algo=PDMPCHVFull, V = 60, length = 50, median time = 2.504 ms
algo=PDMPCHVFull, V = 70, length = 50, median time = 2.996 ms
algo=PDMPCHVFull, V = 80, length = 50, median time = 3.597 ms
algo=PDMPCHVFull, V = 90, length = 50, median time = 4.419 ms

let fig = plot(
        yscale = :log10,
        xlabel = "V",
        ylabel = "Time (ns)",
        legend_position = :outertopright,
)
    for (i, (algo, stepper, use_recursion, label)) in enumerate(algorithms)
        _bs, _Vs = [], []
        for (j, b) in enumerate(bs[i])
            if length(b) == 50
                push!(_bs, median(b.times))
                push!(_Vs, Vs[j])
            end
        end
        plot!(_Vs, _bs, label=label)
    end
    title!("Simulations, 50 samples: nodes × time")
end

References

[1] D. J. Daley and D. Vere-Jones. An Introduction to the Theory of Point Processes: Volume I: Elementary Theory and Methods. Probability and Its Applications, An Introduction to the Theory of Point Processes. Springer-Verlag, 2 edition. doi:10.1007/b97277.

[2] Patrick J. Laub, Young Lee, and Thomas Taimre. The Elements of Hawkes Processes. Springer International Publishing. doi:10.1007/978-3-030-84639-8.
