Spatial Signaling Model from Sanft and Othmer (2015)

using Catalyst, JumpProcesses, BenchmarkTools, Plots, Random

Model description and setup

Here we implement the model from [1] (8 species and 12 reactions) for different mesh sizes, and benchmark the performance of JumpProcesses.jl's spatial stochastic simulation alorithms (SSAs). Below, the value N will denote the number of subvolumes along one dimension of a cubic grid, representing the reaction volume. In [1] this value ranges from 20 to 60.

We first define some helper functions to convert concentration units into number units, as needed for spatial SSAs.

invmicromolar_to_cubicmicrometer(invconcen) = invconcen / (6.02214076e2)
micromolar_to_invcubicmicrometer(concen) = (6.02214076e2) * concen
micromolar_to_invcubicmicrometer (generic function with 1 method)

Next we create a well-mixed model with the desired chemistry

rn = @reaction_network begin
    @parameters k₁ ka kd k₄
    k₁, EA --> EA + A
    k₁, EB --> EB + B
    (ka,kd), EA + B <--> EAB
    (ka,kd), EAB + B <--> EAB₂
    (ka,kd), EB + A <--> EBA
    (ka,kd), EBA + A <--> EBA₂
    k₄, A --> ∅
    k₄, B --> ∅
end
Model ##ReactionSystem#232:
Unknowns (8): see unknowns(##ReactionSystem#232)
  EA(t)
  A(t)
  EB(t)
  B(t)
  ⋮
Parameters (4): see parameters(##ReactionSystem#232)
  k₁
  ka
  kd
  k₄

Let's next make a function to calculate the spatial transport rates, mesh/graph that will represent our domain, and initial condition. We use a cubic lattice of size N by N by N with reflecting boundary conditions

# domain_len is the physical length of each side of the cubic domain
# units should be in μm (6.0 or 12.0 in Sanft)
# D is the diffusivity in units of (μm)^2 s⁻¹
function transport_model(rn, N; domain_len = 6.0, D = 1.0, rng = Random.default_rng())
    # topology
    h = domain_len / N
    dims = (N, N, N)
    num_nodes = prod(dims)

    # Cartesian grid with reflecting BC at boundaries
    grid = CartesianGrid(dims)

    # Cartesian grid hopping rate to neighbors
    hopping_rate = D / h^2

    # this indicates we have a uniform rate of D/h^2 along each edge at each site
    hopping_constants = hopping_rate * ones(numspecies(rn))

    # figure out the indices of species EA and EB
    @unpack EA, EB = rn
    EAidx = findfirst(isequal(EA), species(rn))
    EBidx = findfirst(isequal(EB), species(rn))

    # spatial initial condition
    # initial concentration of 12.3 nM = 12.3 * 1e-3 μM
    num_molecules = trunc(Int, micromolar_to_invcubicmicrometer(12.3*1e-3) * (domain_len^3))
    u0 = zeros(Int, 8, num_nodes)
    rand_EA = rand(rng, 1:num_nodes, num_molecules)
    rand_EB = rand(rng, 1:num_nodes, num_molecules)
    for i in 1:num_molecules
        u0[EAidx, rand_EA[i]] += 1
        u0[EBidx, rand_EB[i]] += 1
    end

    grid, hopping_constants, h, u0
end
transport_model (generic function with 1 method)

Finally, let's make a function to setup the well-mixed model from the reaction model in a cube of side length h:

function wellmixed_model(rn, u0, end_time, h)
    kaval = invmicromolar_to_cubicmicrometer(46.2) / h^3
    setdefaults!(rn, [:k₁ => 150, :ka => kaval, :kd => 3.82, :k₄ => 6.0])

    # well-mixed initial condition corresponding to the spatial initial condition
    u0wm = sum(u0, dims = 2)
    dprobwm = DiscreteProblem(rn, u0wm, (0.0, end_time))
    jprobwm = JumpProblem(rn, dprobwm, Direct(), save_positions = (false,false))
    majumps = jprobwm.massaction_jump
    majumps, dprobwm, jprobwm, u0wm
end
wellmixed_model (generic function with 1 method)

Model Solution

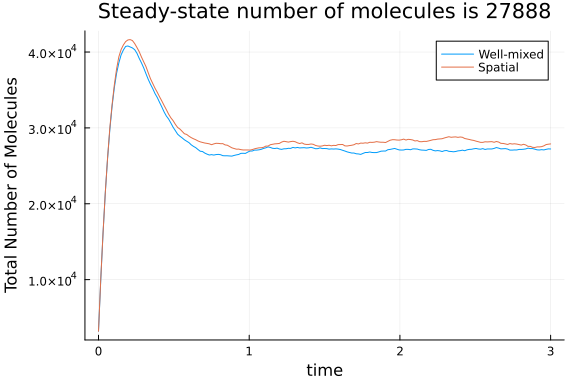

Let's look at one example to check our model seems reasonable. We'll plot the total number of molecules in the system to verify we get around 28,000 molecules, as reported in Sanft [1], when using a domain length of 6 μm.

end_time = 3.0
grid, hopping_constants, h, u0 = transport_model(rn, 60)
majumps, dprobwm, jprobwm, u0wm = wellmixed_model(rn, u0, end_time, 6.0)
sol = solve(jprobwm, SSAStepper(); saveat = end_time/200)
Ntot = [sum(u) for u in sol.u]
plt = plot(sol.t, Ntot, label="Well-mixed", ylabel="Total Number of Molecules",
                        xlabel="time")

# spatial model
majumps, dprobwm, jprobwm, u0wm = wellmixed_model(rn, u0, end_time, h)
dprob = DiscreteProblem(u0, (0.0, end_time), copy(dprobwm.p))
jprob = JumpProblem(dprob, DirectCRDirect(), majumps; hopping_constants,
                    spatial_system = grid, save_positions = (false, false))
spatial_sol = solve(jprob, SSAStepper(); saveat = end_time/200)
Ntot = [sum(vec(u)) for u in spatial_sol.u]
plot!(plt, spatial_sol.t, Ntot, label="Spatial",
      title="Steady-state number of molecules is $(Ntot[end])")

Benchmarking performance of the methods

We can now run the solvers and record the performance with BenchmarkTools. Let's first create a DiscreteCallback to terminate simulations once we reach 10^8 events:

@Base.kwdef mutable struct EventCallback
    n::Int = 0
end

function (ecb::EventCallback)(u, t, integ)
    ecb.n += 1
    ecb.n == 10^8
end

function (ecb::EventCallback)(integ)
    # save the final state
    terminate!(integ)
    nothing
end

We next create a function to run and return our benchmarking results.

function benchmark_and_save!(bench_dict, end_times, Nv, algs, domain_len)
    @assert length(end_times) == length(Nv)

    # callback for terminating simulations
    ecb = EventCallback()
    cb = DiscreteCallback(ecb, ecb)

    for (end_time, N) in zip(end_times, Nv)
        names = ["$s"[1:end-2] for s in algs]

        grid, hopping_constants, h, u0 = transport_model(rn, N; domain_len)

        # we create a well-mixed model within a domain of the size of *one* voxel, h
        majumps, dprobwm, jprobwm, u0wm = wellmixed_model(rn, u0, end_time, h)

        # the spatial problem
        dprob = DiscreteProblem(u0, (0.0, end_time), copy(dprobwm.p))

        @show N

        # benchmarking and saving
        benchmarks = Vector{BenchmarkTools.Trial}(undef, length(algs))

        # callback for terminating simulations

        for (i, alg) in enumerate(algs)
            name = names[i]
            println("benchmarking $name")
            jp = JumpProblem(dprob, alg, majumps, hopping_constants=hopping_constants,
                             spatial_system = grid, save_positions=(false,false))
            b = @benchmarkable solve($jp, SSAStepper(); saveat = $(dprob.tspan[2]), callback) setup = (callback = deepcopy($cb)) samples = 10 seconds = 3600
            bench_dict[name, N] = run(b)
        end
    end
end
benchmark_and_save! (generic function with 1 method)

Finally, let's make a function to plot the benchmarking data.

function fetch_and_plot(bench_dict, domain_len)
    names = unique([key[1] for key in keys(bench_dict)])
    Nv = sort(unique([key[2] for key in keys(bench_dict)]))

    plt1 = plot()
    plt2 = plot()

    medtimes = [Float64[] for i in 1:length(names)]
    for (i,name) in enumerate(names)
        for N in Nv
            try
                push!(medtimes[i], median(bench_dict[name, N]).time/1e9)
            catch
                break
            end
        end
        len = length(medtimes[i])
        plot!(plt1, Nv[1:len], medtimes[i], marker = :hex, label = name, lw = 2)
        plot!(plt2, (Nv.^3)[1:len], medtimes[i], marker = :hex, label = name, lw = 2)
    end

    plot!(plt1, xlabel = "number of sites per edge", ylabel = "median time in seconds",
                xticks = Nv, legend = :bottomright)
    plot!(plt2, xlabel = "total number of sites", ylabel = "median time in seconds",
                xticks = (Nv.^3, string.(Nv.^3)), legend = :bottomright)
    plot(plt1, plt2; size = (1200,800), legendtitle = "SSAs",
                     plot_title="3D RDME, domain length = $domain_len", left_margin=5Plots.mm)
end
fetch_and_plot (generic function with 1 method)

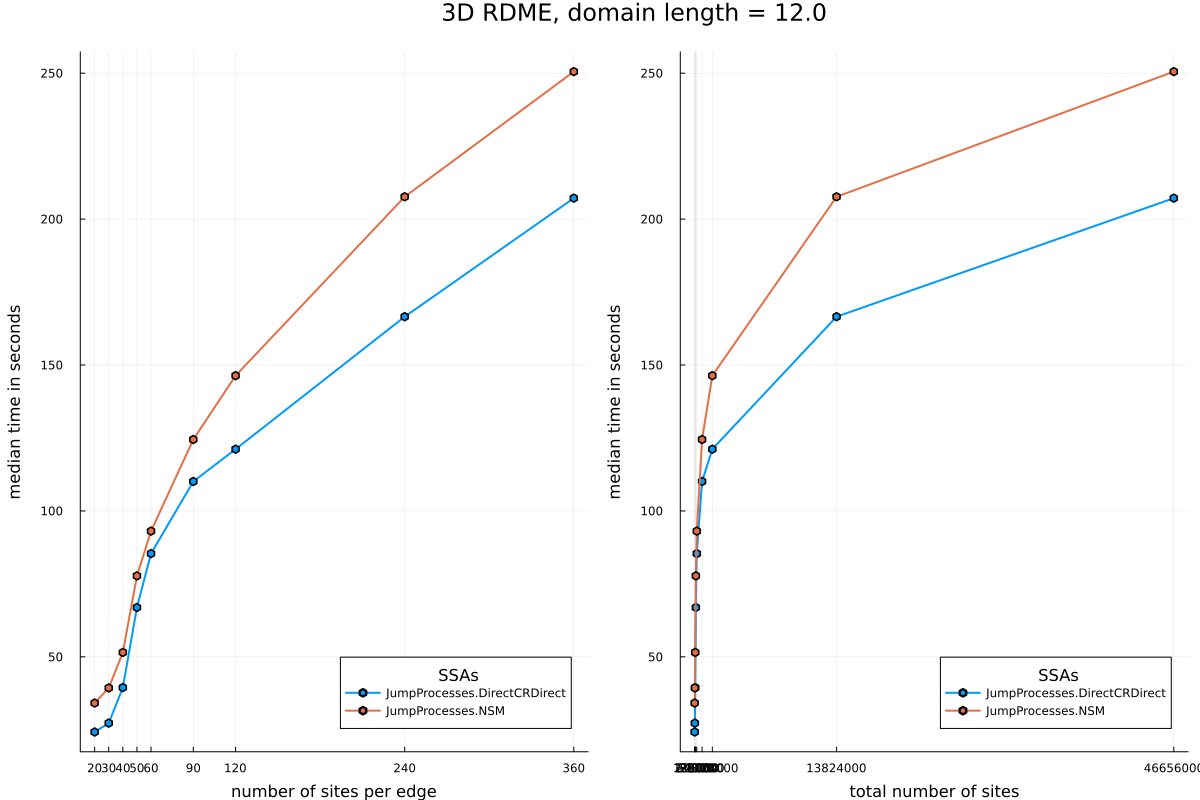

We are now ready to run the benchmarks and plot the results. We start with a domain length of 12 μm, analogous to Fig. 6 in [1]:

bench_dict = Dict{Tuple{String, Int}, BenchmarkTools.Trial}()
algs = [NSM(), DirectCRDirect()]
Nv = [20, 30, 40, 50, 60, 90, 120, 240, 360]
end_times = 20000.0 * ones(length(Nv))
domain_len = 12.0
benchmark_and_save!(bench_dict, end_times, Nv, algs, domain_len)
N = 20
benchmarking JumpProcesses.NSM
benchmarking JumpProcesses.DirectCRDirect
N = 30
benchmarking JumpProcesses.NSM
benchmarking JumpProcesses.DirectCRDirect
N = 40
benchmarking JumpProcesses.NSM
benchmarking JumpProcesses.DirectCRDirect
N = 50
benchmarking JumpProcesses.NSM
benchmarking JumpProcesses.DirectCRDirect
N = 60
benchmarking JumpProcesses.NSM
benchmarking JumpProcesses.DirectCRDirect
N = 90
benchmarking JumpProcesses.NSM
benchmarking JumpProcesses.DirectCRDirect
N = 120
benchmarking JumpProcesses.NSM
benchmarking JumpProcesses.DirectCRDirect
N = 240
benchmarking JumpProcesses.NSM
benchmarking JumpProcesses.DirectCRDirect
N = 360
benchmarking JumpProcesses.NSM
benchmarking JumpProcesses.DirectCRDirect
plt=fetch_and_plot(bench_dict, domain_len)

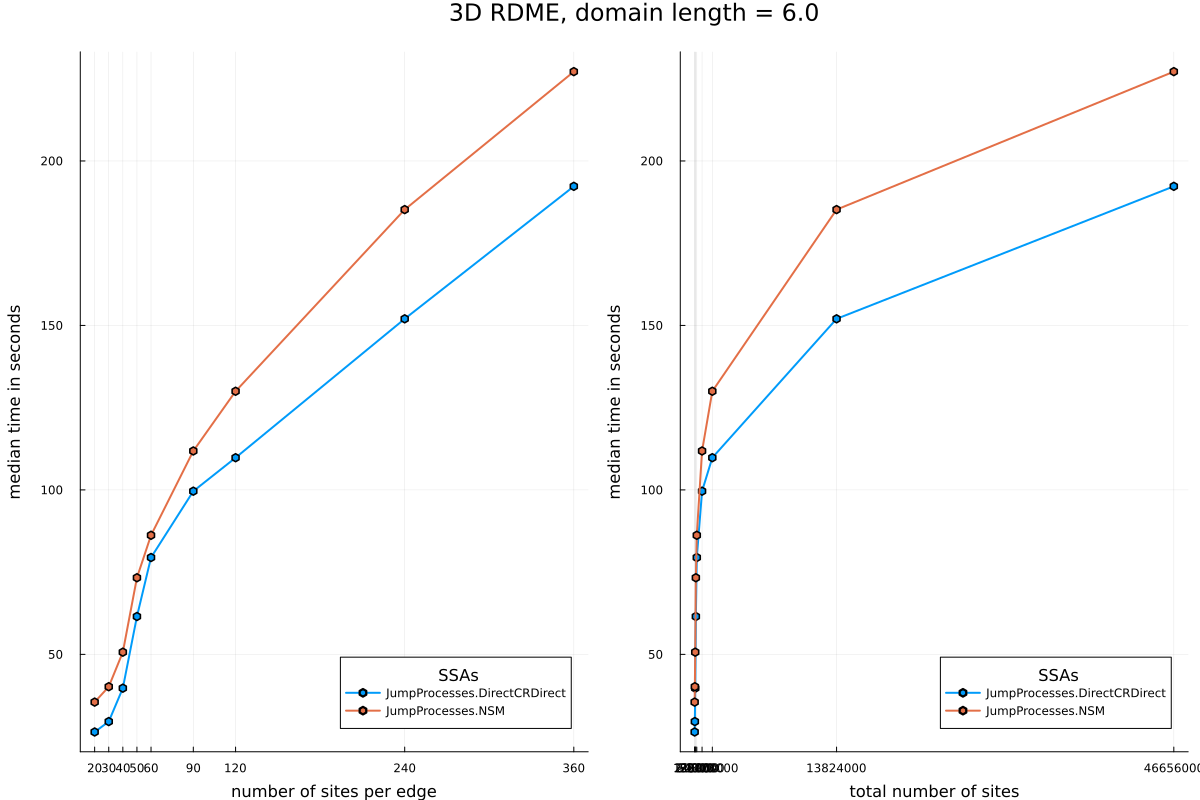

We next consider a domain of length 6 μm, analogous to Fig. 7 in [1].

bench_dict = Dict{Tuple{String, Int}, BenchmarkTools.Trial}()
domain_len = 6.0
benchmark_and_save!(bench_dict, end_times, Nv, algs, domain_len)
N = 20
benchmarking JumpProcesses.NSM
benchmarking JumpProcesses.DirectCRDirect
N = 30
benchmarking JumpProcesses.NSM
benchmarking JumpProcesses.DirectCRDirect
N = 40
benchmarking JumpProcesses.NSM
benchmarking JumpProcesses.DirectCRDirect
N = 50
benchmarking JumpProcesses.NSM
benchmarking JumpProcesses.DirectCRDirect
N = 60
benchmarking JumpProcesses.NSM
benchmarking JumpProcesses.DirectCRDirect
N = 90
benchmarking JumpProcesses.NSM
benchmarking JumpProcesses.DirectCRDirect
N = 120
benchmarking JumpProcesses.NSM
benchmarking JumpProcesses.DirectCRDirect
N = 240
benchmarking JumpProcesses.NSM
benchmarking JumpProcesses.DirectCRDirect
N = 360
benchmarking JumpProcesses.NSM
benchmarking JumpProcesses.DirectCRDirect
plt=fetch_and_plot(bench_dict, domain_len)

References
