Multibody Robot, compilation and simulation performance

This is a Multibody.jl model of a 6-axis industrial robot with 6 revolute joints. The first three joints are modeled as flexible. The robot is tracking a smooth, predefined reference trajectory.

cd(@__DIR__)
using Pkg
Pkg.activate(".")

using ModelingToolkit
using Multibody
using Multibody: Robot6DOF
using JuliaSimCompiler
using OrdinaryDiffEq
using CairoMakie
using Printf

Setup

time_instantiate = @elapsed @named robot = Robot6DOF()
robot = complete(robot)
time_simplify = @elapsed ssys = structural_simplify(IRSystem(robot))
const C = JuliaSimCompiler.CTarget();
const LLVM = JuliaSimCompiler.llvm.LLVMTarget();
labels = ["Instantiate", "Simplify", "Problem creation", "Solve", "Extract data"]
const u0 = [
        robot.mechanics.r1.phi => deg2rad(-60)
        robot.mechanics.r2.phi => deg2rad(20)
        robot.mechanics.r3.phi => deg2rad(90)
        robot.mechanics.r4.phi => deg2rad(0)
        robot.mechanics.r5.phi => deg2rad(-110)
        robot.mechanics.r6.phi => deg2rad(0)
        robot.axis1.motor.Jmotor.phi => deg2rad(-60) * (-105)
        robot.axis2.motor.Jmotor.phi => deg2rad(20) * (210)
        robot.axis3.motor.Jmotor.phi => deg2rad(90) * (60)
    ]
const tspan = (0.0, 4.0)
(0.0, 4.0)

Backend Benchmark Definition

function julia_multibody_timings(ssys, target)
    time_prob = @elapsed prob = if target === JuliaSimCompiler.JuliaTarget()
        ODEProblem(ssys, u0, tspan)
    else
        ODEProblem(ssys, target, u0, tspan)
    end
    time_solve = @elapsed sol = solve(prob, Rodas5P(autodiff=false)); # With autodiff=true this takes over 150 seconds

    tv = 0:0.01:4
    time_extract_data = @elapsed data = sol(tv, idxs=[
        robot.pathPlanning.controlBus.axisControlBus1.angle
        robot.pathPlanning.controlBus.axisControlBus2.angle
        robot.pathPlanning.controlBus.axisControlBus3.angle
        robot.pathPlanning.controlBus.axisControlBus4.angle
        robot.pathPlanning.controlBus.axisControlBus5.angle
        robot.pathPlanning.controlBus.axisControlBus6.angle
        robot.mechanics.r1.phi
        robot.mechanics.r2.phi
        robot.mechanics.r3.phi
        robot.mechanics.r4.phi
        robot.mechanics.r5.phi
        robot.mechanics.r6.phi
        robot.axis1.controller.feedback1.output.u
        robot.axis2.controller.feedback1.output.u
        robot.axis3.controller.feedback1.output.u
        robot.axis4.controller.feedback1.output.u
        robot.axis5.controller.feedback1.output.u
        robot.axis6.controller.feedback1.output.u
    ]);
    timings = [time_instantiate, time_simplify, time_prob, time_solve, time_extract_data]
end
julia_multibody_timings (generic function with 1 method)

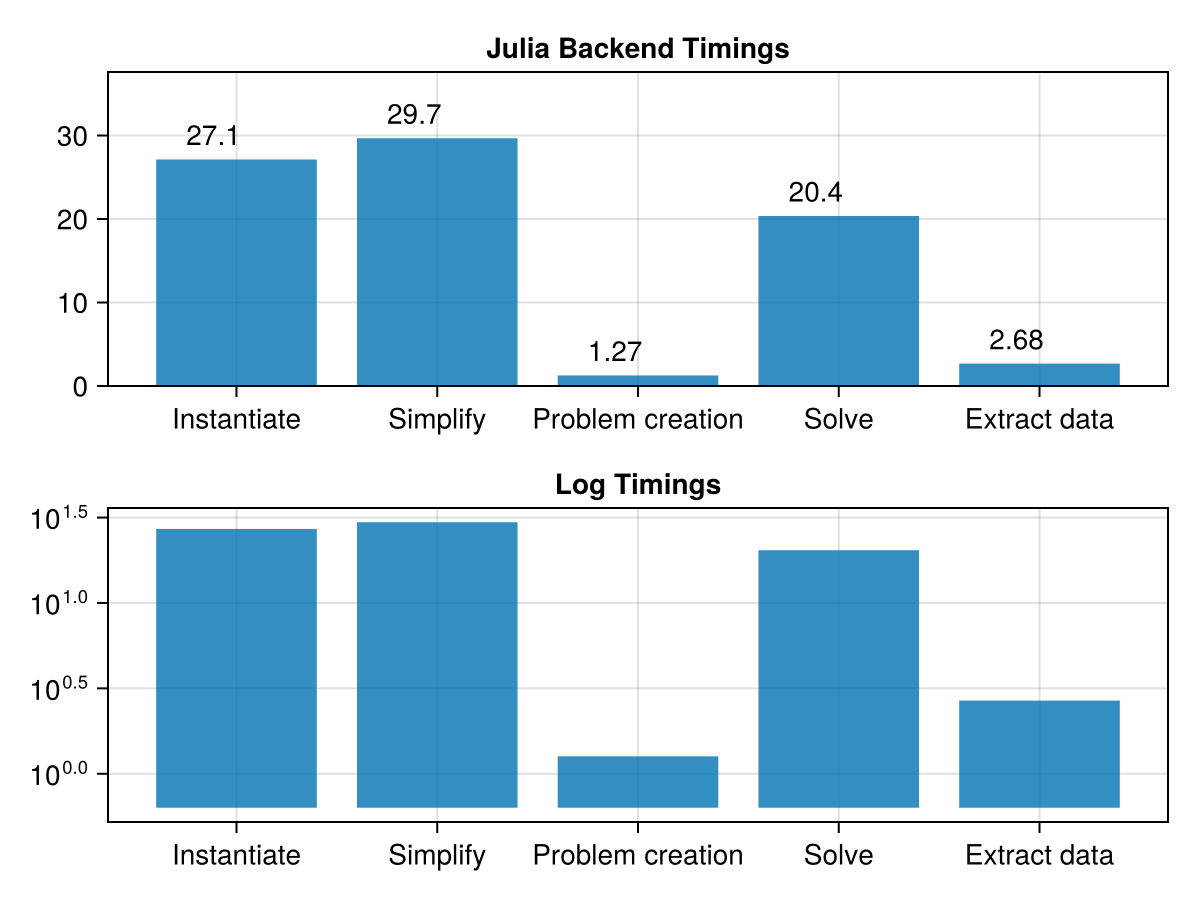

julia_timings = julia_multibody_timings(ssys, JuliaSimCompiler.JuliaTarget())

f = Figure()
xs = 1:length(labels)
points = Makie.Point.(xs .- 0.25, julia_timings .+ 1)
anns = [@sprintf("%3.3g", t) for t in julia_timings]
barplot(f[1,1], julia_timings, axis=(; title="Julia Backend Timings", xticks = (xs, labels), limits = (nothing, (0, maximum(julia_timings)*1.2 + 2))))
annotations!(f[1,1], anns, points)
barplot(f[2,1], julia_timings, axis=(; title="Log Timings", xticks = (xs, labels), yscale=log10))
f

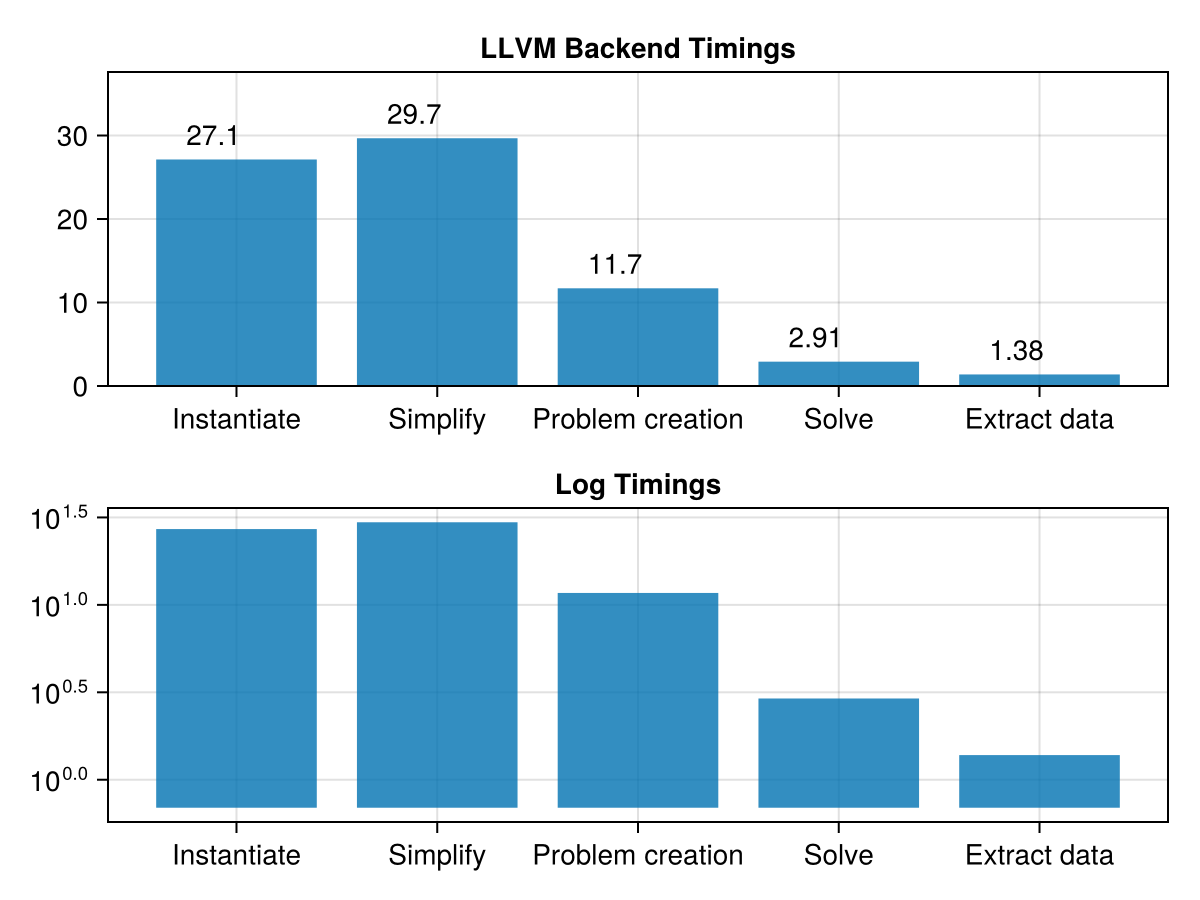

llvm_timings = julia_multibody_timings(ssys, LLVM)

f = Figure()
xs = 1:length(labels)
points = Makie.Point.(xs .- 0.25, llvm_timings .+ 1)
anns = [@sprintf("%3.3g", t) for t in llvm_timings]
barplot(f[1,1], llvm_timings, axis=(; title="LLVM Backend Timings", xticks = (xs, labels), limits = (nothing, (0, maximum(llvm_timings)*1.2 + 2))))
annotations!(f[1,1], anns, points)
barplot(f[2,1], llvm_timings, axis=(; title="Log Timings", xticks = (xs, labels), yscale=log10))
f

c_timings = julia_multibody_timings(ssys, C)

f = Figure()
xs = 1:length(labels)
points = Makie.Point.(xs .- 0.25, c_timings .+ 1)
anns = [@sprintf("%3.3g", t) for t in c_timings]
barplot(f[1,1], c_timings, axis=(; title="C Backend Timings", xticks = (xs, labels), limits = (nothing, (0, maximum(c_timings)*1.2 + 2))))
annotations!(f[1,1], anns, points)
barplot(f[2,1], c_timings, axis=(; title="Log Timings", xticks = (xs, labels), yscale=log10))
f
Error: AssertionError: _is_scalar(x) && _is_scalar(y)

Since the C backend currently errors, it's omitted from the total timings.

OpenModelica

using OMJulia
mod = OMJulia.OMCSession();
OMJulia.sendExpression(mod, "getVersion()")
OMJulia.sendExpression(mod, "installPackage(Modelica)")

@show "Start OpenModelica Timings"

om_total = @elapsed begin
    om_build = @elapsed ModelicaSystem(mod, modelName="Modelica.Mechanics.MultiBody.Examples.Systems.RobotR3.FullRobot", library="Modelica")
    om_sim = @elapsed res = sendExpression(mod, "simulate(Modelica.Mechanics.MultiBody.Examples.Systems.RobotR3.FullRobot)")
end
@assert res["messages"][1:11] == "LOG_SUCCESS"

OMJulia.quit(mod)
"Start OpenModelica Timings" = "Start OpenModelica Timings"

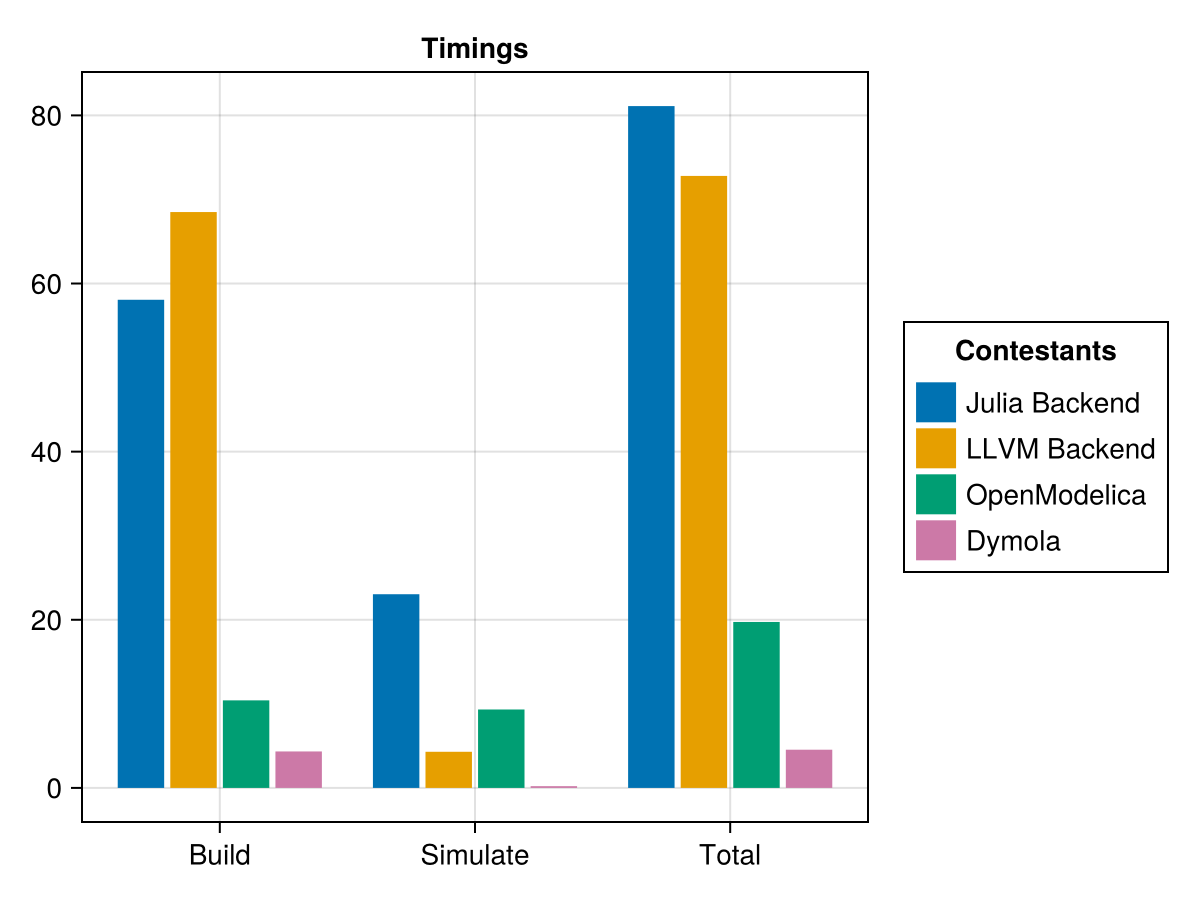

Comparison

colors = Makie.wong_colors()
labels = ["Build", "Simulate", "Total"]
julia_build = sum(julia_timings[1:3])
julia_sim = sum(julia_timings[4:5])
julia_total = julia_build + julia_sim

llvm_build = sum(llvm_timings[1:3])
llvm_sim = sum(llvm_timings[4:5])
llvm_total = llvm_build + llvm_sim

# c_build = sum(c_timings[1:3])
# c_sim = sum(c_timings[4:5])
# c_total = c_build + c_sim

dymola_build = sum([5.075, 3.912, 4.024])/3
dymola_total = sum([5.267, 4.112, 4.255])/3
dymola_sim = dymola_total - dymola_build

data = [
    julia_build julia_sim julia_total
    llvm_build llvm_sim llvm_total
    # c_build c_sim c_total
    om_build om_sim om_total
    dymola_build dymola_sim dymola_total
]

xs = repeat(1:length(labels), inner=4)
group = repeat([1,2,3,4], outer=3)
fig = Figure()
barplot(fig[1,1], xs, vec(data), dodge=group, color=colors[group], axis=(; title="Timings", xticks = ([1,2,3], labels)))

# Legend
legendentries = ["Julia Backend", "LLVM Backend", #= "C Backend", =# "OpenModelica", "Dymola"]
elements = [PolyElement(polycolor = colors[i]) for i in 1:length(legendentries)]
title = "Contestants"

Legend(fig[1,2], elements, legendentries, title)
fig

Appendix

Appendix

These benchmarks are a part of the SciMLBenchmarks.jl repository, found at: https://github.com/SciML/SciMLBenchmarks.jl. For more information on high-performance scientific machine learning, check out the SciML Open Source Software Organization https://sciml.ai.

To locally run this benchmark, do the following commands:

using SciMLBenchmarks
SciMLBenchmarks.weave_file("benchmarks/ModelingToolkit","Multibody_Robot.jmd")

Computer Information:

Julia Version 1.10.4
Commit 48d4fd48430 (2024-06-04 10:41 UTC)
Build Info:
  Official https://julialang.org/ release
Platform Info:
  OS: Linux (x86_64-linux-gnu)
  CPU: 128 × AMD EPYC 7502 32-Core Processor
  WORD_SIZE: 64
  LIBM: libopenlibm
  LLVM: libLLVM-15.0.7 (ORCJIT, znver2)
Threads: 1 default, 0 interactive, 1 GC (on 128 virtual cores)
Environment:
  JULIA_CPU_THREADS = 128
  JULIA_DEPOT_PATH = /cache/julia-buildkite-plugin/depots/5b300254-1738-4989-ae0a-f4d2d937f953
  JULIA_PKG_SERVER = juliahub.com

Package Information:

Status `/cache/build/exclusive-amdci3-0/julialang/scimlbenchmarks-dot-jl/benchmarks/ModelingToolkit/Project.toml`
  [6e4b80f9] BenchmarkTools v1.5.0
  [336ed68f] CSV v0.10.14
⌅ [13f3f980] CairoMakie v0.11.11
  [a93c6f00] DataFrames v1.6.1
  [8391cb6b] JuliaSimCompiler v0.1.17
  [9cbdfd5a] JuliaSimCompilerRuntime v1.0.2
  [7ed4a6bd] LinearSolve v2.32.0
  [961ee093] ModelingToolkit v9.32.0
  [16a59e39] ModelingToolkitStandardLibrary v2.11.0
  [e1cad5d1] Multibody v0.1.0
  [0f4fe800] OMJulia v0.3.2
  [1dea7af3] OrdinaryDiffEq v6.87.0
  [f27b6e38] Polynomials v4.0.11
  [ba661fbb] PreferenceTools v0.1.2
  [31c91b34] SciMLBenchmarks v0.1.3
⌅ [0c5d862f] Symbolics v5.36.0
  [de0858da] Printf
Info Packages marked with ⌅ have new versions available but compatibility constraints restrict them from upgrading. To see why use `status --outdated`
