Linear BVP Benchmarks

This benchmark compares the runtime and error of BVP solvers, including MIRK solvers, FIRK solvers, Shooting solvers and FORTRAN BVP solvers on linear boundary value problems. The testing BVPs are a set of standard BVP test problems as described here. The problems are implemented in BVProblemLibrary.jl, where you can find the problem function declarations. For each problem, we test the following solvers:

  • BoundaryValueDiffEq.jl's MIRK methods(including MIRK4, MIRK5, MIRK6).
  • BoundaryValueDiffEq.jl's Shooting methods(including Shooting, MultipleShooting).
  • BoundaryValueDiffEq.jl's FIRK methods(including RadauIIa3, RadauIIa5, RadauIIa7, LobattoIIIa4, LobattoIIIa5, LobattoIIIb4, LobattoIIIb5, LobattoIIIc4, LobattoIIIc5).
  • SimpleBoundaryValueDiffEq.jl's MIRK methods(including SimpleMIRK4, SimpleMIRK5, SimpleMIRK6).
  • FORTRAN BVP solvers from ODEInterface.jl(including BVPM2 and COLNEW).

Setup

Fetch required packages.

using BoundaryValueDiffEq, SimpleBoundaryValueDiffEq, OrdinaryDiffEq, ODEInterface, DiffEqDevTools, BenchmarkTools,
      BVProblemLibrary, CairoMakie

Set up the benchmarked solvers.

solvers_all = [
    (; pkg = :boundaryvaluediffeq,          type = :mirk,              name = "MIRK4",                solver = Dict(:alg => MIRK4(), :dts=>1.0 ./ 10.0 .^ (1:4))),
    (; pkg = :boundaryvaluediffeq,          type = :mirk,              name = "MIRK5",                solver = Dict(:alg => MIRK5(), :dts=>1.0 ./ 10.0 .^ (1:4))),
    (; pkg = :boundaryvaluediffeq,          type = :mirk,              name = "MIRK6",                solver = Dict(:alg => MIRK6(), :dts=>1.0 ./ 10.0 .^ (1:4))),
    (; pkg = :boundaryvaluediffeq,          type = :firk,              name = "RadauIIa3",            solver = Dict(:alg => RadauIIa3(), :dts=>1.0 ./ 10.0 .^ (1:4))),
    (; pkg = :boundaryvaluediffeq,          type = :firk,              name = "RadauIIa5",            solver = Dict(:alg => RadauIIa5(), :dts=>1.0 ./ 10.0 .^ (1:4))),
    (; pkg = :boundaryvaluediffeq,          type = :firk,              name = "RadauIIa7",            solver = Dict(:alg => RadauIIa7(), :dts=>1.0 ./ 10.0 .^ (1:4))),
    (; pkg = :boundaryvaluediffeq,          type = :firk,              name = "LobattoIIIa4",         solver = Dict(:alg => LobattoIIIa4(), :dts=>1.0 ./ 10.0 .^ (1:4))),
    (; pkg = :boundaryvaluediffeq,          type = :firk,              name = "LobattoIIIa5",         solver = Dict(:alg => LobattoIIIa5(), :dts=>1.0 ./ 10.0 .^ (1:4))),
    (; pkg = :boundaryvaluediffeq,          type = :firk,              name = "LobattoIIIb4",         solver = Dict(:alg => LobattoIIIb4(), :dts=>1.0 ./ 10.0 .^ (1:4))),
    (; pkg = :boundaryvaluediffeq,          type = :firk,              name = "LobattoIIIb5",         solver = Dict(:alg => LobattoIIIb5(), :dts=>1.0 ./ 10.0 .^ (1:4))),
    (; pkg = :boundaryvaluediffeq,          type = :firk,              name = "LobattoIIIc4",         solver = Dict(:alg => LobattoIIIc4(), :dts=>1.0 ./ 10.0 .^ (1:4))),
    (; pkg = :boundaryvaluediffeq,          type = :firk,              name = "LobattoIIIc5",         solver = Dict(:alg => LobattoIIIc5(), :dts=>1.0 ./ 10.0 .^ (1:4))),
    (; pkg = :boundaryvaluediffeq,          type = :shooting,          name = "Single Shooting",      solver = Dict(:alg => Shooting(Tsit5(), NewtonRaphson()), :dts=>1.0 ./ 10.0 .^ (1:4))),
    (; pkg = :boundaryvaluediffeq,          type = :shooting,          name = "Multiple Shooting",    solver = Dict(:alg => MultipleShooting(10, Tsit5()), :dts=>1.0 ./ 10.0 .^ (1:4))),
    (; pkg = :simpleboundaryvaluediffeq,    type = :simplemirk,        name = "SimpleMIRK4",          solver = Dict(:alg => SimpleMIRK4(), :dts=>1.0 ./ 10.0 .^ (1:4))),
    (; pkg = :simpleboundaryvaluediffeq,    type = :simplemirk,        name = "SimpleMIRK5",          solver = Dict(:alg => SimpleMIRK5(), :dts=>1.0 ./ 10.0 .^ (1:4))),
    (; pkg = :simpleboundaryvaluediffeq,    type = :simplemirk,        name = "SimpleMIRK6",          solver = Dict(:alg => SimpleMIRK6(), :dts=>1.0 ./ 10.0 .^ (1:4))),
    (; pkg = :wrapper,                      type = :general,           name = "BVPM2",                solver = Dict(:alg => BVPM2(), :dts=>1.0 ./ 10.0 .^ (1:4))),
    (; pkg = :wrapper,                      type = :general,           name = "COLNEW",               solver = Dict(:alg => COLNEW(), :dts=>1.0 ./ 10.0 .^ (1:4))),
];

solver_tracker = [];
wp_general_tracker = [];

Sets tolerances.

abstols = 1.0 ./ 10.0 .^ (1:3)
reltols = 1.0 ./ 10.0 .^ (1:3);

Prepares helper function for benchmarking a specific problem.

function benchmark(prob)
    sol = solve(prob, Shooting(Vern7()), abstol=1e-14, reltol=1e-14)
    testsol = TestSolution(sol)
    wps = WorkPrecisionSet(prob, abstols, reltols, getfield.(solvers_all, :solver); names = getfield.(solvers_all, :name), appxsol = testsol, maxiters=Int(1e4))
    push!(wp_general_tracker, wps)
    return wps
end

function plot_wpd(wp_set)
    fig = begin
        LINESTYLES = Dict(:boundaryvaluediffeq => :solid, :simpleboundaryvaluediffeq => :dash, :wrapper => :dot)
        ASPECT_RATIO = 0.7
        WIDTH = 1200
        HEIGHT = round(Int, WIDTH * ASPECT_RATIO)
        STROKEWIDTH = 2.5

    colors = cgrad(:seaborn_bright, length(solvers_all); categorical = true)
    cycle = Cycle([:marker], covary = true)
        plot_theme = Theme(Lines = (; cycle), Scatter = (; cycle))

        with_theme(plot_theme) do
            fig = Figure(; size = (WIDTH, HEIGHT))
            ax = Axis(fig[1, 1], ylabel = L"Time $\mathbf{(s)}$",
                xlabelsize = 22, ylabelsize = 22,
                xlabel = L"Error: $\mathbf{||f(u^\ast)||_\infty}$",
                xscale = log10, yscale = log10, xtickwidth = STROKEWIDTH,
                ytickwidth = STROKEWIDTH, spinewidth = STROKEWIDTH,
                xticklabelsize = 20, yticklabelsize = 20)

            idxs = sortperm(median.(getfield.(wp_set.wps, :times)))

            ls, scs = [], []

            for (i, (wp, solver)) in enumerate(zip(wp_set.wps[idxs], solvers_all[idxs]))
                (; name, times, errors) = wp
                errors = [err.l∞ for err in errors]
                l = lines!(ax, errors, times; linestyle = LINESTYLES[solver.pkg], label = name,
                    linewidth = 5, color = colors[i])
                sc = scatter!(ax, errors, times; label = name, markersize = 16, strokewidth = 2,
                    color = colors[i])
                push!(ls, l)
                push!(scs, sc)
            end

            xlims!(ax; high=1)
            ylims!(ax; low=5e-6)

            axislegend(ax, [[l, sc] for (l, sc) in zip(ls, scs)],
                [solver.name for solver in solvers_all[idxs]], "BVP Solvers";
                framevisible=true, framewidth = STROKEWIDTH, position = :rb,
                titlesize = 20, labelsize = 16, patchsize = (40.0f0, 20.0f0))

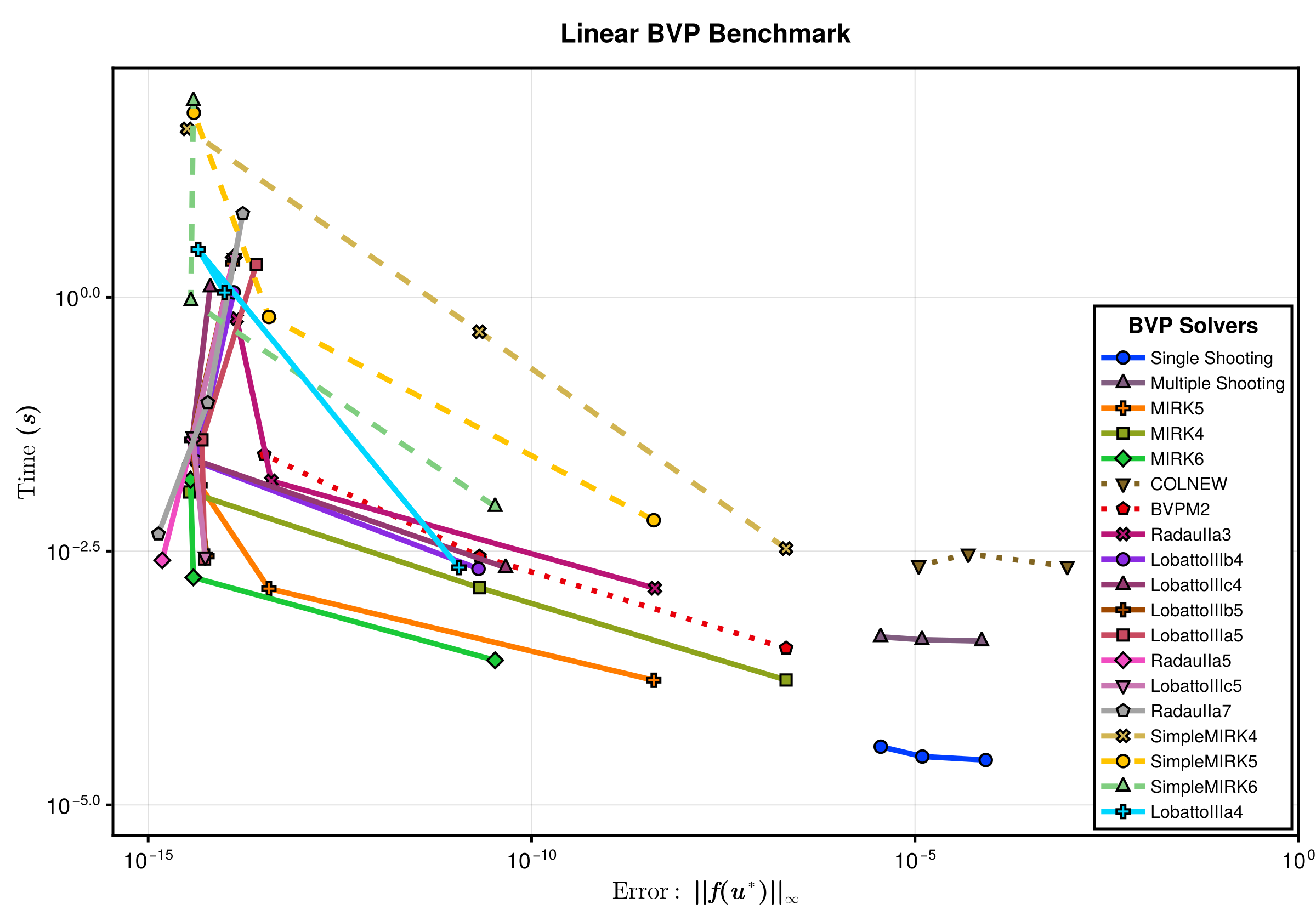

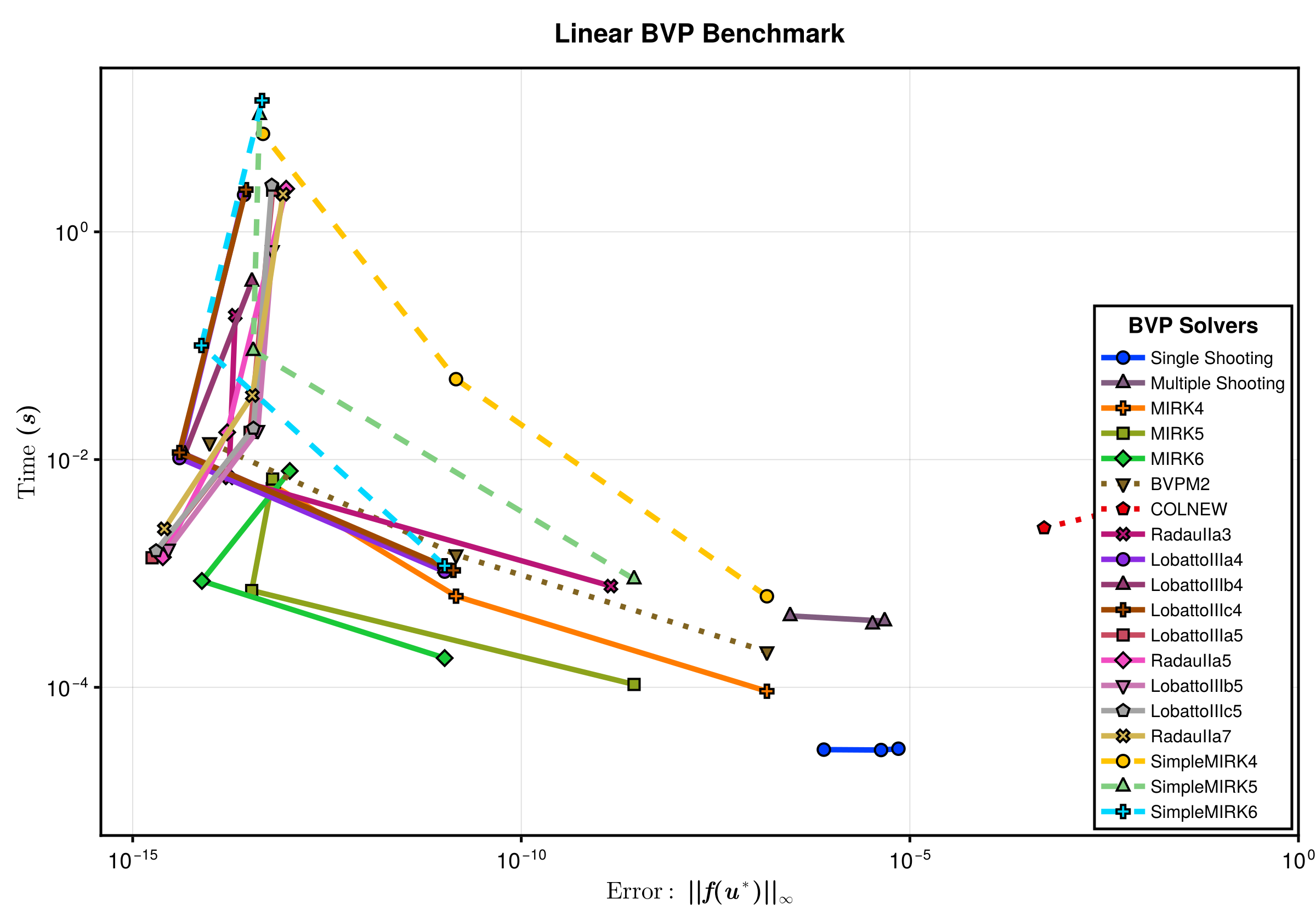

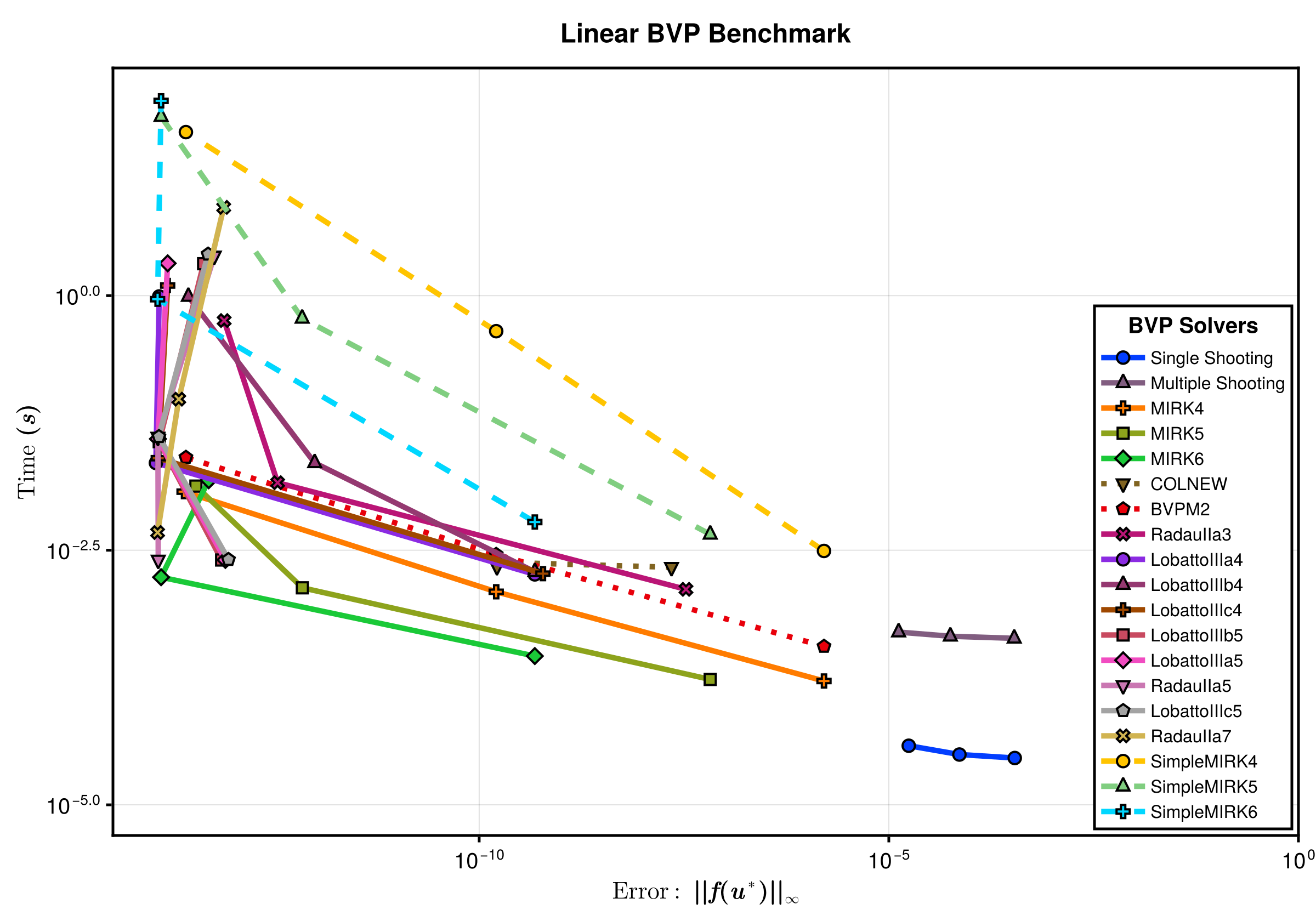

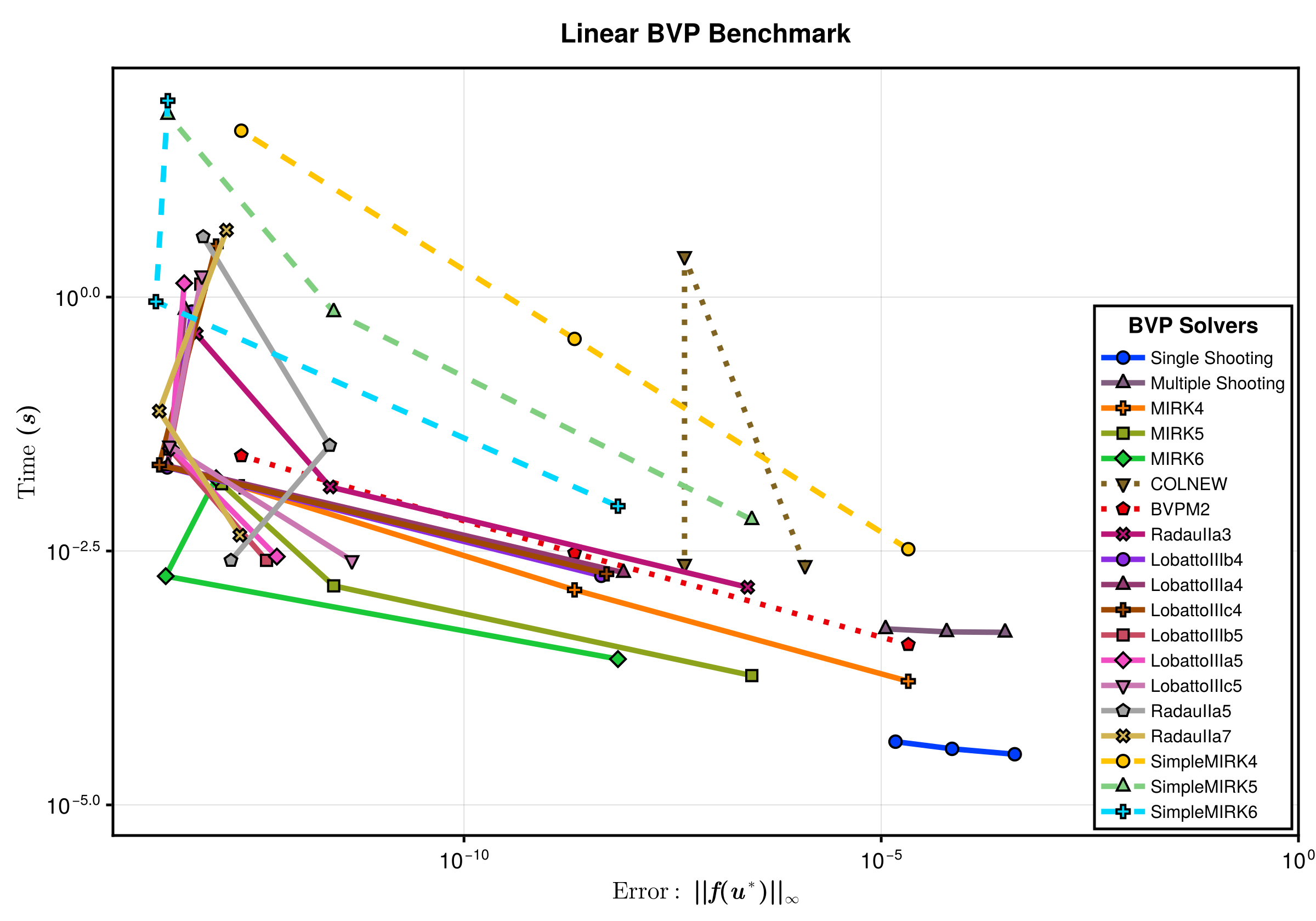

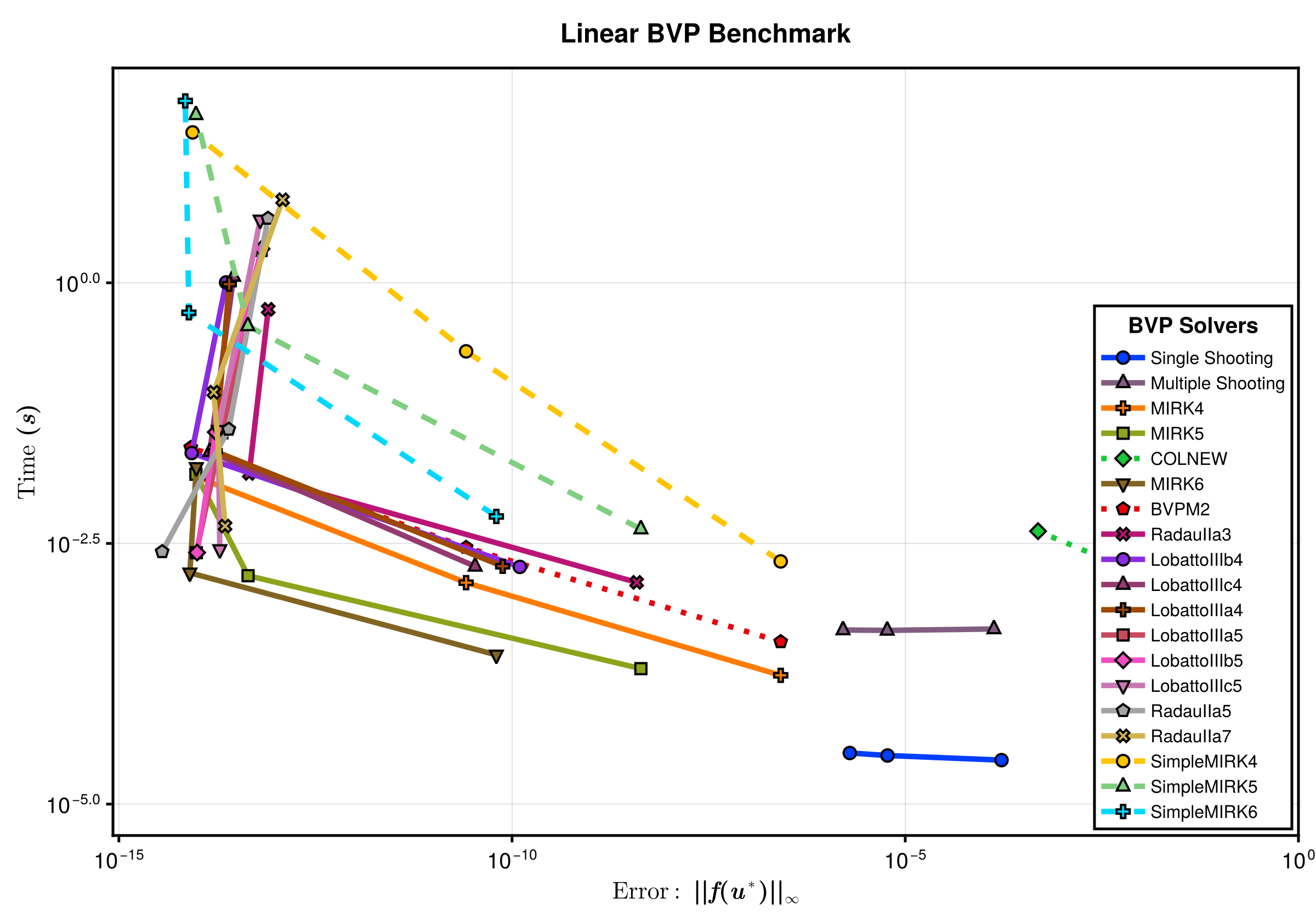

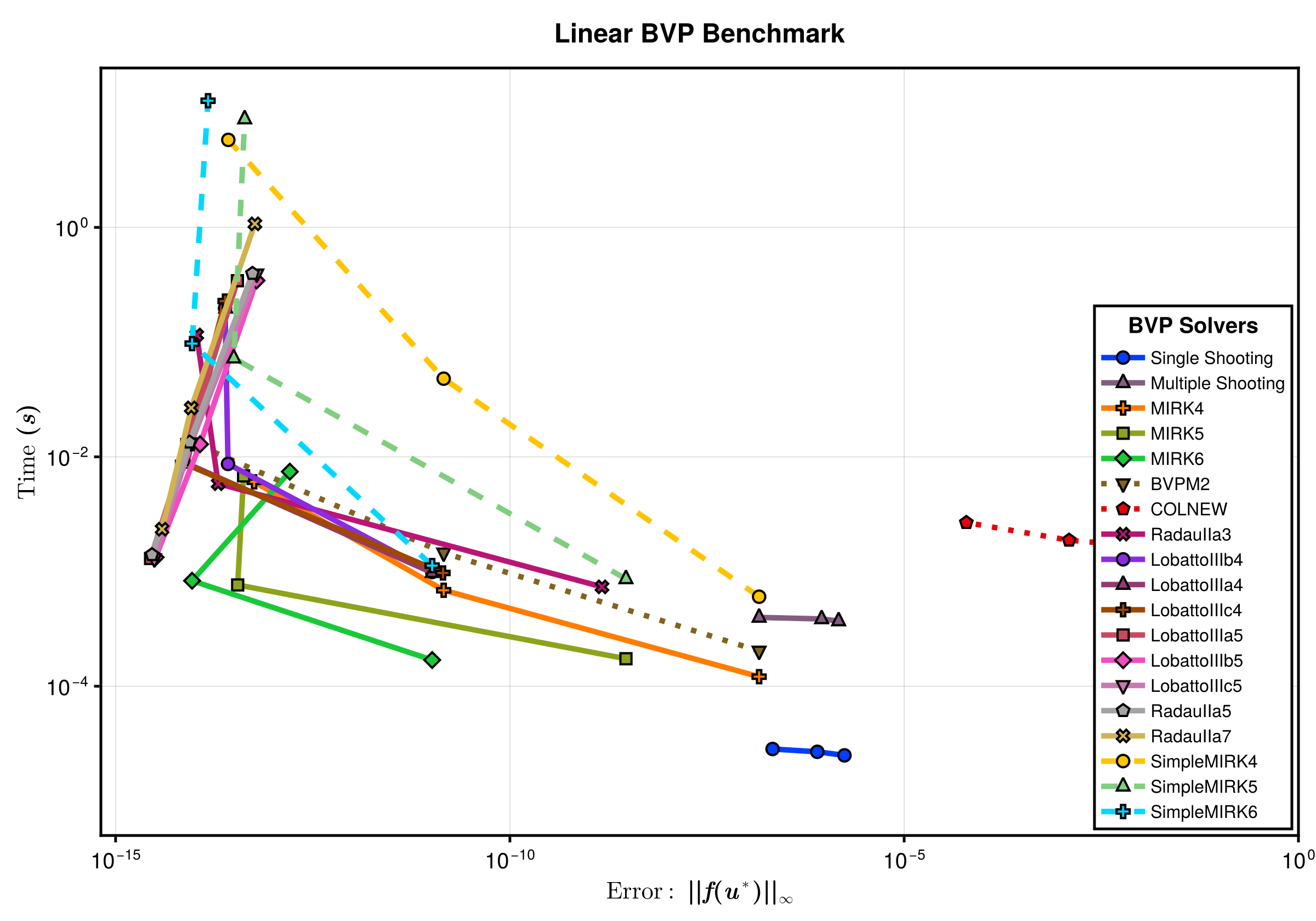

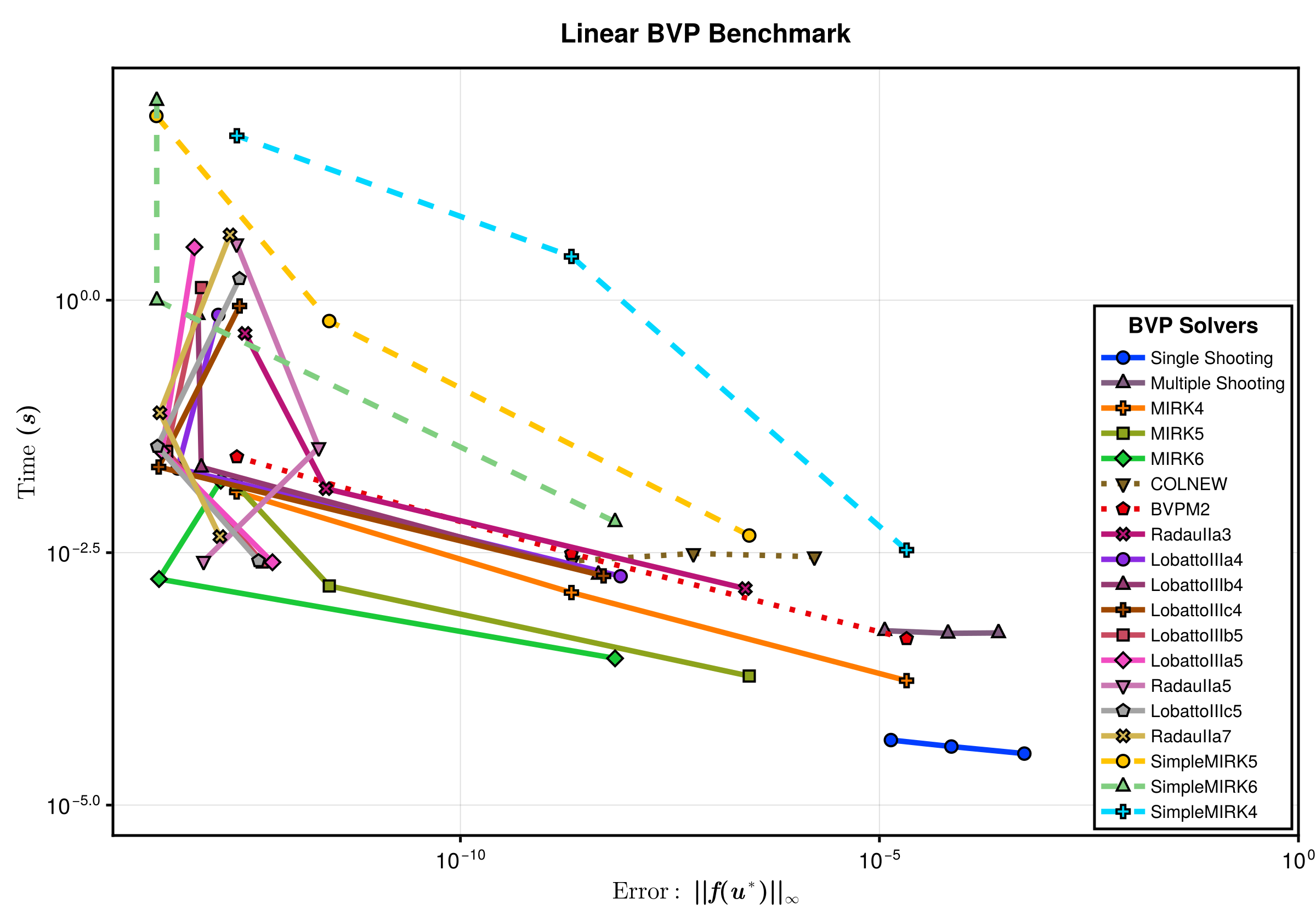

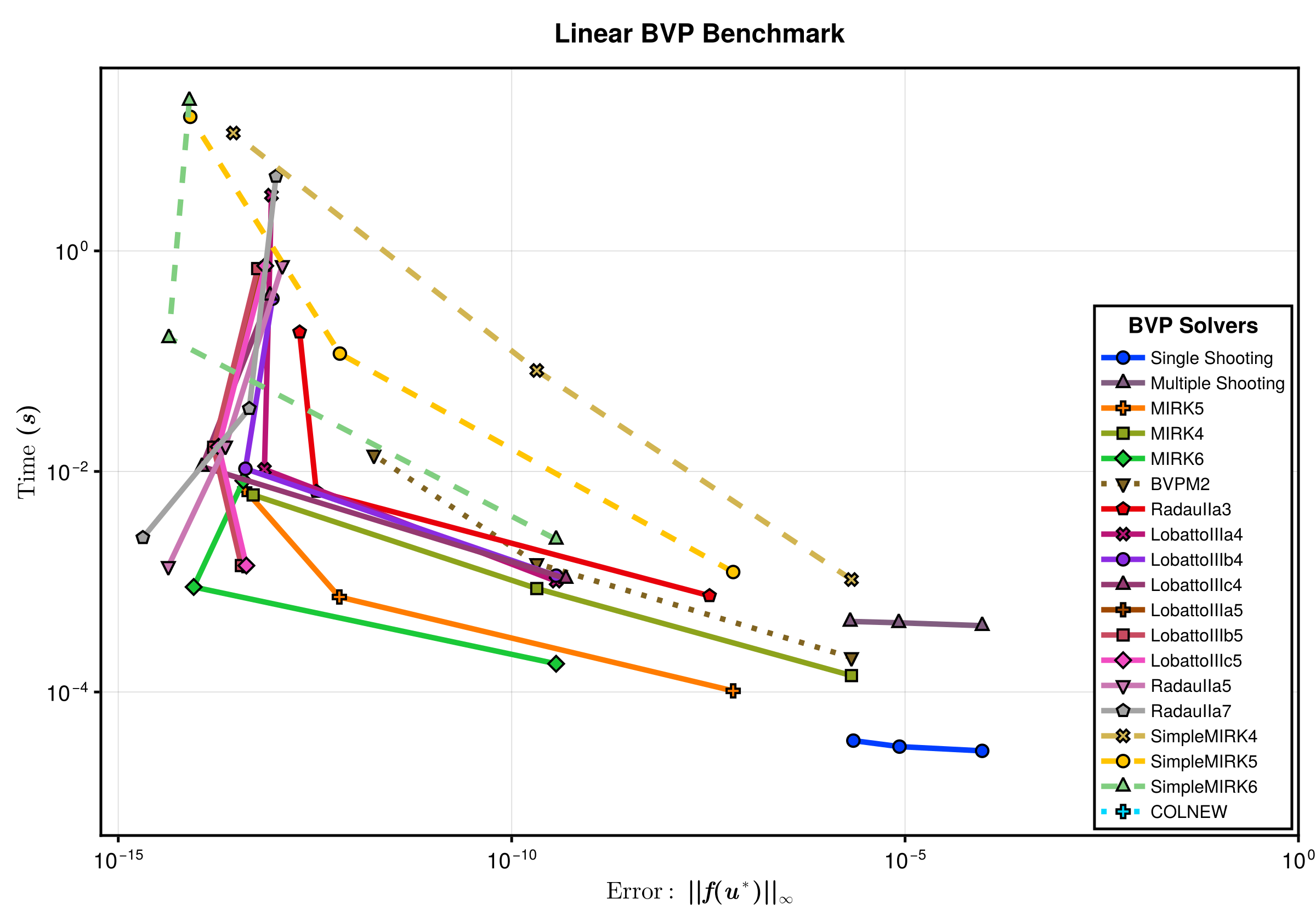

            fig[0, :] = Label(fig, "Linear BVP Benchmark",
                fontsize = 24, tellwidth = false, font = :bold)
            fig
        end
    end
end
plot_wpd (generic function with 1 method)

Benchmarks

We here run benchmarks for each of the 18 test problems.

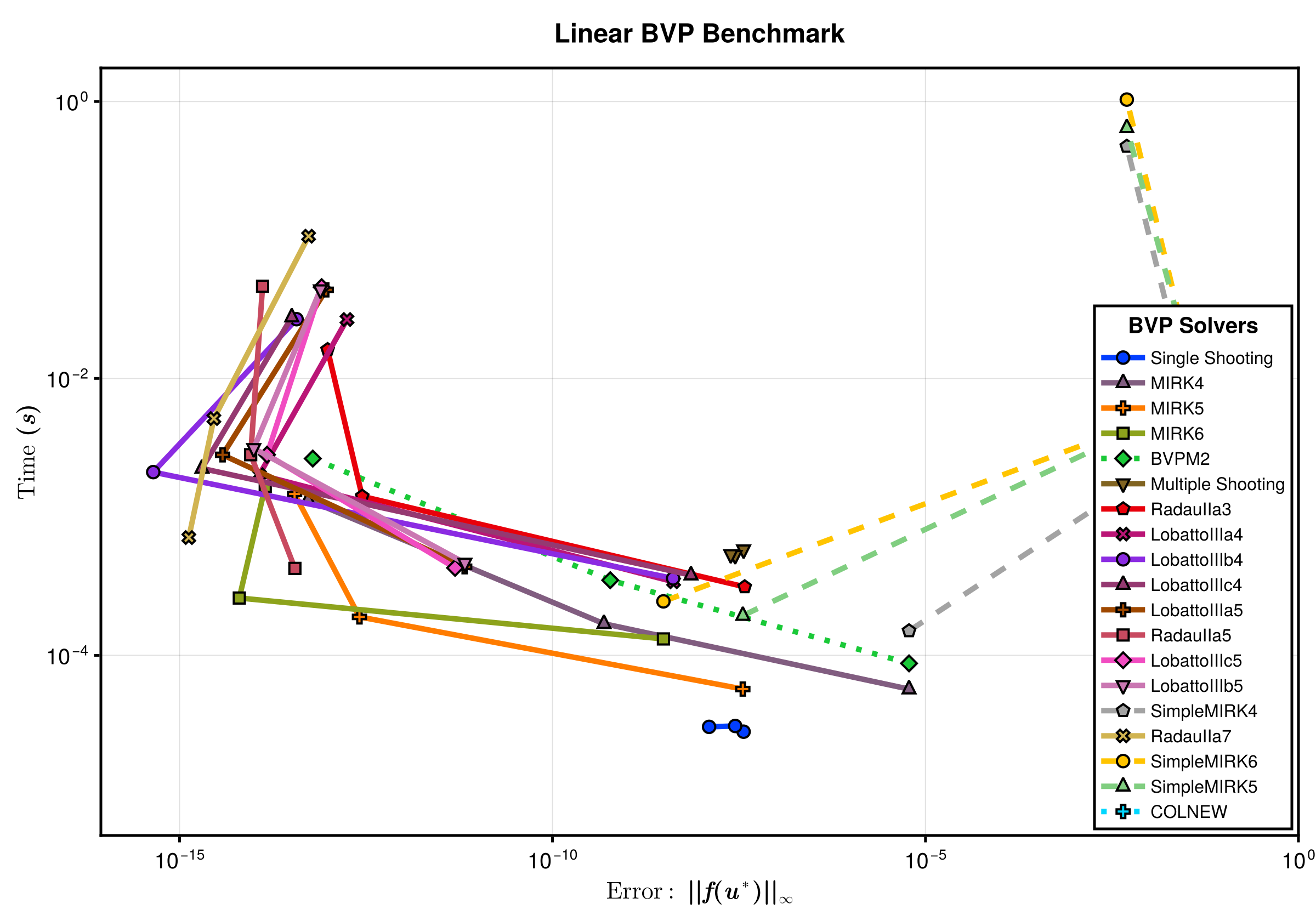

Linear BVP 1

prob_1 = BVProblemLibrary.prob_bvp_linear_1
wps = benchmark(prob_1)

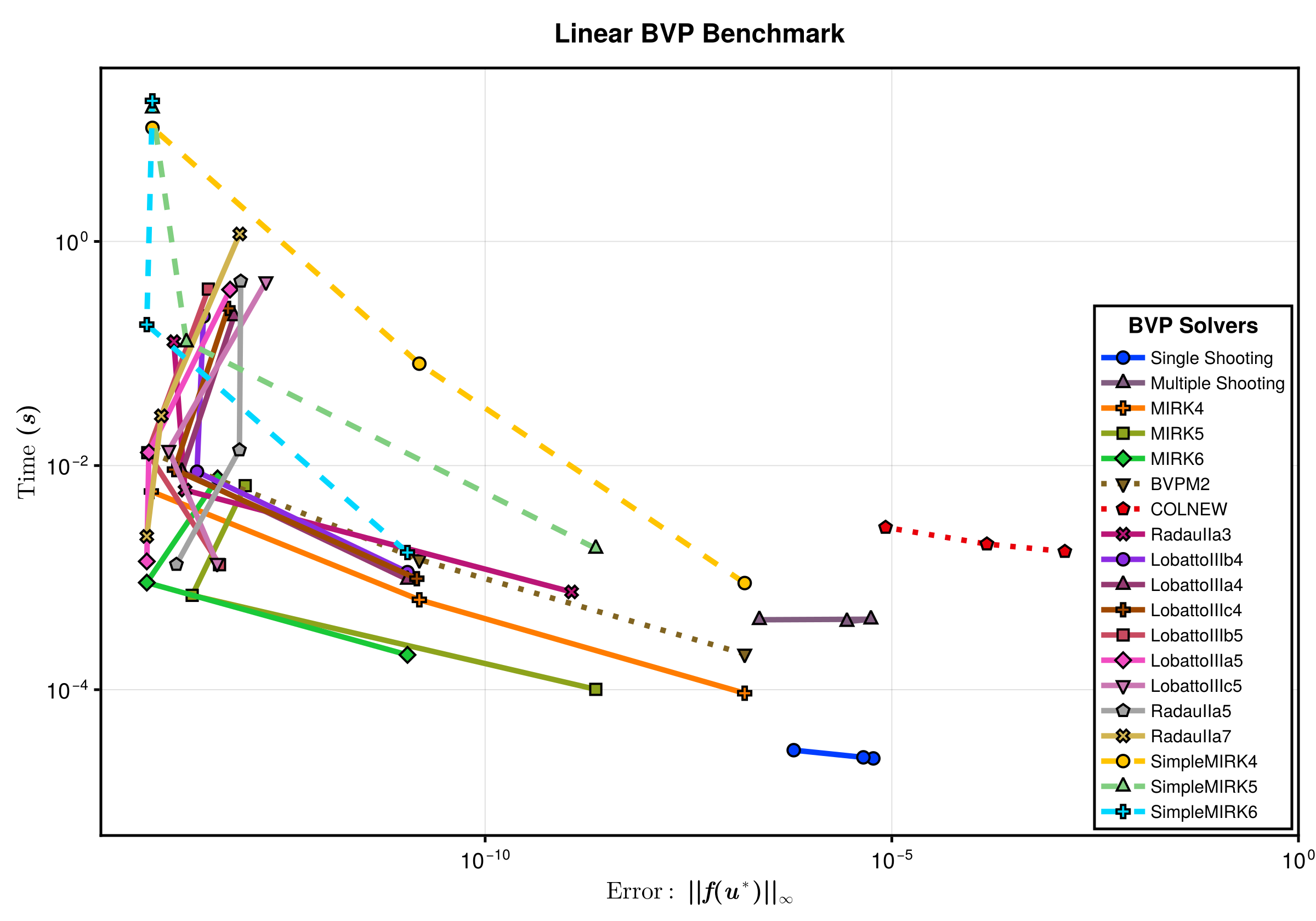

plot_wpd(wps)

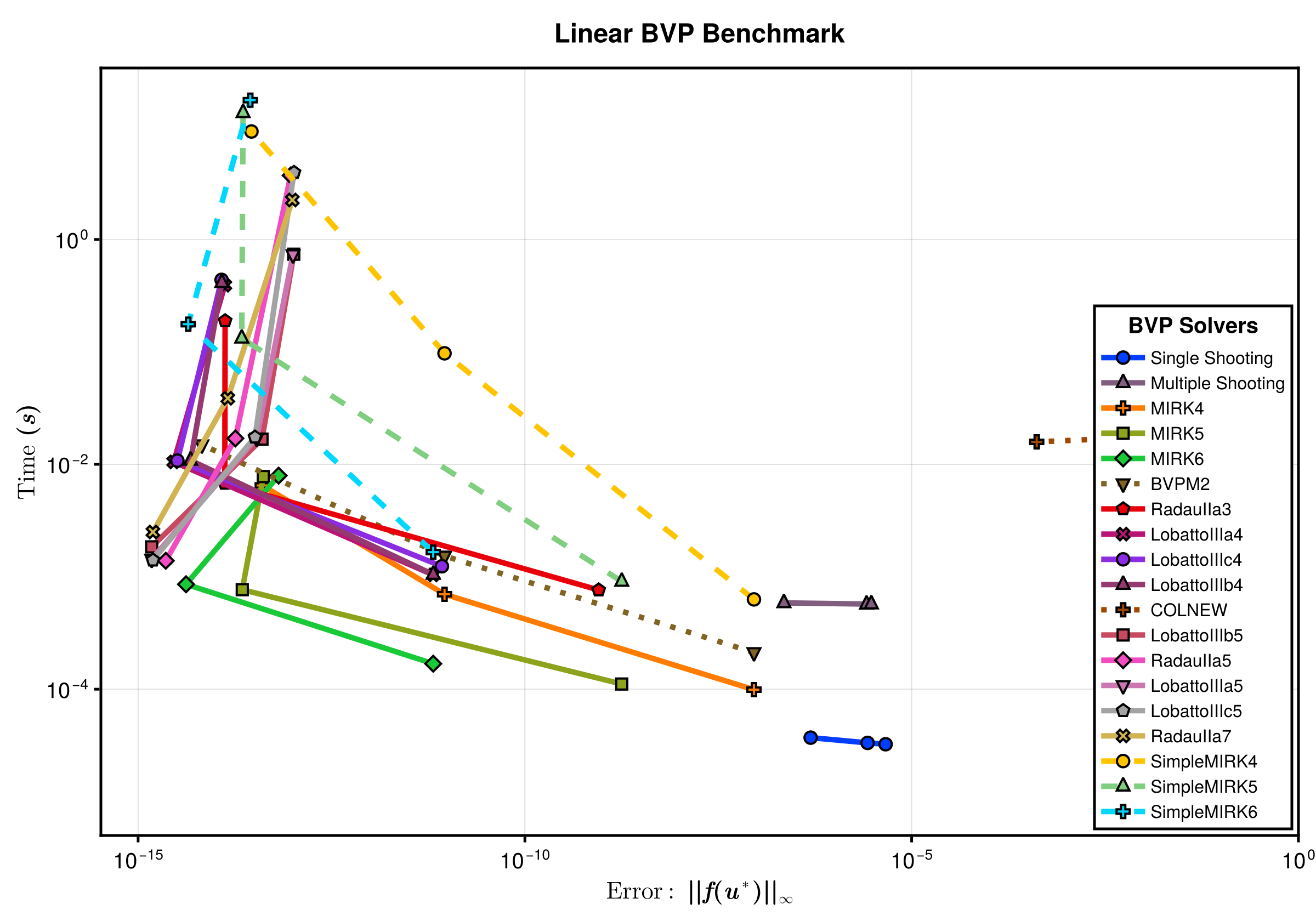

Linear BVP 2

prob_2 = BVProblemLibrary.prob_bvp_linear_2
wps = benchmark(prob_2)

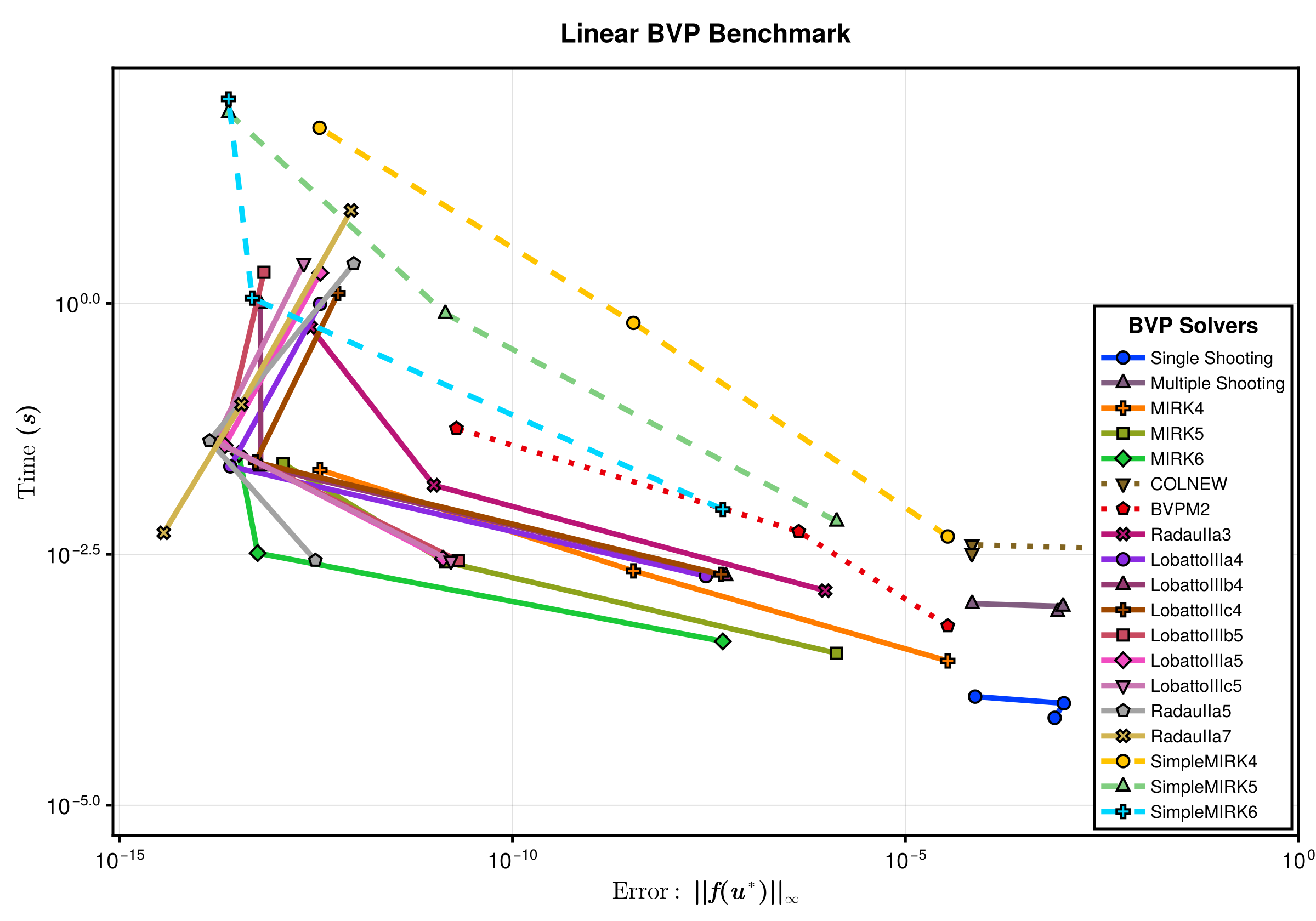

plot_wpd(wps)

Linear BVP 3

prob_3 = BVProblemLibrary.prob_bvp_linear_3
wps = benchmark(prob_3)
plot_wpd(wps)

Linear BVP 4

prob_4 = BVProblemLibrary.prob_bvp_linear_4
wps = benchmark(prob_4)

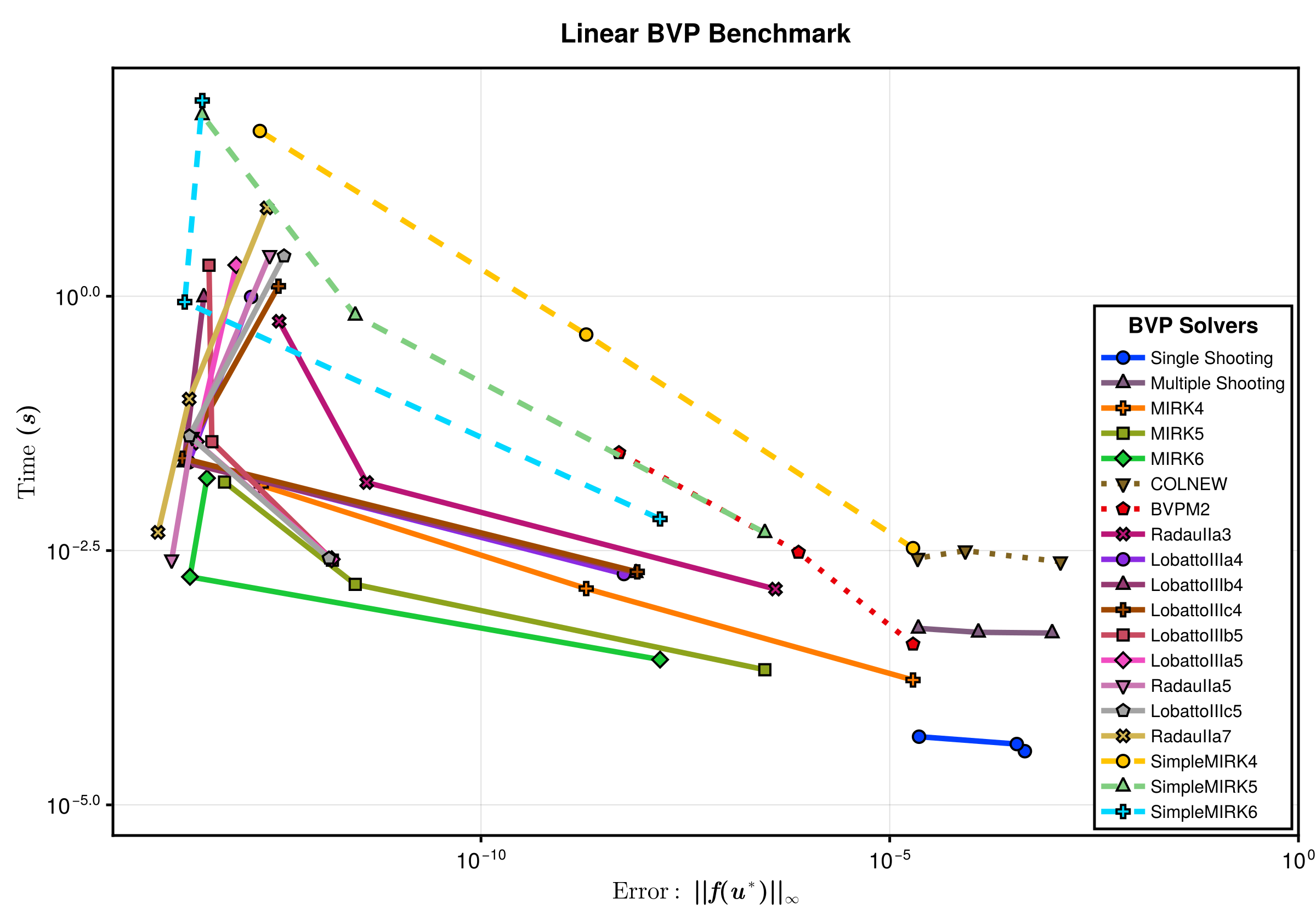

plot_wpd(wps)

Linear BVP 5

prob_5 = BVProblemLibrary.prob_bvp_linear_5
wps = benchmark(prob_5)
plot_wpd(wps)

Linear BVP 6

prob_6 = BVProblemLibrary.prob_bvp_linear_6
wps = benchmark(prob_6)

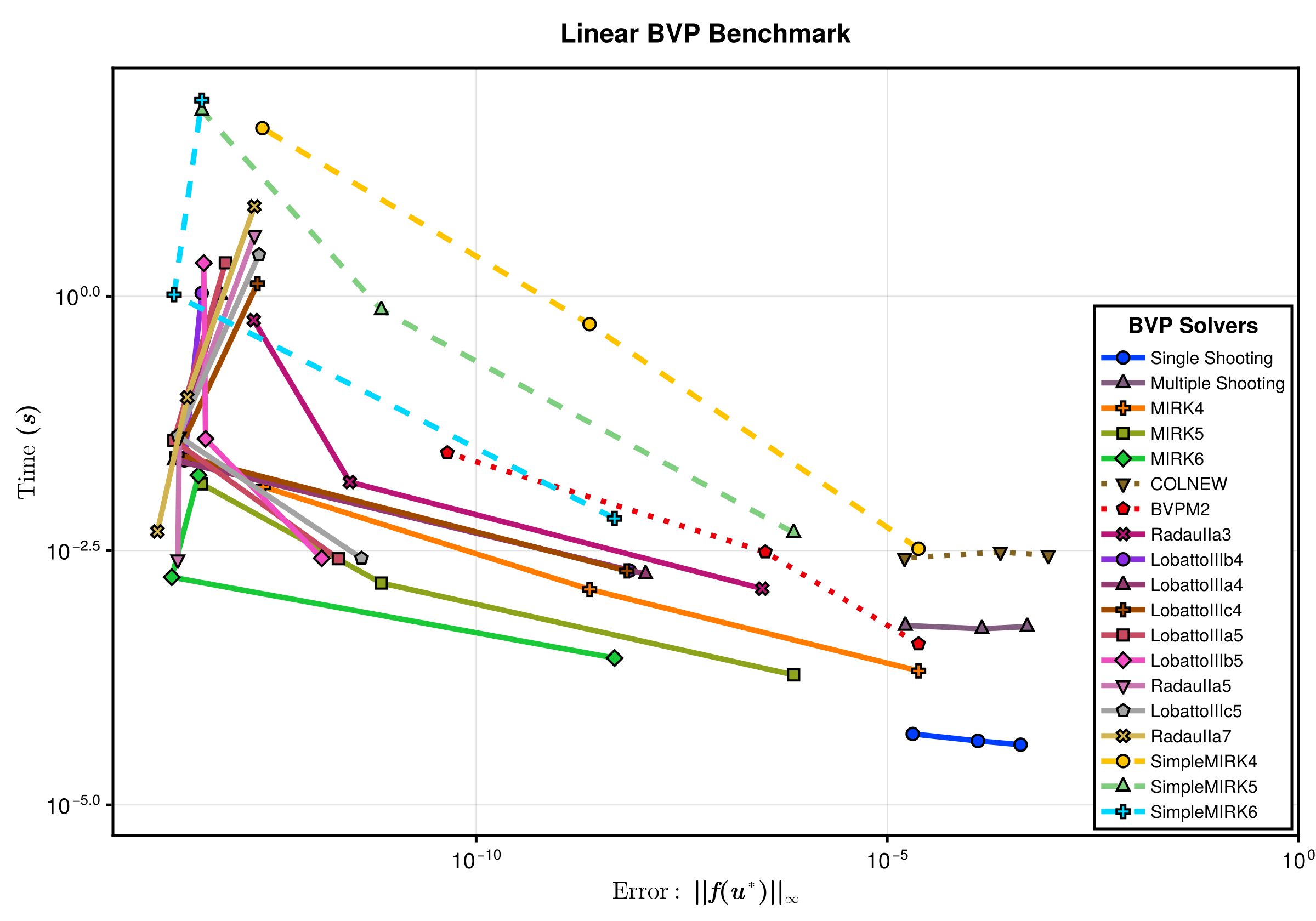

plot_wpd(wps)

Linear BVP 7

prob_7 = BVProblemLibrary.prob_bvp_linear_7
wps = benchmark(prob_7)
plot_wpd(wps)

Linear BVP 8

prob_8 = BVProblemLibrary.prob_bvp_linear_8
wps = benchmark(prob_8)

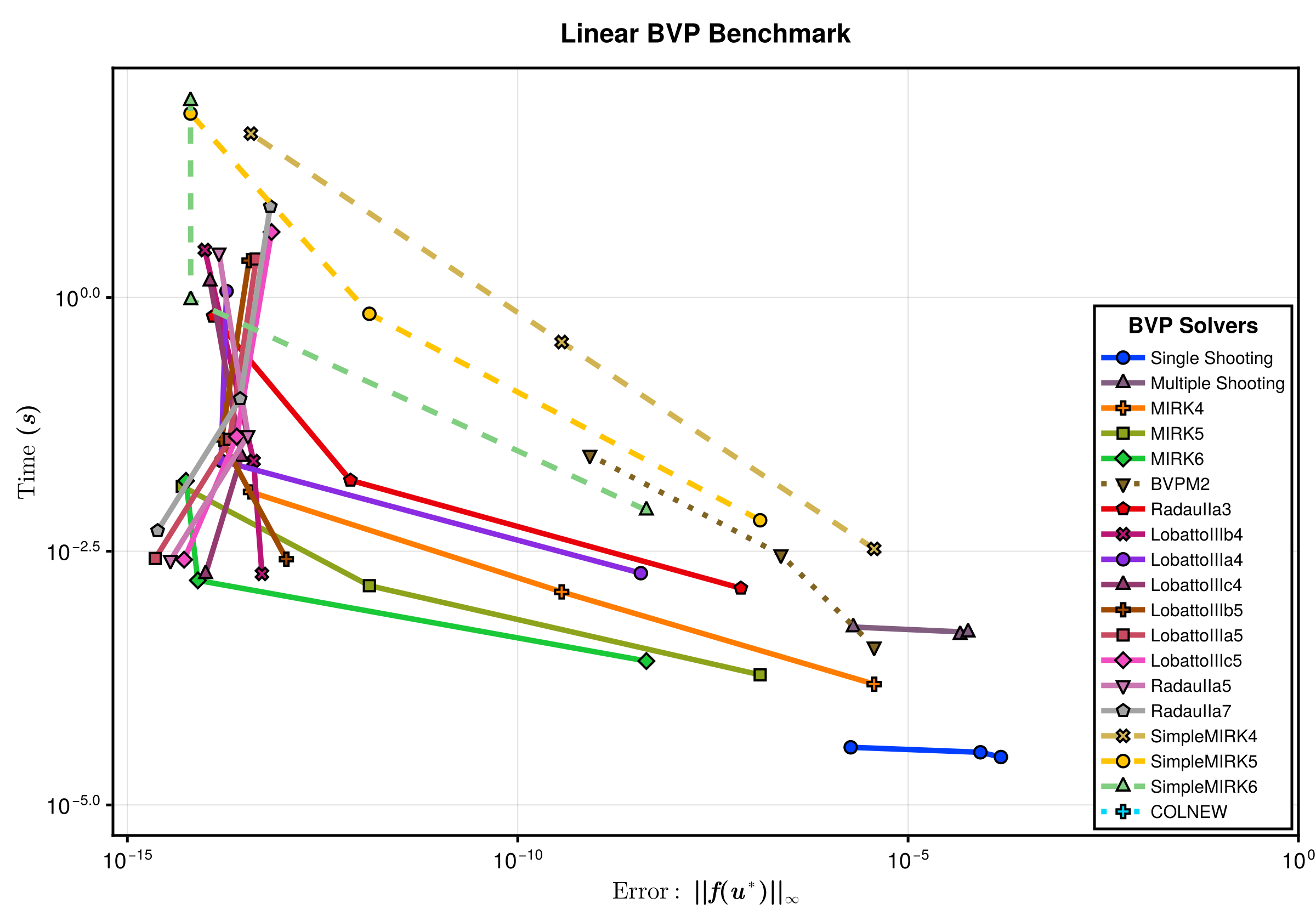

plot_wpd(wps)

Linear BVP 9

prob_9 = BVProblemLibrary.prob_bvp_linear_9
wps = benchmark(prob_9)
plot_wpd(wps)

Linear BVP 10

prob_10 = BVProblemLibrary.prob_bvp_linear_10
wps = benchmark(prob_10)
plot_wpd(wps)

Linear BVP 11

prob_11 = BVProblemLibrary.prob_bvp_linear_11
wps = benchmark(prob_11)

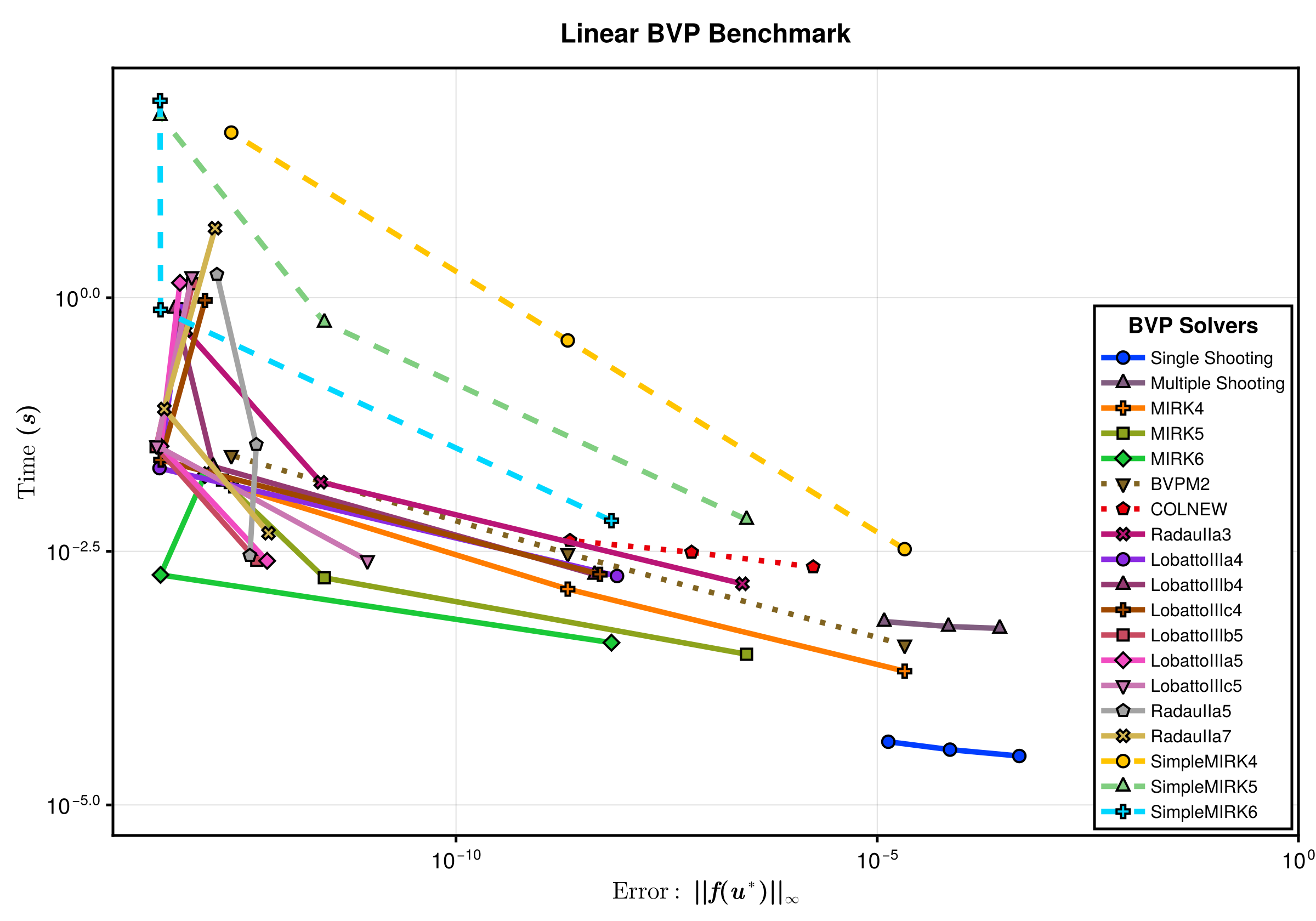

plot_wpd(wps)

Linear BVP 12

prob_12 = BVProblemLibrary.prob_bvp_linear_12
wps = benchmark(prob_12)

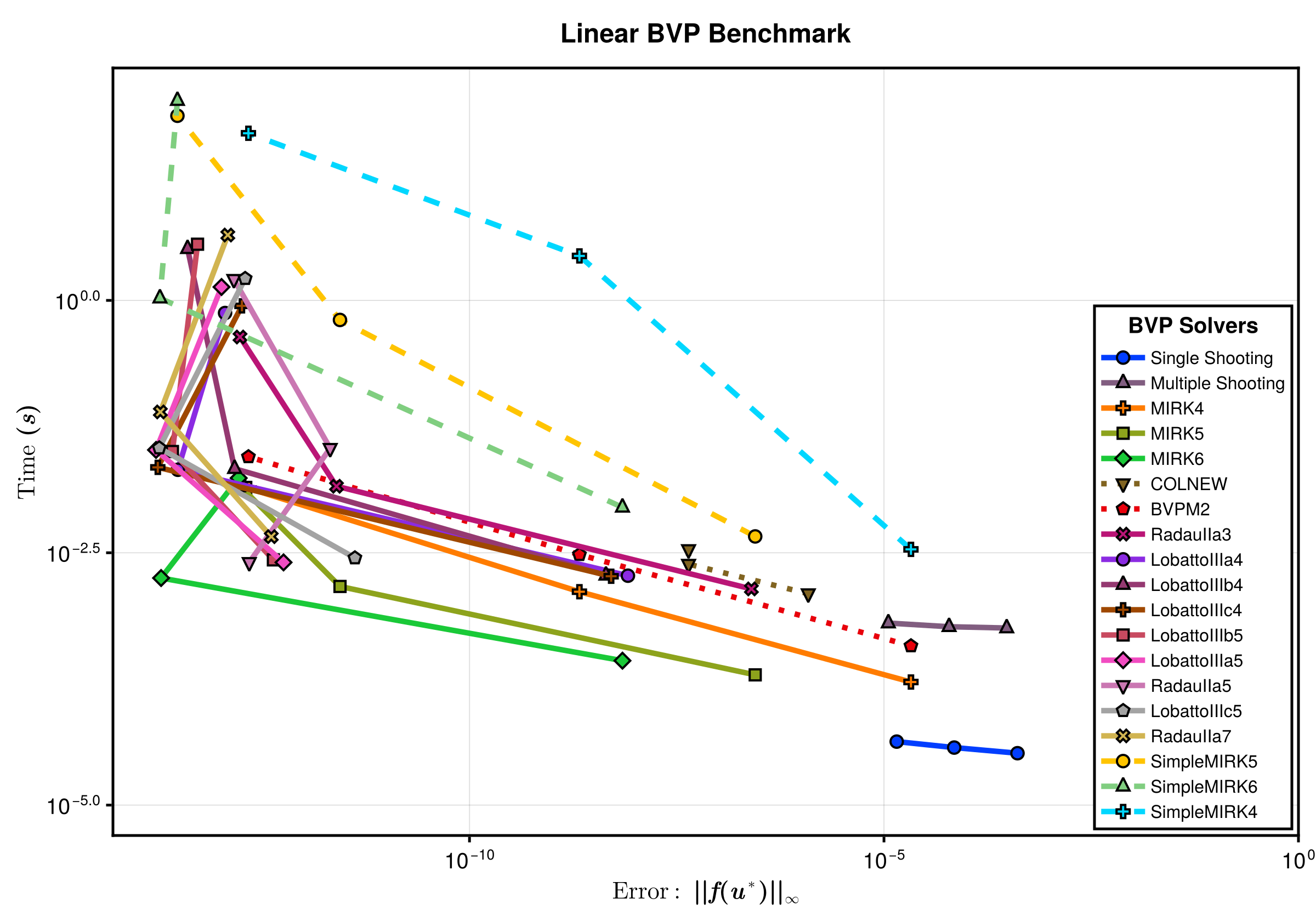

plot_wpd(wps)

Linear BVP 13

prob_13 = BVProblemLibrary.prob_bvp_linear_13
wps = benchmark(prob_13)
plot_wpd(wps)

Linear BVP 14

prob_14 = BVProblemLibrary.prob_bvp_linear_14
wps = benchmark(prob_14)
plot_wpd(wps)

Linear BVP 15

prob_15 = BVProblemLibrary.prob_bvp_linear_15
wps = benchmark(prob_15)
plot_wpd(wps)

Linear BVP 16

prob_16 = BVProblemLibrary.prob_bvp_linear_16
wps = benchmark(prob_16)
plot_wpd(wps)

Linear BVP 17

prob_17 = BVProblemLibrary.prob_bvp_linear_17
wps = benchmark(prob_17)
plot_wpd(wps)

Linear BVP 18

prob_18 = BVProblemLibrary.prob_bvp_linear_18
wps = benchmark(prob_18)
plot_wpd(wps)

Summary of General Solvers Performance on All Problems

fig = begin
    LINESTYLES = Dict(:boundaryvaluediffeq => :solid, :simpleboundaryvaluediffeq => :dash, :wrapper => :dot)
    ASPECT_RATIO = 0.7
    WIDTH = 1800
    HEIGHT = round(Int, WIDTH * ASPECT_RATIO)
    STROKEWIDTH = 2.5

    colors = cgrad(:seaborn_bright, length(solvers_all); categorical = true)
    cycle = Cycle([:marker], covary = true)
    plot_theme = Theme(Lines = (; cycle), Scatter = (; cycle))

    with_theme(plot_theme) do
        fig = Figure(; size = (WIDTH, HEIGHT))

        axs = Matrix{Any}(undef, 5, 5)

        ls = []
        scs = []
        labels = []
        solver_times = []

        for i in 1:4, j in 1:5
            idx = 5 * (i - 1) + j

            idx > length(wp_general_tracker) && break

            wp = wp_general_tracker[idx]

            ax = Axis(fig[i, j],
                xscale = log10, yscale = log10,
                xtickwidth = STROKEWIDTH,
                ytickwidth = STROKEWIDTH, spinewidth = STROKEWIDTH,
                title = "No. $(idx) Linear BVP benchmarking", titlegap = 10,
                xticklabelsize = 16, yticklabelsize = 16)

            for wpᵢ in wp.wps
                idx = findfirst(s -> s.name == wpᵢ.name, solvers_all)
                errs = getindex.(wpᵢ.errors, :l∞)
                times = wpᵢ.times

                l = lines!(ax, errs, times; color = colors[idx], linewidth = 3,
                    linestyle = LINESTYLES[solvers_all[idx].pkg], alpha = 0.8,
                    label = wpᵢ.name)
                sc = scatter!(ax, errs, times; color = colors[idx], markersize = 16,
                    strokewidth = 2, marker = Cycled(idx), alpha = 0.8, label = wpᵢ.name)

                if wpᵢ.name ∉ labels
                    push!(ls, l)
                    push!(scs, sc)
                    push!(labels, wpᵢ.name)
                end
            end
        end

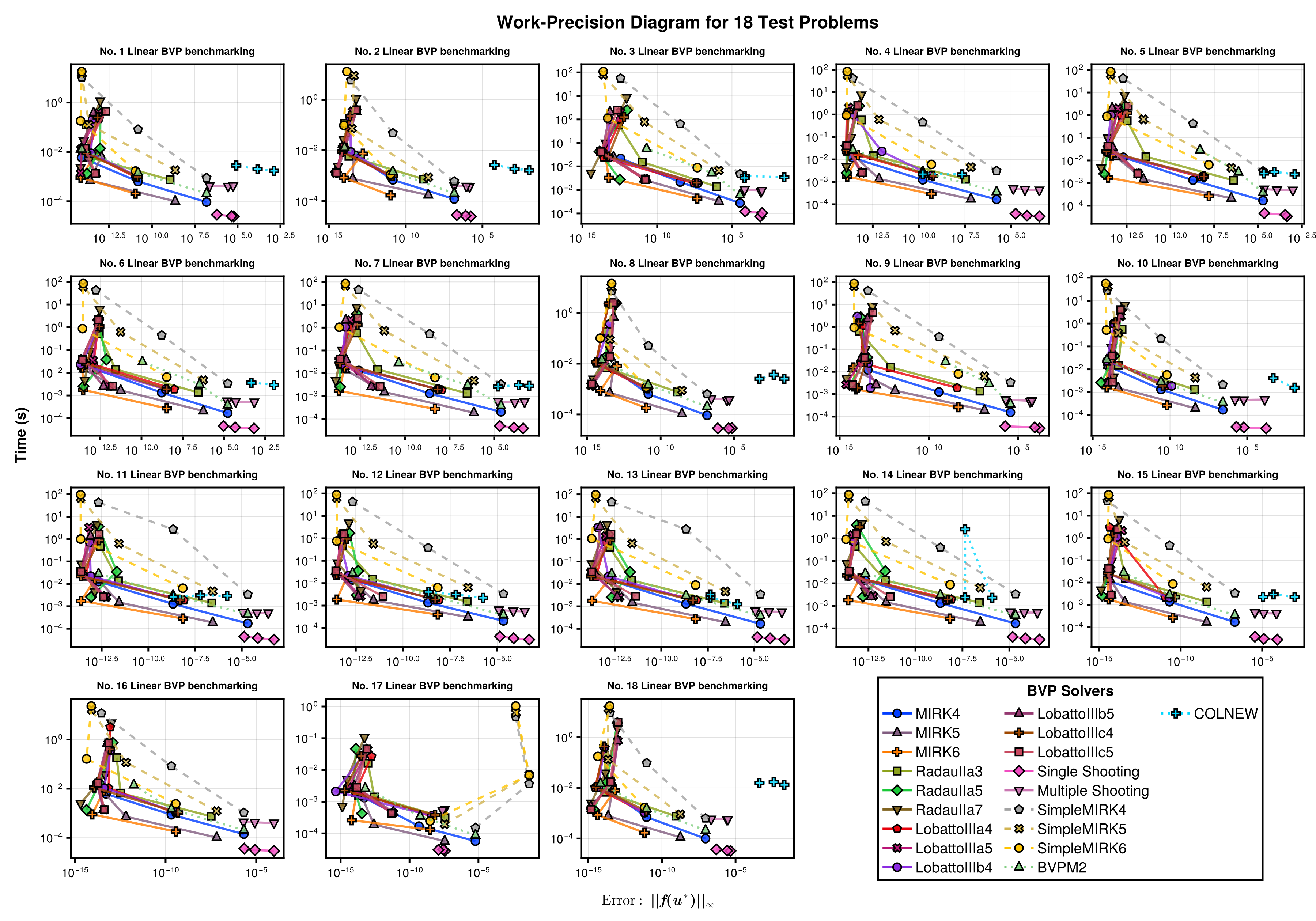

        fig[0, :] = Label(fig, "Work-Precision Diagram for 18 Test Problems",
            fontsize = 24, tellwidth = false, font = :bold)

        fig[:, 0] = Label(fig, "Time (s)", fontsize = 20, tellheight = false, font = :bold,
            rotation = π / 2)
        fig[end + 1, :] = Label(fig,
            L"Error: $\mathbf{||f(u^\ast)||_\infty}$",
            fontsize = 20, tellwidth = false, font = :bold)

        Legend(fig[4, 4:5], [[l, sc] for (l, sc) in zip(ls, scs)],
            labels, "BVP Solvers";
            framevisible=true, framewidth = STROKEWIDTH, orientation = :horizontal,
            titlesize = 20, nbanks = 9, labelsize = 20, halign = :center,
            tellheight = false, tellwidth = false, patchsize = (40.0f0, 20.0f0))

        return fig
    end
end

Appendix

These benchmarks are a part of the SciMLBenchmarks.jl repository, found at: https://github.com/SciML/SciMLBenchmarks.jl. For more information on high-performance scientific machine learning, check out the SciML Open Source Software Organization https://sciml.ai.

To locally run this benchmark, do the following commands:

using SciMLBenchmarks
SciMLBenchmarks.weave_file("benchmarks/NonStiffBVP","linear_wpd.jmd")
