Quadratic Nonlinear Rootfinding Benchmark
This is a test of a simple small nonlinear rootfinding problem.
using NonlinearSolve, StaticArrays, DiffEqDevTools, Sundials, CairoMakie, LinearSolve,
LinearAlgebra, StableRNGs, BenchmarkTools, Setfield, RecursiveFactorization
import PolyesterForwardDiff, MINPACK, NLsolve, SpeedMapping
const RUS = RadiusUpdateSchemes;
BenchmarkTools.DEFAULT_PARAMETERS.seconds = 0.5;
f_oop(u, p) = u .* u .- p
f_iip(du, u, p) = @. du = u * u - p
function generate_prob(::Val{N}, ::Val{static}) where {N, static}
u0_ = ones(N) .+ randn(StableRNG(0), N) * 0.01
u0 = static ? SVector{N, Float64}(u0_) : u0_
prob = static ?
NonlinearProblem{false}(f_oop, u0, 2.0) :
NonlinearProblem{true}(f_iip, u0, 2.0)
return prob
endgenerate_prob (generic function with 1 method)List of Solvers to Benchmark:
solvers = [
(; pkg = :nonlinearsolve, full_pkgname = "NonlinearSolve.jl", name = "Default PolyAlgorithm", solver = Dict(:alg => nothing)),
(; pkg = :simplenonlinearsolve, full_pkgname = "SimpleNonlinearSolve.jl", name = "Simple Newton Raphson", solver = Dict(:alg => SimpleNewtonRaphson())),
(; pkg = :simplenonlinearsolve, full_pkgname = "SimpleNonlinearSolve.jl", name = "Simple DFSane", solver = Dict(:alg => SimpleDFSane())),
(; pkg = :simplenonlinearsolve, full_pkgname = "SimpleNonlinearSolve.jl", name = "Simple Trust Region", solver = Dict(:alg => SimpleTrustRegion(; nlsolve_update_rule = Val(true)))),
(; pkg = :simplenonlinearsolve, full_pkgname = "SimpleNonlinearSolve.jl", name = "Simple Broyden", solver = Dict(:alg => SimpleBroyden())),
(; pkg = :simplenonlinearsolve, full_pkgname = "SimpleNonlinearSolve.jl", name = "Simple Klement", solver = Dict(:alg => SimpleKlement())),
(; pkg = :nonlinearsolve, full_pkgname = "NonlinearSolve.jl", name = "Newton Raphson", solver = Dict(:alg => NewtonRaphson(; linsolve = \))),
(; pkg = :nonlinearsolve, full_pkgname = "NonlinearSolve.jl", name = "DFSane", solver = Dict(:alg => DFSane())),
(; pkg = :nonlinearsolve, full_pkgname = "NonlinearSolve.jl", name = "Trust Region", solver = Dict(:alg => TrustRegion(; linsolve = \, radius_update_scheme = RUS.NLsolve))),
(; pkg = :nonlinearsolve, full_pkgname = "NonlinearSolve.jl", name = "Broyden", solver = Dict(:alg => Broyden())),
(; pkg = :nonlinearsolve, full_pkgname = "NonlinearSolve.jl", name = "Klement", solver = Dict(:alg => Klement(; linsolve = \))),
(; pkg = :wrapper, full_pkgname = "NLsolve.jl", name = "Newton Raphson (NLsolve.jl)", solver = Dict(:alg => NLsolveJL(; method = :newton, autodiff = :forward))),
(; pkg = :wrapper, full_pkgname = "NLsolve.jl", name = "Trust Region (NLsolve.jl)", solver = Dict(:alg => NLsolveJL(; autodiff = :forward))),
(; pkg = :wrapper, full_pkgname = "Sundials", name = "Newton Raphson (Sundials)", solver = Dict(:alg => KINSOL())),
(; pkg = :wrapper, full_pkgname = "SpeedMapping.jl", name = "Speed Mapping (SpeedMapping.jl)", solver = Dict(:alg => SpeedMappingJL())),
];Configurations:
abstols = 1.0 ./ 10.0 .^ (3:2:12)
reltols = 1.0 ./ 10.0 .^ (3:2:12)5-element Vector{Float64}:
0.001
1.0e-5
1.0e-7
1.0e-9
1.0e-11Helper Functions:
function check_solver(prob, solver)
prob.u0 isa StaticArray && solver.pkg === :wrapper && return false
try
sol = solve(prob, solver.solver[:alg]; abstol = 1e-5, reltol = 1e-5,
maxiters = 10000)
err = norm(sol.resid)
if !SciMLBase.successful_retcode(sol.retcode)
Base.printstyled("[Warn] Solver $(solver.name) returned retcode $(sol.retcode) \
with an residual norm = $(norm(sol.resid)).\n"; color = :red)
return false
elseif err > 1e3
Base.printstyled("[Warn] Solver $(solver.name) had a very large residual (norm \
= $(norm(sol.resid))).\n"; color = :red)
return false
elseif isinf(err) || isnan(err)
Base.printstyled("[Warn] Solver $(solver.name) had a residual of $(err).\n";
color = :red)
return false
end
Base.printstyled("[Info] Solver $(solver.name) successfully solved the problem \
(norm = $(norm(sol.resid))).\n"; color = :green)
catch e
Base.printstyled("[Warn] Solver $(solver.name) threw an error: $e.\n"; color = :red)
return false
end
return true
end
function generate_wpset(prob, solvers)
successful_solvers = filter(solver -> check_solver(prob, solver), solvers)
return WorkPrecisionSet(prob, abstols, reltols, getfield.(successful_solvers, :solver);
numruns = 50, error_estimate = :l∞, names = getfield.(successful_solvers, :name),
maxiters = 10000), successful_solvers
endgenerate_wpset (generic function with 1 method)Plotting Functions:
# This is hardcoded for 4 input length
function plot_all_wpsets(wpset_list, solver_all, titles, suptitle)
@assert length(wpset_list) == length(titles) == 4
LINESTYLES = Dict(:nonlinearsolve => :solid, :simplenonlinearsolve => :dash,
:wrapper => :dot)
ASPECT_RATIO = 0.7
WIDTH = 1400
HEIGHT = round(Int, WIDTH * ASPECT_RATIO)
STROKEWIDTH = 2.5
colors = cgrad(:tableau_20, length(solver_all); categorical = true)
cycle = Cycle([:marker], covary = true)
plot_theme = Theme(Lines = (; cycle,), Scatter = (; cycle,))
fig = with_theme(plot_theme) do
fig = Figure(; size = (WIDTH, HEIGHT))
# `textbf` doesn't work
axs = Matrix{Any}(undef, 2, 2)
for i in 1:2, j in 1:2
ylabel = j == 1 ? L"$\mathrm{\mathbf{Time}}$ $\mathbf{(s)}$" : ""
xlabel = i == 2 ? L"Error: $\mathbf{||f(u^\ast)||_\infty}$" : ""
ax = Axis(fig[i, j]; ylabel = ylabel, title = titles[2 * (i - 1) + j],
titlegap = 10, titlesize = 22, xlabelsize = 22, ylabelsize = 22,
xticklabelsize = 20, yticklabelsize = 20,
xlabel = xlabel, xticksvisible = i == 2, yticksvisible = j == 1,
xticklabelsvisible = i == 2, yticklabelsvisible = j == 1,
xscale = log10, yscale = log10, xtickwidth = STROKEWIDTH,
ytickwidth = STROKEWIDTH, spinewidth = STROKEWIDTH)
axs[i, j] = ax
end
ls, scs = [], []
label_list = []
for (idx_solver, solver) in enumerate(reverse(solver_all))
first_success = true
for i in 1:2, j in 1:2
wpset, successful_solvers = wpset_list[2 * (i - 1) + j]
idx = findfirst(==(solver.name), [solver.name for solver in successful_solvers])
idx === nothing && continue
(; name, times, errors) = wpset.wps[idx]
errors = [err.l∞ for err in errors]
l = lines!(axs[i, j], errors, times; linestyle = LINESTYLES[solver.pkg],
label = name, linewidth = 3, color = colors[idx_solver])
sc = scatter!(axs[i, j], errors, times; label = name, markersize = 16,
strokewidth = 1, marker = Cycled(idx_solver),
color = colors[idx_solver])
if first_success
push!(ls, l)
push!(scs, sc)
push!(label_list, solver.name)
first_success = false
end
end
end
linkaxes!(axs...)
Legend(fig[3, :], collect(reverse([[l, sc] for (l, sc) in zip(ls, scs)])),
collect(reverse(label_list)),
"Successful Solvers"; framevisible=true, framewidth = STROKEWIDTH,
orientation = :horizontal,
titlesize = 16, nbanks = 3, labelsize = 16,
tellheight = true, tellwidth = false, patchsize = (40.0f0, 20.0f0))
fig[0, :] = Label(fig, "Quadratic Problem with $(suptitle): Work Precision Diagram", fontsize = 24, tellwidth = false, font = :bold)
fig
end
return fig
endplot_all_wpsets (generic function with 1 method)Static Array Versions

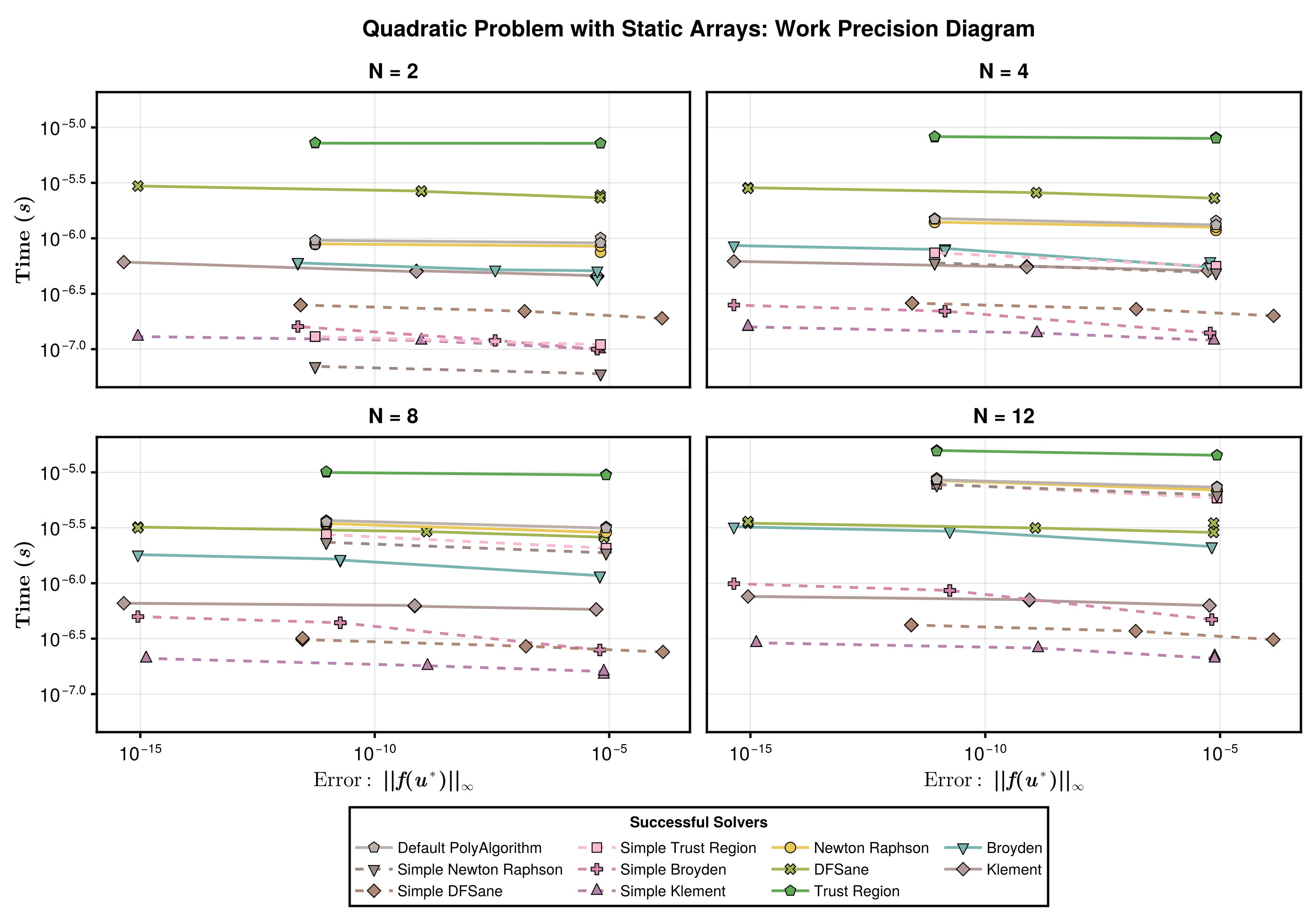

probs = [generate_prob(Val(N), Val(true)) for N in [2, 4, 8, 12]];
wpsets = [generate_wpset(prob, solvers) for prob in probs];
titles = ["N = 2", "N = 4", "N = 8", "N = 12"];
fig = plot_all_wpsets(wpsets, solvers, titles, "Static Arrays")[Info] Solver Default PolyAlgorithm successfully solved the problem (norm =
8.903708005997684e-6).
[Info] Solver Simple Newton Raphson successfully solved the problem (norm =
8.903708005997684e-6).
[Info] Solver Simple DFSane successfully solved the problem (norm = 2.21391
17217408527e-7).
[Info] Solver Simple Trust Region successfully solved the problem (norm = 8
.903708005997684e-6).
[Info] Solver Simple Broyden successfully solved the problem (norm = 7.7435
50661734637e-6).
[Info] Solver Simple Klement successfully solved the problem (norm = 8.7705
08340460738e-6).
[Info] Solver Newton Raphson successfully solved the problem (norm = 8.9037
08005997684e-6).
[Info] Solver DFSane successfully solved the problem (norm = 8.925226244970
55e-6).
[Info] Solver Trust Region successfully solved the problem (norm = 8.903708
005997684e-6).
[Info] Solver Broyden successfully solved the problem (norm = 7.74355066173
4637e-6).
[Info] Solver Klement successfully solved the problem (norm = 7.74279203948
5169e-6).
[Info] Solver Default PolyAlgorithm successfully solved the problem (norm =
1.3175515250018797e-5).
[Info] Solver Simple Newton Raphson successfully solved the problem (norm =
1.3175515250018797e-5).
[Info] Solver Simple DFSane successfully solved the problem (norm = 3.21318
9867783094e-7).
[Info] Solver Simple Trust Region successfully solved the problem (norm = 1
.3175515250018797e-5).
[Info] Solver Simple Broyden successfully solved the problem (norm = 1.0524
944462494045e-5).
[Info] Solver Simple Klement successfully solved the problem (norm = 1.2719
355158575668e-5).
[Info] Solver Newton Raphson successfully solved the problem (norm = 1.3175
515250018797e-5).
[Info] Solver DFSane successfully solved the problem (norm = 1.367124759680
58e-5).
[Info] Solver Trust Region successfully solved the problem (norm = 1.317551
5250018797e-5).
[Info] Solver Broyden successfully solved the problem (norm = 1.05249444628
89887e-5).
[Info] Solver Klement successfully solved the problem (norm = 1.04709031908
2685e-5).
[Info] Solver Default PolyAlgorithm successfully solved the problem (norm =
1.9046552208413456e-5).
[Info] Solver Simple Newton Raphson successfully solved the problem (norm =
1.9046552208413456e-5).
[Info] Solver Simple DFSane successfully solved the problem (norm = 4.64939
18801382363e-7).
[Info] Solver Simple Trust Region successfully solved the problem (norm = 1
.9046552208413456e-5).
[Info] Solver Simple Broyden successfully solved the problem (norm = 1.4246
490327013533e-5).
[Info] Solver Simple Klement successfully solved the problem (norm = 1.8259
373704793516e-5).
[Info] Solver Newton Raphson successfully solved the problem (norm = 1.9046
552208413456e-5).
[Info] Solver DFSane successfully solved the problem (norm = 1.973829931575
864e-5).
[Info] Solver Trust Region successfully solved the problem (norm = 1.904655
2208413456e-5).
[Info] Solver Broyden successfully solved the problem (norm = 1.42464903270
13533e-5).
[Info] Solver Klement successfully solved the problem (norm = 1.41180265390
8467e-5).
[Info] Solver Default PolyAlgorithm successfully solved the problem (norm =
2.2187014239665903e-5).
[Info] Solver Simple Newton Raphson successfully solved the problem (norm =
2.2187014239665903e-5).
[Info] Solver Simple DFSane successfully solved the problem (norm = 5.40467
1405346579e-7).
[Info] Solver Simple Trust Region successfully solved the problem (norm = 2
.2187014239665903e-5).
[Info] Solver Simple Broyden successfully solved the problem (norm = 1.9287
85498427112e-5).
[Info] Solver Simple Klement successfully solved the problem (norm = 2.1607
111134434963e-5).
[Info] Solver Newton Raphson successfully solved the problem (norm = 2.2187
014239665903e-5).
[Info] Solver DFSane successfully solved the problem (norm = 2.295755366158
96e-5).
[Info] Solver Trust Region successfully solved the problem (norm = 2.218701
4239665903e-5).
[Info] Solver Broyden successfully solved the problem (norm = 1.92878549841
49875e-5).
[Info] Solver Klement successfully solved the problem (norm = 1.92365300994
5377e-5).
save("static_arrays_quadratic.svg", fig)CairoMakie.Screen{SVG}Regular Julia Arrays

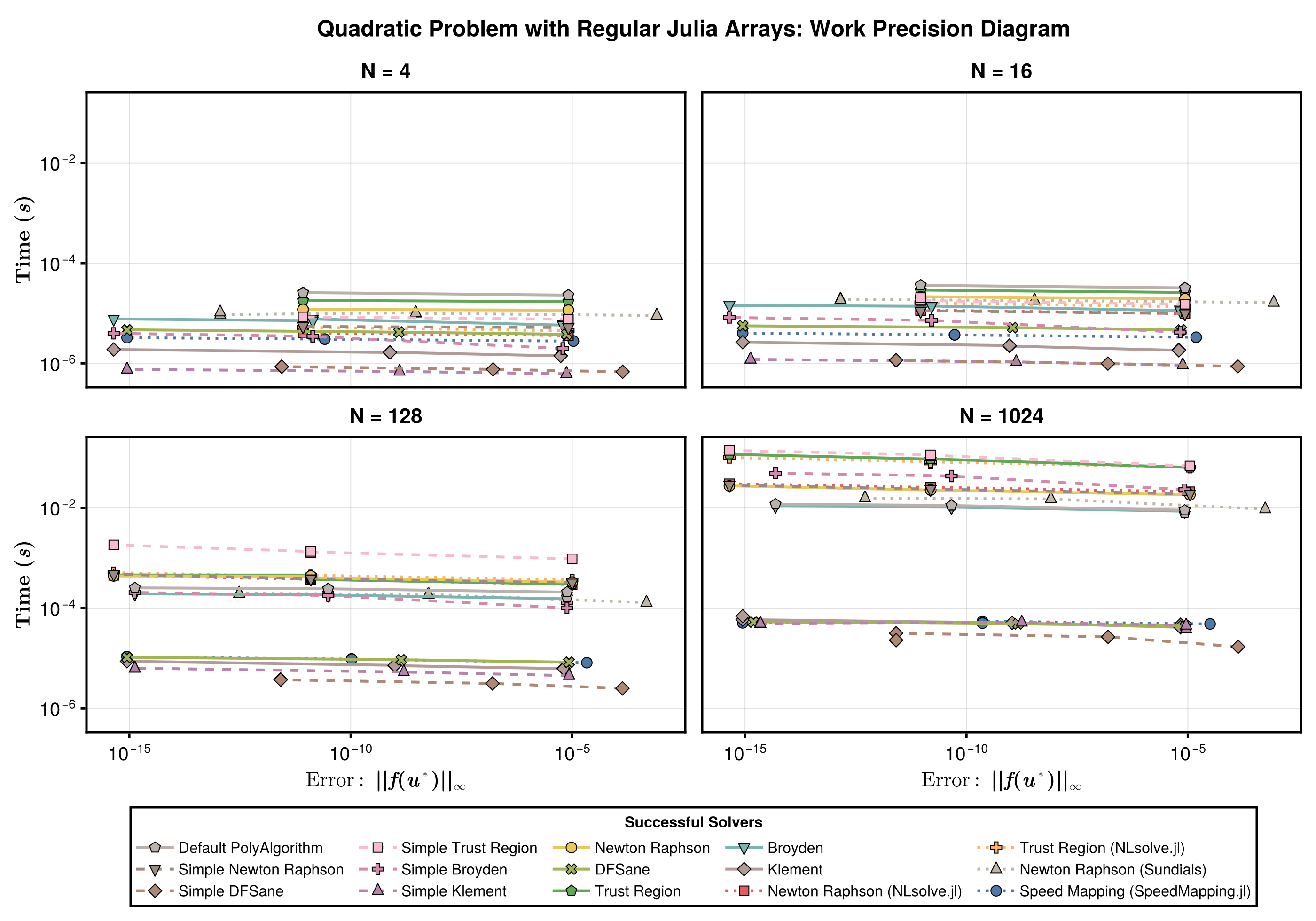

probs = [generate_prob(Val(N), Val(false)) for N in [4, 16, 128, 1024]]
wpsets = [(@show length(prob.u0); generate_wpset(prob, solvers)) for prob in probs]
titles = ["N = 4", "N = 16", "N = 128", "N = 1024"]
fig = plot_all_wpsets(wpsets, solvers, titles, "Regular Julia Arrays")length(prob.u0) = 4
[Info] Solver Default PolyAlgorithm successfully solved the problem (norm =
1.3175515250018797e-5).
[Info] Solver Simple Newton Raphson successfully solved the problem (norm =
1.3175515250018797e-5).
[Info] Solver Simple DFSane successfully solved the problem (norm = 3.21318
9867783094e-7).
[Info] Solver Simple Trust Region successfully solved the problem (norm = 1
.3175515250018797e-5).
[Info] Solver Simple Broyden successfully solved the problem (norm = 1.0524
944462889887e-5).
[Info] Solver Simple Klement successfully solved the problem (norm = 1.2719
355158575668e-5).
[Info] Solver Newton Raphson successfully solved the problem (norm = 1.3175
515250018797e-5).
[Info] Solver DFSane successfully solved the problem (norm = 1.367124759680
58e-5).
[Info] Solver Trust Region successfully solved the problem (norm = 1.317551
5250018797e-5).
[Info] Solver Broyden successfully solved the problem (norm = 1.05249444628
89887e-5).
[Info] Solver Klement successfully solved the problem (norm = 1.04709031908
2685e-5).
[Info] Solver Newton Raphson (NLsolve.jl) successfully solved the problem (
norm = 1.3175515250018797e-5).
[Info] Solver Trust Region (NLsolve.jl) successfully solved the problem (no
rm = 1.3175515250018797e-5).
[Info] Solver Newton Raphson (Sundials) successfully solved the problem (no
rm = 3.507854466145342e-9).
[Info] Solver Speed Mapping (SpeedMapping.jl) successfully solved the probl
em (norm = 1.9601492832512963e-5).
length(prob.u0) = 16
[Info] Solver Default PolyAlgorithm successfully solved the problem (norm =
2.5044494662558595e-5).
[Info] Solver Simple Newton Raphson successfully solved the problem (norm =
2.5044494662558595e-5).
[Info] Solver Simple DFSane successfully solved the problem (norm = 6.11269
711700824e-7).
[Info] Solver Simple Trust Region successfully solved the problem (norm = 2
.5044494662558595e-5).
[Info] Solver Simple Broyden successfully solved the problem (norm = 2.3141
389150698733e-5).
[Info] Solver Simple Klement successfully solved the problem (norm = 2.4583
675020896853e-5).
[Info] Solver Newton Raphson successfully solved the problem (norm = 2.5044
494662558595e-5).
[Info] Solver DFSane successfully solved the problem (norm = 2.578212922891
9075e-5).
[Info] Solver Trust Region successfully solved the problem (norm = 2.504449
4662558595e-5).
[Info] Solver Broyden successfully solved the problem (norm = 2.31413891506
98733e-5).
[Info] Solver Klement successfully solved the problem (norm = 2.31146141902
84395e-5).
[Info] Solver Newton Raphson (NLsolve.jl) successfully solved the problem (
norm = 2.5044494662558595e-5).
[Info] Solver Trust Region (NLsolve.jl) successfully solved the problem (no
rm = 2.5044494662558595e-5).
[Info] Solver Newton Raphson (Sundials) successfully solved the problem (no
rm = 6.033406020887388e-9).
[Info] Solver Speed Mapping (SpeedMapping.jl) successfully solved the probl
em (norm = 5.21219858681873e-5).
length(prob.u0) = 128
[Info] Solver Default PolyAlgorithm successfully solved the problem (norm =
6.545361092122703e-5).
[Info] Solver Simple Newton Raphson successfully solved the problem (norm =
6.283767496044401e-11).
[Info] Solver Simple DFSane successfully solved the problem (norm = 1.73578
10548996058e-6).
[Info] Solver Simple Trust Region successfully solved the problem (norm = 6
.283767496044401e-11).
[Info] Solver Simple Broyden successfully solved the problem (norm = 6.5453
61092122703e-5).
[Info] Solver Simple Klement successfully solved the problem (norm = 7.0177
89716845796e-5).
[Info] Solver Newton Raphson successfully solved the problem (norm = 6.2837
67496044401e-11).
[Info] Solver DFSane successfully solved the problem (norm = 7.685980582924
527e-5).
[Info] Solver Trust Region successfully solved the problem (norm = 6.283767
496044401e-11).
[Info] Solver Broyden successfully solved the problem (norm = 6.54536109212
2703e-5).
[Info] Solver Klement successfully solved the problem (norm = 6.53197265210
3389e-5).
[Info] Solver Newton Raphson (NLsolve.jl) successfully solved the problem (
norm = 6.283767496044401e-11).
[Info] Solver Trust Region (NLsolve.jl) successfully solved the problem (no
rm = 6.283767496044401e-11).
[Info] Solver Newton Raphson (Sundials) successfully solved the problem (no
rm = 2.0068313703523284e-8).
[Info] Solver Speed Mapping (SpeedMapping.jl) successfully solved the probl
em (norm = 5.551313074230362e-10).
length(prob.u0) = 1024
[Info] Solver Default PolyAlgorithm successfully solved the problem (norm =
0.00019052993535286191).
[Info] Solver Simple Newton Raphson successfully solved the problem (norm =
1.7311553941286643e-10).
[Info] Solver Simple DFSane successfully solved the problem (norm = 4.84115
0649443264e-6).
[Info] Solver Simple Trust Region successfully solved the problem (norm = 1
.7311553941286643e-10).
[Info] Solver Simple Broyden successfully solved the problem (norm = 0.0001
9052993535286191).
[Info] Solver Simple Klement successfully solved the problem (norm = 0.0001
967925659287559).
[Info] Solver Newton Raphson successfully solved the problem (norm = 1.7311
553941286643e-10).
[Info] Solver DFSane successfully solved the problem (norm = 0.000216303516
23678866).
[Info] Solver Trust Region successfully solved the problem (norm = 1.731155
3941286643e-10).
[Info] Solver Broyden successfully solved the problem (norm = 0.00019052993
535286191).
[Info] Solver Klement successfully solved the problem (norm = 0.00019007289
32153426).
[Info] Solver Newton Raphson (NLsolve.jl) successfully solved the problem (
norm = 1.7311553941286643e-10).
[Info] Solver Trust Region (NLsolve.jl) successfully solved the problem (no
rm = 1.7311553941286643e-10).
[Info] Solver Newton Raphson (Sundials) successfully solved the problem (no
rm = 5.408987237602836e-8).
[Info] Solver Speed Mapping (SpeedMapping.jl) successfully solved the probl
em (norm = 2.009517968000003e-9).
save("regular_arrays_quadratic.svg", fig)CairoMakie.Screen{SVG}Comparison against SimpleNonlinearSolve
function benchmark_combinations(solvers, probs)
return map(Iterators.product(solvers, probs)) do (solver, prob)
try
solver_concrete = solver.solver[:alg]
termination_condition = NonlinearSolveBase.AbsNormTerminationMode(
Base.Fix1(maximum, abs))
sol = solve(prob, solver_concrete; abstol = 1e-10, reltol = 1e-10,
maxiters = 1000, termination_condition)
@info "Solver $(solver.name) successfully solved the problem with norm = \
$(norm(sol.resid, Inf))."
if norm(sol.resid, Inf) ≤ 1e-10
tt = @belapsed solve($prob, $solver_concrete; abstol = 1e-10,
reltol = 1e-10, maxiters = 1000,
termination_condition = $termination_condition)
@info "Solver $(solver.name) took $(tt) seconds."
return tt
else
return NaN
end
catch e
@error "Solver $(solver.name) threw an error $(e)."
return NaN
end
end
end
probs_sa = [generate_prob(Val(N), Val(true)) for N in [2, 4, 8, 12]];
solve_timings_sa = benchmark_combinations(solvers, probs_sa)
probs_reg = [generate_prob(Val(N), Val(false)) for N in [4, 16, 128, 1024]];
solve_timings_reg = benchmark_combinations(solvers, probs_reg)
function create_structure_data(solve_timings)
df = []
for (i, solver_setup) in enumerate(solvers)
if solver_setup.pkg === :simplenonlinearsolve
alg_name = string(solver_setup.name[8:end])
timings = solve_timings[i, :]
list = []
for (j, other_solver) in enumerate(solvers)
if other_solver.pkg !== :simplenonlinearsolve &&
contains(other_solver.name, alg_name)
this_timings = solve_timings[j, :]
push!(list, other_solver.name => this_timings ./ timings)
end
end
push!(df, alg_name => list)
end
end
return df
end
df_sa = create_structure_data(solve_timings_sa)
df_reg = create_structure_data(solve_timings_reg)

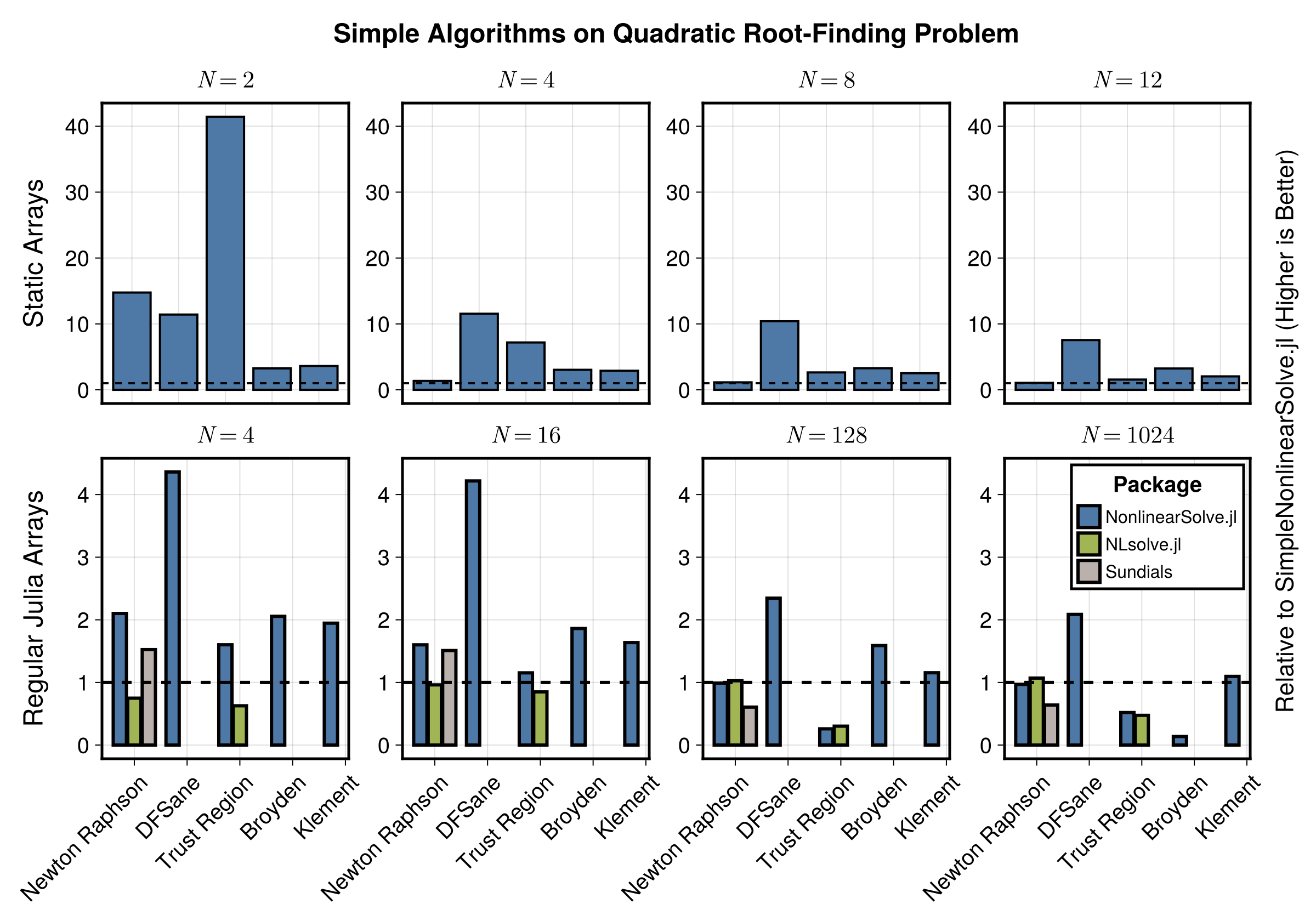

fig = begin
ASPECT_RATIO = 0.7
WIDTH = 1200
HEIGHT = round(Int, WIDTH * ASPECT_RATIO)
STROKEWIDTH = 2.5
fig = Figure(; size = (WIDTH, HEIGHT))
axs = Matrix{Any}(undef, 1, 4)
xs = reduce(vcat, [fill(i, length(dfᵢ.second)) for (i, dfᵢ) in enumerate(df_sa)])
dodge = reduce(vcat, [collect(1:length(dfᵢ.second)) for (i, dfᵢ) in enumerate(df_sa)])
for i in 1:4
ys = reduce(vcat, [[xx.second[i] for xx in dfᵢ.second] for dfᵢ in df_sa])
ax = Axis(fig[1, i];
ylabel = "",
title = L"$N = %$(length(probs_sa[i].u0))$",
titlegap = 10, xticksvisible = false, yticksvisible = true,
xticklabelsvisible = false, yticklabelsvisible = true, titlesize = 22,
spinewidth = STROKEWIDTH, xlabelsize = 22, ylabelsize = 22,
xticklabelrotation = π / 4, xticklabelsize = 20, yticklabelsize = 20)
axs[1, i] = ax
barplot!(ax, xs, ys; color = dodge, colormap = :tableau_20, strokewidth = 2)
hlines!(ax, [1.0], color = :black, linestyle = :dash, linewidth = 2)
end
linkaxes!(axs...)
axs = Matrix{Any}(undef, 1, 4)
xs = reduce(vcat, [fill(i, length(dfᵢ.second)) for (i, dfᵢ) in enumerate(df_reg)])
dodge = reduce(vcat, [collect(1:length(dfᵢ.second)) for (i, dfᵢ) in enumerate(df_reg)])
for i in 1:4
ys = reduce(vcat, [[xx.second[i] for xx in dfᵢ.second] for dfᵢ in df_reg])
ax = Axis(fig[2, i];
ylabel = "",
title = L"$N = %$(length(probs_reg[i].u0))$",
titlegap = 10, xticksvisible = true, yticksvisible = true,
xticklabelsvisible = true, yticklabelsvisible = true, titlesize = 22,
spinewidth = STROKEWIDTH, xlabelsize = 22, ylabelsize = 22,
xticks = (1:length(df_sa), [d.first for d in df_sa]),
xticklabelrotation = π / 4, xticklabelsize = 20, yticklabelsize = 20)
axs[1, i] = ax
barplot!(ax, xs, ys; color = dodge, dodge = dodge, colormap = :tableau_20,
strokewidth = 3)
hlines!(ax, [1.0], color = :black, linestyle = :dash, linewidth = 3)
end
linkaxes!(axs...)
fig[0, :] = Label(fig, "Simple Algorithms on Quadratic Root-Finding Problem",
fontsize = 24, font = :bold)
fig[1, 0] = Label(fig, "Static Arrays",
fontsize = 24, rotation = π / 2, tellheight = false)
fig[2, 0] = Label(fig, "Regular Julia Arrays",
fontsize = 24, rotation = π / 2, tellheight = false)
fig[1:2, end + 1] = Label(fig, "Relative to SimpleNonlinearSolve.jl (Higher is Better)",
fontsize = 22, tellheight = false, rotation = π / 2)
labels = ["NonlinearSolve.jl", "NLsolve.jl", "Sundials"]
colors = cgrad(:tableau_20, length(labels); categorical = true)
elements = [PolyElement(; polycolor = colors[i], strokewidth = 3) for i in 1:3]
axislegend(axs[1, 4], elements, labels, "Package", patchsize = (20, 20),
labelsize = 16, titlesize = 20, framewidth = STROKEWIDTH, rowgap = 5)
fig
end
save("summary_plot_simplenonlinearsolve.svg", fig)CairoMakie.Screen{SVG}Appendix
These benchmarks are a part of the SciMLBenchmarks.jl repository, found at: https://github.com/SciML/SciMLBenchmarks.jl. For more information on high-performance scientific machine learning, check out the SciML Open Source Software Organization https://sciml.ai.
To locally run this benchmark, do the following commands:
using SciMLBenchmarks
SciMLBenchmarks.weave_file("benchmarks/NonlinearProblem","quadratic_nonlinear.jmd")Computer Information:
Julia Version 1.10.9
Commit 5595d20a287 (2025-03-10 12:51 UTC)
Build Info:
Official https://julialang.org/ release
Platform Info:
OS: Linux (x86_64-linux-gnu)
CPU: 128 × AMD EPYC 7502 32-Core Processor
WORD_SIZE: 64
LIBM: libopenlibm
LLVM: libLLVM-15.0.7 (ORCJIT, znver2)
Threads: 1 default, 0 interactive, 1 GC (on 128 virtual cores)
Environment:
JULIA_CPU_THREADS = 128
JULIA_DEPOT_PATH = /cache/julia-buildkite-plugin/depots/5b300254-1738-4989-ae0a-f4d2d937f953
Package Information:
Status `/cache/build/exclusive-amdci3-0/julialang/scimlbenchmarks-dot-jl/benchmarks/NonlinearProblem/Project.toml`
[2169fc97] AlgebraicMultigrid v1.0.0
[6e4b80f9] BenchmarkTools v1.6.0
[13f3f980] CairoMakie v0.13.4
[2b5f629d] DiffEqBase v6.167.2
[f3b72e0c] DiffEqDevTools v2.48.0
[a0c0ee7d] DifferentiationInterface v0.6.52
⌃ [7da242da] Enzyme v0.13.37
[40713840] IncompleteLU v0.2.1
[b964fa9f] LaTeXStrings v1.4.0
[d3d80556] LineSearches v7.3.0
[7ed4a6bd] LinearSolve v3.8.0
[4854310b] MINPACK v1.3.0
[2774e3e8] NLsolve v4.5.1
[b7050fa9] NonlinearProblemLibrary v0.1.3
[8913a72c] NonlinearSolve v4.6.0
[ace2c81b] PETSc v0.3.1
[98d1487c] PolyesterForwardDiff v0.1.3
[08abe8d2] PrettyTables v2.4.0
[f2c3362d] RecursiveFactorization v0.2.23
[31c91b34] SciMLBenchmarks v0.1.3
[efcf1570] Setfield v1.1.2
[727e6d20] SimpleNonlinearSolve v2.2.2
[9f842d2f] SparseConnectivityTracer v0.6.17
[0a514795] SparseMatrixColorings v0.4.18
[f1835b91] SpeedMapping v0.3.0
[860ef19b] StableRNGs v1.0.2
[90137ffa] StaticArrays v1.9.13
[c3572dad] Sundials v4.28.0
[0c5d862f] Symbolics v6.38.0
Info Packages marked with ⌃ have new versions available and may be upgradable.
Warning The project dependencies or compat requirements have changed since the manifest was last resolved. It is recommended to `Pkg.resolve()` or consider `Pkg.update()` if necessary.And the full manifest:
Status `/cache/build/exclusive-amdci3-0/julialang/scimlbenchmarks-dot-jl/benchmarks/NonlinearProblem/Manifest.toml`
[47edcb42] ADTypes v1.14.0
[a4c015fc] ANSIColoredPrinters v0.0.1
[621f4979] AbstractFFTs v1.5.0
[1520ce14] AbstractTrees v0.4.5
[7d9f7c33] Accessors v0.1.42
[22286c92] AccurateArithmetic v0.3.8
[79e6a3ab] Adapt v4.3.0
[35492f91] AdaptivePredicates v1.2.0
[2169fc97] AlgebraicMultigrid v1.0.0
[66dad0bd] AliasTables v1.1.3
[27a7e980] Animations v0.4.2
[4fba245c] ArrayInterface v7.18.0
[4c555306] ArrayLayouts v1.11.1
[67c07d97] Automa v1.1.0
[13072b0f] AxisAlgorithms v1.1.0
[39de3d68] AxisArrays v0.4.7
[6e4b80f9] BenchmarkTools v1.6.0
[e2ed5e7c] Bijections v0.1.9
[d1d4a3ce] BitFlags v0.1.9
[62783981] BitTwiddlingConvenienceFunctions v0.1.6
[70df07ce] BracketingNonlinearSolve v1.1.3
[fa961155] CEnum v0.5.0
[2a0fbf3d] CPUSummary v0.2.6
[159f3aea] Cairo v1.1.1
[13f3f980] CairoMakie v0.13.4
[d360d2e6] ChainRulesCore v1.25.1
[fb6a15b2] CloseOpenIntervals v0.1.13
[944b1d66] CodecZlib v0.7.8
[a2cac450] ColorBrewer v0.4.1
[35d6a980] ColorSchemes v3.29.0
[3da002f7] ColorTypes v0.12.1
[c3611d14] ColorVectorSpace v0.11.0
[5ae59095] Colors v0.13.0
[861a8166] Combinatorics v1.0.2
[38540f10] CommonSolve v0.2.4
[bbf7d656] CommonSubexpressions v0.3.1
[f70d9fcc] CommonWorldInvalidations v1.0.0
[34da2185] Compat v4.16.0
[b152e2b5] CompositeTypes v0.1.4
[a33af91c] CompositionsBase v0.1.2
[2569d6c7] ConcreteStructs v0.2.3
[f0e56b4a] ConcurrentUtilities v2.5.0
[8f4d0f93] Conda v1.10.2
[187b0558] ConstructionBase v1.5.8
[d38c429a] Contour v0.6.3
[a2441757] Coverage v1.6.1
[c36e975a] CoverageTools v1.3.2
[adafc99b] CpuId v0.3.1
[a8cc5b0e] Crayons v4.1.1
[9a962f9c] DataAPI v1.16.0
[864edb3b] DataStructures v0.18.22
[e2d170a0] DataValueInterfaces v1.0.0
[927a84f5] DelaunayTriangulation v1.6.4
[2b5f629d] DiffEqBase v6.167.2
[f3b72e0c] DiffEqDevTools v2.48.0
[77a26b50] DiffEqNoiseProcess v5.24.1
[163ba53b] DiffResults v1.1.0
[b552c78f] DiffRules v1.15.1
[a0c0ee7d] DifferentiationInterface v0.6.52
[b4f34e82] Distances v0.10.12
[31c24e10] Distributions v0.25.119
[ffbed154] DocStringExtensions v0.9.4
[e30172f5] Documenter v1.10.1
[35a29f4d] DocumenterTools v0.1.20
[5b8099bc] DomainSets v0.7.15
[7c1d4256] DynamicPolynomials v0.6.1
[4e289a0a] EnumX v1.0.5
⌃ [7da242da] Enzyme v0.13.37
[f151be2c] EnzymeCore v0.8.8
[429591f6] ExactPredicates v2.2.8
[460bff9d] ExceptionUnwrapping v0.1.11
[e2ba6199] ExprTools v0.1.10
[55351af7] ExproniconLite v0.10.14
[411431e0] Extents v0.1.5
[7a1cc6ca] FFTW v1.8.1
[7034ab61] FastBroadcast v0.3.5
[9aa1b823] FastClosures v0.3.2
[a4df4552] FastPower v1.1.2
[5789e2e9] FileIO v1.17.0
⌅ [8fc22ac5] FilePaths v0.8.3
[48062228] FilePathsBase v0.9.24
[1a297f60] FillArrays v1.13.0
[6a86dc24] FiniteDiff v2.27.0
[53c48c17] FixedPointNumbers v0.8.5
[1fa38f19] Format v1.3.7
⌅ [f6369f11] ForwardDiff v0.10.38
[b38be410] FreeType v4.1.1
[663a7486] FreeTypeAbstraction v0.10.6
[069b7b12] FunctionWrappers v1.1.3
[77dc65aa] FunctionWrappersWrappers v0.1.3
[46192b85] GPUArraysCore v0.2.0
[61eb1bfa] GPUCompiler v1.3.2
[68eda718] GeoFormatTypes v0.4.4
[cf35fbd7] GeoInterface v1.4.1
[5c1252a2] GeometryBasics v0.5.7
[d7ba0133] Git v1.3.1
[a2bd30eb] Graphics v1.1.3
[3955a311] GridLayoutBase v0.11.1
[42e2da0e] Grisu v1.0.2
[708ec375] Gumbo v0.8.3
[cd3eb016] HTTP v1.10.16
[eafb193a] Highlights v0.5.3
[3e5b6fbb] HostCPUFeatures v0.1.17
[34004b35] HypergeometricFunctions v0.3.28
[7073ff75] IJulia v1.27.0
[b5f81e59] IOCapture v0.2.5
[615f187c] IfElse v0.1.1
[2803e5a7] ImageAxes v0.6.12
[c817782e] ImageBase v0.1.7
[a09fc81d] ImageCore v0.10.5
[82e4d734] ImageIO v0.6.9
[bc367c6b] ImageMetadata v0.9.10
[40713840] IncompleteLU v0.2.1
[9b13fd28] IndirectArrays v1.0.0
[d25df0c9] Inflate v0.1.5
[18e54dd8] IntegerMathUtils v0.1.2
[a98d9a8b] Interpolations v0.15.1
[d1acc4aa] IntervalArithmetic v0.22.29
[8197267c] IntervalSets v0.7.10
[3587e190] InverseFunctions v0.1.17
[92d709cd] IrrationalConstants v0.2.4
[f1662d9f] Isoband v0.1.1
[c8e1da08] IterTools v1.10.0
[82899510] IteratorInterfaceExtensions v1.0.0
[692b3bcd] JLLWrappers v1.7.0
[682c06a0] JSON v0.21.4
[ae98c720] Jieko v0.2.1
[b835a17e] JpegTurbo v0.1.6
[5ab0869b] KernelDensity v0.6.9
[ba0b0d4f] Krylov v0.10.0
[929cbde3] LLVM v9.2.0
[b964fa9f] LaTeXStrings v1.4.0
[23fbe1c1] Latexify v0.16.7
[10f19ff3] LayoutPointers v0.1.17
[0e77f7df] LazilyInitializedFields v1.3.0
[5078a376] LazyArrays v2.6.1
[8cdb02fc] LazyModules v0.3.1
[87fe0de2] LineSearch v0.1.4
[d3d80556] LineSearches v7.3.0
[7ed4a6bd] LinearSolve v3.8.0
[2ab3a3ac] LogExpFunctions v0.3.29
[e6f89c97] LoggingExtras v1.1.0
[bdcacae8] LoopVectorization v0.12.172
[4854310b] MINPACK v1.3.0
[da04e1cc] MPI v0.20.22
[3da0fdf6] MPIPreferences v0.1.11
[1914dd2f] MacroTools v0.5.16
[ee78f7c6] Makie v0.22.4
[20f20a25] MakieCore v0.9.2
[d125e4d3] ManualMemory v0.1.8
[dbb5928d] MappedArrays v0.4.2
[d0879d2d] MarkdownAST v0.1.2
[0a4f8689] MathTeXEngine v0.6.3
[bb5d69b7] MaybeInplace v0.1.4
[739be429] MbedTLS v1.1.9
[e1d29d7a] Missings v1.2.0
[e94cdb99] MosaicViews v0.3.4
[2e0e35c7] Moshi v0.3.5
[46d2c3a1] MuladdMacro v0.2.4
[102ac46a] MultivariatePolynomials v0.5.7
[ffc61752] Mustache v1.0.20
[d8a4904e] MutableArithmetics v1.6.4
[d41bc354] NLSolversBase v7.9.1
[2774e3e8] NLsolve v4.5.1
[77ba4419] NaNMath v1.1.3
[f09324ee] Netpbm v1.1.1
[b7050fa9] NonlinearProblemLibrary v0.1.3
[8913a72c] NonlinearSolve v4.6.0
[be0214bd] NonlinearSolveBase v1.5.3
[5959db7a] NonlinearSolveFirstOrder v1.3.1
[9a2c21bd] NonlinearSolveQuasiNewton v1.2.1
[26075421] NonlinearSolveSpectralMethods v1.1.1
[d8793406] ObjectFile v0.4.4
[510215fc] Observables v0.5.5
[6fe1bfb0] OffsetArrays v1.17.0
[52e1d378] OpenEXR v0.3.3
[4d8831e6] OpenSSL v1.4.3
[429524aa] Optim v1.12.0
[bac558e1] OrderedCollections v1.8.0
[90014a1f] PDMats v0.11.34
[ace2c81b] PETSc v0.3.1
[f57f5aa1] PNGFiles v0.4.4
[19eb6ba3] Packing v0.5.1
[5432bcbf] PaddedViews v0.5.12
[d96e819e] Parameters v0.12.3
[69de0a69] Parsers v2.8.2
[eebad327] PkgVersion v0.3.3
[995b91a9] PlotUtils v1.4.3
[e409e4f3] PoissonRandom v0.4.4
[f517fe37] Polyester v0.7.16
[98d1487c] PolyesterForwardDiff v0.1.3
[1d0040c9] PolyesterWeave v0.2.2
[647866c9] PolygonOps v0.1.2
[85a6dd25] PositiveFactorizations v0.2.4
⌅ [aea7be01] PrecompileTools v1.2.1
[21216c6a] Preferences v1.4.3
[08abe8d2] PrettyTables v2.4.0
[27ebfcd6] Primes v0.5.7
[92933f4c] ProgressMeter v1.10.4
[43287f4e] PtrArrays v1.3.0
[4b34888f] QOI v1.0.1
[1fd47b50] QuadGK v2.11.2
[74087812] Random123 v1.7.0
[e6cf234a] RandomNumbers v1.6.0
[b3c3ace0] RangeArrays v0.3.2
[c84ed2f1] Ratios v0.4.5
[3cdcf5f2] RecipesBase v1.3.4
[731186ca] RecursiveArrayTools v3.31.2
[f2c3362d] RecursiveFactorization v0.2.23
[189a3867] Reexport v1.2.2
[2792f1a3] RegistryInstances v0.1.0
[05181044] RelocatableFolders v1.0.1
[ae029012] Requires v1.3.1
[ae5879a3] ResettableStacks v1.1.1
[79098fc4] Rmath v0.8.0
[47965b36] RootedTrees v2.23.1
[5eaf0fd0] RoundingEmulator v0.2.1
[7e49a35a] RuntimeGeneratedFunctions v0.5.13
[fdea26ae] SIMD v3.7.1
[94e857df] SIMDTypes v0.1.0
[476501e8] SLEEFPirates v0.6.43
[322a6be2] Sass v0.2.0
⌃ [0bca4576] SciMLBase v2.84.0
[31c91b34] SciMLBenchmarks v0.1.3
[19f34311] SciMLJacobianOperators v0.1.2
[c0aeaf25] SciMLOperators v0.3.13
[53ae85a6] SciMLStructures v1.7.0
[6c6a2e73] Scratch v1.2.1
[efcf1570] Setfield v1.1.2
[65257c39] ShaderAbstractions v0.5.0
[992d4aef] Showoff v1.0.3
[73760f76] SignedDistanceFields v0.4.0
[777ac1f9] SimpleBufferStream v1.2.0
[727e6d20] SimpleNonlinearSolve v2.2.2
[699a6c99] SimpleTraits v0.9.4
[45858cf5] Sixel v0.1.3
[b85f4697] SoftGlobalScope v1.1.0
[a2af1166] SortingAlgorithms v1.2.1
[9f842d2f] SparseConnectivityTracer v0.6.17
[0a514795] SparseMatrixColorings v0.4.18
[276daf66] SpecialFunctions v2.5.1
[f1835b91] SpeedMapping v0.3.0
[860ef19b] StableRNGs v1.0.2
[cae243ae] StackViews v0.1.1
[aedffcd0] Static v1.2.0
[0d7ed370] StaticArrayInterface v1.8.0
[90137ffa] StaticArrays v1.9.13
[1e83bf80] StaticArraysCore v1.4.3
[82ae8749] StatsAPI v1.7.0
[2913bbd2] StatsBase v0.34.4
[4c63d2b9] StatsFuns v1.4.0
[7792a7ef] StrideArraysCore v0.5.7
[69024149] StringEncodings v0.3.7
[892a3eda] StringManipulation v0.4.1
[09ab397b] StructArrays v0.7.1
[53d494c1] StructIO v0.3.1
[c3572dad] Sundials v4.28.0
[2efcf032] SymbolicIndexingInterface v0.3.39
[19f23fe9] SymbolicLimits v0.2.2
[d1185830] SymbolicUtils v3.26.1
[0c5d862f] Symbolics v6.38.0
[3783bdb8] TableTraits v1.0.1
[bd369af6] Tables v1.12.0
[ed4db957] TaskLocalValues v0.1.2
[62fd8b95] TensorCore v0.1.1
[8ea1fca8] TermInterface v2.0.0
[8290d209] ThreadingUtilities v0.5.3
[731e570b] TiffImages v0.11.3
[a759f4b9] TimerOutputs v0.5.28
[3bb67fe8] TranscodingStreams v0.11.3
[d5829a12] TriangularSolve v0.2.1
[981d1d27] TriplotBase v0.1.0
[781d530d] TruncatedStacktraces v1.4.0
[5c2747f8] URIs v1.5.2
[3a884ed6] UnPack v1.0.2
[1cfade01] UnicodeFun v0.4.1
[1986cc42] Unitful v1.22.0
[a7c27f48] Unityper v0.1.6
[3d5dd08c] VectorizationBase v0.21.71
[81def892] VersionParsing v1.3.0
[44d3d7a6] Weave v0.10.12
[e3aaa7dc] WebP v0.1.3
[efce3f68] WoodburyMatrices v1.0.0
[ddb6d928] YAML v0.4.13
[c2297ded] ZMQ v1.4.0
[6e34b625] Bzip2_jll v1.0.9+0
[4e9b3aee] CRlibm_jll v1.0.1+0
⌃ [83423d85] Cairo_jll v1.18.4+0
[5ae413db] EarCut_jll v2.2.4+0
⌅ [7cc45869] Enzyme_jll v0.0.173+0
[2e619515] Expat_jll v2.6.5+0
⌅ [b22a6f82] FFMPEG_jll v6.1.2+0
[f5851436] FFTW_jll v3.3.11+0
[a3f928ae] Fontconfig_jll v2.16.0+0
[d7e528f0] FreeType2_jll v2.13.4+0
[559328eb] FriBidi_jll v1.0.17+0
[78b55507] Gettext_jll v0.21.0+0
[59f7168a] Giflib_jll v5.2.3+0
[f8c6e375] Git_jll v2.49.0+0
⌃ [7746bdde] Glib_jll v2.82.4+0
[3b182d85] Graphite2_jll v1.3.15+0
[528830af] Gumbo_jll v0.10.2+0
[2e76f6c2] HarfBuzz_jll v8.5.0+0
[e33a78d0] Hwloc_jll v2.12.0+0
[905a6f67] Imath_jll v3.1.11+0
[1d5cc7b8] IntelOpenMP_jll v2025.0.4+0
[aacddb02] JpegTurbo_jll v3.1.1+0
[c1c5ebd0] LAME_jll v3.100.2+0
[88015f11] LERC_jll v4.0.1+0
[dad2f222] LLVMExtra_jll v0.0.35+0
[1d63c593] LLVMOpenMP_jll v18.1.7+0
[dd4b983a] LZO_jll v2.10.3+0
⌅ [e9f186c6] Libffi_jll v3.2.2+2
[7e76a0d4] Libglvnd_jll v1.7.1+1
[94ce4f54] Libiconv_jll v1.18.0+0
[4b2f31a3] Libmount_jll v2.41.0+0
[89763e89] Libtiff_jll v4.7.1+0
[38a345b3] Libuuid_jll v2.41.0+0
[856f044c] MKL_jll v2025.0.1+1
[7cb0a576] MPICH_jll v4.3.0+1
[f1f71cc9] MPItrampoline_jll v5.5.3+0
[9237b28f] MicrosoftMPI_jll v10.1.4+3
[e7412a2a] Ogg_jll v1.3.5+1
⌅ [656ef2d0] OpenBLAS32_jll v0.3.24+0
[6cdc7f73] OpenBLASConsistentFPCSR_jll v0.3.29+0
[18a262bb] OpenEXR_jll v3.2.4+0
[fe0851c0] OpenMPI_jll v5.0.7+2
⌅ [9bd350c2] OpenSSH_jll v9.9.2+0
[458c3c95] OpenSSL_jll v3.0.16+0
[efe28fd5] OpenSpecFun_jll v0.5.6+0
[91d4177d] Opus_jll v1.3.3+0
[8fa3689e] PETSc_jll v3.22.0+0
[36c8627f] Pango_jll v1.56.1+0
[30392449] Pixman_jll v0.44.2+0
[f50d1b31] Rmath_jll v0.5.1+0
[aabda75e] SCALAPACK32_jll v2.2.1+1
⌅ [fb77eaff] Sundials_jll v5.2.2+0
⌅ [02c8fc9c] XML2_jll v2.13.6+1
[ffd25f8a] XZ_jll v5.8.1+0
[4f6342f7] Xorg_libX11_jll v1.8.12+0
[0c0b7dd1] Xorg_libXau_jll v1.0.13+0
[a3789734] Xorg_libXdmcp_jll v1.1.6+0
[1082639a] Xorg_libXext_jll v1.3.7+0
[ea2f1a96] Xorg_libXrender_jll v0.9.12+0
[c7cfdc94] Xorg_libxcb_jll v1.17.1+0
[c5fb5394] Xorg_xtrans_jll v1.6.0+0
[8f1865be] ZeroMQ_jll v4.3.6+0
[3161d3a3] Zstd_jll v1.5.7+1
[b792d7bf] cminpack_jll v1.3.12+0
[9a68df92] isoband_jll v0.2.3+0
[a4ae2306] libaom_jll v3.11.0+0
[0ac62f75] libass_jll v0.15.2+0
[f638f0a6] libfdk_aac_jll v2.0.3+0
[b53b4c65] libpng_jll v1.6.47+0
[47bcb7c8] libsass_jll v3.6.6+0
[075b6546] libsixel_jll v1.10.5+0
[a9144af2] libsodium_jll v1.0.21+0
[f27f6e37] libvorbis_jll v1.3.7+2
[c5f90fcd] libwebp_jll v1.5.0+0
[1317d2d5] oneTBB_jll v2022.0.0+0
[1270edf5] x264_jll v10164.0.1+0
⌅ [dfaa095f] x265_jll v3.6.0+0
[0dad84c5] ArgTools v1.1.1
[56f22d72] Artifacts
[2a0f44e3] Base64
[8bf52ea8] CRC32c
[ade2ca70] Dates
[8ba89e20] Distributed
[f43a241f] Downloads v1.6.0
[7b1f6079] FileWatching
[9fa8497b] Future
[b77e0a4c] InteractiveUtils
[4af54fe1] LazyArtifacts
[b27032c2] LibCURL v0.6.4
[76f85450] LibGit2
[8f399da3] Libdl
[37e2e46d] LinearAlgebra
[56ddb016] Logging
[d6f4376e] Markdown
[a63ad114] Mmap
[ca575930] NetworkOptions v1.2.0
[44cfe95a] Pkg v1.10.0
[de0858da] Printf
[9abbd945] Profile
[3fa0cd96] REPL
[9a3f8284] Random
[ea8e919c] SHA v0.7.0
[9e88b42a] Serialization
[1a1011a3] SharedArrays
[6462fe0b] Sockets
[2f01184e] SparseArrays v1.10.0
[10745b16] Statistics v1.10.0
[4607b0f0] SuiteSparse
[fa267f1f] TOML v1.0.3
[a4e569a6] Tar v1.10.0
[8dfed614] Test
[cf7118a7] UUIDs
[4ec0a83e] Unicode
[e66e0078] CompilerSupportLibraries_jll v1.1.1+0
[deac9b47] LibCURL_jll v8.4.0+0
[e37daf67] LibGit2_jll v1.6.4+0
[29816b5a] LibSSH2_jll v1.11.0+1
[c8ffd9c3] MbedTLS_jll v2.28.2+1
[14a3606d] MozillaCACerts_jll v2023.1.10
[4536629a] OpenBLAS_jll v0.3.23+4
[05823500] OpenLibm_jll v0.8.1+4
[efcefdf7] PCRE2_jll v10.42.0+1
[bea87d4a] SuiteSparse_jll v7.2.1+1
[83775a58] Zlib_jll v1.2.13+1
[8e850b90] libblastrampoline_jll v5.11.0+0
[8e850ede] nghttp2_jll v1.52.0+1
[3f19e933] p7zip_jll v17.4.0+2
Info Packages marked with ⌃ and ⌅ have new versions available. Those with ⌃ may be upgradable, but those with ⌅ are restricted by compatibility constraints from upgrading. To see why use `status --outdated -m`
Warning The project dependencies or compat requirements have changed since the manifest was last resolved. It is recommended to `Pkg.resolve()` or consider `Pkg.update()` if necessary.
