Hamilton-Jacobi PDE Physics-Informed Neural Network (PINN) Optimizer Benchmarks

Adapted from NeuralPDE: Automating Physics-Informed Neural Networks (PINNs) with Error Approximations. Uses the NeuralPDE.jl library from the SciML Scientific Machine Learning Open Source Organization for the implementation of physics-informed neural networks (PINNs) and other science-guided AI techniques.

Setup

using NeuralPDE, ModelingToolkit, Optimization, OptimizationOptimJL
using Lux, Plots, OptimizationOptimisers
import ModelingToolkit: Interval, infimum, supremum

function solve(opt)
    strategy = QuadratureTraining()

    ##  DECLARATIONS
    @parameters  t x1 x2 x3 x4
    @variables   u(..)

    Dt = Differential(t)

    Dx1 = Differential(x1)
    Dx2 = Differential(x2)
    Dx3 = Differential(x3)
    Dx4 = Differential(x4)

    Dxx1 = Differential(x1)^2
    Dxx2 = Differential(x2)^2
    Dxx3 = Differential(x3)^2
    Dxx4 = Differential(x4)^2


    # Discretization
    tmax         = 1.0
    x1width      = 1.0
    x2width      = 1.0
    x3width      = 1.0
    x4width      = 1.0

    tMeshNum     = 10
    x1MeshNum    = 10
    x2MeshNum    = 10
    x3MeshNum    = 10
    x4MeshNum    = 10

    dt   = tmax/tMeshNum
    dx1  = x1width/x1MeshNum
    dx2  = x2width/x2MeshNum
    dx3  = x3width/x3MeshNum
    dx4  = x4width/x4MeshNum

    domains = [t ∈ Interval(0.0,tmax),
               x1 ∈ Interval(0.0,x1width),
               x2 ∈ Interval(0.0,x2width),
               x3 ∈ Interval(0.0,x3width),
               x4 ∈ Interval(0.0,x4width)]

    ts  = 0.0 : dt : tmax
    x1s = 0.0 : dx1 : x1width
    x2s = 0.0 : dx2 : x2width
    x3s = 0.0 : dx3 : x3width
    x4s = 0.0 : dx4 : x4width

    λ = 1.0f0

    # Operators
    Δu = Dxx1(u(t,x1,x2,x3,x4)) + Dxx2(u(t,x1,x2,x3,x4)) + Dxx3(u(t,x1,x2,x3,x4)) + Dxx4(u(t,x1,x2,x3,x4)) # Laplacian
    ∇u = [Dx1(u(t,x1,x2,x3,x4)), Dx2(u(t,x1,x2,x3,x4)),Dx3(u(t,x1,x2,x3,x4)),Dx4(u(t,x1,x2,x3,x4))]

    # Equation
    eq = Dt(u(t,x1,x2,x3,x4)) + Δu - λ*sum(∇u.^2) ~ 0  #HAMILTON-JACOBI-BELLMAN EQUATION

    terminalCondition =  log((1 + x1*x1 + x2*x2 + x3*x3 + x4*x4)/2) # see PNAS paper

    bcs = [u(tmax,x1,x2,x3,x4) ~ terminalCondition]  #PNAS paper again

    ## NEURAL NETWORK
    n = 20   #neuron number

    chain = Lux.Chain(Lux.Dense(5,n,tanh),Lux.Dense(n,n,tanh),Lux.Dense(n,1))   #Neural network from OptimizationFlux library

    discretization = PhysicsInformedNN(chain, strategy)

    indvars = [t,x1,x2,x3,x4]   #physically independent variables
    depvars = [u]       #dependent (target) variable

    loss = []
    initial_time = 0

    times = []

    cb = function (p,l)
        if initial_time == 0
            initial_time = time()
        end
        push!(times, time() - initial_time)
        #println("Current loss for $opt is: $l")
        push!(loss, l)
        return false
    end

    @named pde_system = PDESystem(eq, bcs, domains, indvars, depvars)
    prob = discretize(pde_system, discretization)

    if opt == "both"
        res = Optimization.solve(prob, ADAM(); callback = cb, maxiters=50)
        prob = remake(prob,u0=res.minimizer)
        res = Optimization.solve(prob, BFGS(); callback = cb, maxiters=150)
    else
        res = Optimization.solve(prob, opt; callback = cb, maxiters=200)
    end

    times[1] = 0.001

    return loss, times #add numeric solution
end

solve (generic function with 1 method)

opt1 = Optimisers.ADAM()
opt2 = Optimisers.ADAM(0.005)
opt3 = Optimisers.ADAM(0.05)
opt4 = Optimisers.RMSProp()
opt5 = Optimisers.RMSProp(0.005)
opt6 = Optimisers.RMSProp(0.05)
opt7 = OptimizationOptimJL.BFGS()
opt8 = OptimizationOptimJL.LBFGS()

Optim.LBFGS{Nothing, LineSearches.InitialStatic{Float64}, LineSearches.Hage
rZhang{Float64, Base.RefValue{Bool}}, Optim.var"#19#21"}(10, LineSearches.I
nitialStatic{Float64}
  alpha: Float64 1.0
  scaled: Bool false
, LineSearches.HagerZhang{Float64, Base.RefValue{Bool}}
  delta: Float64 0.1
  sigma: Float64 0.9
  alphamax: Float64 Inf
  rho: Float64 5.0
  epsilon: Float64 1.0e-6
  gamma: Float64 0.66
  linesearchmax: Int64 50
  psi3: Float64 0.1
  display: Int64 0
  mayterminate: Base.RefValue{Bool}
  cache: Nothing nothing
, nothing, Optim.var"#19#21"(), Optim.Flat(), true)

Solve

loss_1, times_1 = solve(opt1)
loss_2, times_2 = solve(opt2)
loss_3, times_3 = solve(opt3)
loss_4, times_4 = solve(opt4)
loss_5, times_5 = solve(opt5)
loss_6, times_6 = solve(opt6)
loss_7, times_7 = solve(opt7)
loss_8, times_8 = solve(opt8)
loss_9, times_9 = solve("both")

(Any[10.499509769067771, 9.649536461251941, 8.841261438207475, 8.1332853658
55322, 7.362248902825996, 6.682727375351461, 6.29838571885843, 5.8055460259
29927, 5.35636133884831, 4.946478784677942  …  0.0008332987497238742, 0.000
8311237470302105, 0.0008157836602167104, 0.000808200514276321, 0.0007999382
917103663, 0.0007941181138342072, 0.000792837590121752, 0.00077777791187529
83, 0.000759974450638598, 0.0007391320657960534], Any[0.001, 4.352499961853
027, 8.707390069961548, 13.064552068710327, 17.407616138458252, 21.73884010
3149414, 26.088303089141846, 30.438894033432007, 34.809842109680176, 39.164
215087890625  …  2052.9503099918365, 2065.9568061828613, 2079.103515148163,
 2092.201045036316, 2105.3270859718323, 2346.850025177002, 2360.00600409507
75, 2373.2844660282135, 2386.4930000305176, 2399.6436421871185])

Results

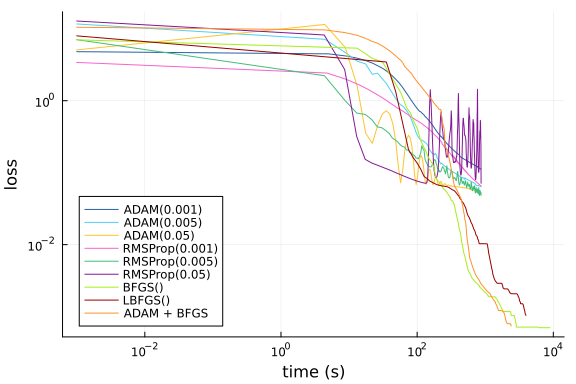

p = plot([times_1, times_2, times_3, times_4, times_5, times_6, times_7, times_8, times_9], [loss_1, loss_2, loss_3, loss_4, loss_5, loss_6, loss_7, loss_8, loss_9],xlabel="time (s)", ylabel="loss", xscale=:log10, yscale=:log10, labels=["ADAM(0.001)" "ADAM(0.005)" "ADAM(0.05)" "RMSProp(0.001)" "RMSProp(0.005)" "RMSProp(0.05)" "BFGS()" "LBFGS()" "ADAM + BFGS"], legend=:bottomleft, linecolor=["#2660A4" "#4CD0F4" "#FEC32F" "#F763CD" "#44BD79" "#831894" "#A6ED18" "#980000" "#FF912B"])

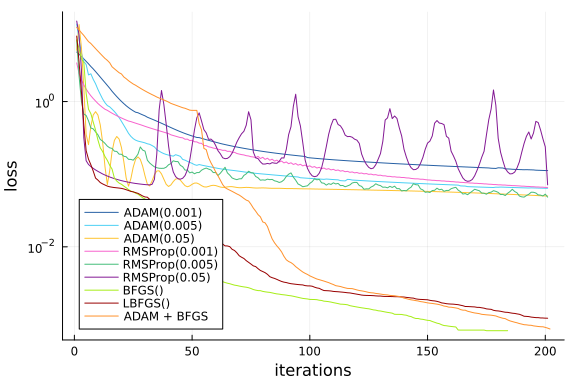

p = plot([loss_1, loss_2, loss_3, loss_4, loss_5, loss_6, loss_7, loss_8, loss_9], xlabel="iterations", ylabel="loss", yscale=:log10, labels=["ADAM(0.001)" "ADAM(0.005)" "ADAM(0.05)" "RMSProp(0.001)" "RMSProp(0.005)" "RMSProp(0.05)" "BFGS()" "LBFGS()" "ADAM + BFGS"], legend=:bottomleft, linecolor=["#2660A4" "#4CD0F4" "#FEC32F" "#F763CD" "#44BD79" "#831894" "#A6ED18" "#980000" "#FF912B"])

@show loss_1[end], loss_2[end], loss_3[end], loss_4[end], loss_5[end], loss_6[end], loss_7[end], loss_8[end], loss_9[end]

(loss_1[end], loss_2[end], loss_3[end], loss_4[end], loss_5[end], loss_6[en
d], loss_7[end], loss_8[end], loss_9[end]) = (0.11225073223929627, 0.063942
3679445745, 0.05015406698182012, 0.0657621617698934, 0.04832554757288934, 0
.07125336642225785, 0.0007007000374938473, 0.001039697717012004, 0.00073913
20657960534)
(0.11225073223929627, 0.0639423679445745, 0.05015406698182012, 0.0657621617
698934, 0.04832554757288934, 0.07125336642225785, 0.0007007000374938473, 0.
001039697717012004, 0.0007391320657960534)

Appendix

These benchmarks are a part of the SciMLBenchmarks.jl repository, found at: https://github.com/SciML/SciMLBenchmarks.jl. For more information on high-performance scientific machine learning, check out the SciML Open Source Software Organization https://sciml.ai.

To locally run this benchmark, do the following commands:

using SciMLBenchmarks
SciMLBenchmarks.weave_file("benchmarks/PINNOptimizers","hamilton_jacobi.jmd")
