Poisson PDE Physics-Informed Neural Network (PINN) Optimizer Benchmarks

Adapted from NeuralPDE: Automating Physics-Informed Neural Networks (PINNs) with Error Approximations. Uses the NeuralPDE.jl library from the SciML Scientific Machine Learning Open Source Organization for the implementation of physics-informed neural networks (PINNs) and other science-guided AI techniques.

Setup Code

using NeuralPDE, ModelingToolkit, Optimization, OptimizationOptimJL
using Lux, Plots, OptimizationOptimisers
import ModelingToolkit: Interval, infimum, supremum

function solve(opt)
    strategy = QuadratureTraining()

    @parameters x y
    @variables u(..)
    Dxx = Differential(x)^2
    Dyy = Differential(y)^2

    # 2D PDE
    eq  = Dxx(u(x,y)) + Dyy(u(x,y)) ~ -sin(pi*x)*sin(pi*y)

    # Boundary conditions
    bcs = [u(0,y) ~ 0.f0, u(1,y) ~ -sin(pi*1)*sin(pi*y),
           u(x,0) ~ 0.f0, u(x,1) ~ -sin(pi*x)*sin(pi*1)]
    # Space and time domains
    domains = [x ∈ Interval(0.0,1.0),
               y ∈ Interval(0.0,1.0)]

    # Neural network
    dim = 2 # number of dimensions
    chain = Lux.Chain(Lux.Dense(dim,16,tanh),Lux.Dense(16,16,tanh),Lux.Dense(16,1))

    discretization = PhysicsInformedNN(chain,strategy)

    indvars = [x, y]   #physically independent variables
    depvars = [u(x,y)]       #dependent (target) variable

    loss = []
    initial_time = nothing

    times = []

    cb = function (p,l)
        if initial_time == nothing
            initial_time = time()
        end
        push!(times, time() - initial_time)
        #println("Current loss for $opt is: $l")
        push!(loss, l)
        return false
    end

    @named pde_system = PDESystem(eq, bcs, domains, indvars, depvars)
    prob = discretize(pde_system, discretization)

    if opt == "both"
        res = Optimization.solve(prob, ADAM(); callback = cb, maxiters=50)
        prob = remake(prob,u0=res.minimizer)
        res = Optimization.solve(prob, BFGS(); callback = cb, maxiters=150)
    else
        res = Optimization.solve(prob, opt; callback = cb, maxiters=200)
    end

    times[1] = 0.001

    return loss, times #add numeric solution
end

solve (generic function with 1 method)

opt1 = Optimisers.ADAM()
opt2 = Optimisers.ADAM(0.005)
opt3 = Optimisers.ADAM(0.05)
opt4 = Optimisers.RMSProp()
opt5 = Optimisers.RMSProp(0.005)
opt6 = Optimisers.RMSProp(0.05)
opt7 = OptimizationOptimJL.BFGS()
opt8 = OptimizationOptimJL.LBFGS()

Optim.LBFGS{Nothing, LineSearches.InitialStatic{Float64}, LineSearches.Hage
rZhang{Float64, Base.RefValue{Bool}}, Optim.var"#19#21"}(10, LineSearches.I
nitialStatic{Float64}
  alpha: Float64 1.0
  scaled: Bool false
, LineSearches.HagerZhang{Float64, Base.RefValue{Bool}}
  delta: Float64 0.1
  sigma: Float64 0.9
  alphamax: Float64 Inf
  rho: Float64 5.0
  epsilon: Float64 1.0e-6
  gamma: Float64 0.66
  linesearchmax: Int64 50
  psi3: Float64 0.1
  display: Int64 0
  mayterminate: Base.RefValue{Bool}
  cache: Nothing nothing
, nothing, Optim.var"#19#21"(), Optim.Flat(), true)

Solve

loss_1, times_1 = solve(opt1)
loss_2, times_2 = solve(opt2)
loss_3, times_3 = solve(opt3)
loss_4, times_4 = solve(opt4)
loss_5, times_5 = solve(opt5)
loss_6, times_6 = solve(opt6)
loss_7, times_7 = solve(opt7)
loss_8, times_8 = solve(opt8)
loss_9, times_9 = solve("both")

(Any[5.572445847837208, 5.137474437530168, 4.731972852667706, 4.35535204707
153, 4.00694206049847, 3.6861039608996204, 3.3918956666338973, 3.1232815634
475317, 2.879133487853969, 2.6577248434611143  …  1.676446285494423e-5, 1.6
764408510121696e-5, 1.642363468579265e-5, 1.530788151534634e-5, 1.530788493
5191017e-5, 1.530789909889804e-5, 1.5255180987807334e-5, 1.5255147718388406
e-5, 1.5255147558631162e-5, 1.5255125472795477e-5], Any[0.001, 1.2061619758
605957, 2.4110240936279297, 3.597520112991333, 4.790925025939941, 6.0057621
00219727, 7.235180139541626, 8.41975712776184, 9.591458082199097, 10.783600
091934204  …  1117.2025179862976, 1195.2331612110138, 1261.2803111076355, 1
264.7305331230164, 1336.9927639961243, 1409.6710381507874, 1477.25170207023
62, 1546.1116490364075, 1617.539570093155, 1683.150109052658])

Results

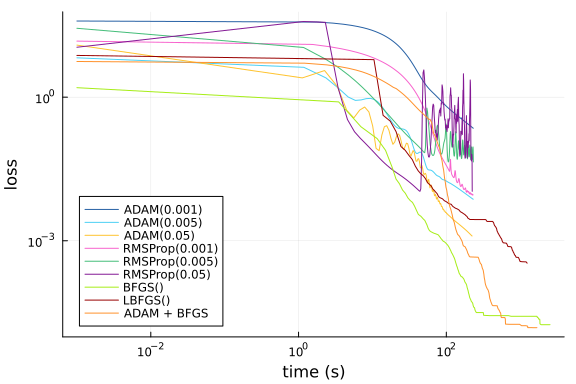

p = plot([times_1, times_2, times_3, times_4, times_5, times_6, times_7, times_8, times_9], [loss_1, loss_2, loss_3, loss_4, loss_5, loss_6, loss_7, loss_8, loss_9],xlabel="time (s)", ylabel="loss", xscale=:log10, yscale=:log10, labels=["ADAM(0.001)" "ADAM(0.005)" "ADAM(0.05)" "RMSProp(0.001)" "RMSProp(0.005)" "RMSProp(0.05)" "BFGS()" "LBFGS()" "ADAM + BFGS"], legend=:bottomleft, linecolor=["#2660A4" "#4CD0F4" "#FEC32F" "#F763CD" "#44BD79" "#831894" "#A6ED18" "#980000" "#FF912B"])

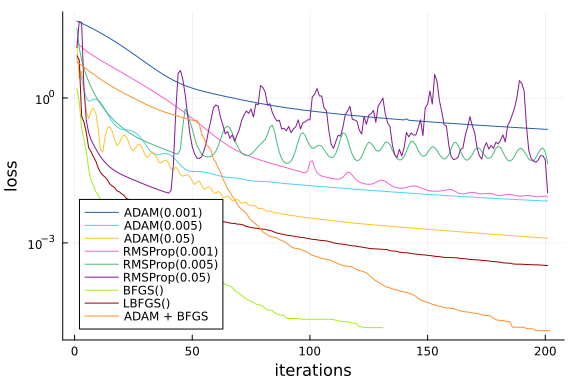

p = plot([loss_1, loss_2, loss_3, loss_4, loss_5, loss_6, loss_7, loss_8, loss_9], xlabel="iterations", ylabel="loss", yscale=:log10, labels=["ADAM(0.001)" "ADAM(0.005)" "ADAM(0.05)" "RMSProp(0.001)" "RMSProp(0.005)" "RMSProp(0.05)" "BFGS()" "LBFGS()" "ADAM + BFGS"], legend=:bottomleft, linecolor=["#2660A4" "#4CD0F4" "#FEC32F" "#F763CD" "#44BD79" "#831894" "#A6ED18" "#980000" "#FF912B"])

@show loss_1[end], loss_2[end], loss_3[end], loss_4[end], loss_5[end], loss_6[end], loss_7[end], loss_8[end], loss_9[end]

(loss_1[end], loss_2[end], loss_3[end], loss_4[end], loss_5[end], loss_6[en
d], loss_7[end], loss_8[end], loss_9[end]) = (0.22502098220641686, 0.007378
732500777732, 0.0012586749226888906, 0.009016065235612157, 0.04431600859756
8415, 0.01078263612484731, 1.7623633960551587e-5, 0.0003399754609925307, 1.
5255125472795477e-5)
(0.22502098220641686, 0.007378732500777732, 0.0012586749226888906, 0.009016
065235612157, 0.044316008597568415, 0.01078263612484731, 1.7623633960551587
e-5, 0.0003399754609925307, 1.5255125472795477e-5)

Appendix

These benchmarks are a part of the SciMLBenchmarks.jl repository, found at: https://github.com/SciML/SciMLBenchmarks.jl. For more information on high-performance scientific machine learning, check out the SciML Open Source Software Organization https://sciml.ai.

To locally run this benchmark, do the following commands:

using SciMLBenchmarks
SciMLBenchmarks.weave_file("benchmarks/PINNOptimizers","poisson.jmd")

Computer Information:

Julia Version 1.10.7
Commit 4976d05258e (2024-11-26 15:57 UTC)
Build Info:
  Official https://julialang.org/ release
Platform Info:
  OS: Linux (x86_64-linux-gnu)
  CPU: 128 × AMD EPYC 7502 32-Core Processor
  WORD_SIZE: 64
  LIBM: libopenlibm
  LLVM: libLLVM-15.0.7 (ORCJIT, znver2)
Threads: 1 default, 0 interactive, 1 GC (on 128 virtual cores)
