KdV Pseudospectral Methods Work-Precision Diagrams
using ApproxFun, OrdinaryDiffEq, Sundials, LinearSolve
using DiffEqDevTools
using LinearAlgebra, RecursiveFactorization
using Plots; gr()Error: Failed to precompile Sundials [c3572dad-4567-51f8-b174-8c6c989267f4]
to "/cache/julia-buildkite-plugin/depots/5b300254-1738-4989-ae0a-f4d2d937f
953/compiled/v1.10/Sundials/jl_n8l7ee".Here is the Burgers equation using Fourier spectral methods.
S = Fourier()
n = 512
x = points(S, n)
D2 = Derivative(S,2)[1:n,1:n]
D = (Derivative(S) → S)[1:n,1:n]
T = ApproxFun.plan_transform(S, n)
Ti = ApproxFun.plan_itransform(S, n)
D3 = (Derivative(S,3) → S)[1:n,1:n]
û₀ = T*cos.(x)
δ=0.022
tmp = similar(û₀)
p = (D,T,Ti,similar(tmp),tmp)
function kdv(dû,û,p,t)
D,T,Ti,u,tmp = p
mul!(u,D,û)
mul!(tmp,Ti,u)
mul!(u,Ti,û)
@. tmp=u*tmp
mul!(u,T,tmp)
@.dû = 6*u
endkdv (generic function with 1 method)Reference solution using RadauIIA5 is below:
prob = SplitODEProblem(DiffEqArrayOperator(-D3), kdv, û₀, (0.0,5.0), p)
sol = solve(prob, RadauIIA5(autodiff=false); reltol=1e-14,abstol=1e-14)
test_sol = TestSolution(sol)
tslices=[0.0 1.0 2.0 3.0 5.0]
ys=hcat((Ti*sol(t) for t in tslices)...)
labels=["t=$t" for t in tslices]

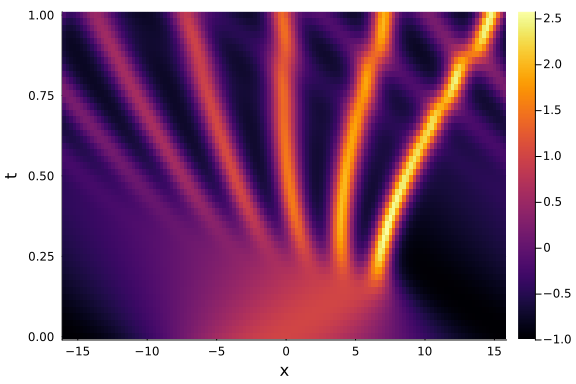

plot(x,ys,label=labels)Error: Special factorization not handled in current default algorithmHigh tolerances
In-family comparisons
1.IMEX methods (diagonal linear solver)
abstols = 0.1 .^ (5:8)
reltols = 0.1 .^ (1:4)
multipliers = 0.5 .^ (0:3)
setups = [Dict(:alg => IMEXEuler(linsolve=diag_linsolve), :dts => 1e-5 * multipliers),
Dict(:alg => CNAB2(linsolve=diag_linsolve), :dts => 5e-7 * multipliers),
Dict(:alg => CNLF2(linsolve=diag_linsolve), :dts => 5e-7 * multipliers),
Dict(:alg => SBDF2(linsolve=diag_linsolve), :dts => 1e-5 * multipliers)]
labels = ["IMEXEuler" "CNAB2" "CNLF2" "SBDF2"]
@time wp1 = WorkPrecisionSet(prob,abstols,reltols,setups;
print_names=true,names=labels,
numruns=5,seconds=5,
save_everystop=false,appxsol=test_sol,maxiters=Int(1e5));

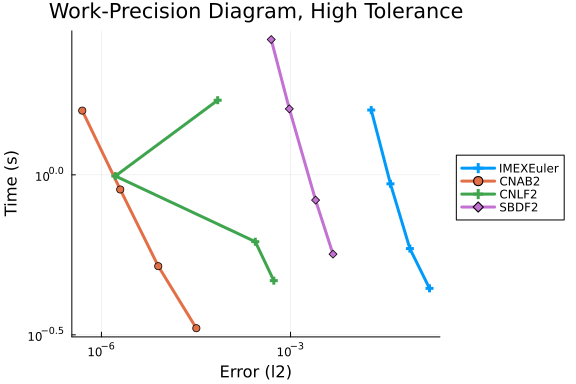

plot(wp1,label=labels,markershape=:auto,title="IMEX methods, diagonal linsolve, low order")Error: UndefVarError: `diag_linsolve` not defined- ExpRK methods
abstols = 0.1 .^ (5:8) # all fixed dt methods so these don't matter much
reltols = 0.1 .^ (1:4)
multipliers = 0.5 .^ (0:3)
setups = [Dict(:alg => NorsettEuler(), :dts => 1e-3 * multipliers),
Dict(:alg => ETDRK2(), :dts => 1e-2 * multipliers)]
labels = hcat("NorsettEuler",
"ETDRK2 (caching)")
@time wp2 = WorkPrecisionSet(prob,abstols,reltols,setups;
print_names=true, names=labels,
numruns=5,
save_everystep=false, appxsol=test_sol, maxiters=Int(1e5));

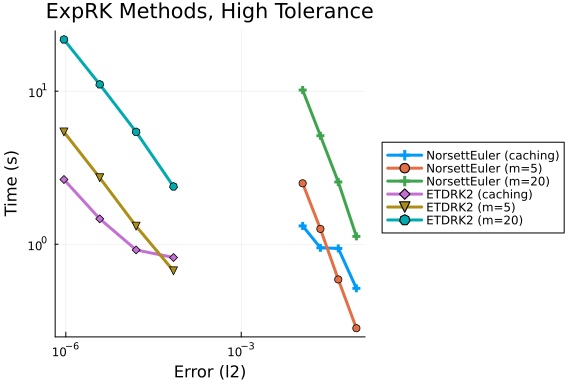

plot(wp2, label=labels, markershape=:auto, title="ExpRK methods, low order")Error: UndefVarError: `test_sol` not definedBetween family comparisons
abstols = 0.1 .^ (5:8) # all fixed dt methods so these don't matter much
reltols = 0.1 .^ (1:4)
multipliers = 0.5 .^ (0:3)
setups = [Dict(:alg => CNAB2(linsolve=diag_linsolve), :dts => 5e-5 * multipliers),
Dict(:alg => ETDRK2(), :dts => 1e-2 * multipliers)]
labels = ["CNAB2 (diagonal linsolve)" "ETDRK2"]
@time wp3 = WorkPrecisionSet(prob,abstols,reltols,setups;
print_names=true, names=labels,
numruns=5, error_estimate=:l2,
save_everystep=false, appxsol=test_sol, maxiters=Int(1e5));

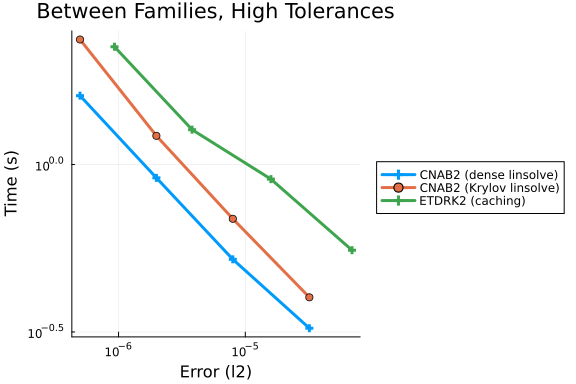

plot(wp3, label=labels, markershape=:auto, title="Between family, low orders")Error: UndefVarError: `diag_linsolve` not definedLow tolerances
In-family comparisons
1.IMEX methods (band linear solver)
abstols = 0.1 .^ (7:13)
reltols = 0.1 .^ (4:10)
setups = [Dict(:alg => ARKODE(Sundials.Implicit(), order=3, linear_solver=:Band, jac_upper=1, jac_lower=1)),
Dict(:alg => ARKODE(Sundials.Implicit(), order=4, linear_solver=:Band, jac_upper=1, jac_lower=1)),
Dict(:alg => ARKODE(Sundials.Implicit(), order=5, linear_solver=:Band, jac_upper=1, jac_lower=1))]
labels = hcat("ARKODE3", "ARKODE4", "ARKODE5")
@time wp4 = WorkPrecisionSet(prob,abstols,reltols,setups;
print_names=true, names=labels,
numruns=5, error_estimate=:l2,
save_everystep=false, appxsol=test_sol, maxiters=Int(1e5));
plot(wp4, label=labels, markershape=:auto, title="IMEX methods, band linsolve, medium order")Error: UndefVarError: `Sundials` not defined2.ExpRK methods
abstols = 0.1 .^ (7:11) # all fixed dt methods so these don't matter much
reltols = 0.1 .^ (4:8)
multipliers = 0.5 .^ (0:4)
setups = [Dict(:alg => ETDRK3(), :dts => 1e-2 * multipliers),
Dict(:alg => ETDRK4(), :dts => 1e-2 * multipliers),
Dict(:alg => HochOst4(), :dts => 1e-2 * multipliers)]
labels = hcat("ETDRK3 (caching)", "ETDRK4 (caching)",
"HochOst4 (caching)")#,"ETDRK4 (m=5)" "ETDRK3 (m=5)" "HochOst4 (m=5)")
@time wp5 = WorkPrecisionSet(prob,abstols,reltols,setups;
print_names=true, names=labels,
numruns=5, error_estimate=:l2,
save_everystep=false, appxsol=test_sol, maxiters=Int(1e5));
plot(wp5, label=labels, markershape=:auto, title="ExpRK methods, medium order")Error: UndefVarError: `test_sol` not definedBetween family comparisons
abstols = 0.1 .^ (7:11)
reltols = 0.1 .^ (4:8)
multipliers = 0.5 .^ (0:4)
setups = [Dict(:alg => ARKODE(Sundials.Implicit(), order=5, linear_solver=:Band, jac_upper=1, jac_lower=1)),
Dict(:alg => ETDRK3(), :dts => 1e-2 * multipliers),
Dict(:alg => ETDRK4(), :dts => 1e-2 * multipliers)]
labels = hcat("ARKODE (nondiagonal linsolve)", "ETDRK3 ()", "ETDRK4 ()")
@time wp6 = WorkPrecisionSet(prob,abstols,reltols,setups;
print_names=true, names=labels,
numruns=5, error_estimate=:l2,
save_everystep=false, appxsol=test_sol, maxiters=Int(1e5));
plot(wp6, label=labels, markershape=:auto, title="Between family, medium order")Error: UndefVarError: `Sundials` not definedAppendix
These benchmarks are a part of the SciMLBenchmarks.jl repository, found at: https://github.com/SciML/SciMLBenchmarks.jl. For more information on high-performance scientific machine learning, check out the SciML Open Source Software Organization https://sciml.ai.
To locally run this benchmark, do the following commands:
using SciMLBenchmarks
SciMLBenchmarks.weave_file("benchmarks/SimpleHandwrittenPDE","kdv_spectral_wpd.jmd")Computer Information:
