Finite Difference Sparse PDE Jacobian Factorization Benchmarks
using BenchmarkTools, Random, VectorizationBase
using LinearAlgebra, SparseArrays, LinearSolve, Sparspak
import Pardiso
using Plots
BenchmarkTools.DEFAULT_PARAMETERS.seconds = 0.5
# Why do I need to set this ?
BenchmarkTools.DEFAULT_PARAMETERS.samples = 10
# Sparse matrix generation on a n-dimensional rectangular grid. After
# https://discourse.julialang.org/t/seven-lines-of-julia-examples-sought/50416/135
# by A. Braunstein.
A ⊕ B = kron(I(size(B, 1)), A) + kron(B, I(size(A, 1)))
function lattice(n; Tv = Float64)
d = fill(2 * one(Tv), n)
d[1] = one(Tv)
d[end] = one(Tv)
spdiagm(1 => -ones(Tv, n - 1), 0 => d, -1 => -ones(Tv, n - 1))
end
lattice(L...; Tv = Float64) = lattice(L[1]; Tv) ⊕ lattice(L[2:end]...; Tv)
#
# Create a matrix similar to that of a finite difference discretization in a `dim`-dimensional
# unit cube of ``-Δu + δu`` with approximately N unknowns. It is strictly diagonally dominant.
#
function fdmatrix(N; dim = 2, Tv = Float64, δ = 1.0e-2)
n = N^(1 / dim) |> ceil |> Int
lattice([n for i in 1:dim]...; Tv) + Tv(δ) * I
end
algs = [
UMFPACKFactorization(),
KLUFactorization(),
MKLPardisoFactorize(),
SparspakFactorization(),
]
cols = [:red, :blue, :green, :magenta, :turqoise] # one color per alg
__parameterless_type(T) = Base.typename(T).wrapper
parameterless_type(x) = __parameterless_type(typeof(x))
parameterless_type(::Type{T}) where {T} = __parameterless_type(T)
#
# kmax=12 gives ≈ 40_000 unknowns max, can be watched in real time
# kmax=15 gives ≈ 328_000 unknows, you can go make a coffee.
# Main culprit is KLU factorization in 3D.
#
function run_and_plot(dim; kmax = 12)
ns = [10 * 2^k for k in 0:kmax]
res = [Float64[] for i in 1:length(algs)]
for i in 1:length(ns)
rng = MersenneTwister(123)
A = fdmatrix(ns[i]; dim)
n = size(A, 1)
@info "dim=$(dim): $n × $n"
b = rand(rng, n)
u0 = rand(rng, n)
for j in 1:length(algs)
bt = @belapsed solve(prob, $(algs[j])).u setup=(prob = LinearProblem(copy($A),
copy($b);
u0 = copy($u0),
alias_A = true,
alias_b = true))
push!(res[j], bt)
end
end
p = plot(;
ylabel = "Time/s",
xlabel = "N",
yscale = :log10,
xscale = :log10,
title = "Time for NxN sparse LU Factorization $(dim)D",
label = string(Symbol(parameterless_type(algs[1]))),
legend = :outertopright)
for i in 1:length(algs)
plot!(p, ns, res[i];
linecolor = cols[i],
label = "$(string(Symbol(parameterless_type(algs[i]))))")
end
p

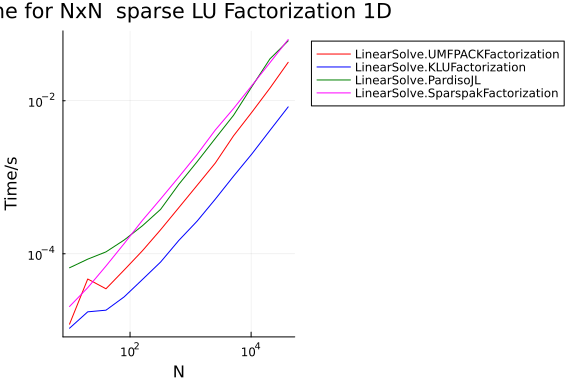

endrun_and_plot (generic function with 1 method)run_and_plot(1)

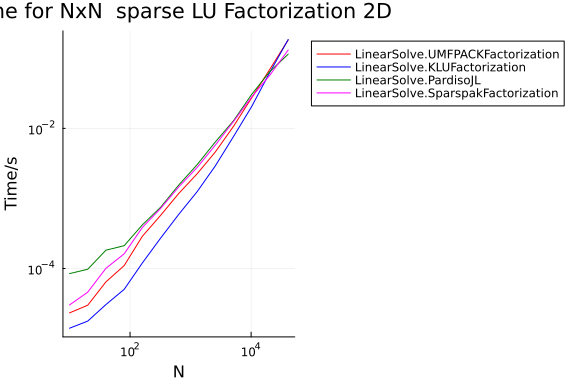

run_and_plot(2)

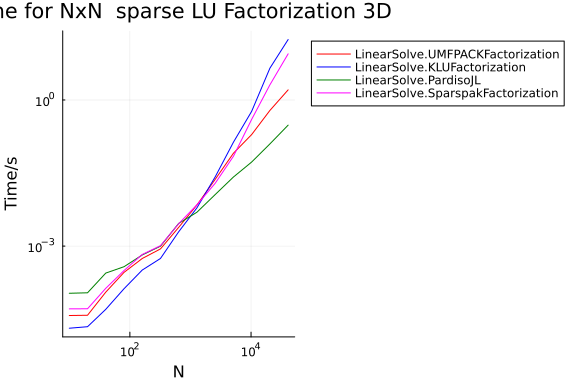

run_and_plot(3)
Appendix
Appendix
These benchmarks are a part of the SciMLBenchmarks.jl repository, found at: https://github.com/SciML/SciMLBenchmarks.jl. For more information on high-performance scientific machine learning, check out the SciML Open Source Software Organization https://sciml.ai.
To locally run this benchmark, do the following commands:
using SciMLBenchmarks
SciMLBenchmarks.weave_file("benchmarks/LinearSolve","SparsePDE.jmd")Computer Information:
