Fitzhugh-Nagumo Work-Precision Diagrams

Fitzhugh-Nagumo

The purpose of this is to see how the errors scale on a standard nonlinear problem.

using OrdinaryDiffEq, ParameterizedFunctions, ODE, ODEInterface,
      ODEInterfaceDiffEq, LSODA, Sundials, DiffEqDevTools,
      StaticArrays
using Plots; gr()

f = @ode_def FitzhughNagumo begin
  dv = v - v^3/3 -w + l
  dw = τinv*(v +  a - b*w)
end a b τinv l

p = SA[0.7,0.8,1/12.5,0.5]
prob = ODEProblem{true, SciMLBase.FullSpecialize}(f,[1.0;1.0],(0.0,10.0),p)
probstatic = ODEProblem{false}(f,SA[1.0;1.0],(0.0,10.0),p)

abstols = 1.0 ./ 10.0 .^ (6:13)
reltols = 1.0 ./ 10.0 .^ (3:10);

sol = solve(prob,Vern7(),abstol=1/10^14,reltol=1/10^14)
sol2 = solve(probstatic,Vern7(),abstol=1/10^14,reltol=1/10^14)
probs = [prob,probstatic]
test_sol = [sol,sol2];
plot(sol)

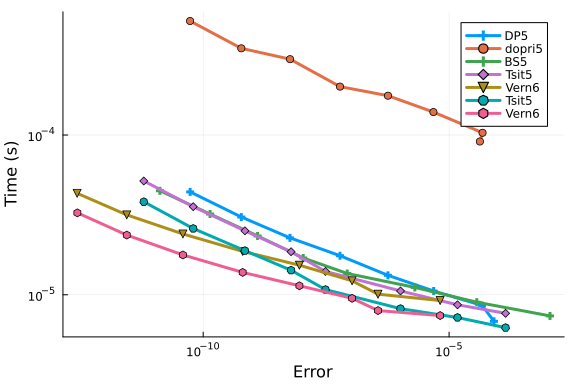

Low Order

setups = [Dict(:alg=>DP5())
          #Dict(:alg=>ode45()) #fails
          Dict(:alg=>dopri5())
          Dict(:alg=>BS5())
          Dict(:alg=>Tsit5())
          Dict(:alg=>Vern6())
          Dict(:alg=>Tsit5(), :prob_choice => 2)
          Dict(:alg=>Vern6(), :prob_choice => 2)
]
wp = WorkPrecisionSet(probs,abstols,reltols,setups;appxsol=test_sol,save_everystep=false,numruns=100,maxiters=1000)
plot(wp)

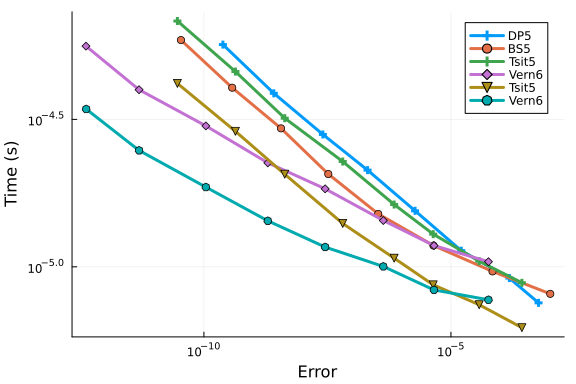

Interpolation

setups = [Dict(:alg=>DP5())
          #Dict(:alg=>ode45()) # fails
          Dict(:alg=>BS5())
          Dict(:alg=>Tsit5())
          Dict(:alg=>Vern6())
          Dict(:alg=>Tsit5(), :prob_choice => 2)
          Dict(:alg=>Vern6(), :prob_choice => 2)
]
wp = WorkPrecisionSet(probs,abstols,reltols,setups;appxsol=test_sol,numruns=100,maxiters=10000,error_estimate=:L2,dense_errors=true)
plot(wp)

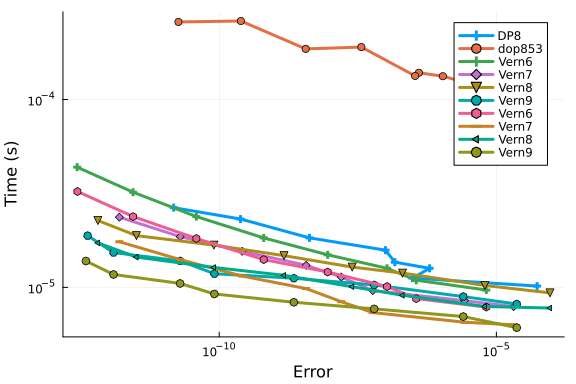

Higher Order

setups = [Dict(:alg=>DP8())
          Dict(:alg=>dop853())
          #Dict(:alg=>ode78()) # fails
          Dict(:alg=>Vern6())
          Dict(:alg=>Vern7())
          Dict(:alg=>Vern8())
          Dict(:alg=>Vern9())
          Dict(:alg=>Vern6(), :prob_choice => 2)
          Dict(:alg=>Vern7(), :prob_choice => 2)
          Dict(:alg=>Vern8(), :prob_choice => 2)
          Dict(:alg=>Vern9(), :prob_choice => 2)
]
wp = WorkPrecisionSet(probs,abstols,reltols,setups;appxsol=test_sol,save_everystep=false,numruns=100,maxiters=1000)
plot(wp)

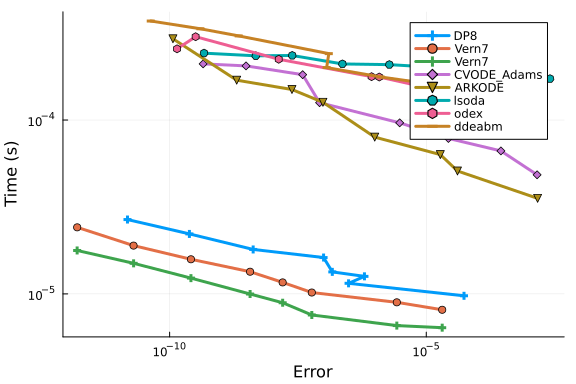

setups = [Dict(:alg=>DP8())
          Dict(:alg=>Vern7())
          Dict(:alg=>Vern7(), :prob_choice => 2)
          Dict(:alg=>CVODE_Adams())
          Dict(:alg=>ARKODE(Sundials.Explicit(),order=6))
          Dict(:alg=>lsoda())
          Dict(:alg=>odex())
          Dict(:alg=>ddeabm())
]
wp = WorkPrecisionSet(probs,abstols,reltols,setups;appxsol=test_sol,save_everystep=false,numruns=100,maxiters=1000)
plot(wp)

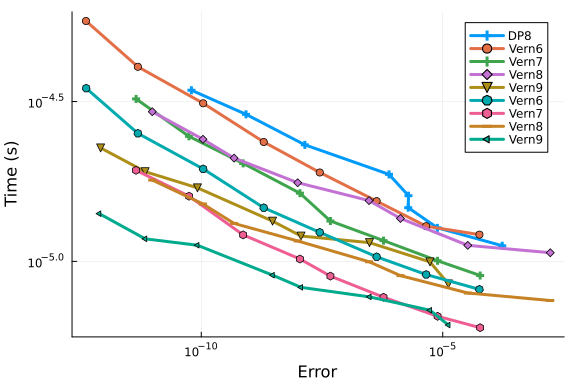

Interpolation

setups = [Dict(:alg=>DP8())
          #Dict(:alg=>ode78()) # fails
          Dict(:alg=>Vern6())
          Dict(:alg=>Vern7())
          Dict(:alg=>Vern8())
          Dict(:alg=>Vern9())
          Dict(:alg=>Vern6(), :prob_choice => 2)
          Dict(:alg=>Vern7(), :prob_choice => 2)
          Dict(:alg=>Vern8(), :prob_choice => 2)
          Dict(:alg=>Vern9(), :prob_choice => 2)
]
wp = WorkPrecisionSet(probs,abstols,reltols,setups;appxsol=test_sol,numruns=100,maxiters=1000,error_estimate=:L2,dense_errors=true)
plot(wp)

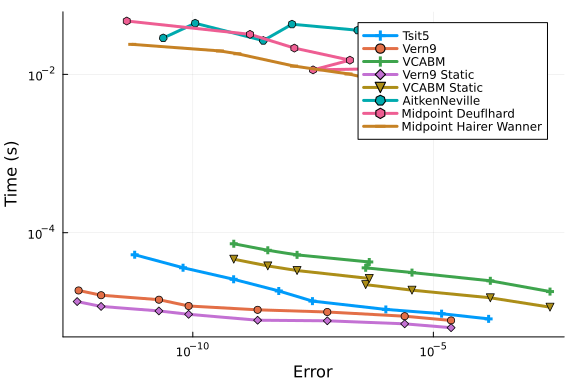

Comparison with Non-RK methods

Now let's test Tsit5 and Vern9 against parallel extrapolation methods and an Adams-Bashforth-Moulton:

setups = [Dict(:alg=>Tsit5())
          Dict(:alg=>Vern9())
          Dict(:alg=>VCABM())
          Dict(:alg=>Vern9(), :prob_choice => 2)
          Dict(:alg=>VCABM(), :prob_choice => 2)
          Dict(:alg=>AitkenNeville(min_order=1, max_order=9, init_order=4, threading=true))
          Dict(:alg=>ExtrapolationMidpointDeuflhard(min_order=1, max_order=9, init_order=4, threading=true))
          Dict(:alg=>ExtrapolationMidpointHairerWanner(min_order=2, max_order=11, init_order=4, threading=true))]
solnames = ["Tsit5","Vern9","VCABM","Vern9 Static","VCABM Static","AitkenNeville","Midpoint Deuflhard","Midpoint Hairer Wanner"]
wp = WorkPrecisionSet(probs,abstols,reltols,setups;appxsol=test_sol,names=solnames,
                      save_everystep=false,verbose=false,numruns=100)
plot(wp)

setups = [Dict(:alg=>ExtrapolationMidpointDeuflhard(min_order=1, max_order=9, init_order=9, threading=false))
          Dict(:alg=>ExtrapolationMidpointHairerWanner(min_order=2, max_order=11, init_order=4, threading=false))
          Dict(:alg=>ExtrapolationMidpointHairerWanner(min_order=2, max_order=11, init_order=4, threading=true))
          Dict(:alg=>ExtrapolationMidpointHairerWanner(min_order=2, max_order=11, init_order=4, sequence = :romberg, threading=true))
          Dict(:alg=>ExtrapolationMidpointHairerWanner(min_order=2, max_order=11, init_order=4, sequence = :bulirsch, threading=true))]
solnames = ["Deuflhard","No threads","standard","Romberg","Bulirsch"]
wp = WorkPrecisionSet(probs,abstols,reltols,setups;appxsol=test_sol,names=solnames,
                      save_everystep=false,verbose=false,numruns=100)
plot(wp)

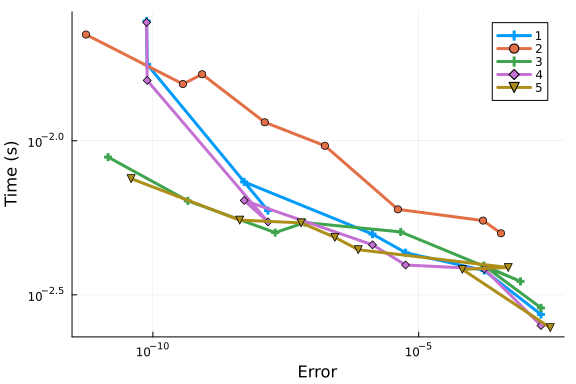

setups = [Dict(:alg=>ExtrapolationMidpointHairerWanner(min_order=2, max_order=11, init_order=10, threading=true))
          Dict(:alg=>ExtrapolationMidpointHairerWanner(min_order=2, max_order=11, init_order=4, threading=true))
          Dict(:alg=>ExtrapolationMidpointHairerWanner(min_order=5, max_order=11, init_order=10, threading=true))
          Dict(:alg=>ExtrapolationMidpointHairerWanner(min_order=2, max_order=15, init_order=10, threading=true))
          Dict(:alg=>ExtrapolationMidpointHairerWanner(min_order=5, max_order=7, init_order=6, threading=true))]
solnames = ["1","2","3","4","5"]
wp = WorkPrecisionSet(probs,abstols,reltols,setups;appxsol=test_sol,names=solnames,
                      save_everystep=false,verbose=false,numruns=100)
plot(wp)

Conclusion

As expected, the algorithms are all pretty matched on time for this problem. However, you can clearly see the OrdinaryDiffEq.jl algorithms solving to a much higher accuracy and still faster, especially when the interpolations are involved.

Appendix

These benchmarks are a part of the SciMLBenchmarks.jl repository, found at: https://github.com/SciML/SciMLBenchmarks.jl. For more information on high-performance scientific machine learning, check out the SciML Open Source Software Organization https://sciml.ai.

To locally run this benchmark, do the following commands:

using SciMLBenchmarks
SciMLBenchmarks.weave_file("benchmarks/NonStiffODE","FitzhughNagumo_wpd.jmd")

Computer Information:

Julia Version 1.9.2
Commit e4ee485e909 (2023-07-05 09:39 UTC)
Platform Info:
  OS: Linux (x86_64-linux-gnu)
  CPU: 128 × AMD EPYC 7502 32-Core Processor
  WORD_SIZE: 64
  LIBM: libopenlibm
  LLVM: libLLVM-14.0.6 (ORCJIT, znver2)
  Threads: 128 on 128 virtual cores
Environment:
  JULIA_CPU_THREADS = 128
  JULIA_DEPOT_PATH = /cache/julia-buildkite-plugin/depots/5b300254-1738-4989-ae0a-f4d2d937f953
  JULIA_IMAGE_THREADS = 1

Package Information:

Status `/cache/build/exclusive-amdci3-0/julialang/scimlbenchmarks-dot-jl/benchmarks/NonStiffODE/Project.toml`
  [f3b72e0c] DiffEqDevTools v2.35.0
  [7f56f5a3] LSODA v0.7.4
  [c030b06c] ODE v2.15.0
  [54ca160b] ODEInterface v0.5.0
  [09606e27] ODEInterfaceDiffEq v3.13.2
  [1dea7af3] OrdinaryDiffEq v6.53.4
  [65888b18] ParameterizedFunctions v5.15.0
  [91a5bcdd] Plots v1.38.17
  [31c91b34] SciMLBenchmarks v0.1.3
  [90137ffa] StaticArrays v1.6.2
  [c3572dad] Sundials v4.19.3
  [9a3f8284] Random
