Lotka-Volterra Work-Precision Diagrams

Lotka-Volterra

The purpose of this problem is to test the performance on easy problems. Since it's periodic, the error is naturally low, and so most of the difference will come down to startup times and, when measuring the interpolations, the algorithm choices.

using OrdinaryDiffEq, ParameterizedFunctions, ODE, ODEInterfaceDiffEq, LSODA,
      Sundials, DiffEqDevTools, StaticArrays

f = @ode_def LotkaVolterra begin
  dx = a*x - b*x*y
  dy = -c*y + d*x*y
end a b c d

p = SA[1.5,1.0,3.0,1.0]
prob = ODEProblem{true, SciMLBase.FullSpecialize}(f,[1.0;1.0],(0.0,10.0),p)
probstatic = ODEProblem{false}(f,SA[1.0;1.0],(0.0,10.0),p)

abstols = 1.0 ./ 10.0 .^ (6:13)
reltols = 1.0 ./ 10.0 .^ (3:10);
sol = solve(prob,Vern7(),abstol=1/10^14,reltol=1/10^14)
sol2 = solve(probstatic,Vern7(),abstol=1/10^14,reltol=1/10^14)
probs = [prob,probstatic]
test_sol = [sol,sol2];
using Plots; gr()

Plots.GRBackend()

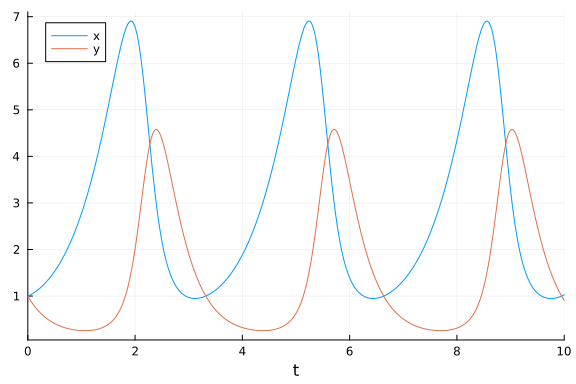

plot(sol)

Low Order

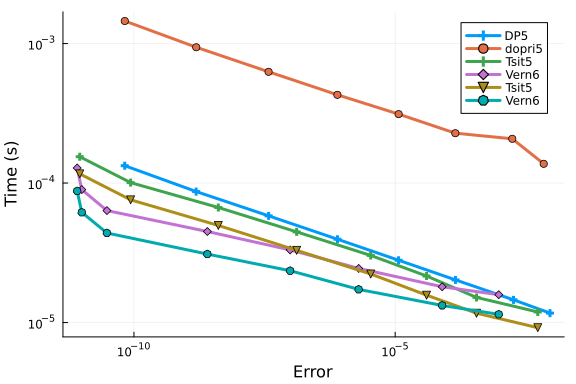

setups = [Dict(:alg=>DP5())
          #Dict(:alg=>ode45()) # fail
          Dict(:alg=>dopri5())
          Dict(:alg=>Tsit5())
          Dict(:alg=>Vern6())
          Dict(:alg=>Tsit5(), :prob_choice => 2)
          Dict(:alg=>Vern6(), :prob_choice => 2)
]
wp = WorkPrecisionSet(probs,abstols,reltols,setups;appxsol=test_sol,save_everystep=false,maxiters=10000,numruns=100)
plot(wp)

Here we see the OrdinaryDiffEq.jl algorithms once again far in the lead.

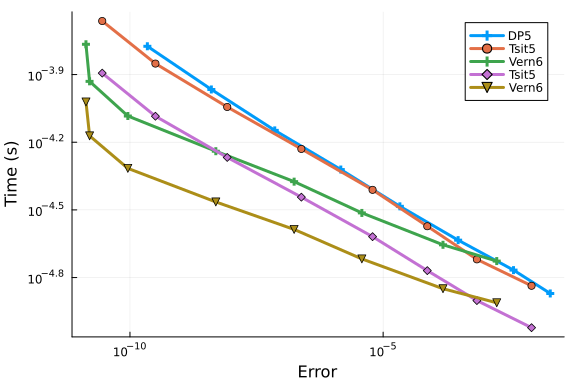

Interpolation Error

Since the problem is periodic, the real measure of error is the error throughout the solution.

setups = [Dict(:alg=>DP5())
          #Dict(:alg=>ode45())
          Dict(:alg=>Tsit5())
          Dict(:alg=>Vern6())
          Dict(:alg=>Tsit5(), :prob_choice => 2)
          Dict(:alg=>Vern6(), :prob_choice => 2)
]
wp = WorkPrecisionSet(probs,abstols,reltols,setups;appxsol=test_sol,maxiters=10000,error_estimate=:L2,dense_errors=true,numruns=100)
plot(wp)

Here we see the power of algorithm specific interpolations. The ODE.jl algorithm is only able to reach $10^{-7}$ error even at a tolerance of $10^{-13}$, while the DifferentialEquations.jl algorithms are below $10^{-10}$

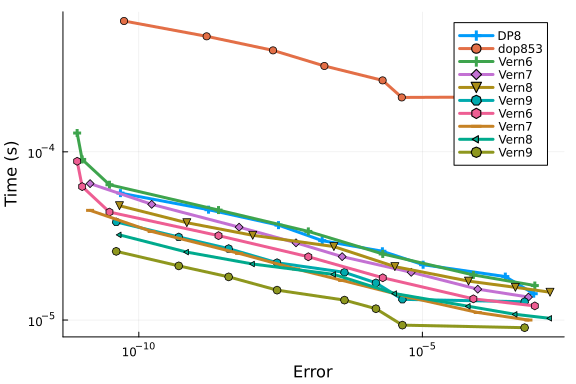

Higher Order

setups = [Dict(:alg=>DP8())
          Dict(:alg=>dop853())
          #Dict(:alg=>ode78()) # fails
          Dict(:alg=>Vern6())
          Dict(:alg=>Vern7())
          Dict(:alg=>Vern8())
          Dict(:alg=>Vern9())
          Dict(:alg=>Vern6(), :prob_choice => 2)
          Dict(:alg=>Vern7(), :prob_choice => 2)
          Dict(:alg=>Vern8(), :prob_choice => 2)
          Dict(:alg=>Vern9(), :prob_choice => 2)
]
wp = WorkPrecisionSet(probs,abstols,reltols,setups;appxsol=test_sol,save_everystep=false,maxiters=1000,numruns=100)
plot(wp)

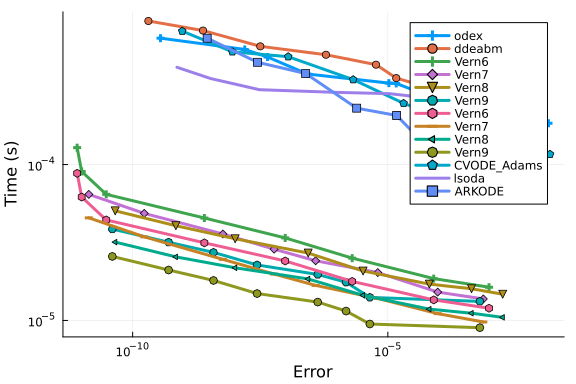

setups = [Dict(:alg=>odex())
          Dict(:alg=>ddeabm())
          Dict(:alg=>Vern6())
          Dict(:alg=>Vern7())
          Dict(:alg=>Vern8())
          Dict(:alg=>Vern9())
          Dict(:alg=>Vern6(), :prob_choice => 2)
          Dict(:alg=>Vern7(), :prob_choice => 2)
          Dict(:alg=>Vern8(), :prob_choice => 2)
          Dict(:alg=>Vern9(), :prob_choice => 2)
          Dict(:alg=>CVODE_Adams())
          Dict(:alg=>lsoda())
          Dict(:alg=>ARKODE(Sundials.Explicit(),order=6))
          ]
wp = WorkPrecisionSet(probs,abstols,reltols,setups;appxsol=test_sol,save_everystep=false,maxiters=1000,numruns=100)
plot(wp)

Again we look at interpolations:

setups = [Dict(:alg=>DP8())
          #Dict(:alg=>ode78())
          Dict(:alg=>Vern6())
          Dict(:alg=>Vern7())
          Dict(:alg=>Vern8())
          Dict(:alg=>Vern9())
          Dict(:alg=>Vern6(), :prob_choice => 2)
          Dict(:alg=>Vern7(), :prob_choice => 2)
          Dict(:alg=>Vern8(), :prob_choice => 2)
          Dict(:alg=>Vern9(), :prob_choice => 2)
]
wp = WorkPrecisionSet(probs,abstols,reltols,setups;appxsol=test_sol,dense=true,maxiters=1000,error_estimate=:L2,numruns=100)
plot(wp)

Again, the ODE.jl algorithms suffer when measuring the interpolations due to relying on an order 3 Hermite polynomial instead of an algorithm-specific order matching interpolation which uses the timesteps.

Comparison with Non-RK methods

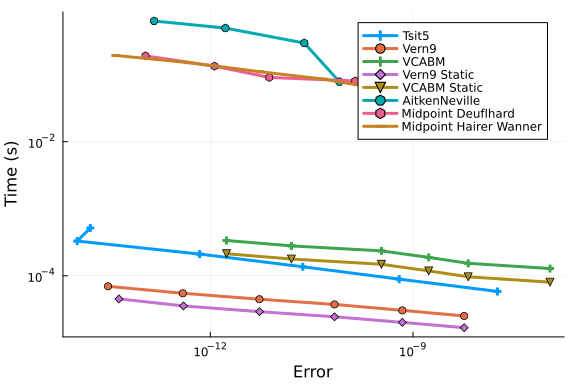

Now let's test Tsit5 and Vern9 against parallel extrapolation methods and an Adams-Bashforth-Moulton:

abstols = 1.0 ./ 10.0 .^ (8:13)
reltols = 1.0 ./ 10.0 .^ (8:13)
setups = [Dict(:alg=>Tsit5())
          Dict(:alg=>Vern9())
          Dict(:alg=>VCABM())
          Dict(:alg=>Vern9(), :prob_choice => 2)
          Dict(:alg=>VCABM(), :prob_choice => 2)
          Dict(:alg=>AitkenNeville(min_order=1, max_order=9, init_order=4, threading=true))
          Dict(:alg=>ExtrapolationMidpointDeuflhard(min_order=1, max_order=9, init_order=4, threading=true))
          Dict(:alg=>ExtrapolationMidpointHairerWanner(min_order=2, max_order=11, init_order=4, threading=true))]
solnames = ["Tsit5","Vern9","VCABM","Vern9 Static","VCABM Static","AitkenNeville","Midpoint Deuflhard","Midpoint Hairer Wanner"]
wp = WorkPrecisionSet(probs,abstols,reltols,setups;appxsol=test_sol,names=solnames,
                      save_everystep=false,verbose=false,numruns=100)
plot(wp)

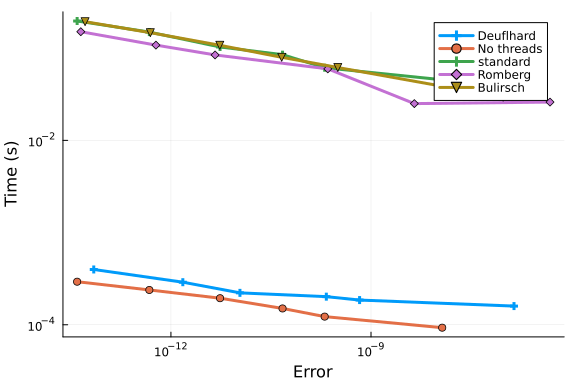

setups = [Dict(:alg=>ExtrapolationMidpointDeuflhard(min_order=1, max_order=9, init_order=9, threading=false))
          Dict(:alg=>ExtrapolationMidpointHairerWanner(min_order=2, max_order=11, init_order=4, threading=false))
          Dict(:alg=>ExtrapolationMidpointHairerWanner(min_order=2, max_order=11, init_order=4, threading=true))
          Dict(:alg=>ExtrapolationMidpointHairerWanner(min_order=2, max_order=11, init_order=4, sequence = :romberg, threading=true))
          Dict(:alg=>ExtrapolationMidpointHairerWanner(min_order=2, max_order=11, init_order=4, sequence = :bulirsch, threading=true))]
solnames = ["Deuflhard","No threads","standard","Romberg","Bulirsch"]
wp = WorkPrecisionSet(probs,abstols,reltols,setups;appxsol=test_sol,names=solnames,
                      save_everystep=false,verbose=false,numruns=100)
plot(wp)

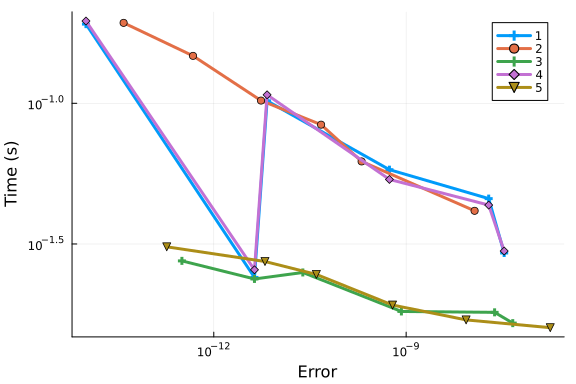

setups = [Dict(:alg=>ExtrapolationMidpointHairerWanner(min_order=2, max_order=11, init_order=10, threading=true))
          Dict(:alg=>ExtrapolationMidpointHairerWanner(min_order=2, max_order=11, init_order=4, threading=true))
          Dict(:alg=>ExtrapolationMidpointHairerWanner(min_order=5, max_order=11, init_order=10, threading=true))
          Dict(:alg=>ExtrapolationMidpointHairerWanner(min_order=2, max_order=15, init_order=10, threading=true))
          Dict(:alg=>ExtrapolationMidpointHairerWanner(min_order=5, max_order=7, init_order=6, threading=true))]
solnames = ["1","2","3","4","5"]
wp = WorkPrecisionSet(probs,abstols,reltols,setups;appxsol=test_sol,names=solnames,
                      save_everystep=false,verbose=false,numruns=100)
plot(wp)

Conclusion

The OrdinaryDiffEq.jl are quicker and still solve to a much higher accuracy, especially when the interpolations are involved. ODE.jl errors a lot.

Appendix

These benchmarks are a part of the SciMLBenchmarks.jl repository, found at: https://github.com/SciML/SciMLBenchmarks.jl. For more information on high-performance scientific machine learning, check out the SciML Open Source Software Organization https://sciml.ai.

To locally run this benchmark, do the following commands:

using SciMLBenchmarks
SciMLBenchmarks.weave_file("benchmarks/NonStiffODE","LotkaVolterra_wpd.jmd")

Computer Information:

Julia Version 1.9.3
Commit bed2cd540a1 (2023-08-24 14:43 UTC)
Build Info:
  Official https://julialang.org/ release
Platform Info:
  OS: Linux (x86_64-linux-gnu)
  CPU: 128 × AMD EPYC 7502 32-Core Processor
  WORD_SIZE: 64
  LIBM: libopenlibm
  LLVM: libLLVM-14.0.6 (ORCJIT, znver2)
  Threads: 128 on 128 virtual cores
Environment:
  JULIA_CPU_THREADS = 128
  JULIA_DEPOT_PATH = /cache/julia-buildkite-plugin/depots/5b300254-1738-4989-ae0a-f4d2d937f953

Package Information:

Status `/cache/build/exclusive-amdci3-0/julialang/scimlbenchmarks-dot-jl/benchmarks/NonStiffODE/Project.toml`
  [f3b72e0c] DiffEqDevTools v2.35.0
  [7f56f5a3] LSODA v0.7.4
  [c030b06c] ODE v2.15.0
  [54ca160b] ODEInterface v0.5.0
  [09606e27] ODEInterfaceDiffEq v3.13.2
⌃ [1dea7af3] OrdinaryDiffEq v6.53.4
  [65888b18] ParameterizedFunctions v5.15.0
⌃ [91a5bcdd] Plots v1.38.17
  [31c91b34] SciMLBenchmarks v0.1.3
⌃ [90137ffa] StaticArrays v1.6.2
  [c3572dad] Sundials v4.19.3
  [9a3f8284] Random
Info Packages marked with ⌃ have new versions available and may be upgradable.
