Hamilton-Jacobi PDE Physics-Informed Neural Network (PINN) Loss Function Error vs Time Benchmarks
Adapted from NeuralPDE: Automating Physics-Informed Neural Networks (PINNs) with Error Approximations. Uses the NeuralPDE.jl library from the SciML Scientific Machine Learning Open Source Organization for the implementation of physics-informed neural networks (PINNs) and other science-guided AI techniques.
using NeuralPDE
using Integrals, IntegralsCubature, IntegralsCuba
using OptimizationFlux, ModelingToolkit, Optimization, OptimizationOptimJL
using Lux, Plots
using DelimitedFiles
using QuasiMonteCarlo
import ModelingToolkit: Interval, infimum, supremumfunction hamilton_jacobi(strategy, minimizer, maxIters)
## DECLARATIONS
@parameters t x1 x2 x3 x4
@variables u(..)
Dt = Differential(t)
Dx1 = Differential(x1)
Dx2 = Differential(x2)
Dx3 = Differential(x3)
Dx4 = Differential(x4)
Dxx1 = Differential(x1)^2
Dxx2 = Differential(x2)^2
Dxx3 = Differential(x3)^2
Dxx4 = Differential(x4)^2
# Discretization
tmax = 1.0
x1width = 1.0
x2width = 1.0
x3width = 1.0
x4width = 1.0
tMeshNum = 10
x1MeshNum = 10
x2MeshNum = 10
x3MeshNum = 10
x4MeshNum = 10
dt = tmax / tMeshNum
dx1 = x1width / x1MeshNum
dx2 = x2width / x2MeshNum
dx3 = x3width / x3MeshNum
dx4 = x4width / x4MeshNum
domains = [t ∈ Interval(0.0, tmax),
x1 ∈ Interval(0.0, x1width),
x2 ∈ Interval(0.0, x2width),
x3 ∈ Interval(0.0, x3width),
x4 ∈ Interval(0.0, x4width)]
ts = 0.0:dt:tmax
x1s = 0.0:dx1:x1width
x2s = 0.0:dx2:x2width
x3s = 0.0:dx3:x3width
x4s = 0.0:dx4:x4width
λ = 1.0f0
# Operators
Δu = Dxx1(u(t, x1, x2, x3, x4)) + Dxx2(u(t, x1, x2, x3, x4)) + Dxx3(u(t, x1, x2, x3, x4)) + Dxx4(u(t, x1, x2, x3, x4)) # Laplacian
∇u = [Dx1(u(t, x1, x2, x3, x4)), Dx2(u(t, x1, x2, x3, x4)), Dx3(u(t, x1, x2, x3, x4)), Dx4(u(t, x1, x2, x3, x4))]
# Equation
eq = Dt(u(t, x1, x2, x3, x4)) + Δu - λ * sum(∇u .^ 2) ~ 0 #HAMILTON-JACOBI-BELLMAN EQUATION
terminalCondition = log((1 + x1 * x1 + x2 * x2 + x3 * x3 + x4 * x4) / 2) # see PNAS paper
bcs = [u(tmax, x1, x2, x3, x4) ~ terminalCondition] #PNAS paper again
## NEURAL NETWORK
n = 10 #neuron number
chain = Lux.Chain(Lux.Dense(5, n, tanh), Lux.Dense(n, n, tanh), Lux.Dense(n, 1)) #Neural network from OptimizationFlux library
indvars = [t, x1, x2, x3, x4] #phisically independent variables
depvars = [u(t, x1, x2, x3, x4)] #dependent (target) variable
dim = length(domains)
losses = []
error = []
times = []
dx_err = 0.2
error_strategy = GridTraining(dx_err)
discretization_ = PhysicsInformedNN(chain, error_strategy)
@named pde_system_ = PDESystem(eq, bcs, domains, indvars, depvars)
prob_ = discretize(pde_system_, discretization_)
function loss_function_(θ, p)
return prob_.f.f(θ, nothing)
end
cb_ = function (p, l)
deltaT_s = time_ns() #Start a clock when the callback begins, this will evaluate questo misurerà anche il calcolo degli uniform error
ctime = time_ns() - startTime - timeCounter #This variable is the time to use for the time benchmark plot
append!(times, ctime / 10^9) #Conversion nanosec to seconds
append!(losses, l)
loss_ = loss_function_(p, nothing)
append!(error, loss_)
timeCounter = timeCounter + time_ns() - deltaT_s #timeCounter sums all delays due to the callback functions of the previous iterations
return false
end
@named pde_system = PDESystem(eq, bcs, domains, indvars, depvars)
discretization = NeuralPDE.PhysicsInformedNN(chain, strategy)
prob = NeuralPDE.discretize(pde_system, discretization)
timeCounter = 0.0
startTime = time_ns() #Fix initial time (t=0) before starting the training
res = Optimization.solve(prob, minimizer, callback=cb_, maxiters=maxIters)
phi = discretization.phi
params = res.minimizer
# Model prediction
domain = [ts, x1s, x2s, x3s, x4s]
u_predict = [reshape([first(phi([t, x1, x2, x3, x4], res.minimizer)) for x1 in x1s for x2 in x2s for x3 in x3s for x4 in x4s], (length(x1s), length(x2s), length(x3s), length(x4s))) for t in ts] #matrix of model's prediction
return [error, params, domain, times, losses]
end
maxIters = [(1,1,1,1000,1000,1000,1000),(1,1,1,300,300,300,300)] #iters for ADAM/LBFGS
# maxIters = [(1,1,1,1,1,2,2),(1,1,1,3,3,3,3)] #iters for ADAM/LBFGS
strategies = [NeuralPDE.QuadratureTraining(quadrature_alg = CubaCuhre(), reltol = 1e-4, abstol = 1e-4, maxiters = 100),
NeuralPDE.QuadratureTraining(quadrature_alg = HCubatureJL(), reltol = 1e-4, abstol = 1e-4, maxiters = 100, batch = 0),
NeuralPDE.QuadratureTraining(quadrature_alg = CubatureJLh(), reltol = 1e-4, abstol = 1e-4, maxiters = 100),
NeuralPDE.QuadratureTraining(quadrature_alg = CubatureJLp(), reltol = 1e-4, abstol = 1e-4, maxiters = 100),
NeuralPDE.GridTraining(0.2),
NeuralPDE.StochasticTraining(400 ; bcs_points= 50),
NeuralPDE.QuasiRandomTraining(400 ; bcs_points= 50)]
strategies_short_name = ["CubaCuhre",
"HCubatureJL",
"CubatureJLh",
"CubatureJLp",
"GridTraining",
"StochasticTraining",
"QuasiRandomTraining"]
minimizers = [ADAM(0.005),
#BFGS()]
LBFGS()]
minimizers_short_name = ["ADAM",
"LBFGS"]
#"BFGS"]
# Run models
error_res = Dict()
domains = Dict()
params_res = Dict() #to use same params for the next run
times = Dict()
losses_res = Dict()Dict{Any, Any}()Solve
print("Starting run")
## Convergence
for min =1:length(minimizers) # minimizer
for strat=1:length(strategies) # strategy
# println(string(strategies_short_name[strat], " ", minimizers_short_name[min]))
res = hamilton_jacobi(strategies[strat], minimizers[min], maxIters[min][strat])
push!(error_res, string(strat,min) => res[1])
push!(params_res, string(strat,min) => res[2])
push!(domains, string(strat,min) => res[3])
push!(times, string(strat,min) => res[4])
push!(losses_res, string(strat,min) => res[5])
end

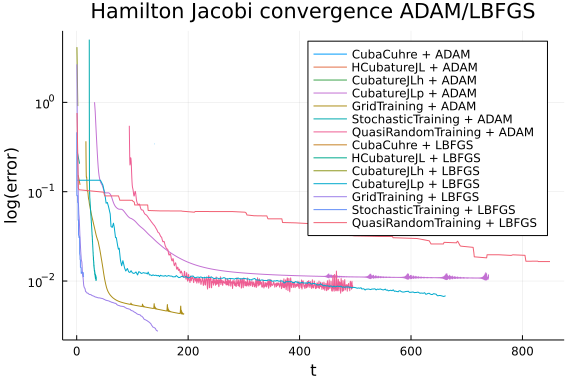

endStarting run#Plotting the first strategy with the first minimizer out from the loop to initialize the canvas
current_label = string(strategies_short_name[1], " + " , minimizers_short_name[1])
error = Plots.plot(times["11"], error_res["11"], yaxis=:log10, label = current_label)#, xlims = (0,10))#legend = true)#, size=(1200,700))
plot!(error, times["21"], error_res["21"], yaxis=:log10, label = string(strategies_short_name[2], " + " , minimizers_short_name[1]))
plot!(error, times["31"], error_res["31"], yaxis=:log10, label = string(strategies_short_name[3], " + " , minimizers_short_name[1]))
plot!(error, times["41"], error_res["41"], yaxis=:log10, label = string(strategies_short_name[4], " + " , minimizers_short_name[1]))
plot!(error, times["51"], error_res["51"], yaxis=:log10, label = string(strategies_short_name[5], " + " , minimizers_short_name[1]))
plot!(error, times["61"], error_res["61"], yaxis=:log10, label = string(strategies_short_name[6], " + " , minimizers_short_name[1]))
plot!(error, times["71"], error_res["71"], yaxis=:log10, label = string(strategies_short_name[7], " + " , minimizers_short_name[1]))
plot!(error, times["12"], error_res["12"], yaxis=:log10, label = string(strategies_short_name[1], " + " , minimizers_short_name[2]))
plot!(error, times["22"], error_res["22"], yaxis=:log10, label = string(strategies_short_name[2], " + " , minimizers_short_name[2]))
plot!(error, times["32"], error_res["32"], yaxis=:log10, label = string(strategies_short_name[3], " + " , minimizers_short_name[2]))
plot!(error, times["42"], error_res["42"], yaxis=:log10, label = string(strategies_short_name[4], " + " , minimizers_short_name[2]))
plot!(error, times["52"], error_res["52"], yaxis=:log10, label = string(strategies_short_name[5], " + " , minimizers_short_name[2]))
plot!(error, times["62"], error_res["62"], yaxis=:log10, label = string(strategies_short_name[6], " + " , minimizers_short_name[2]))
plot!(error, times["72"], error_res["72"], yaxis=:log10, title = string("Hamilton Jacobi convergence ADAM/LBFGS"), ylabel = "log(error)",xlabel = "t", label = string(strategies_short_name[7], " + " , minimizers_short_name[2]))
Appendix
These benchmarks are a part of the SciMLBenchmarks.jl repository, found at: https://github.com/SciML/SciMLBenchmarks.jl. For more information on high-performance scientific machine learning, check out the SciML Open Source Software Organization https://sciml.ai.
To locally run this benchmark, do the following commands:
using SciMLBenchmarks
SciMLBenchmarks.weave_file("benchmarks/PINNErrorsVsTime","hamilton_jacobi_et.jmd")Computer Information:
