Diffusion Equation Physics-Informed Neural Network (PINN) Optimizer Benchmarks

Adapted from NeuralPDE: Automating Physics-Informed Neural Networks (PINNs) with Error Approximations. Uses the NeuralPDE.jl library from the SciML Scientific Machine Learning Open Source Organization for the implementation of physics-informed neural networks (PINNs) and other science-guided AI techniques.

Setup

using NeuralPDE, OptimizationFlux, ModelingToolkit, Optimization, OptimizationOptimJL
using Lux, Plots
import ModelingToolkit: Interval, infimum, supremum

function solve(opt)
    strategy = QuadratureTraining()

    @parameters x t
    @variables u(..)
    Dt = Differential(t)
    Dxx = Differential(x)^2

    eq = Dt(u(x,t)) - Dxx(u(x,t)) ~ -exp(-t) * (sin(pi * x) - pi^2 * sin(pi * x))

    bcs = [u(x,0) ~ sin(pi*x),
           u(-1,t) ~ 0.,
           u(1,t) ~ 0.]

    domains = [x ∈ Interval(-1.0,1.0),
               t ∈ Interval(0.0,1.0)]

    chain = Lux.Chain(Lux.Dense(2,18,tanh),Lux.Dense(18,18,tanh),Lux.Dense(18,1))

    discretization = PhysicsInformedNN(chain,strategy)

    indvars = [x, t]   #phisically independent variables
    depvars = [u(x,t)]       #dependent (target) variable

    loss = []
    initial_time = nothing

    times = []

    cb_ = function (p,l)
        if initial_time == nothing
            initial_time = time()
        end
        push!(times, time() - initial_time)
        #println("Current loss for $opt is: $l")
        push!(loss, l)
      #  println(l )
      #  println(time() - initial_time)
        return false
    end

    @named pde_system = PDESystem(eq, bcs, domains, indvars, depvars)
    prob = discretize(pde_system, discretization)

    if opt == "both"
        res = Optimization.solve(prob, ADAM(); callback = cb_, maxiters=50)
        prob = remake(prob,u0=res.minimizer)
        res = Optimization.solve(prob, BFGS(); callback = cb_, maxiters=150)
    else
        res = Optimization.solve(prob, opt; callback = cb_, maxiters=200)
    end

    times[1] = 0.01

    return loss, times #add numeric solution
end

solve (generic function with 1 method)

opt1 = ADAM()
opt2 = ADAM(0.005)
opt3 = ADAM(0.05)
opt4 = RMSProp()
opt5 = RMSProp(0.005)
opt6 = RMSProp(0.05)
opt7 = OptimizationOptimJL.BFGS()
opt8 = OptimizationOptimJL.LBFGS()

Optim.LBFGS{Nothing, LineSearches.InitialStatic{Float64}, LineSearches.Hage
rZhang{Float64, Base.RefValue{Bool}}, Optim.var"#19#21"}(10, LineSearches.I
nitialStatic{Float64}
  alpha: Float64 1.0
  scaled: Bool false
, LineSearches.HagerZhang{Float64, Base.RefValue{Bool}}
  delta: Float64 0.1
  sigma: Float64 0.9
  alphamax: Float64 Inf
  rho: Float64 5.0
  epsilon: Float64 1.0e-6
  gamma: Float64 0.66
  linesearchmax: Int64 50
  psi3: Float64 0.1
  display: Int64 0
  mayterminate: Base.RefValue{Bool}
, nothing, Optim.var"#19#21"(), Optim.Flat(), true)

Solve

loss_1, times_1 = solve(opt1)
loss_2, times_2 = solve(opt2)
loss_3, times_3 = solve(opt3)
loss_4, times_4 = solve(opt4)
loss_5, times_5 = solve(opt5)
loss_6, times_6 = solve(opt6)
loss_7, times_7 = solve(opt7)
loss_8, times_8 = solve(opt8)
loss_9, times_9 = solve("both")

(Any[238.21335902701475, 233.15150981770586, 228.2759814545742, 223.5864068
3724764, 219.08278596850778, 214.76317176839612, 210.62656708898461, 206.67
141844249306, 202.89550289206377, 199.29761802461766  …  0.0001936341440421
4462, 0.00018948955625926338, 0.00018578581458421353, 0.0001806412684902067
, 0.00017731365657409258, 0.00017565859286636375, 0.00017238029428692176, 0
.0001642512179898975, 0.00016149209935286015, 0.00015612380672063613], Any[
0.01, 0.012009859085083008, 0.023529052734375, 0.03496289253234863, 0.04635
190963745117, 0.05791902542114258, 0.06946301460266113, 0.08103203773498535
, 0.09284090995788574, 0.10445594787597656  …  11.564873933792114, 11.58957
3860168457, 11.614413022994995, 11.639391899108887, 11.664484024047852, 11.
689626932144165, 11.714773893356323, 11.739902019500732, 11.765043020248413
, 11.790174961090088])

Results

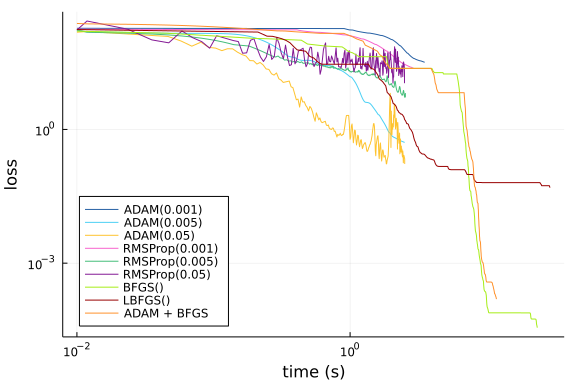

p = plot([times_1, times_2, times_3, times_4, times_5, times_6, times_7, times_8, times_9], [loss_1, loss_2, loss_3, loss_4, loss_5, loss_6, loss_7, loss_8, loss_9],xlabel="time (s)", ylabel="loss", xscale=:log10, yscale=:log10, labels=["ADAM(0.001)" "ADAM(0.005)" "ADAM(0.05)" "RMSProp(0.001)" "RMSProp(0.005)" "RMSProp(0.05)" "BFGS()" "LBFGS()" "ADAM + BFGS"], legend=:bottomleft, linecolor=["#2660A4" "#4CD0F4" "#FEC32F" "#F763CD" "#44BD79" "#831894" "#A6ED18" "#980000" "#FF912B"])

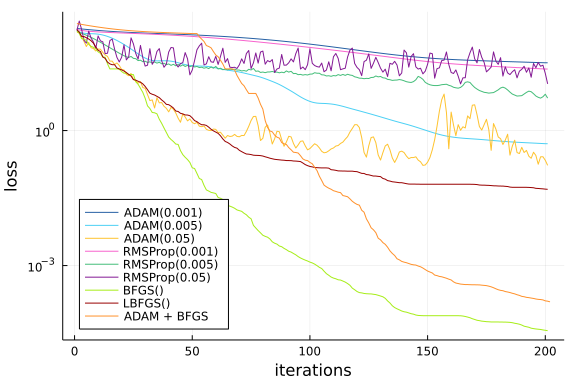

p = plot([loss_1, loss_2, loss_3, loss_4, loss_5, loss_6, loss_7, loss_8, loss_9], xlabel="iterations", ylabel="loss", yscale=:log10, labels=["ADAM(0.001)" "ADAM(0.005)" "ADAM(0.05)" "RMSProp(0.001)" "RMSProp(0.005)" "RMSProp(0.05)" "BFGS()" "LBFGS()" "ADAM + BFGS"], legend=:bottomleft, linecolor=["#2660A4" "#4CD0F4" "#FEC32F" "#F763CD" "#44BD79" "#831894" "#A6ED18" "#980000" "#FF912B"])

@show loss_1[end], loss_2[end], loss_3[end], loss_4[end], loss_5[end], loss_6[end], loss_7[end], loss_8[end], loss_9[end]

(loss_1[end], loss_2[end], loss_3[end], loss_4[end], loss_5[end], loss_6[en
d], loss_7[end], loss_8[end], loss_9[end]) = (32.02590503889115, 0.51000893
33286841, 0.16831991580578395, 23.22538735494057, 5.253505406940997, 10.886
119247552827, 3.572109904700025e-5, 0.04940374724215937, 0.0001561238067206
3613)
(32.02590503889115, 0.5100089333286841, 0.16831991580578395, 23.22538735494
057, 5.253505406940997, 10.886119247552827, 3.572109904700025e-5, 0.0494037
4724215937, 0.00015612380672063613)

Appendix

These benchmarks are a part of the SciMLBenchmarks.jl repository, found at: https://github.com/SciML/SciMLBenchmarks.jl. For more information on high-performance scientific machine learning, check out the SciML Open Source Software Organization https://sciml.ai.

To locally run this benchmark, do the following commands:

using SciMLBenchmarks
SciMLBenchmarks.weave_file("benchmarks/PINNOptimizers","1d_diffusion.jmd")
