Allen-Cahn Equation Physics-Informed Neural Network (PINN) Optimizer Benchmarks

Adapted from NeuralPDE: Automating Physics-Informed Neural Networks (PINNs) with Error Approximations. Uses the NeuralPDE.jl library from the SciML Scientific Machine Learning Open Source Organization for the implementation of physics-informed neural networks (PINNs) and other science-guided AI techniques.

Setup

using NeuralPDE, OptimizationFlux, ModelingToolkit, Optimization, OptimizationOptimJL
using Lux, Plots
import ModelingToolkit: Interval, infimum, supremum

function solve(opt)
    strategy = QuadratureTraining()

    @parameters  t x1 x2 x3 x4
    @variables   u(..)

    Dt = Differential(t)

    Dxx1 = Differential(x1)^2
    Dxx2 = Differential(x2)^2
    Dxx3 = Differential(x3)^2
    Dxx4 = Differential(x4)^2


    # Discretization
    tmax         = 1.0
    x1width      = 1.0
    x2width      = 1.0
    x3width      = 1.0
    x4width      = 1.0

    tMeshNum     = 10
    x1MeshNum    = 10
    x2MeshNum    = 10
    x3MeshNum    = 10
    x4MeshNum    = 10

    dt   = tmax/tMeshNum
    dx1  = x1width/x1MeshNum
    dx2  = x2width/x2MeshNum
    dx3  = x3width/x3MeshNum
    dx4  = x4width/x4MeshNum

    domains = [t ∈ Interval(0.0,tmax),
               x1 ∈ Interval(0.0,x1width),
               x2 ∈ Interval(0.0,x2width),
               x3 ∈ Interval(0.0,x3width),
               x4 ∈ Interval(0.0,x4width)]

    ts  = 0.0 : dt : tmax
    x1s = 0.0 : dx1 : x1width
    x2s = 0.0 : dx2 : x2width
    x3s = 0.0 : dx3 : x3width
    x4s = 0.0 : dx4 : x4width

    # Operators
    Δu = Dxx1(u(t,x1,x2,x3,x4)) + Dxx2(u(t,x1,x2,x3,x4)) + Dxx3(u(t,x1,x2,x3,x4)) + Dxx4(u(t,x1,x2,x3,x4)) # Laplacian


    # Equation
    eq = Dt(u(t,x1,x2,x3,x4)) - Δu - u(t,x1,x2,x3,x4) + u(t,x1,x2,x3,x4)*u(t,x1,x2,x3,x4)*u(t,x1,x2,x3,x4) ~ 0  #ALLEN CAHN EQUATION

    initialCondition =  1/(2 + 0.4 * (x1*x1 + x2*x2 + x3*x3 + x4*x4)) # see PNAS paper

    bcs = [u(0,x1,x2,x3,x4) ~ initialCondition]  #from literature

    ## NEURAL NETWORK
    n = 20   #neuron number

    chain = Lux.Chain(Lux.Dense(5,n,tanh),Lux.Dense(n,n,tanh),Lux.Dense(n,1))   #Neural network from OptimizationFlux library

    discretization = PhysicsInformedNN(chain, strategy)

    indvars = [t,x1,x2,x3,x4]   #phisically independent variables
    depvars = [u]       #dependent (target) variable

    loss = []
    initial_time = 0

    times = []

    cb = function (p,l)
        if initial_time == 0
            initial_time = time()
        end
        push!(times, time() - initial_time)
        #println("Current loss for $opt is: $l")
        push!(loss, l)
        return false
    end

    @named pde_system = PDESystem(eq, bcs, domains, indvars, depvars)
    prob = discretize(pde_system, discretization)

    if opt == "both"
        res = Optimization.solve(prob, ADAM(); callback = cb, maxiters=50)
        prob = remake(prob,u0=res.minimizer)
        res = Optimization.solve(prob, BFGS(); callback = cb, maxiters=150)
    else
        res = Optimization.solve(prob, opt; callback = cb, maxiters=200)
    end

    times[1] = 0.001

    return loss, times #add numeric solution
end

solve (generic function with 1 method)

opt1 = ADAM()
opt2 = ADAM(0.005)
opt3 = ADAM(0.05)
opt4 = RMSProp()
opt5 = RMSProp(0.005)
opt6 = RMSProp(0.05)
opt7 = OptimizationOptimJL.BFGS()
opt8 = OptimizationOptimJL.LBFGS()

Optim.LBFGS{Nothing, LineSearches.InitialStatic{Float64}, LineSearches.Hage
rZhang{Float64, Base.RefValue{Bool}}, Optim.var"#19#21"}(10, LineSearches.I
nitialStatic{Float64}
  alpha: Float64 1.0
  scaled: Bool false
, LineSearches.HagerZhang{Float64, Base.RefValue{Bool}}
  delta: Float64 0.1
  sigma: Float64 0.9
  alphamax: Float64 Inf
  rho: Float64 5.0
  epsilon: Float64 1.0e-6
  gamma: Float64 0.66
  linesearchmax: Int64 50
  psi3: Float64 0.1
  display: Int64 0
  mayterminate: Base.RefValue{Bool}
, nothing, Optim.var"#19#21"(), Optim.Flat(), true)

Solve

loss_1, times_1 = solve(opt1)
loss_2, times_2 = solve(opt2)
loss_3, times_3 = solve(opt3)
loss_4, times_4 = solve(opt4)
loss_5, times_5 = solve(opt5)
loss_6, times_6 = solve(opt6)
loss_7, times_7 = solve(opt7)
loss_8, times_8 = solve(opt8)
loss_9, times_9 = solve("both")

(Any[14.762675994935918, 12.873595824826838, 11.186137125308552, 9.69371574
4582565, 8.38438034284334, 7.243054667313744, 6.253797228761048, 5.40027067
32595716, 4.66737313077248, 4.041772447811379  …  6.760463613376724e-5, 6.7
10561714837414e-5, 6.6123812915119e-5, 6.485312649379451e-5, 6.478944105440
748e-5, 6.376089363313795e-5, 6.368960978621748e-5, 6.365205484982014e-5, 6
.342036583394033e-5, 6.260649289583194e-5], Any[0.001, 0.21753787994384766,
 0.3766789436340332, 0.5729339122772217, 0.7319860458374023, 0.928238868713
3789, 1.087172031402588, 1.2775940895080566, 1.4366068840026855, 1.62744402
88543701  …  104.80442094802856, 105.33469104766846, 105.94285988807678, 10
6.4722089767456, 106.88036704063416, 107.49105787277222, 117.47734594345093
, 127.69644403457642, 128.31730103492737, 128.87648105621338])

Results

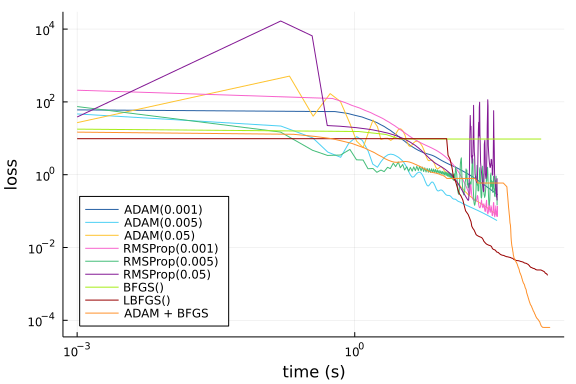

p = plot([times_1, times_2, times_3, times_4, times_5, times_6, times_7, times_8, times_9], [loss_1, loss_2, loss_3, loss_4, loss_5, loss_6, loss_7, loss_8, loss_9],xlabel="time (s)", ylabel="loss", xscale=:log10, yscale=:log10, labels=["ADAM(0.001)" "ADAM(0.005)" "ADAM(0.05)" "RMSProp(0.001)" "RMSProp(0.005)" "RMSProp(0.05)" "BFGS()" "LBFGS()" "ADAM + BFGS"], legend=:bottomleft, linecolor=["#2660A4" "#4CD0F4" "#FEC32F" "#F763CD" "#44BD79" "#831894" "#A6ED18" "#980000" "#FF912B"])

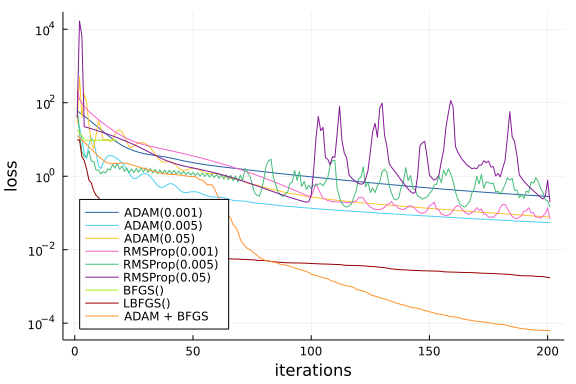

p = plot([loss_1, loss_2, loss_3, loss_4, loss_5, loss_6, loss_7, loss_8, loss_9[2:end]], xlabel="iterations", ylabel="loss", yscale=:log10, labels=["ADAM(0.001)" "ADAM(0.005)" "ADAM(0.05)" "RMSProp(0.001)" "RMSProp(0.005)" "RMSProp(0.05)" "BFGS()" "LBFGS()" "ADAM + BFGS"], legend=:bottomleft, linecolor=["#2660A4" "#4CD0F4" "#FEC32F" "#F763CD" "#44BD79" "#831894" "#A6ED18" "#980000" "#FF912B"])

@show loss_1[end], loss_2[end], loss_3[end], loss_4[end], loss_5[end], loss_6[end], loss_7[end], loss_8[end], loss_9[end]

(loss_1[end], loss_2[end], loss_3[end], loss_4[end], loss_5[end], loss_6[en
d], loss_7[end], loss_8[end], loss_9[end]) = (0.2829740476772876, 0.0549191
7345326161, 0.07812628999217362, 0.06977542278104656, 0.14429402421570417,
0.19692223805941483, 9.527436549748497, 0.0017107403068184698, 6.2606492895
83194e-5)
(0.2829740476772876, 0.05491917345326161, 0.07812628999217362, 0.0697754227
8104656, 0.14429402421570417, 0.19692223805941483, 9.527436549748497, 0.001
7107403068184698, 6.260649289583194e-5)
