Burgers FDM Work-Precision Diagrams

using ApproxFun, OrdinaryDiffEq, Sundials, LinearSolve
using DiffEqDevTools
using LinearAlgebra
using Plots; gr()

Plots.GRBackend()

Here is the Burgers equation using FDM.

function lin_term(N, ϵ)
    dx = 1/(N + 1)
    d = -2 * ones(N) # main diagonal
    du = ones(N - 1) # off diagonal
    DiffEqArrayOperator((ϵ/dx^2) * diagm(-1 => du, 0 => d, 1 => du))
end

function nl_term(N)
    dx = 1/(N + 1)
    du = ones(N - 1) # super diagonal
    dl = -ones(N - 1) # lower diagonal
    D = (-1/(4*dx)) * diagm(-1 => dl, 1 => du)

    tmp = zeros(N)
    function (du,u,p,t)
        @. tmp = u^2
        mul!(du, D, tmp)
    end
end

# Construct the problem
function burgers(N, ϵ)
    f1 = lin_term(N, ϵ)
    f2 = nl_term(N)
    dx = 1 / (N + 1)
    xs = (1:N) * dx

    μ0 = 0.3; σ0 = 0.05
    f0 = x -> exp(-(x - μ0)^2 / (2 * σ0^2))
    u0 = f0.(xs)
    prob = SplitODEProblem(f1, f2, u0, (0.0, 1.0))
    xs, prob
end;

Reference solution using Vern9 is below:

xs, prob = burgers(512, 1e-3)
sol = solve(prob, Vern9(); abstol=1e-14, reltol=1e-14)
test_sol = TestSolution(sol);

tslices = [0.0 0.25 0.50 0.75 1.00]
ys = hcat((sol(t) for t in tslices)...)
labels = ["t = $t" for t in tslices]

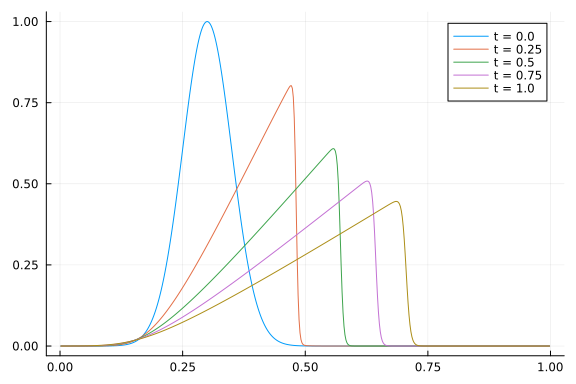

plot(xs, ys, label=labels)

In-family comparisons

1.IMEX methods (dense linear solver)

abstols = 0.1 .^ (5:8) # all fixed dt methods so these don't matter much
reltols = 0.1 .^ (1:4)
multipliers = 0.5 .^ (0:3)
setups = [Dict(:alg => IMEXEuler(), :dts => 1e-3 * multipliers),
          Dict(:alg => CNAB2(), :dts => 1e-4 * multipliers),
          Dict(:alg => CNLF2(), :dts => 1e-4 * multipliers),
          Dict(:alg => SBDF2(), :dts => 1e-3 * multipliers)]
labels = ["IMEXEuler" "CNAB2" "CNLF2" "SBDF2"]
@time wp = WorkPrecisionSet(prob,abstols,reltols,setups;
                            print_names=true, names=labels,
                            numruns=5, error_estimate=:l2,
                            save_everystep=false, appxsol=test_sol, maxiters=Int(1e5));

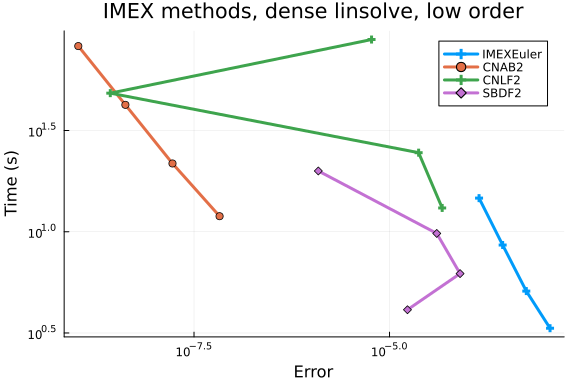

plot(wp, label=labels, markershape=:auto, title="IMEX methods, dense linsolve, low order")

IMEXEuler
CNAB2
CNLF2
SBDF2
1227.565700 seconds (164.63 M allocations: 9.914 GiB, 0.92% gc time, 0.96%
compilation time)

1.IMEX methods (Krylov linear solver)

abstols = 0.1 .^ (5:8) # all fixed dt methods so these don't matter much
reltols = 0.1 .^ (1:4)
multipliers = 0.5 .^ (0:3)
setups = [Dict(:alg => IMEXEuler(linsolve=KrylovJL_GMRES()), :dts => 1e-3 * multipliers),
          Dict(:alg => CNAB2(linsolve=KrylovJL_GMRES()), :dts => 1e-4 * multipliers),
          Dict(:alg => CNLF2(linsolve=KrylovJL_GMRES()), :dts => 1e-4 * multipliers),
          Dict(:alg => SBDF2(linsolve=KrylovJL_GMRES()), :dts => 1e-3 * multipliers)]
labels = ["IMEXEuler" "CNAB2" "CNLF2" "SBDF2"]
@time wp = WorkPrecisionSet(prob,abstols,reltols,setups;
                            print_names=true, names=labels,
                            numruns=5, error_estimate=:l2,
                            save_everystep=false, appxsol=test_sol, maxiters=Int(1e5));

plot(wp, label=labels, markershape=:auto, title="IMEX methods, Krylov linsolve, low order")

IMEXEuler
CNAB2
CNLF2
SBDF2
1223.616236 seconds (151.26 M allocations: 9.016 GiB, 0.87% gc time, 0.27%
compilation time)

ExpRK methods

abstols = 0.1 .^ (5:8) # all fixed dt methods so these don't matter much
reltols = 0.1 .^ (1:4)
multipliers = 0.5 .^ (0:3)
setups = [Dict(:alg => NorsettEuler(), :dts => 1e-3 * multipliers),
          Dict(:alg => NorsettEuler(krylov=true, m=5), :dts => 1e-3 * multipliers),
          Dict(:alg => NorsettEuler(krylov=true, m=20), :dts => 1e-3 * multipliers),
          Dict(:alg => ETDRK2(), :dts => 1e-3 * multipliers)]
          #Dict(:alg => ETDRK2(krylov=true, m=20), :dts => 1e-2 * multipliers)) matrix contains Inf or NaN
          #Dict(:alg => ETDRK2(krylov=true, m=20), :dts => 1e-2 * multipliers) matrix contains Inf or NaN
labels = hcat("NorsettEuler (caching)", "NorsettEuler (m=5)", "NorsettEuler (m=20)",
              "ETDRK2 (caching)")#, "ETDRK2 (m=5)"), "ETDRK2 (m=20)")
@time wp = WorkPrecisionSet(prob,abstols,reltols,setups;
                            print_names=true, names=labels,
                            numruns=5, error_estimate=:l2,
                            save_everystep=false, appxsol=test_sol, maxiters=Int(1e5));

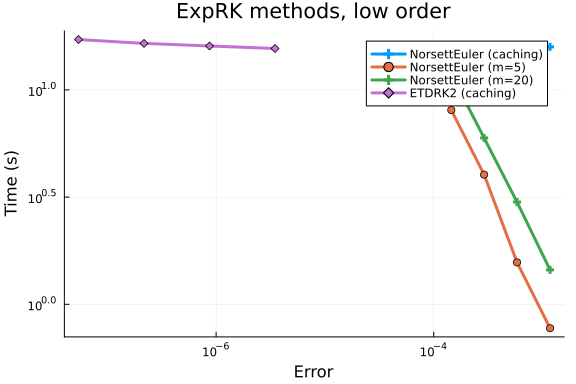

plot(wp, label=labels, markershape=:auto, title="ExpRK methods, low order")

NorsettEuler (caching)
NorsettEuler (m=5)
NorsettEuler (m=20)
ETDRK2 (caching)
515.828176 seconds (11.44 M allocations: 126.821 GiB, 1.13% gc time, 1.28%
compilation time)

Between family comparisons

abstols = 0.1 .^ (5:8) # all fixed dt methods so these don't matter much
reltols = 0.1 .^ (1:4)
multipliers = 0.5 .^ (0:3)
setups = [Dict(:alg => CNAB2(), :dts => 1e-4 * multipliers),
          Dict(:alg => CNAB2(linsolve=KrylovJL_GMRES()), :dts => 1e-4 * multipliers),
          Dict(:alg => ETDRK2(), :dts => 1e-3 * multipliers)]
labels = ["CNAB2 (dense linsolve)" "CNAB2 (Krylov linsolve)" "ETDRK2 (m=5)"]
@time wp = WorkPrecisionSet(prob,abstols,reltols,setups;
                            print_names=true, names=labels,
                            numruns=5, error_estimate=:l2,
                            save_everystep=false, appxsol=test_sol, maxiters=Int(1e5));

plot(wp, label=labels, markershape=:auto, title="Between family, low orders")

CNAB2 (dense linsolve)
CNAB2 (Krylov linsolve)
ETDRK2 (m=5)
1162.177035 seconds (127.68 M allocations: 68.076 GiB, 0.93% gc time)

In-family comparisons

1.IMEX methods (dense linear solver)

abstols = 0.1 .^ (8:13)
reltols = 0.1 .^ (5:10)
setups = [Dict(:alg => KenCarp3()),
          Dict(:alg => KenCarp4()),
          Dict(:alg => KenCarp5()),
          Dict(:alg => ARKODE(Sundials.Implicit(), order=3, linear_solver=:Dense)),
          Dict(:alg => ARKODE(Sundials.Implicit(), order=4, linear_solver=:Dense)),
          Dict(:alg => ARKODE(Sundials.Implicit(), order=5, linear_solver=:Dense))]
labels = hcat("KenCarp3", "KenCarp4", "KenCarp5", "ARKODE3", "ARKODE4", "ARKODE5")
@time wp = WorkPrecisionSet(prob,abstols,reltols,setups;
                            print_names=true, names=labels,
                            numruns=5, error_estimate=:l2,
                            save_everystep=false, appxsol=test_sol, maxiters=Int(1e5));

plot(wp, label=labels, markershape=:auto, title="IMEX methods, dense linsolve, medium order")

KenCarp3
KenCarp4
KenCarp5
ARKODE3
ARKODE4
ARKODE5
14507.086587 seconds (965.89 M allocations: 61.079 GiB, 0.30% gc time, 0.09
% compilation time)

1.IMEX methods (Krylov linear solver)

abstols = 0.1 .^ (8:13)
reltols = 0.1 .^ (5:10)
setups = [Dict(:alg => KenCarp3(linsolve=KrylovJL_GMRES())),
          Dict(:alg => KenCarp4(linsolve=KrylovJL_GMRES())),
          Dict(:alg => KenCarp5(linsolve=KrylovJL_GMRES())),
          Dict(:alg => ARKODE(Sundials.Implicit(), order=3, linear_solver=:GMRES)),
          Dict(:alg => ARKODE(Sundials.Implicit(), order=4, linear_solver=:GMRES)),
          Dict(:alg => ARKODE(Sundials.Implicit(), order=5, linear_solver=:GMRES))]
labels = ["KenCarp3" "KenCarp4" "KenCarp5" "ARKODE3" "ARKODE4" "ARKODE5"]
@time wp = WorkPrecisionSet(prob,abstols,reltols,setups;
                            print_names=true, names=labels,
                            numruns=5, error_estimate=:l2,
                            save_everystep=false, appxsol=test_sol, maxiters=Int(1e5));

plot(wp, label=labels, markershape=:auto, title="IMEX methods, medium order")

KenCarp3
KenCarp4
KenCarp5
ARKODE3
ARKODE4
ARKODE5
14523.073814 seconds (967.23 M allocations: 60.779 GiB, 0.29% gc time, 0.04
% compilation time)

2.ExpRK methods

abstols = 0.1 .^ (7:11) # all fixed dt methods so these don't matter much
reltols = 0.1 .^ (4:8)
multipliers = 0.5 .^ (0:4)
setups = [Dict(:alg => ETDRK3(), :dts => 1e-2 * multipliers),
          Dict(:alg => ETDRK3(krylov=true, m=5), :dts => 1e-2 * multipliers),
          Dict(:alg => ETDRK4(), :dts => 1e-2 * multipliers),
          Dict(:alg => ETDRK4(krylov=true, m=5), :dts => 1e-2 * multipliers),
          Dict(:alg => HochOst4(), :dts => 1e-2 * multipliers),
          Dict(:alg => HochOst4(krylov=true, m=5), :dts => 1e-2 * multipliers)]
labels = hcat("ETDRK3 (caching)", "ETDRK3 (m=5)", "ETDRK4 (caching)",
              "ETDRK4 (m=5)", "HochOst4 (caching)", "HochOst4 (m=5)")
@time wp = WorkPrecisionSet(prob,abstols,reltols,setups;
                            print_names=true, names=labels,
                            numruns=5, error_estimate=:l2,
                            save_everystep=false, appxsol=test_sol, maxiters=Int(1e5));

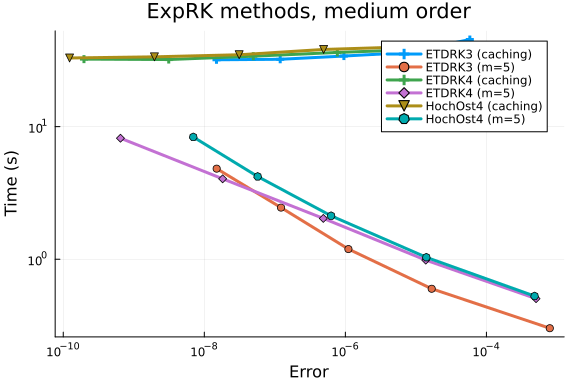

plot(wp, label=labels, markershape=:auto, title="ExpRK methods, medium order")

ETDRK3 (caching)
ETDRK3 (m=5)
ETDRK4 (caching)
ETDRK4 (m=5)
HochOst4 (caching)
HochOst4 (m=5)
1758.111377 seconds (20.96 M allocations: 465.691 GiB, 1.31% gc time, 0.72%
 compilation time)

Between family comparisons

abstols = 0.1 .^ (8:13)
reltols = 0.1 .^ (5:10)
multipliers = 0.5 .^ (0:5)
setups = [Dict(:alg => KenCarp4()),
          Dict(:alg => ARKODE(Sundials.Implicit(), order=5, linear_solver=:Dense)),
          Dict(:alg => KenCarp4(linsolve=KrylovJL_GMRES())),
          Dict(:alg => ARKODE(Sundials.Implicit(), order=5, linear_solver=:GMRES)),
          Dict(:alg => ETDRK3(krylov=true, m=5), :dts => 1e-2 * multipliers),
          Dict(:alg => ETDRK4(krylov=true, m=5), :dts => 1e-2 * multipliers)]
labels = hcat("KenCarp4 (dense linsolve)", "ARKODE (dense linsolve)", "KenCarp4 (Krylov linsolve)",
              "ARKODE (Krylov linsolve)", "ETDRK3 (m=5)", "ETDRK4 (m=5)")
@time wp = WorkPrecisionSet(prob,abstols,reltols,setups;
                            print_names=true, names=labels,
                            numruns=5, error_estimate=:l2,
                            save_everystep=false, appxsol=test_sol, maxiters=Int(1e5));#162s

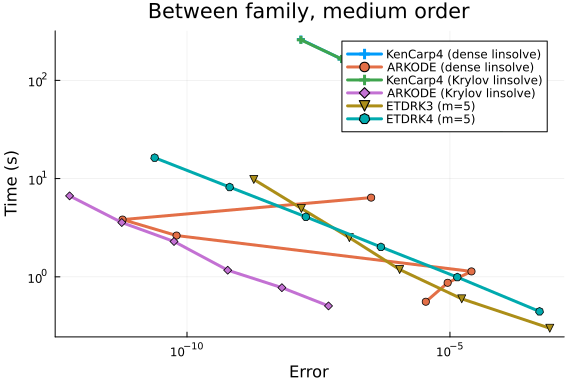

plot(wp, label=labels, markershape=:auto, title="Between family, medium order")

KenCarp4 (dense linsolve)
ARKODE (dense linsolve)
KenCarp4 (Krylov linsolve)
ARKODE (Krylov linsolve)
ETDRK3 (m=5)
ETDRK4 (m=5)
4425.036799 seconds (266.98 M allocations: 24.498 GiB, 0.35% gc time, 0.00%
 compilation time)

These benchmarks are a part of the SciMLBenchmarks.jl repository, found at: https://github.com/SciML/SciMLBenchmarks.jl. For more information on high-performance scientific machine learning, check out the SciML Open Source Software Organization https://sciml.ai.

To locally run this benchmark, do the following commands:

using SciMLBenchmarks
SciMLBenchmarks.weave_file("benchmarks/SimpleHandwrittenPDE","burgers_fdm_wpd.jmd")
