HIRES Work-Precision Diagrams
using OrdinaryDiffEq, ParameterizedFunctions, Plots, ODE, ODEInterfaceDiffEq, LSODA, DiffEqDevTools, Sundials
using LinearAlgebra, StaticArrays
gr() #gr(fmt=:png)
f = @ode_def Hires begin
dy1 = -1.71*y1 + 0.43*y2 + 8.32*y3 + 0.0007
dy2 = 1.71*y1 - 8.75*y2
dy3 = -10.03*y3 + 0.43*y4 + 0.035*y5
dy4 = 8.32*y2 + 1.71*y3 - 1.12*y4
dy5 = -1.745*y5 + 0.43*y6 + 0.43*y7
dy6 = -280.0*y6*y8 + 0.69*y4 + 1.71*y5 -
0.43*y6 + 0.69*y7
dy7 = 280.0*y6*y8 - 1.81*y7
dy8 = -280.0*y6*y8 + 1.81*y7
end
u0 = zeros(8)
u0[1] = 1
u0[8] = 0.0057
prob = ODEProblem{true, SciMLBase.FullSpecialize}(f,u0,(0.0,321.8122))
probstatic = ODEProblem{false}(f,SVector{8}(u0),(0.0,321.8122))
sol = solve(prob,CVODE_BDF(),abstol=1/10^14,reltol=1/10^14)
sol2 = solve(probstatic,Rodas5P(),abstol=1/10^14,reltol=1/10^14)
probs = [prob,probstatic]
test_sol = [sol,sol2];
abstols = 1.0 ./ 10.0 .^ (4:11)

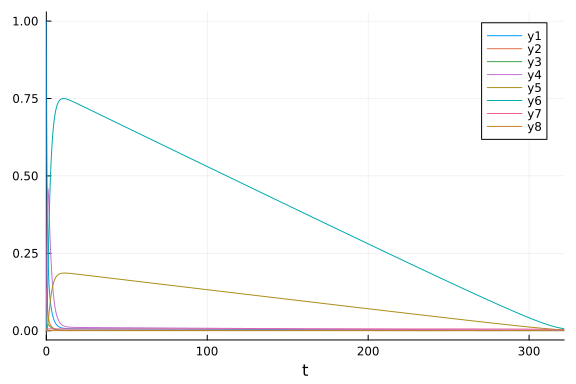

reltols = 1.0 ./ 10.0 .^ (1:8);plot(sol)

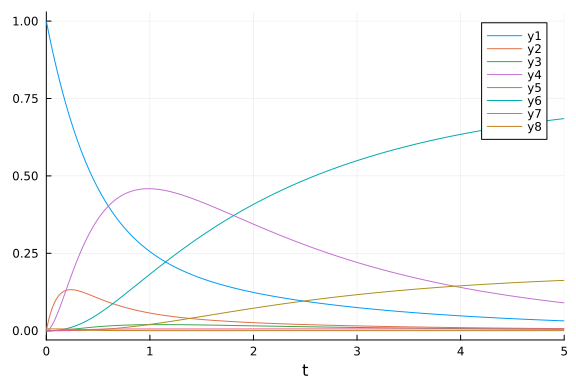

plot(sol,tspan=(0.0,5.0))
Omissions
The following were omitted from the tests due to convergence failures. ODE.jl's adaptivity is not able to stabilize its algorithms, while GeometricIntegratorsDiffEq has not upgraded to Julia 1.0. GeometricIntegrators.jl's methods used to be either fail to converge at comparable dts (or on some computers errors due to type conversions).
#sol = solve(prob,ode23s()); println("Total ODE.jl steps: $(length(sol))")
#using GeometricIntegratorsDiffEq
#try
# sol = solve(prob,GIRadIIA3(),dt=1/10)
#catch e
# println(e)
#endThe stabilized explicit methods are not stable enough to handle this problem well. While they don't diverge, they are really slow.
setups = [
#Dict(:alg=>ROCK2()),
#Dict(:alg=>ROCK4())
#Dict(:alg=>ESERK5())
]Any[]High Tolerances
This is the speed when you just want the answer.
abstols = 1.0 ./ 10.0 .^ (5:8)
reltols = 1.0 ./ 10.0 .^ (1:4);
setups = [Dict(:alg=>Rosenbrock23()),
Dict(:alg=>Rosenbrock23(), :prob_choice => 2),
Dict(:alg=>FBDF()),
Dict(:alg=>QNDF()),
Dict(:alg=>TRBDF2()),
Dict(:alg=>CVODE_BDF()),
Dict(:alg=>rodas()),
Dict(:alg=>radau()),
Dict(:alg=>RadauIIA5()),
Dict(:alg=>ROS34PW1a()),
Dict(:alg=>lsoda()),
]

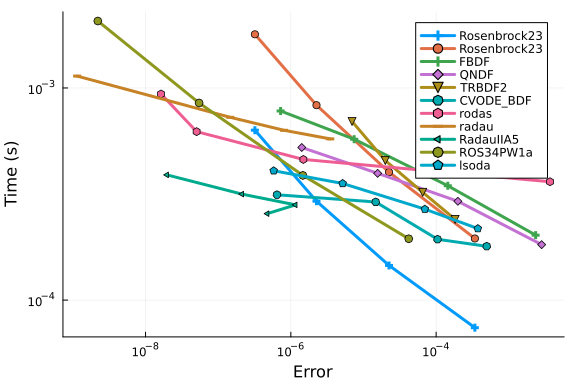

wp = WorkPrecisionSet(probs,abstols,reltols,setups;
save_everystep=false,appxsol=test_sol,maxiters=Int(1e5),numruns=10)
plot(wp)

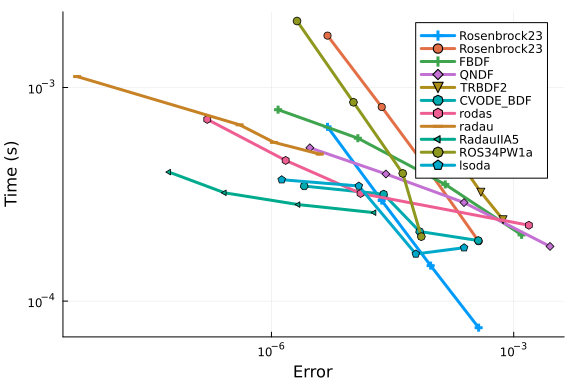

wp = WorkPrecisionSet(probs,abstols,reltols,setups;dense = false,verbose=false,
appxsol=test_sol,maxiters=Int(1e5),error_estimate=:l2)
plot(wp)

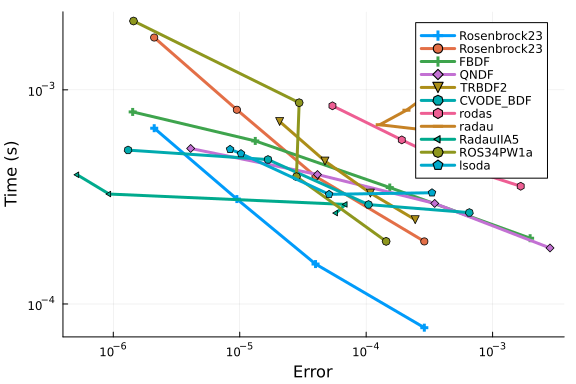

wp = WorkPrecisionSet(probs,abstols,reltols,setups;
appxsol=test_sol,maxiters=Int(1e5),error_estimate=:L2)
plot(wp)

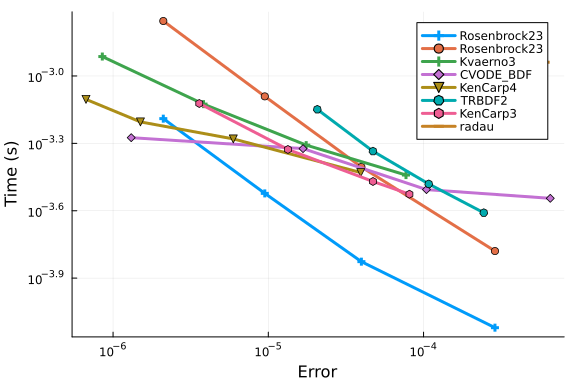

setups = [Dict(:alg=>Rosenbrock23()),
Dict(:alg=>Rosenbrock23(), :prob_choice => 2),
Dict(:alg=>Kvaerno3()),
Dict(:alg=>CVODE_BDF()),
Dict(:alg=>KenCarp4()),
Dict(:alg=>TRBDF2()),
Dict(:alg=>KenCarp3()),
# Dict(:alg=>SDIRK2()), # Removed because it's bad
Dict(:alg=>radau())]

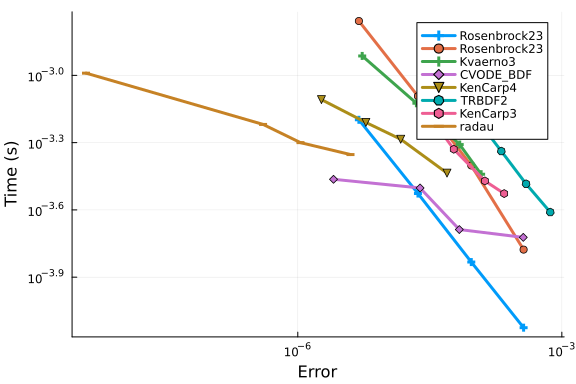

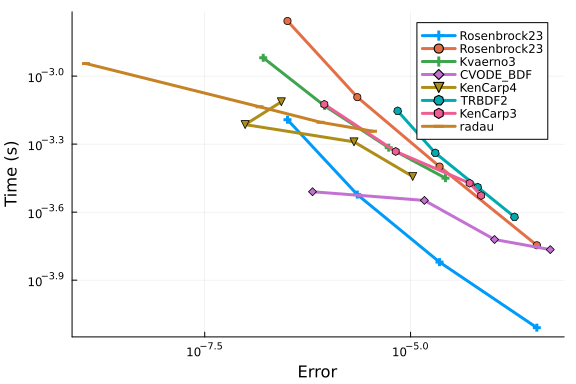

wp = WorkPrecisionSet(probs,abstols,reltols,setups;
save_everystep=false,appxsol=test_sol,maxiters=Int(1e5))
plot(wp)
wp = WorkPrecisionSet(probs,abstols,reltols,setups;dense = false,verbose=false,
appxsol=test_sol,maxiters=Int(1e5),error_estimate=:l2)
plot(wp)
wp = WorkPrecisionSet(probs,abstols,reltols,setups;
appxsol=test_sol,maxiters=Int(1e5),error_estimate=:L2)
plot(wp)

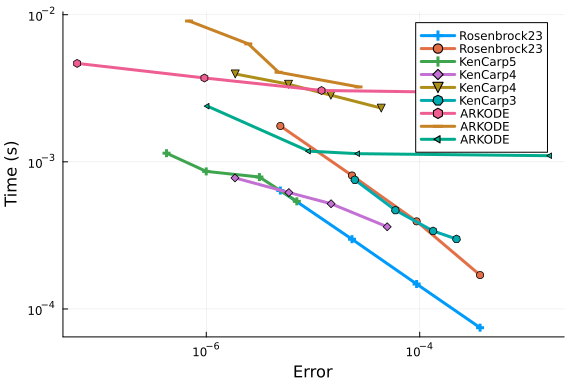

setups = [Dict(:alg=>Rosenbrock23()),
Dict(:alg=>Rosenbrock23(), :prob_choice => 2),
Dict(:alg=>KenCarp5()),
Dict(:alg=>KenCarp4()),
Dict(:alg=>KenCarp4(), :prob_choice => 2),
Dict(:alg=>KenCarp3()),
Dict(:alg=>ARKODE(order=5)),
Dict(:alg=>ARKODE()),
Dict(:alg=>ARKODE(order=3))]
names = ["Rosenbrock23" "Rosenbrock23 Static" "KenCarp5" "KenCarp4" "KenCarp3" "ARKODE5" "ARKODE4" "ARKODE3"]
wp = WorkPrecisionSet(probs,abstols,reltols,setups;
names=names,save_everystep=false,appxsol=test_sol,maxiters=Int(1e5))
plot(wp)Error: AssertionError: names === nothing || length(setups) == length(names)wp = WorkPrecisionSet(probs,abstols,reltols,setups;dense = false,verbose=false,
appxsol=test_sol,maxiters=Int(1e5),error_estimate=:l2)
plot(wp)

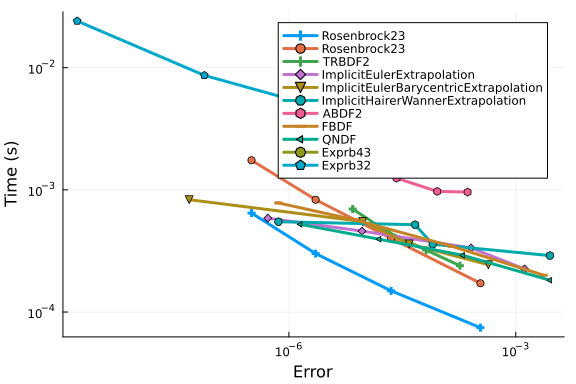

setups = [Dict(:alg=>Rosenbrock23()),
Dict(:alg=>Rosenbrock23(), :prob_choice => 2),
Dict(:alg=>TRBDF2()),
Dict(:alg=>ImplicitEulerExtrapolation()),
Dict(:alg=>ImplicitEulerBarycentricExtrapolation()),
Dict(:alg=>ImplicitHairerWannerExtrapolation()),
Dict(:alg=>ABDF2()),
Dict(:alg=>FBDF()),
Dict(:alg=>QNDF()),
Dict(:alg=>Exprb43()),
Dict(:alg=>Exprb32()),
]
wp = WorkPrecisionSet(probs,abstols,reltols,setups;
save_everystep=false,appxsol=test_sol,maxiters=Int(1e5))
plot(wp)
Low Tolerances
This is the speed at lower tolerances, measuring what's good when accuracy is needed.
abstols = 1.0 ./ 10.0 .^ (7:13)
reltols = 1.0 ./ 10.0 .^ (4:10)

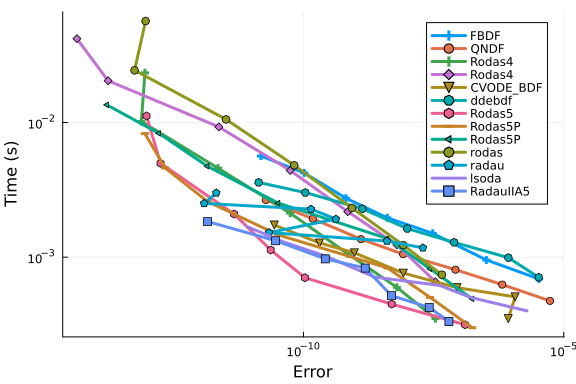

setups = [
Dict(:alg=>FBDF()),
Dict(:alg=>QNDF()),
Dict(:alg=>Rodas4()),
Dict(:alg=>Rodas4(), :prob_choice => 2),
Dict(:alg=>CVODE_BDF()),
Dict(:alg=>ddebdf()),
Dict(:alg=>Rodas5()),
Dict(:alg=>Rodas5P()),
Dict(:alg=>Rodas5P(), :prob_choice => 2),
Dict(:alg=>rodas()),
Dict(:alg=>radau()),
Dict(:alg=>lsoda()),
Dict(:alg=>RadauIIA5()),
]

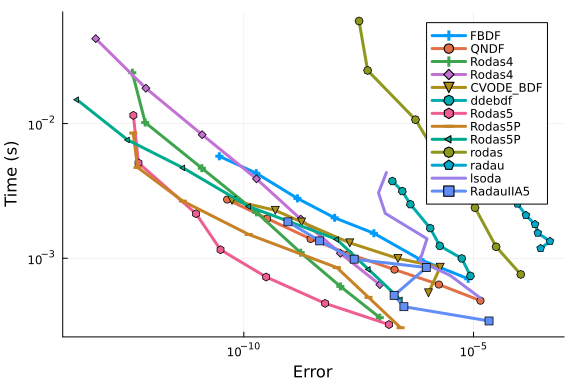

wp = WorkPrecisionSet(probs,abstols,reltols,setups;
save_everystep=false,appxsol=test_sol,maxiters=Int(1e5))
plot(wp)
wp = WorkPrecisionSet(probs,abstols,reltols,setups;verbose=false,
dense=false,appxsol=test_sol,maxiters=Int(1e5),error_estimate=:l2)
plot(wp)
wp = WorkPrecisionSet(probs,abstols,reltols,setups;
appxsol=test_sol,maxiters=Int(1e5),error_estimate=:L2)
plot(wp)

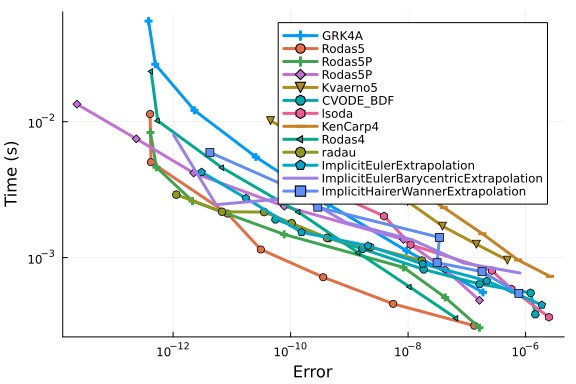

setups = [Dict(:alg=>GRK4A()),
Dict(:alg=>Rodas5()),
Dict(:alg=>Rodas5P()),
Dict(:alg=>Rodas5P(), :prob_choice => 2),
Dict(:alg=>Kvaerno5()),
Dict(:alg=>CVODE_BDF()),
Dict(:alg=>lsoda()),
Dict(:alg=>KenCarp4()),
Dict(:alg=>Rodas4()),
Dict(:alg=>radau()),
Dict(:alg=>ImplicitEulerExtrapolation()),
Dict(:alg=>ImplicitEulerBarycentricExtrapolation()),
Dict(:alg=>ImplicitHairerWannerExtrapolation()),
]

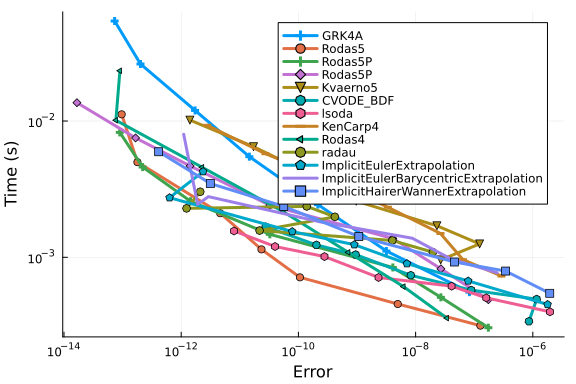

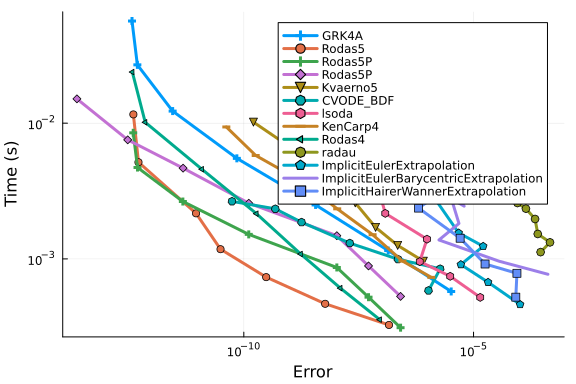

wp = WorkPrecisionSet(probs,abstols,reltols,setups;
save_everystep=false,appxsol=test_sol,maxiters=Int(1e5))
plot(wp)
wp = WorkPrecisionSet(probs,abstols,reltols,setups;verbose=false,
dense=false,appxsol=test_sol,maxiters=Int(1e5),error_estimate=:l2)
plot(wp)
wp = WorkPrecisionSet(probs,abstols,reltols,setups;
appxsol=test_sol,maxiters=Int(1e5),error_estimate=:L2)
plot(wp)
setups = [Dict(:alg=>Rodas5()),
Dict(:alg=>Rodas5(), :prob_choice => 2),
Dict(:alg=>KenCarp5()),
Dict(:alg=>KenCarp4()),
Dict(:alg=>KenCarp4(), :prob_choice => 2),
Dict(:alg=>KenCarp3()),
Dict(:alg=>ARKODE(order=5)),
Dict(:alg=>ARKODE()),
Dict(:alg=>ARKODE(order=3))]

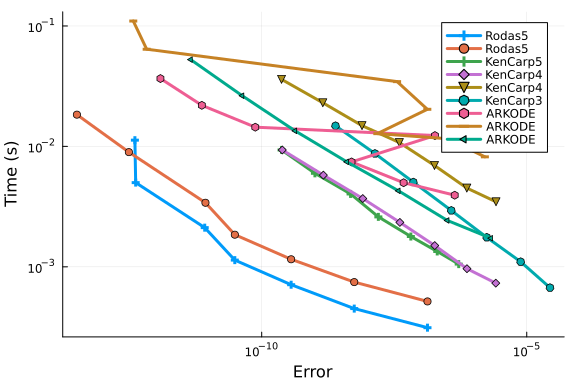

names = ["Rodas5" "Rodas5 Static" "KenCarp5" "KenCarp4" "KenCarp4 Static" "KenCarp3" "ARKODE5" "ARKODE4" "ARKODE3"]

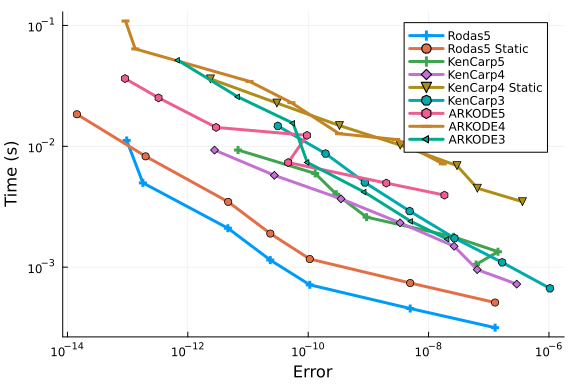

wp = WorkPrecisionSet(probs,abstols,reltols,setups;
names=names,save_everystep=false,appxsol=test_sol,maxiters=Int(1e5))
plot(wp)
wp = WorkPrecisionSet(probs,abstols,reltols,setups;verbose=false,
dense=false,appxsol=test_sol,maxiters=Int(1e5),error_estimate=:l2)
plot(wp)
The following algorithms were removed since they failed.
#setups = [#Dict(:alg=>Hairer4()),
#Dict(:alg=>Hairer42()),
#Dict(:alg=>Rodas3()),
#Dict(:alg=>Kvaerno4()),
#Dict(:alg=>KenCarp5()),
#Dict(:alg=>Cash4())
#]
#wp = WorkPrecisionSet(probs,abstols,reltols,setups;
# save_everystep=false,appxsol=test_sol,maxiters=Int(1e5))
#plot(wp)Multithreading with Parallel Extrapolation Methods
#Setting BLAS to one thread to measure gains
LinearAlgebra.BLAS.set_num_threads(1)
abstols = 1.0 ./ 10.0 .^ (10:12)
reltols = 1.0 ./ 10.0 .^ (7:9)
setups = [
Dict(:alg=>CVODE_BDF()),
Dict(:alg=>KenCarp4()),
Dict(:alg=>Rodas4()),
Dict(:alg=>Rodas4(), :prob_choice => 2),
Dict(:alg=>Rodas5P()),
Dict(:alg=>Rodas5P(), :prob_choice => 2),
Dict(:alg=>QNDF()),
Dict(:alg=>lsoda()),
Dict(:alg=>radau()),
Dict(:alg=>seulex()),
Dict(:alg=>ImplicitEulerExtrapolation(min_order = 4, init_order = 7,threading = OrdinaryDiffEq.PolyesterThreads())),
Dict(:alg=>ImplicitEulerExtrapolation(min_order = 4, init_order = 7,threading = false)),
Dict(:alg=>ImplicitEulerBarycentricExtrapolation(min_order = 4, init_order = 7, threading = OrdinaryDiffEq.PolyesterThreads())),
Dict(:alg=>ImplicitEulerBarycentricExtrapolation(min_order = 4, init_order = 7, threading = false)),
Dict(:alg=>ImplicitHairerWannerExtrapolation(min_order = 3, init_order = 6,threading = OrdinaryDiffEq.PolyesterThreads())),
Dict(:alg=>ImplicitHairerWannerExtrapolation(min_order = 3, init_order = 6,threading = false)),
]
solnames = ["CVODE_BDF","KenCarp4","Rodas4","Rodas4 Static","Rodas5P","Rodas5P Static","QNDF","lsoda","radau","seulex","ImplEulerExtpl (threaded)", "ImplEulerExtpl (non-threaded)",
"ImplEulerBaryExtpl (threaded)","ImplEulerBaryExtpl (non-threaded)","ImplHWExtpl (threaded)","ImplHWExtpl (non-threaded)"]

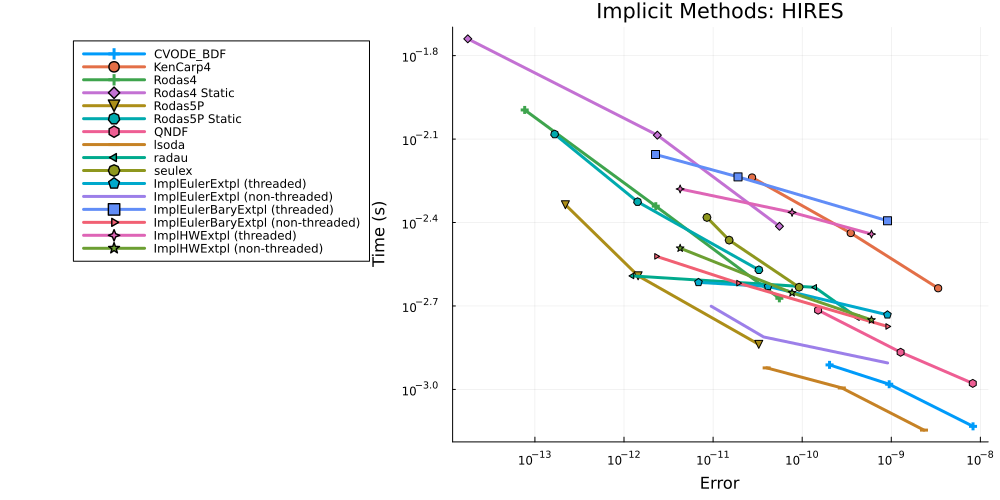

wp = WorkPrecisionSet(probs,abstols,reltols,setups;
names = solnames,save_everystep=false,appxsol=test_sol,maxiters=Int(1e5),numruns=10)
plot(wp, title = "Implicit Methods: HIRES",legend=:outertopleft,size = (1000,500),
xticks = 10.0 .^ (-15:1:1),
yticks = 10.0 .^ (-6:0.3:5),
bottom_margin= 5Plots.mm)
Appendix
These benchmarks are a part of the SciMLBenchmarks.jl repository, found at: https://github.com/SciML/SciMLBenchmarks.jl. For more information on high-performance scientific machine learning, check out the SciML Open Source Software Organization https://sciml.ai.
To locally run this benchmark, do the following commands:
using SciMLBenchmarks
SciMLBenchmarks.weave_file("benchmarks/StiffODE","Hires.jmd")Computer Information:
