Multivariate Hawkes Model

using JumpProcesses, Graphs, Statistics, BenchmarkTools, Plots
using OrdinaryDiffEq: Tsit5
fmt = :png
width_px, height_px = default(:size);

Model and example solutions

Let a graph with $V$ nodes, then the multivariate Hawkes process is characterized by $V$ point processes such that the conditional intensity rate of node $i$ connected to a set of nodes $E_i$ in the graph is given by:

\[ \lambda_i^\ast (t) = \lambda + \sum_{j \in E_i} \sum_{t_{n_j} < t} \alpha \exp \left[-\beta (t - t_{n_j}) \right]\]

This process is known as self-exciting, because the occurrence of an event $j$ at $t_{n_j}$ will increase the conditional intensity of all the processes connected to it by $\alpha$. The excited intensity then decreases at a rate proportional to $\beta$.

The conditional intensity of this process has a recursive formulation which can significantly speed the simulation. The recursive formulation for the univariate case is derived in Laub et al. [2]. We derive the compound case here. Let $t_{N_i} = \max \{ t_{n_j} < t \mid j \in E_i \}$ and

\[\begin{split} \phi_i^\ast (t) &= \sum_{j \in E_i} \sum_{t_{n_j} < t} \alpha \exp \left[-\beta (t - t_{N_i} + t_{N_i} - t_{n_j}) \right] \\ &= \exp \left[ -\beta (t - t_{N_i}) \right] \sum_{j \in E_i} \sum_{t_{n_j} \leq t_{N_i}} \alpha \exp \left[-\beta (t_{N_i} - t_{n_j}) \right] \\ &= \exp \left[ -\beta (t - t_{N_i}) \right] \left( \alpha + \phi^\ast (t_{N_i}) \right) \end{split}\]

Then the conditional intensity can be re-written in terms of $\phi_i^\ast (t_{N_i})$

\[ \lambda_i^\ast (t) = \lambda + \phi_i^\ast (t) = \lambda + \exp \left[ -\beta (t - t_{N_i}) \right] \left( \alpha + \phi_i^\ast (t_{N_i}) \right)\]

In Julia, we define a factory for the conditional intensity $\lambda_i$ which returns the brute-force or recursive versions of the intensity given node $i$ and network $g$.

function hawkes_rate(i::Int, g; use_recursion = false)

    @inline @inbounds function rate_recursion(u, p, t)
        λ, α, β, h, urate, ϕ = p
        urate[i] = λ + exp(-β*(t - h[i]))*ϕ[i]
        return urate[i]
    end

    @inline @inbounds function rate_brute(u, p, t)
        λ, α, β, h, urate = p
        x = zero(typeof(t))
        for j in g[i]
            for _t in reverse(h[j])
                ϕij = α * exp(-β * (t - _t))
                if ϕij ≈ 0
                    break
                end
                x += ϕij
            end
        end
        urate[i] = λ + x
        return urate[i]
    end

    if use_recursion
        return rate_recursion
    else
        return rate_brute
    end

end

hawkes_rate (generic function with 1 method)

Given the rate factory, we can create a jump factory which will create all the jumps in our model.

function hawkes_jump(i::Int, g; use_recursion = false)
    rate = hawkes_rate(i, g; use_recursion)
    urate = rate
    @inbounds rateinterval(u, p, t) = p[5][i] == p[1] ? typemax(t) : 2 / p[5][i]
    @inbounds lrate(u, p, t) = p[1]
    @inbounds function affect_recursion!(integrator)
        λ, α, β, h, _, ϕ  = integrator.p
        for j in g[i]
          ϕ[j] *= exp(-β*(integrator.t - h[j]))
          ϕ[j] += α
          h[j] = integrator.t
        end
        integrator.u[i] += 1
    end
    @inbounds function affect_brute!(integrator)
        push!(integrator.p[4][i], integrator.t)
        integrator.u[i] += 1
    end
    return VariableRateJump(
        rate,
        use_recursion ? affect_recursion! : affect_brute!;
        lrate,
        urate,
        rateinterval,
    )
end

function hawkes_jump(u, g; use_recursion = false)
    return [hawkes_jump(i, g; use_recursion) for i = 1:length(u)]
end

hawkes_jump (generic function with 2 methods)

We can then create a factory for Multivariate Hawkes JumpProblems. We can define two types of JumpProblems depending on the aggregator. The Direct() aggregator expects an ODEProblem since it cannot handle the SSAStepper with VariableRateJumps.

function f!(du, u, p, t)
    du .= 0
    nothing
end

function hawkes_problem(
    p,
    agg;
    u = [0.0],
    tspan = (0.0, 50.0),
    save_positions = (false, true),
    g = [[1]],
    use_recursion = false,
)
    oprob = ODEProblem(f!, u, tspan, p)
    jumps = hawkes_jump(u, g; use_recursion)
    jprob = JumpProblem(oprob, agg, jumps...; save_positions = save_positions)
    return jprob
end

hawkes_problem (generic function with 1 method)

The Coevolve() aggregator knows how to handle the SSAStepper, so it accepts a DiscreteProblem.

function hawkes_problem(
    p,
    agg::Coevolve;
    u = [0.0],
    tspan = (0.0, 50.0),
    save_positions = (false, true),
    g = [[1]],
    use_recursion = false,
)
    dprob = DiscreteProblem(u, tspan, p)
    jumps = hawkes_jump(u, g; use_recursion)
    jprob =
        JumpProblem(dprob, agg, jumps...; dep_graph = g, save_positions = save_positions)
    return jprob
end

hawkes_problem (generic function with 2 methods)

Lets solve the problems defined so far. We sample a random graph sampled from the Erdős-Rényi model. This model assumes that the probability of an edge between two nodes is independent of other edges, which we fix at $0.2$. For illustration purposes, we fix $V = 10$.

V = 10
G = erdos_renyi(V, 0.2, seed = 9103)
g = [neighbors(G, i) for i = 1:nv(G)]

10-element Vector{Vector{Int64}}:
 [4, 7]
 [8, 9]
 [4, 5]
 [1, 3]
 [3]
 []
 [1, 8, 9]
 [2, 7]
 [2, 7, 10]
 [9]

We fix the Hawkes parameters at $\lambda = 0.5 , \alpha = 0.1 , \beta = 2.0$ which ensures the process does not explode.

tspan = (0.0, 50.0)
u = [0.0 for i = 1:nv(G)]
p = (0.5, 0.1, 2.0)

(0.5, 0.1, 2.0)

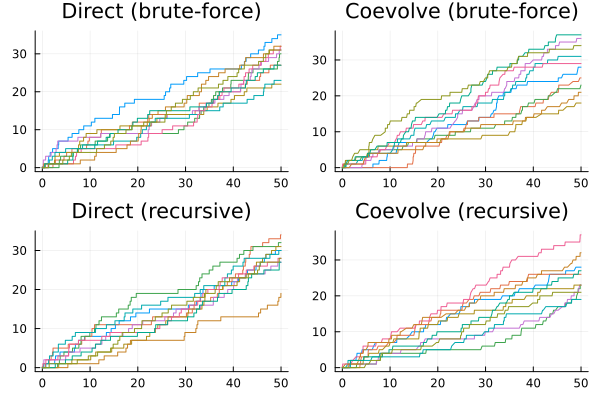

Now, we instantiate the problems, find their solutions and plot the results.

algorithms = Tuple{Any, Any, Bool, String}[
  (Direct(), Tsit5(), false, "Direct (brute-force)"),
  (Coevolve(), SSAStepper(), false, "Coevolve (brute-force)"),
  (Direct(), Tsit5(), true, "Direct (recursive)"),
  (Coevolve(), SSAStepper(), true, "Coevolve (recursive)"),
]

let fig = []
  for (i, (algo, stepper, use_recursion, label)) in enumerate(algorithms)
    @info label
    if use_recursion
        h = zeros(eltype(tspan), nv(G))
        urate = zeros(eltype(tspan), nv(G))
        ϕ = zeros(eltype(tspan), nv(G))
        _p = (p[1], p[2], p[3], h, ϕ, urate)
    else
        h = [eltype(tspan)[] for _ = 1:nv(G)]
        urate = zeros(eltype(tspan), nv(G))
        _p = (p[1], p[2], p[3], h, urate)
    end
    jump_prob = hawkes_problem(_p, algo; u, tspan, g, use_recursion)
    sol = solve(jump_prob, stepper)
    push!(fig, plot(sol.t, sol[1:V, :]', title=label, legend=false, format=fmt))
  end
  fig = plot(fig..., layout=(2,2), format=fmt, size=(width_px, 2*height_px/2))
end

Alternative libraries

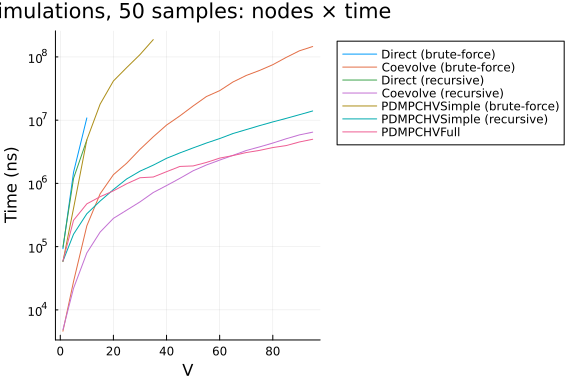

We benchmark JumpProcesses.jl against PiecewiseDeterministicMarkovProcesses.jl and Python Tick library.

In order to compare with the PiecewiseDeterministicMarkovProcesses.jl, we need to reformulate our jump problem as a Piecewise Deterministic Markov Process (PDMP). In this setting, we have two options.

The simple version only requires the conditional intensity. Like above, we define a brute-force and recursive approach. Following the library's specification we define the following functions.

function hawkes_rate_simple_recursion(rate, xc, xd, p, t, issum::Bool)
  λ, _, β, h, ϕ, g = p
  for i in 1:length(g)
    rate[i] = λ + exp(-β * (t - h[i])) * ϕ[i]
  end
  if issum
    return sum(rate)
  end
  return 0.0
end

function hawkes_rate_simple_brute(rate, xc, xd, p, t, issum::Bool)
  λ, α, β, h, g = p
  for i in 1:length(g)
    x = zero(typeof(t))
    for j in g[i]
        for _t in reverse(h[j])
            ϕij = α * exp(-β * (t - _t))
            if ϕij ≈ 0
                break
            end
            x += ϕij
        end
    end
    rate[i] = λ + x
  end
  if issum
    return sum(rate)
  end
  return 0.0
end

function hawkes_affect_simple_recursion!(xc, xd, p, t, i::Int64)
  _, α, β, h, ϕ, g = p
  for j in g[i]
      ϕ[j] *= exp(-β * (t - h[j]))
      ϕ[j] += α
      h[j] = t
  end
end

function hawkes_affect_simple_brute!(xc, xd, p, t, i::Int64)
  push!(p[4][i], t)
end

hawkes_affect_simple_brute! (generic function with 1 method)

Since this is a library for PDMP, we also need to define the ODE problem. In the simple version, we simply set it to zero.

function hawkes_drate_simple(dxc, xc, xd, p, t)
    dxc .= 0
end

hawkes_drate_simple (generic function with 1 method)

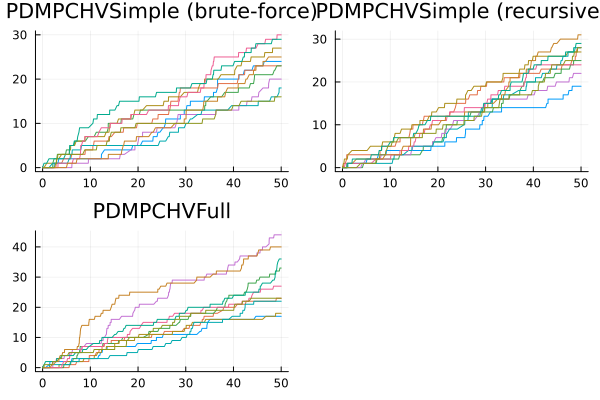

Next, we create a factory for the Multivariate Hawkes PDMPCHVSimple problem.

import LinearAlgebra: I
using PiecewiseDeterministicMarkovProcesses
const PDMP = PiecewiseDeterministicMarkovProcesses

struct PDMPCHVSimple end

function hawkes_problem(p,
                        agg::PDMPCHVSimple;
                        u = [0.0],
                        tspan = (0.0, 50.0),
                        save_positions = (false, true),
                        g = [[1]],
                        use_recursion = true)
    xd0 = Array{Int}(u)
    xc0 = copy(u)
    nu = one(eltype(xd0)) * I(length(xd0))
    if use_recursion
      jprob = PDMPProblem(hawkes_drate_simple, hawkes_rate_simple_recursion,
          hawkes_affect_simple_recursion!, nu, xc0, xd0, p, tspan)
    else
      jprob = PDMPProblem(hawkes_drate_simple, hawkes_rate_simple_brute,
          hawkes_affect_simple_brute!, nu, xc0, xd0, p, tspan)
    end
    return jprob
end

push!(algorithms, (PDMPCHVSimple(), CHV(Tsit5()), false, "PDMPCHVSimple (brute-force)"));
push!(algorithms, (PDMPCHVSimple(), CHV(Tsit5()), true, "PDMPCHVSimple (recursive)"));

The full version requires that we describe how the conditional intensity changes with time which we derive below:

\[\begin{split} \frac{d \lambda_i^\ast (t)}{d t} &= -\beta \sum_{j \in E_i} \sum_{t_{n_j} < t} \alpha \exp \left[-\beta (t - t_{n_j}) \right] \\ &= -\beta \left( \lambda_i^\ast (t) - \lambda \right) \end{split}\]

function hawkes_drate_full(dxc, xc, xd, p, t)
    λ, α, β, _, _, g = p
    for i = 1:length(g)
        dxc[i] = -β * (xc[i] - λ)
    end
end

hawkes_drate_full (generic function with 1 method)

Next, we need to define the intensity rate and the jumps according to library's specification.

function hawkes_rate_full(rate, xc, xd, p, t, issum::Bool)
    λ, α, β, _, _, g = p
    if issum
        return sum(@view(xc[1:length(g)]))
    end
    rate[1:length(g)] .= @view xc[1:length(g)]
    return 0.0
end

function hawkes_affect_full!(xc, xd, p, t, i::Int64)
    λ, α, β, _, _, g = p
    for j in g[i]
        xc[i] += α
    end
end

hawkes_affect_full! (generic function with 1 method)

Finally, we create a factory for the Multivariate Hawkes PDMPCHVFull problem.

struct PDMPCHVFull end

function hawkes_problem(
    p,
    agg::PDMPCHVFull;
    u = [0.0],
    tspan = (0.0, 50.0),
    save_positions = (false, true),
    g = [[1]],
    use_recursion = true,
)
    xd0 = Array{Int}(u)
    xc0 = [p[1] for i = 1:length(u)]
    nu = one(eltype(xd0)) * I(length(xd0))
    jprob = PDMPProblem(hawkes_drate_full, hawkes_rate_full, hawkes_affect_full!, nu, xc0, xd0, p, tspan)
    return jprob
end

push!(algorithms, (PDMPCHVFull(), CHV(Tsit5()), true, "PDMPCHVFull"));

The Python Tick library can be accessed with the PyCall.jl. We install the required Python dependencies with Conda.jl and define a factory for the Multivariate Hawkes PyTick problem.

const BENCHMARK_PYTHON::Bool = tryparse(Bool, get(ENV, "SCIMLBENCHMARK_PYTHON", "true"))
const REBUILD_PYCALL::Bool = tryparse(Bool, get(ENV, "SCIMLBENCHMARK_REBUILD_PYCALL", "true"))

struct PyTick end

if BENCHMARK_PYTHON
  if REBUILD_PYCALL
    using Pkg, Conda

    # PyCall only works with Conda.ROOTENV
    # tick requires python=3.8
    Conda.add("python=3.8", Conda.ROOTENV)
    Conda.add("numpy", Conda.ROOTENV)
    Conda.pip_interop(true, Conda.ROOTENV)
    Conda.pip("install", "tick", Conda.ROOTENV)

    # rebuild PyCall to ensure it links to the python provided by Conda.jl
    ENV["PYTHON"] = ""
    Pkg.build("PyCall")
  end

  ENV["PYTHON"] = ""
  using PyCall
  @info "PyCall" PyCall.libpython PyCall.pyversion PyCall.conda

  function hawkes_problem(
      p,
      agg::PyTick;
      u = [0.0],
      tspan = (0.0, 50.0),
      save_positions = (false, true),
      g = [[1]],
      use_recursion = true,
  )
      λ, α, β = p
      SimuHawkesSumExpKernels = pyimport("tick.hawkes")[:SimuHawkesSumExpKernels]
      jprob = SimuHawkesSumExpKernels(
          baseline = fill(λ, length(u)),
          adjacency = [i in j ? α / β : 0.0 for j in g, i = 1:length(u), u = 1:1],
          decays = [β],
          end_time = tspan[2],
          verbose = false,
          force_simulation = true,
      )
      return jprob
  end

  push!(algorithms, (PyTick(), nothing, true, "PyTick"));
end

Channels:
 - conda-forge
Platform: linux-64
Collecting package metadata (repodata.json): ...working... done
Solving environment: ...working... failed
Error: failed process: Process(setenv(`/cache/julia-buildkite-plugin/depots
/5b300254-1738-4989-ae0a-f4d2d937f953/conda/3/x86_64/bin/conda install -q -
y python=3.8`,["DBUS_SESSION_BUS_ADDRESS=unix:path=/run/user/21581/bus", "B
UILDKITE_PULL_REQUEST_REPO=", "BUILDKITE_SOURCE=webhook", "BUILDKITE_PLUGIN
_COPPERMIND_INPUTS_0=benchmarks/Jumps", "BUILDKITE_GIT_CLONE_FLAGS=-v", "BU
ILDKITE_PLUGIN_CRYPTIC_BASE64_AGENT_PUBLIC_KEY_SECRET=LS0tLS1CRUdJTiBQVUJMS
UMgS0VZLS0tLS0KTUlJQklqQU5CZ2txaGtpRzl3MEJBUUVGQUFPQ0FROEFNSUlCQ2dLQ0FRRUF0
WHNKMzFGbTFKN29IYzlveGZaWQpKY3FxRk5yaXRMUUhxaDVJUHNGS3YySis1K1FVQkZNYURjMHI
3czZ3NDNSMDFobkVNT1lYNDAreUVDT3h5bHErClo3dHdxWlNxS2U1MThwc0RyeWRna0xJNzRnQU
VZWWNTZGdvTGt4YWpWNy9rb0hFTDgrczRKdFRVNUJ6d1RFdXAKTllTZGNQOFhQSmJLekY1RE5qd
WJmeFA5ZjdSN2x6SUx2NWl2Z2lxZTVtbUxGd1lwb0hTRVFVNXRlT09IQStLYwpjUDZ3K2d1Q0Vx
MUZFb0N2MDRyaTFXaWpVZXorMytEWVM4UCtROGRxMGJYUWZUS1Vyc0thMkdnLzVmZ0h5Z0R1CmR
HT2ZsdzUvVEljR3VVbGNsd1hZb2tTRkpSWUJFa2pUOXBCZ2JNNEcyL2tXNGFmZ3d4bHNuN3VsUW
5QNDZVLzEKZFFJREFRQUIKLS0tLS1FTkQgUFVCTElDIEtFWS0tLS0tCg==", "BUILDKITE_ENV
_FILE=/tmp/job-env-01932d42-ae19-478f-af10-cfb95d0cee8c807275329", "BUILDKI
TE_BUILD_NUMBER=3000", "BUILDKITE_GIT_CLONE_MIRROR_FLAGS=-v", "BUILDKITE_AG
ENT_DEBUG=false", "BUILDKITE_AGENT_META_DATA_QUEUE=juliaecosystem", "BUILDK
ITE_PLUGINS_PATH=/etc/buildkite-agent/plugins", "BUILDKITE_COMMAND_EVAL=tru
e", "BUILDKITE_AGENT_META_DATA_SANDBOX_CAPABLE=true", "BUILDKITE_ORGANIZATI
ON_SLUG=julialang", "BUILDKITE_PLUGIN_COPPERMIND_INPUTS_1=src/**/*.jl", "BU
ILDKITE_PIPELINE_PROVIDER=github", "BUILDKITE_AGENT_EXPERIMENT=resolve-comm
it-after-checkout", "BUILDKITE_CONFIG_PATH=/etc/buildkite-agent/buildkite-a
gent.cfg", "BUILDKITE_PIPELINE_TEAMS=sciml-full-access", "BUILDKITE_AGENT_M
ETA_DATA_CRYPTIC_CAPABLE=true", "BUILDKITE_AGENT_ACCESS_TOKEN=bkaj_eyJhbGci
OiJIUzUxMiJ9.eyJzdWIiOiIwMTkzMmQ0Mi1hZTE5LTQ3OGYtYWYxMC1jZmI5NWQwY2VlOGMiLC
JhdWQiOiIwMTkzMmYyZC05NjhhLTRlMjYtODgyYS1hNjRiZjYwN2YyMzAiLCJpc3MiOiJidWlsZ
GtpdGUiLCJleHAiOjE3MzIyNzE3NDcsImlhdCI6MTczMTY2MzM0N30.slFiHXyNm5R8F-Eik5Rq
ZMlqAfHjIaI66jUxiko8ldu-vm-mz1RunvKFbnUPU4KN1As4jbLN-xCDKUlTokfqvQ", "BUILD
KITE_PLUGIN_CRYPTIC_BASE64_SIGNED_JOB_ID_SECRET=sMIUBr9e+mz0YMtLMQxF5nug7gh
Cj0G5iA+CrR6WGq1/Lu3az6MQZayKbS/4ROow2warRS1NICiy+TA4pX1ucmfopWSeSIOsg8GnEV
5qV3rUVJb9TlxqTaT3tY2929rpIG/vsDr/lBFBSlRk5JeONpkdi9CX5u37EkJ1TxJrUIg7nkdvY
vs3YBTw+11axXLPa5Iv3wOBskz0uVlpYwM0nPiZ3AYL3HaTUdvVYxgysRtAz1CgWoJYgW86X1aD
18/gP6SzYa5AGMJ2tuH8V895voztE4SttpFXdE+k2K2zZMllLRpvSazN5973wUYkYyQkGOK1lf1
Z3bg94r2fTYJU2w==", "BUILDKITE_PLUGIN_COPPERMIND_S3_PREFIX=s3://julialang-b
uildkite-artifacts/scimlbenchmarks", "BUILDKITE_BUILD_CREATOR_EMAIL=account
s@chrisrackauckas.com", "XKB_CONFIG_ROOT=/cache/julia-buildkite-plugin/depo
ts/5b300254-1738-4989-ae0a-f4d2d937f953/artifacts/f8b49c7c45b400e3f5c4002d1
9645d4b88712c0c/share/X11/xkb", "BUILDKITE_SSH_KEYSCAN=true", "BUILDKITE_PR
OJECT_SLUG=julialang/scimlbenchmarks-dot-jl", "BUILDKITE_INITIAL_JOB_ID=019
32d40-f44c-4e50-972b-d911ec64b64e", "BUILDKITE_BIN_PATH=/usr/bin", "PWD=/ca
che/build/exclusive-amdci1-0/julialang/scimlbenchmarks-dot-jl", "GRDIR=/cac
he/julia-buildkite-plugin/depots/5b300254-1738-4989-ae0a-f4d2d937f953/artif
acts/231c36cbc48a78caf7818ee7f4cd260eb3d642e3", "BUILDKITE_GIT_CHECKOUT_FLA
GS=-f", "BUILDKITE_COMPUTE_TYPE=self-hosted", "BUILDKITE_GIT_SUBMODULES=tru
e", "BUILDKITE_AGENT_META_DATA_OS=linux", "CI=true", "BUILDKITE_STEP_KEY=be
nchmark-benchmarks-Jumps", "BUILDKITE_STEP_IDENTIFIER=benchmark-benchmarks-
Jumps", "BUILDKITE_PLUGIN_COPPERMIND_OUTPUTS_0=markdown/**/figures/*.png",
"CONDA_PREFIX=/cache/julia-buildkite-plugin/depots/5b300254-1738-4989-ae0a-
f4d2d937f953/conda/3/x86_64", "BUILDKITE_PLUGIN_COPPERMIND_INPUTS_2=./*.tom
l", "BUILDKITE_PLUGIN_COPPERMIND_OUTPUTS_3=markdown/**/*.svg", "BUILDKITE_A
GENT_PID=2", "BUILDKITE_LAST_HOOK_EXIT_STATUS=0", "BUILDKITE_AGENT_META_DAT
A_EXCLUSIVE=true", "BUILDKITE_PLUGIN_COPPERMIND_OUTPUTS_6=script/**/*.jl",
"BUILDKITE_BUILD_CREATOR=Christopher Rackauckas", "BUILDKITE_REBUILT_FROM_B
UILD_ID=", "OPENBLAS_DEFAULT_NUM_THREADS=1", "BUILDKITE_BRANCH=master", "JU
LIA_DEPOT_PATH=/cache/julia-buildkite-plugin/depots/5b300254-1738-4989-ae0a
-f4d2d937f953", "BUILDKITE_PLUGIN_COPPERMIND_OUTPUTS_5=pdf/**/*.pdf", "BUIL
DKITE_AGENT_DEBUG_HTTP=false", "SHELL=/shells/bash", "BUILDKITE=true", "BUI
LDKITE_PLUGIN_CRYPTIC_PRIVILEGED=true", "BUILDKITE_HOOKS_PATH=/hooks", "BUI
LDKITE_PIPELINE_DEFAULT_BRANCH=master", "BUILDKITE_PLUGIN_NAME=COPPERMIND",
 "BUILDKITE_REBUILT_FROM_BUILD_NUMBER=", "HOME=/root", "BUILDKITE_PLUGIN_CO
PPERMIND_OUTPUTS_4=notebook/**/*.ipynb", "BUILDKITE_S3_DEFAULT_REGION=us-ea
st-1", "BUILDKITE_TRIGGERED_FROM_BUILD_PIPELINE_SLUG=", "BUILDKITE_BUILD_CH
ECKOUT_PATH=/cache/build/exclusive-amdci1-0/julialang/scimlbenchmarks-dot-j
l", "BUILDKITE_SCRIPT_PATH=# Clear out these secrets as they're not needed
during the actual build\nBUILDKITE_S3_ACCESS_KEY_ID=\"\" BUILDKITE_S3_SECRE
T_ACCESS_KEY=\"\" ./.buildkite/build_benchmark.sh \"benchmarks/Jumps\"\n",
"INVOCATION_ID=43c7087b30204514a938e3477988f18f", "BUILDKITE_PLUGIN_COPPERM
IND_OUTPUTS_2=markdown/**/*.pdf", "LANG=en_US.UTF-8", "BUILDKITE_PIPELINE_N
AME=SciMLBenchmarks.jl", "SHLVL=3", "XDG_RUNTIME_DIR=/run/user/21581", "OLD
PWD=/cache/julia-buildkite-plugin/depots/5b300254-1738-4989-ae0a-f4d2d937f9
53", "FONTCONFIG_FILE=/cache/julia-buildkite-plugin/depots/5b300254-1738-49
89-ae0a-f4d2d937f953/artifacts/558980a93131f08be5335521b84e137ee3172296/etc
/fonts/fonts.conf", "BUILDKITE_PLUGIN_CONFIGURATION={\"inputs\":[\"benchmar
ks/Jumps\",\"src/**/*.jl\",\"./*.toml\"],\"outputs\":[\"markdown/**/figures
/*.png\",\"markdown/**/*.md\",\"markdown/**/*.pdf\",\"markdown/**/*.svg\",\
"notebook/**/*.ipynb\",\"pdf/**/*.pdf\",\"script/**/*.jl\"],\"s3_prefix\":\
"s3://julialang-buildkite-artifacts/scimlbenchmarks\"}", "BUILDKITE_BUILD_P
ATH=/cache/build", "BUILDKITE_BUILD_AUTHOR_EMAIL=accounts@chrisrackauckas.c
om", "BUILDKITE_TIMEOUT=10080", "BUILDKITE_GIT_MIRRORS_PATH=/cache/repos",
"BUILDKITE_STRICT_SINGLE_HOOKS=false", "BUILDKITE_LABEL=:hammer: benchmarks
/Jumps", "FONTCONFIG_PATH=/cache/julia-buildkite-plugin/depots/5b300254-173
8-4989-ae0a-f4d2d937f953/artifacts/558980a93131f08be5335521b84e137ee3172296
/etc/fonts", "JOURNAL_STREAM=8:666003079", "BUILDKITE_AGENT_META_DATA_SANDB
OX_JL=true", "BUILDKITE_BUILD_CREATOR_TEAMS=juliagpu-full-access:sciml-full
-access", "BUILDKITE_PROJECT_PROVIDER=github", "QT_ACCESSIBILITY=1", "BUILD
KITE_S3_SECRET_ACCESS_KEY=", "GKS_USE_CAIRO_PNG=true", "BUILDKITE_REPO_MIRR
OR=/cache/repos/https---github-com-SciML-SciMLBenchmarks-jl-git", "GIT_TERM
INAL_PROMPT=0", "BUILDKITE_JOB_ID=01932d42-ae19-478f-af10-cfb95d0cee8c", "S
YSTEMD_EXEC_PID=3972767", "BUILDKITE_REDACTED_VARS=*_PASSWORD,*_SECRET,*_TO
KEN,*_PRIVATE_KEY,*_ACCESS_KEY,*_SECRET_KEY,*_CONNECTION_STRING", "BUILDKIT
E_BUILD_AUTHOR=Christopher Rackauckas", "USER=sabae", "GKSwstype=100", "BUI
LDKITE_REPO=https://github.com/SciML/SciMLBenchmarks.jl.git", "BUILDKITE_GI
T_FETCH_FLAGS=-v --prune --tags", "BUILDKITE_LOCAL_HOOKS_ENABLED=true", "MA
NAGERPID=59175", "BUILDKITE_S3_ACCESS_KEY_ID=", "BUILDKITE_GIT_MIRRORS_LOCK
_TIMEOUT=300", "BUILDKITE_AGENT_ID=01932f2d-968a-4e26-882a-a64bf607f230", "
BUILDKITE_GIT_MIRRORS_SKIP_UPDATE=false", "BUILDKITE_ARTIFACT_PATHS=", "BUI
LDKITE_BUILD_URL=https://buildkite.com/julialang/scimlbenchmarks-dot-jl/bui
lds/3000", "BUILDKITE_MESSAGE=Merge pull request #1124 from SciML/compathel
per/new_version/2024-11-15-00-33-40-352-03235991109\n\nCompatHelper: add ne
w compat entry for ReactionNetworkImporters at version 0.15 for package Jum
ps, (keep existing compat)", "BUILDKITE_RETRY_COUNT=0", "LOGNAME=sabae", "J
ULIA_CPU_THREADS=128", "BUILDKITE_PLUGIN_JULIA_CACHE_DIR=/cache/julia-build
kite-plugin", "BUILDKITE_PLUGIN_COPPERMIND_INPUT_HASH=f89dc72e7bc182c8ceace
b3e7fa17be5469f1e2559ad6f519981eb9dbcd18392", "BUILDKITE_PLUGIN_CRYPTIC_BAS
E64_AGENT_PRIVATE_KEY_SECRET=LS0tLS1CRUdJTiBSU0EgUFJJVkFURSBLRVktLS0tLQpNSU
lFcFFJQkFBS0NBUUVBdFhzSjMxRm0xSjdvSGM5b3hmWllKY3FxRk5yaXRMUUhxaDVJUHNGS3YyS
is1K1FVCkJGTWFEYzByN3M2dzQzUjAxaG5FTU9ZWDQwK3lFQ094eWxxK1o3dHdxWlNxS2U1MThw
c0RyeWRna0xJNzRnQUUKWVljU2Rnb0xreGFqVjcva29IRUw4K3M0SnRUVTVCendURXVwTllTZGN
QOFhQSmJLekY1RE5qdWJmeFA5ZjdSNwpseklMdjVpdmdpcWU1bW1MRndZcG9IU0VRVTV0ZU9PSE
ErS2NjUDZ3K2d1Q0VxMUZFb0N2MDRyaTFXaWpVZXorCjMrRFlTOFArUThkcTBiWFFmVEtVcnNLY
TJHZy81ZmdIeWdEdWRHT2ZsdzUvVEljR3VVbGNsd1hZb2tTRkpSWUIKRWtqVDlwQmdiTTRHMi9r
VzRhZmd3eGxzbjd1bFFuUDQ2VS8xZFFJREFRQUJBb0lCQVFDTU5sVjRUbUlPWC8raQpHSDh3ZzV
XekRSTy9MU1greXlFbzFHQ282NW9lcDdDNDVNUjZXdUpFUzRKbjdSVkpoczVHSkg0cDhYdi9TYk
dmCk9wVEFiTCt6VVdSSUFPNC9tMWRSYTJhN1NzY1d4RDN6N0dOMkhtK3E5elBlSHAxd3pIZU5aZ
29BR0htM3RyUU0KMGpidUczN09OSG1YdGQ1MEYyVHo1TmcwN0hURkJwV3hMMjJwNm9aZzgyUEk0
OXIrdUpWWmZ5MU5HZVRnaFA4cgp2dVRVTVJIcldZa25YbUR1eDVSMHNIdDFoU2FvTXBFbSsrMWc
1V09rSzZDTGFJbEV0ZitWVVBvR0piYlNYRzNJCmo5N1h5a3NGUDhGZ24wMWx4ZktGV1p4MXlnTV
dsUm00SFNCTWVkc1FpWStqeG5Sd3BtRnh5L2pIOVhFTUppT0wKQSsvVFdCbUJBb0dCQU52cXROQ
jRuVS9zODIxTU9oalRPTmtFOGNJOENxV1BRRTZXcEFOYVY5UkVVcGVCZzhmMgpjTXg2VFMweE9E
U0JRUk9PRnNEUG9pc1E0VVRGQmFialBLTU41d2IzNFVKYmN4V0ZwcGlLUHJMa09Zdmtqb01VCkN
Sb1pKK05Lb253RWh5bWJ0TG0yMHhmUUZCamY1R1QvMHJZUWcxUkN1OVllSmE0Z3NWYWtSNGh4QW
9HQkFOTkIKMzhxenJhTTBDeHhrSnZkVmlTY3g2MFowN2g4OHFISy9SV2dVK3ZZaitwZy9ibXBwM
mdiUXZkYTJxaS84UEl2OApSb0JwcmY2Y285TmdSa2JmY05xZmFnM1Z5SDhBNW1iUE1nK0s4YmFu
KzlwU003WkREVW1sdU03R3ZRSW5OVnBCCnBJcE1uWEk5eDZSSFlpOFF2MHhXOXcyUmpmS09TbEl
YZFlITjZwOUZBb0dCQUp0NXdwMkVPRXR5VE9NZnVnOGsKL1pMSVlSY2VGYlRZb3ZFc3BRWE4wRH
c4bFZ1UmNCWmx6M2R3bTdGd2s3ampESndEbjJodklzcHBvNmxYMVZnWQpYUjAxemZocU5QSVI3e
m52QkVuaHF0UVViKzdNQmtqN1dEZ0FRdWY1TXdpVXR1NGVxOVdFUUpjY1A2a2FXTUZpCjc1aFI4
bGNXMnU5VTN2VE5Iak1QNzVheEFvR0JBSm5HdExsZlMwQ21USVF4SHZBaE1rSDJvMVZaSGxCY25
oMVEKdjV3QTBhRkVGVkNuczU4QVNEVjMwd2d0VlBxeTkvdkoraVBWU1ZNeUFFcUlKUC9IKytVWD
cySDh3UUk1ekh6Lwp5MmZtOHdYTGg1ZW5DSDllbFppTGFsZ1I4RmxWNHc4OUF5R3NuVnNnUDJlR
WtxTEI1UTRUcTZnVDBLakVETE51CjRobEhvOGFsQW9HQUhBVGltTGRkS0JFTkN2MXZyNnZ0d3JC
ZGRCbWlGSWFwaVcvMk5acWxCTFp1bEp6MEwzdCsKM3FvSUF0Uisxd2xpWkQwZGJnRGdVeVRMcnN
5Y1RDSkZIczNIZTFXb3NCSzcxTmlncFZhWEVzWnFpOHNENjlvUQo2QkFnaEdvbnNGbTEydzhhRG
NDdm92WUxLTlhVV1BFT1c0akdvd2k0Tmx4NGZidHlkYXpIUEdnPQotLS0tLUVORCBSU0EgUFJJV
kFURSBLRVktLS0tLQo=", "BUILDKITE_PIPELINE_SLUG=scimlbenchmarks-dot-jl", "BU
ILDKITE_SHELL=/bin/bash -e -c", "BUILDKITE_PLUGINS_ENABLED=true", "LANGUAGE
=en_US", "GKS_FONTPATH=/cache/julia-buildkite-plugin/depots/5b300254-1738-4
989-ae0a-f4d2d937f953/artifacts/231c36cbc48a78caf7818ee7f4cd260eb3d642e3",
"BUILDKITE_AGENT_NAME=exclusive-amdci1.0", "BUILDKITE_STEP_ID=01932d42-adc4
-4afa-81d5-d6faefeea6eb", "BUILDKITE_PLUGIN_COPPERMIND_OUTPUTS_1=markdown/*
*/*.md", "BUILDKITE_TAG=", "OPENBLAS_MAIN_FREE=1", "PATH=/cache/julia-build
kite-plugin/julia_installs/bin/linux/x64/1.10/julia-1.10-latest-linux-x86_6
4/bin:/usr/local/sbin:/usr/local/bin:/usr/sbin:/usr/bin:/sbin:/bin:/usr/gam
es:/usr/local/games:/snap/bin:/usr/bin:/usr/local/bin:/usr/bin:/bin", "GKS_
ENCODING=utf8", "BUILDKITE_AGENT_META_DATA_NUM_CPUS=128", "BUILDKITE_TRIGGE
RED_FROM_BUILD_NUMBER=", "BUILDKITE_AGENT_META_DATA_CONFIG_GITSHA=2a413ab3"
, "BUILDKITE_COMMAND=# Clear out these secrets as they're not needed during
 the actual build\nBUILDKITE_S3_ACCESS_KEY_ID=\"\" BUILDKITE_S3_SECRET_ACCE
SS_KEY=\"\" ./.buildkite/build_benchmark.sh \"benchmarks/Jumps\"\n", "LIBDE
COR_PLUGIN_DIR=/cache/julia-buildkite-plugin/depots/5b300254-1738-4989-ae0a
-f4d2d937f953/artifacts/38e215c51e5c0f77bc7a8813ba4586632a8fc750/lib/libdec
or/plugins-1", "BUILDKITE_PLUGIN_VALIDATION=false", "BUILDKITE_AGENT_META_D
ATA_ARCH=x86_64", "CONDARC=/cache/julia-buildkite-plugin/depots/5b300254-17
38-4989-ae0a-f4d2d937f953/conda/3/x86_64/condarc-julia.yml", "FORCE_SANDBOX
_MODE=unprivileged", "BUILDKITE_TRIGGERED_FROM_BUILD_ID=", "TERM=xterm-256c
olor", "PYTHONIOENCODING=UTF-8", "BUILDKITE_PULL_REQUEST_BASE_BRANCH=", "BU
ILDKITE_PIPELINE_ID=5b300254-1738-4989-ae0a-f4d2d937f953", "_=/cache/julia-
buildkite-plugin/julia_installs/bin/linux/x64/1.10/julia-1.10-latest-linux-
x86_64/bin/julia", "BUILDKITE_BUILD_ID=01932d40-f42a-404a-bad8-804d71c5163e
", "BUILDKITE_AGENT_ENDPOINT=https://agent.buildkite.com/v3", "BUILDKITE_PL
UGINS=[{\"github.com/staticfloat/cryptic-buildkite-plugin#v2\":{\"files\":[
\".buildkite/secrets/token.toml\"],\"variables\":[\"BUILDKITE_S3_ACCESS_KEY
_ID=\\\"U2FsdGVkX1+x3xs1ZRRZRt3FmwFQmYYKnpV7o8xKkX5Ib6y0o5fv0+rskVAj+JKu\\\
"\",\"BUILDKITE_S3_SECRET_ACCESS_KEY=\\\"U2FsdGVkX1+LWh1yX7LsMBlecEJLc08eJr
gOhurhd47CY1/jS3wCGVCQmS1t6f2j70spBoFdfc9kn2naj8HH5A==\\\"\",\"BUILDKITE_S3
_DEFAULT_REGION=\\\"U2FsdGVkX18ccoE9FmtkwsCm1x0MLMBlN/FLcAyKkY4=\\\"\"]}},{
\"github.com/JuliaCI/julia-buildkite-plugin#v1\":{\"version\":\"1.10\"}},{\
"github.com/staticfloat/sandbox-buildkite-plugin\":{\"gid\":1000,\"uid\":10
00,\"rootfs_url\":\"https://github.com/thazhemadam/openmodelica-rootfs-imag
e/releases/download/v1.23.0/rootfs-openmodelica-v1.23.0.amd64.tar.gz\",\"wo
rkspaces\":[\"/cache/julia-buildkite-plugin:/cache/julia-buildkite-plugin\"
],\"rootfs_treehash\":\"82970243dc4f188e599a976abc20951f4aba2912\"}},{\"git
hub.com/staticfloat/coppermind-buildkite-plugin#v1\":{\"inputs\":[\"benchma
rks/Jumps\",\"src/**/*.jl\",\"./*.toml\"],\"outputs\":[\"markdown/**/figure
s/*.png\",\"markdown/**/*.md\",\"markdown/**/*.pdf\",\"markdown/**/*.svg\",
\"notebook/**/*.ipynb\",\"pdf/**/*.pdf\",\"script/**/*.jl\"],\"s3_prefix\":
\"s3://julialang-buildkite-artifacts/scimlbenchmarks\"}}]", "BUILDKITE_SOCK
ETS_PATH=/root/.buildkite-agent/sockets", "SANDBOX_PERSISTENCE_DIR=/cache/s
andbox_persistence", "BUILDKITE_GIT_CLEAN_FLAGS=-ffxdq", "BUILDKITE_COMMIT=
449e59114745bdf31beb22db3be60ada0e57e18c", "BUILDKITE_PULL_REQUEST=false",
"BUILDKITE_ORGANIZATION_ID=d409823c-5fa7-41c8-9033-7269c5fde4f3", "GKS_QT=e
nv LD_LIBRARY_PATH=/cache/julia-buildkite-plugin/depots/5b300254-1738-4989-
ae0a-f4d2d937f953/artifacts/f839432e3d2904a5c847b217ef0c0f489377ecc5/lib:/c
ache/julia-buildkite-plugin/depots/5b300254-1738-4989-ae0a-f4d2d937f953/art
ifacts/2def0eca464bd6d89ccac85338474402359d4930/lib:/cache/julia-buildkite-
plugin/depots/5b300254-1738-4989-ae0a-f4d2d937f953/artifacts/d00220164876de
a2cb19993200662745eed5e2db/lib:/cache/julia-buildkite-plugin/julia_installs
/bin/linux/x64/1.10/julia-1.10-latest-linux-x86_64/bin/../lib/julia:/cache/
julia-buildkite-plugin/depots/5b300254-1738-4989-ae0a-f4d2d937f953/artifact
s/cb697355f42d1d0c8f70b15c0c3dc28952f774b4/lib:/cache/julia-buildkite-plugi
n/depots/5b300254-1738-4989-ae0a-f4d2d937f953/artifacts/dc526f26fb179a3f68e
b13fcbe5d2d2a5aa7eeac/lib:/cache/julia-buildkite-plugin/depots/5b300254-173
8-4989-ae0a-f4d2d937f953/artifacts/c9fd7a94d3c09eac4f3ca94d21bf40ccf65eccf5
/lib:/cache/julia-buildkite-plugin/depots/5b300254-1738-4989-ae0a-f4d2d937f
953/artifacts/b757190a3c47fcb65f573f631fdd549b98fcf2e4/lib:/cache/julia-bui
ldkite-plugin/depots/5b300254-1738-4989-ae0a-f4d2d937f953/artifacts/b3ddd58
3e7aec92a77cf5961fad01fd7063c1d40/lib:/cache/julia-buildkite-plugin/depots/
5b300254-1738-4989-ae0a-f4d2d937f953/artifacts/7099954ffb0b6e1641832a06a08e
479498ce479f/lib:/cache/julia-buildkite-plugin/depots/5b300254-1738-4989-ae
0a-f4d2d937f953/artifacts/0803f8d074309498cdf55effdb9c55bc3ef88dde/lib:/cac
he/julia-buildkite-plugin/depots/5b300254-1738-4989-ae0a-f4d2d937f953/artif
acts/f92cfdafb94fa8c50330be3684c9aeb80bd14750/lib:/cache/julia-buildkite-pl
ugin/depots/5b300254-1738-4989-ae0a-f4d2d937f953/artifacts/1308e48c3f4f2fd9
adaa56b9bd4a86a995d50abd/lib:/cache/julia-buildkite-plugin/depots/5b300254-
1738-4989-ae0a-f4d2d937f953/artifacts/558980a93131f08be5335521b84e137ee3172
296/lib:/cache/julia-buildkite-plugin/depots/5b300254-1738-4989-ae0a-f4d2d9
37f953/artifacts/d75cfbd8954fdbc933ebead40a9c8b91513c023a/lib:/cache/julia-
buildkite-plugin/depots/5b300254-1738-4989-ae0a-f4d2d937f953/artifacts/9cfb
24edca23321a2dcebb63b4e196181359ecd6/lib:/cache/julia-buildkite-plugin/depo
ts/5b300254-1738-4989-ae0a-f4d2d937f953/artifacts/aae093c71ea1b1dc04c457afc
ae880d26c532115/lib:/cache/julia-buildkite-plugin/depots/5b300254-1738-4989
-ae0a-f4d2d937f953/artifacts/bd965e3c7f9460155f06361da380c63fa0351ef6/lib:/
cache/julia-buildkite-plugin/depots/5b300254-1738-4989-ae0a-f4d2d937f953/ar
tifacts/060cf7829c3363638c29228ea4ab0bd033d8eab0/lib:/cache/julia-buildkite
-plugin/depots/5b300254-1738-4989-ae0a-f4d2d937f953/artifacts/77d0e7c90e6a2
fd6f2f8457bbb7b86ed86d140d9/lib:/cache/julia-buildkite-plugin/depots/5b3002
54-1738-4989-ae0a-f4d2d937f953/artifacts/1e69ef9fbf05e2896d3cb70eac8080c4d1
0f8696/lib:/cache/julia-buildkite-plugin/depots/5b300254-1738-4989-ae0a-f4d
2d937f953/artifacts/e200b9737b27598b95b404cbc34e74f95b2bf5d0/lib:/cache/jul
ia-buildkite-plugin/depots/5b300254-1738-4989-ae0a-f4d2d937f953/artifacts/a
8e2d77aed043a035fd970326d8f070080efa8fa/lib:/cache/julia-buildkite-plugin/d
epots/5b300254-1738-4989-ae0a-f4d2d937f953/artifacts/6f98018cad6a09e91f9065
8f188c6be47e48a0c7/lib:/cache/julia-buildkite-plugin/depots/5b300254-1738-4
989-ae0a-f4d2d937f953/artifacts/d4f3ff9736df0dda120f8dc1d27174b0d5696fb1/li
b:/cache/julia-buildkite-plugin/depots/5b300254-1738-4989-ae0a-f4d2d937f953
/artifacts/2ab21f29b30c228bd0e5215585f822730cad5a72/lib:/cache/julia-buildk
ite-plugin/depots/5b300254-1738-4989-ae0a-f4d2d937f953/artifacts/62c0108762
22f83fe8878bf2af0e362083d20ee3/lib:/cache/julia-buildkite-plugin/depots/5b3
00254-1738-4989-ae0a-f4d2d937f953/artifacts/75b657b876788e58671ab6b88e49019
aa36b67cd/lib:/cache/julia-buildkite-plugin/depots/5b300254-1738-4989-ae0a-
f4d2d937f953/artifacts/bd1f25e7053ebc00ee7d82f3c5ec4cf1e9a51e17/lib:/cache/
julia-buildkite-plugin/depots/5b300254-1738-4989-ae0a-f4d2d937f953/artifact
s/cf5d5f8a6109be3f9c460a39768f57a3e53ff11d/lib:/cache/julia-buildkite-plugi
n/depots/5b300254-1738-4989-ae0a-f4d2d937f953/artifacts/c8a20a2030f10b70947
d8d2a6bff7f8b5f343fe9/lib:/cache/julia-buildkite-plugin/depots/5b300254-173
8-4989-ae0a-f4d2d937f953/artifacts/0631e2a6a31b5692eec7a575836451b16b734ec0
/lib:/cache/julia-buildkite-plugin/depots/5b300254-1738-4989-ae0a-f4d2d937f
953/artifacts/4abd0521d210cb9e48ea5e711873ba34dc05fc70/lib:/cache/julia-bui
ldkite-plugin/depots/5b300254-1738-4989-ae0a-f4d2d937f953/artifacts/1cf7375
e8ec1bbe1219934488737c12237ba2012/lib:/cache/julia-buildkite-plugin/depots/
5b300254-1738-4989-ae0a-f4d2d937f953/artifacts/587de110e5f58fd435dc35b294df
31bb7a75f692/lib:/cache/julia-buildkite-plugin/depots/5b300254-1738-4989-ae
0a-f4d2d937f953/artifacts/fc239b3ff5739aeab252bd154fa4dd045fefe629/lib:/cac
he/julia-buildkite-plugin/depots/5b300254-1738-4989-ae0a-f4d2d937f953/artif
acts/c951fb23b5652def1dea483af7095a38f3b3cefd/lib:/cache/julia-buildkite-pl
ugin/depots/5b300254-1738-4989-ae0a-f4d2d937f953/artifacts/85dab0a3f6b9cc2e
5d61165ee376bf46260812a4/lib:/cache/julia-buildkite-plugin/depots/5b300254-
1738-4989-ae0a-f4d2d937f953/artifacts/5b83972689fb7dea5e89326f1c0ba60d68e96
2fb/lib:/cache/julia-buildkite-plugin/depots/5b300254-1738-4989-ae0a-f4d2d9
37f953/artifacts/9d7f5887309a96013a2c75f48b5e137e60ccae8f/lib:/cache/julia-
buildkite-plugin/depots/5b300254-1738-4989-ae0a-f4d2d937f953/artifacts/74fd
55820a62aa47ebf4d942aa59096980a1851d/lib:/cache/julia-buildkite-plugin/depo
ts/5b300254-1738-4989-ae0a-f4d2d937f953/artifacts/aa52699bd1491b7de9c72fc1e
ab21e2e4bd649e2/lib:/cache/julia-buildkite-plugin/depots/5b300254-1738-4989
-ae0a-f4d2d937f953/artifacts/951960aa7e4599865406f432151003dd82cde65d/lib:/
cache/julia-buildkite-plugin/depots/5b300254-1738-4989-ae0a-f4d2d937f953/ar
tifacts/37dda4e57d9de95c99d1f8c6b3d8f4eca88c39a2/lib:/cache/julia-buildkite
-plugin/depots/5b300254-1738-4989-ae0a-f4d2d937f953/artifacts/136b88dafbb4b
6b7bfa6d4cff225f7d697015bd1/lib:/cache/julia-buildkite-plugin/depots/5b3002
54-1738-4989-ae0a-f4d2d937f953/artifacts/38e215c51e5c0f77bc7a8813ba4586632a
8fc750/lib:/cache/julia-buildkite-plugin/depots/5b300254-1738-4989-ae0a-f4d
2d937f953/artifacts/f0d193662fead3500b523f94b4f1878daab59a93/lib:/cache/jul
ia-buildkite-plugin/depots/5b300254-1738-4989-ae0a-f4d2d937f953/artifacts/0
5616da88f6b36c7c94164d4070776aef18ce46b/lib:/cache/julia-buildkite-plugin/d
epots/5b300254-1738-4989-ae0a-f4d2d937f953/artifacts/2df316da869cd97f7d7002
9428ee1e2e521407cd/lib:/cache/julia-buildkite-plugin/depots/5b300254-1738-4
989-ae0a-f4d2d937f953/artifacts/7190f0cb0832b80761cc6d513dd9b935f3e26358/li
b:/cache/julia-buildkite-plugin/depots/5b300254-1738-4989-ae0a-f4d2d937f953
/artifacts/4daa3879a820580557ef34945e2ae243dfcbba11/lib:/cache/julia-buildk
ite-plugin/depots/5b300254-1738-4989-ae0a-f4d2d937f953/artifacts/3643539f49
1c217e13c1595daad81dd1426fba07/lib:/cache/julia-buildkite-plugin/depots/5b3
00254-1738-4989-ae0a-f4d2d937f953/artifacts/71f3593804fb3a115f7fcb71b20c4e1
f9b32290f/lib:/cache/julia-buildkite-plugin/depots/5b300254-1738-4989-ae0a-
f4d2d937f953/artifacts/fbef68f6f587b5d3709af5b95701b92e3b890e4b/lib:/cache/
julia-buildkite-plugin/depots/5b300254-1738-4989-ae0a-f4d2d937f953/artifact
s/0ef7836563e0bb993333653a46424119858e5f1d/lib:/cache/julia-buildkite-plugi
n/depots/5b300254-1738-4989-ae0a-f4d2d937f953/artifacts/4c45bf9c8292490acd9
463bbfbf168277d9720b6/lib:/cache/julia-buildkite-plugin/depots/5b300254-173
8-4989-ae0a-f4d2d937f953/artifacts/2efdb7b239e9f244a3a933925294ea27cc6a61c2
/lib:/cache/julia-buildkite-plugin/depots/5b300254-1738-4989-ae0a-f4d2d937f
953/artifacts/872754c2f795d19a3e2e205b2bbaea659f28d11e/lib:/cache/julia-bui
ldkite-plugin/depots/5b300254-1738-4989-ae0a-f4d2d937f953/artifacts/7da37be
2742b3d1cfe1c14bf5bbd85aed4887f46/lib:/cache/julia-buildkite-plugin/depots/
5b300254-1738-4989-ae0a-f4d2d937f953/artifacts/c35cb3f6f3043a4e962fd56b61ad
91b4adb557f7/lib:/cache/julia-buildkite-plugin/depots/5b300254-1738-4989-ae
0a-f4d2d937f953/artifacts/13befbe35cffe7da192c7001ece18b4be3aa3720/lib:/cac
he/julia-buildkite-plugin/depots/5b300254-1738-4989-ae0a-f4d2d937f953/artif
acts/cacd8c147f866d6672e1aca9bb01fb919a81e96a/lib:/cache/julia-buildkite-pl
ugin/depots/5b300254-1738-4989-ae0a-f4d2d937f953/artifacts/b7dc5dce96373741
4a564aca8d4b82ee388f4fa1/lib:/cache/julia-buildkite-plugin/depots/5b300254-
1738-4989-ae0a-f4d2d937f953/artifacts/0d364e900393f710a03a5bafe2852d76e4d2c
2cd/lib:/cache/julia-buildkite-plugin/depots/5b300254-1738-4989-ae0a-f4d2d9
37f953/artifacts/1a2adcee7d99fea18ead33c350332626b262e29a/lib:/cache/julia-
buildkite-plugin/depots/5b300254-1738-4989-ae0a-f4d2d937f953/artifacts/40ee
a58ff37ecc8fb6f21f41079a33b511b3ff92/lib:/cache/julia-buildkite-plugin/depo
ts/5b300254-1738-4989-ae0a-f4d2d937f953/artifacts/79cc5446ced978de84b6e673e
01da0ebfdd6e4a5/lib:/cache/julia-buildkite-plugin/depots/5b300254-1738-4989
-ae0a-f4d2d937f953/artifacts/fce445d991cf502908d681348eec2174c5e31ba8/lib:/
cache/julia-buildkite-plugin/depots/5b300254-1738-4989-ae0a-f4d2d937f953/ar
tifacts/b0d2538004dda9eb6449b72b0b85703aeac30a66/lib:/cache/julia-buildkite
-plugin/depots/5b300254-1738-4989-ae0a-f4d2d937f953/artifacts/f03dd5ac03468
009d5a99bbfcdf336c2dc372de4/lib:/cache/julia-buildkite-plugin/depots/5b3002
54-1738-4989-ae0a-f4d2d937f953/artifacts/eae77862e95d04dfafb9fbe9ae39e688b3
5d756a/lib:/cache/julia-buildkite-plugin/depots/5b300254-1738-4989-ae0a-f4d
2d937f953/artifacts/231c36cbc48a78caf7818ee7f4cd260eb3d642e3/lib:/cache/jul
ia-buildkite-plugin/julia_installs/bin/linux/x64/1.10/julia-1.10-latest-lin
ux-x86_64/bin/../lib/julia:/cache/julia-buildkite-plugin/julia_installs/bin
/linux/x64/1.10/julia-1.10-latest-linux-x86_64/bin/../lib /cache/julia-buil
dkite-plugin/depots/5b300254-1738-4989-ae0a-f4d2d937f953/artifacts/231c36cb
c48a78caf7818ee7f4cd260eb3d642e3/bin/gksqt"]), ProcessExited(1)) [1]

Now, we instantiate the problems, find their solutions and plot the results.

let fig = []
  for (i, (algo, stepper, use_recursion, label)) in enumerate(algorithms[5:end])
    @info label
    if algo isa PyTick
        _p = (p[1], p[2], p[3])
        jump_prob = hawkes_problem(_p, algo; u, tspan, g, use_recursion)
        jump_prob.reset()
        jump_prob.simulate()
        t = tspan[1]:0.1:tspan[2]
        N = [[sum(jumps .< _t) for _t in t] for jumps in jump_prob.timestamps]
        push!(fig, plot(t, N, title=label, legend=false, format=fmt))
    elseif algo isa PDMPCHVSimple
        if use_recursion
          h = zeros(eltype(tspan), nv(G))
          ϕ = zeros(eltype(tspan), nv(G))
          _p = (p[1], p[2], p[3], h, ϕ, g)
        else
          h = [eltype(tspan)[] for _ in 1:nv(G)]
          _p = (p[1], p[2], p[3], h, g)
        end
        jump_prob = hawkes_problem(_p, algo; u, tspan, g, use_recursion)
        sol = solve(jump_prob, stepper)
        push!(fig, plot(sol.time, sol.xd[1:V, :]', title=label, legend=false, format=fmt))
    elseif algo isa PDMPCHVFull
        _p = (p[1], p[2], p[3], nothing, nothing, g)
        jump_prob = hawkes_problem(_p, algo; u, tspan, g, use_recursion)
        sol = solve(jump_prob, stepper)
        push!(fig, plot(sol.time, sol.xd[1:V, :]', title=label, legend=false, format=fmt))
    end
  end
  fig = plot(fig..., layout=(2,2), format=fmt, size=(width_px, 2*height_px/2))
end

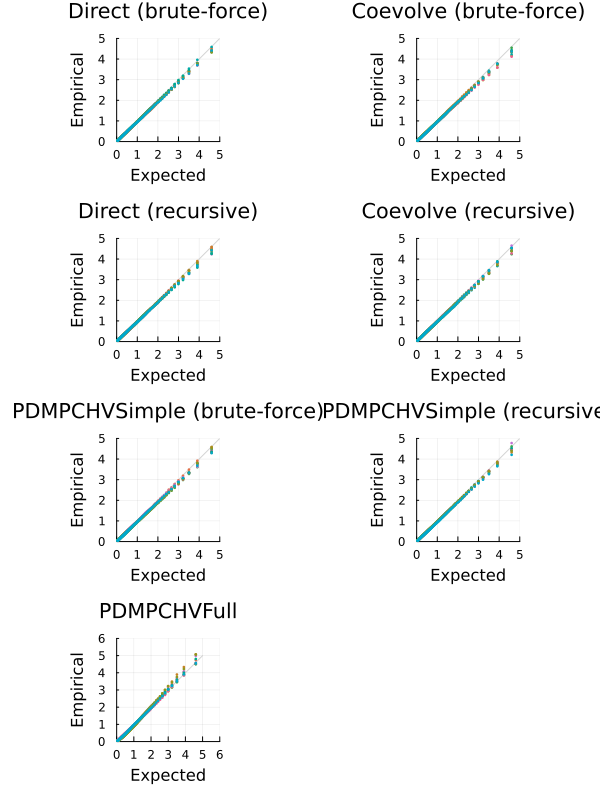

Correctness: QQ-Plots

We check that the algorithms produce correct simulation by inspecting their QQ-plots. Point process theory says that transforming the simulated points using the compensator should produce points whose inter-arrival duration is distributed according to the exponential distribution (see Section 7.4 [1]).

The compensator of any point process is the integral of the conditional intensity $\Lambda_i^\ast(t) = \int_0^t \lambda_i^\ast(u) du$. The compensator for the Multivariate Hawkes process is defined below.

\[ \Lambda_i^\ast(t) = \lambda t + \frac{\alpha}{\beta} \sum_{j \in E_i} \sum_{t_{n_j} < t} ( 1 - \exp \left[-\beta (t - t_{n_j}) \right])\]

function hawkes_Λ(i::Int, g, p)
    @inline @inbounds function Λ(t, h)
        λ, α, β = p
        x = λ * t
        for j in g[i]
            for _t in h[j]
                if _t >= t
                    break
                end
                x += (α / β) * (1 - exp(-β * (t - _t)))
            end
        end
        return x
    end
    return Λ
end

function hawkes_Λ(g, p)
    return [hawkes_Λ(i, g, p) for i = 1:length(g)]
end

Λ = hawkes_Λ(g, p)

10-element Vector{Main.var"##WeaveSandBox#225".var"#Λ#33"{Int64, Vector{Vec
tor{Int64}}, Tuple{Float64, Float64, Float64}}}:
 (::Main.var"##WeaveSandBox#225".var"#Λ#33"{Int64, Vector{Vector{Int64}}, T
uple{Float64, Float64, Float64}}) (generic function with 1 method)
 (::Main.var"##WeaveSandBox#225".var"#Λ#33"{Int64, Vector{Vector{Int64}}, T
uple{Float64, Float64, Float64}}) (generic function with 1 method)
 (::Main.var"##WeaveSandBox#225".var"#Λ#33"{Int64, Vector{Vector{Int64}}, T
uple{Float64, Float64, Float64}}) (generic function with 1 method)
 (::Main.var"##WeaveSandBox#225".var"#Λ#33"{Int64, Vector{Vector{Int64}}, T
uple{Float64, Float64, Float64}}) (generic function with 1 method)
 (::Main.var"##WeaveSandBox#225".var"#Λ#33"{Int64, Vector{Vector{Int64}}, T
uple{Float64, Float64, Float64}}) (generic function with 1 method)
 (::Main.var"##WeaveSandBox#225".var"#Λ#33"{Int64, Vector{Vector{Int64}}, T
uple{Float64, Float64, Float64}}) (generic function with 1 method)
 (::Main.var"##WeaveSandBox#225".var"#Λ#33"{Int64, Vector{Vector{Int64}}, T
uple{Float64, Float64, Float64}}) (generic function with 1 method)
 (::Main.var"##WeaveSandBox#225".var"#Λ#33"{Int64, Vector{Vector{Int64}}, T
uple{Float64, Float64, Float64}}) (generic function with 1 method)
 (::Main.var"##WeaveSandBox#225".var"#Λ#33"{Int64, Vector{Vector{Int64}}, T
uple{Float64, Float64, Float64}}) (generic function with 1 method)
 (::Main.var"##WeaveSandBox#225".var"#Λ#33"{Int64, Vector{Vector{Int64}}, T
uple{Float64, Float64, Float64}}) (generic function with 1 method)

We need a method for extracting the history from a simulation run. Below, we define such functions for each type of algorithm.

"""
Given an ODE solution `sol`, recover the timestamp in which events occurred. It
returns a vector with the history of each process in `sol`.

It assumes that `JumpProblem` was initialized with `save_positions` equal to
`(true, false)`, `(false, true)` or `(true, true)` such the system's state is
saved before and/or after the jump occurs; and, that `sol.u` is a
non-decreasing series that counts the total number of events observed as a
function of time.
"""
function histories(u, t)
    _u = permutedims(reduce(hcat, u))
    k = size(_u)[2]
    # computes a mask that show when total counts change
    mask = cat(fill(0.0, 1, k), _u[2:end, :] .- _u[1:end-1, :], dims = 1) .≈ 1
    h = Vector{typeof(t)}(undef, k)
    @inbounds for i = 1:k
        h[i] = t[mask[:, i]]
    end
    return h
end

function histories(sol::S) where {S<:ODESolution}
    # get u and permute the dimensions to get a matrix n x k with n obsevations and k processes.
    if sol.u[1] isa ExtendedJumpArray
        u = map((u) -> u.u, sol.u)
    else
        u = sol.u
    end
    return histories(u, sol.t)
end

function histories(sol::S) where {S<:PDMP.PDMPResult}
    return histories(sol.xd.u, sol.time)
end

function histories(sols)
    map(histories, sols)
end

histories (generic function with 4 methods)

We also need to compute the quantiles of the empirical distribution given a history of events hs, the compensator Λ and the target quantiles quant.

import Distributions: Exponential

"""
Computes the empirical and expected quantiles given a history of events `hs`,
the compensator `Λ` and the target quantiles `quant`.

The history `hs` is a vector with the history of each process. Alternatively,
the function also takes a vector of histories containing the histories from
multiple runs.

The compensator `Λ` can either be an homogeneous compensator function that
equally applies to all the processes in `hs`. Alternatively, it accepts a
vector of compensator that applies to each process.
"""
function qq(hs, Λ, quant = 0.01:0.01:0.99)
    _hs = apply_Λ(hs, Λ)
    T = typeof(hs[1][1][1])
    Δs = Vector{Vector{T}}(undef, length(hs[1]))
    for k = 1:length(Δs)
        _Δs = Vector{Vector{T}}(undef, length(hs))
        for i = 1:length(_Δs)
            _Δs[i] = _hs[i][k][2:end] .- _hs[i][k][1:end-1]
        end
        Δs[k] = reduce(vcat, _Δs)
    end
    empirical_quant = map((_Δs) -> quantile(_Δs, quant), Δs)
    expected_quant = quantile(Exponential(1.0), quant)
    return empirical_quant, expected_quant
end

"""
Compute the compensator `Λ` value for each timestamp recorded in history `hs`.

The history `hs` is a vector with the history of each process. Alternatively,
the function also takes a vector of histories containing the histories from
multiple runs.

The compensator `Λ` can either be an homogeneous compensator function that
equally applies to all the processes in `hs`. Alternatively, it accepts a
vector of compensator that applies to each process.
"""
function apply_Λ(hs::V, Λ) where {V<:Vector{<:Number}}
    _hs = similar(hs)
    @inbounds for n = 1:length(hs)
        _hs[n] = Λ(hs[n], hs)
    end
    return _hs
end

function apply_Λ(k::Int, hs::V, Λ::A) where {V<:Vector{<:Vector{<:Number}},A<:Array}
    @inbounds hsk = hs[k]
    @inbounds Λk = Λ[k]
    _hs = similar(hsk)
    @inbounds for n = 1:length(hsk)
        _hs[n] = Λk(hsk[n], hs)
    end
    return _hs
end

function apply_Λ(hs::V, Λ) where {V<:Vector{<:Vector{<:Number}}}
    _hs = similar(hs)
    @inbounds for k = 1:length(_hs)
        _hs[k] = apply_Λ(hs[k], Λ)
    end
    return _hs
end

function apply_Λ(hs::V, Λ::A) where {V<:Vector{<:Vector{<:Number}},A<:Array}
    _hs = similar(hs)
    @inbounds for k = 1:length(_hs)
        _hs[k] = apply_Λ(k, hs, Λ)
    end
    return _hs
end

function apply_Λ(hs::V, Λ) where {V<:Vector{<:Vector{<:Vector{<:Number}}}}
    return map((_hs) -> apply_Λ(_hs, Λ), hs)
end

apply_Λ (generic function with 5 methods)

We can construct QQ-plots with a Plot recipe as following.

@userplot QQPlot
@recipe function f(x::QQPlot)
    empirical_quant, expected_quant = x.args
    max_empirical_quant = maximum(maximum, empirical_quant)
    max_expected_quant = maximum(expected_quant)
    upperlim = ceil(maximum([max_empirical_quant, max_expected_quant]))
    @series begin
        seriestype := :line
        linecolor := :lightgray
        label --> ""
        (x) -> x
    end
    @series begin
        seriestype := :scatter
        aspect_ratio := :equal
        xlims := (0.0, upperlim)
        ylims := (0.0, upperlim)
        xaxis --> "Expected"
        yaxis --> "Empirical"
        markerstrokewidth --> 0
        markerstrokealpha --> 0
        markersize --> 1.5
        size --> (400, 500)
        label --> permutedims(["quantiles $i" for i = 1:length(empirical_quant)])
        expected_quant, empirical_quant
    end
end

Now, we simulate all of the algorithms we defined in the previous Section $250$ times to produce their QQ-plots.

let fig = []
    for (i, (algo, stepper, use_recursion, label)) in enumerate(algorithms)
        @info label
        if algo isa PyTick
            _p = (p[1], p[2], p[3])
        elseif algo isa PDMPCHVSimple
            if use_recursion
                h = zeros(eltype(tspan), nv(G))
                ϕ = zeros(eltype(tspan), nv(G))
                _p = (p[1], p[2], p[3], h, ϕ, g)
            else
                h = [eltype(tspan)[] for _ in 1:nv(G)]
                _p = (p[1], p[2], p[3], h, g)
            end
        elseif algo isa PDMPCHVFull
            _p = (p[1], p[2], p[3], nothing, nothing, g)
        else
            if use_recursion
                h = zeros(eltype(tspan), nv(G))
                ϕ = zeros(eltype(tspan), nv(G))
                urate = zeros(eltype(tspan), nv(G))
                _p = (p[1], p[2], p[3], h, urate, ϕ)
            else
                h = [eltype(tspan)[] for _ = 1:nv(G)]
                urate = zeros(eltype(tspan), nv(G))
                _p = (p[1], p[2], p[3], h, urate)
            end
        end
        jump_prob = hawkes_problem(_p, algo; u, tspan, g, use_recursion)
        runs = Vector{Vector{Vector{Number}}}(undef, 250)
        for n = 1:length(runs)
            if algo isa PyTick
                jump_prob.reset()
                jump_prob.simulate()
                runs[n] = jump_prob.timestamps
            else
                if ~(algo isa PDMPCHVFull)
                    if use_recursion
                        h .= 0
                        ϕ .= 0
                    else
                        for _h in h empty!(_h) end
                    end
                    if ~(algo isa PDMPCHVSimple)
                        urate .= 0
                    end
                end
                runs[n] = histories(solve(jump_prob, stepper))
            end
        end
        qqs = qq(runs, Λ)
        push!(fig, qqplot(qqs..., legend = false, aspect_ratio = :equal, title=label, fmt=fmt))
    end
    fig = plot(fig..., layout = (4, 2), fmt=fmt, size=(width_px, 4*height_px/2))
end

Benchmarking performance

In this Section we benchmark all the algorithms introduced in the first Section.

We generate networks in the range from $1$ to $95$ nodes and simulate the Multivariate Hawkes process $25$ units of time.

and simulate models in the range from $1$ to $95$ nodes for $25$ units of time. We fix the Hawkes parameters at $\lambda = 0.5 , \alpha = 0.1 , \beta = 5.0$ which ensures the process does not explode. We simulate $50$ trajectories with a limit of ten seconds to complete execution for each configuration.

tspan = (0.0, 25.0)
p = (0.5, 0.1, 5.0)
Vs = append!([1], 5:5:95)
Gs = [erdos_renyi(V, 0.2, seed = 6221) for V in Vs]

bs = Vector{Vector{BenchmarkTools.Trial}}()

for (algo, stepper, use_recursion, label) in algorithms
    @info label
    global _stepper = stepper
    push!(bs, Vector{BenchmarkTools.Trial}())
    _bs = bs[end]
    for (i, G) in enumerate(Gs)
        local g = [neighbors(G, i) for i = 1:nv(G)]
        local u = [0.0 for i = 1:nv(G)]
        if algo isa PyTick
            _p = (p[1], p[2], p[3])
        elseif algo isa PDMPCHVSimple
            if use_recursion
              global h = zeros(eltype(tspan), nv(G))
              global ϕ = zeros(eltype(tspan), nv(G))
              _p = (p[1], p[2], p[3], h, ϕ, g)
            else
              global h = [eltype(tspan)[] for _ in 1:nv(G)]
              _p = (p[1], p[2], p[3], h, g)
            end
        elseif algo isa PDMPCHVFull
            _p = (p[1], p[2], p[3], nothing, nothing, g)
        else
            if use_recursion
                global h = zeros(eltype(tspan), nv(G))
                global urate = zeros(eltype(tspan), nv(G))
                global ϕ = zeros(eltype(tspan), nv(G))
                _p = (p[1], p[2], p[3], h, urate, ϕ)
            else
                global h = [eltype(tspan)[] for _ = 1:nv(G)]
                global urate = zeros(eltype(tspan), nv(G))
                _p = (p[1], p[2], p[3], h, urate)
            end
        end
        global jump_prob = hawkes_problem(_p, algo; u, tspan, g, use_recursion)
        trial = try
            if algo isa PyTick
                @benchmark(
                    jump_prob.simulate(),
                    setup = (jump_prob.reset()),
                    samples = 50,
                    evals = 1,
                    seconds = 10,
                )
            else
                if algo isa PDMPCHVFull
                    @benchmark(
                        solve(jump_prob, _stepper),
                        setup = (),
                        samples = 50,
                        evals = 1,
                        seconds = 10,
                    )
                elseif algo isa PDMPCHVSimple
                    if use_recursion
                        @benchmark(solve(jump_prob, _stepper),
                                   setup=(h .= 0; ϕ .= 0),
                                   samples=50,
                                   evals=1,
                                   seconds=10,)
                    else
                        @benchmark(solve(jump_prob, _stepper),
                                   setup=([empty!(_h) for _h in h]),
                                   samples=50,
                                   evals=1,
                                   seconds=10,)
                    end
                else
                    if use_recursion
                        @benchmark(
                            solve(jump_prob, _stepper),
                            setup = (h .= 0; urate .= 0; ϕ .= 0),
                            samples = 50,
                            evals = 1,
                            seconds = 10,
                        )
                    else
                        @benchmark(
                            solve(jump_prob, _stepper),
                            setup = ([empty!(_h) for _h in h]; urate .= 0),
                            samples = 50,
                            evals = 1,
                            seconds = 10,
                        )
                    end
                end
            end
        catch e
            BenchmarkTools.Trial(
                BenchmarkTools.Parameters(samples = 50, evals = 1, seconds = 10),
            )
        end
        push!(_bs, trial)
        if (nv(G) == 1 || nv(G) % 10 == 0)
            median_time =
                length(trial) > 0 ? "$(BenchmarkTools.prettytime(median(trial.times)))" :
                "nan"
            println("algo=$(label), V = $(nv(G)), length = $(length(trial.times)), median time = $median_time")
        end
    end
end

algo=Direct (brute-force), V = 1, length = 50, median time = 92.709 μs
algo=Direct (brute-force), V = 10, length = 50, median time = 10.842 ms
algo=Direct (brute-force), V = 20, length = 1, median time = 99.580 ms
algo=Direct (brute-force), V = 30, length = 1, median time = 315.483 ms
algo=Direct (brute-force), V = 40, length = 1, median time = 1.382 s
algo=Direct (brute-force), V = 50, length = 1, median time = 2.923 s
algo=Direct (brute-force), V = 60, length = 1, median time = 5.795 s
algo=Direct (brute-force), V = 70, length = 1, median time = 10.525 s
algo=Direct (brute-force), V = 80, length = 1, median time = 14.468 s
algo=Direct (brute-force), V = 90, length = 1, median time = 22.642 s
algo=Coevolve (brute-force), V = 1, length = 50, median time = 4.600 μs
algo=Coevolve (brute-force), V = 10, length = 50, median time = 213.569 μs
algo=Coevolve (brute-force), V = 20, length = 50, median time = 1.373 ms
algo=Coevolve (brute-force), V = 30, length = 50, median time = 3.452 ms
algo=Coevolve (brute-force), V = 40, length = 50, median time = 8.359 ms
algo=Coevolve (brute-force), V = 50, length = 50, median time = 16.756 ms
algo=Coevolve (brute-force), V = 60, length = 50, median time = 29.289 ms
algo=Coevolve (brute-force), V = 70, length = 50, median time = 50.937 ms
algo=Coevolve (brute-force), V = 80, length = 50, median time = 75.329 ms
algo=Coevolve (brute-force), V = 90, length = 50, median time = 124.838 ms
algo=Direct (recursive), V = 1, length = 50, median time = 98.309 μs
algo=Direct (recursive), V = 10, length = 50, median time = 4.858 ms
algo=Direct (recursive), V = 20, length = 1, median time = 25.477 ms
algo=Direct (recursive), V = 30, length = 1, median time = 70.623 ms
algo=Direct (recursive), V = 40, length = 1, median time = 1.034 s
algo=Direct (recursive), V = 50, length = 1, median time = 1.861 s
algo=Direct (recursive), V = 60, length = 1, median time = 3.563 s
algo=Direct (recursive), V = 70, length = 1, median time = 5.990 s
algo=Direct (recursive), V = 80, length = 1, median time = 9.056 s
algo=Direct (recursive), V = 90, length = 1, median time = 13.668 s
algo=Coevolve (recursive), V = 1, length = 50, median time = 4.850 μs
algo=Coevolve (recursive), V = 10, length = 50, median time = 79.544 μs
algo=Coevolve (recursive), V = 20, length = 50, median time = 280.113 μs
algo=Coevolve (recursive), V = 30, length = 50, median time = 509.991 μs
algo=Coevolve (recursive), V = 40, length = 50, median time = 924.353 μs
algo=Coevolve (recursive), V = 50, length = 50, median time = 1.583 ms
algo=Coevolve (recursive), V = 60, length = 50, median time = 2.337 ms
algo=Coevolve (recursive), V = 70, length = 50, median time = 3.313 ms
algo=Coevolve (recursive), V = 80, length = 50, median time = 4.346 ms
algo=Coevolve (recursive), V = 90, length = 50, median time = 5.846 ms
algo=PDMPCHVSimple (brute-force), V = 1, length = 50, median time = 57.974
μs
algo=PDMPCHVSimple (brute-force), V = 10, length = 50, median time = 4.894
ms
algo=PDMPCHVSimple (brute-force), V = 20, length = 50, median time = 41.634
 ms
algo=PDMPCHVSimple (brute-force), V = 30, length = 50, median time = 108.78
7 ms
algo=PDMPCHVSimple (brute-force), V = 40, length = 35, median time = 278.56
4 ms
algo=PDMPCHVSimple (brute-force), V = 50, length = 16, median time = 599.25
8 ms
algo=PDMPCHVSimple (brute-force), V = 60, length = 9, median time = 1.066 s
algo=PDMPCHVSimple (brute-force), V = 70, length = 5, median time = 1.725 s
algo=PDMPCHVSimple (brute-force), V = 80, length = 3, median time = 2.911 s
algo=PDMPCHVSimple (brute-force), V = 90, length = 2, median time = 4.933 s
algo=PDMPCHVSimple (recursive), V = 1, length = 50, median time = 58.910 μs
algo=PDMPCHVSimple (recursive), V = 10, length = 50, median time = 331.473
μs
algo=PDMPCHVSimple (recursive), V = 20, length = 50, median time = 800.120
μs
algo=PDMPCHVSimple (recursive), V = 30, length = 50, median time = 1.562 ms
algo=PDMPCHVSimple (recursive), V = 40, length = 50, median time = 2.493 ms
algo=PDMPCHVSimple (recursive), V = 50, length = 50, median time = 3.640 ms
algo=PDMPCHVSimple (recursive), V = 60, length = 50, median time = 5.116 ms
algo=PDMPCHVSimple (recursive), V = 70, length = 50, median time = 7.088 ms
algo=PDMPCHVSimple (recursive), V = 80, length = 50, median time = 9.381 ms
algo=PDMPCHVSimple (recursive), V = 90, length = 50, median time = 12.194 m
s
algo=PDMPCHVFull, V = 1, length = 50, median time = 59.014 μs
algo=PDMPCHVFull, V = 10, length = 50, median time = 475.007 μs
algo=PDMPCHVFull, V = 20, length = 50, median time = 762.584 μs
algo=PDMPCHVFull, V = 30, length = 50, median time = 1.229 ms
algo=PDMPCHVFull, V = 40, length = 50, median time = 1.532 ms
algo=PDMPCHVFull, V = 50, length = 50, median time = 1.888 ms
algo=PDMPCHVFull, V = 60, length = 50, median time = 2.511 ms
algo=PDMPCHVFull, V = 70, length = 50, median time = 3.075 ms
algo=PDMPCHVFull, V = 80, length = 50, median time = 3.687 ms
algo=PDMPCHVFull, V = 90, length = 50, median time = 4.518 ms

let fig = plot(
        yscale = :log10,
        xlabel = "V",
        ylabel = "Time (ns)",
        legend_position = :outertopright,
)
    for (i, (algo, stepper, use_recursion, label)) in enumerate(algorithms)
        _bs, _Vs = [], []
        for (j, b) in enumerate(bs[i])
            if length(b) == 50
                push!(_bs, median(b.times))
                push!(_Vs, Vs[j])
            end
        end
        plot!(_Vs, _bs, label=label)
    end
    title!("Simulations, 50 samples: nodes × time")
end

References

[1] D. J. Daley and D. Vere-Jones. An Introduction to the Theory of Point Processes: Volume I: Elementary Theory and Methods. Probability and Its Applications, An Introduction to the Theory of Point Processes. Springer-Verlag, 2 edition. doi:10.1007/b97277.

[2] Patrick J. Laub, Young Lee, and Thomas Taimre. The Elements of Hawkes Processes. Springer International Publishing. doi:10.1007/978-3-030-84639-8.
