Single Pedulum Comparison

Solving single pendulums by DifferentialEquations.jl

In this notebook, we shall solve the single pendulum equation:

\[\ddot q = -\sin q,\]

where $q$ means the angle.

Hamiltonian:

\[H(q,p) = \frac{1}{2}p^2 - \cos q + 1.\]

Canonical equation:

\[\dot q = p, \quad \dot p = - \sin q.\]

Initial condition:

\[q(0) = 0, \quad p(0) = 2k.\]

Exact solution:

\[q(t) = 2\arcsin(k\,\mathrm{sn}(t,k)).\]

Maximum of $q(t)$:

\[\sin(q_{\max}/2) = k, \quad q_{\max} = \max\{q(t)\}.\]

Define $y(t)$ by

\[y(t) = \sin(q(t)/2) = k\,\mathrm{sn}(t,k), \quad y_{\max} = k.\]

# Single pendulums shall be solved numerically.
#
using OrdinaryDiffEq, Elliptic, Printf, DiffEqPhysics, Statistics
using OrdinaryDiffEqSymplecticRK

sol2q(sol) = [sol.u[i][j] for i in 1:length(sol.u), j in 1:(length(sol.u[1]) ÷ 2)]
function sol2p(sol)
    [sol.u[i][j] for i in 1:length(sol.u), j in (length(sol.u[1]) ÷ 2 + 1):length(sol.u[1])]
end
sol2tqp(sol) = (sol.t, sol2q(sol), sol2p(sol))

# The exact solutions of single pendulums can be expressed by the Jacobian elliptic functions.
#
sn(u, k) = Jacobi.sn(u, k^2) # the Jacobian sn function

# Use Plot.
#
using Plots

# Define the color list
colorlist = [
    "#1f77b4", "#ff7f0e", "#2ca02c", "#d62728", "#9467bd",
    "#8c564b", "#e377c2", "#7f7f7f", "#bcbd22", "#17becf"
]
cc(k) = colorlist[mod1(k, length(colorlist))]

# Function to plot the solution of a Hamiltonian problem
function plotsol(sol::ODESolution)
    local t, q, p
    t, q, p = sol2tqp(sol)
    local d = size(q)[2]
    p1 = plot(title = "Solution", xlabel = "t", grid = :on)
    for j in 1:d
        j_str = d > 1 ? "[$j]" : ""
        plot!(p1, t, q[:, j], color = cc(2j-1), label = "q$(j_str)", linewidth = 1)
        plot!(p1, t, p[:, j], color = cc(2j), label = "p$(j_str)",
            linewidth = 1, linestyle = :dash)
    end
    return p1
end

# Function to plot the solution on the 2D phase space
function plotsol2(sol::ODESolution)
    local t, q, p
    t, q, p = sol2tqp(sol)
    local d = size(q)[2]
    p2 = plot(title = "Phase Space", xlabel = "q", ylabel = "p", grid = :on)
    for j in 1:d
        j_str = d > 1 ? "[$j]" : ""
        plot!(p2, q[:, j], p[:, j], color = cc(j),
            label = "(q$(j_str), p$(j_str))", linewidth = 1)
    end
    return p2
end

# Function to plot the energy of a Hamiltonian problem
function plotenergy(H, sol::ODESolution)
    local t, q, p
    t, q, p = sol2tqp(sol)
    local energy = [H(q[i, :], p[i, :], nothing) for i in 1:size(q)[1]]
    p3 = plot(t, energy, label = "energy", color = "red", linewidth = 1,
        xlabel = "t", title = "Energy", grid = :on)
    stdenergy_str = @sprintf("%.3e", std(energy))
    title!("std(energy) = $stdenergy_str", fontsize = 10)
    return p3
end

# Function to compare the numerical and exact solutions of a single pendulum
function plotcomparison(k, sol::ODESolution)
    local t, q, p
    t, q, p = sol2tqp(sol)
    local y = sin.(q / 2)
    local y_exact = k * sn.(t, k) # the exact solution

    p4 = plot(t, y, label = "numerical", linewidth = 1, grid = :on,
        xlabel = "t", ylabel = "y = sin(q(t)/2)", title = "Comparison")
    plot!(p4, t, y_exact, label = "exact", linewidth = 1, linestyle = :dash)
    error_str = @sprintf("%.3e", maximum(abs.(y - y_exact)))
    title!("maximum(abs(numerical - exact)) = $error_str", fontsize = 10)
    return p4
end

# Plot solution and energy
function plotsolenergy(H, integrator, Δt, sol::ODESolution)
    integrator_str = replace("$integrator", r"^[^.]*\\." => "")

    p1 = plotsol(sol)
    p2 = plotsol2(sol)
    p3 = plotenergy(H, sol)

    suptitle = "===== $integrator_str, Δt = $Δt ====="
    plot(p1, p2, p3, layout = (3, 1), title = suptitle)
end

# Solve a single pendulum
function singlependulum(k, integrator, Δt; t0 = 0.0, t1 = 100.0)
    H(p, q, params) = p[1]^2 / 2 - cos(q[1]) + 1
    q0 = [0.0]
    p0 = [2k]
    prob = HamiltonianProblem(H, p0, q0, (t0, t1))

    integrator_str = replace("$integrator", r"^[^.]*\\." => "")
    @printf("%-25s", "$integrator_str:")
    sol = solve(prob, integrator, dt = Δt)
    @time sol = solve(prob, integrator, dt = Δt)

    sleep(0.1)

    p1 = plotsol(sol)
    p2 = plotsol2(sol)
    p3 = plotenergy(H, sol)
    p4 = plotcomparison(k, sol)

    suptitle = "===== $integrator_str, Δt = $Δt ====="
    plot(p1, p2, p3, p4, layout = (2, 2), title = suptitle)
end

singlependulum (generic function with 1 method)

Tests

# Single pendulum
using Plots
using OrdinaryDiffEq

function singlependulum(k, integrator, Δt; t0 = 0.0, t1 = 100.0)
    local H(p, q, params) = p[1]^2 / 2 - cos(q[1]) + 1  # Hamiltonian for single pendulum
    local q0 = [0.0]  # Initial position
    local p0 = [2k]   # Initial momentum
    local prob = HamiltonianProblem(H, p0, q0, (t0, t1))

    local integrator_str = replace("$integrator", r"^[^.]*\." => "")
    @printf("%-25s", "$integrator_str:")
    sol = solve(prob, integrator, dt = Δt)
    @time local sol = solve(prob, integrator, dt = Δt)

    sleep(0.1)

    # Create plots using Plots.jl
    p1 = plot(sol.t, map(x -> x[1], sol.u), label = "Position", title = "Position vs Time")
    p2 = plot(sol.t, map(x -> x[2], sol.u), label = "Momentum", title = "Momentum vs Time")
    p3 = plot(sol.t, map(p -> H(p[1], p[2], nothing), sol.u), label = "Energy", title = "Energy vs Time")
    p4 = plot(sol.t, map(x -> x[1] - k, sol.u), label = "Comparison", title = "Comparison Plot")

    # Combine all plots in a layout
    layout = @layout [a b; c d]
    plot(p1, p2, p3, p4, layout = layout, size = (1000, 800),
        title = "===== $integrator_str, Δt = $Δt =====")
end

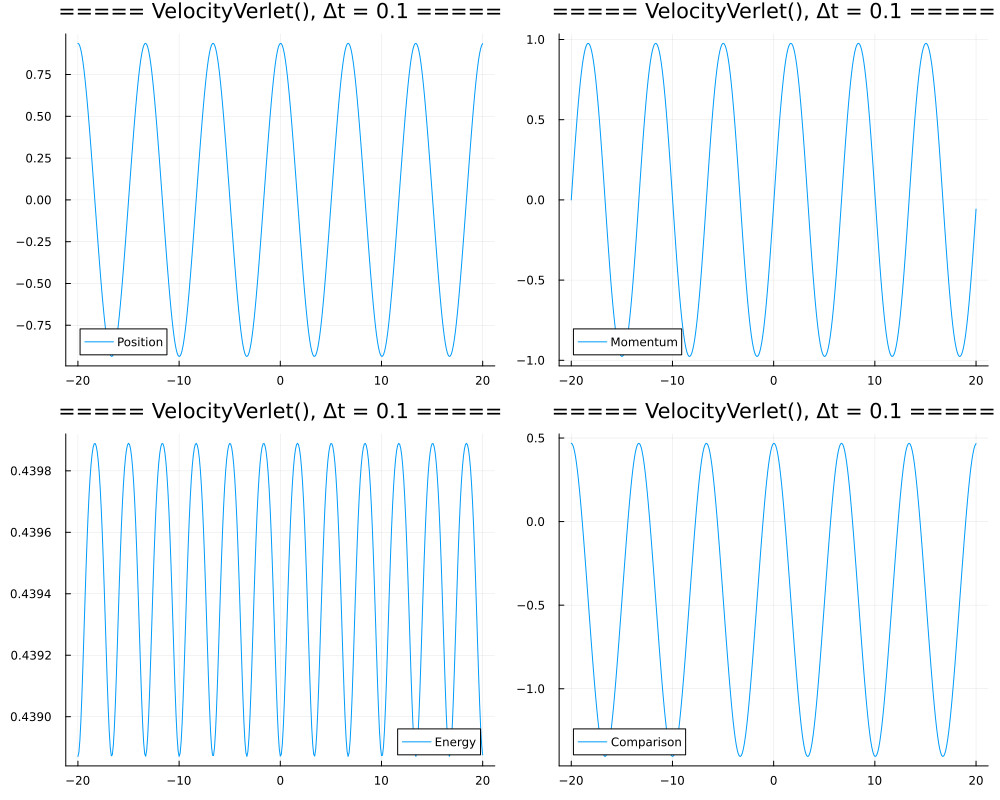

k = rand()
integrator = VelocityVerlet()
Δt = 0.1
singlependulum(k, integrator, Δt, t0 = -20.0, t1 = 20.0)

VelocityVerlet():          0.001171 seconds (7.71 k allocations: 261.898 Ki
B)

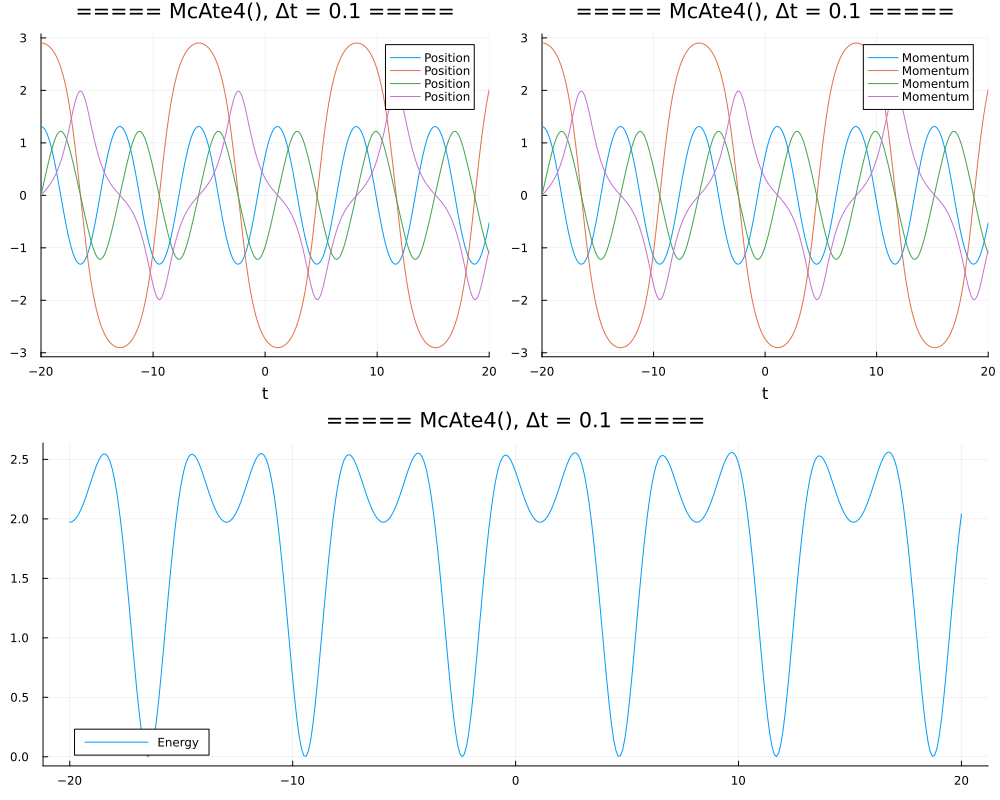

# Two single pendulums

using Plots
using OrdinaryDiffEq

function plotsolenergy(H, integrator, Δt, sol::ODESolution)
    local integrator_str = replace("$integrator", r"^[^.]*\." => "")

    # Create plots using Plots.jl
    p1 = plot(sol, label = "Position", title = "Position vs Time")
    p2 = plot(sol, label = "Momentum", title = "Momentum vs Time")
    p3 = plot(sol.t, map(p -> H(p[2], p[3], nothing), sol.u), label = "Energy", title = "Energy vs Time")

    # Combine all plots in a layout
    layout = @layout [a b; c]
    plot(p1, p2, p3, layout = layout, size = (1000, 800),
        title = "===== $integrator_str, Δt = $Δt =====")
end

H(q, p, param) = sum(p .^ 2 / 2 .- cos.(q) .+ 1)
q0 = pi * rand(2)
p0 = zeros(2)
t0, t1 = -20.0, 20.0
prob = HamiltonianProblem(H, q0, p0, (t0, t1))

integrator = McAte4()
Δt = 0.1
sol = solve(prob, integrator, dt = Δt)
@time sol = solve(prob, integrator, dt = Δt)

sleep(0.1)
plotsolenergy(H, integrator, Δt, sol)

0.004798 seconds (45.33 k allocations: 1.954 MiB)

Comparison of symplectic Integrators

SymplecticIntegrators = [
    SymplecticEuler(),
    VelocityVerlet(),
    VerletLeapfrog(),
    PseudoVerletLeapfrog(),
    McAte2(),
    Ruth3(),
    McAte3(),
    CandyRoz4(),
    McAte4(),
    CalvoSanz4(),
    McAte42(),
    McAte5(),
    Yoshida6(),
    KahanLi6(),
    McAte8(),
    KahanLi8(),
    SofSpa10()
]

k = 0.999
Δt = 0.1
for integrator in SymplecticIntegrators
    singlependulum(k, integrator, Δt)
end

SymplecticEuler():         0.002843 seconds (24.12 k allocations: 786.992 K
iB)
VelocityVerlet():          0.002089 seconds (19.11 k allocations: 646.273 K
iB)
VerletLeapfrog():          0.002823 seconds (24.11 k allocations: 786.898 K
iB)
PseudoVerletLeapfrog():    0.004254 seconds (34.11 k allocations: 1.043 MiB
)
McAte2():                  0.003206 seconds (39.11 k allocations: 1.181 MiB
)
Ruth3():                   0.006940 seconds (49.11 k allocations: 1.455 MiB
)
McAte3():                  0.006940 seconds (49.11 k allocations: 1.455 MiB
)
CandyRoz4():               0.009175 seconds (59.11 k allocations: 1.730 MiB
)
McAte4():                  0.008601 seconds (59.11 k allocations: 1.730 MiB
)
CalvoSanz4():              0.008832 seconds (64.11 k allocations: 1.868 MiB
)
McAte42():                 0.009306 seconds (69.11 k allocations: 2.005 MiB
)
McAte5():                  0.010488 seconds (79.11 k allocations: 2.280 MiB
)
Yoshida6():                0.011598 seconds (94.11 k allocations: 2.692 MiB
)
KahanLi6():                0.010998 seconds (114.11 k allocations: 3.242 Mi
B)
McAte8():                  0.017425 seconds (174.11 k allocations: 4.890 Mi
B)
KahanLi8():                0.019348 seconds (194.11 k allocations: 5.440 Mi
B)
SofSpa10():                0.036190 seconds (374.11 k allocations: 10.386 M
iB)

k = 0.999
Δt = 0.01
for integrator in SymplecticIntegrators[1:4]
    singlependulum(k, integrator, Δt)
end

SymplecticEuler():         0.014730 seconds (240.12 k allocations: 7.635 Mi
B)
VelocityVerlet():          0.009636 seconds (190.11 k allocations: 6.262 Mi
B)
VerletLeapfrog():          0.062434 seconds (240.11 k allocations: 7.635 Mi
B, 66.20% gc time)
PseudoVerletLeapfrog():    0.027005 seconds (340.11 k allocations: 10.382 M
iB)

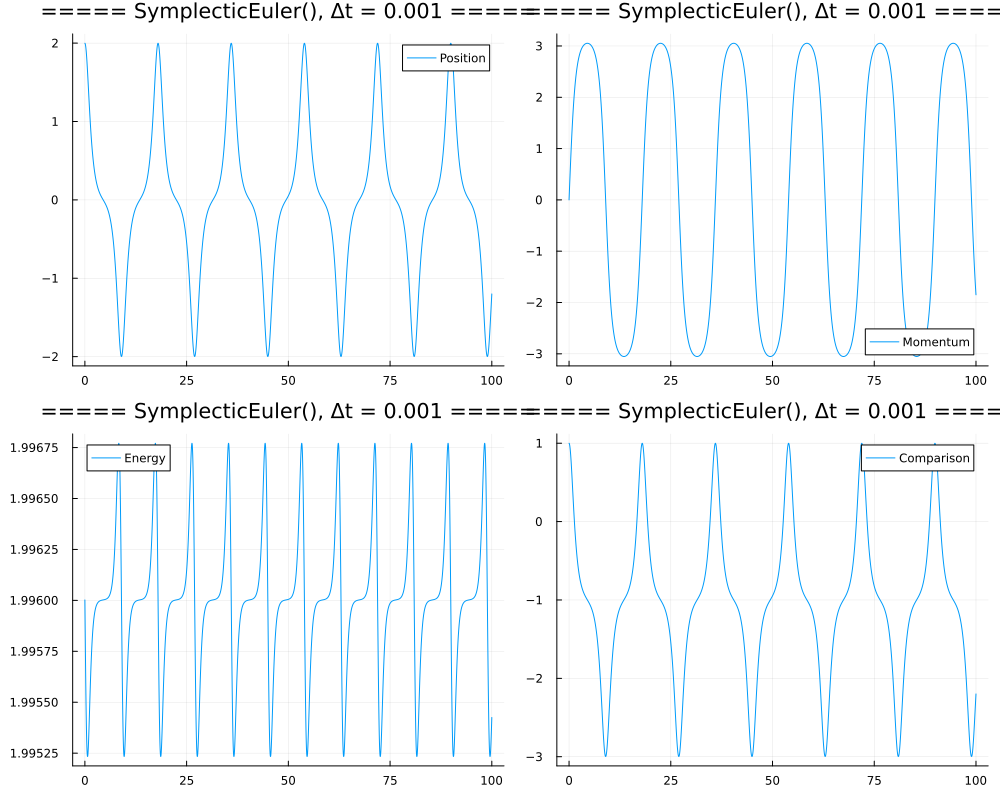

k = 0.999
Δt = 0.001
singlependulum(k, SymplecticEuler(), Δt)

SymplecticEuler():         0.403384 seconds (2.40 M allocations: 76.300 MiB
, 34.58% gc time)

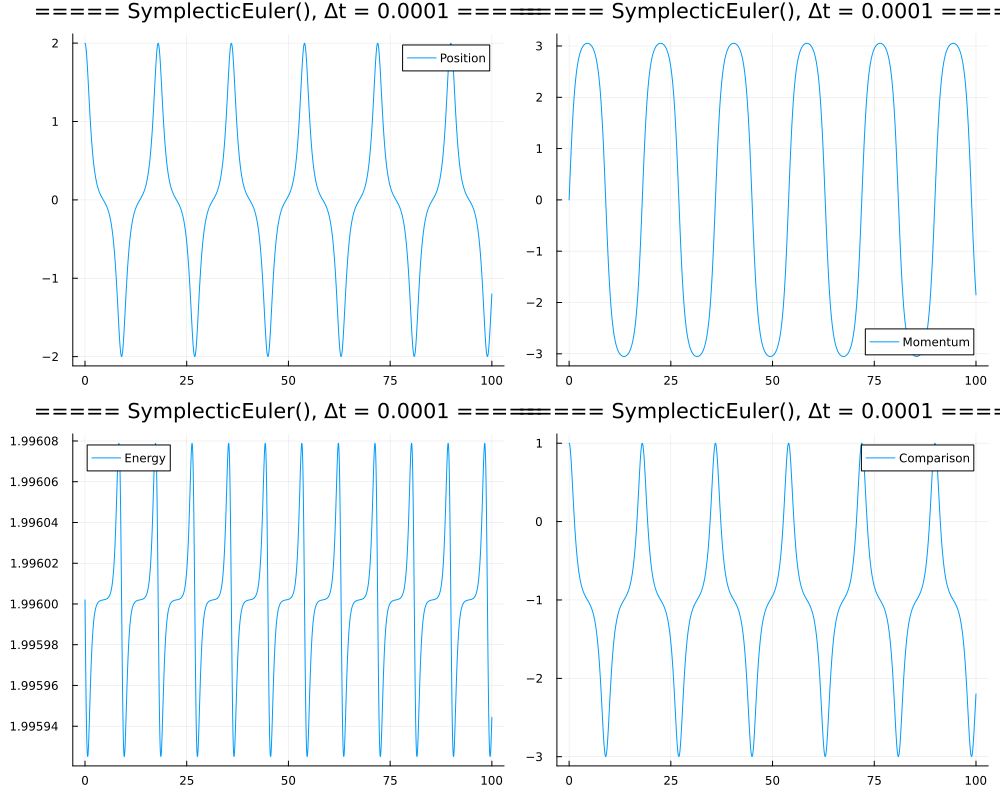

k = 0.999
Δt = 0.0001
singlependulum(k, SymplecticEuler(), Δt)

SymplecticEuler():         3.563311 seconds (24.00 M allocations: 762.945 M
iB, 16.29% gc time)
