Neural ODE Parameter Estimation with GPU-PSO

A 12-parameter SimpleChains network is fit to spiral ODE data (30 points on (0, 1.5)) so that the neural ODE du/dt = NN(u, θ) reproduces the data. The problem is the neural ODE experiment (Section 3.2) of the ParallelParticleSwarms.jl workshop paper (ParallelParticleSwarms.jl#76), extended with the library's other PSO variants and compared at equal wall-clock time.

Six optimizers:

  • Gradient-based: Adam and LBFGS, trained through the ODE solve with QuadratureAdjoint.
  • PSO: SerialPSO on the CPU; GPU-PSO through parameter_estim_ode! (all particles' ODEs solved as one GPU ensemble); SyncPSOKernel and HybridPSO-LBFGS on a fixed-step RK4 loss that runs inside the GPU kernels. The last two share loss and swarm, so their difference isolates the L-BFGS polish.

Protocol

Every optimizer gets the same wall-clock budget, BUDGET seconds, enforced against the clock: Adam and L-BFGS stop through a callback, the GPU swarms are advanced in chunks with the best cost read back between chunks, and HybridPSO reserves its measured polish time out of the budget. SerialPSO has no resumable cache, so its iteration count is calibrated from a timed run instead. An optimizer that converges early keeps its early result.

Each optimizer runs from length(SEEDS) fresh starts. The table reports, per optimizer:

  • Common loss (median, best, worst over seeds): the returned parameters re-evaluated under one reference loss, Tsit5 in Float64 at abstol = reltol = 1e-10. This is the only column that ranks optimizers.
  • Own objective of the median run: the optimizer's own solver at the parameters it returned. Every optimizer scores candidates with some ODE solver, and a swarm will exploit that solver's error if it can. The gap to the common loss is checked after the runs.
  • Iterations completed and evaluations (ODE solves) performed, and the median time.

All GPU swarms use 10,000 particles; SerialPSO uses 512. HybridPSO is built on the same SyncPSOKernel swarm, so its row is that swarm plus an L-BFGS polish of every particle, and the difference between the two rows is what the polish adds.

Setup

using Random; Random.seed!(0)
using SimpleChains, StaticArrays, OrdinaryDiffEq, SciMLSensitivity
using Optimization, OptimizationOptimisers, OptimizationOptimJL, Optimisers
using ParallelParticleSwarms, DiffEqGPU, CUDA, KernelAbstractions, Adapt
using Statistics, Printf, CairoMakie
CairoMakie.activate!()

const SciMLBase = Optimization.SciMLBase
const BACKEND   = CUDABackend()
CUDA.allowscalar(false)
println("GPU: ", CUDA.name(CUDA.device()))

const NPARAMS  = 12
const DATASIZE = 30
const BOX      = 10.0f0
const BUDGET   = 60.0           # seconds per optimizer per run
const SEEDS    = 1:5

const NPART_GPU    = 10_000     # GPU-PSO, SyncPSOKernel, HybridPSO-LBFGS
const NPART_CPU    = 512        # SerialPSO
const CHUNK_KERNEL = 50         # kernel-PSO iterations between clock checks
const CHUNK_GPUPSO = 1          # GPU-PSO iterations between clock checks
const CAL_ITERS    = 10         # SerialPSO calibration run
const LOCAL_MAXITERS = 10       # Hybrid L-BFGS iterations per particle
GPU: Tesla V100-PCIE-32GB
10

Problem

const U0    = @SVector Float32[2.0, 0.0]
const TSPAN = (0.0f0, 1.5f0)
tsteps = range(TSPAN[1], TSPAN[2], length = DATASIZE)

trueODE(u, p, t) = (((u .^ 3)' * @SMatrix Float32[-0.1 2.0; -2.0 -0.1])')
data = Array(solve(ODEProblem(trueODE, U0, TSPAN), Tsit5(), saveat = tsteps))

sc = SimpleChain(static(2), Activation(x -> x .^ 3),
    TurboDense{true}(tanh, static(2)), TurboDense{true}(identity, static(2)))
p_nn     = Vector{Float32}(SimpleChains.init_params(sc; rng = Random.default_rng()))
p_static = SVector{NPARAMS, Float32}(p_nn...)

# Hand-written forward for the GPU paths and the reference: SimpleChains emits CPU
# intrinsics that do not lower to PTX.
function mlp(u, θ)
    v  = u .^ 3
    h1 = tanh(θ[1] * v[1] + θ[3] * v[2] + θ[5])
    h2 = tanh(θ[2] * v[1] + θ[4] * v[2] + θ[6])
    typeof(v)(θ[7] * h1 + θ[9] * h2 + θ[11], θ[8] * h1 + θ[10] * h2 + θ[12])
end
for _ in 1:8
    u = @SVector rand(Float32, 2)
    @assert sc(u, p_static) ≈ mlp(u, p_static)
end

# Training loss (Adam, L-BFGS, SerialPSO): adaptive Tsit5 in Float32, same tolerances as GPU-PSO.
nn_ode(u, p, t) = convert(typeof(u), sc(u, p))
sprob_nn = ODEProblem(nn_ode, U0, TSPAN)
predict(p) = Array(solve(sprob_nn, Tsit5(); p, saveat = tsteps, abstol = 1.0f-6, reltol = 1.0f-5,
    sensealg = QuadratureAdjoint(autojacvec = ZygoteVJP())))
loss_tsit5(p) = sum(abs2, data .- predict(p))

asvec(u) = u isa AbstractVector ? u : u[]

# Reference loss: Float64, tight tolerances. Scores only; nothing trains on it.
const DATA64   = Float64.(data)
const TSTEPS64 = Float64.(tsteps)
ref_ode(u, p, t) = mlp(u, p)
ref_prob = ODEProblem{false}(ref_ode, Float64.(U0), Float64.(TSPAN), SVector{NPARAMS, Float64}(p_nn...))
function ref_solve(u)
    p = SVector{NPARAMS, Float64}(Float64.(asvec(u))...)
    Array(solve(ref_prob, Tsit5(); p, saveat = TSTEPS64, abstol = 1e-10, reltol = 1e-10))
end
common(u) = sum(abs2, DATA64 .- ref_solve(u))

lb_s = @SVector fill(-BOX, NPARAMS)
ub_s = @SVector fill(BOX, NPARAMS)

@printf "Training loss at start: %.4f   Reference loss at start: %.4f\n" loss_tsit5(p_static) common(p_static)
Training loss at start: 164.2561   Reference loss at start: 164.2560

Optimizers

Every runner takes a deadline and returns (; u, own, iters, evals).

Gradient-based

optf     = OptimizationFunction((x, p) -> loss_tsit5(x), Optimization.AutoZygote())
optprob  = OptimizationProblem(optf, p_nn)
moptprob = OptimizationProblem(optf, MArray{Tuple{NPARAMS}}(p_nn...))

function run_gradient(prob, opt, deadline; evals)
    n  = Ref(0)
    cb = (state, l) -> (n[] += 1; time() >= deadline)
    sol = solve(prob, opt; maxiters = 10^7, callback = cb)
    u = asvec(sol.u)
    (; u, own = Float64(loss_tsit5(u)), iters = n[], evals = evals(sol, n[]))
end
run_adam(deadline)  = run_gradient(optprob, Adam(0.05), deadline; evals = (sol, n) -> n)
run_lbfgs(deadline) = run_gradient(moptprob, LBFGS(), deadline; evals = (sol, n) -> sol.original.f_calls)
run_lbfgs (generic function with 1 method)

SerialPSO

const NEVALS = Ref(0)
counted_loss(x, p) = (NEVALS[] += 1; loss_tsit5(x))
s_prob = OptimizationProblem{false}(OptimizationFunction{false}(counted_loss, SciMLBase.NoAD()),
    p_static, nothing; lb = lb_s, ub = ub_s)

serial_solve(m) = solve(s_prob, ParallelParticleSwarms.SerialPSO(NPART_CPU); maxiters = m)

const SERIAL_ITERS = Ref(1)                     # set in warm-up
function run_serial(deadline)
    NEVALS[] = 0
    sol = serial_solve(SERIAL_ITERS[])
    (; u = asvec(sol.u), own = Float64(first(sol.objective)), iters = SERIAL_ITERS[], evals = NEVALS[])
end
run_serial (generic function with 1 method)

GPU-PSO through parameter_estim_ode! (the paper's method)

Each iteration solves all particles' ODEs as one GPU ensemble (adaptive GPUTsit5) and reduces the loss on device.

nn_fn(u, p, t) = mlp(u, p)
prob_nn  = ODEProblem{false}(nn_fn, U0, TSPAN, p_static)
soptprob = OptimizationProblem((u, p) -> eltype(u)(Inf), p_static, nothing; lb = lb_s, ub = ub_s)  # box only
gpu_data = adapt(BACKEND, [SVector{2, Float32}(@view data[:, i]) for i in 1:DATASIZE])
improb   = DiffEqGPU.make_prob_compatible(prob_nn)
prob_func(prob, particle) = remake(prob, p = particle.position)

function make_cache()
    gbest, particles = ParallelParticleSwarms.init_particles(
        soptprob, ParallelParticleSwarms.ParallelPSOKernel(NPART_GPU), typeof(p_static))
    (; losses = adapt(BACKEND, ones(Float32, NPART_GPU)), gpu_particles = adapt(BACKEND, particles),
       gpu_data, gbest, probs = adapt(BACKEND, fill(improb, NPART_GPU)))
end

function run_gpupso(deadline)
    cache, iters = make_cache(), 0
    gbest = cache.gbest
    while time() < deadline
        gbest = ParallelParticleSwarms.parameter_estim_ode!(prob_nn, cache, lb_s, ub_s, Val(true);
            saveat = tsteps, dt = 0.01f0, abstol = 1.0f-6, reltol = 1.0f-5, maxiters = CHUNK_GPUPSO, prob_func)
        cache = (; cache..., gbest)
        iters += CHUNK_GPUPSO
    end
    (; u = gbest.position, own = Float64(gbest.cost), iters, evals = iters * NPART_GPU)
end
run_gpupso (generic function with 1 method)

SyncPSOKernel and HybridPSO-LBFGS on a kernel-compatible loss

These evaluate the objective inside GPU kernels, so the ODE solve is a fixed-step RK4 with NSUB substeps per data interval. Fixed-step error grows with |θ| and a swarm will exploit it, so NSUB is set high and the agreement check after the runs validates it. HybridPSO polishes every particle with L-BFGS after the swarm.

@inline function rk4(u, θ, h)
    k1 = mlp(u, θ);                k2 = mlp(u .+ h / 2 .* k1, θ)
    k3 = mlp(u .+ h / 2 .* k2, θ); k4 = mlp(u .+ h .* k3, θ)
    u .+ h / 6 .* (k1 .+ 2 .* k2 .+ 2 .* k3 .+ k4)
end

const NSUB = 32

struct RK4Loss{U, D, T}   # constants live here; `p = nothing` is required by the in-kernel L-BFGS
    u0::U; data::D; h::T
end
function (l::RK4Loss)(θ, p)
    u = SVector{2, eltype(θ)}(l.u0)
    loss = sum(abs2, u .- l.data[1])
    for i in 2:DATASIZE
        for _ in 1:NSUB; u = rk4(u, θ, l.h); end
        loss += sum(abs2, u .- l.data[i])
    end
    loss
end

loss_rk4 = RK4Loss(U0, ntuple(i -> SVector{2, Float32}(data[:, i]), DATASIZE), Float32(step(tsteps)) / NSUB)
k_prob   = OptimizationProblem{false}(OptimizationFunction{false}(loss_rk4, SciMLBase.NoAD()),
    p_static, nothing; lb = lb_s, ub = ub_s)

sync_opt   = ParallelParticleSwarms.ParallelSyncPSOKernel(NPART_GPU; backend = BACKEND)
hybrid_opt = ParallelParticleSwarms.HybridPSO(; backend = BACKEND, pso = sync_opt)

function chunked!(cache, deadline)            # advance a kernel-PSO cache until the deadline
    iters, sol = 0, nothing
    while time() < deadline
        sol = SciMLBase.solve!(cache; maxiters = CHUNK_KERNEL)
        cache.gbest = ParallelParticleSwarms.SPSOGBest(sol.u, first(sol.objective))
        iters += CHUNK_KERNEL
    end
    sol, iters
end
result(sol, iters, evals) = (; u = asvec(sol.u), own = Float64(first(sol.objective)), iters, evals)

function run_sync(deadline)
    sol, iters = chunked!(SciMLBase.init(k_prob, sync_opt), deadline)
    result(sol, iters, iters * NPART_GPU)
end

polish(cache) = SciMLBase.solve!(cache; maxiters = 0, local_maxiters = LOCAL_MAXITERS, abstol = 1.0f-8, reltol = 1.0f-8)
const POLISH_TIME = Ref(0.0)                  # set in warm-up
function run_hybrid(deadline)
    cache = SciMLBase.init(k_prob, hybrid_opt)
    _, iters = chunked!(cache.pso_cache, deadline - POLISH_TIME[])
    result(polish(cache), iters, missing)
end
run_hybrid (generic function with 1 method)

Runs

One warm-up per optimizer absorbs compilation; for HybridPSO it runs a full-budget swarm and times the polish on it, for SerialPSO it calibrates the iteration count. Each seed then gets one run against the budget; the recorded solution is the median-loss run.

results = Dict{String, Any}()

function warmup!(name, run)
    Random.seed!(0)
    if name == "HybridPSO-LBFGS"
        cache = SciMLBase.init(k_prob, hybrid_opt)
        chunked!(cache.pso_cache, time() + BUDGET)    # full-length swarm, as in the real runs
        polish(cache)
        POLISH_TIME[] = @elapsed polish(cache)
    elseif name == "SerialPSO"
        serial_solve(CAL_ITERS)
        t = @elapsed serial_solve(CAL_ITERS)
        m = max(1, round(Int, BUDGET / (t / CAL_ITERS)))
        t = @elapsed serial_solve(m)
        SERIAL_ITERS[] = max(1, round(Int, m * BUDGET / t))
    else
        run(time() + 2.0)
    end
end

function record!(name, run)
    warmup!(name, run)
    rs, losses, times = [], Float64[], Float64[]
    for s in SEEDS
        Random.seed!(s)
        t = @elapsed r = run(time() + BUDGET)
        push!(rs, r); push!(losses, common(r.u)); push!(times, t)
    end
    i = sortperm(losses)[(length(losses) + 1) ÷ 2]
    results[name] = (; rs[i]..., losses, time = median(times))
end

record!("Adam",            run_adam)
record!("L-BFGS",          run_lbfgs)
record!("SerialPSO",       run_serial)
record!("GPU-PSO",         run_gpupso)
record!("SyncPSOKernel",   run_sync)
record!("HybridPSO-LBFGS", run_hybrid)
nothing

Results

const ORDER = ["Adam", "L-BFGS", "SerialPSO", "GPU-PSO", "SyncPSOKernel", "HybridPSO-LBFGS"]

@printf "budget per run: %.0f s, %d seeds; particles: GPU %d, Serial %d\n\n" BUDGET length(SEEDS) NPART_GPU NPART_CPU
println(rpad("optimizer", 16), lpad("median", 9), lpad("best", 9), lpad("worst", 9),
        lpad("own", 9), lpad("iters", 7), lpad("evals", 10), lpad("time(s)", 8))
for name in ORDER
    r  = results[name]
    ev = ismissing(r.evals) ? "n/a" : string(r.evals)
    @printf "%-16s%9.4f%9.4f%9.4f%9.4f%7d%10s%8.1f\n" name median(r.losses) minimum(r.losses) maximum(r.losses) r.own r.iters ev r.time
end

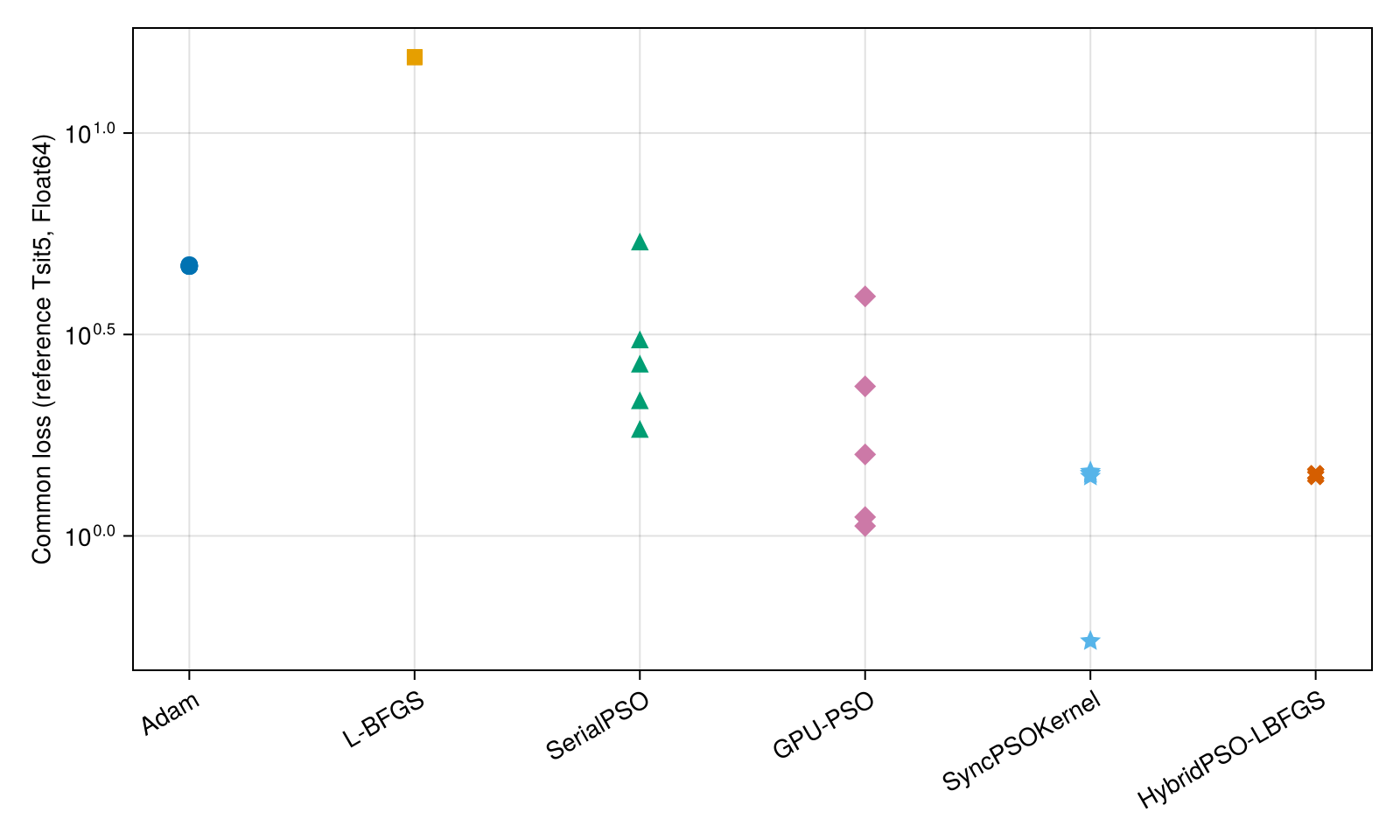

budget per run: 60 s, 5 seeds; particles: GPU 10000, Serial 512

optimizer          median     best    worst      own  iters     evals time(
s)
Adam               4.6750   4.6712   4.7060   4.6731   1442      1442    60
.0
L-BFGS            15.4291  15.4291  15.4291  15.4291    159       444    42
.4
SerialPSO          2.6325   1.8125   5.2911   2.6323    119     61443    57
.8
GPU-PSO            1.5930   1.0584   3.9316   1.4096    118   1180000    60
.6
SyncPSOKernel      1.4267   0.5482   1.4444   1.4266  59700 597000000    60
.0
HybridPSO-LBFGS    1.4267   1.4041   1.4267   1.4266  56400       n/a    60
.0

Integrator agreement

Own objective vs. reference loss at the median run's returned parameters. A gap above 10% means the optimizer was minimizing solver error rather than the ODE fit.

const GAP_TOL = 0.10
println(rpad("optimizer", 18), lpad("own", 12), lpad("reference", 12), lpad("rel. gap", 10))
for name in ORDER
    r   = results[name]
    ref = common(r.u)
    gap = abs(r.own - ref) / ref
    @printf "%-18s%12.4f%12.4f%9.1f%%%s\n" name r.own ref 100gap (gap > GAP_TOL ? "   <-- exceeds tolerance" : "")
end
optimizer                  own   reference  rel. gap
Adam                    4.6731      4.6750      0.0%
L-BFGS                 15.4291     15.4291      0.0%
SerialPSO               2.6323      2.6325      0.0%
GPU-PSO                 1.4096      1.5930     11.5%   <-- exceeds toleranc
e
SyncPSOKernel           1.4266      1.4267      0.0%
HybridPSO-LBFGS         1.4266      1.4267      0.0%

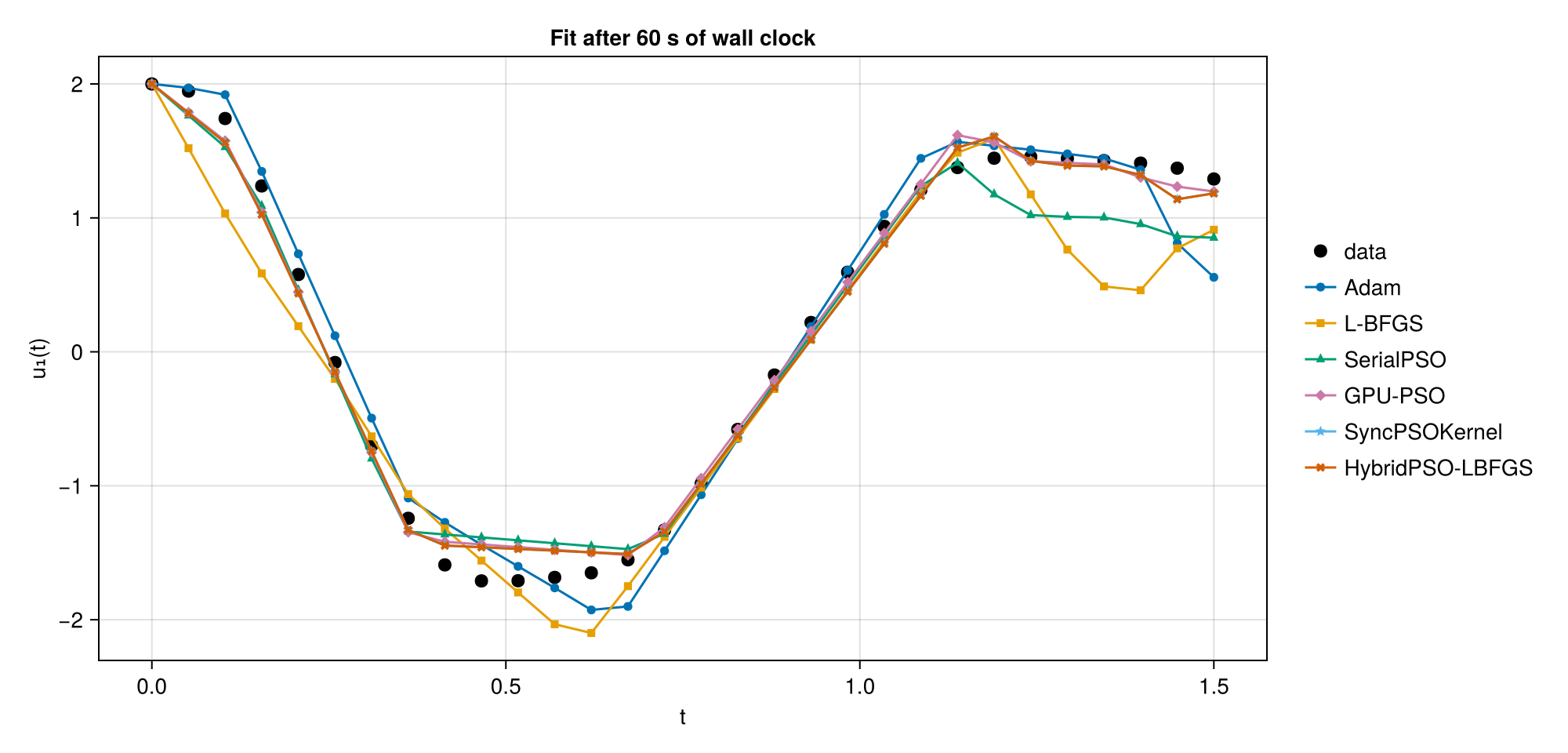

Fitted trajectories

fig = Figure(size = (1000, 480))
ax  = Axis(fig[1, 1]; xlabel = "t", ylabel = "u₁(t)", title = @sprintf("Fit after %.0f s of wall clock", BUDGET))
scatter!(ax, tsteps, data[1, :]; label = "data", color = :black, markersize = 12)
markers = [:circle, :rect, :utriangle, :diamond, :star5, :xcross]
for (i, name) in enumerate(ORDER)
    scatterlines!(ax, tsteps, ref_solve(results[name].u)[1, :]; label = name,
        marker = markers[i], markersize = 8, linewidth = 1.5)
end
Legend(fig[1, 2], ax; framevisible = false)
fig

Common loss across seeds

fig = Figure(size = (800, 480))
ax  = Axis(fig[1, 1]; yscale = log10, ylabel = "Common loss (reference Tsit5, Float64)",
    xticks = (1:length(ORDER), ORDER), xticklabelrotation = pi / 6)
for (i, name) in enumerate(ORDER)
    l = results[name].losses
    scatter!(ax, fill(i, length(l)), max.(l, 1e-8); marker = markers[i], markersize = 14)
end
fig
