EGFR Network Benchmark

using JumpProcesses, Plots, StableRNGs, BenchmarkTools, ReactionNetworkImporters,
      StatsPlots, Catalyst

We will benchmark the aggregators of JumpProcesses on a epidermal growth factor receptor signaling network (356 species, 3749 reactions)[1], modeled using Catalyst.jl[2].

Let's first look at how the model equilibriates to make sure we get consistent results for all the methods. Let's plot the dimer concentration as a function of time using each of the different stochastic simulation algorithms.

tf = 12.0
rng = StableRNG(53124)
algs = [NRM(), CCNRM(), DirectCR(), RSSACR()]
egfr_net = complete(loadrxnetwork(BNGNetwork(), joinpath(@__DIR__, "Data/egfr_net.net")))
egfr_u0 = Catalyst.get_u0_map(egfr_net)
egfr_parameters = Catalyst.get_parameter_map(egfr_net)

plt = plot(title = "Dimer concentrations")
for alg in algs
    jprob = JumpProblem(
        egfr_net, egfr_u0, (0.0, tf), egfr_parameters;
        aggregator = alg, u0_eltype = Int64
    )
    sol = solve(jprob, SSAStepper(), saveat = tf/200)
    plot!(plt, sol, idxs = :Dimers, label = "$alg")
end
plot!(plt)
Scanning blocks...done
Parsing parameters...done
Creating parameters...done
Parsing species...done
Creating variables...done
Setting up expression bindings...done
Parsing groups...done
Parsing functions...done
Parsing and adding reactions...done

These results seem pretty reasonable - it seems like we're getting the same dimer concentration curve for each method.

Model Benchmark

We define a function to benchmark the model and then plot the results in a benchmark. The goal is to see how the SSAs perform relative to each other.

function benchmark_and_bar_plot(model, end_time, algs)
    times = Vector{Float64}()
    alg_names = ["$s"[15:(end - 2)] for s in algs]
    u0 = Catalyst.get_u0_map(model)
    parameters = Catalyst.get_parameter_map(model)

    benchmarks = Vector{BenchmarkTools.Trial}(undef, length(algs))
    for (i, alg) in enumerate(algs)
        alg_name = alg_names[i]
        println("Benchmarking $alg_name")
        jprob = JumpProblem(
            model, u0, (0.0, end_time), parameters;
            aggregator = alg, rng, save_positions = (false, false), u0_eltype = Int64
        )

        b = @benchmarkable solve($jprob; saveat = $end_time) samples=5 seconds=7200
        bm = run(b)
        push!(times, median(bm).time/1e9)
    end

    bar(alg_names, times, xlabel = "Algorithm", ylabel = "Average Time (s)",
        title = "SSA Runtime for EGFR network", legend = false)
end
benchmark_and_bar_plot (generic function with 1 method)

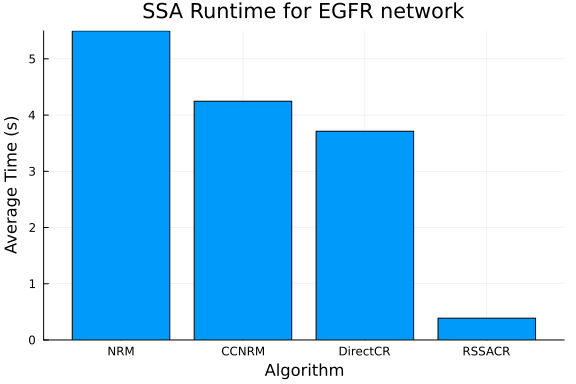

Now we benchmark the EGFR network on the four algorithms and plot the results.

tf = 12.0
rng = StableRNG(53124)
algs = [NRM(), CCNRM(), DirectCR(), RSSACR()]

plt = benchmark_and_bar_plot(egfr_net, tf, algs)
plt
Benchmarking NRM
Benchmarking CCNRM
Benchmarking DirectCR
Benchmarking RSSACR

References

Appendix

These benchmarks are a part of the SciMLBenchmarks.jl repository, found at: https://github.com/SciML/SciMLBenchmarks.jl. For more information on high-performance scientific machine learning, check out the SciML Open Source Software Organization https://sciml.ai.

To locally run this benchmark, do the following commands:

using SciMLBenchmarks
SciMLBenchmarks.weave_file("benchmarks/Jumps","EGFR_Benchmark.jmd")
