RADAR5 Robertson Work-Precision Diagrams

RADAR5 Robertson Chemical Reaction

This is a stiff delay differential equation model of a chemical reaction with a steady state solution, taken from the RADAR5 test suite by Guglielmi and Hairer. The system has dimension 3 with one constant delay.

\[u_1'(t) = -a \, u_1(t) + b \, u_2(t - \tau) \, u_3(t)\]

\[u_2'(t) = a \, u_1(t) - b \, u_2(t - \tau) \, u_3(t) - c \, u_2(t)^2\]

\[u_3'(t) = c \, u_2(t)^2\]

for $t \in [0, 1]$ with initial conditions $u_1(0) = 1$, $u_2(t) = 0$ for $t \in [-\tau, 0]$, and $u_3(0) = 0$, where $a = 0.04$, $b = 10000$, $c = 3 \times 10^7$, and $\tau = 0.01$.

This is the DDE analogue of the classic Robertson ODE problem. The extreme stiffness arises from the ratio $c/a = 7.5 \times 10^8$ between the fastest and slowest time scales. In the original RADAR5 formulation the problem is integrated up to $t = 10^{10}$, but this is currently not achievable with the method of steps approach in DelayDiffEq.jl. We benchmark on the interval $[0, 1]$ which already demonstrates the stiffness challenges.

References

Guglielmi, N. and Hairer, E. (2001). Implementing Radau IIA methods for stiff delay differential equations, Computing (67), pp. 1-12.

using DelayDiffEq, DiffEqDevTools, DDEProblemLibrary, Plots
using OrdinaryDiffEqCore: IController
using OrdinaryDiffEqLowOrderRK, OrdinaryDiffEqRosenbrock, OrdinaryDiffEqSDIRK,
    OrdinaryDiffEqTsit5
import DDEProblemLibrary: prob_dde_RADAR5_robertson
gr()

Plots.GRBackend()

Problem Setup

We use a truncated time span of $[0, 1]$ for benchmarking:

prob = remake(prob_dde_RADAR5_robertson; tspan = (0.0, 1.0))

DDEProblem with uType Vector{Float64} and tType Float64. In-place: true
Non-trivial mass matrix: false
timespan: (0.0, 1.0)
u0: 3-element Vector{Float64}:
 1.0
 0.0
 0.0

Reference Solution

Due to the extreme stiffness and the small scale of the second component ($u_2 \sim O(10^{-5})$), we use component-wise absolute tolerances to compute the reference solution:

sol = solve(prob, MethodOfSteps(Rodas5P());
    reltol = 1e-14, abstol = [1e-14, 1e-20, 1e-14], dt = 1e-6)
test_sol = TestSolution(sol)

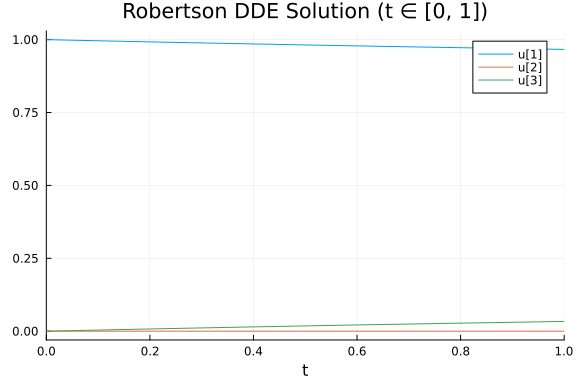

plot(sol; title = "Robertson DDE Solution (t ∈ [0, 1])")

High Tolerances

Rosenbrock methods

abstols = 1.0 ./ 10.0 .^ (4:7)
reltols = 1.0 ./ 10.0 .^ (1:4)

setups = [Dict(:alg => MethodOfSteps(Rosenbrock23())),
    Dict(:alg => MethodOfSteps(Rodas4())),
    Dict(:alg => MethodOfSteps(Rodas5())),
    Dict(:alg => MethodOfSteps(Rodas5P()))]
names = ["Rosenbrock23", "Rodas4", "Rodas5", "Rodas5P"]
wp = WorkPrecisionSet(prob, abstols, reltols, setups;
    names = names, appxsol = test_sol, maxiters = Int(1e5), error_estimate = :final,
    dt = 1e-6)

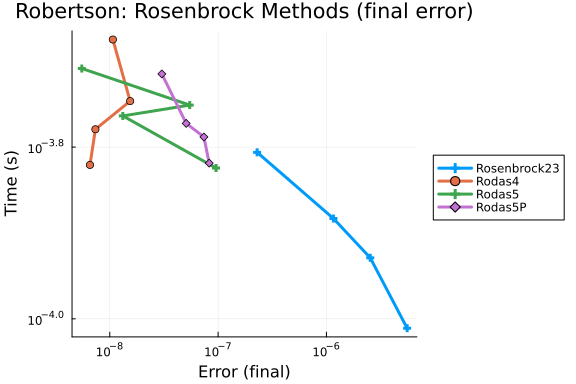

plot(wp; title = "Robertson: Rosenbrock Methods (final error)")

wp = WorkPrecisionSet(prob, abstols, reltols, setups;
    names = names, appxsol = test_sol, maxiters = Int(1e5), error_estimate = :L2,
    dt = 1e-6)

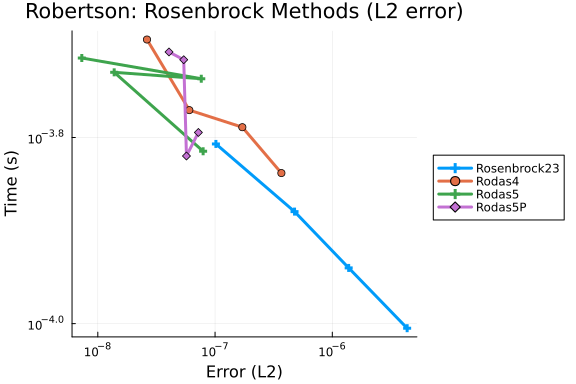

plot(wp; title = "Robertson: Rosenbrock Methods (L2 error)")

SDIRK methods

setups = [Dict(:alg => MethodOfSteps(TRBDF2())),
    Dict(:alg => MethodOfSteps(SDIRK2()),
        :controller => IController(SDIRK2(); qmax = 10, qmax_first_step = 10)),
    Dict(:alg => MethodOfSteps(KenCarp4()))]
names = ["TRBDF2", "SDIRK2", "KenCarp4"]
wp = WorkPrecisionSet(prob, abstols, reltols, setups;
    names = names, appxsol = test_sol, maxiters = Int(1e5), error_estimate = :final,
    dt = 1e-6)

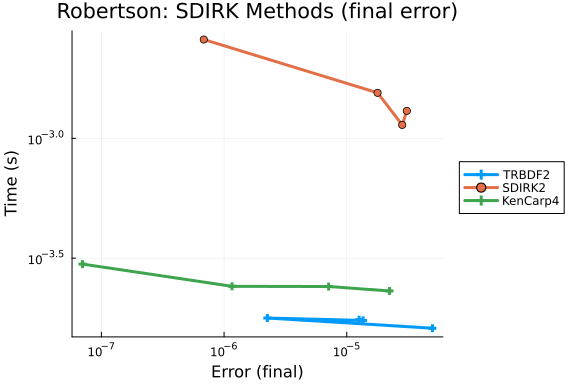

plot(wp; title = "Robertson: SDIRK Methods (final error)")

wp = WorkPrecisionSet(prob, abstols, reltols, setups;
    names = names, appxsol = test_sol, maxiters = Int(1e5), error_estimate = :L2,
    dt = 1e-6)

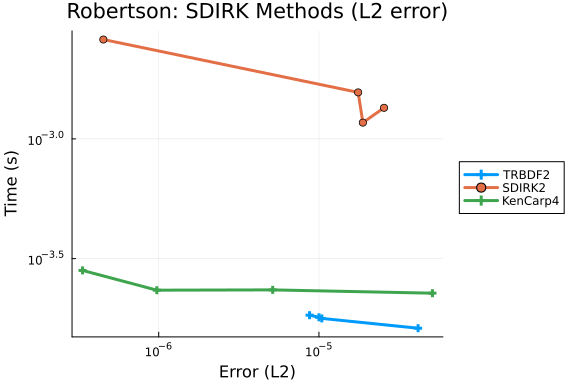

plot(wp; title = "Robertson: SDIRK Methods (L2 error)")

Stiff vs Non-Stiff Comparison

setups = [Dict(:alg => MethodOfSteps(Rodas5P())),
    Dict(:alg => MethodOfSteps(TRBDF2())),
    Dict(:alg => MethodOfSteps(KenCarp4())),
    Dict(:alg => MethodOfSteps(Tsit5())),
    Dict(:alg => MethodOfSteps(DP5()))]
names = ["Rodas5P", "TRBDF2", "KenCarp4", "Tsit5", "DP5"]
wp = WorkPrecisionSet(prob, abstols, reltols, setups;
    names = names, appxsol = test_sol, maxiters = Int(1e6), error_estimate = :final,
    dt = 1e-6)

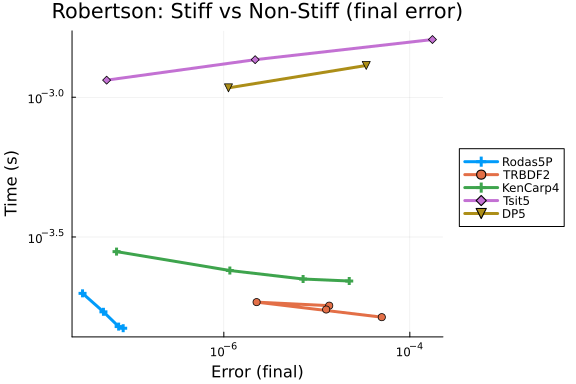

plot(wp; title = "Robertson: Stiff vs Non-Stiff (final error)")

Low Tolerances

abstols = 1.0 ./ 10.0 .^ (8:11)
reltols = 1.0 ./ 10.0 .^ (5:8)

setups = [Dict(:alg => MethodOfSteps(Rosenbrock23())),
    Dict(:alg => MethodOfSteps(Rodas4())),
    Dict(:alg => MethodOfSteps(Rodas5())),
    Dict(:alg => MethodOfSteps(Rodas5P())),
    Dict(:alg => MethodOfSteps(TRBDF2())),
    Dict(:alg => MethodOfSteps(KenCarp4()))]
names = ["Rosenbrock23", "Rodas4", "Rodas5", "Rodas5P", "TRBDF2", "KenCarp4"]
wp = WorkPrecisionSet(prob, abstols, reltols, setups;
    names = names, appxsol = test_sol, maxiters = Int(1e5), error_estimate = :final,
    dt = 1e-6)

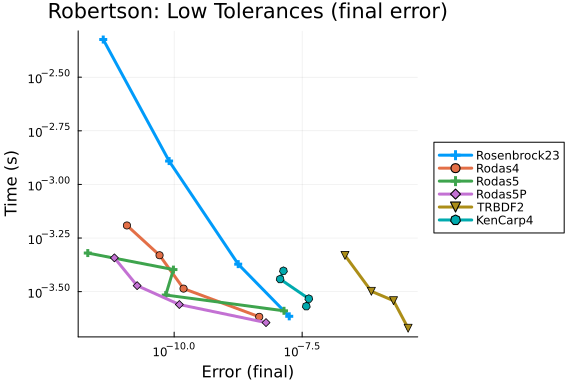

plot(wp; title = "Robertson: Low Tolerances (final error)")

wp = WorkPrecisionSet(prob, abstols, reltols, setups;
    names = names, appxsol = test_sol, maxiters = Int(1e5), error_estimate = :L2,
    dt = 1e-6)

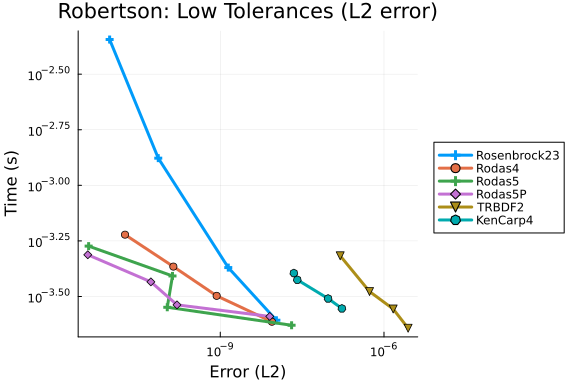

plot(wp; title = "Robertson: Low Tolerances (L2 error)")

Appendix

These benchmarks are a part of the SciMLBenchmarks.jl repository, found at: https://github.com/SciML/SciMLBenchmarks.jl. For more information on high-performance scientific machine learning, check out the SciML Open Source Software Organization https://sciml.ai.

To locally run this benchmark, do the following commands:

using SciMLBenchmarks
SciMLBenchmarks.weave_file("benchmarks/StiffDDE","Robertson_wpd.jmd")

Computer Information:

Julia Version 1.11.9
Commit 53a02c0720c (2026-02-06 00:27 UTC)
Build Info:
  Official https://julialang.org/ release
Platform Info:
  OS: Linux (x86_64-linux-gnu)
  CPU: 128 × AMD EPYC 7502 32-Core Processor
  WORD_SIZE: 64
  LLVM: libLLVM-16.0.6 (ORCJIT, znver2)
Threads: 128 default, 0 interactive, 64 GC (on 128 virtual cores)
Environment:
  JULIA_NUM_THREADS = auto
