Fitzhugh-Nagumo Work-Precision Diagrams

Fitzhugh-Nagumo

The purpose of this is to see how the errors scale on a standard nonlinear problem.

using OrdinaryDiffEq, ParameterizedFunctions, ODEInterface,
      ODEInterfaceDiffEq, LSODA, Sundials, DiffEqDevTools,
      StaticArrays, OrdinaryDiffEqSIMDRK
using OrdinaryDiffEqAdamsBashforthMoulton, OrdinaryDiffEqExtrapolation, OrdinaryDiffEqHighOrderRK, OrdinaryDiffEqLowOrderRK, OrdinaryDiffEqVerner
using SciMLLogging
using Plots;
gr()

f = @ode_def FitzhughNagumo begin
    dv = v - v^3/3 - w + l
    dw = τinv*(v + a - b*w)
end a b τinv l

p = SA[0.7, 0.8, 1 / 12.5, 0.5]
prob = ODEProblem{true, SciMLBase.FullSpecialize}(f, [1.0; 1.0], (0.0, 10.0), p)
probstatic = ODEProblem{false}(f, SA[1.0; 1.0], (0.0, 10.0), p)

abstols = 1.0 ./ 10.0 .^ (6:13)
reltols = 1.0 ./ 10.0 .^ (3:10);

sol = solve(prob, Vern7(), abstol = 1/10^14, reltol = 1/10^14)
sol2 = solve(probstatic, Vern7(), abstol = 1/10^14, reltol = 1/10^14)
probs = [prob, probstatic]
test_sol = [sol, sol2];

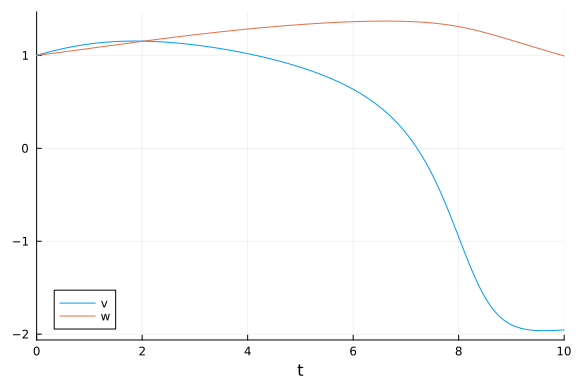

plot(sol)

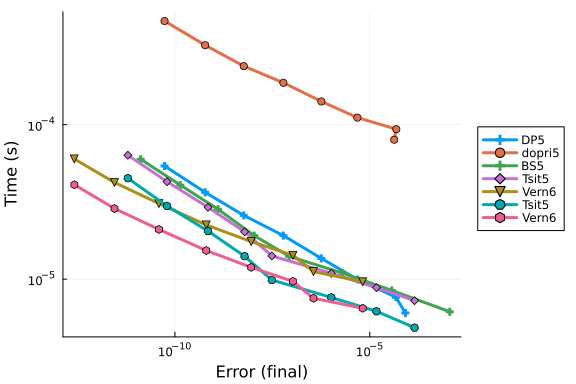

Low Order

setups = [Dict(:alg=>DP5())
          #Dict(:alg=>ode45()) #fails
          Dict(:alg=>dopri5())
          Dict(:alg=>BS5())
          Dict(:alg=>Tsit5())
          Dict(:alg=>Vern6())
          Dict(:alg=>Tsit5(), :prob_choice => 2)
          Dict(:alg=>Vern6(), :prob_choice => 2)
          Dict(:alg=>MER5v2(), :prob_choice => 2)
          Dict(:alg=>MER6v2(), :prob_choice => 2)
          Dict(:alg=>RK6v4(), :prob_choice => 2)]
wp = WorkPrecisionSet(probs, abstols, reltols, setups; appxsol = test_sol,
    save_everystep = false, numruns = 100, maxiters = 1000)
plot(wp)

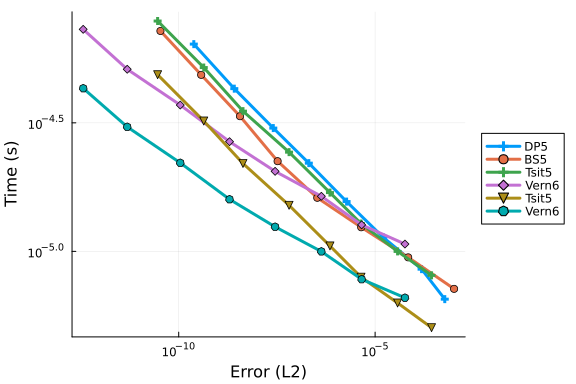

Interpolation

setups = [Dict(:alg=>DP5())
          #Dict(:alg=>ode45()) # fails
          Dict(:alg=>BS5())
          Dict(:alg=>Tsit5())
          Dict(:alg=>Vern6())
          Dict(:alg=>Tsit5(), :prob_choice => 2)
          Dict(:alg=>Vern6(), :prob_choice => 2)]
wp = WorkPrecisionSet(probs, abstols, reltols, setups; appxsol = test_sol, numruns = 100,
    maxiters = 10000, error_estimate = :L2, dense_errors = true)
plot(wp)

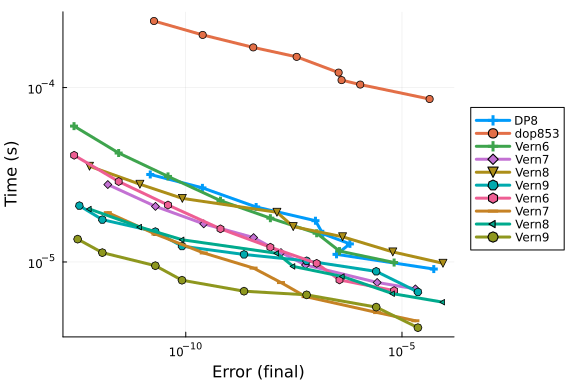

Higher Order

setups = [Dict(:alg=>DP8())
          Dict(:alg=>dop853())
          #Dict(:alg=>ode78()) # fails
          Dict(:alg=>Vern6())
          Dict(:alg=>Vern7())
          Dict(:alg=>Vern8())
          Dict(:alg=>Vern9())
          Dict(:alg=>Vern6(), :prob_choice => 2)
          Dict(:alg=>Vern7(), :prob_choice => 2)
          Dict(:alg=>Vern8(), :prob_choice => 2)
          Dict(:alg=>Vern9(), :prob_choice => 2)]
wp = WorkPrecisionSet(probs, abstols, reltols, setups; appxsol = test_sol,
    save_everystep = false, numruns = 100, maxiters = 1000)
plot(wp)

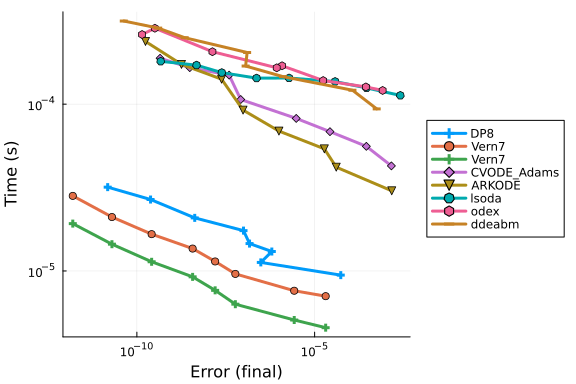

setups = [Dict(:alg=>DP8())
          Dict(:alg=>Vern7())
          Dict(:alg=>Vern7(), :prob_choice => 2)
          Dict(:alg=>CVODE_Adams())
          Dict(:alg=>ARKODE(Sundials.Explicit(), order = 6))
          Dict(:alg=>lsoda())
          Dict(:alg=>odex())
          Dict(:alg=>ddeabm())]
wp = WorkPrecisionSet(probs, abstols, reltols, setups; appxsol = test_sol,
    save_everystep = false, numruns = 100, maxiters = 1000)
plot(wp)

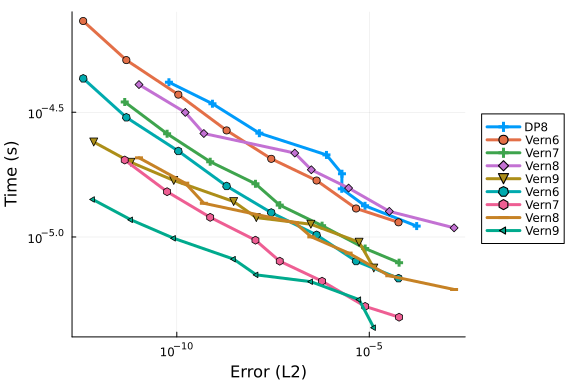

Interpolation

setups = [Dict(:alg=>DP8())
          #Dict(:alg=>ode78()) # fails
          Dict(:alg=>Vern6())
          Dict(:alg=>Vern7())
          Dict(:alg=>Vern8())
          Dict(:alg=>Vern9())
          Dict(:alg=>Vern6(), :prob_choice => 2)
          Dict(:alg=>Vern7(), :prob_choice => 2)
          Dict(:alg=>Vern8(), :prob_choice => 2)
          Dict(:alg=>Vern9(), :prob_choice => 2)]
wp = WorkPrecisionSet(probs, abstols, reltols, setups; appxsol = test_sol, numruns = 100,
    maxiters = 1000, error_estimate = :L2, dense_errors = true)
plot(wp)

Comparison with Non-RK methods

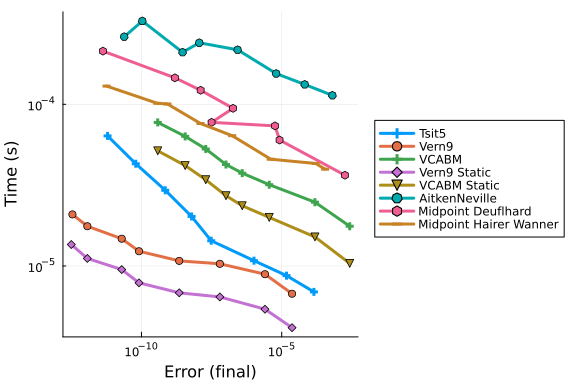

Now let's test Tsit5 and Vern9 against parallel extrapolation methods and an Adams-Bashforth-Moulton:

setups = [Dict(:alg=>Tsit5())
          Dict(:alg=>Vern9())
          Dict(:alg=>VCABM())
          Dict(:alg=>Vern9(), :prob_choice => 2)
          Dict(:alg=>VCABM(), :prob_choice => 2)
          Dict(:alg=>AitkenNeville(min_order = 1, max_order = 9, init_order = 4, threading = true))
          Dict(:alg=>ExtrapolationMidpointDeuflhard(
              min_order = 1, max_order = 9, init_order = 4, threading = true))
          Dict(:alg=>ExtrapolationMidpointHairerWanner(
              min_order = 2, max_order = 11, init_order = 4, threading = true))]
solnames = ["Tsit5", "Vern9", "VCABM", "Vern9 Static", "VCABM Static",
    "AitkenNeville", "Midpoint Deuflhard", "Midpoint Hairer Wanner"]
wp = WorkPrecisionSet(
    probs, abstols, reltols, setups; appxsol = test_sol, names = solnames,
    save_everystep = false, verbose = SciMLLogging.None(), numruns = 100)
plot(wp)

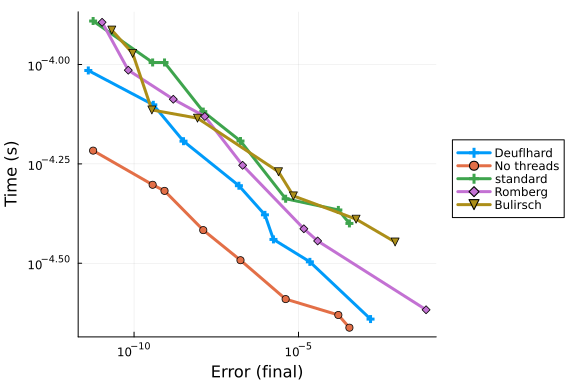

setups = [Dict(:alg=>ExtrapolationMidpointDeuflhard(
              min_order = 1, max_order = 9, init_order = 9, threading = false))
          Dict(:alg=>ExtrapolationMidpointHairerWanner(
              min_order = 2, max_order = 11, init_order = 4, threading = false))
          Dict(:alg=>ExtrapolationMidpointHairerWanner(
              min_order = 2, max_order = 11, init_order = 4, threading = true))
          Dict(:alg=>ExtrapolationMidpointHairerWanner(
              min_order = 2, max_order = 11, init_order = 4,
              sequence = :romberg, threading = true))
          Dict(:alg=>ExtrapolationMidpointHairerWanner(
              min_order = 2, max_order = 11, init_order = 4,
              sequence = :bulirsch, threading = true))]
solnames = ["Deuflhard", "No threads", "standard", "Romberg", "Bulirsch"]
wp = WorkPrecisionSet(
    probs, abstols, reltols, setups; appxsol = test_sol, names = solnames,
    save_everystep = false, verbose = SciMLLogging.None(), numruns = 100)
plot(wp)

setups = [Dict(:alg=>ExtrapolationMidpointHairerWanner(
              min_order = 2, max_order = 11, init_order = 10, threading = true))
          Dict(:alg=>ExtrapolationMidpointHairerWanner(
              min_order = 2, max_order = 11, init_order = 4, threading = true))
          Dict(:alg=>ExtrapolationMidpointHairerWanner(
              min_order = 5, max_order = 11, init_order = 10, threading = true))
          Dict(:alg=>ExtrapolationMidpointHairerWanner(
              min_order = 2, max_order = 15, init_order = 10, threading = true))
          Dict(:alg=>ExtrapolationMidpointHairerWanner(
              min_order = 5, max_order = 7, init_order = 6, threading = true))]

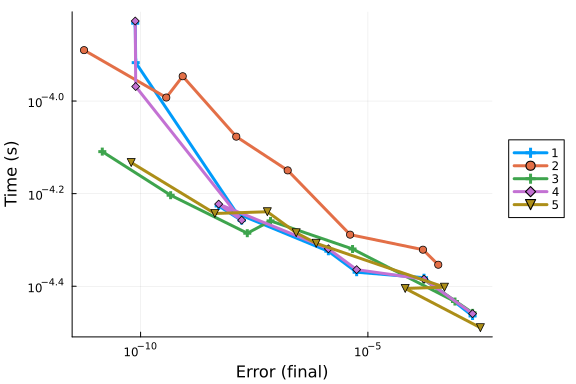

solnames = ["1", "2", "3", "4", "5"]
wp = WorkPrecisionSet(
    probs, abstols, reltols, setups; appxsol = test_sol, names = solnames,
    save_everystep = false, verbose = SciMLLogging.None(), numruns = 100)
plot(wp)

Conclusion

As expected, the algorithms are all pretty matched on time for this problem. However, you can clearly see the OrdinaryDiffEq.jl algorithms solving to a much higher accuracy and still faster, especially when the interpolations are involved.

Appendix

These benchmarks are a part of the SciMLBenchmarks.jl repository, found at: https://github.com/SciML/SciMLBenchmarks.jl. For more information on high-performance scientific machine learning, check out the SciML Open Source Software Organization https://sciml.ai.

To locally run this benchmark, do the following commands:

using SciMLBenchmarks
SciMLBenchmarks.weave_file("benchmarks/NonStiffODE","FitzhughNagumo_wpd.jmd")

Computer Information:

Julia Version 1.11.9
Commit 53a02c0720c (2026-02-06 00:27 UTC)
Build Info:
  Official https://julialang.org/ release
Platform Info:
  OS: Linux (x86_64-linux-gnu)
  CPU: 128 × AMD EPYC 7502 32-Core Processor
  WORD_SIZE: 64
  LLVM: libLLVM-16.0.6 (ORCJIT, znver2)
Threads: 128 default, 0 interactive, 64 GC (on 128 virtual cores)
Environment:
  JULIA_NUM_THREADS = auto

Package Information:

Status `/julia/github-runners/amdci1-1/_work/SciMLBenchmarks.jl/SciMLBenchmarks.jl/benchmarks/NonStiffODE/Project.toml`
  [2b5f629d] DiffEqBase v7.21.1
  [f3b72e0c] DiffEqDevTools v3.6.3
⌅ [58bc7355] IRKGaussLegendre v1.0.4
  [7f56f5a3] LSODA v1.2.0
  [961ee093] ModelingToolkit v11.43.1
  [54ca160b] ODEInterface v0.5.2
⌅ [09606e27] ODEInterfaceDiffEq v4.1.0
  [1dea7af3] OrdinaryDiffEq v7.8.1
  [89bda076] OrdinaryDiffEqAdamsBashforthMoulton v2.2.0
⌃ [bbf590c4] OrdinaryDiffEqCore v4.17.2
  [becaefa8] OrdinaryDiffEqExtrapolation v2.6.3
  [5960d6e9] OrdinaryDiffEqFIRK v2.8.7
  [d28bc4f8] OrdinaryDiffEqHighOrderRK v2.2.1
  [1344f307] OrdinaryDiffEqLowOrderRK v2.2.5
  [dc97f408] OrdinaryDiffEqSIMDRK v2.2.0
  [79d7bb75] OrdinaryDiffEqVerner v2.4.1
  [65888b18] ParameterizedFunctions v5.27.0
  [91a5bcdd] Plots v1.41.7
  [f517fe37] Polyester v0.7.19
  [31c91b34] SciMLBenchmarks v0.2.1
  [a6db7da4] SciMLLogging v2.1.0
  [90137ffa] StaticArrays v1.9.20
  [c3572dad] Sundials v6.7.1
  [0c5d862f] Symbolics v7.39.2
  [37e2e46d] LinearAlgebra v1.11.0
  [9a3f8284] Random v1.11.0
Info Packages marked with ⌃ and ⌅ have new versions available. Those with ⌃ may be upgradable, but those with ⌅ are restricted by compatibility constraints from upgrading. To see why use `status --outdated`
