SDE Lokta-Volterra Work-Precision Diagrams
using StochasticDiffEq, DiffEqDevTools, ParameterizedFunctions
using SciMLLogging
using Plots;
gr()
const N = 100
f = @ode_def LotkaVolterraTest begin
dx = a*x - b*x*y
dy = -c*y + d*x*y
end a b c d
p = [1.5, 1.0, 3.0, 1.0]
function g(du, u, p, t)
du .= 0.1u
end
u0 = [1.0; 1.0]
tspan = (0.0, 10.0)
prob = SDEProblem(f, g, u0, tspan, p);sol = solve(prob, SRIW1(), abstol = 1e-4, reltol = 1e-4)

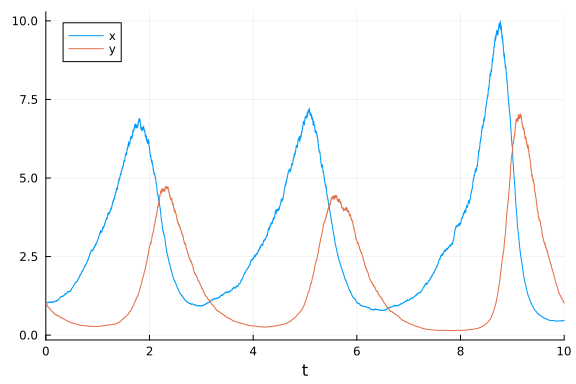

plot(sol)
Strong Error
The starting dts was chosen as the largest in the 1/4^i which were stable. All larger dts contained trajectories which would veer off to infinity.
reltols = 1.0 ./ 4.0 .^ (2:4)
abstols = reltols#[0.0 for i in eachindex(reltols)]
setups = [Dict(:alg=>SRIW1())
Dict(:alg=>EM(), :dts=>1.0 ./ 12.0 .^ ((1:length(reltols)) .+ 1.5))
Dict(:alg=>RKMil(), :dts=>1.0 ./ 12.0 .^ ((1:length(reltols)) .+ 1.5), :adaptive=>false)
Dict(:alg=>SRIW1(), :dts=>1.0 ./ 4.0 .^ ((1:length(reltols)) .+ 5), :adaptive=>false)
Dict(:alg=>SRIW2())
Dict(:alg=>SOSRI())
Dict(:alg=>SOSRI2())]
test_dt = 1/10^2
appxsol_setup = Dict(:alg=>SRIW1(), :abstol=>1e-4, :reltol=>1e-4)
wp = WorkPrecisionSet(prob, abstols, reltols, setups, test_dt;
maxiters = 1e7,
verbose = SciMLLogging.None(), save_everystep = false,
parallel_type = :threads,
appxsol_setup = appxsol_setup,
numruns_error = N, error_estimate = :final)

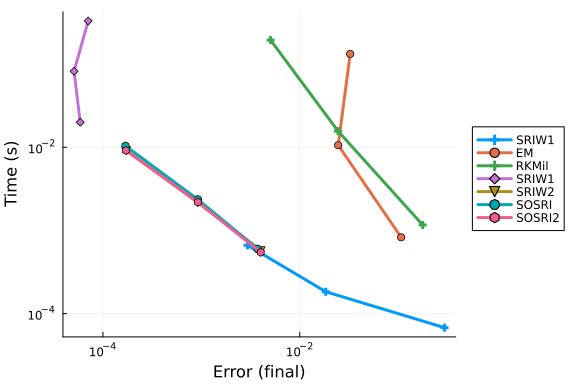

plot(wp)
Weak Error
reltols = 1.0 ./ 4.0 .^ (2:4)
abstols = reltols#[0.0 for i in eachindex(reltols)]
setups = [Dict(:alg=>SRIW1())
Dict(:alg=>EM(), :dts=>1.0 ./ 12.0 .^ ((1:length(reltols)) .+ 1.5))
Dict(:alg=>RKMil(), :dts=>1.0 ./ 12.0 .^ ((1:length(reltols)) .+ 1.5), :adaptive=>false)
Dict(:alg=>SRIW1(), :dts=>1.0 ./ 4.0 .^ ((1:length(reltols)) .+ 5), :adaptive=>false)
Dict(:alg=>SRIW2())
Dict(:alg=>SOSRI())
Dict(:alg=>SOSRI2())]
test_dt = 1e-2
appxsol_setup = Dict(:alg=>SRIW1(), :abstol=>1e-4, :reltol=>1e-4)
wp = WorkPrecisionSet(prob, abstols, reltols, setups, test_dt;
maxiters = 1e7,
verbose = SciMLLogging.None(), save_everystep = false,
parallel_type = :none,
appxsol_setup = appxsol_setup,
numruns_error = N, error_estimate = :weak_final)

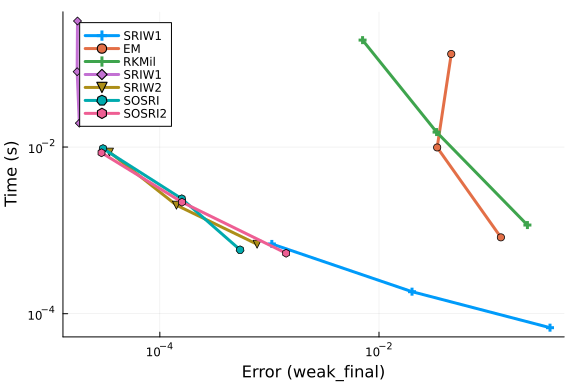

plot(wp; legend = :topleft)
sample_size = Int[10; 1e2; 1e3]
se = get_sample_errors(prob, setups[6], test_dt, numruns = sample_size,
appxsol_setup = appxsol_setup,
sample_error_runs = 100_000, solution_runs = 20)3-element Vector{Float64}:
0.13455836208243904
0.009689558401889304

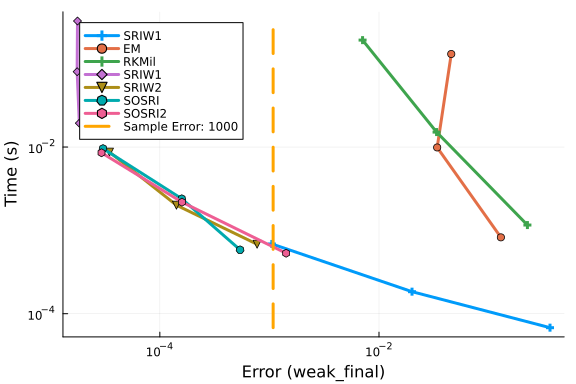

0.0012853197309920952plot(wp; legend = :topleft)
times = [wp[i].times for i in 1:length(wp)]
times = [minimum(minimum(t) for t in times), maximum(maximum(t) for t in times)]
plot!([se[end]; se[end]], times, color = :orange,
linestyle = :dash, label = "Sample Error: 1000", lw = 3)
Conclusion
These results show that in both strong and weak error, the high order method is more efficient. The strong and the weak are track each other well for the methods tested on this problem, with the strong error slightly higher than the weak error. To reach the sample error for a 100 trajectories, the higher order method is around 5x faster. To reach the sampling error for 10000 trajectories, the higher order method is nearly 100x faster.
Appendix
These benchmarks are a part of the SciMLBenchmarks.jl repository, found at: https://github.com/SciML/SciMLBenchmarks.jl. For more information on high-performance scientific machine learning, check out the SciML Open Source Software Organization https://sciml.ai.
To locally run this benchmark, do the following commands:
using SciMLBenchmarks
SciMLBenchmarks.weave_file("benchmarks/NonStiffSDE","LotkaVolterraSDE.jmd")Computer Information:
Julia Version 1.11.9
Commit 53a02c0720c (2026-02-06 00:27 UTC)
Build Info:
Official https://julialang.org/ release
Platform Info:
OS: Linux (x86_64-linux-gnu)
CPU: 128 × AMD EPYC 7502 32-Core Processor
WORD_SIZE: 64
LLVM: libLLVM-16.0.6 (ORCJIT, znver2)
Threads: 128 default, 0 interactive, 64 GC (on 128 virtual cores)
Environment:
JULIA_DEPOT_PATH = /home/crackauc/github-runners/amdci8-1/.julia
JULIA_NUM_THREADS = auto
Package Information:
Status `~/github-runners/amdci8-1/_work/SciMLBenchmarks.jl/SciMLBenchmarks.jl/benchmarks/NonStiffSDE/Project.toml`
[f3b72e0c] DiffEqDevTools v3.6.3
[77a26b50] DiffEqNoiseProcess v5.36.3
[65888b18] ParameterizedFunctions v5.27.0
[91a5bcdd] Plots v1.41.7
[c72e72a9] SDEProblemLibrary v1.2.4
[31c91b34] SciMLBenchmarks v0.2.1
[a6db7da4] SciMLLogging v2.1.0
[789caeaf] StochasticDiffEq v7.2.0And the full manifest:
