Allen-Cahn Pseudospectral Methods Work-Precision Diagrams

Problem Description

The Allen-Cahn partial differential equation is solved on the domain $[-L, L] \times [0, T] \in \mathbb R \times R,~L = 1,~T = 1$, with the following initial and boundary conditions:

\[\begin{aligned} \partial_t u(t,x) & = u(t,x) - u^3(t,x) + \epsilon \partial_x^2 u(t,x), \\ u(0,x) & = \cos(2\pi x), \\ u(t,-L) & = u(t,L) = 1. \end{aligned}\]

The spatial derivative operators are represented via Chebyshev pseudospectral approximations. Here, the domain is discretized by projecting on a cosine-spaced grid of points $x_s \in [-1, 1]$; the solution is approximated on this grid via linear combinations of Chebyshev polynomial basis functions in space. The coefficient $p = 3,~\epsilon = 10^{-3}$ is chosen to produce `interesting' behavior as seen in the reference solution below.

\[\begin{aligned} \frac{du}{dt} & = p(u(t,x) - u^3(t,x)) + \epsilon D_x^2 u(t,x), \\ u(0,x_s) & = \cos(2\pi x_s), \\ u(t,-L) & = u(t,L) = 1. \end{aligned}\]

Implementation

using OrdinaryDiffEq
using OrdinaryDiffEqBDF, OrdinaryDiffEqExponentialRK, OrdinaryDiffEqIMEXMultistep, OrdinaryDiffEqRosenbrock, OrdinaryDiffEqSDIRK
using DiffEqDevTools
using SciMLOperators
using LinearSolve
using LinearAlgebra
using SparseArrays
using Sundials
using ClassicalOrthogonalPolynomials
using Plots
gr();
# Nonlinear component of vector field
function f_nonlinear!(du, u, p, t)
    M, D0, alpha, tmp = p
    Tu = D0 * u # Pseudo-spectral representation of solution
    @. tmp[2:end-1] = alpha * (Tu - Tu^3)
    ldiv!(du, M, tmp) # Solve the linear system M * du = tmp
end

function allen_cahn(n, eps)
    T = ChebyshevT() # Chebyshev basis
    x1 = reverse(ChebyshevGrid{1}(n - 2)) # 1st kind points, sorted
    x2 = reverse(ChebyshevGrid{2}(n)) # 2nd kind points, sorted

    V = T[x2, 1:n] # Vandermonde matrix, its inverse is transform from values to coefficients
    D0 = diff(T, 0)[x1, 1:n] / V # discretisation of identity matrix
    D2 = diff(T, 2)[x1, 1:n] / V # 2nd derivative from x2 to x1

    B_l = [1; zeros(n-1)]'  # Left Dirichlet conditions
    B_r = [zeros(n-1); 1]'  # Right Dirichlet
    M = lu([B_l; D0; B_r]) # Mass matrix for the problem
    u0 = cos.(2π * x2)  # Initial condition
    alpha = 3.0 # Time scaling factor
    D2_bc = [zeros(1, n); D2; zeros(1, n)] # 2nd derivative with Dirichlet conditions

    # Problem setup
    prob = SplitODEProblem(
        MatrixOperator(eps * (M \ D2_bc)), # Linear operator with mass matrix inversion
        f_nonlinear!,
        u0, (0.0, 1.0),
        (M, D0, alpha, similar(u0))
    )

    return x2, prob
end;

Reference Solution

N = 128
eps = 1e-3
xs, prob = allen_cahn(N, eps);

@time sol = solve(prob, Rodas5(autodiff=AutoFiniteDiff()); dt=1e-4, reltol=1e-12, abstol=1e-12);

test_sol = TestSolution(sol); # Reference solution for error estimation

tslices = LinRange(prob.tspan..., 50)
ys = mapreduce(sol, hcat, tslices)

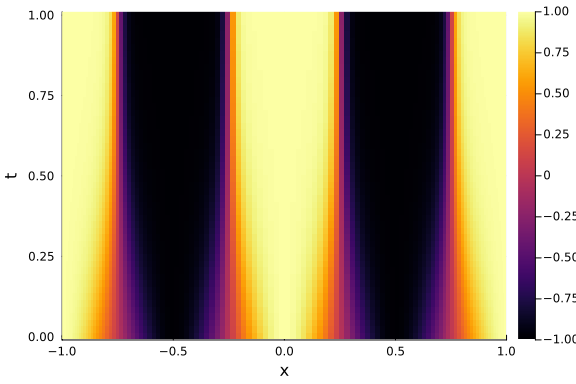

heatmap(xs, tslices, ys', xlabel="x", ylabel="t")
8.113695 seconds (6.08 M allocations: 481.439 MiB, 3.38% gc time, 87.57%
compilation time)

Work-Precision Diagrams

High Tolerances

Implicit-Explicit Methods

abstols = 0.1 .^ (5:8) # all fixed dt methods so these don't matter much
reltols = 0.1 .^ (1:4)
multipliers = 0.5 .^ (0:3)
setups = [
    Dict(:alg => IMEXEuler(), :dts => 1e-4 * multipliers),
    Dict(:alg => CNAB2(), :dts => 1e-4 * multipliers),
    Dict(:alg => CNLF2(), :dts => 1e-4 * multipliers),
    Dict(:alg => SBDF2(), :dts => 1e-4 * multipliers),
]
labels = hcat(
    "IMEXEuler",
    "CNAB2",
    "CNLF2",
    "SBDF2",
)
@time wp = WorkPrecisionSet(prob, abstols, reltols, setups;
    print_names=true, names=labels, numruns=5, error_estimate=:l2,
    save_everystep=false, appxsol=test_sol, maxiters=Int(1e5));

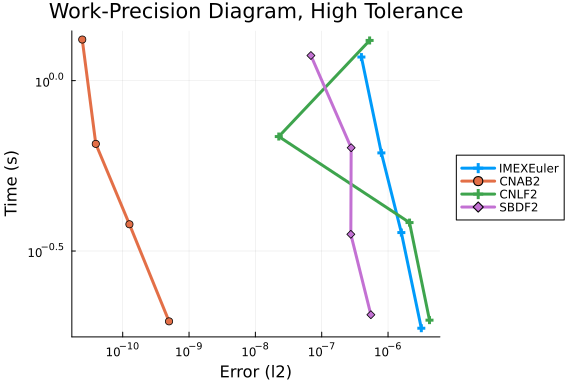

plot(wp, label=labels, markershape=:auto, title="Work-Precision Diagram, High Tolerance")
IMEXEuler
CNAB2
CNLF2
SBDF2
901.290630 seconds (23.88 M allocations: 3.419 GiB, 0.26% gc time, 1.88% co
mpilation time: <1% of which was recompilation)

Exponential Integrators

abstols = 0.1 .^ (5:8) # all fixed dt methods so these don't matter much
reltols = 0.1 .^ (1:4)
multipliers = 0.5 .^ (0:3)
setups = [
    Dict(:alg => NorsettEuler(), :dts => 1e-4 * multipliers),
    Dict(:alg => NorsettEuler(krylov=true, m=5), :dts => 1e-4 * multipliers),
    Dict(:alg => NorsettEuler(krylov=true, m=20), :dts => 1e-4 * multipliers),
    Dict(:alg => ETDRK2(), :dts => 1e-4 * multipliers),
    Dict(:alg => ETDRK2(krylov=true, m=5), :dts => 1e-4 * multipliers),
    Dict(:alg => ETDRK2(krylov=true, m=20), :dts => 1e-4 * multipliers)
]
labels = hcat(
    "NorsettEuler (caching)",
    "NorsettEuler (m=5)",
    "NorsettEuler (m=20)",
    "ETDRK2 (caching)",
    "ETDRK2 (m=5)",
    "ETDRK2 (m=20)"
)
@time wp = WorkPrecisionSet(prob, abstols, reltols, setups;
    print_names=true, names=labels, numruns=5, error_estimate=:l2,
    save_everystep=false, appxsol=test_sol, maxiters=Int(1e5));

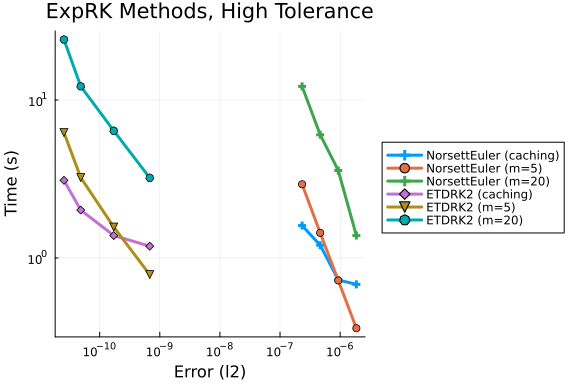

plot(wp, label=labels, markershape=:auto, title="ExpRK Methods, High Tolerance")
NorsettEuler (caching)
NorsettEuler (m=5)
NorsettEuler (m=20)
ETDRK2 (caching)
ETDRK2 (m=5)
ETDRK2 (m=20)
321.538125 seconds (38.32 M allocations: 13.478 GiB, 1.12% gc time, 4.99% c
ompilation time)

Comparisons Between Families

abstols = 0.1 .^ (5:8) # all fixed dt methods so these don't matter much
reltols = 0.1 .^ (1:4)
multipliers = 0.5 .^ (0:3)
setups = [
    Dict(:alg => CNAB2(), :dts => 1e-4 * multipliers),
    Dict(:alg => CNAB2(linsolve=KrylovJL_GMRES()), :dts => 1e-4 * multipliers),
    Dict(:alg => ETDRK2(), :dts => 1e-4 * multipliers),
]
labels = hcat(
    "CNAB2 (dense linsolve)",
    "CNAB2 (Krylov linsolve)",
    "ETDRK2 (m=5)",
)
@time wp = WorkPrecisionSet(prob, abstols, reltols, setups;
    print_names=true, names=labels, numruns=5, error_estimate=:l2,
    save_everystep=false, appxsol=test_sol, maxiters=Int(1e5));

plot(wp, label=labels, markershape=:auto, title="Between Families, High Tolerances")
CNAB2 (dense linsolve)
CNAB2 (Krylov linsolve)
ETDRK2 (m=5)
283.279218 seconds (9.93 M allocations: 6.005 GiB, 1.03% gc time, 1.18% com
pilation time)

Low Tolerances

Implicit-Explicit Methods

Dense/banded linear solvers.

abstols = 0.1 .^ (7:13)
reltols = 0.1 .^ (4:10)
setups = [
    Dict(:alg => KenCarp3()),
    Dict(:alg => KenCarp4()),
    Dict(:alg => KenCarp5()),
    #Dict(:alg => ARKODE(Sundials.Implicit(), order=3, linear_solver=:Band, jac_upper=1, jac_lower=1)),
    #Dict(:alg => ARKODE(Sundials.Implicit(), order=4, linear_solver=:Band, jac_upper=1, jac_lower=1)),
    #Dict(:alg => ARKODE(Sundials.Implicit(), order=5, linear_solver=:Band, jac_upper=1, jac_lower=1))
]
labels = hcat(
    "KenCarp3",
    "KenCarp4",
    "KenCarp5",
    #"ARKODE3",
    #"ARKODE4",
    #"ARKODE5",
)
@time wp = WorkPrecisionSet(prob, abstols, reltols, setups;
    print_names=true, names=labels, numruns=5, error_estimate=:l2,
    save_everystep=false, appxsol=test_sol, maxiters=Int(1e5));

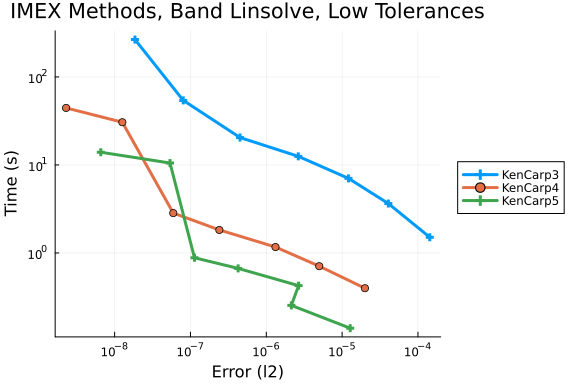

plot(wp, label=labels, markershape=:auto, title="IMEX Methods, Band Linsolve, Low Tolerances")
KenCarp3
KenCarp4
KenCarp5
 54.285220 seconds (32.56 M allocations: 2.131 GiB, 2.29% gc time, 76.26% c
ompilation time)

Krylov linear solvers.

abstols = 0.1 .^ (7:13)
reltols = 0.1 .^ (4:10)
setups = [
    Dict(:alg => KenCarp3(linsolve=KrylovJL_GMRES())),
    Dict(:alg => KenCarp4(linsolve=KrylovJL_GMRES())),
    Dict(:alg => KenCarp5(linsolve=KrylovJL_GMRES())),
    Dict(:alg => ARKODE(Sundials.Implicit(), order=3, linear_solver=:GMRES)),
    Dict(:alg => ARKODE(Sundials.Implicit(), order=4, linear_solver=:GMRES)),
    Dict(:alg => ARKODE(Sundials.Implicit(), order=5, linear_solver=:GMRES)),
]
labels = hcat(
    "KenCarp3",
    "KenCarp4",
    "KenCarp5",
    "ARKODE3",
    "ARKODE4",
    "ARKODE5",
)
@time wp = WorkPrecisionSet(prob, abstols, reltols, setups;
    print_names=true, names=labels, numruns=5, error_estimate=:l2,
    save_everystep=false, appxsol=test_sol, maxiters=Int(1e5));

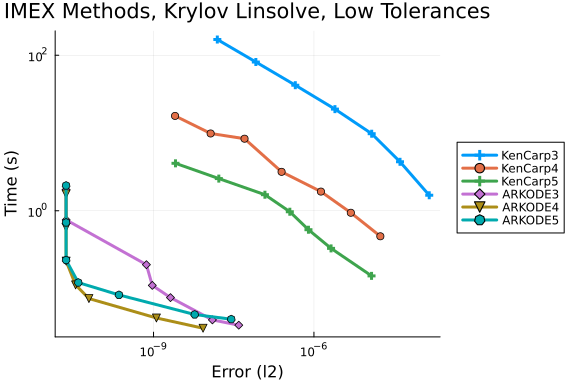

plot(wp, label=labels, markershape=:auto, title="IMEX Methods, Krylov Linsolve, Low Tolerances")
KenCarp3
KenCarp4
KenCarp5
ARKODE3
ARKODE4
ARKODE5
 98.753328 seconds (63.88 M allocations: 3.626 GiB, 1.73% gc time, 40.44% c
ompilation time)

Exponential Integrators

abstols = 0.1 .^ (7:11) # all fixed dt methods so these don't matter much
reltols = 0.1 .^ (4:8)
multipliers = 0.5 .^ (0:4)
setups = [
    Dict(:alg => ETDRK3(), :dts => 1e-2 * multipliers),
    Dict(:alg => ETDRK4(), :dts => 1e-2 * multipliers),
    Dict(:alg => HochOst4(), :dts => 1e-2 * multipliers),
]
labels = hcat(
    "ETDRK3 (caching)",
    "ETDRK4 (caching)",
    "HochOst4 (caching)",
)
@time wp = WorkPrecisionSet(prob, abstols, reltols, setups;
    print_names=true, names=labels, numruns=5, error_estimate=:l2,
    save_everystep=false, appxsol=test_sol, maxiters=Int(1e5));

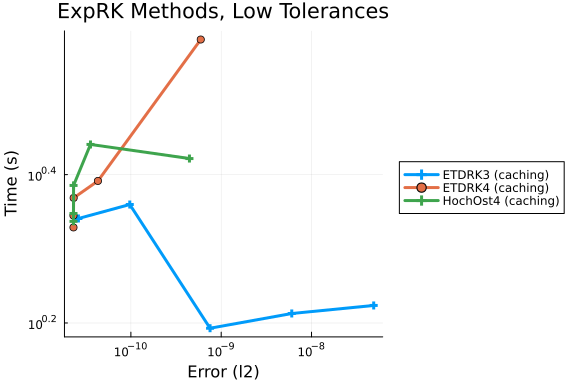

plot(wp, label=labels, markershape=:auto, title="ExpRK Methods, Low Tolerances")
ETDRK3 (caching)
ETDRK4 (caching)
HochOst4 (caching)
 20.181402 seconds (10.73 M allocations: 1.855 GiB, 2.29% gc time, 45.33% c
ompilation time)

Comparisons Between Families

abstols = 0.1 .^ (7:11)
reltols = 0.1 .^ (4:8)
multipliers = 0.5 .^ (0:4)
setups = [
    Dict(:alg => ARKODE(Sundials.Implicit(), order=5, linear_solver=:GMRES)),
    Dict(:alg => ETDRK3(), :dts => 1e-2 * multipliers),
    Dict(:alg => ETDRK4(), :dts => 1e-2 * multipliers)
]
labels = hcat("ARKODE (Krylov linsolve)", "ETDRK3 ()", "ETDRK4 ()")
@time wp = WorkPrecisionSet(prob, abstols, reltols, setups;
    print_names=true, names=labels, numruns=5, error_estimate=:l2,
    save_everystep=false, appxsol=test_sol, maxiters=Int(1e5));

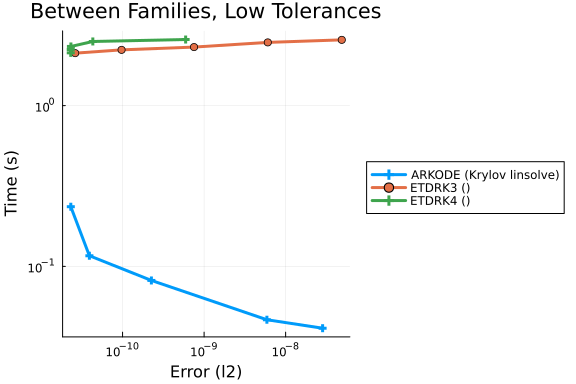

plot(wp, label=labels, markershape=:auto, title="Between Families, Low Tolerances")
ARKODE (Krylov linsolve)
ETDRK3 ()
ETDRK4 ()
 10.049535 seconds (3.77 M allocations: 893.827 MiB, 2.06% gc time, 0.12% c
ompilation time)

Appendix

These benchmarks are a part of the SciMLBenchmarks.jl repository, found at: https://github.com/SciML/SciMLBenchmarks.jl. For more information on high-performance scientific machine learning, check out the SciML Open Source Software Organization https://sciml.ai.

To locally run this benchmark, do the following commands:

using SciMLBenchmarks
SciMLBenchmarks.weave_file("benchmarks/SimpleHandwrittenPDE","allen_cahn_spectral_wpd.jmd")
