Ill-Conditioned Nonlinear System Work-Precision Diagrams (Krylov Methods)

Setup

Fetch required packages

using NonlinearSolve, LinearAlgebra, SparseArrays, DiffEqDevTools,
      CairoMakie, Symbolics, BenchmarkTools, PolyesterForwardDiff, LinearSolve, Sundials,
      Enzyme, SparseConnectivityTracer, DifferentiationInterface, SparseMatrixColorings
import NLsolve, MINPACK, PETSc, RecursiveFactorization

const RUS = RadiusUpdateSchemes;
BenchmarkTools.DEFAULT_PARAMETERS.seconds = 0.2;

Define a utility to timeout the benchmark after a certain time.

# Taken from ReTestItems.jl
function timeout(f, timeout)
    cond = Threads.Condition()
    timer = Timer(timeout) do tm
        close(tm)
        ex = ErrorException("timed out after $timeout seconds")
        @lock cond notify(cond, ex; error = false)
    end
    Threads.@spawn begin
        try
            ret = $f()
            isopen(timer) && @lock cond notify(cond, ret)
        catch e
            isopen(timer) &&
                @lock cond notify(cond, CapturedException(e, catch_backtrace()); error = true)
        finally
            close(timer)
        end
    end
    return @lock cond wait(cond) # will throw if we timeout
end

function get_ordering(x::AbstractMatrix)
    idxs = Vector{Int}(undef, size(x, 1))
    placed = zeros(Bool, size(x, 1))
    idx = 1
    for j in size(x, 2):-1:1
        row = view(x, :, j)
        idxs_row = sortperm(row; by = x -> isnan(x) ? Inf : (x == -1 ? Inf : x))
        for i in idxs_row
            if !placed[i] && !isnan(row[i]) && row[i] ≠ -1
                idxs[idx] = i
                placed[i] = true
                idx += 1
                idx > length(idxs) && break
            end
        end
        idx > length(idxs) && break
    end
    return idxs
end

get_ordering (generic function with 1 method)

Brusselator

Define the Brussletor problem.

brusselator_f(x, y) = (((x - 3 // 10) ^ 2 + (y - 6 // 10) ^ 2) ≤ 0.01) * 5

limit(a, N) = ifelse(a == N + 1, 1, ifelse(a == 0, N, a))

function init_brusselator_2d(xyd, N)
    N = length(xyd)
    u = zeros(N, N, 2)
    for I in CartesianIndices((N, N))
        x = xyd[I[1]]
        y = xyd[I[2]]
        u[I, 1] = 22 * (y * (1 - y))^(3 / 2)
        u[I, 2] = 27 * (x * (1 - x))^(3 / 2)
    end
    return u
end

function generate_brusselator_problem(N::Int; sparsity = nothing, kwargs...)
    xyd_brusselator = range(0; stop = 1, length = N)

    function brusselator_2d_loop(du_, u_, p)
        A, B, α, δx = p
        α = α / δx ^ 2

        du = reshape(du_, N, N, 2)
        u = reshape(u_, N, N, 2)

        @inbounds @simd for I in CartesianIndices((N, N))
            i, j = Tuple(I)
            x, y = xyd_brusselator[I[1]], xyd_brusselator[I[2]]
            ip1, im1 = limit(i + 1, N), limit(i - 1, N)
            jp1, jm1 = limit(j + 1, N), limit(j - 1, N)

            du[i, j, 1] = α * (u[im1, j, 1] + u[ip1, j, 1] + u[i, jp1, 1] + u[i, jm1, 1] -
                           4u[i, j, 1]) +
                          B + u[i, j, 1] ^ 2 * u[i, j, 2] - (A + 1) * u[i, j, 1] +
                          brusselator_f(x, y)

            du[i, j, 2] = α * (u[im1, j, 2] + u[ip1, j, 2] + u[i, jp1, 2] + u[i, jm1, 2] -
                           4u[i, j, 2]) +
                          A * u[i, j, 1] - u[i, j, 1] ^ 2 * u[i, j, 2]
        end
        return nothing
    end

    return NonlinearProblem(
        NonlinearFunction(brusselator_2d_loop; sparsity),
        vec(init_brusselator_2d(xyd_brusselator, N)),
        (3.4, 1.0, 10.0, step(xyd_brusselator));
        kwargs...
    )
end

generate_brusselator_problem (generic function with 1 method)

Jacobian-Free Newton / TR Krylov Methods

In this section, we will benchmark jacobian-free nonlinear solvers with Krylov methods. We will use preconditioning from AlgebraicMultigrid.jl and IncompleteLU.jl. Unfortunately, our ability to use 3rd party software is limited here, since only Sundials.jl supports jacobian-free methods via :GMRES.

using AlgebraicMultigrid, IncompleteLU

incompletelu(W, p = nothing) = ilu(W, τ = 50.0), LinearAlgebra.I

function algebraicmultigrid(W, p = nothing)
    return aspreconditioner(ruge_stuben(convert(AbstractMatrix, W))), LinearAlgebra.I
end

function algebraicmultigrid_jacobi(W, p = nothing)
    A = convert(AbstractMatrix, W)
    Dinv = 1.0 ./ diag(A)  # PETSc-style Jacobi: inverse of diagonal
    smoother = AlgebraicMultigrid.Jacobi(Dinv)

    Pl = aspreconditioner(AlgebraicMultigrid.ruge_stuben(
        A,
        presmoother = smoother,
        postsmoother = smoother
    ))
    return Pl, LinearAlgebra.I
end

Ns = 2 .^ (2:7)
krylov_dim = 1000

solvers_scaling_jacobian_free = [
    (; pkg = :nonlinearsolve, name = "Newton Krylov",
        alg = NewtonRaphson(; linsolve = KrylovJL_GMRES())),
    (; pkg = :nonlinearsolve,
        name = "Newton Krylov (ILU)",
        alg = NewtonRaphson(; linsolve = KrylovJL_GMRES(; precs = incompletelu), concrete_jac = true)),
    (; pkg = :nonlinearsolve,
        name = "Newton Krylov (AMG)",
        alg = NewtonRaphson(; linsolve = KrylovJL_GMRES(; precs = algebraicmultigrid), concrete_jac = true)),
    (; pkg = :nonlinearsolve,
        name = "Newton Krylov (AMG Jacobi)",
        alg = NewtonRaphson(;
            linsolve = KrylovJL_GMRES(; precs = algebraicmultigrid_jacobi),
            concrete_jac = true)), (; pkg = :nonlinearsolve, name = "TR Krylov",
        alg = TrustRegion(; linsolve = KrylovJL_GMRES())),
    (; pkg = :nonlinearsolve,
        name = "TR Krylov (ILU)",
        alg = TrustRegion(; linsolve = KrylovJL_GMRES(; precs = incompletelu), concrete_jac = true)),
    (; pkg = :nonlinearsolve,
        name = "TR Krylov (AMG)",
        alg = TrustRegion(; linsolve = KrylovJL_GMRES(; precs = algebraicmultigrid), concrete_jac = true)),
    (; pkg = :nonlinearsolve,
        name = "TR Krylov (AMG Jacobi)",
        alg = TrustRegion(;
            linsolve = KrylovJL_GMRES(; precs = algebraicmultigrid_jacobi), concrete_jac = true)), (;
        pkg = :wrapper, name = "Newton Krylov [Sundials]",
        alg = KINSOL(; linear_solver = :GMRES, maxsetupcalls = 1, krylov_dim)),
    (; pkg = :wrapper,
        name = "Newton Krylov [PETSc]",
        alg = PETScSNES(; snes_type = "newtonls", snes_linesearch_type = "basic",
            ksp_type = "gmres", snes_mf = true, ksp_gmres_restart = krylov_dim)),
    (; pkg = :wrapper,
        name = "Newton Krylov (ILU) [PETSc]",
        alg = PETScSNES(; snes_type = "newtonls", snes_linesearch_type = "basic",
            ksp_type = "gmres", pc_type = "ilu", ksp_gmres_restart = krylov_dim,
            pc_factor_levels = 0, pc_factor_drop_tolerance = 50.0)),
    (; pkg = :wrapper,
        name = "Newton Krylov (AMG) [PETSc]",
        alg = PETScSNES(; snes_type = "newtonls", snes_linesearch_type = "basic",
            ksp_type = "gmres", pc_type = "gamg", ksp_gmres_restart = krylov_dim)),
    (; pkg = :wrapper,
        name = "Newton Krylov (AMG Jacobi) [PETSc]",
        alg = PETScSNES(; snes_type = "newtonls", snes_linesearch_type = "basic",
            ksp_type = "gmres", pc_type = "gamg", mg_levels_ksp_type = "richardson",
            mg_levels_pc_type = "jacobi", ksp_gmres_restart = krylov_dim)), (;
        pkg = :wrapper,
        name = "TR Krylov (Not Matrix Free) [PETSc]",
        alg = PETScSNES(; snes_type = "newtontr", ksp_type = "gmres", ksp_gmres_restart = krylov_dim)),
    (; pkg = :wrapper,
        name = "TR Krylov (ILU) [PETSc]",
        alg = PETScSNES(; snes_type = "newtontr", ksp_type = "gmres",
            pc_type = "ilu", ksp_gmres_restart = krylov_dim,
            pc_factor_levels = 0, pc_factor_drop_tolerance = 50.0)),
    (; pkg = :wrapper,
        name = "TR Krylov (AMG) [PETSc]",
        alg = PETScSNES(; snes_type = "newtontr", ksp_type = "gmres",
            pc_type = "gamg", ksp_gmres_restart = krylov_dim)),
    (; pkg = :wrapper,
        name = "TR Krylov (AMG Jacobi) [PETSc]",
        alg = PETScSNES(; snes_type = "newtontr", ksp_type = "gmres",
            pc_type = "gamg", mg_levels_ksp_type = "richardson",
            mg_levels_pc_type = "jacobi", ksp_gmres_restart = krylov_dim))
]

gc_disabled = false
runtimes_scaling = fill(-1.0, length(solvers_scaling_jacobian_free), length(Ns))

for (j, solver) in enumerate(solvers_scaling_jacobian_free)
    alg = solver.alg
    name = solver.name

    if !gc_disabled && alg isa PETScSNES
        GC.enable(false)
        global gc_disabled = true
        @info "Disabling GC for $(name)"
    end

    for (i, N) in enumerate(Ns)
        prob = generate_brusselator_problem(N; sparsity = TracerSparsityDetector())

        # Cascade on -1 (timeout): leave -1 so later solvers at this N also skip.
        if (j > 1 && runtimes_scaling[j - 1, i] == -1)
            runtimes_scaling[j, i] = -1
            @warn "$(name): Would Have Timed out"
        else
            function benchmark_function()
                termination_condition = (alg isa PETScSNES || alg isa KINSOL) ?
                                        nothing :
                                        AbsNormTerminationMode(Base.Fix1(maximum, abs))
                # PETSc doesn't converge properly
                tol = alg isa PETScSNES ? 1e-6 : 1e-4
                sol = solve(prob, alg; abstol = tol, reltol = tol,
                    linsolve_kwargs = (; abstol = 1e-8, reltol = 1e-8),
                    termination_condition)
                if SciMLBase.successful_retcode(sol) || norm(sol.resid, Inf) ≤ 1e-4
                    runtimes_scaling[j, i] = @belapsed solve($prob, $alg;
                        abstol = $tol, reltol = $tol,
                        linsolve_kwargs = (; abstol = 1e-8, reltol = 1e-8),
                        termination_condition = $termination_condition)
                else
                    runtimes_scaling[j, i] = NaN
                end
                @info "$(name): $(runtimes_scaling[j, i]) | $(norm(sol.resid, Inf)) | $(sol.retcode)"
            end

            timeout(benchmark_function, 600)

            # Keep -1 on timeout so subsequent solvers at this N cascade-skip.
            if runtimes_scaling[j, i] == -1
                @warn "$(name): Timed out"
            end
        end
    end

    println()
end

# Normalize timeout sentinels for plotting (log-scale).
runtimes_scaling = map(x -> x == -1 ? NaN : x, runtimes_scaling)

17×6 Matrix{Float64}:
 7.2819e-5    0.000360517    0.00312605    0.0278221    0.509749   15.5904
 0.000249918  0.00112369     0.00353281    0.0220413    0.263754    2.48721
 0.000730015  0.0034033      0.00679249    0.0254777    0.179325    1.09863
 0.00113283   0.00569028     0.0227846     0.121309     0.880499    3.74434
 8.69e-5      0.000377138    0.00229897    0.0275437    0.534479   13.3445
 0.000261268  0.000946104    0.00330848    0.0222054    0.25906     2.36446
 0.000772396  0.00253079     0.00705054    0.0263596    0.184266    1.0075
 0.00113049   0.00569496     0.0227803     0.121119     0.873639    4.00081
 0.00860512   0.00893165     0.0167683     0.0650267    0.775393   16.6146
 0.0102118    0.0113521      0.0157162     0.0461175    0.411768  NaN
 0.0100412    0.0109992      0.0151666   NaN          NaN         NaN
 0.0116947    0.0131305      0.0198922   NaN          NaN         NaN
 0.0112364    0.0128045      0.0198889     0.0482895    0.230776  NaN
 0.0106562    0.0140171    NaN             0.0557317  NaN         NaN
 0.0106198    0.0137934    NaN             0.0536784  NaN         NaN
 0.0123362    0.0148115      0.0278501   NaN          NaN         NaN
 0.0117022    0.0141956    NaN           NaN          NaN         NaN

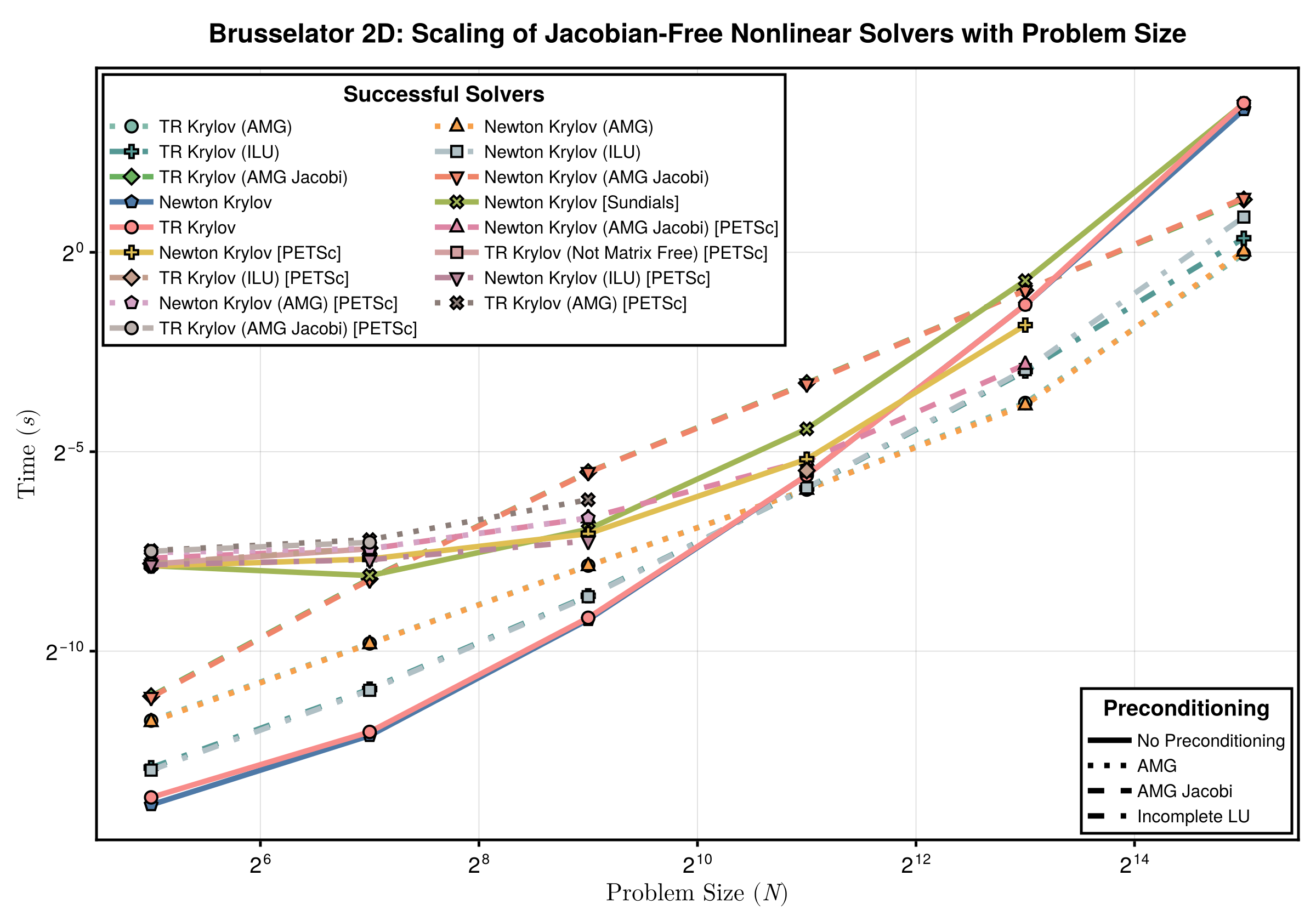

Plot the results.

fig = begin
    ASPECT_RATIO = 0.7
    WIDTH = 1200
    HEIGHT = round(Int, WIDTH * ASPECT_RATIO)
    STROKEWIDTH = 2.5

    successful_solvers = map(x -> any(isfinite, x), eachrow(runtimes_scaling))
    solvers_scaling_jacobian_free = solvers_scaling_jacobian_free[successful_solvers]
    runtimes_scaling = runtimes_scaling[successful_solvers, :]

    cycle = Cycle([:marker], covary = true)
    colors = cgrad(:tableau_20, length(solvers_scaling_jacobian_free); categorical = true)
    theme = Theme(Lines = (cycle = cycle,), Scatter = (cycle = cycle,))
    LINESTYLES = Dict(
        :none => :solid,
        :amg => :dot,
        :amg_jacobi => :dash,
        :ilu => :dashdot
    )

    Ns_ = Ns .^ 2 .* 2

    with_theme(theme) do
        fig = Figure(; size = (WIDTH, HEIGHT))

        ax = Axis(fig[1, 1:2], ylabel = L"Time ($s$)", xlabel = L"Problem Size ($N$)",
            xscale = log2, yscale = log2, xlabelsize = 22, ylabelsize = 22,
            xticklabelsize = 20, yticklabelsize = 20, xtickwidth = STROKEWIDTH,
            ytickwidth = STROKEWIDTH, spinewidth = STROKEWIDTH)

        idxs = get_ordering(runtimes_scaling)

        ls, scs, labels = [], [], []
        for (i, solver) in zip(idxs, solvers_scaling_jacobian_free[idxs])
            all(isnan, runtimes_scaling[i, :]) && continue
            precon = occursin("AMG Jacobi", solver.name) ? :amg_jacobi :
                     occursin("AMG", solver.name) ? :amg :
                     occursin("ILU", solver.name) ? :ilu : :none
            linestyle = LINESTYLES[precon]
            l = lines!(Ns_, runtimes_scaling[i, :]; linewidth = 5, color = colors[i],
                linestyle)
            sc = scatter!(Ns_, runtimes_scaling[i, :]; markersize = 16, strokewidth = 2,
                color = colors[i])
            push!(ls, l)
            push!(scs, sc)
            push!(labels, solver.name)
        end

        axislegend(ax, [[l, sc] for (l, sc) in zip(ls, scs)], labels,
            "Successful Solvers";
            framevisible = true, framewidth = STROKEWIDTH, orientation = :vertical,
            titlesize = 20, labelsize = 16, position = :lt, nbanks = 2,
            tellheight = true, tellwidth = false, patchsize = (40.0f0, 20.0f0))

        axislegend(ax,
            [
                LineElement(; linestyle = :solid, linewidth = 5),
                LineElement(; linestyle = :dot, linewidth = 5),
                LineElement(; linestyle = :dash, linewidth = 5),
                LineElement(; linestyle = :dashdot, linewidth = 5)
            ],
            ["No Preconditioning", "AMG", "AMG Jacobi", "Incomplete LU"],
            "Preconditioning"; framevisible = true, framewidth = STROKEWIDTH,
            orientation = :vertical, titlesize = 20, labelsize = 16,
            tellheight = true, tellwidth = true, patchsize = (40.0f0, 20.0f0),
            position = :rb)

        fig[0, :] = Label(fig,
            "Brusselator 2D: Scaling of Jacobian-Free Nonlinear Solvers with Problem Size",
            fontsize = 24, tellwidth = false, font = :bold)

        return fig
    end
end

save("brusselator_krylov_methods_scaling.svg", fig)

CairoMakie.Screen{SVG}
