Linear SDE Ensemble — GPUEM vs EnsembleThreads

Linear geometric Brownian motion ensemble from Utkarsh et al., Comput. Methods Appl. Mech. Eng. 428 (2024) 117109 (arXiv:2304.06835; artifacts).

$

dX = p\, X\, dt + q\, X\, dW, \qquad X_0 = (0.1, 0.1, 0.1),\quad p = 1.5,\quad q = 0.01,\quad t \in [0, 1] $

Fixed-step Euler–Maruyama with $dt = 2^{-8}$. GPU uses GPUEM + EnsembleGPUKernel in Float32; CPU uses EM + EnsembleThreads in Float64, matching the paper scripts.

using Printf
using CUDA
using DiffEqGPU, StochasticDiffEq, StaticArrays
using Plots

@assert CUDA.functional() "This benchmark requires a functional CUDA GPU"
println("GPU: ", CUDA.name(CUDA.device()))

const BACKEND = CUDA.CUDABackend()
const KERNEL = EnsembleGPUKernel(BACKEND, 0.0)

gr()

GPU: Tesla V100-PCIE-32GB
Plots.GRBackend()

f(u, p, t) = p[1] * u
g(u, p, t) = p[2] * u

function make_sde_ensemble(; T::Type = Float32)
    u0 = SVector{3, T}(T(0.1), T(0.1), T(0.1))
    tspan = (zero(T), one(T))
    p = SVector{2, T}(T(1.5), T(0.01))
    prob = SDEProblem{false}(f, g, u0, tspan, p; seed = 1234)
    return EnsembleProblem(prob, safetycopy = false)
end

function min_seconds(fn; warmup = 1, samples = 5)
    for _ in 1:warmup
        fn()
    end
    ts = Vector{Float64}(undef, samples)
    for i in 1:samples
        ts[i] = @elapsed fn()
    end
    return minimum(ts)
end

function time_sde(n, ensemblealg, alg; T = Float32)
    ens = make_sde_ensemble(; T)
    dt = T(1 // 2^8)
    run = if ensemblealg isa EnsembleThreads
        () -> (solve(ens, alg, ensemblealg; trajectories = n, save_everystep = false,
            adaptive = false, dt = dt); nothing)
    else
        () -> (CUDA.@sync solve(ens, alg, ensemblealg; trajectories = n,
            save_everystep = false, adaptive = false, dt = dt); nothing)
    end
    return min_seconds(run)
end

time_sde (generic function with 1 method)

let
    ens = make_sde_ensemble()
    sol = solve(ens, GPUEM(), KERNEL; trajectories = 4, save_everystep = false,
        adaptive = false, dt = Float32(1 // 2^8))
    @assert length(sol.u) == 4
    println("GPUEM smoke: 4 trajectories, u[end] = ", sol.u[1].u[end])
end

GPUEM smoke: 4 trajectories, u[end] = Float32[0.43873417, 0.45378098, 0.441
85403]

const TRAJ_GPU = [8, 32, 128, 512, 2048, 8192, 32768, 131072, 524288, 2097152, 8388608]
const TRAJ_CPU = [8, 32, 128, 512, 2048, 8192, 32768, 131072, 524288, 2097152]

t_gpu = Float64[]
t_cpu = Float64[]
for n in TRAJ_GPU
    @info "sde gpu" n
    push!(t_gpu, time_sde(n, KERNEL, GPUEM()))
end
for n in TRAJ_CPU
    @info "sde cpu" n
    push!(t_cpu, time_sde(n, EnsembleThreads(), EM(); T = Float64))
end

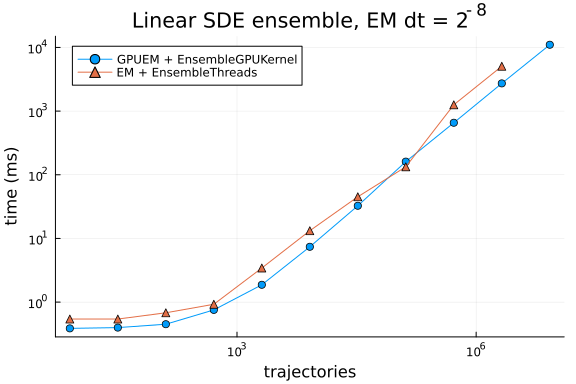

p = plot(TRAJ_GPU, t_gpu .* 1e3; xscale = :log10, yscale = :log10,
    xlabel = "trajectories", ylabel = "time (ms)", label = "GPUEM + EnsembleGPUKernel",
    marker = :circle, legend = :topleft, title = "Linear SDE ensemble, EM dt = 2^{-8}")
plot!(p, TRAJ_CPU, t_cpu .* 1e3; label = "EM + EnsembleThreads", marker = :utriangle)
p

println("Linear SDE (ms)")
@printf("%10s %12s %12s\n", "N", "GPU", "CPU")
for n in TRAJ_GPU
    tg = t_gpu[findfirst(==(n), TRAJ_GPU)] * 1e3
    tc = (i = findfirst(==(n), TRAJ_CPU); i === nothing ? NaN : t_cpu[i] * 1e3)
    @printf("%10d %12.3f %12.3f\n", n, tg, tc)
end

Linear SDE (ms)
         N          GPU          CPU
         8        0.387        0.543
        32        0.398        0.543
       128        0.450        0.680
       512        0.755        0.926
      2048        1.872        3.435
      8192        7.396       13.225
     32768       32.596       45.146
    131072      160.885      133.396
    524288      656.094     1255.722
   2097152     2723.116     5063.023
   8388608    11012.969          NaN
