Ring Modulator Work-Precision Diagrams

using OrdinaryDiffEq, DiffEqDevTools, Sundials, Plots, ODEInterfaceDiffEq, LSODA
using OrdinaryDiffEqBDF, OrdinaryDiffEqExponentialRK, OrdinaryDiffEqExtrapolation, OrdinaryDiffEqFIRK, OrdinaryDiffEqRosenbrock, OrdinaryDiffEqSDIRK, OrdinaryDiffEqStabilizedRK
using SciMLLogging
using LinearAlgebra, StaticArrays, RecursiveFactorization, Polyester, OrdinaryDiffEqCore
gr()

# Ring Modulator problem from the IVP Test Set
# Stiff system of 15 nonlinear ODEs from electrical circuit analysis
# Exact translation from Fortran feval subroutine at:
# http://archimede.dm.uniba.it/~testset/src/problems/ringmod.f

# Circuit parameters
const c_rm = 1.6e-8
const cs_rm = 2e-12
const cp_rm = 1e-8
const r_rm = 25e3
const rp_rm = 50.0
const lh_rm = 4.45
const ls1_rm = 2e-3
const ls2_rm = 5e-4
const ls3_rm = 5e-4
const rg1_rm = 36.3
const rg2_rm = 17.3
const rg3_rm = 17.3
const ri_rm = 50.0
const rc_rm = 600.0
const gamma_rm = 40.67286402e-9
const delta_rm = 17.7493332

function ringmod!(f, y, p, t)
    pi_val = 3.141592653589793238462643383

    uin1 = 0.5 * sin(2e3 * pi_val * t)
    uin2 = 2.0 * sin(2e4 * pi_val * t)
    ud1  = +y[3] - y[5] - y[7] - uin2
    ud2  = -y[4] + y[6] - y[7] - uin2
    ud3  = +y[4] + y[5] + y[7] + uin2
    ud4  = -y[3] - y[6] + y[7] + uin2

    qud1 = gamma_rm * (exp(delta_rm * ud1) - 1.0)
    qud2 = gamma_rm * (exp(delta_rm * ud2) - 1.0)
    qud3 = gamma_rm * (exp(delta_rm * ud3) - 1.0)
    qud4 = gamma_rm * (exp(delta_rm * ud4) - 1.0)

    f[1]  = (y[8] - 0.5*y[10] + 0.5*y[11] + y[14] - y[1]/r_rm) / c_rm
    f[2]  = (y[9] - 0.5*y[12] + 0.5*y[13] + y[15] - y[2]/r_rm) / c_rm
    f[3]  = (y[10] - qud1 + qud4) / cs_rm
    f[4]  = (-y[11] + qud2 - qud3) / cs_rm
    f[5]  = (y[12] + qud1 - qud3) / cs_rm
    f[6]  = (-y[13] - qud2 + qud4) / cs_rm
    f[7]  = (-y[7]/rp_rm + qud1 + qud2 - qud3 - qud4) / cp_rm
    f[8]  = -y[1] / lh_rm
    f[9]  = -y[2] / lh_rm
    f[10] = (0.5*y[1] - y[3] - rg2_rm*y[10]) / ls2_rm
    f[11] = (-0.5*y[1] + y[4] - rg3_rm*y[11]) / ls3_rm
    f[12] = (0.5*y[2] - y[5] - rg2_rm*y[12]) / ls2_rm
    f[13] = (-0.5*y[2] + y[6] - rg3_rm*y[13]) / ls3_rm
    f[14] = (-y[1] + uin1 - (ri_rm + rg1_rm)*y[14]) / ls1_rm
    f[15] = (-y[2] - (rc_rm + rg1_rm)*y[15]) / ls1_rm
end

u0 = zeros(15)
tspan = (0.0, 1e-3)

prob = ODEProblem{true, SciMLBase.FullSpecialize}(ringmod!, u0, tspan)

# Generate reference solution using tight tolerances
# This is a very oscillatory problem (10kHz forcing) requiring many steps
sol = solve(prob, CVODE_BDF(), abstol=1/10^14, reltol=1/10^14, maxiters=Int(1e7))
test_sol = TestSolution(sol)

abstols = 1.0 ./ 10.0 .^ (4:8)
reltols = 1.0 ./ 10.0 .^ (1:5);

The Ring Modulator describes an electrical circuit with diodes. The system has 15 variables: y[1]-y[2] are capacitor voltages, y[3]-y[7] involve diode voltages, y[8]-y[9] are inductor currents, and y[10]-y[15] are transformer currents. The forcing includes two sinusoidal inputs at 1kHz and 10kHz.

Reference plots from the IVP Test Set show oscillatory behavior in all components over [0, 1e-3]:

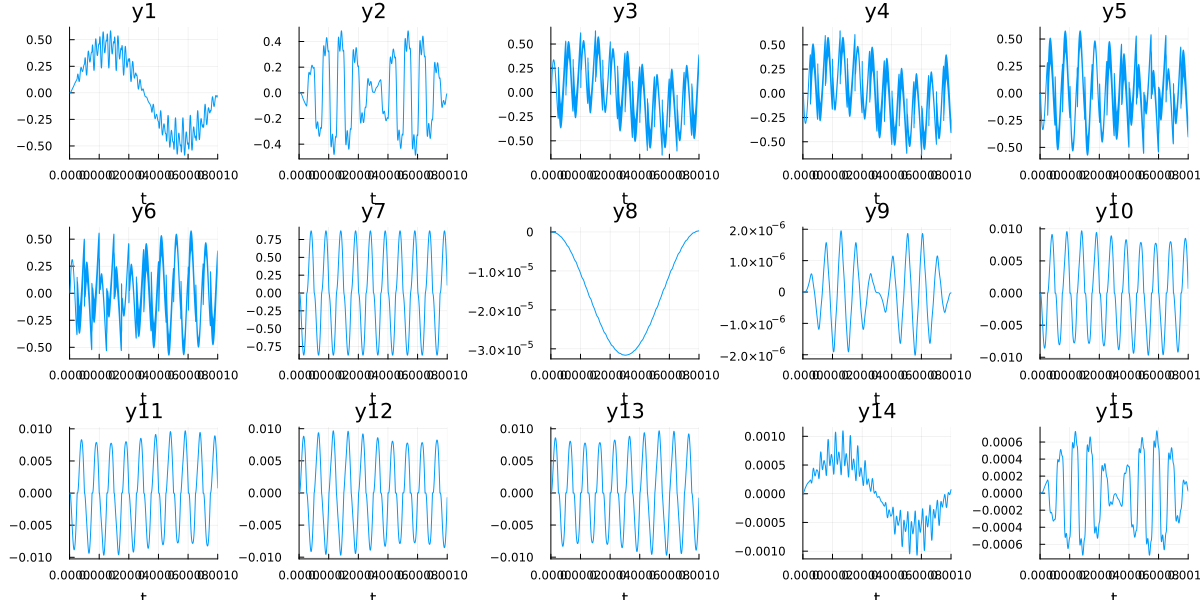

plot(sol, layout=(3,5), size=(1200,600), title=permutedims(["y$i" for i in 1:15]),
    legend=false, fmt=:png)

# Detailed view of first 4 components matching reference plots
p1 = plot(sol, idxs=[1], title="y(1)", legend=false)
p2 = plot(sol, idxs=[2], title="y(2)", legend=false)
p3 = plot(sol, idxs=[3], title="y(3)", legend=false)
p4 = plot(sol, idxs=[4], title="y(4)", legend=false)

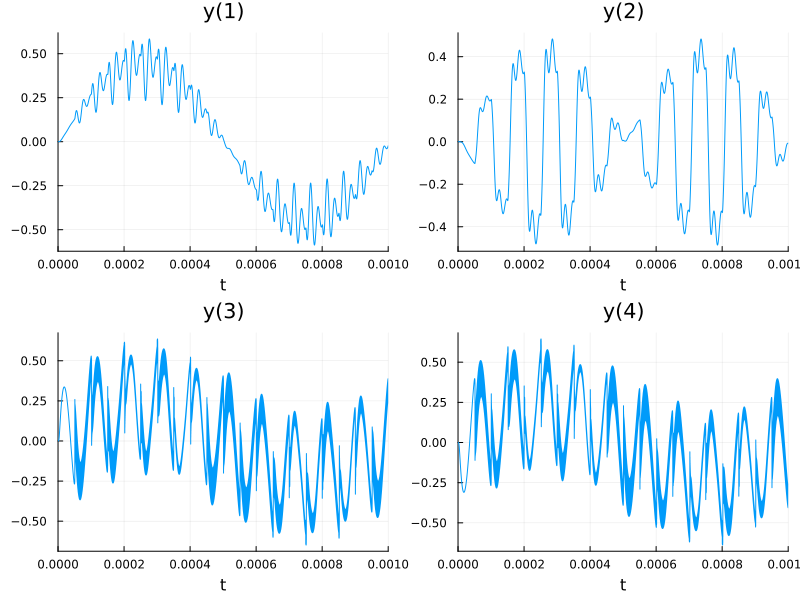

plot(p1, p2, p3, p4, layout=(2,2), size=(800,600))

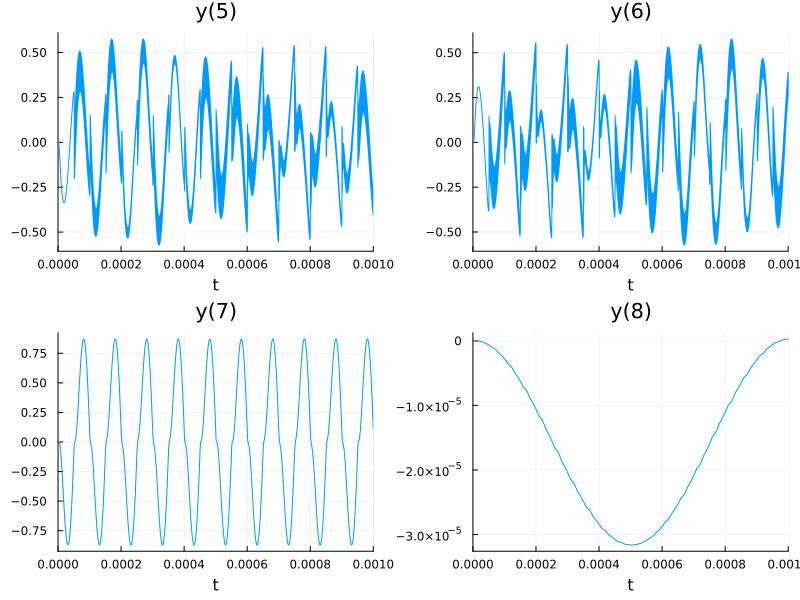

# Components y(5)-y(8) matching reference plots
p5 = plot(sol, idxs=[5], title="y(5)", legend=false)
p6 = plot(sol, idxs=[6], title="y(6)", legend=false)
p7 = plot(sol, idxs=[7], title="y(7)", legend=false)
p8 = plot(sol, idxs=[8], title="y(8)", legend=false)
plot(p5, p6, p7, p8, layout=(2,2), size=(800,600))

Omissions

The following were omitted from the tests due to convergence failures.

#sol = solve(prob,ROCK2()); # Unstable
#sol = solve(prob,ROCK4()); # Unstable
#sol = solve(prob,EXPRB53s3(),dt=2.0^(-20));
#sol = solve(prob,EPIRK4s3B(),dt=2.0^(-20));

High Tolerances

abstols = 1.0 ./ 10.0 .^ (5:8)
reltols = 1.0 ./ 10.0 .^ (1:4);
setups = [Dict(:alg=>Rosenbrock23()),
          Dict(:alg=>FBDF()),
          Dict(:alg=>QNDF()),
          Dict(:alg=>NordsieckBDF()),
          Dict(:alg=>TRBDF2()),
          Dict(:alg=>CVODE_BDF()),
          Dict(:alg=>radau()),
          Dict(:alg=>lsoda()),
          Dict(:alg=>RadauIIA5()),
          Dict(:alg=>ROS34PW1a()),
          ]

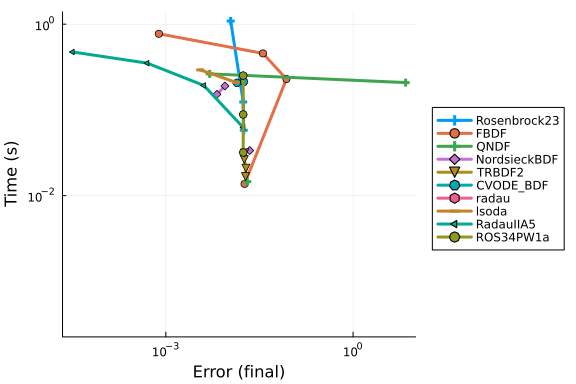

wp = WorkPrecisionSet(prob,abstols,reltols,setups;verbose=SciMLLogging.None(),
                      save_everystep=false,appxsol=test_sol,maxiters=Int(1e6),numruns=10)
plot(wp)
EXIT OF RADAU AT X=        0.1118E-03
  MORE THAN NMAX =              1000000 STEPS ARE NEEDED
 EXIT OF RADAU AT X=        0.1306E-03
  MORE THAN NMAX =              1000000 STEPS ARE NEEDED
 EXIT OF RADAU AT X=        0.7058E-04
  MORE THAN NMAX =              1000000 STEPS ARE NEEDED
 EXIT OF RADAU AT X=        0.1170E-03
  MORE THAN NMAX =              1000000 STEPS ARE NEEDED

setups = [Dict(:alg=>Rosenbrock23()),
          Dict(:alg=>Kvaerno3()),
          Dict(:alg=>KenCarp4()),
          Dict(:alg=>TRBDF2()),
          Dict(:alg=>KenCarp3()),
          Dict(:alg=>lsoda()),
          Dict(:alg=>radau())]
names = ["Rosenbrock23" "Kvaerno3" "KenCarp4" "TRBDF2" "KenCarp3" "lsoda" "radau"]

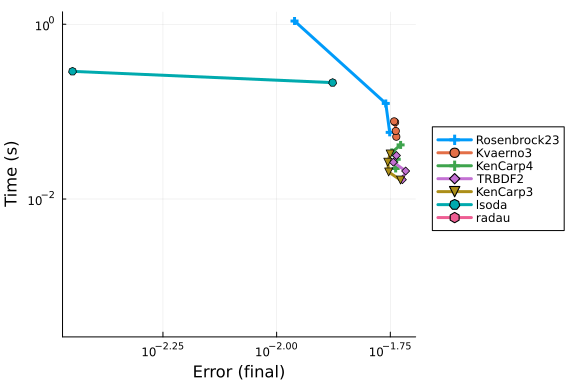

wp = WorkPrecisionSet(prob,abstols,reltols,setups;names=names, verbose=SciMLLogging.None(),
                      save_everystep=false,appxsol=test_sol,maxiters=Int(1e6),numruns=10)
plot(wp)
EXIT OF RADAU AT X=        0.1118E-03
  MORE THAN NMAX =              1000000 STEPS ARE NEEDED
 EXIT OF RADAU AT X=        0.1306E-03
  MORE THAN NMAX =              1000000 STEPS ARE NEEDED
 EXIT OF RADAU AT X=        0.7058E-04
  MORE THAN NMAX =              1000000 STEPS ARE NEEDED
 EXIT OF RADAU AT X=        0.1170E-03
  MORE THAN NMAX =              1000000 STEPS ARE NEEDED

setups = [Dict(:alg=>Rosenbrock23()),
          Dict(:alg=>TRBDF2()),
          Dict(:alg=>ImplicitEulerExtrapolation()),
          Dict(:alg=>ImplicitEulerBarycentricExtrapolation()),
          Dict(:alg=>ImplicitHairerWannerExtrapolation()),
          Dict(:alg=>FBDF()),
          Dict(:alg=>QNDF()),
          Dict(:alg=>NordsieckBDF()),
]

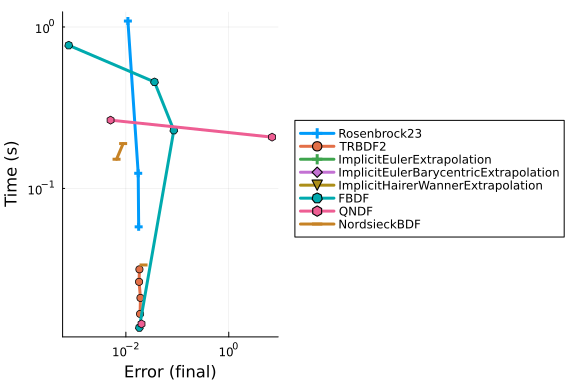

wp = WorkPrecisionSet(prob,abstols,reltols,setups; verbose=SciMLLogging.None(),
                      save_everystep=false,appxsol=test_sol,maxiters=Int(1e6),numruns=10)
plot(wp)

Low Tolerances

This is the speed at lower tolerances, measuring what's good when accuracy is needed.

abstols = 1.0 ./ 10.0 .^ (7:12)
reltols = 1.0 ./ 10.0 .^ (4:9)

setups = [Dict(:alg=>FBDF()),
          Dict(:alg=>QNDF()),
          Dict(:alg=>NordsieckBDF()),
          Dict(:alg=>CVODE_BDF()),
          Dict(:alg=>ddebdf()),
          Dict(:alg=>Rodas4()),
          Dict(:alg=>Rodas5P()),
          Dict(:alg=>rodas()),
          Dict(:alg=>lsoda()),
          Dict(:alg=>radau()),
          Dict(:alg=>RadauIIA5()),
]

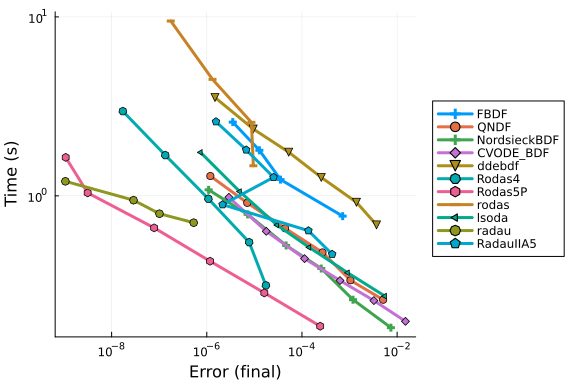

wp = WorkPrecisionSet(prob,abstols,reltols,setups;verbose=SciMLLogging.None(),
                      save_everystep=false,appxsol=test_sol,maxiters=Int(1e6),numruns=10)
plot(wp)
EXIT OF RODAS AT X=        0.5900E-03
  MORE THAN NMAX =              1000000 STEPS ARE NEEDED
 EXIT OF RODAS AT X=        0.1437E-03
  MORE THAN NMAX =              1000000 STEPS ARE NEEDED
 EXIT OF RADAU AT X=        0.8449E-04
  MORE THAN NMAX =              1000000 STEPS ARE NEEDED
 EXIT OF RADAU AT X=        0.3258E-03
  MORE THAN NMAX =              1000000 STEPS ARE NEEDED

setups = [Dict(:alg=>Kvaerno4()),
          Dict(:alg=>Kvaerno5()),
          Dict(:alg=>CVODE_BDF()),
          Dict(:alg=>KenCarp4()),
          Dict(:alg=>KenCarp47()),
          Dict(:alg=>KenCarp5()),
          Dict(:alg=>Rodas4()),
          Dict(:alg=>Rodas5P()),
          Dict(:alg=>lsoda()),
          Dict(:alg=>radau()),
          Dict(:alg=>ImplicitEulerExtrapolation()),
          Dict(:alg=>ImplicitEulerBarycentricExtrapolation()),
          Dict(:alg=>ImplicitHairerWannerExtrapolation()),
          ]

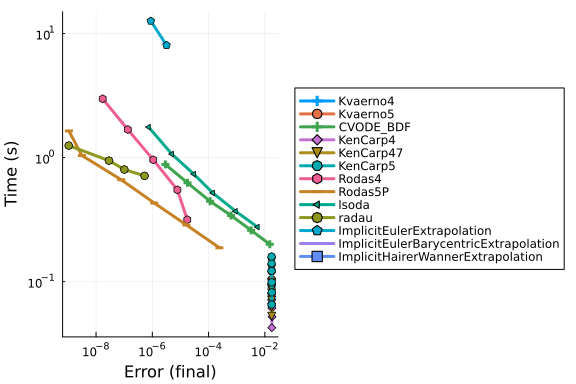

wp = WorkPrecisionSet(prob,abstols,reltols,setups; verbose=SciMLLogging.None(),
                      save_everystep=false,appxsol=test_sol,maxiters=Int(1e6),numruns=10)
plot(wp)
EXIT OF RADAU AT X=        0.8449E-04
  MORE THAN NMAX =              1000000 STEPS ARE NEEDED
 EXIT OF RADAU AT X=        0.3258E-03
  MORE THAN NMAX =              1000000 STEPS ARE NEEDED

Multithreading benchmarks with Parallel Extrapolation Methods

#Setting BLAS to one thread to measure gains
LinearAlgebra.BLAS.set_num_threads(1)

abstols = 1.0 ./ 10.0 .^ (10:12)
reltols = 1.0 ./ 10.0 .^ (7:9)

setups = [
          Dict(:alg=>CVODE_BDF()),
          Dict(:alg=>KenCarp4()),
          Dict(:alg=>Rodas4()),
          Dict(:alg=>Rodas5P()),
          Dict(:alg=>QNDF()),
          Dict(:alg=>NordsieckBDF()),
          Dict(:alg=>lsoda()),
          Dict(:alg=>radau()),
          Dict(:alg=>seulex()),
          Dict(:alg=>ImplicitEulerExtrapolation(threading = OrdinaryDiffEqCore.PolyesterThreads())),
          Dict(:alg=>ImplicitEulerExtrapolation(threading = false)),
          Dict(:alg=>ImplicitEulerBarycentricExtrapolation(min_order = 4, threading = OrdinaryDiffEqCore.PolyesterThreads())),
          Dict(:alg=>ImplicitEulerBarycentricExtrapolation(min_order = 4, threading = false)),
          Dict(:alg=>ImplicitHairerWannerExtrapolation(threading = OrdinaryDiffEqCore.PolyesterThreads())),
          Dict(:alg=>ImplicitHairerWannerExtrapolation(threading = false)),
          ]

solnames = ["CVODE_BDF","KenCarp4","Rodas4","Rodas5P","QNDF","NordsieckBDF","lsoda","radau","seulex","ImplEulerExtpl (threaded)", "ImplEulerExtpl (non-threaded)",
           "ImplEulerBaryExtpl (threaded)","ImplEulerBaryExtpl (non-threaded)","ImplHWExtpl (threaded)","ImplHWExtpl (non-threaded)"]

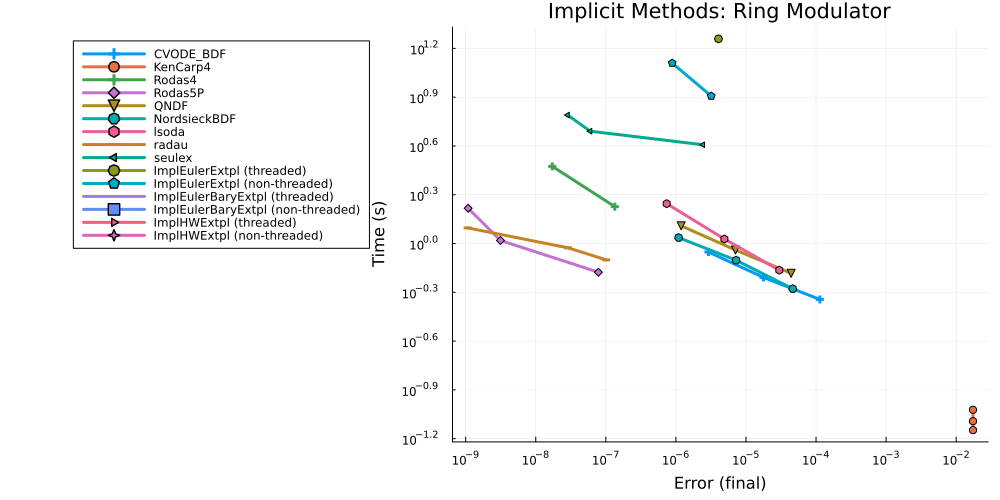

wp = WorkPrecisionSet(prob,abstols,reltols,setups; verbose=SciMLLogging.None(),
                    names = solnames,save_everystep=false,appxsol=test_sol,maxiters=Int(1e6),numruns=10)

plot(wp, title = "Implicit Methods: Ring Modulator",legend=:outertopleft,size = (1000,500),
     xticks = 10.0 .^ (-15:1:1),
     yticks = 10.0 .^ (-6:0.3:5),
     bottom_margin= 5Plots.mm)

Conclusion

The Ring Modulator is a challenging 15-dimensional stiff ODE arising from electrical circuit analysis. At high tolerances, Rosenbrock23 and lsoda are fast. At lower tolerances, Rodas4, Rodas5P, and radau perform well. The problem features rapid oscillations from 1kHz and 10kHz forcing, making it a good test for stiff solvers.

Appendix

These benchmarks are a part of the SciMLBenchmarks.jl repository, found at: https://github.com/SciML/SciMLBenchmarks.jl. For more information on high-performance scientific machine learning, check out the SciML Open Source Software Organization https://sciml.ai.

To locally run this benchmark, do the following commands:

using SciMLBenchmarks
SciMLBenchmarks.weave_file("benchmarks/StiffODE","RingModulator.jmd")
