Nonlinear BVP Benchmarks

This benchmark compares the runtime and error of BVP solvers, including MIRK solvers, FIRK solvers, Shooting solvers and FORTRAN BVP solvers on nonlinear boundary value problems. The testing BVPs are a set of standard BVP test problems as described here. The problems are implemented in BVProblemLibrary.jl, where you can find the problem function declarations. For each problem, we test the following solvers:

  • BoundaryValueDiffEq.jl's MIRK methods(including MIRK4, MIRK5, MIRK6).
  • BoundaryValueDiffEq.jl's Shooting methods(including Shooting, MultipleShooting).
  • BoundaryValueDiffEq.jl's FIRK methods(including RadauIIa3, RadauIIa5, RadauIIa7, LobattoIIIa4, LobattoIIIa5, LobattoIIIb4, LobattoIIIb5, LobattoIIIc4, LobattoIIIc5).
  • SimpleBoundaryValueDiffEq.jl's MIRK methods(including SimpleMIRK4, SimpleMIRK5, SimpleMIRK6).
  • FORTRAN BVP solvers from ODEInterface.jl(including BVPM2 and COLNEW).

Setup

Fetch required packages.

using BoundaryValueDiffEq, SimpleBoundaryValueDiffEq, OrdinaryDiffEq, ODEInterface, DiffEqDevTools, BenchmarkTools,
      BVProblemLibrary, CairoMakie, NonlinearSolveFirstOrder

Set up the benchmarked solvers.

solvers_all = [
    (; pkg = :boundaryvaluediffeq,          type = :mirk,         name = "MIRK4",                solver = Dict(:alg => MIRK4(), :dts=>1.0 ./ 5.0 .^ (1:4))),
    (; pkg = :boundaryvaluediffeq,          type = :mirk,         name = "MIRK5",                solver = Dict(:alg => MIRK5(), :dts=>1.0 ./ 5.0 .^ (1:4))),
    (; pkg = :boundaryvaluediffeq,          type = :mirk,         name = "MIRK6",                solver = Dict(:alg => MIRK6(), :dts=>1.0 ./ 5.0 .^ (1:4))),
    (; pkg = :boundaryvaluediffeq,          type = :firk,         name = "RadauIIa3",            solver = Dict(:alg => RadauIIa3(), :dts=>1.0 ./ 5.0 .^ (1:4))),
    (; pkg = :boundaryvaluediffeq,          type = :firk,         name = "RadauIIa5",            solver = Dict(:alg => RadauIIa5(), :dts=>1.0 ./ 5.0 .^ (1:4))),
    (; pkg = :boundaryvaluediffeq,          type = :firk,         name = "RadauIIa7",            solver = Dict(:alg => RadauIIa7(), :dts=>1.0 ./ 5.0 .^ (1:4))),
    (; pkg = :boundaryvaluediffeq,          type = :firk,         name = "LobattoIIIa4",         solver = Dict(:alg => LobattoIIIa4(), :dts=>1.0 ./ 5.0 .^ (1:4))),
    (; pkg = :boundaryvaluediffeq,          type = :firk,         name = "LobattoIIIa5",         solver = Dict(:alg => LobattoIIIa5(), :dts=>1.0 ./ 5.0 .^ (1:4))),
    (; pkg = :boundaryvaluediffeq,          type = :firk,         name = "LobattoIIIb4",         solver = Dict(:alg => LobattoIIIb4(), :dts=>1.0 ./ 5.0 .^ (1:4))),
    (; pkg = :boundaryvaluediffeq,          type = :firk,         name = "LobattoIIIb5",         solver = Dict(:alg => LobattoIIIb5(), :dts=>1.0 ./ 5.0 .^ (1:4))),
    (; pkg = :boundaryvaluediffeq,          type = :firk,         name = "LobattoIIIc4",         solver = Dict(:alg => LobattoIIIc4(), :dts=>1.0 ./ 5.0 .^ (1:4))),
    (; pkg = :boundaryvaluediffeq,          type = :firk,         name = "LobattoIIIc5",         solver = Dict(:alg => LobattoIIIc5(), :dts=>1.0 ./ 5.0 .^ (1:4))),
    (; pkg = :boundaryvaluediffeq,          type = :shooting,     name = "Single Shooting",      solver = Dict(:alg => Shooting(Tsit5(), NewtonRaphson()))),
    (; pkg = :boundaryvaluediffeq,          type = :shooting,     name = "Multiple Shooting",    solver = Dict(:alg => MultipleShooting(10, Tsit5()))),
    (; pkg = :wrapper,                      type = :general,      name = "BVPM2",                solver = Dict(:alg => BVPM2(), :dts=>1.0 ./ 5.0 .^ (1:4))),
    (; pkg = :wrapper,                      type = :general,      name = "COLNEW",               solver = Dict(:alg => COLNEW(), :dts=>1.0 ./ 5.0 .^ (1:4))),
];

solver_tracker = [];
wp_general_tracker = [];

Sets tolerances.

abstols = 1.0 ./ 10.0 .^ (1:4)
reltols = 1.0 ./ 10.0 .^ (1:4);

Prepares helper function for benchmarking a specific problem.

function benchmark(prob)
    sol = solve(prob, MIRK6(), dt = 0.01, abstol = 1e-6)
    testsol = TestSolution(sol)
    wps = WorkPrecisionSet(prob, abstols, reltols, getfield.(solvers_all, :solver); names = getfield.(solvers_all, :name), appxsol = testsol, maxiters=Int(1e4))
    push!(wp_general_tracker, wps)
    return wps
end

function plot_wpd(wp_set)
    fig = begin
        LINESTYLES = Dict(:boundaryvaluediffeq => :solid, :simpleboundaryvaluediffeq => :dash, :wrapper => :dot)
        ASPECT_RATIO = 0.7
        WIDTH = 1200
        HEIGHT = round(Int, WIDTH * ASPECT_RATIO)
        STROKEWIDTH = 2.5

    colors = cgrad(:seaborn_bright, length(solvers_all); categorical = true)
    cycle = Cycle([:marker], covary = true)
        plot_theme = Theme(Lines = (; cycle), Scatter = (; cycle))

        with_theme(plot_theme) do
            fig = Figure(; size = (WIDTH, HEIGHT))
            ax = Axis(fig[1, 1], ylabel = L"Time $\mathbf{(s)}$",
                xlabelsize = 22, ylabelsize = 22,
                xlabel = L"Error: $\mathbf{||f(u^\ast)||_2}$",
                xscale = log10, yscale = log10, xtickwidth = STROKEWIDTH,
                ytickwidth = STROKEWIDTH, spinewidth = STROKEWIDTH,
                xticklabelsize = 20, yticklabelsize = 20)

            idxs = sortperm(median.(getfield.(wp_set.wps, :times)))

            ls, scs = [], []

            for (i, (wp, solver)) in enumerate(zip(wp_set.wps[idxs], solvers_all[idxs]))
                (; name, times, errors) = wp
                errors = [err.l∞ for err in errors]
                l = lines!(ax, errors, times; linestyle = LINESTYLES[solver.pkg], label = name,
                    linewidth = 5, color = colors[i])
                sc = scatter!(ax, errors, times; label = name, markersize = 16, strokewidth = 2,
                    color = colors[i])
                push!(ls, l)
                push!(scs, sc)
            end

            xlims!(ax; high=1)
            ylims!(ax; low=5e-7)

            Legend(fig[1,2], [[l, sc] for (l, sc) in zip(ls, scs)],
                [solver.name for solver in solvers_all[idxs]], "BVP Solvers";
                framevisible=true, framewidth = STROKEWIDTH, position = :rb,
                titlesize = 20, labelsize = 16, patchsize = (40.0f0, 20.0f0))

            fig[0, :] = Label(fig, "Nonlinear BVP Benchmark",
                fontsize = 24, tellwidth = false, font = :bold)
            fig
        end
    end
end
plot_wpd (generic function with 1 method)

Benchmarks

We here run benchmarks for each of the 18 test problems.

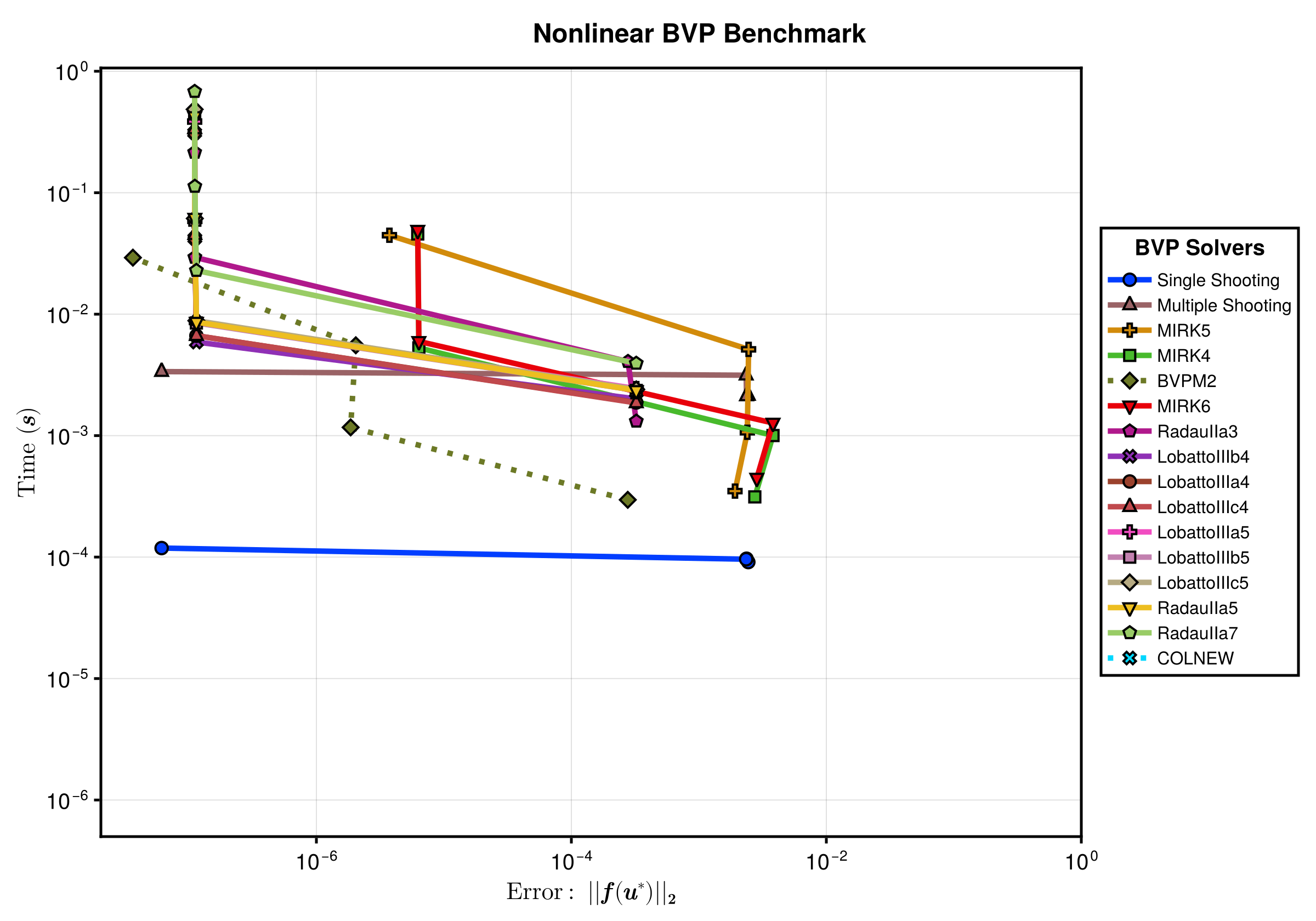

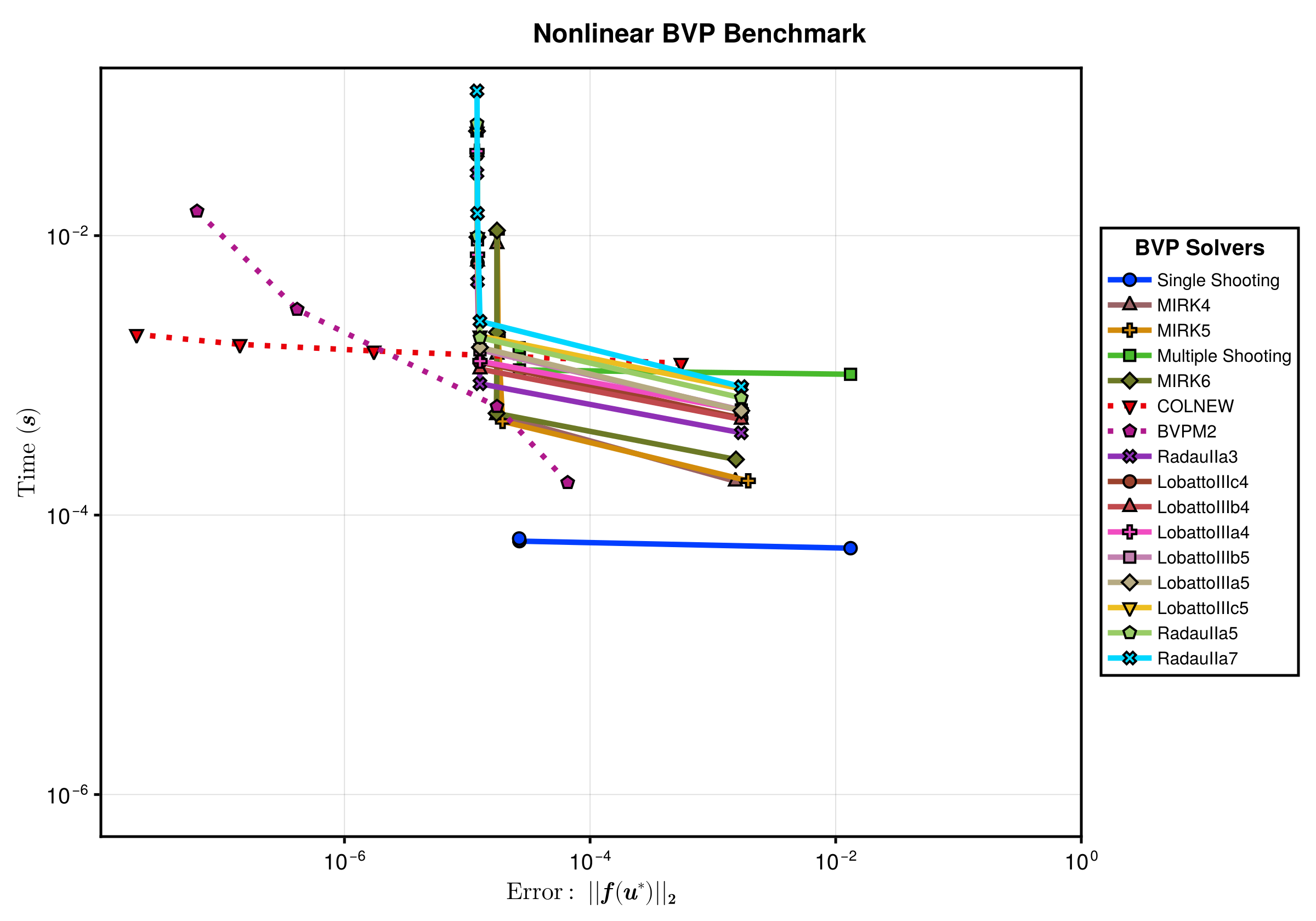

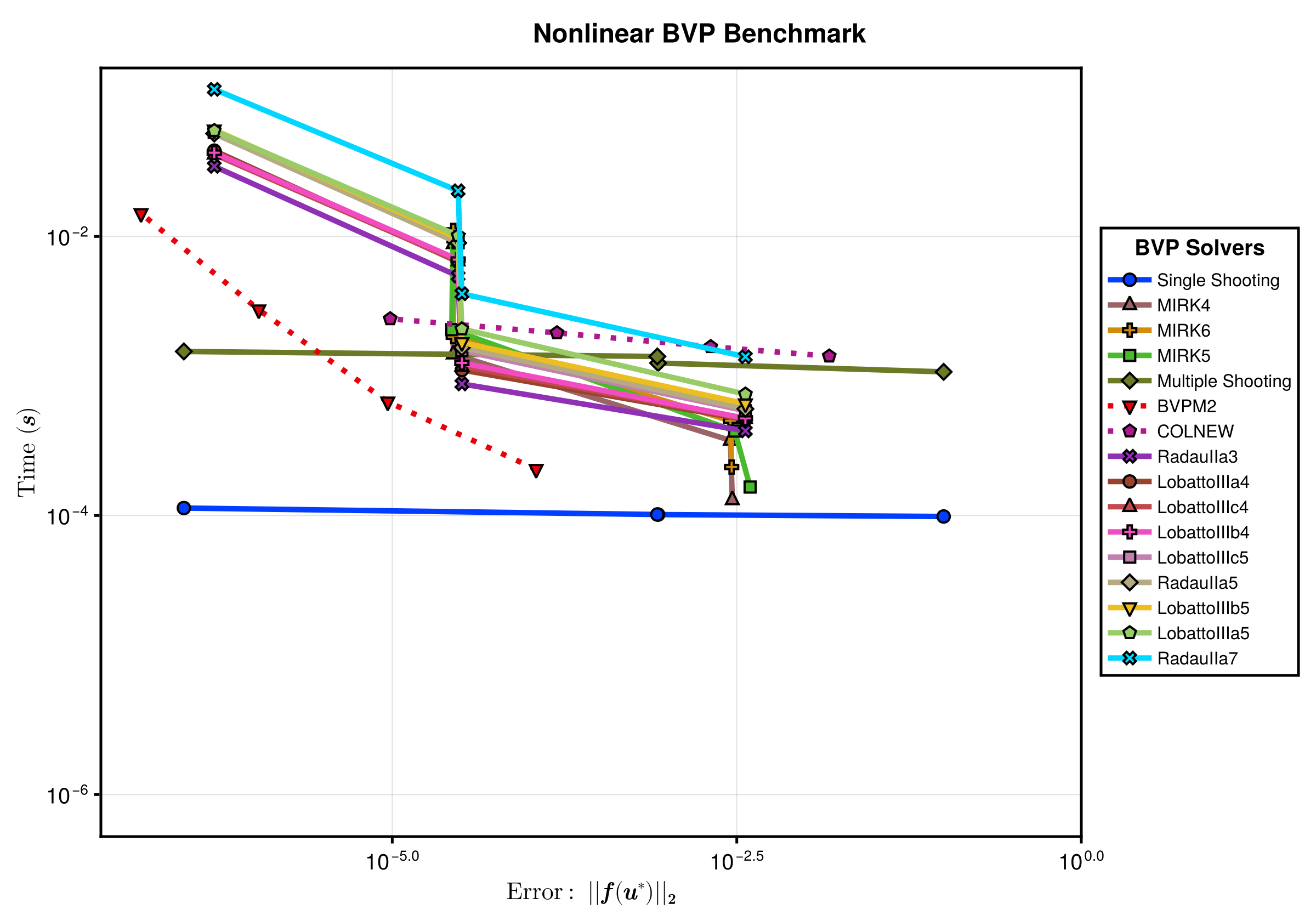

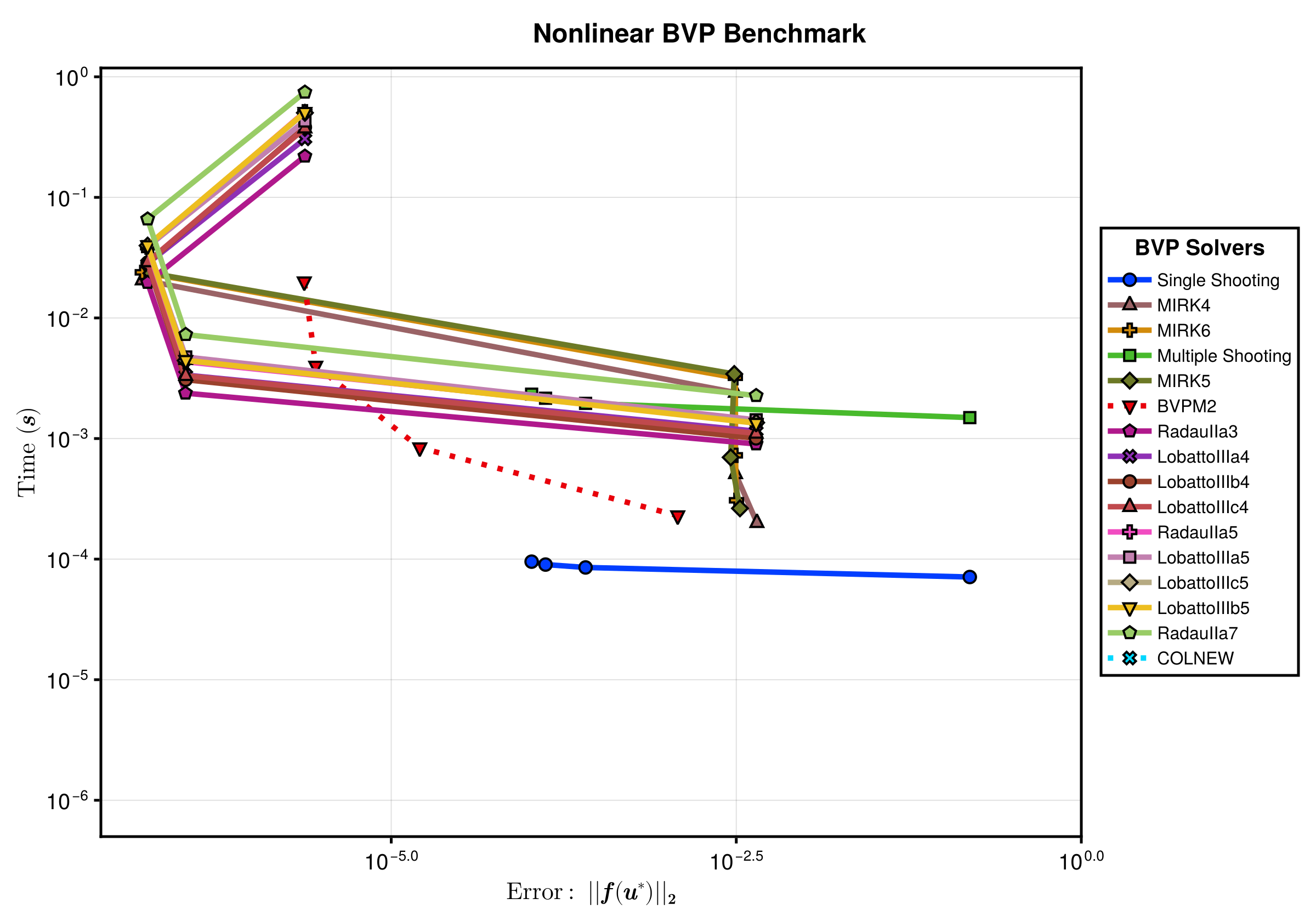

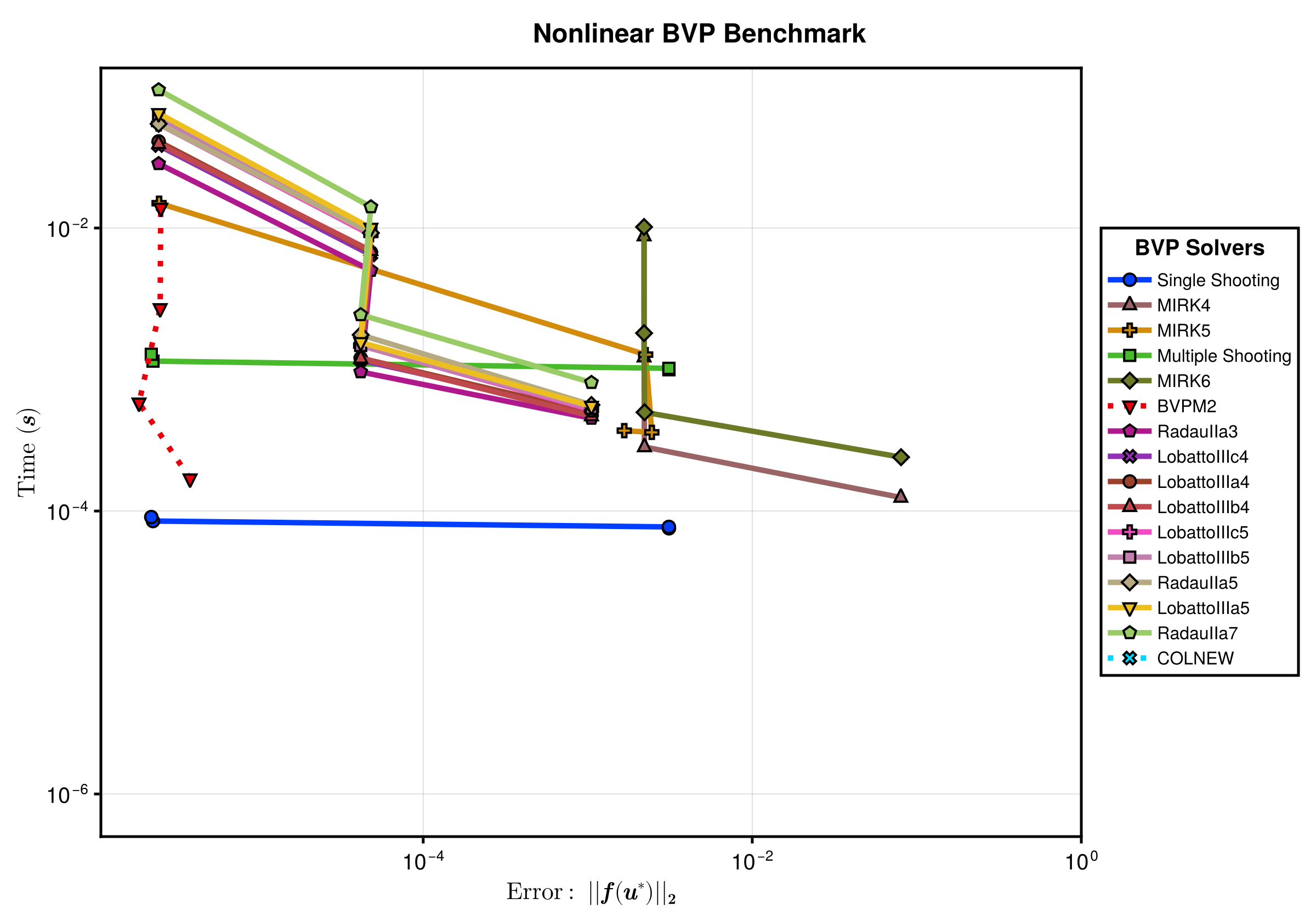

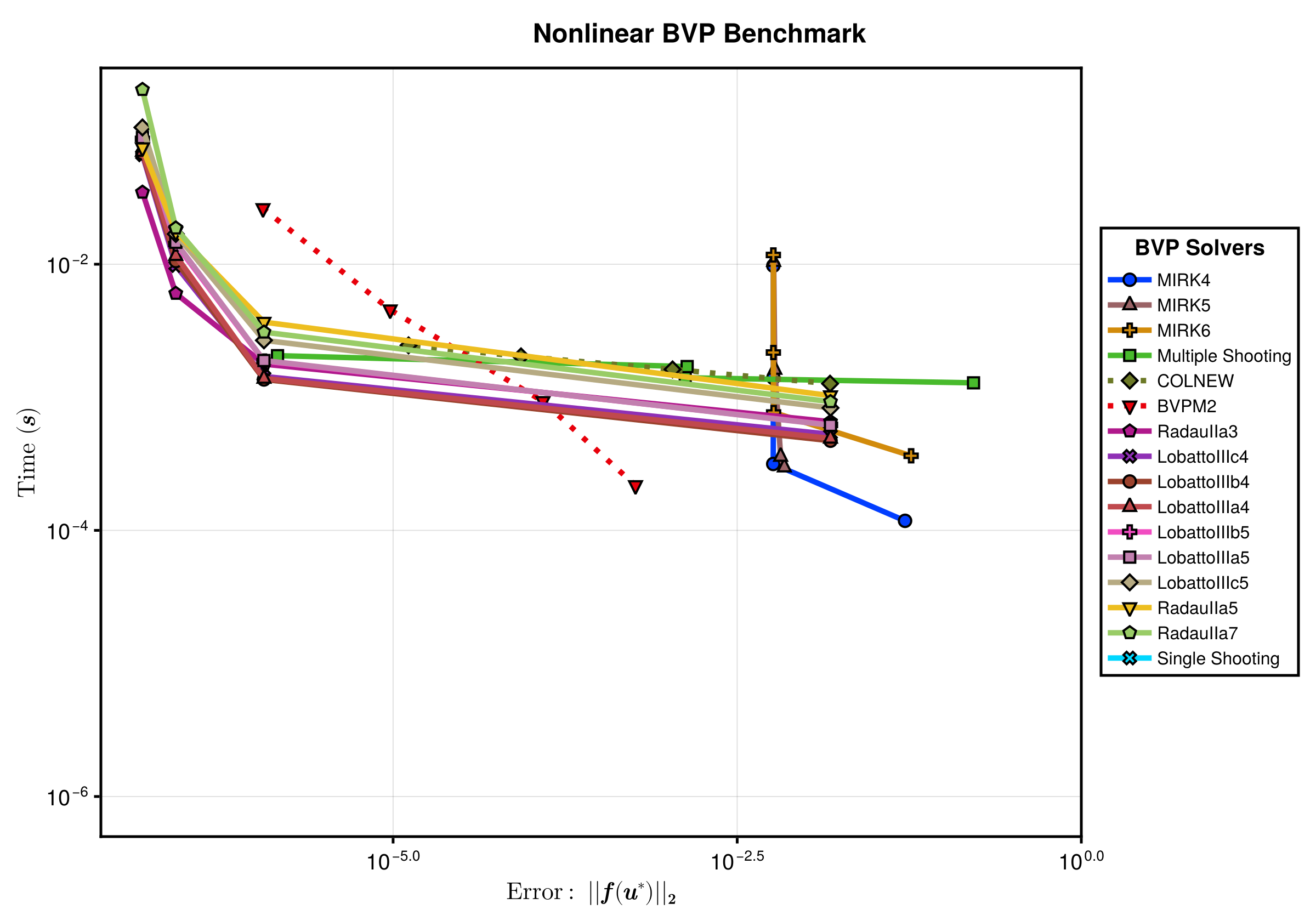

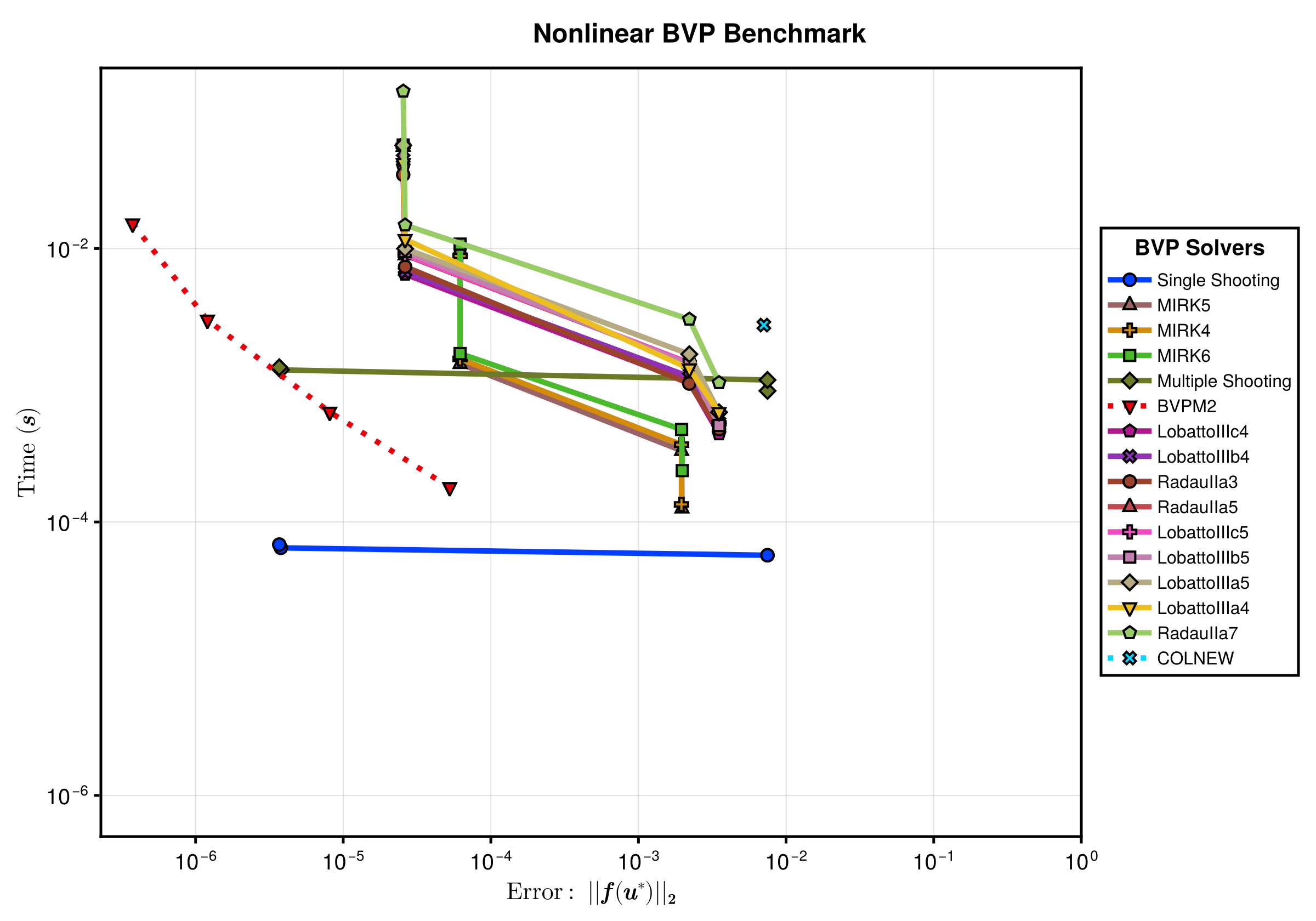

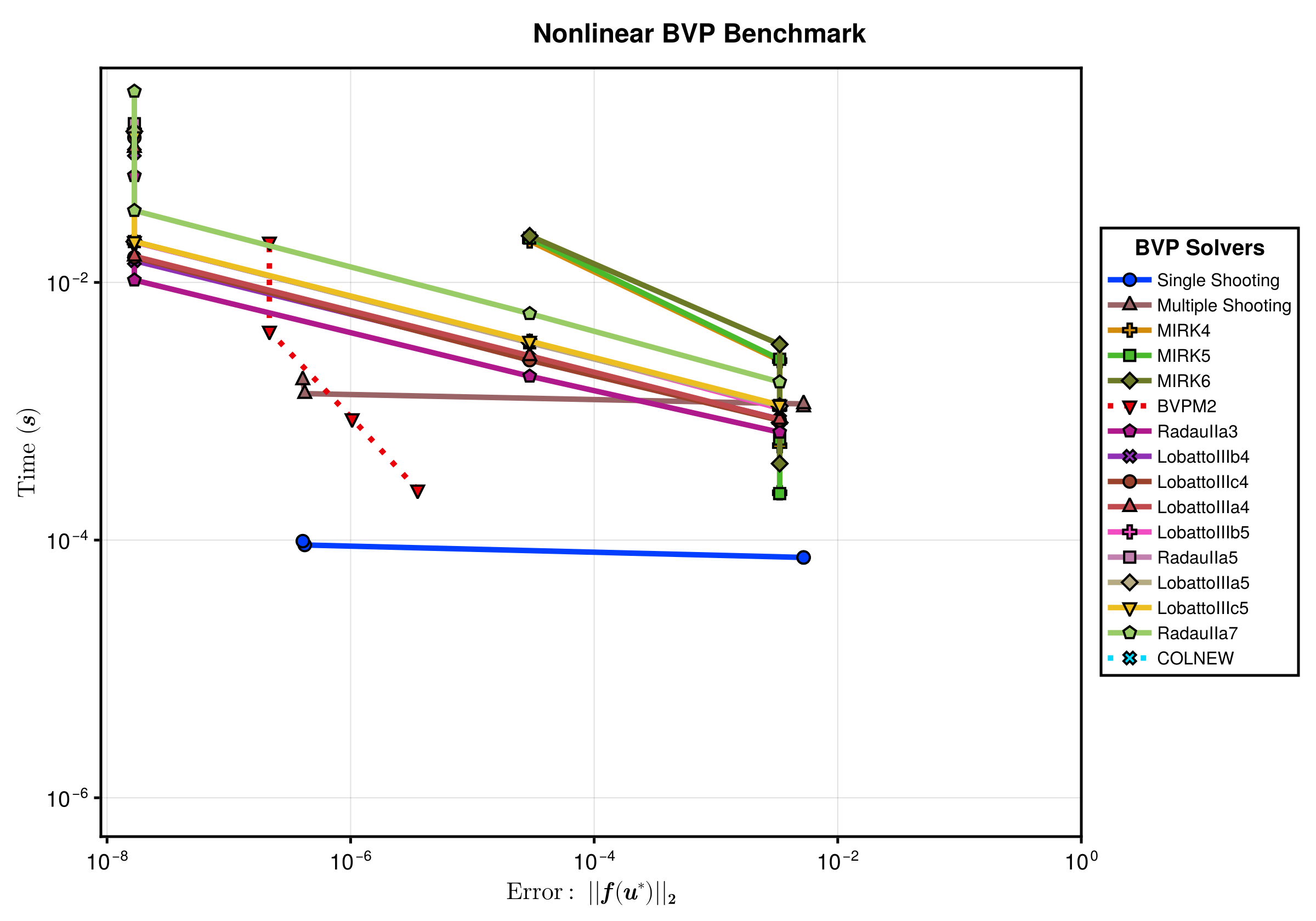

Nonlinear BVP 1

prob_1 = BVProblemLibrary.prob_bvp_nonlinear_1
wps = benchmark(prob_1)
plot_wpd(wps)

Nonlinear BVP 2

prob_2 = BVProblemLibrary.prob_bvp_nonlinear_2
wps = benchmark(prob_2)
plot_wpd(wps)

Nonlinear BVP 3

prob_3 = BVProblemLibrary.prob_bvp_nonlinear_3
wps = benchmark(prob_3)
plot_wpd(wps)

Nonlinear BVP 4

prob_4 = BVProblemLibrary.prob_bvp_nonlinear_4
wps = benchmark(prob_4)
plot_wpd(wps)

Nonlinear BVP 5

prob_5 = BVProblemLibrary.prob_bvp_nonlinear_5
wps = benchmark(prob_5)
plot_wpd(wps)

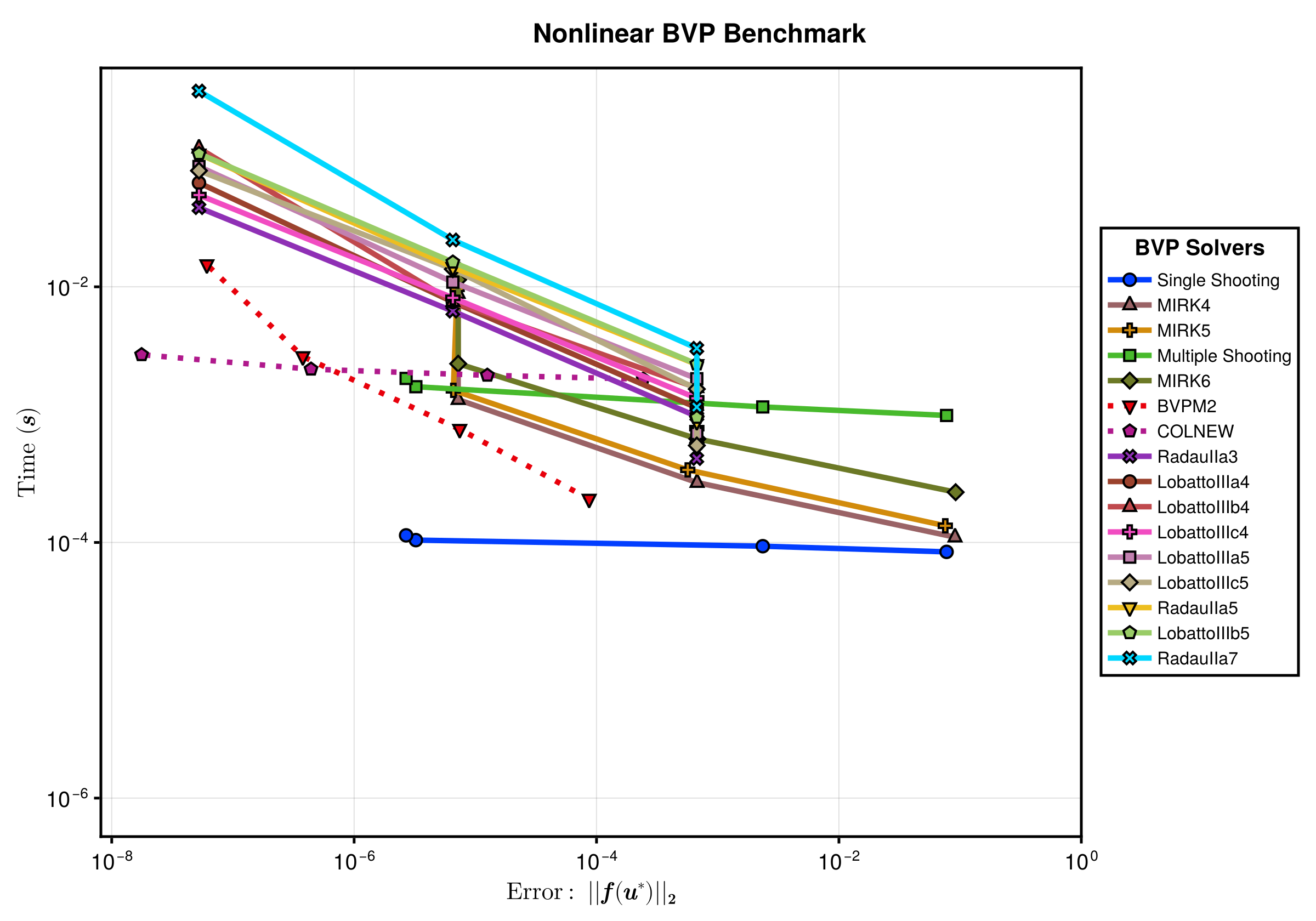

Nonlinear BVP 6

prob_6 = BVProblemLibrary.prob_bvp_nonlinear_6
wps = benchmark(prob_6)
plot_wpd(wps)

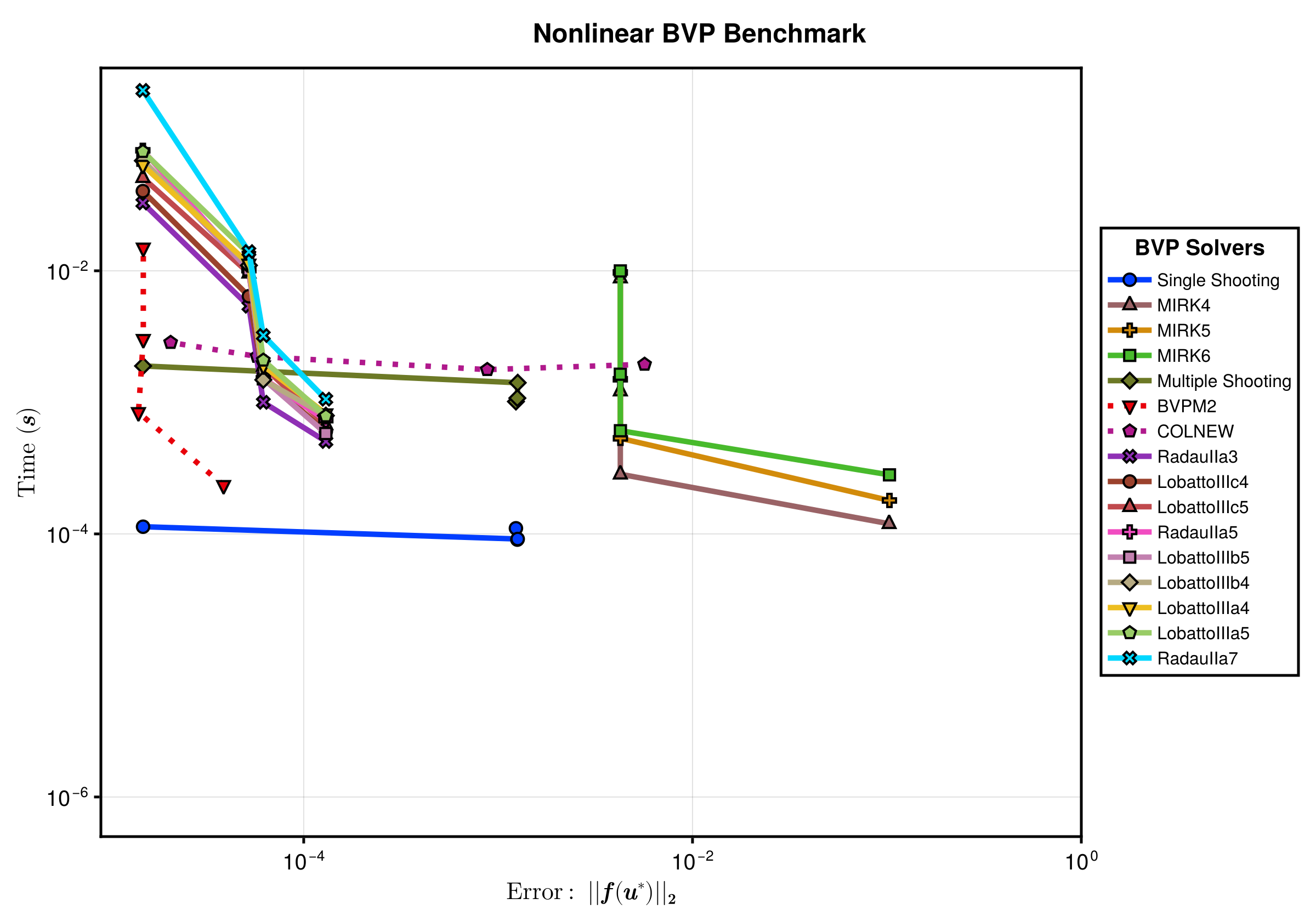

Nonlinear BVP 7

prob_7 = BVProblemLibrary.prob_bvp_nonlinear_7
wps = benchmark(prob_7)
plot_wpd(wps)

Nonlinear BVP 8

prob_8 = BVProblemLibrary.prob_bvp_nonlinear_8
wps = benchmark(prob_8)
plot_wpd(wps)

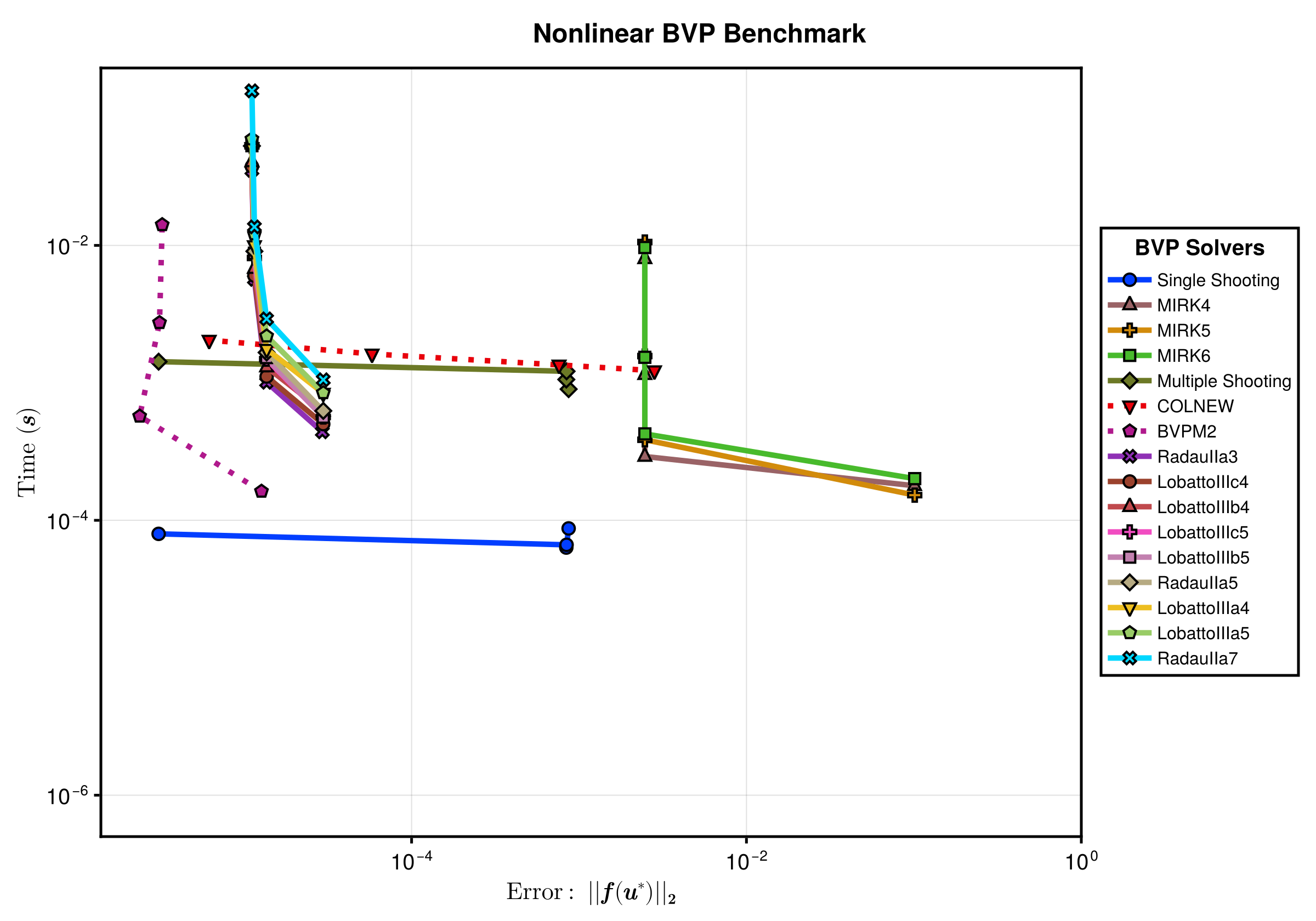

Nonlinear BVP 9

prob_9 = BVProblemLibrary.prob_bvp_nonlinear_9
wps = benchmark(prob_9)
plot_wpd(wps)

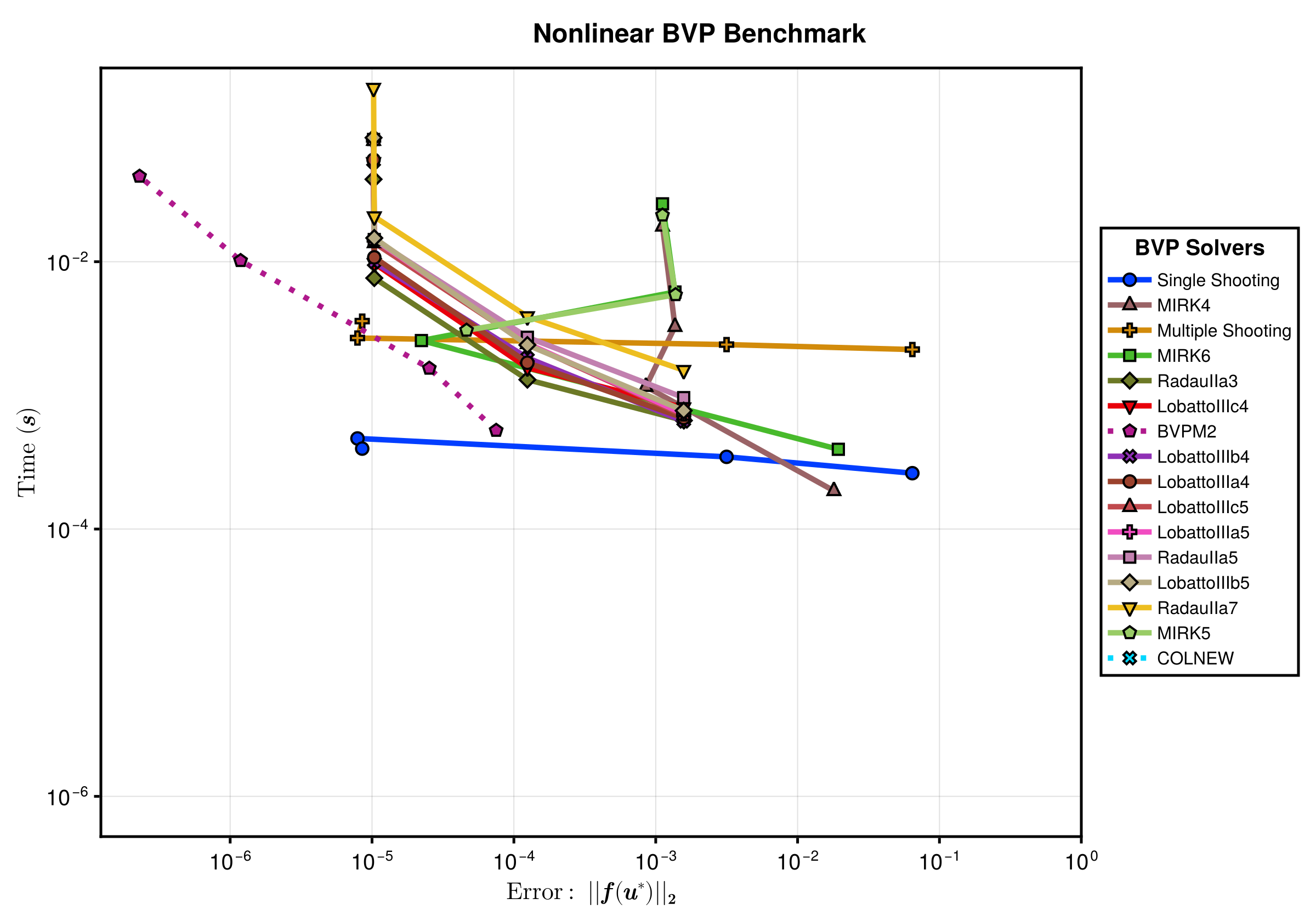

Nonlinear BVP 10

prob_10 = BVProblemLibrary.prob_bvp_nonlinear_10
wps = benchmark(prob_10)
plot_wpd(wps)

Nonlinear BVP 11

prob_11 = BVProblemLibrary.prob_bvp_nonlinear_11
wps = benchmark(prob_11)
plot_wpd(wps)

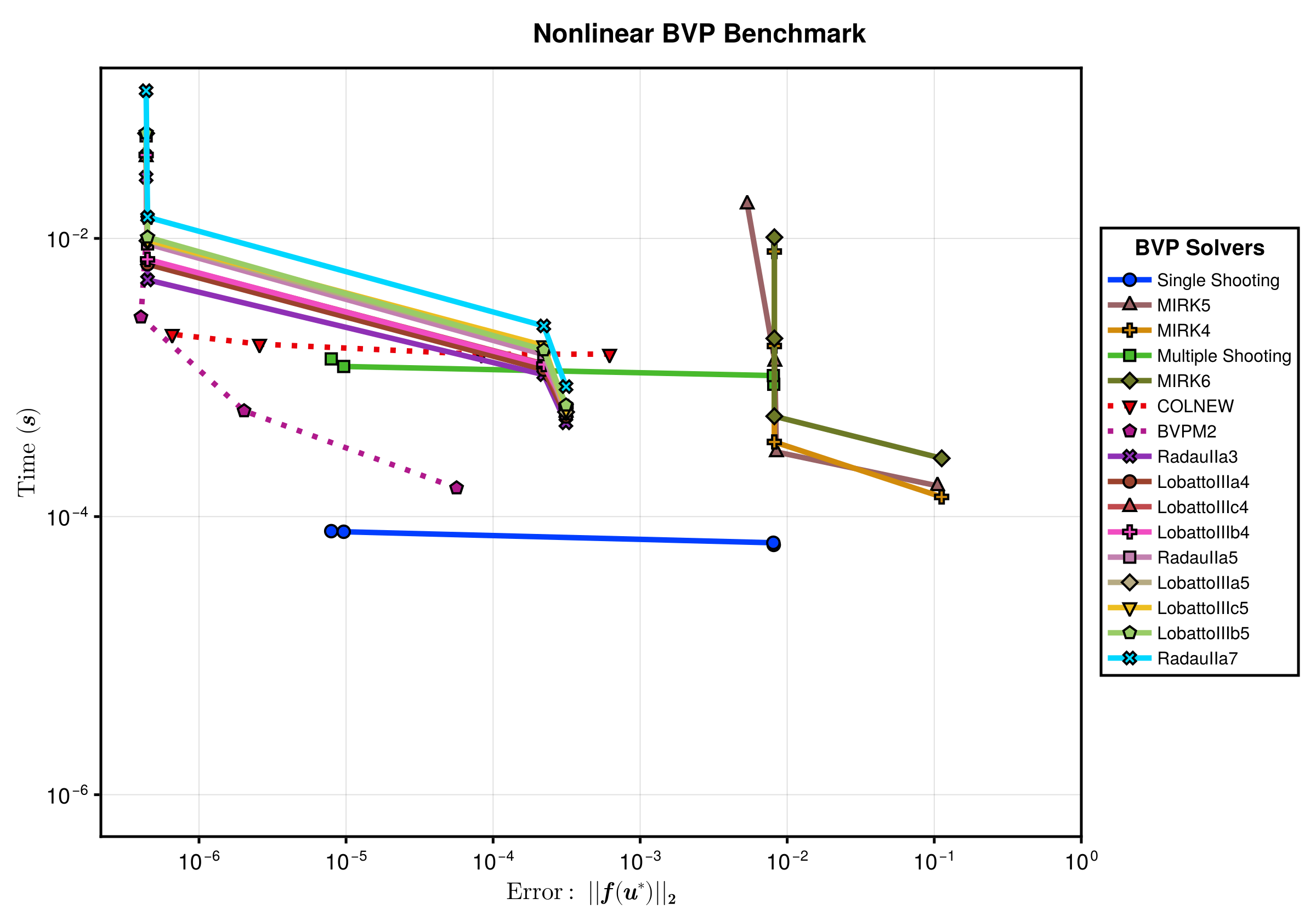

Nonlinear BVP 12

prob_12 = BVProblemLibrary.prob_bvp_nonlinear_12
wps = benchmark(prob_12)
plot_wpd(wps)

Nonlinear BVP 13

prob_13 = BVProblemLibrary.prob_bvp_nonlinear_13
wps = benchmark(prob_13)
plot_wpd(wps)

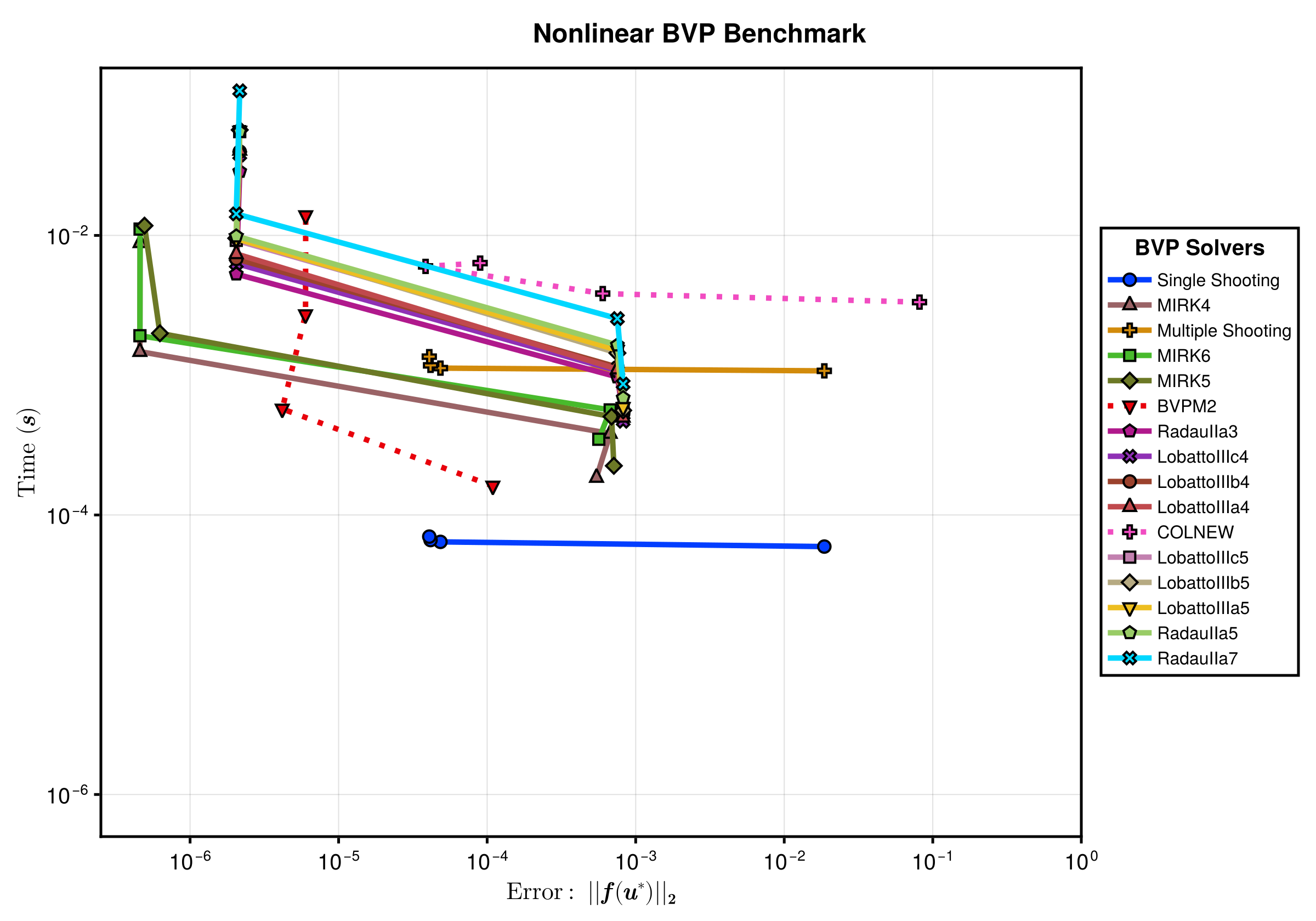

Nonlinear BVP 14

prob_14 = BVProblemLibrary.prob_bvp_nonlinear_14
wps = benchmark(prob_14)
plot_wpd(wps)

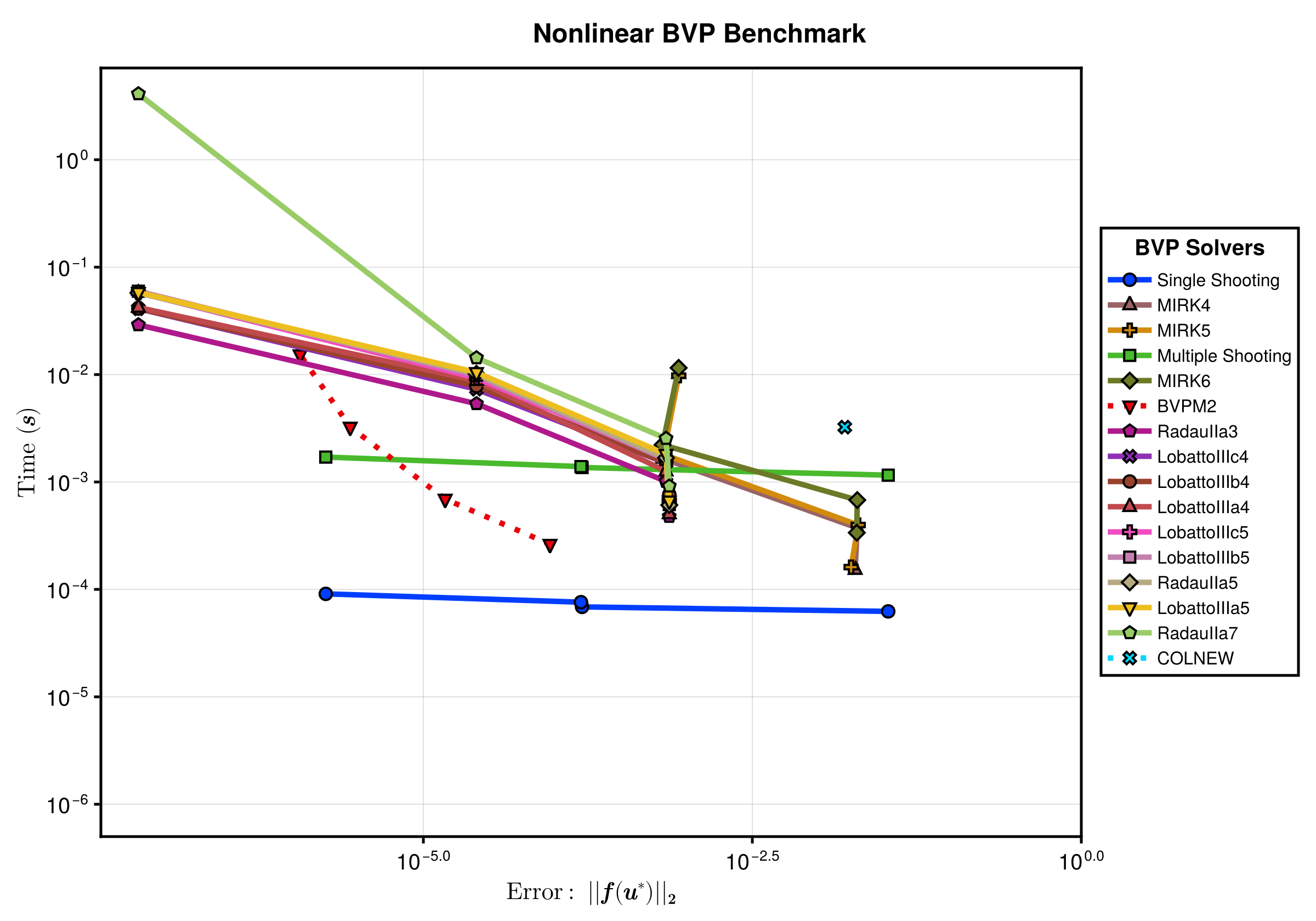

Nonlinear BVP 15

prob_15 = BVProblemLibrary.prob_bvp_nonlinear_15
wps = benchmark(prob_15)
plot_wpd(wps)

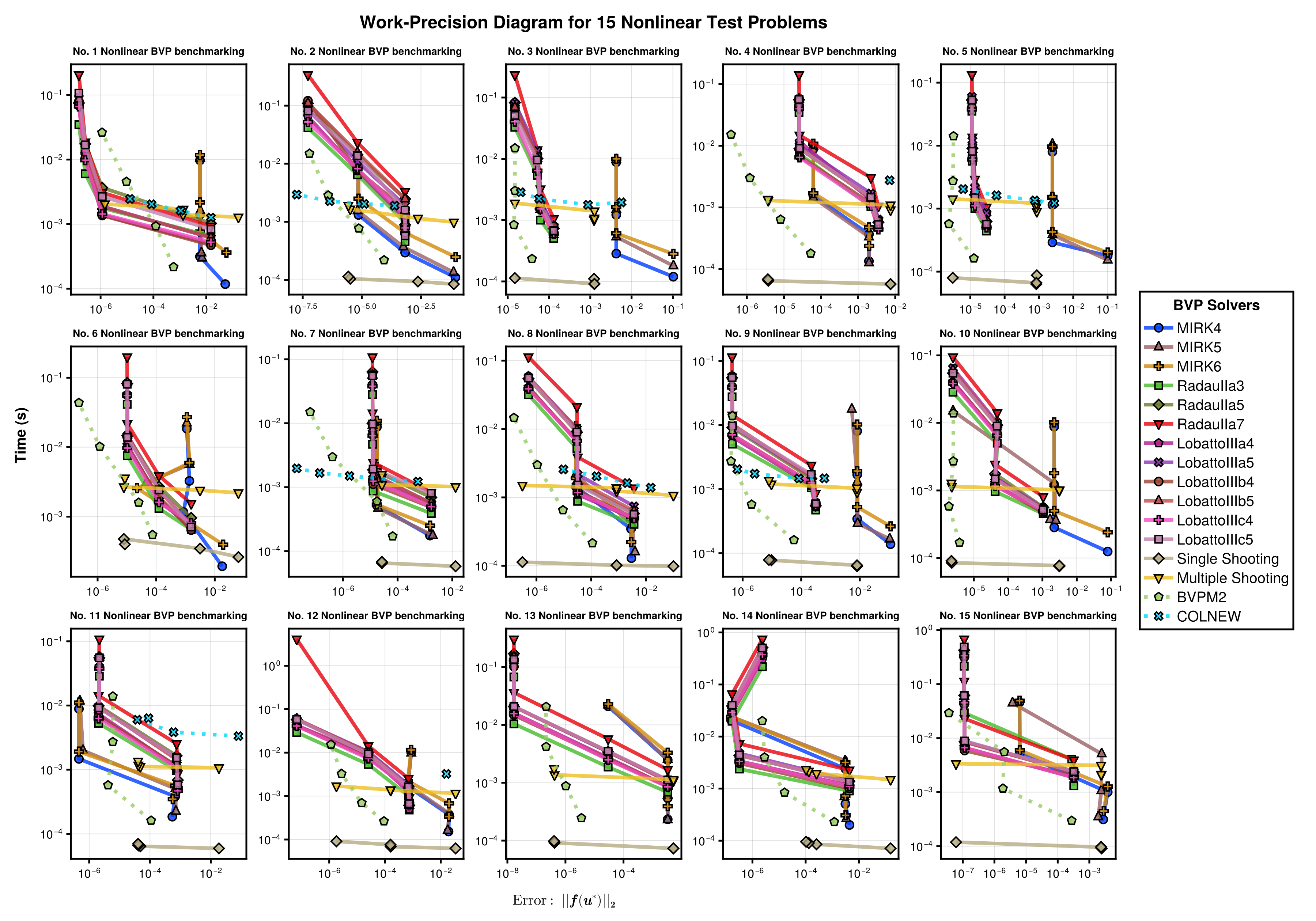

Summary of General Solvers Performance on All Problems

fig = begin
    LINESTYLES = Dict(:boundaryvaluediffeq => :solid, :wrapper => :dot)
    ASPECT_RATIO = 0.7
    WIDTH = 1800
    HEIGHT = round(Int, WIDTH * ASPECT_RATIO)
    STROKEWIDTH = 2.5

    colors = cgrad(:seaborn_bright, length(solvers_all); categorical = true)
    cycle = Cycle([:marker], covary = true)
    plot_theme = Theme(Lines = (; cycle), Scatter = (; cycle))

    with_theme(plot_theme) do
        fig = Figure(; size = (WIDTH, HEIGHT))

        ls = []
        scs = []
        labels = []
        solver_times = []

        for i in 1:3, j in 1:5
            idx = 5 * (i - 1) + j

            idx > length(wp_general_tracker) && break

            wp = wp_general_tracker[idx]

            ax = Axis(fig[i, j],
                xscale = log10, yscale = log10,
                xtickwidth = STROKEWIDTH,
                ytickwidth = STROKEWIDTH, spinewidth = STROKEWIDTH,
                title = "No. $(idx) Nonlinear BVP benchmarking", titlegap = 10,
                xticklabelsize = 16, yticklabelsize = 16)

            for wpᵢ in wp.wps
                idx = findfirst(s -> s.name == wpᵢ.name, solvers_all)
                errs = getindex.(wpᵢ.errors, :l∞)
                times = wpᵢ.times

                l = lines!(ax, errs, times; color = colors[idx], linewidth = 5,
                    linestyle = LINESTYLES[solvers_all[idx].pkg], alpha = 0.8,
                    label = wpᵢ.name)
                sc = scatter!(ax, errs, times; color = colors[idx], markersize = 16,
                    strokewidth = 2, marker = Cycled(idx), alpha = 0.8, label = wpᵢ.name)

                if wpᵢ.name ∉ labels
                    push!(ls, l)
                    push!(scs, sc)
                    push!(labels, wpᵢ.name)
                end
            end
        end

        fig[0, :] = Label(fig, "Work-Precision Diagram for 15 Nonlinear Test Problems",
            fontsize = 24, tellwidth = false, font = :bold)

        fig[:, 0] = Label(fig, "Time (s)", fontsize = 20, tellheight = false, font = :bold,
            rotation = π / 2)
        fig[end + 1, :] = Label(fig,
            L"Error: $\mathbf{||f(u^\ast)||_2}$",
            fontsize = 20, tellwidth = false, font = :bold)

        Legend(fig[:, 6], [[l, sc] for (l, sc) in zip(ls, scs)],
            labels, "BVP Solvers";
            framevisible=true, framewidth = STROKEWIDTH, orientation = :vertical,
            titlesize = 20, nbanks = 1, labelsize = 20, halign = :center,
            tellheight = false, tellwidth = false, patchsize = (40.0f0, 20.0f0))

        return fig
    end
end

Appendix

These benchmarks are a part of the SciMLBenchmarks.jl repository, found at: https://github.com/SciML/SciMLBenchmarks.jl. For more information on high-performance scientific machine learning, check out the SciML Open Source Software Organization https://sciml.ai.

To locally run this benchmark, do the following commands:

using SciMLBenchmarks
SciMLBenchmarks.weave_file("benchmarks/NonStiffBVP","nonlinear_wpd.jmd")

Computer Information:

Julia Version 1.11.9
Commit 53a02c0720c (2026-02-06 00:27 UTC)
Build Info:
  Official https://julialang.org/ release
Platform Info:
  OS: Linux (x86_64-linux-gnu)
  CPU: 128 × AMD EPYC 7502 32-Core Processor
  WORD_SIZE: 64
  LLVM: libLLVM-16.0.6 (ORCJIT, znver2)
Threads: 1 default, 0 interactive, 1 GC (on 128 virtual cores)
Environment:
  JULIA_PKG_PRECOMPILE_AUTO = 0

Package Information:

Status `~/sandbox/tmp_20260825_180339_53321/nonstiffbvp-current/benchmarks/NonStiffBVP/Project.toml`
  [ded0fc24] BVProblemLibrary v0.1.13
  [6e4b80f9] BenchmarkTools v1.8.0
  [764a87c0] BoundaryValueDiffEq v5.25.0
  [13f3f980] CairoMakie v0.15.14
⌃ [f3b72e0c] DiffEqDevTools v3.6.1
  [5959db7a] NonlinearSolveFirstOrder v2.5.0
  [54ca160b] ODEInterface v0.5.2
  [1dea7af3] OrdinaryDiffEq v7.8.1
  [1344f307] OrdinaryDiffEqLowOrderRK v2.2.5
  [91a5bcdd] Plots v1.41.7
  [0bca4576] SciMLBase v3.50.2
⌃ [31c91b34] SciMLBenchmarks v0.1.3
  [be0294bd] SimpleBoundaryValueDiffEq v1.6.0
Info Packages marked with ⌃ have new versions available and may be upgradable.
