PDESystemLibrary.jl Work-Precision Diagrams with Various MethodOfLines.jl Methods

This benchmark is for the MethodOfLines.jl package, which is an automatic PDE discretization package. It is concerned with comparing the performance of various discretization methods for the Burgers equation.

using MethodOfLines, DomainSets, OrdinaryDiffEq, ModelingToolkit, DiffEqDevTools,
      LinearAlgebra,
      LinearSolve, Plots, RecursiveFactorization
using PDESystemLibrary

solver = FBDF()

FBDF(; max_order = Val{5}(), linsolve = nothing, nlsolve = OrdinaryDiffEqNo
nlinearSolve.NLNewton{Rational{Int64}, Rational{Int64}, Rational{Int64}, No
thing}(1//100, 10, 1//5, 1//5, false, true, nothing), κ = nothing, tol = no
thing, extrapolant = linear, step_limiter! = trivial_limiter!, autodiff = A
DTypes.AutoForwardDiff(), stald = true, stald_rrcut = 0.98, stald_vrrtol =
0.0001, stald_vrrt2 = 0.0005, stald_sqtol = 0.001, stald_rrtol = 0.01, stal
d_tiny = 1.0e-90, concrete_jac = nothing, qmax = 10//1, qsteady_min = 9//10
, qsteady_max = 2//1,)

Next we define some functions to generate appropriate discretizations for the PDESystemLibrary systems.

function center_uniform_grid(ex, ivs, N)
    map(ivs) do x
        xdomain = ex.domain[findfirst(d -> isequal(x, d.variables), ex.domain)]
        x => (DomainSets.supremum(xdomain.domain) - DomainSets.infimum(xdomain.domain)) /
             (floor(N^(1 / length(ivs))) - 1)
    end
end

function edge_uniform_grid(ex, ivs, N)
    map(ivs) do x
        xdomain = ex.domain[findfirst(d -> isequal(x, d.variables), ex.domain)]
        x => (DomainSets.supremum(xdomain.domain) - DomainSets.infimum(xdomain.domain)) /
             (floor(N^(1 / length(ivs))))
    end
end

function center_chebygrid(ex, ivs, N)
    map(ivs) do x
        xdomain = ex.domain[findfirst(d -> isequal(x, d.variables), ex.domain)]
        chebyspace(trunc(Int, N^(1 / length(ivs))), xdomain)
    end
end

function edge_chebygrid(ex, ivs, N)
    map(ivs) do x
        xdomain = ex.domain[findfirst(d -> isequal(x, d.variables), ex.domain)]
        chebyspace(trunc(Int, N^(1 / length(ivs))) - 1, xdomain)
    end
end

function uniformupwind1(ex, ivs, t, N)
    dxs = center_uniform_grid(ex, ivs, N)

    MOLFiniteDifference(dxs, t, advection_scheme = UpwindScheme())
end

function uniformupwind2(ex, ivs, t, N)
    dxs = edge_uniform_grid(ex, ivs, N)

    MOLFiniteDifference(dxs, t, advection_scheme = UpwindScheme(), grid_align = edge_align)
end

function chebyupwind1(ex, ivs, t, N)
    dxs = center_chebygrid(ex, ivs, N)

    MOLFiniteDifference(dxs, t, advection_scheme = UpwindScheme())
end

function chebyupwind2(ex, ivs, t, N)
    dxs = edge_chebygrid(ex, ivs, N)

    MOLFiniteDifference(dxs, t, advection_scheme = UpwindScheme(), grid_align = edge_align)
end

function discweno1(ex, ivs, t, N)
    dxs = center_uniform_grid(ex, ivs, N)

    MOLFiniteDifference(dxs, t, advection_scheme = WENOScheme())
end

function discweno2(ex, ivs, t, N)
    dxs = edge_uniform_grid(ex, ivs, N)

    MOLFiniteDifference(dxs, t, advection_scheme = WENOScheme(), grid_align = edge_align)
end

discweno2 (generic function with 1 method)

This script tests the Burgers systems in PDESystemLibrary against different MethodOfLines.jl discretizations. It then plots the work precision sets.

N = 100
for ex in get_pdesys_with_tags(["Burgers"])
    if ex.analytic_func === nothing
        continue
    end
    ivs = filter(x -> !isequal(Symbol(x), :t), ex.ivs)
    if length(ivs) == 0
        continue
    elseif length(ivs) == length(ex.ivs)
        continue
    else
        @parameters t
        # Create discretizations
        # Note: Chebyshev (non-uniform) grids with UpwindScheme fail for
        # parameterized advection terms due to a MethodOfLines pattern matching
        # bug. Only use uniform grids for now.
        discuu1 = uniformupwind1(ex, ivs, t, N)
        discuu2 = uniformupwind2(ex, ivs, t, N)
        discs = [discuu1, discuu2]
        disc_names = ["Uniform Upwind, center_align", "Uniform Upwind, edge_align"]
        if "Advection" in ex.metadata
            discw1 = discweno1(ex, ivs, t, N)
            discw2 = discweno2(ex, ivs, t, N)
            push!(discs, discw1, discw2)
            push!(disc_names, "Uniform WENO, center_align", "Uniform WENO, edge_align")
        end

        # Create problems
        probs = map(discs) do disc
            discretize(ex, disc, analytic = ex.analytic_func)
        end

        title = "Work Precision Diagram for $(ex.name), Tags: $(ex.metadata)"
        println("Running $title")
        dummy_appxsol = [nothing for i in 1:length(probs)]
        abstols = 1.0 ./ 10.0 .^ (5:8)
        reltols = 1.0 ./ 10.0 .^ (1:4);
        setups = [Dict(:alg => solver, :prob_choice => i) for i in 1:length(probs)]

        wp = WorkPrecisionSet(probs, abstols, reltols, setups; names = disc_names,
            save_everystep = false, appxsol = dummy_appxsol, maxiters = Int(1e5),
            numruns = 10, wrap = Val(false))
        display(plot(wp, title = title))
    end
end

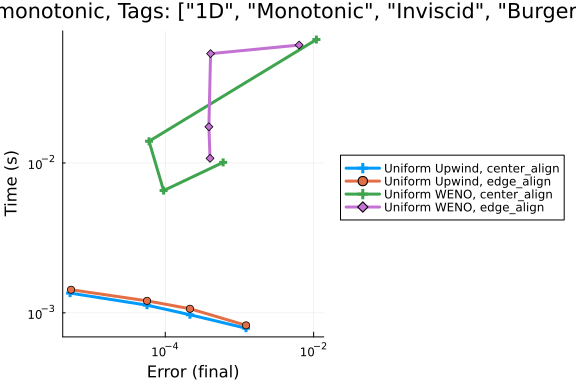

Running Work Precision Diagram for inviscid_burgers_monotonic, Tags: ["1D",
 "Monotonic", "Inviscid", "Burgers", "Advection", "Dirichlet"]

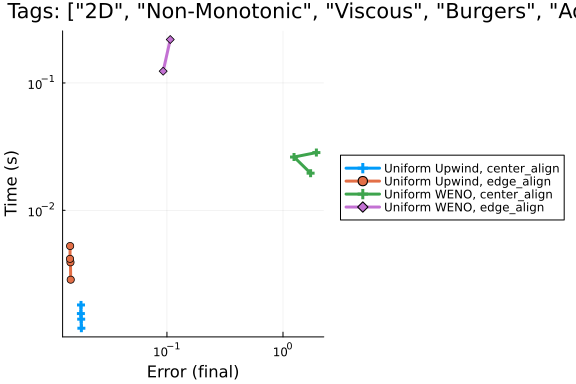

Running Work Precision Diagram for burgers_2d, Tags: ["2D", "Non-Monotonic"
, "Viscous", "Burgers", "Advection", "Dirichlet"]
