Kortwrieg-de Vries Equation FDM Work-Precision Diagrams
Problem Description
The Kortwrieg de Vries (KdV) partial differential equation is solved on the domain $[-L, L] \times [0, T] \in \mathbb R \times R,~L = 16,~T = 5$, with the following initial and periodic boundary conditions:
\[\begin{align} \partial_t u(t,x) & = -6u(t,x)\partial_x u(t,x) -\partial_x^3 u(t,x), \\ u(0,x) & = \cos\left(\frac{\pi x}{L}\right), \\ u(t,-L) & = u(t,L) = -1. \end{align}\]
The spatial derivative operators are represented via finite difference approximations on an equispaced grid of points $x_s \in [-L, L]$.
\[\begin{align} \frac{du}{dt} & = -6uD_x u -D_x^3 u, \\ u(0,x_s) & = \cos\left(\frac{\pi x_s}{L}\right), \\ u(t,-L) & = u(t,L) = -1. \end{align}\]
Implementation
using OrdinaryDiffEq
using OrdinaryDiffEqBDF, OrdinaryDiffEqExponentialRK, OrdinaryDiffEqFIRK, OrdinaryDiffEqIMEXMultistep, OrdinaryDiffEqRosenbrock, OrdinaryDiffEqSDIRK
using DiffEqDevTools
using SciMLOperators
using LinearSolve
using LinearAlgebra
using SparseArrays
using Sundials
using SummationByPartsOperators
const SBP = SummationByPartsOperators
using Plots
gr();nonlinear_convection!(du, u, p, t) = du .= (-6 * p.alpha / 3) * (u .* (p.D1 * u) + p.D1 * (u .^ 2))
# Construct the problem
function kortwrieg_de_vries(N, L, alpha)
D1 = periodic_derivative_operator(derivative_order = 1, accuracy_order = 4,
xmin = -L, xmax = L, N = N)
D3 = periodic_derivative_operator(derivative_order = 3, accuracy_order = 4,
xmin = -L, xmax = L, N = N)
# u0 = usol.(first(tspan), SBP.grid(D1))
x = SBP.grid(D1)
u0 = @. cos(π * x / L) # Initial condition
p = (; D1, alpha)
tspan = (0.0, 1.0)
prob = SplitODEProblem(MatrixOperator(-p.alpha * sparse(D3)),
nonlinear_convection!,
u0, tspan, p);
return x, prob
end;Reference Solution
Using an adaptive timestepping method to solve the system of ordinary differential equations with high precision.
N = 128 # Number of grid points
L = 16.0 # Domain length
alpha = 5.0 # Time scaling factor
xs, prob = kortwrieg_de_vries(N, L, alpha)
@time sol = solve(prob, AutoVern7(Rodas5P(autodiff=AutoFiniteDiff()));
dt = 1e-4, abstol = 1e-14, reltol = 1e-14);
test_sol = TestSolution(sol) # Reference solution for error estimation
tslices = LinRange(prob.tspan..., 50)
ys = mapreduce(sol, hcat, tslices)

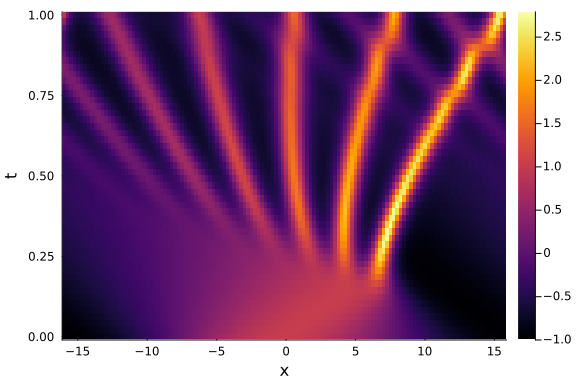

plt = heatmap(xs, tslices, ys', xlabel="x", ylabel="t")9.325016 seconds (10.49 M allocations: 1.096 GiB, 5.39% gc time, 93.77% c
ompilation time)
Work-Precision Diagrams
High Tolerances
Implicit-Explicit Methods
abstols = 0.1 .^ (5:8) # all fixed dt methods so these don't matter much
reltols = 0.1 .^ (1:4)
multipliers = 0.5 .^ (0:3)
setups = [
Dict(:alg => IMEXEuler(), :dts => 1e-4 * multipliers),
Dict(:alg => CNAB2(), :dts => 1e-4 * multipliers),
Dict(:alg => CNLF2(), :dts => 1e-4 * multipliers),
Dict(:alg => SBDF2(), :dts => 1e-4 * multipliers),
]
labels = hcat(
"IMEXEuler",
"CNAB2",
"CNLF2",
"SBDF2",
)
@time wp = WorkPrecisionSet(prob, abstols, reltols, setups;
print_names=true, names=labels, numruns=5, error_estimate=:l2,
save_everystep=false, appxsol=test_sol, maxiters=Int(1e5));
plot(wp, label=labels, markershape=:auto, title="Work-Precision Diagram, High Tolerance")IMEXEuler
CNAB2
CNLF2
SBDF2
106.449272 seconds (63.80 M allocations: 27.695 GiB, 12.99% gc time, 23.51%
compilation time)
Exponential Integrators
abstols = 0.1 .^ (5:8) # all fixed dt methods so these don't matter much
reltols = 0.1 .^ (1:4)
multipliers = 0.5 .^ (0:3)
setups = [
Dict(:alg => NorsettEuler(), :dts => 1e-4 * multipliers),
Dict(:alg => NorsettEuler(krylov=true, m=5), :dts => 1e-4 * multipliers),
Dict(:alg => NorsettEuler(krylov=true, m=20), :dts => 1e-4 * multipliers),
Dict(:alg => ETDRK2(), :dts => 1e-4 * multipliers),
Dict(:alg => ETDRK2(krylov=true, m=5), :dts => 1e-4 * multipliers),
Dict(:alg => ETDRK2(krylov=true, m=20), :dts => 1e-4 * multipliers)
]
labels = hcat(
"NorsettEuler (caching)",
"NorsettEuler (m=5)",
"NorsettEuler (m=20)",
"ETDRK2 (caching)",
"ETDRK2 (m=5)",
"ETDRK2 (m=20)"
)
@time wp = WorkPrecisionSet(prob, abstols, reltols, setups;
print_names=true, names=labels, numruns=5, error_estimate=:l2,
save_everystep=false, appxsol=test_sol, maxiters=Int(1e5));

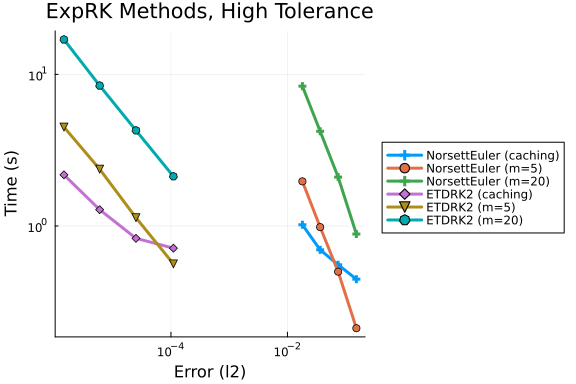

plot(wp, label=labels, markershape=:auto, title="ExpRK Methods, High Tolerance")NorsettEuler (caching)
NorsettEuler (m=5)
NorsettEuler (m=20)
ETDRK2 (caching)
ETDRK2 (m=5)
ETDRK2 (m=20)
250.559218 seconds (128.27 M allocations: 66.499 GiB, 10.45% gc time, 6.64%
compilation time)
Comparisons Between Families
abstols = 0.1 .^ (5:8) # all fixed dt methods so these don't matter much
reltols = 0.1 .^ (1:4)
multipliers = 0.5 .^ (0:3)
setups = [
Dict(:alg => CNAB2(), :dts => 1e-4 * multipliers),
Dict(:alg => CNAB2(linsolve=KrylovJL_GMRES()), :dts => 1e-4 * multipliers),
Dict(:alg => ETDRK2(), :dts => 1e-4 * multipliers),
]
labels = hcat(
"CNAB2 (dense)",
"CNAB2 (Krylov)",
"ETDRK2 (caching)",
)
@time wp = WorkPrecisionSet(prob, abstols, reltols, setups;
print_names=true, names=labels, numruns=5, error_estimate=:l2,
save_everystep=false, appxsol=test_sol, maxiters=Int(1e5));

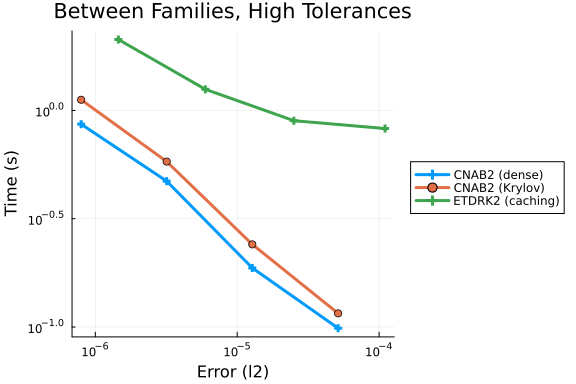

plot(wp, label=labels, markershape=:auto, title="Between Families, High Tolerances")CNAB2 (dense)
CNAB2 (Krylov)
ETDRK2 (caching)
78.735444 seconds (35.33 M allocations: 32.019 GiB, 18.20% gc time, 4.58%
compilation time)
Low Tolerances
Implicit-Explicit Methods
OrdinaryDiffEq defaults and Sundials Krylov linear solvers.
abstols = 0.1 .^ (8:12)
reltols = 0.1 .^ (5:9)
setups = [
Dict(:alg => KenCarp3()),
Dict(:alg => KenCarp4()),
Dict(:alg => KenCarp5()),
Dict(:alg => ARKODE(Sundials.Implicit(), order=3, linear_solver=:GMRES)),
Dict(:alg => ARKODE(Sundials.Implicit(), order=4, linear_solver=:GMRES)),
Dict(:alg => ARKODE(Sundials.Implicit(), order=5, linear_solver=:GMRES)),
]
labels = hcat(
"KenCarp3 (default)",
"KenCarp4 (default)",
"KenCarp5 (default)",
"ARKODE3 (Krylov)",
"ARKODE4 (Krylov)",
"ARKODE5 (Krylov)",
)
@time wp = WorkPrecisionSet(prob, abstols, reltols, setups;
print_names=true, names=labels, numruns=5, error_estimate=:l2,
save_everystep=false, appxsol=test_sol, maxiters=Int(1e5));
plot(wp, label=labels, markershape=:auto, title="IMEX Methods, Low Tolerances")KenCarp3 (default)
KenCarp4 (default)
KenCarp5 (default)
ARKODE3 (Krylov)
ARKODE4 (Krylov)
ARKODE5 (Krylov)
110.910359 seconds (92.92 M allocations: 14.582 GiB, 5.68% gc time, 36.99%
compilation time)
Exponential Integrators
abstols = 0.1 .^ (7:11) # all fixed dt methods so these don't matter much
reltols = 0.1 .^ (4:8)
multipliers = 0.5 .^ (0:4)
setups = [Dict(:alg => ETDRK3(), :dts => 1e-3 * multipliers),
Dict(:alg => ETDRK4(), :dts => 1e-3 * multipliers),
Dict(:alg => HochOst4(), :dts => 1e-3 * multipliers)]
labels = hcat(
"ETDRK3 (caching)",
"ETDRK4 (caching)",
"HochOst4 (caching)",
)
@time wp = WorkPrecisionSet(prob, abstols, reltols, setups;
print_names=true, names=labels, numruns=5, error_estimate=:l2,
save_everystep=false, appxsol=test_sol, maxiters=Int(1e5));

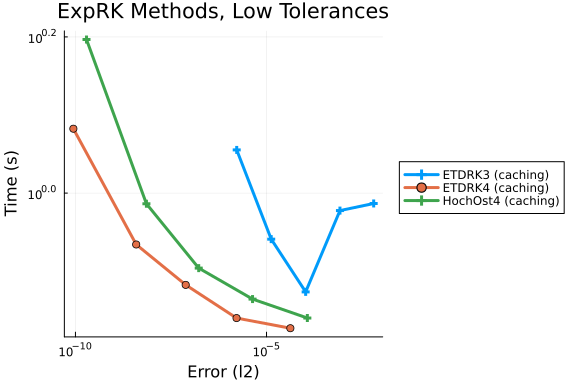

plot(wp, label=labels, markershape=:auto, title="ExpRK Methods, Low Tolerances")ETDRK3 (caching)
ETDRK4 (caching)
HochOst4 (caching)
146.578487 seconds (24.04 M allocations: 45.649 GiB, 4.86% gc time, 6.78% c
ompilation time)
Comparisons Between Families
abstols = 0.1 .^ (7:11)
reltols = 0.1 .^ (4:8)
multipliers = 0.5 .^ (0:4)
setups = [
Dict(:alg => ARKODE(Sundials.Implicit(), order=5, linear_solver=:GMRES)),
Dict(:alg => ETDRK3(), :dts => 1e-2 * multipliers),
Dict(:alg => ETDRK4(), :dts => 1e-2 * multipliers),
]
labels = hcat(
"ARKODE5 (Krylov)",
"ETDRK3 (caching)",
"ETDRK4 (caching)",
)
@time wp = WorkPrecisionSet(prob, abstols, reltols, setups;
print_names=true, names=labels, numruns=5, error_estimate=:l2,
save_everystep=false, appxsol=test_sol, maxiters=Int(1e5));

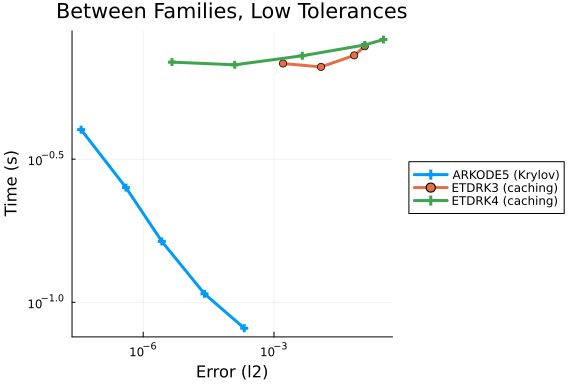

plot(wp, label=labels, markershape=:auto, title="Between Families, Low Tolerances")ARKODE5 (Krylov)
ETDRK3 (caching)
ETDRK4 (caching)
105.731634 seconds (17.07 M allocations: 24.312 GiB, 1.62% gc time, 0.02% c
ompilation time)
Appendix
These benchmarks are a part of the SciMLBenchmarks.jl repository, found at: https://github.com/SciML/SciMLBenchmarks.jl. For more information on high-performance scientific machine learning, check out the SciML Open Source Software Organization https://sciml.ai.
To locally run this benchmark, do the following commands:
using SciMLBenchmarks
SciMLBenchmarks.weave_file("benchmarks/SimpleHandwrittenPDE","kdv_fdm_wpd.jmd")Computer Information:
