High-Order Weak SDE Work-Precision Diagrams

High-Order Weak SDE Work-Precision Diagrams

This benchmark compares high-order weak SDE solvers (DRI1, PL1WM, RDI1WM, RDI2WM) against standard baselines (EM, SimplifiedEM) on problems with non-commutative noise. These methods target high-accuracy computation of expectations $\mathbb{E}[f(X(t))]$ rather than pathwise accuracy.

Non-Commutative Noise Problem

We consider a 2-dimensional SDE with non-commutative noise:

\[dX_t = f(X_t) dt + g(X_t) dW_t, \quad X_0 = [1, 1]\]

with a known analytical result $\mathbb{E}[X_1(t)^2] = \exp(-t)$.

using StochasticDiffEq, DiffEqDevTools, Random, Plots
using SciMLLogging
gr()

u₀ = [1.0, 1.0]
function f_noncommutative!(du, u, p, t)
    @inbounds begin
        du[1] = -273 // 512 * u[1]
        du[2] = -1 // 160 * u[1] - (-785 // 512 + sqrt(2) / 8) * u[2]
    end
    return nothing
end
function g_noncommutative!(du, u, p, t)
    @inbounds begin
        du[1, 1] = 1 // 4 * u[1]
        du[1, 2] = 1 // 16 * u[1]
        du[2, 1] = (1 - 2 * sqrt(2)) / 4 * u[1]
        du[2, 2] = 1 // 10 * u[1] + 1 // 16 * u[2]
    end
    return nothing
end
tspan = (0.0, 3.0)

prob = SDEProblem(f_noncommutative!, g_noncommutative!, u₀, tspan,
    noise_rate_prototype = zeros(2, 2))
SDEProblem with uType Vector{Float64} and tType Float64. In-place: true
Non-trivial mass matrix: false
timespan: (0.0, 3.0)
u0: 2-element Vector{Float64}:
 1.0
 1.0

Weak Convergence Order

We verify the weak convergence order of the methods using $\mathbb{E}[X_1(T)^2]$ as the observable. The analytical solution is $\exp(-3)$.

numtraj = Int(1e5)
seed = 100
Random.seed!(seed)
seeds = rand(UInt, numtraj)

function prob_func(prob, ctx)
    remake(prob, seed = seeds[ctx.sim_id])
end

h2(z) = z^2

ensemble_prob = EnsembleProblem(prob;
    output_func = (sol, ctx) -> (h2(sol.u[end][1]), false),
    prob_func = prob_func)

dts = 1 .// 2 .^ (3:-1:0)

sim_dri1 = test_convergence(dts, ensemble_prob, DRI1(),
    save_everystep = false, trajectories = numtraj, save_start = false,
    adaptive = false, weak_timeseries_errors = false,
    weak_dense_errors = false, expected_value = exp(-3.0))

sim_pl1wm = test_convergence(dts, ensemble_prob, PL1WM(),
    save_everystep = false, trajectories = numtraj, save_start = false,
    adaptive = false, weak_timeseries_errors = false,
    weak_dense_errors = false, expected_value = exp(-3.0))

sim_rdi1wm = test_convergence(dts, ensemble_prob, RDI1WM(),
    save_everystep = false, trajectories = numtraj, save_start = false,
    adaptive = false, weak_timeseries_errors = false,
    weak_dense_errors = false, expected_value = exp(-3.0))

sim_rdi2wm = test_convergence(dts, ensemble_prob, RDI2WM(),
    save_everystep = false, trajectories = numtraj, save_start = false,
    adaptive = false, weak_timeseries_errors = false,
    weak_dense_errors = false, expected_value = exp(-3.0))

sim_em = test_convergence(dts, ensemble_prob, EM(),
    save_everystep = false, trajectories = numtraj, save_start = false,
    adaptive = false, weak_timeseries_errors = false,
    weak_dense_errors = false, expected_value = exp(-3.0))

sim_simplified_em = test_convergence(dts, ensemble_prob, SimplifiedEM(),
    save_everystep = false, trajectories = numtraj, save_start = false,
    adaptive = false, weak_timeseries_errors = false,
    weak_dense_errors = false, expected_value = exp(-3.0))

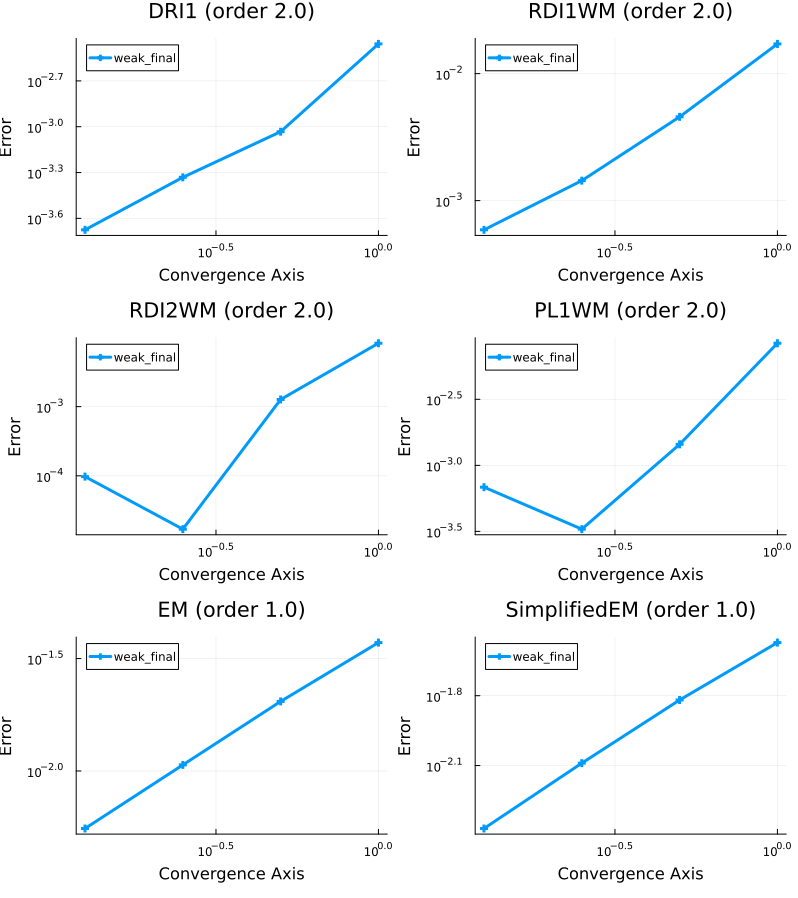

plot(
    plot(sim_dri1, title = "DRI1 (order 2.0)"),
    plot(sim_rdi1wm, title = "RDI1WM (order 2.0)"),
    plot(sim_rdi2wm, title = "RDI2WM (order 2.0)"),
    plot(sim_pl1wm, title = "PL1WM (order 2.0)"),
    plot(sim_em, title = "EM (order 1.0)"),
    plot(sim_simplified_em, title = "SimplifiedEM (order 1.0)"),
    layout = (3, 2), size = (800, 900))

Work-Precision Diagram (Non-Commutative Noise)

reltols = 1.0 ./ 4.0 .^ (1:4)
abstols = reltols

setups = [
    Dict(:alg => DRI1(), :dts => dts, :adaptive => false),
    Dict(:alg => PL1WM(), :dts => dts, :adaptive => false),
    Dict(:alg => RDI1WM(), :dts => dts, :adaptive => false),
    Dict(:alg => RDI2WM(), :dts => dts, :adaptive => false),
    Dict(:alg => EM(), :dts => dts, :adaptive => false),
    Dict(:alg => SimplifiedEM(), :dts => dts, :adaptive => false)]

test_dt = 1 // 10000
appxsol_setup = Dict(:alg => EM(), :dt => test_dt)

wp = WorkPrecisionSet(ensemble_prob,
    abstols, reltols, setups, test_dt;
    maxiters = 1e7, verbose = SciMLLogging.None(),
    save_everystep = false, save_start = false,
    appxsol_setup = appxsol_setup,
    expected_value = exp(-3.0),
    trajectories = numtraj, error_estimate = :weak_final)

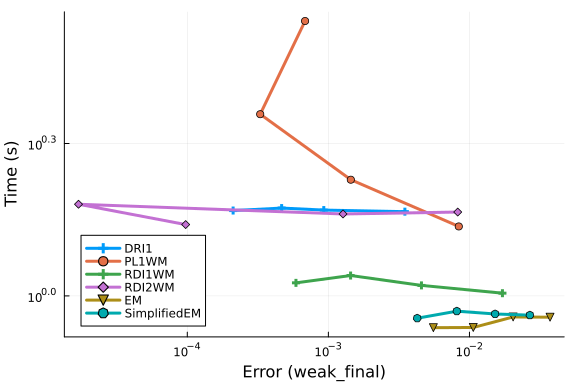

plot(wp; legend = :bottomleft)

Stochastic Brusselator

The stochastic Brusselator equations with scalar noise serve as a more challenging benchmark. The system exhibits oscillatory behavior requiring careful step-size control.

\[\begin{aligned} dX_1 &= \left[(p_1-1)X_1 + p_1 X_1^2 + (X_1+1)^2 X_2\right]dt + p_2 X_1(1+X_1) dW_t \\ dX_2 &= \left[-p_1 X_1 - p_1 X_1^2 - (X_1+1)^2 X_2\right]dt - p_2 X_1(1+X_1) dW_t \end{aligned}\]

with $X_0 = [-0.1, 0]$, $p = [1.9, 0.1]$, and $t \in [0, 100]$.

using DiffEqNoiseProcess

function brusselator_f!(du, u, p, t)
    @inbounds begin
        du[1] = (p[1] - 1) * u[1] + p[1] * u[1]^2 + (u[1] + 1)^2 * u[2]
        du[2] = -p[1] * u[1] - p[1] * u[1]^2 - (u[1] + 1)^2 * u[2]
    end
    nothing
end

function brusselator_scalar_noise!(du, u, p, t)
    @inbounds begin
        du[1] = p[2] * u[1] * (1 + u[1])
        du[2] = -p[2] * u[1] * (1 + u[1])
    end
    nothing
end

seed = 100
Random.seed!(seed)
numtraj_bruss = 100
seeds_bruss = rand(UInt, numtraj_bruss)

function prob_func_bruss(prob, ctx)
    Random.seed!(seeds_bruss[ctx.sim_id])
    W = WienerProcess(0.0, 0.0, 0.0)
    remake(prob, noise = W)
end

u0_bruss = [-0.1, 0.0]
tspan_bruss = (0.0, 100.0)
p_bruss = [1.9, 0.1]

W = WienerProcess(0.0, 0.0, 0.0)
prob_bruss = SDEProblem(brusselator_f!, brusselator_scalar_noise!, u0_bruss,
    tspan_bruss, p_bruss, noise = W)

ensembleprob_bruss = EnsembleProblem(prob_bruss,
    prob_func = prob_func_bruss)
EnsembleProblem with problem SDEProblem

Adaptive vs Fixed Step-Size Comparison

We compare DRI1 with adaptive time-stepping against fixed step-size on the stochastic Brusselator.

sol_adaptive = solve(ensembleprob_bruss, DRI1(), dt = 0.1,
    trajectories = numtraj_bruss)
sol_fixed = solve(ensembleprob_bruss, DRI1(), dt = 0.8,
    adaptive = false, trajectories = numtraj_bruss)

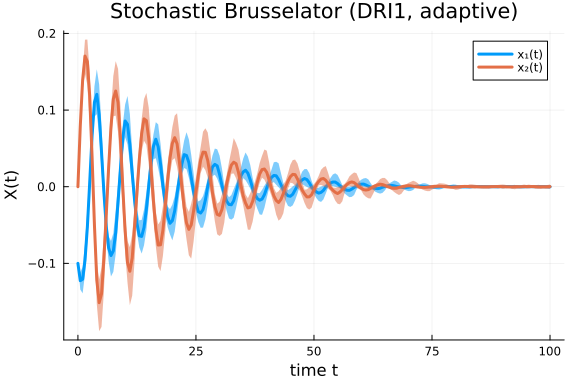

summ = EnsembleSummary(sol_adaptive, 0.0:0.5:100.0)
plot(summ, fillalpha = 0.5, xlabel = "time t", yaxis = "X(t)",
    label = ["x₁(t)" "x₂(t)"], legend = true,
    title = "Stochastic Brusselator (DRI1, adaptive)")

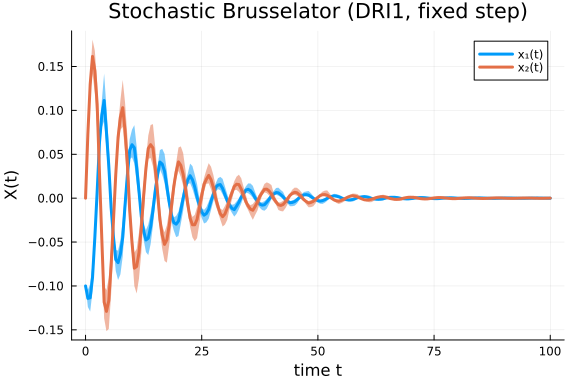

summ_fixed = EnsembleSummary(sol_fixed, 0.0:0.5:100.0)
plot(summ_fixed, fillalpha = 0.5, xlabel = "time t", yaxis = "X(t)",
    label = ["x₁(t)" "x₂(t)"], legend = true,
    title = "Stochastic Brusselator (DRI1, fixed step)")

Solver Comparison on Brusselator

ensembleprob_bruss2 = EnsembleProblem(prob_bruss,
    prob_func = prob_func_bruss)

reltols_bruss = 1.0 ./ 4.0 .^ (1:4)
abstols_bruss = reltols_bruss
dts_bruss = 1.0 ./ 2.0 .^ (1:4)

setups_bruss = [
    Dict(:alg => DRI1(), :dts => dts_bruss, :adaptive => false),
    Dict(:alg => PL1WM(), :dts => dts_bruss, :adaptive => false),
    Dict(:alg => RDI1WM(), :dts => dts_bruss, :adaptive => false),
    Dict(:alg => RDI2WM(), :dts => dts_bruss, :adaptive => false),
    Dict(:alg => EM(), :dts => dts_bruss, :adaptive => false),
    Dict(:alg => SimplifiedEM(), :dts => dts_bruss, :adaptive => false)]

test_dt_bruss = 1 // 1000
appxsol_setup_bruss = Dict(:alg => EM(), :dt => test_dt_bruss)

wp_bruss = WorkPrecisionSet(ensembleprob_bruss2,
    abstols_bruss, reltols_bruss, setups_bruss, test_dt_bruss;
    maxiters = 1e7, verbose = SciMLLogging.None(),
    save_everystep = false, save_start = false,
    appxsol_setup = appxsol_setup_bruss,
    trajectories = numtraj_bruss, error_estimate = :weak_final)

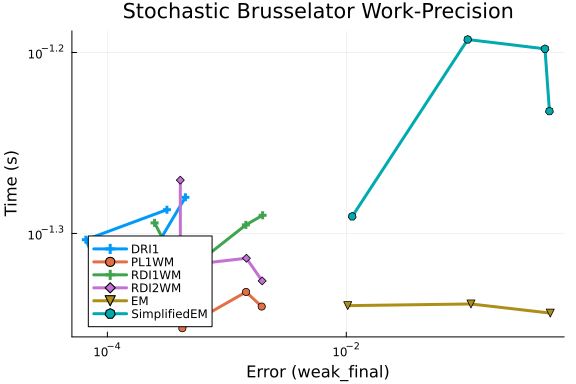

plot(wp_bruss; legend = :bottomleft,
    title = "Stochastic Brusselator Work-Precision")

Summary

The high-order weak methods (DRI1, PL1WM, RDI1WM, RDI2WM) achieve significantly better weak error scaling than EM and SimplifiedEM on the non-commutative noise problem. DRI1 in particular achieves the smallest errors for fixed timesteps. On the stochastic Brusselator, the adaptive time-stepping of DRI1 provides more accurate trajectory descriptions compared to fixed step-size integration.

Appendix

These benchmarks are a part of the SciMLBenchmarks.jl repository, found at: https://github.com/SciML/SciMLBenchmarks.jl. For more information on high-performance scientific machine learning, check out the SciML Open Source Software Organization https://sciml.ai.

To locally run this benchmark, do the following commands:

using SciMLBenchmarks
SciMLBenchmarks.weave_file("benchmarks/NonStiffSDE","HighOrderWeakSDEWorkPrecision.jmd")
